RIO NEGRO
9357975 | 9V8402 | 9357975 by ********* Last update: Mon Jul 08 2024
General Info
Ship Name:RIO NEGRO
IMO Code:9357975
Call Sign:9V8402
Line Operator:9357975
Class Name for Sister Ships:MAE
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):273.45
LOA (Length Overall):286.45
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:065
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:78
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,920
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

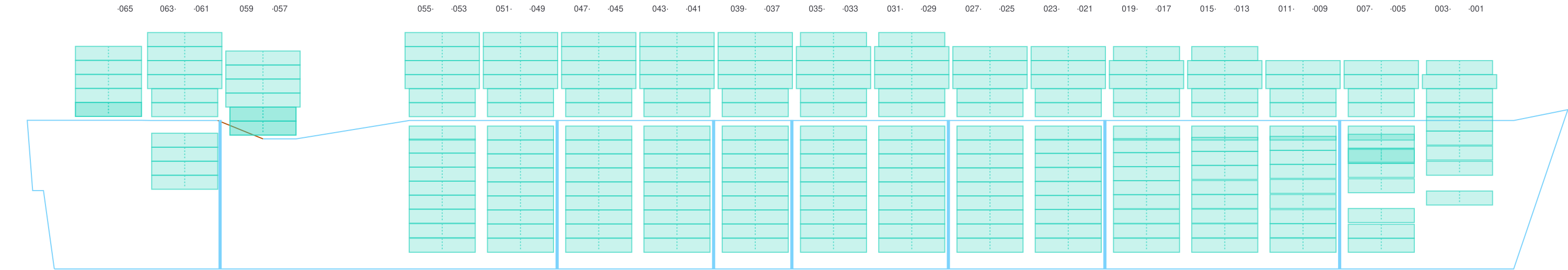

Side View
![Side view of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-sideView.png?v=1720475873368)
Hatch-Covers View
![Deck view of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-deckView.png?v=1720475873368)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

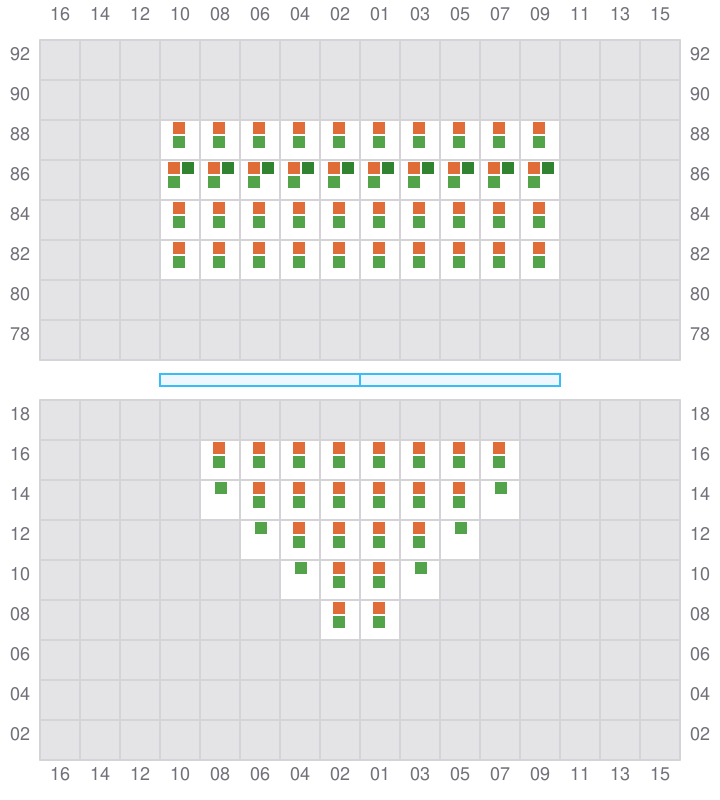

001 (002)
- →
![Bay 001 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b001.png?v=1720475873368)

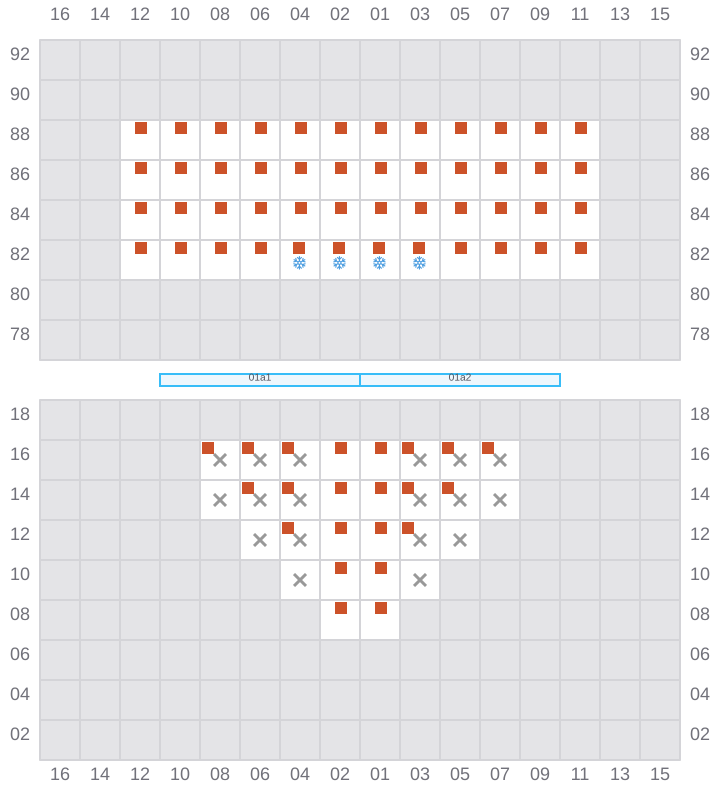

003
- ←
- → / ?
![Bay 003 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b003.png?v=1720475873368)

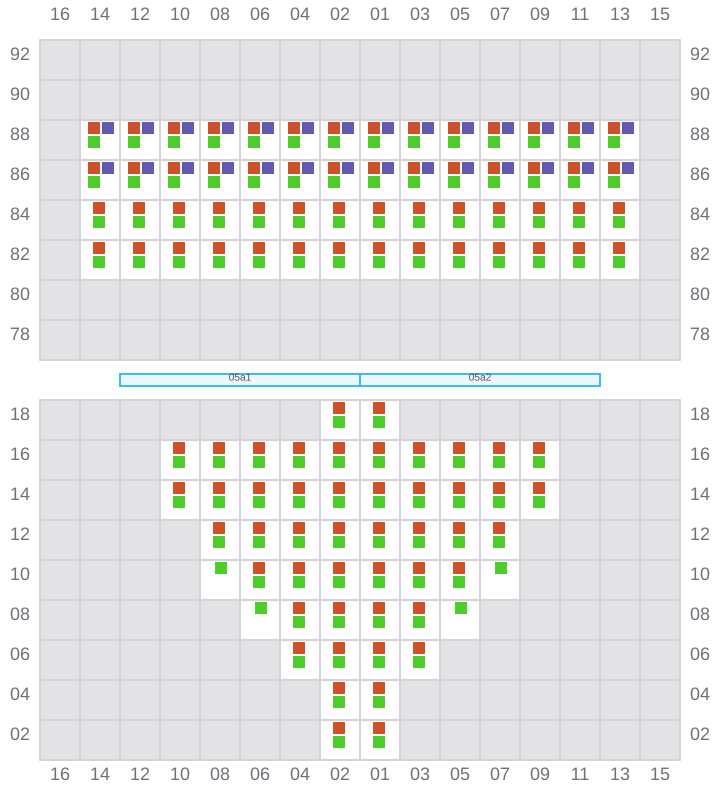

005 (006)
- →
![Bay 005 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b005.png?v=1720475873368)

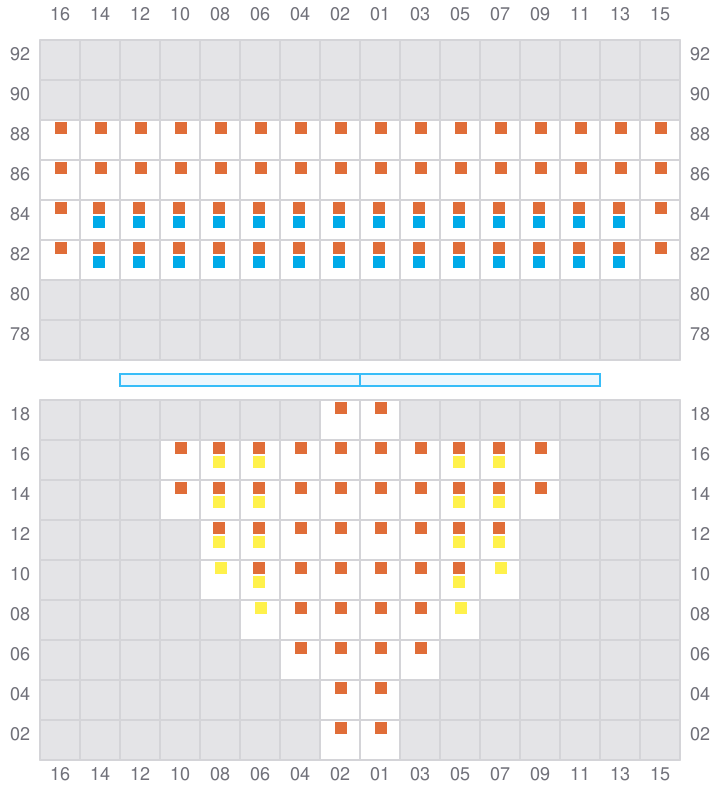

007
- ←
- → / ?
![Bay 007 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b007.png?v=1720475873368)

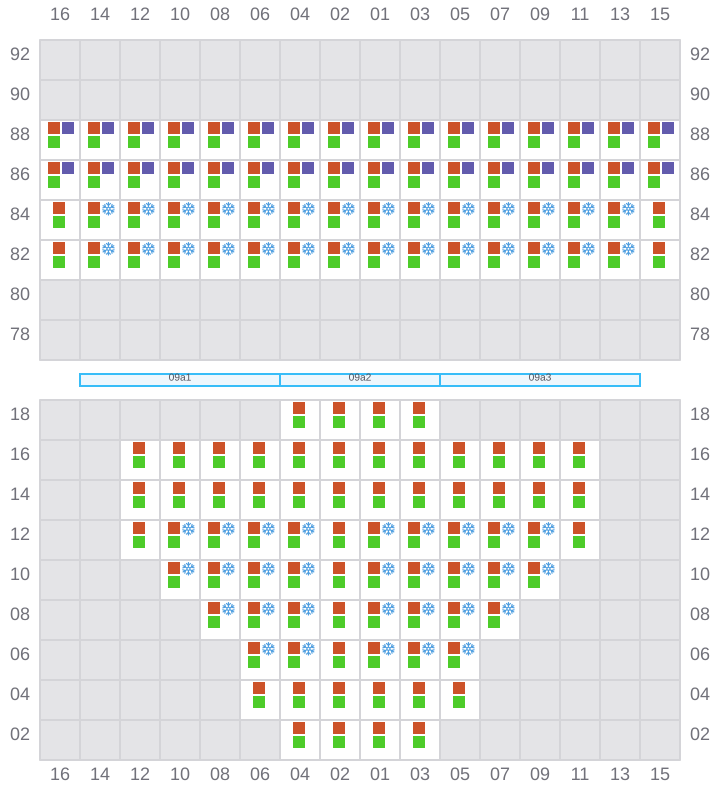

009 (010)
- →
- ←
![Bay 009 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b009.png?v=1720475873368)

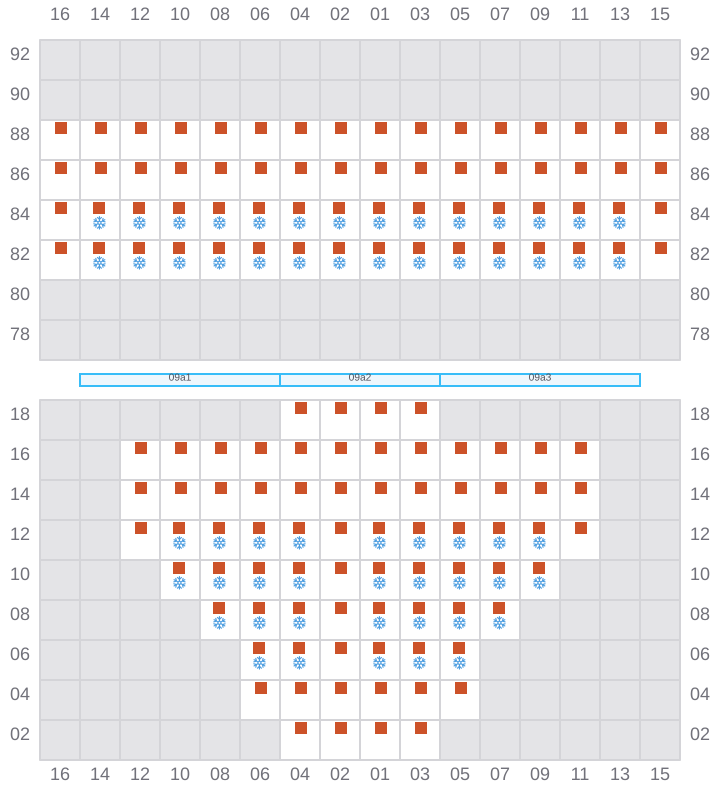

011
- ←
- →
![Bay 011 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b011.png?v=1720475873368)

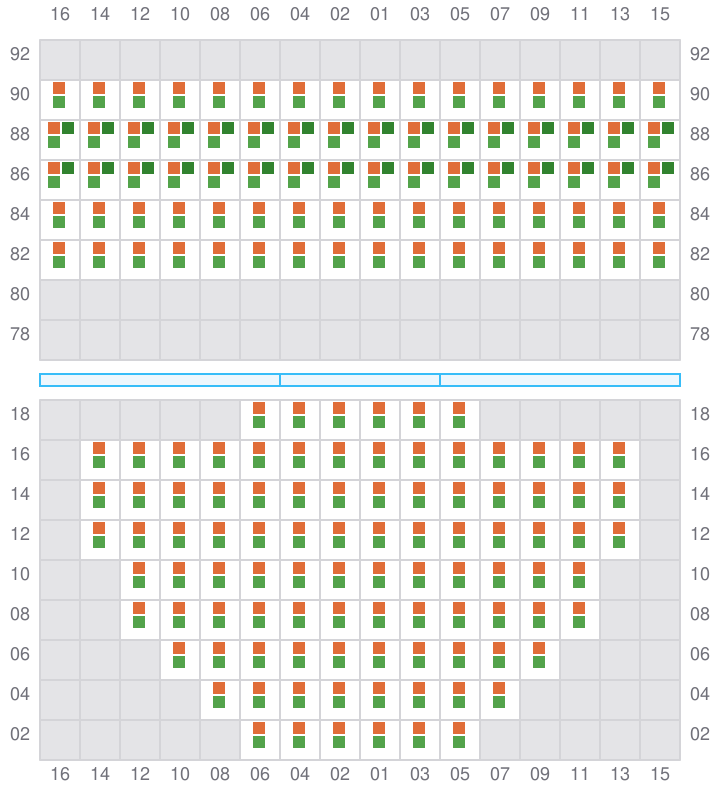

013 (014)
- →
![Bay 013 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b013.png?v=1720475873368)

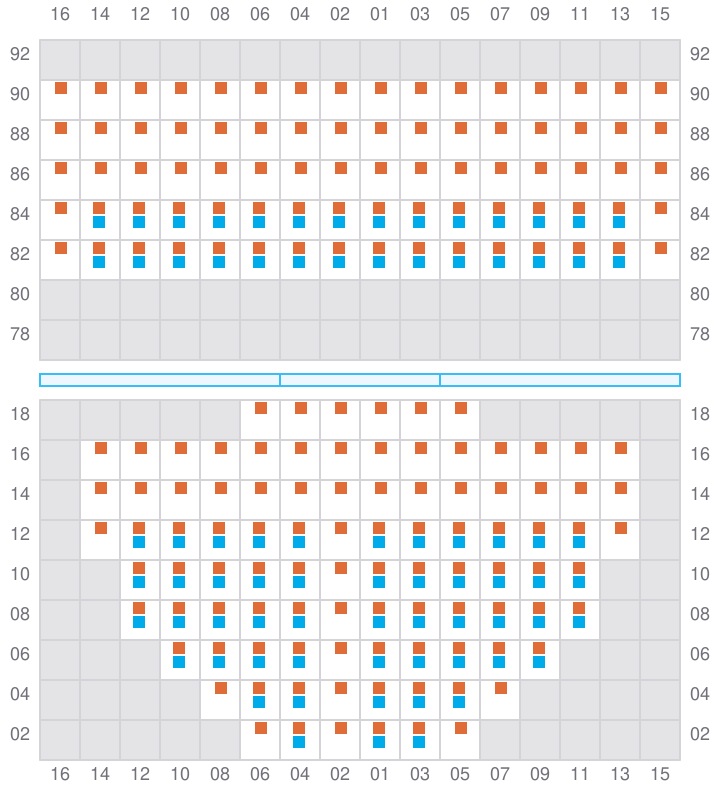

015
- ←
- →
![Bay 015 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b015.png?v=1720475873368)

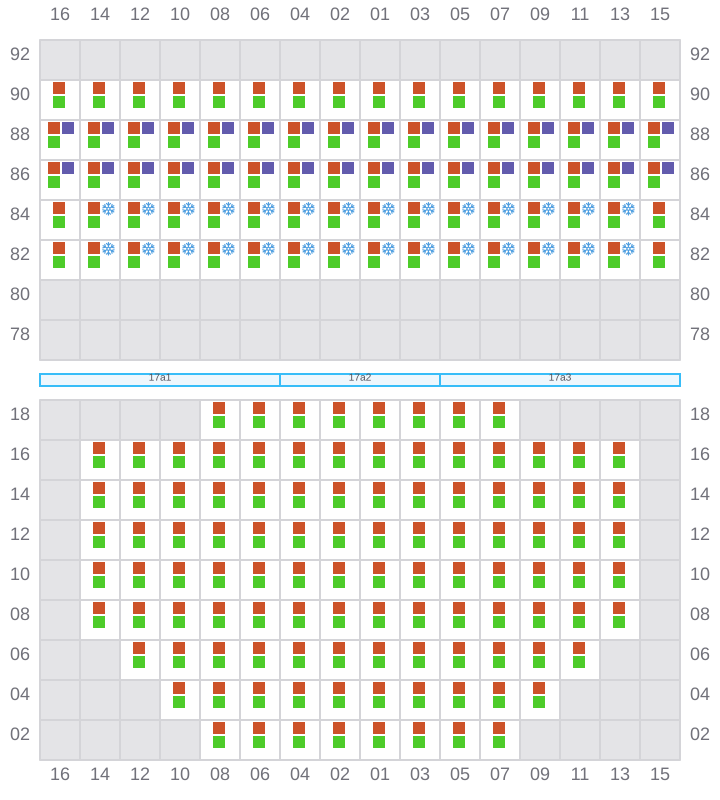

017 (018)
- →
- ← / ?
![Bay 017 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b017.png?v=1720475873368)

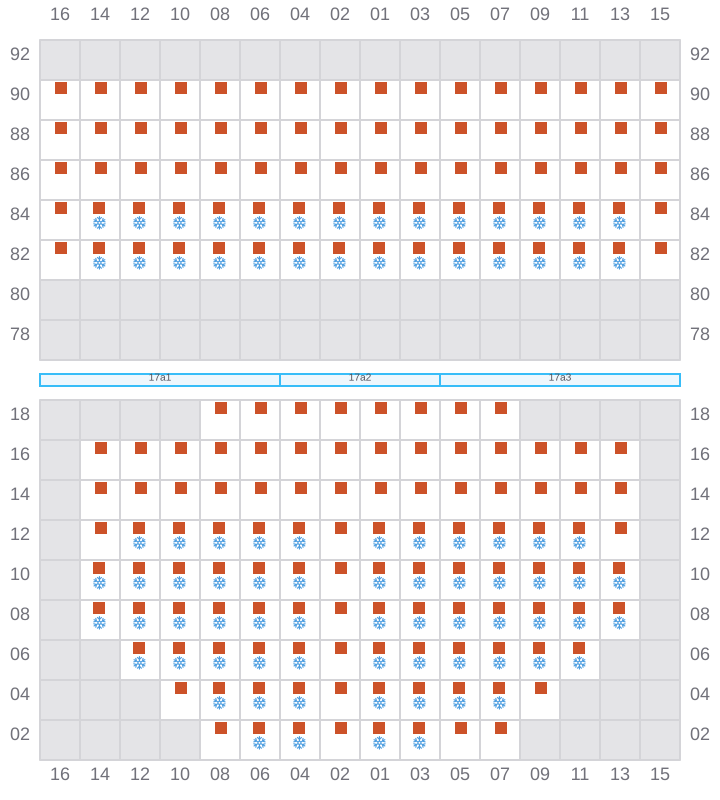

019
- ←
- →
![Bay 019 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b019.png?v=1720475873368)

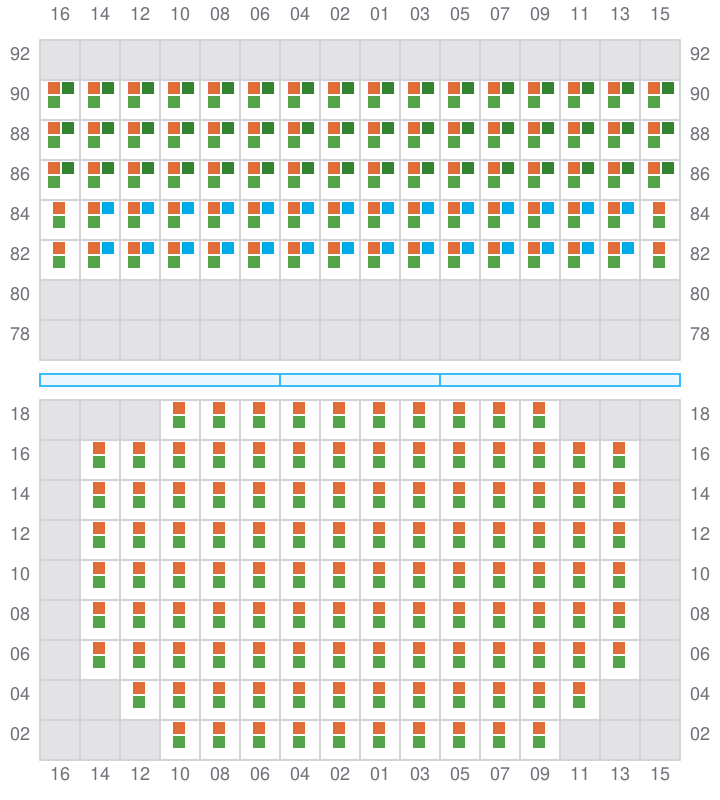

021 (022)
- →
- ← / ?
![Bay 021 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b021.png?v=1720475873368)

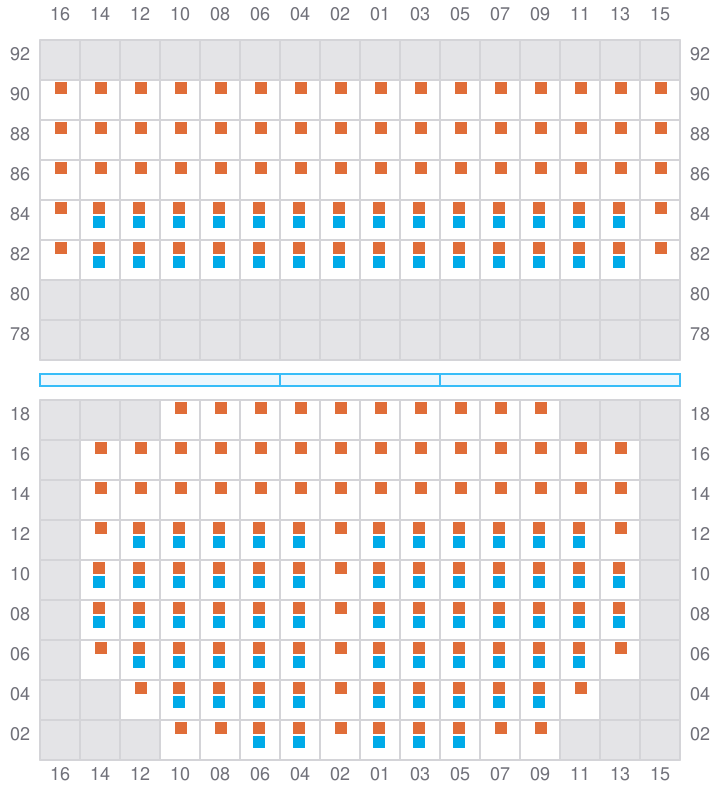

023
- ←
- →
![Bay 023 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b023.png?v=1720475873368)

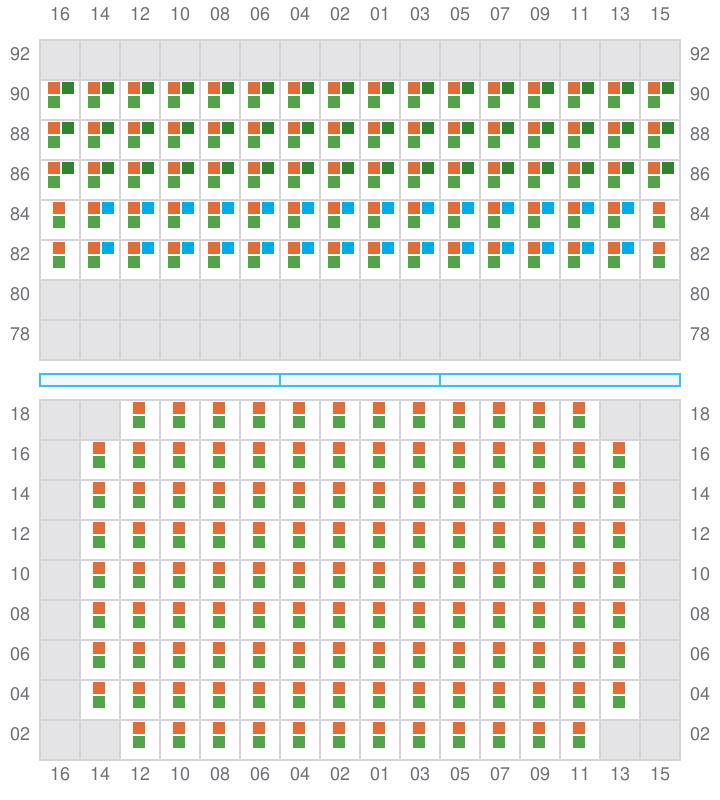

025 (026)
- →
- ← / ?
![Bay 025 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b025.png?v=1720475873368)

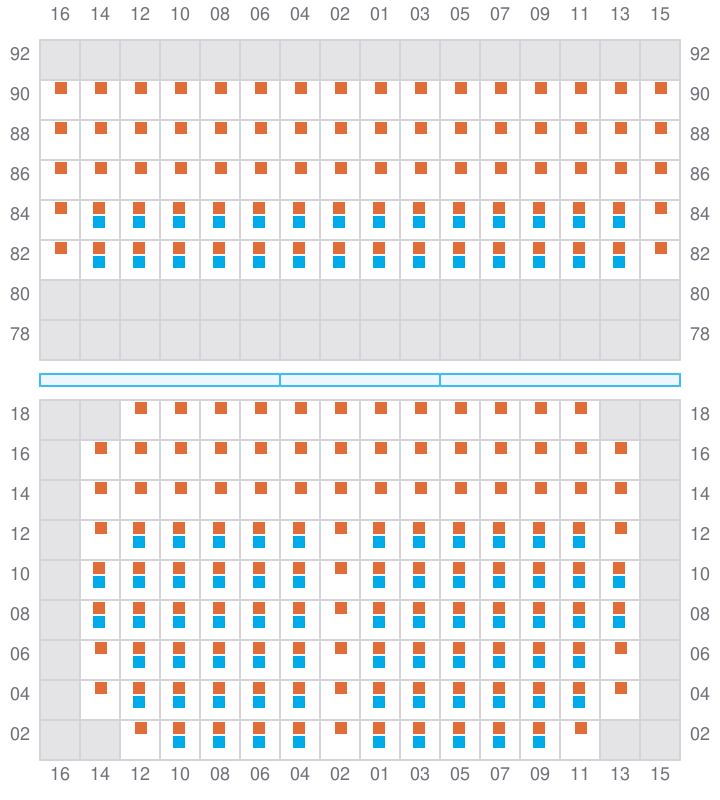

027
- ←
- →
![Bay 027 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b027.png?v=1720475873368)

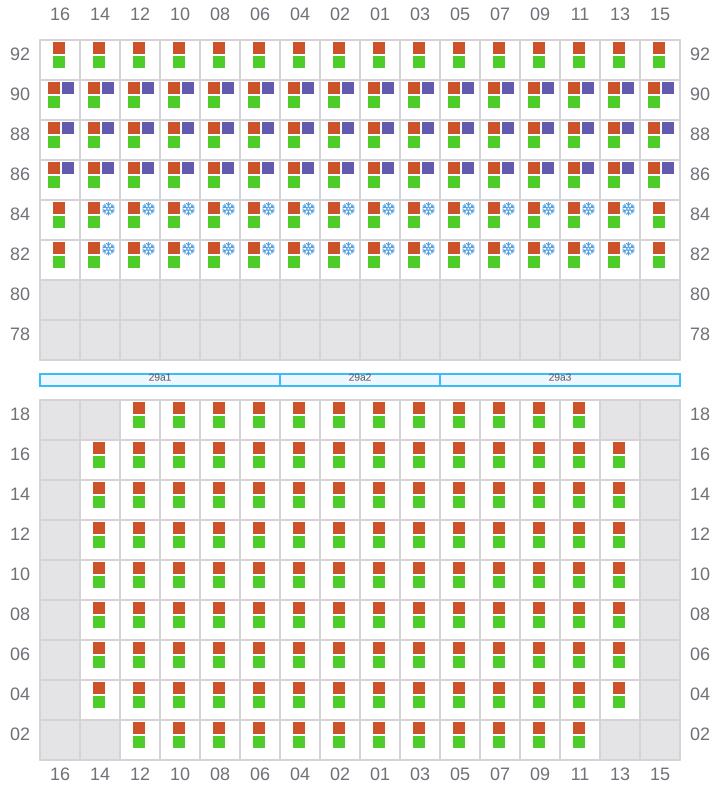

029 (030)
- →
- ← / ?
![Bay 029 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b029.png?v=1720475873368)
031
- ←
- →
![Bay 031 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b031.png?v=1720475873368)
033 (034)
- →
- ← / ?
![Bay 033 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b033.png?v=1720475873368)
035
- ←
- →
![Bay 035 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b035.png?v=1720475873368)

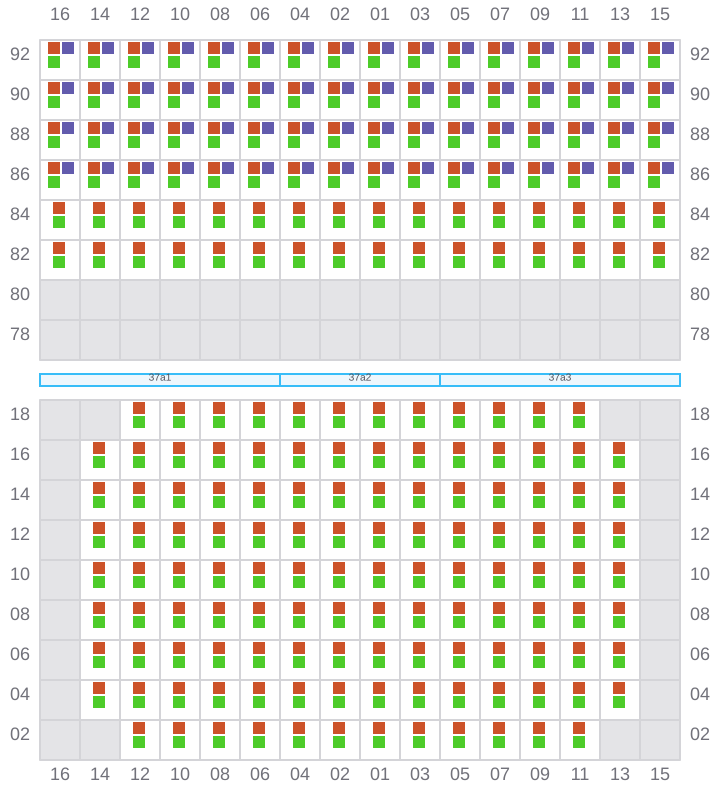

037 (038)
- →
![Bay 037 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b037.png?v=1720475873368)

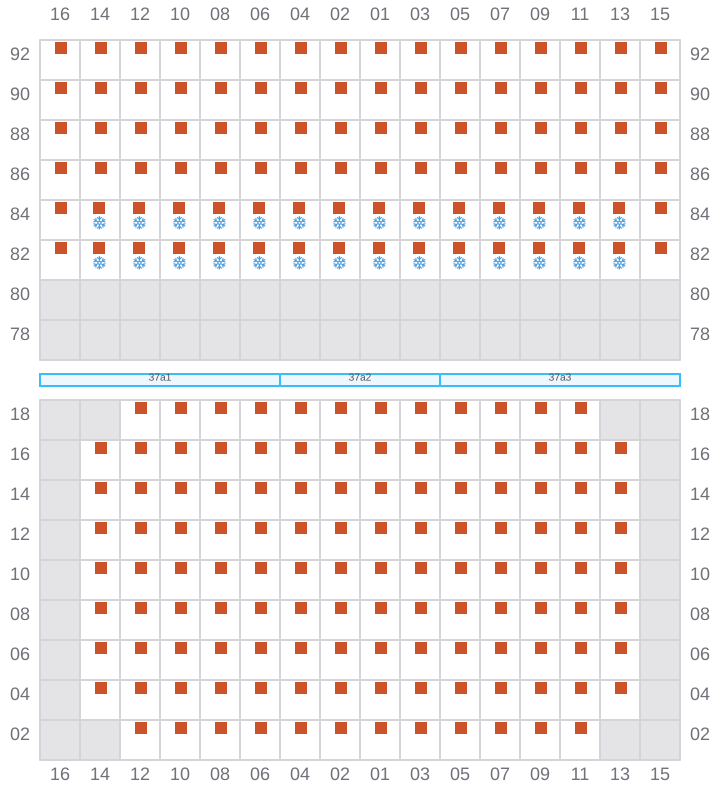

039
- ←
- → / ?
![Bay 039 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b039.png?v=1720475873368)
041 (042)
- →
![Bay 041 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b041.png?v=1720475873368)

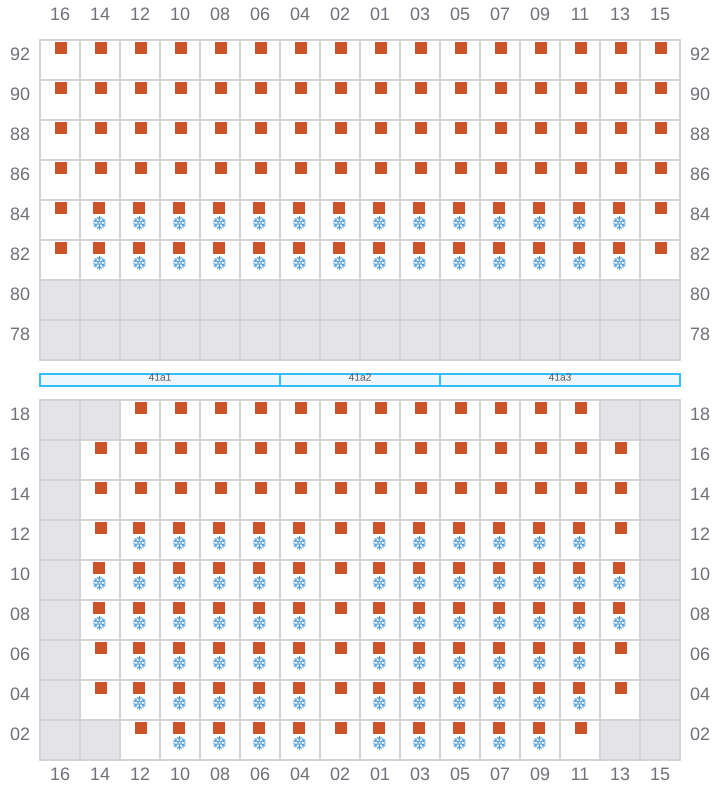

043
- ←
- →
![Bay 043 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b043.png?v=1720475873368)

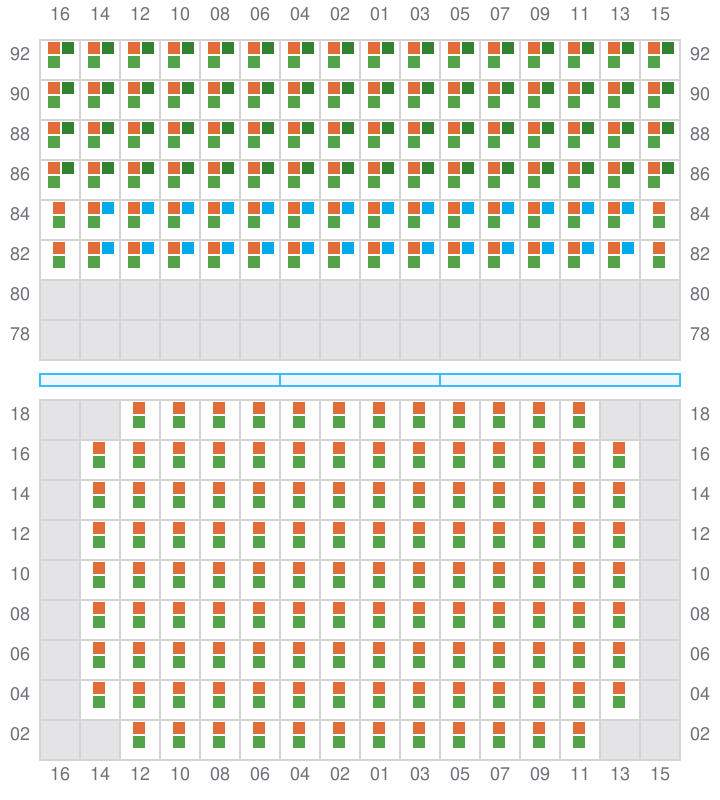

045 (046)
- →
- ← / ?
![Bay 045 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b045.png?v=1720475873368)

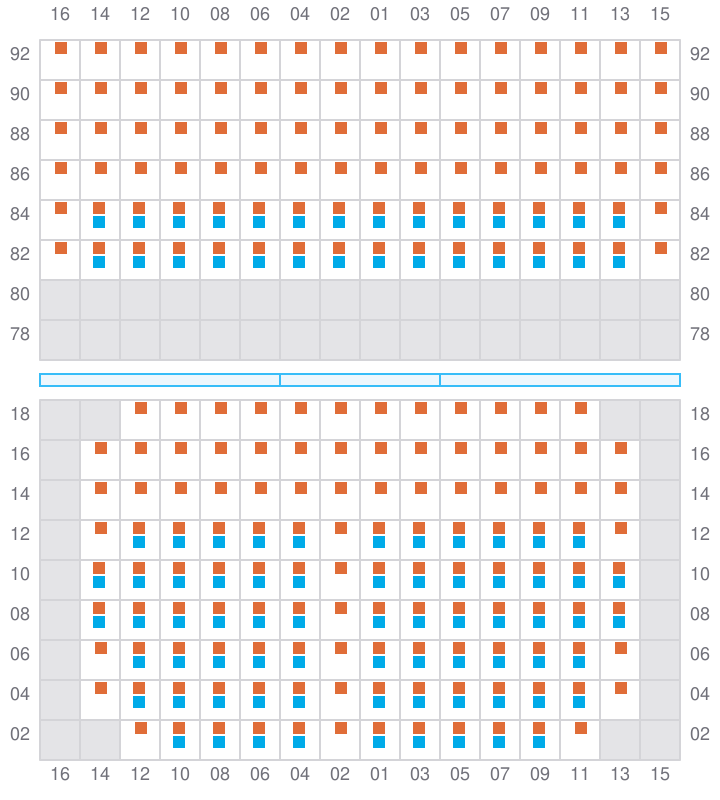

047
- ←
- →
![Bay 047 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b047.png?v=1720475873368)

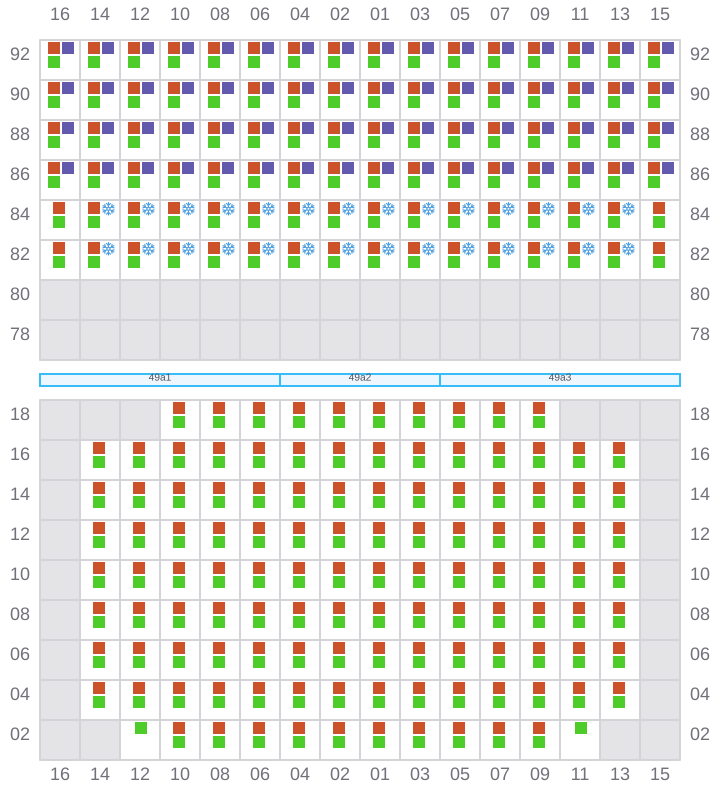

049 (050)
- →
- ← / ?
![Bay 049 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b049.png?v=1720475873368)

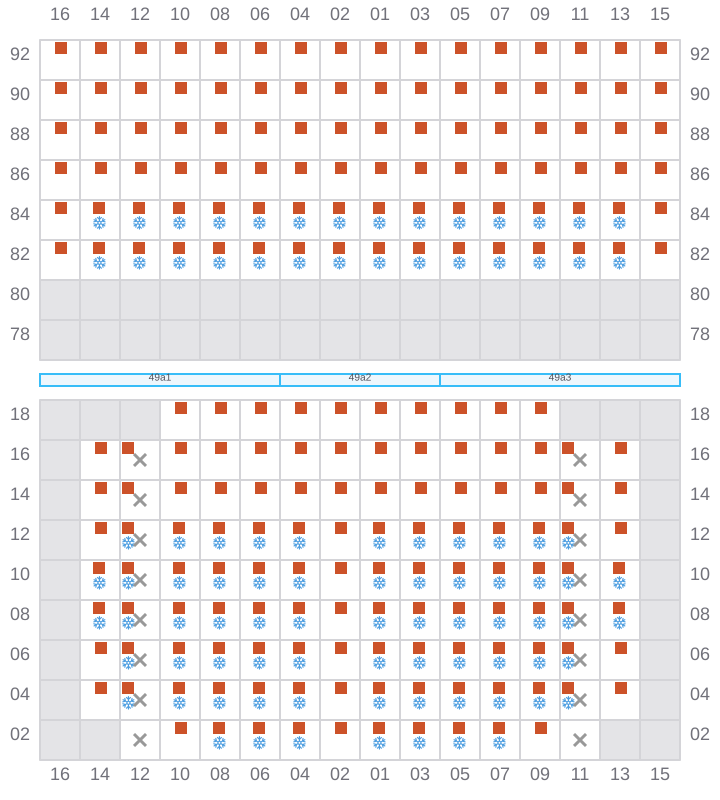

051
- ←
- →
![Bay 051 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b051.png?v=1720475873368)

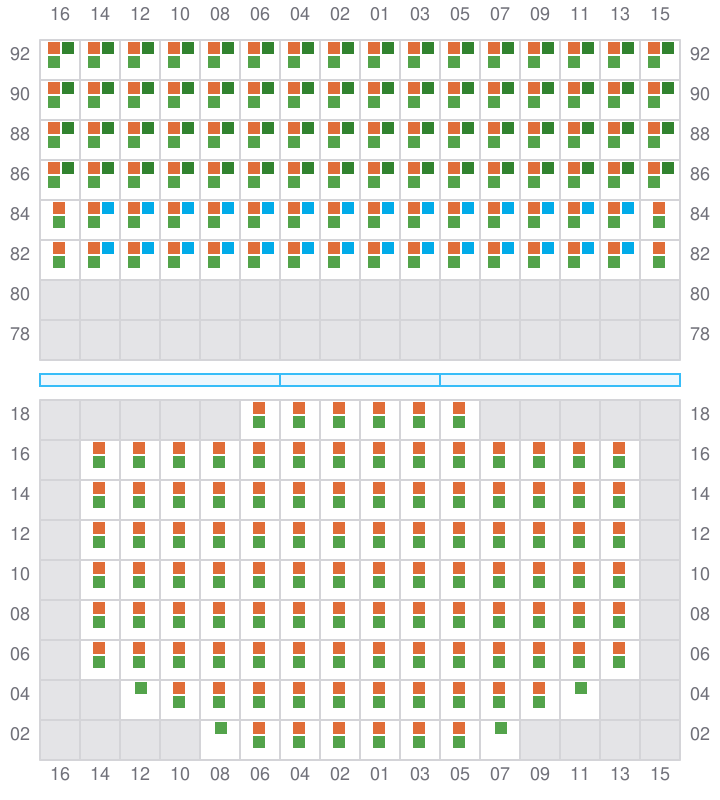

053 (054)
- →
- ← / ?
![Bay 053 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b053.png?v=1720475873368)

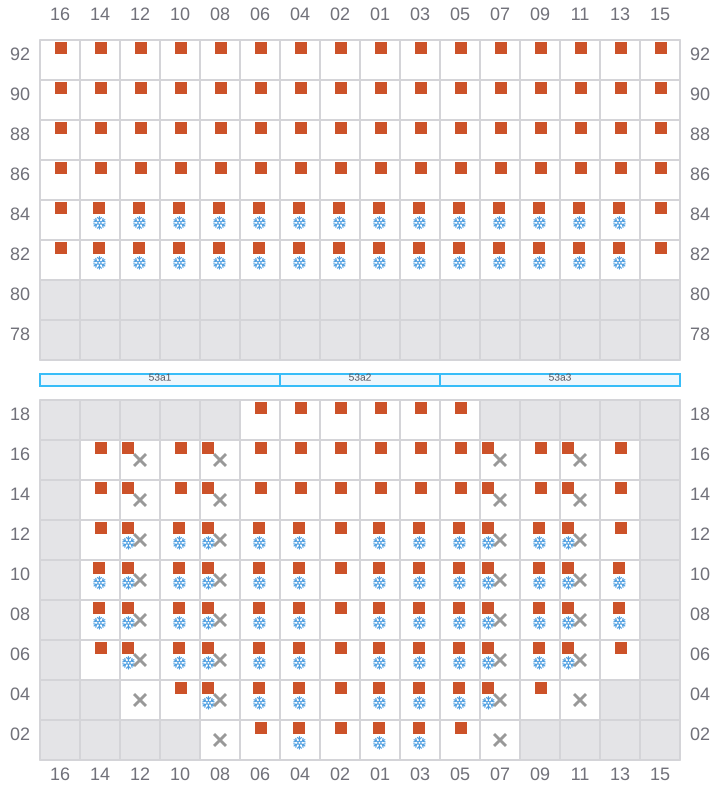

055
- ←
- →
![Bay 055 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b055.png?v=1720475873368)
057 (058)
- → / ?
- → / ?
![Bay 057 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b057.png?v=1720475873368)

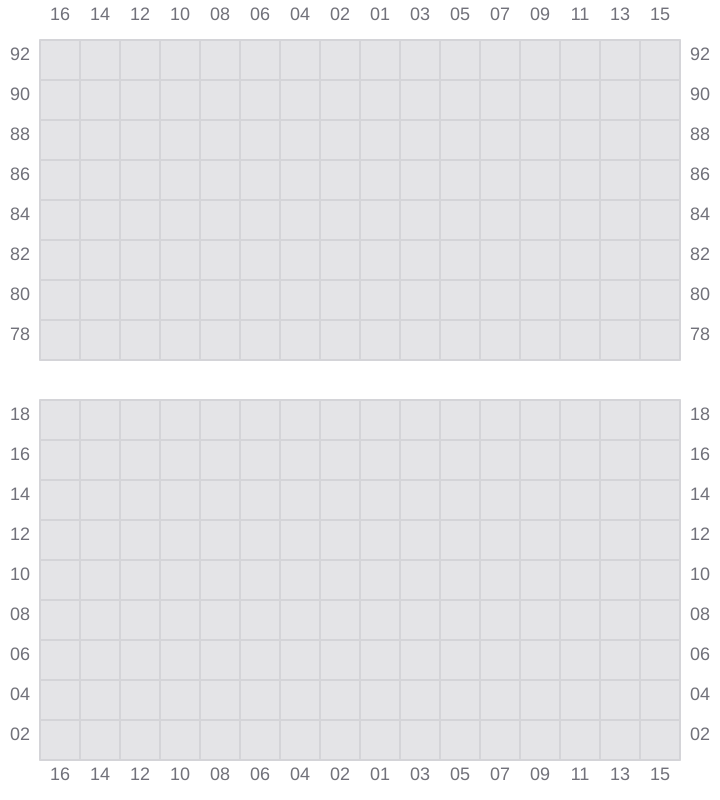

059
![Bay 059 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b059.png?v=1720475873368)

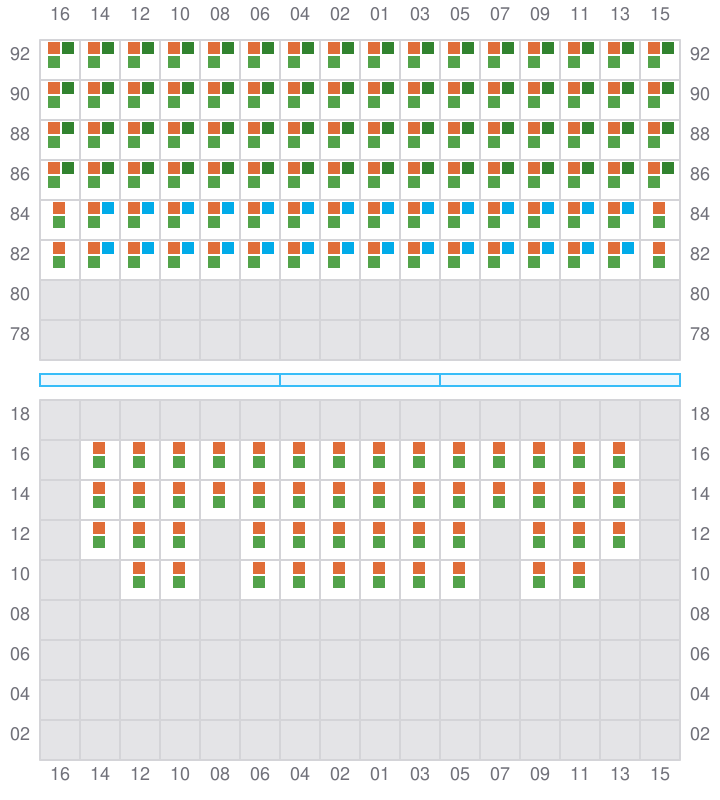

061 (062)
- →
- ← / ?
![Bay 061 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b061.png?v=1720475873368)

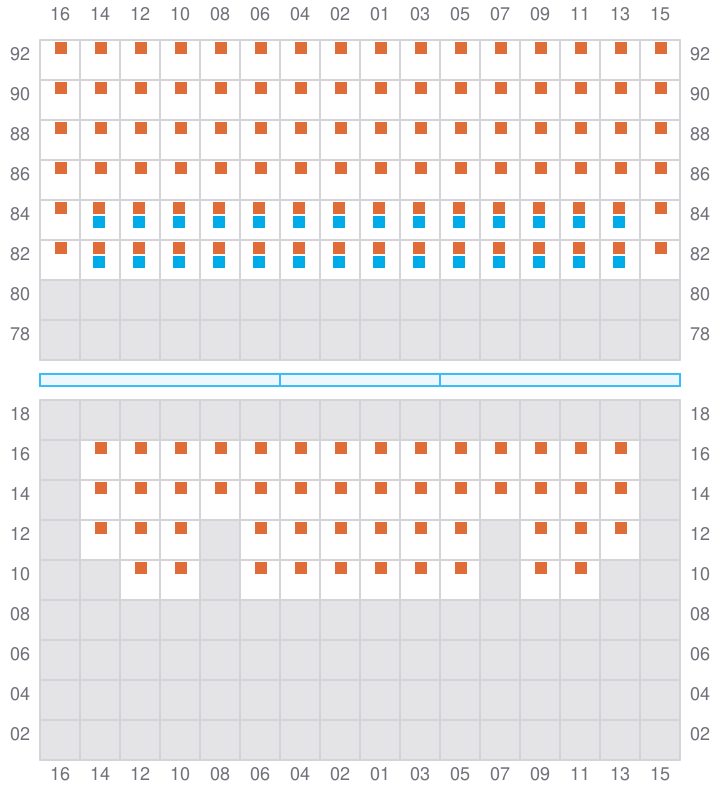

063
- ←
- → / ?
![Bay 063 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b063.png?v=1720475873368)

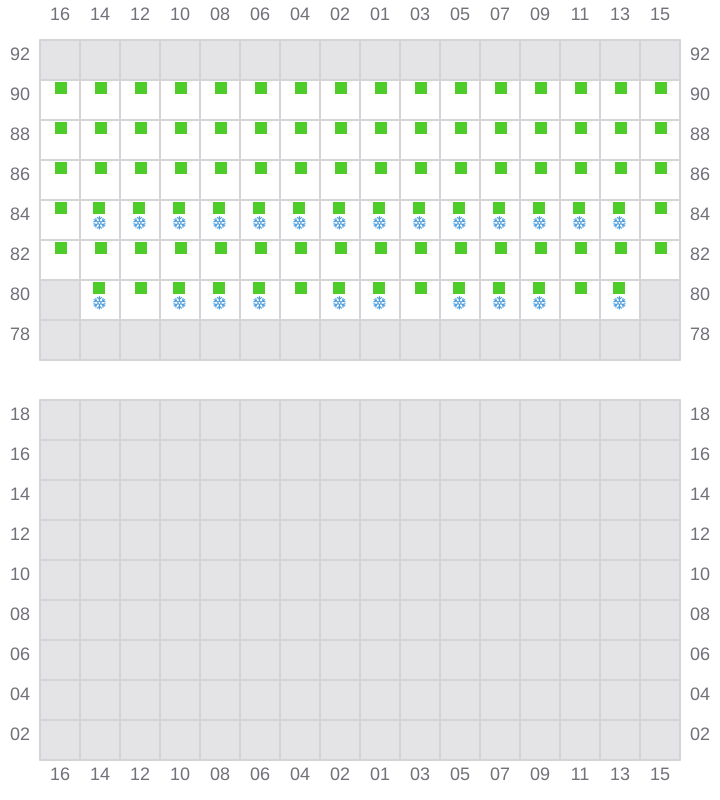

065 (066)
- → / ?
- ← / ?
![Bay 065 view and slots of RIO NEGRO](/vessel-images/aa6c09a7-198f-4f27-8a72-5eb5d80590fd-b065.png?v=1720475873368)
