RITA
9301988 | CQIS4 | 9301988 by ********* Last update: Thu Aug 15 2024
General Info
Ship Name:RITA
IMO Code:9301988
Call Sign:CQIS4
Line Operator:9301988
Class Name for Sister Ships:MSL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:774
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

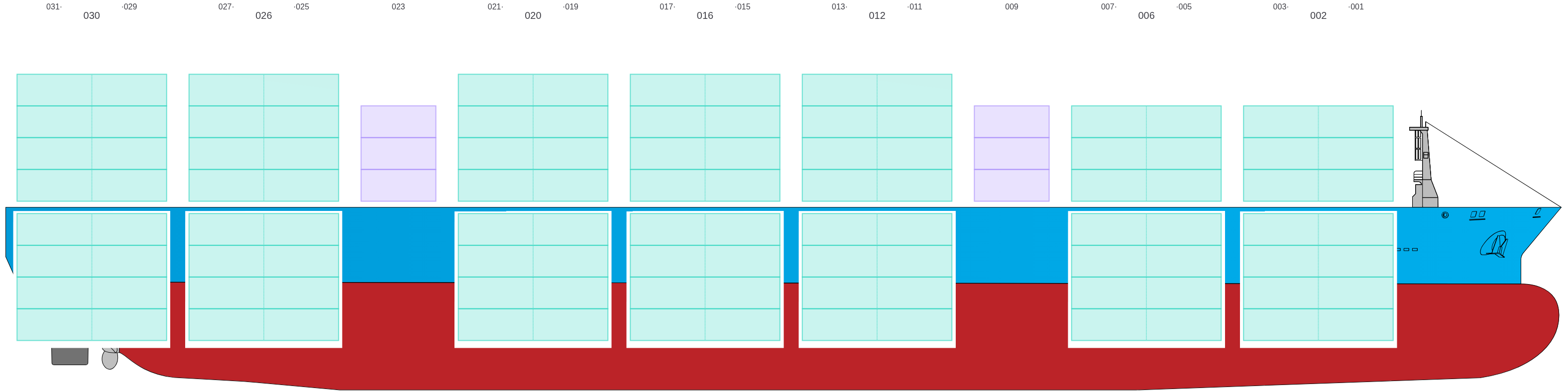

Side View
Hatch-Covers View

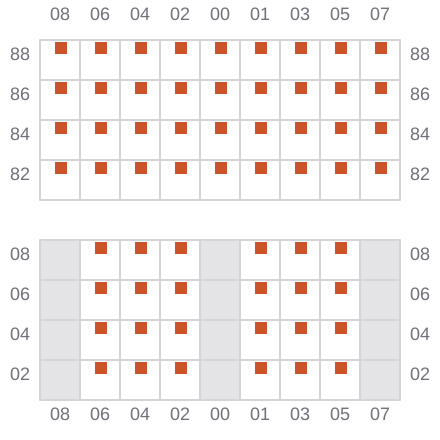

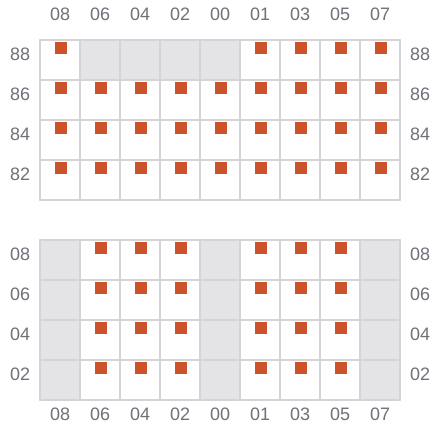

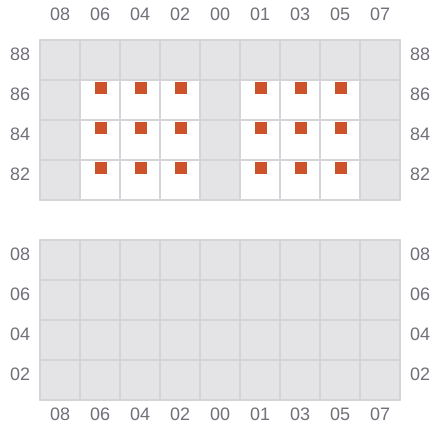

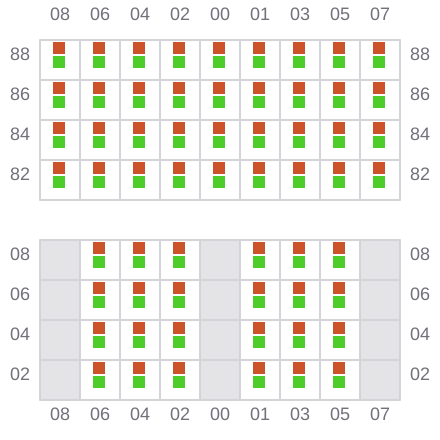

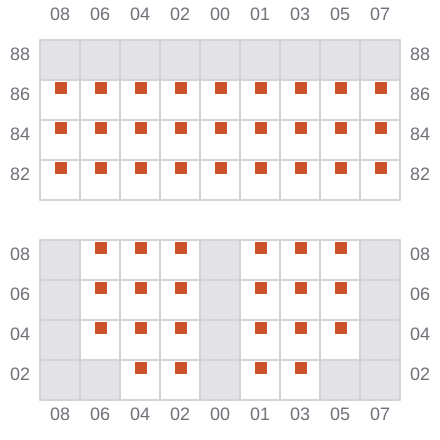

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

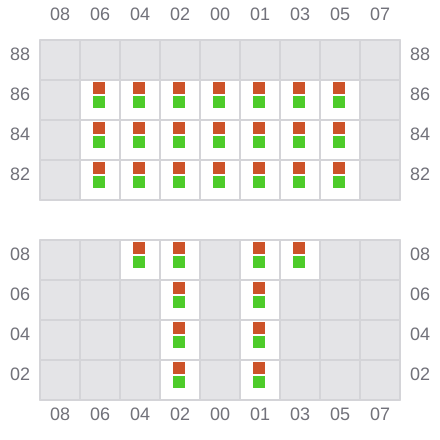

001 (002)
- →
003
- ←

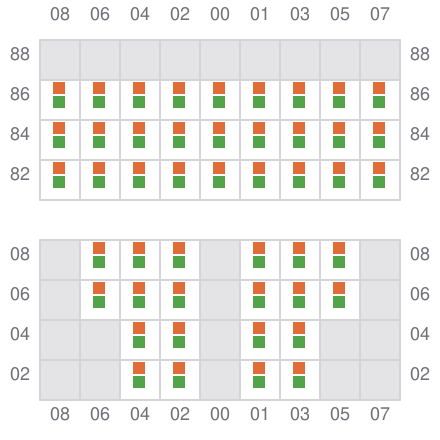

005 (006)
- →
007
- ←
009
011 (012)
- →

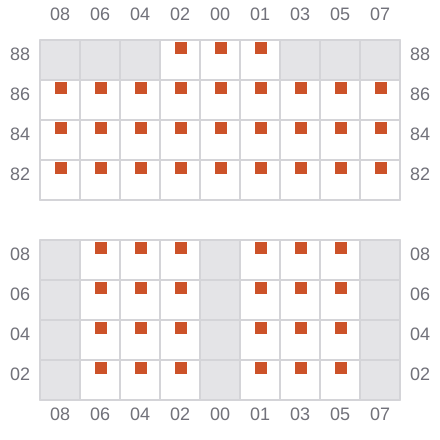

013
- ←

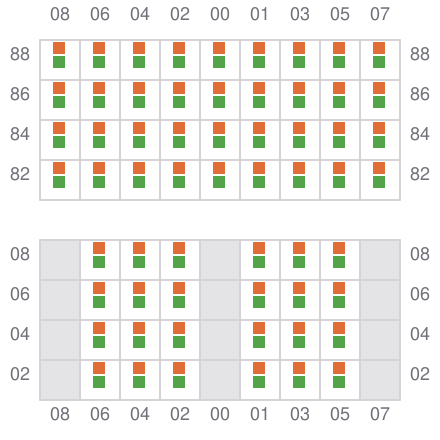

015 (016)
- →
017
- ←
019 (020)
- →
021
- ←
023
025 (026)
- →

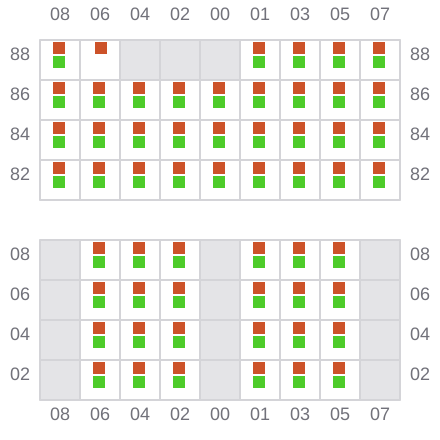

027
- ←

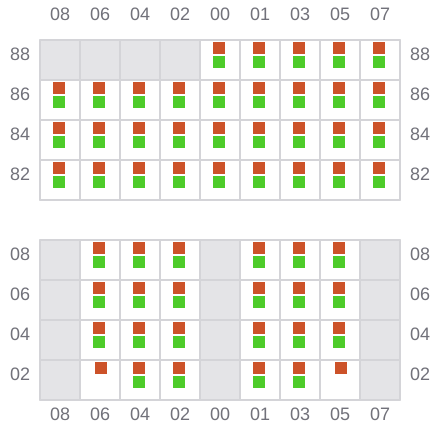

029 (030)
- →

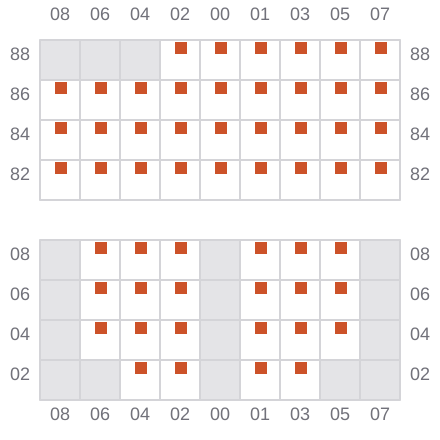

031
- ←
