ROB
9236652 | D5UB5 | 9236652 by ********* Last update: Fri May 17 2024
General Info
Ship Name:ROB
IMO Code:9236652
Call Sign:D5UB5
Line Operator:9236652
Class Name for Sister Ships:MOL SYMPHONY
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,444
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

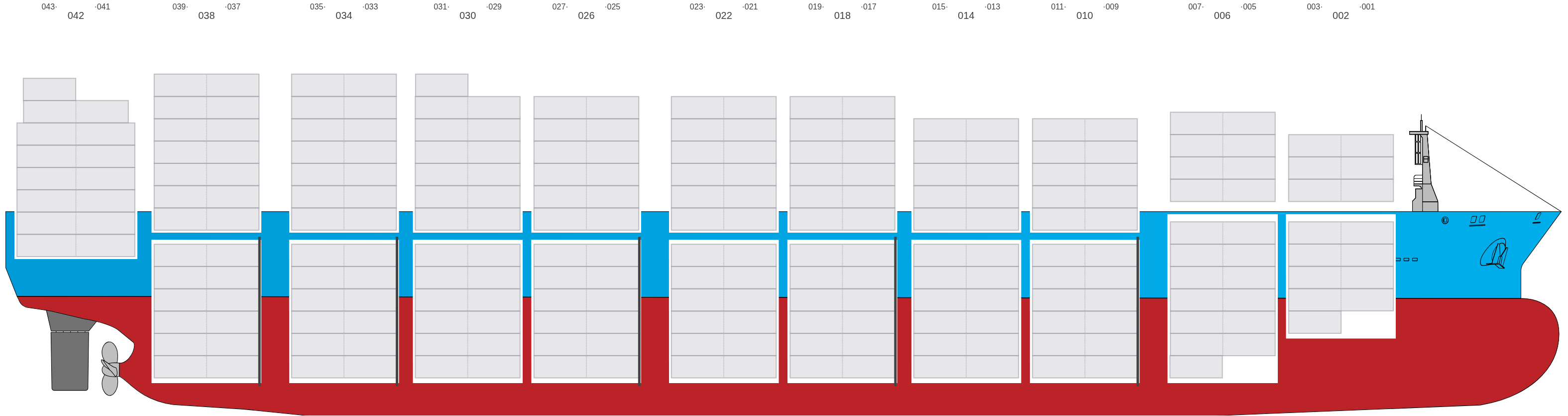

Side View

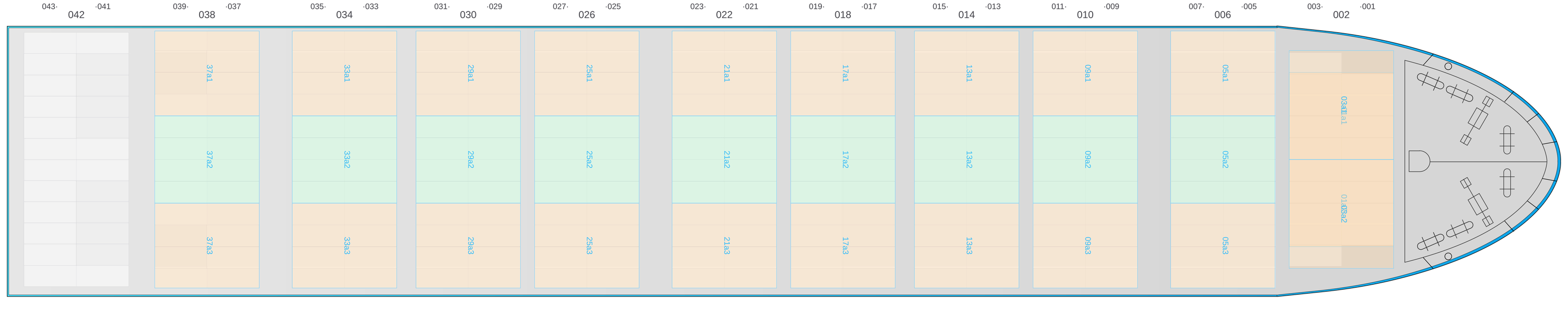

Hatch-Covers View

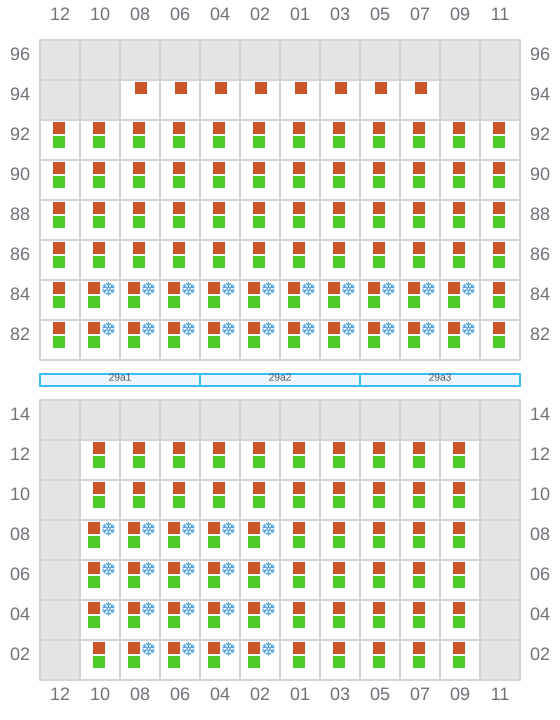

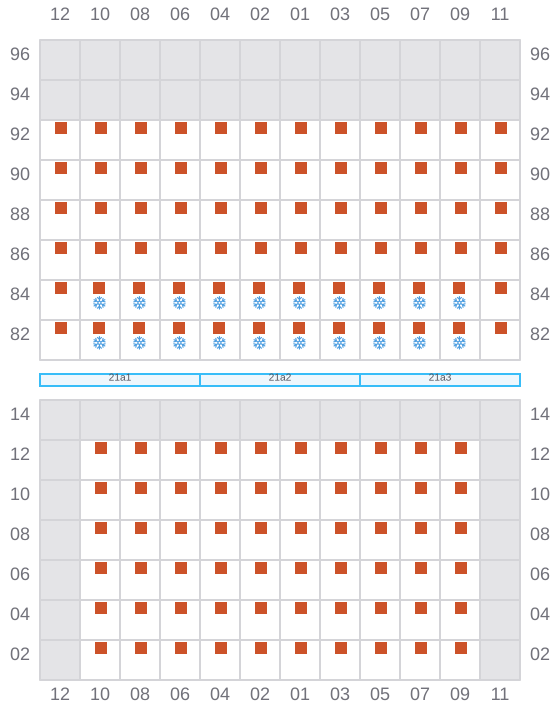

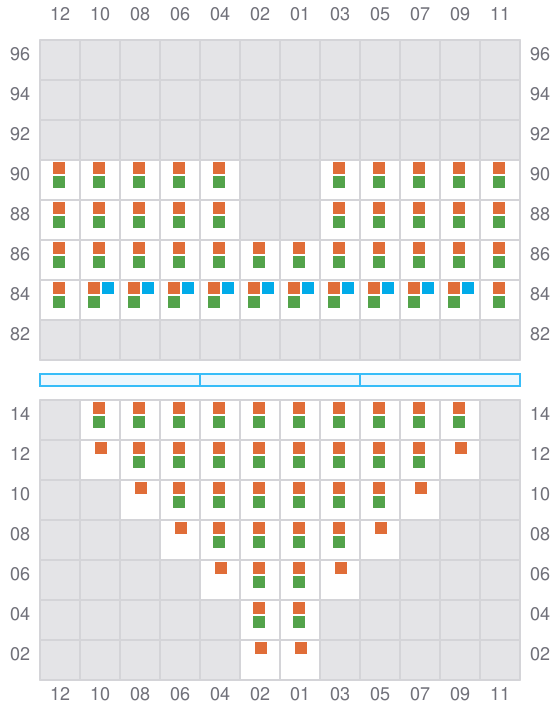

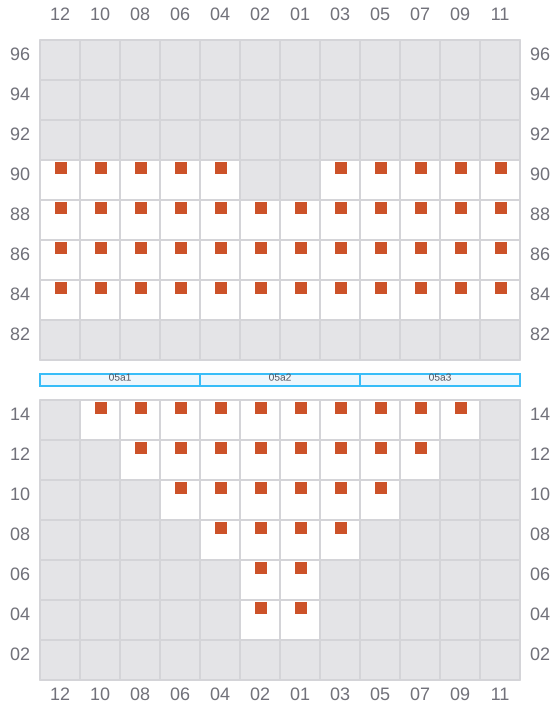

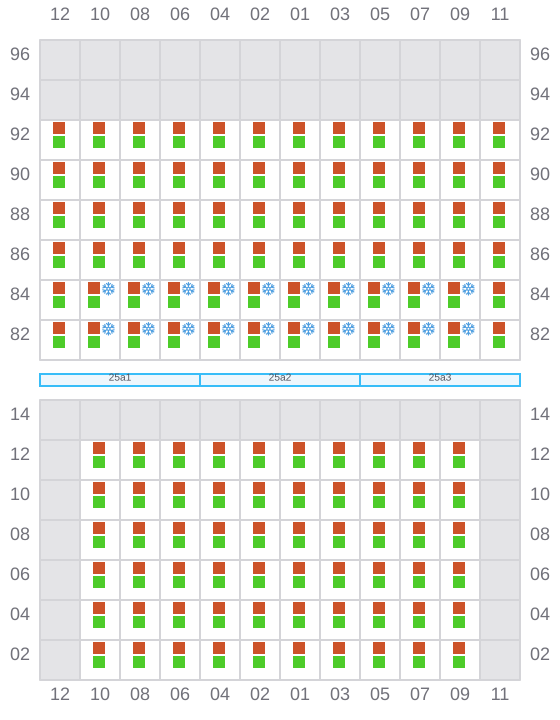

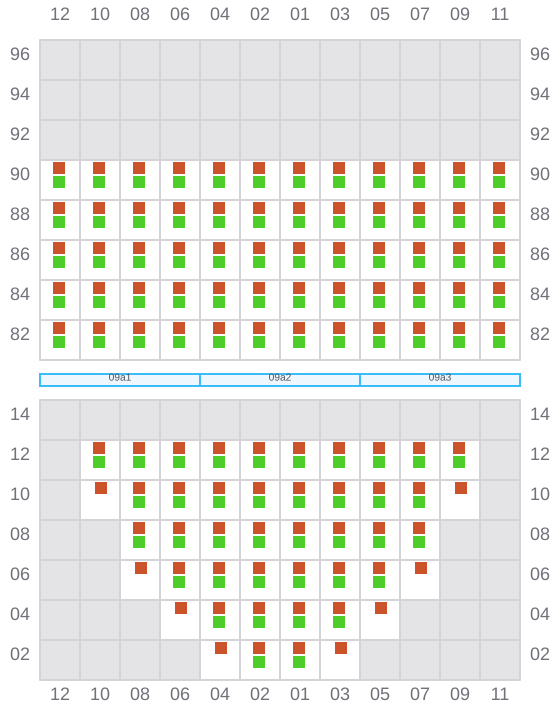

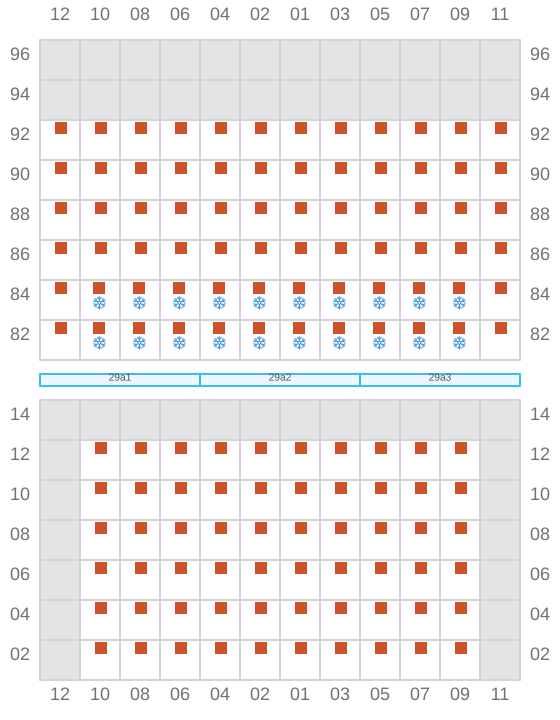

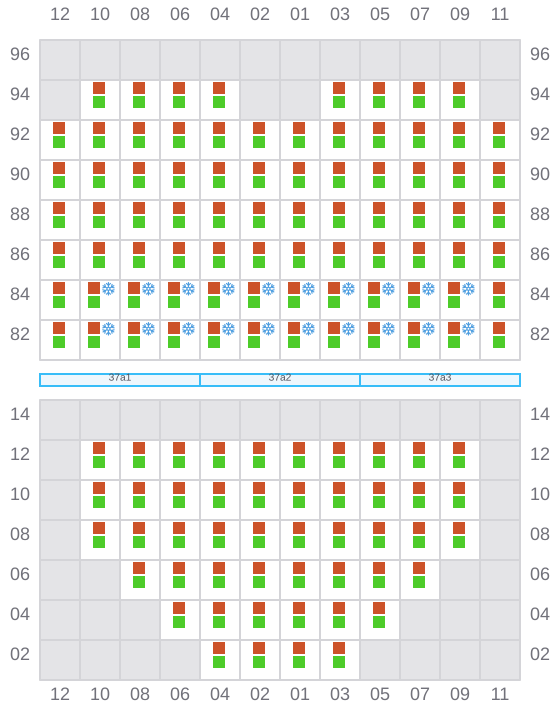

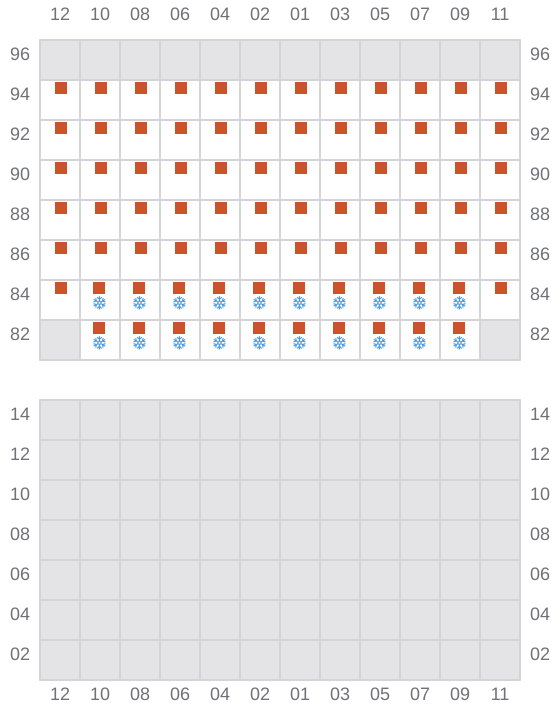

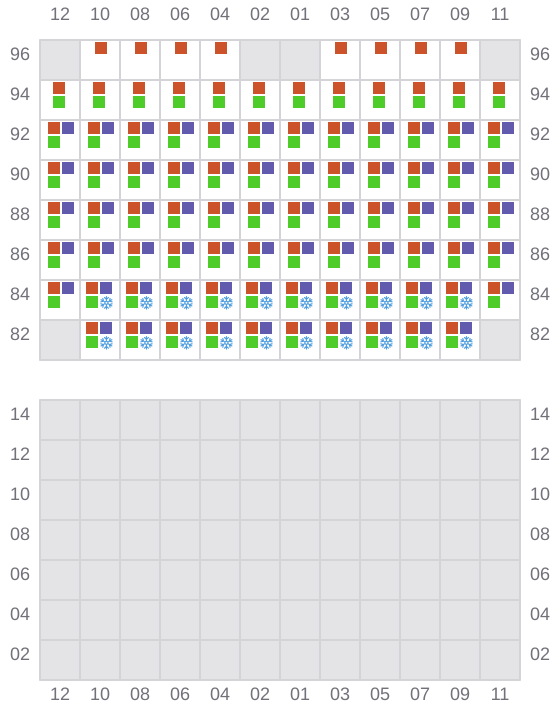

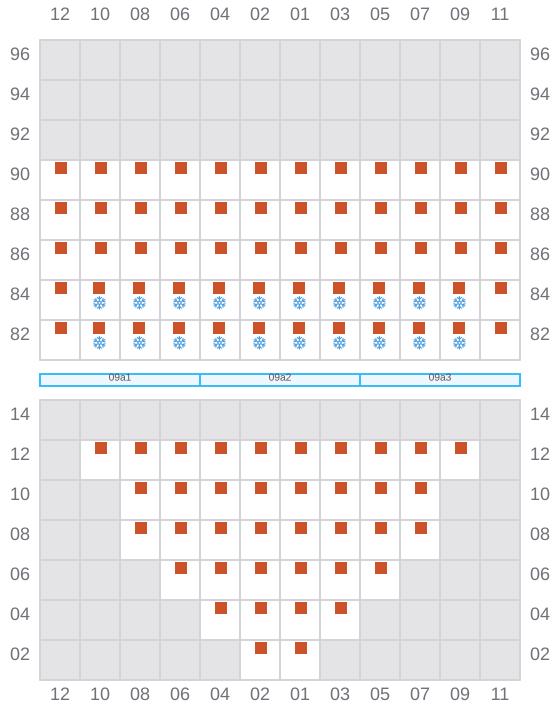

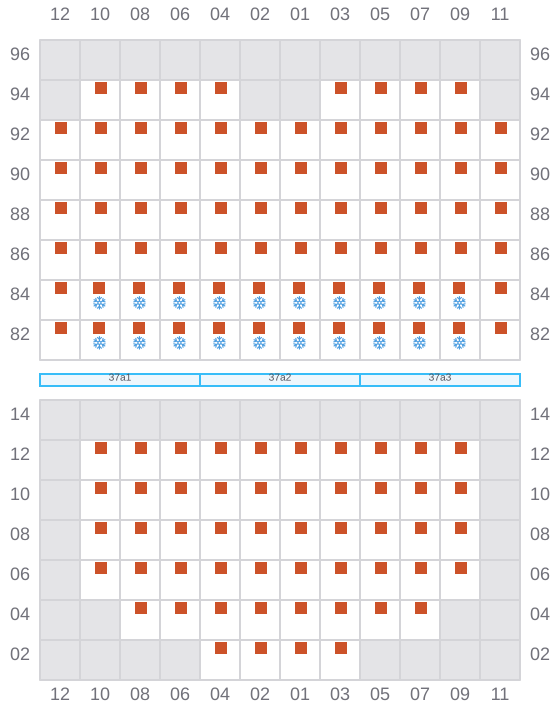

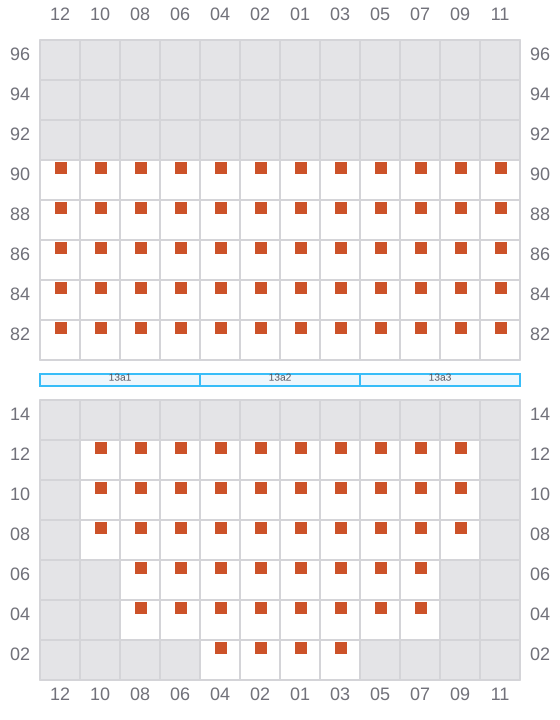

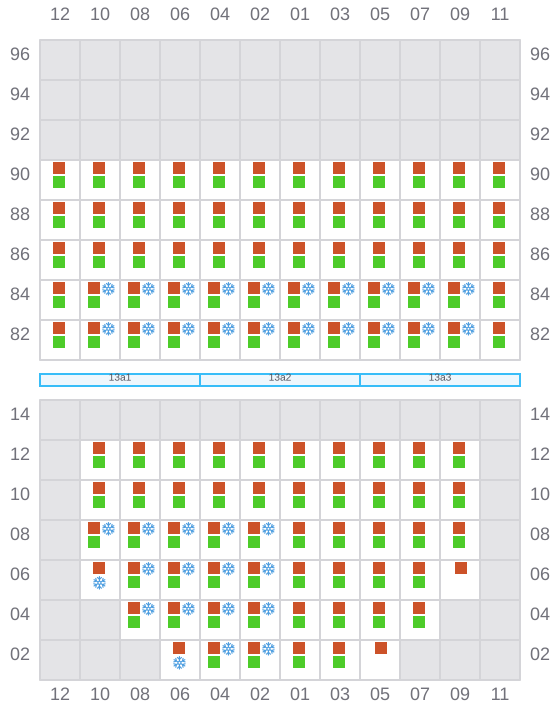

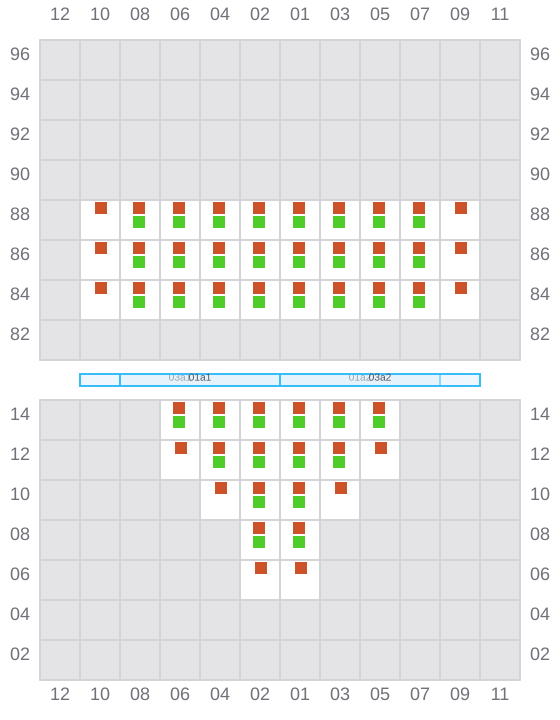

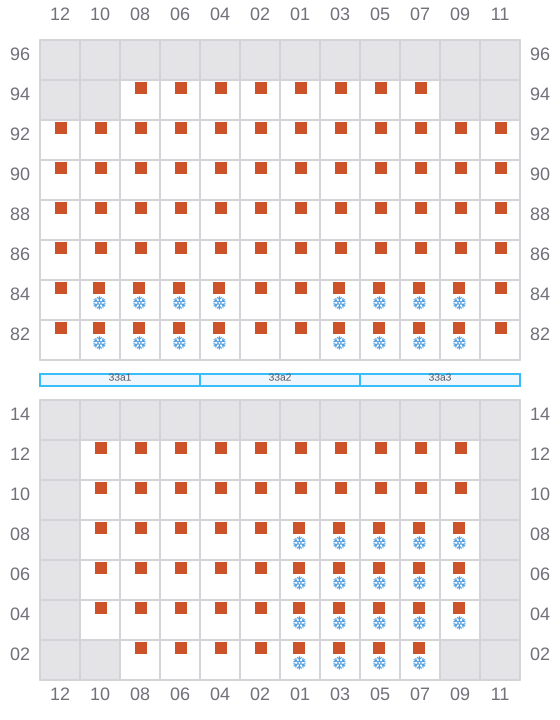

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
- →
003 (002)
- ←
- →
005
- →
- →
007 (006)
- ←
- → / ?
- →
009
- →
- →
011 (010)
- ←
- →
013
- →
- →
015 (014)
- ←
- →
- →
017
- →
- ←
- →
019 (018)
- ←
- → / ?
- →
021
- →
- ← / ?
- →
023 (022)
- ←
- → / ?
- →
025
- →
- ← / ?
- →
027 (026)
- ←
- → / ?
- →
029
- →
- ← / ?
- →
031 (030)
- ←
- →
- →
033
- →
- ←
- →
035 (034)
- ←
- → / ?
- →
037
- →
- ← / ?
- →
039 (038)
- ←
- → / ?
- →
041
- → / ?
- ← / ?
- → / ?
043 (042)
- ← / ?
- → / ?
- → / ?
