ROBIN 4
9399741 | A8OA2 | 9399741 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:ROBIN 4
IMO Code:9399741
Call Sign:A8OA2
Line Operator:9399741
Class Name for Sister Ships:92R
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,848
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

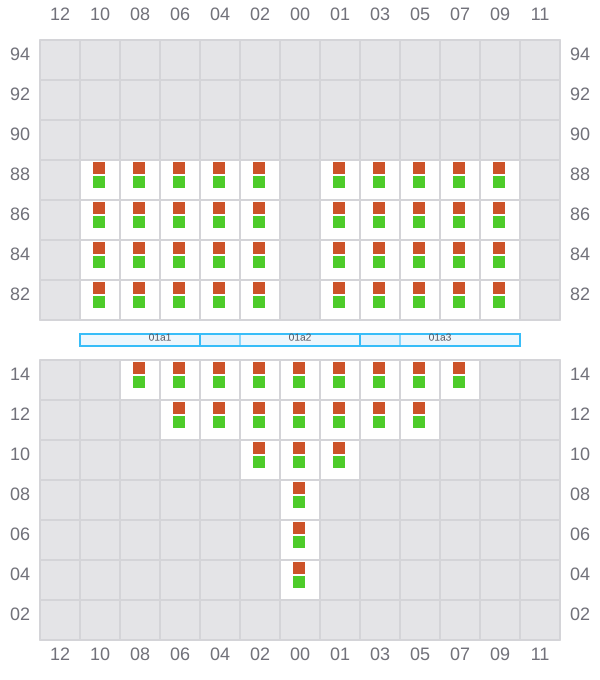

001 (002)
- →
- → / ?
003
- ←
- → / ?

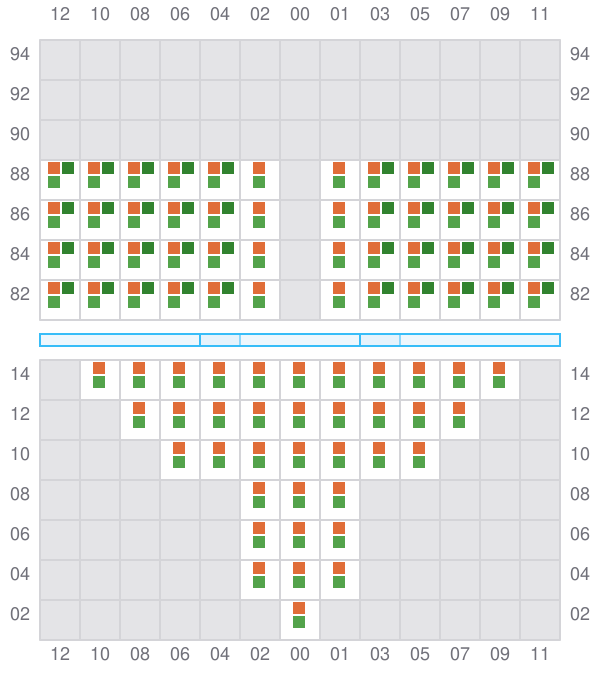

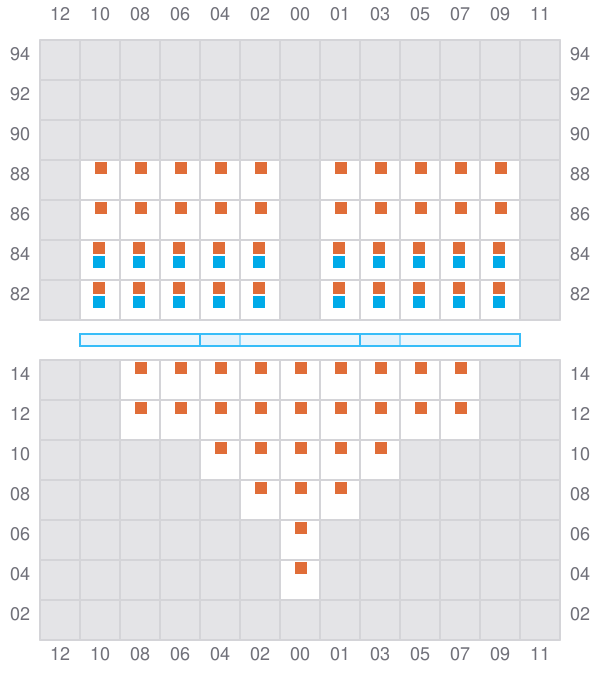

005 (006)
- →

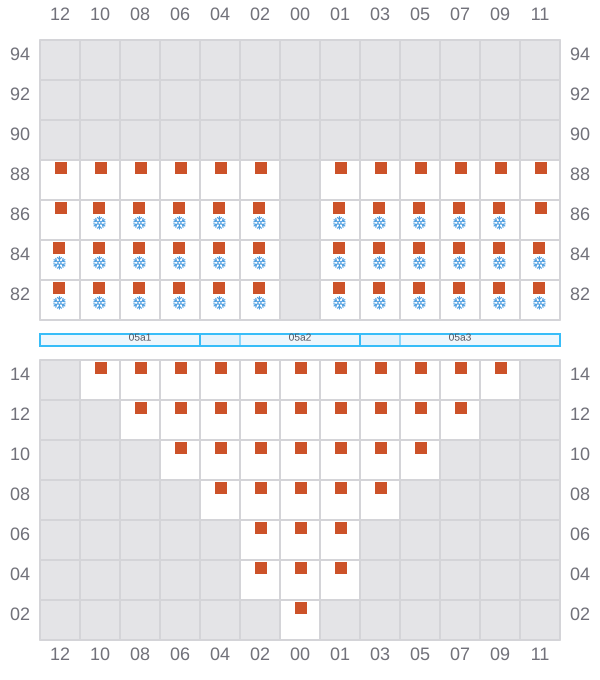

007
- ←
- → / ?

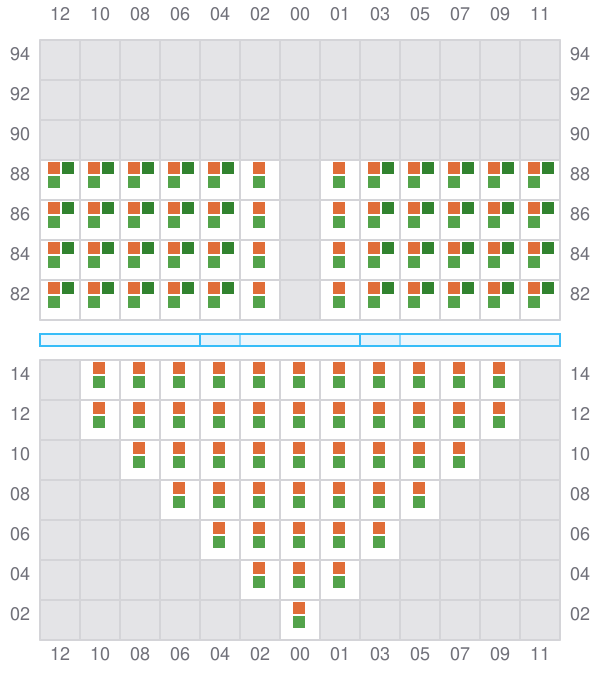

009 (010)
- →

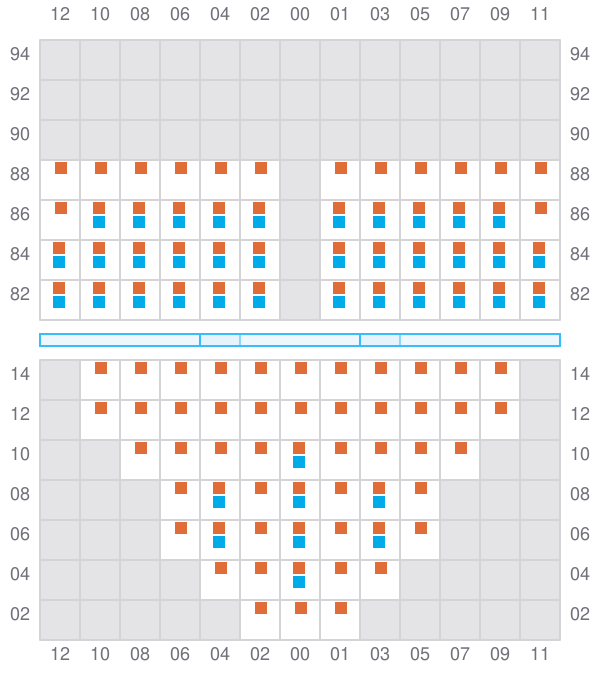

011
- ←
- →

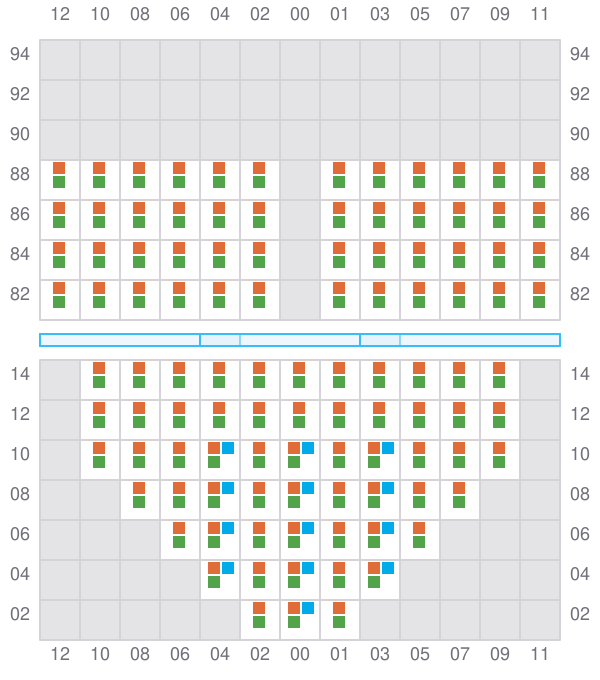

013 (014)
- →
- ? / ←

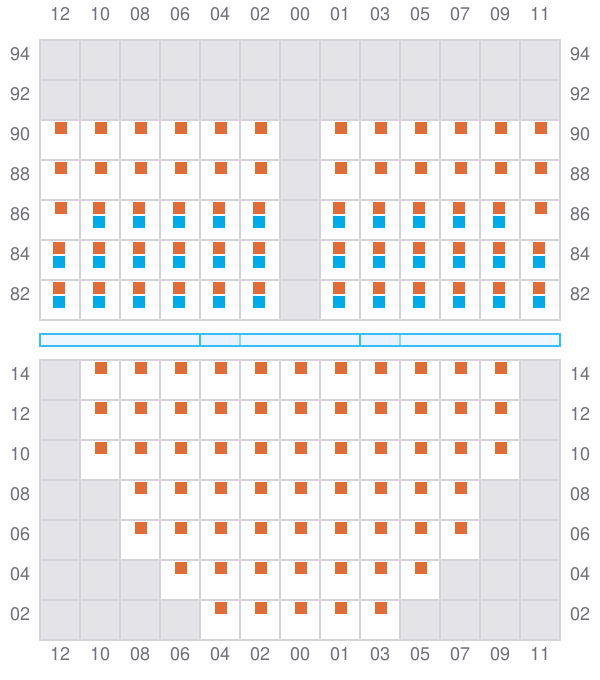

015
- ←
- → / ?

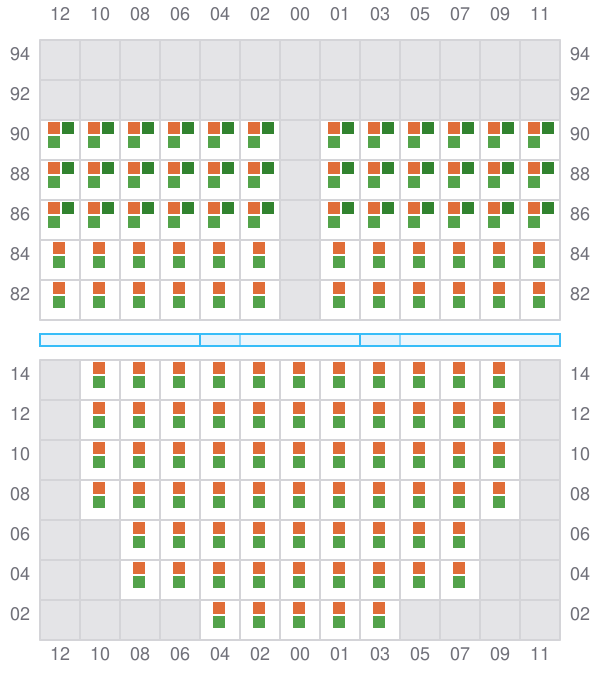

017 (018)
- →

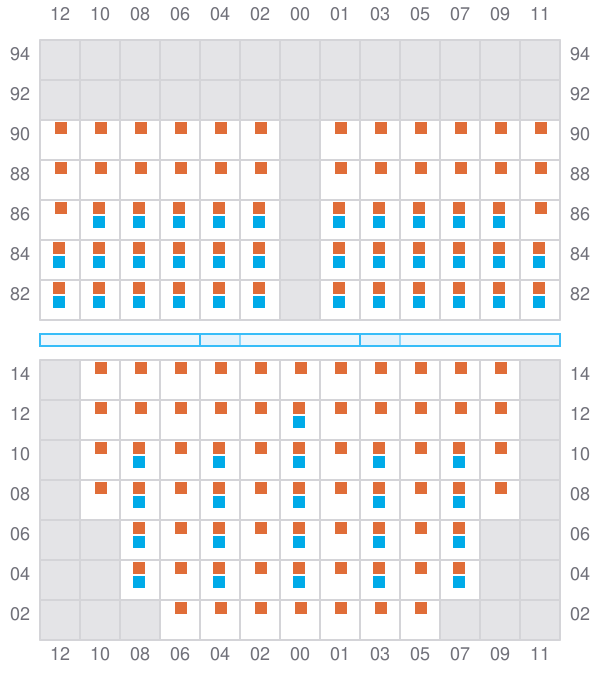

019
- ←
- →

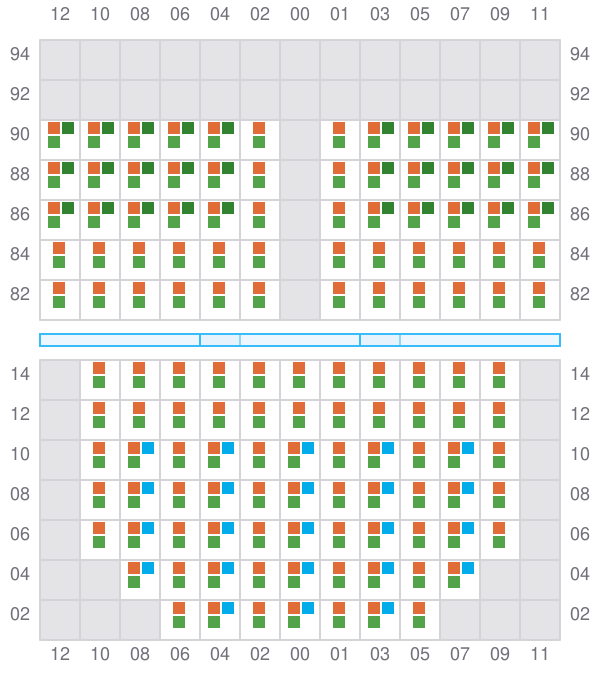

021 (022)
- →
- ? / ←

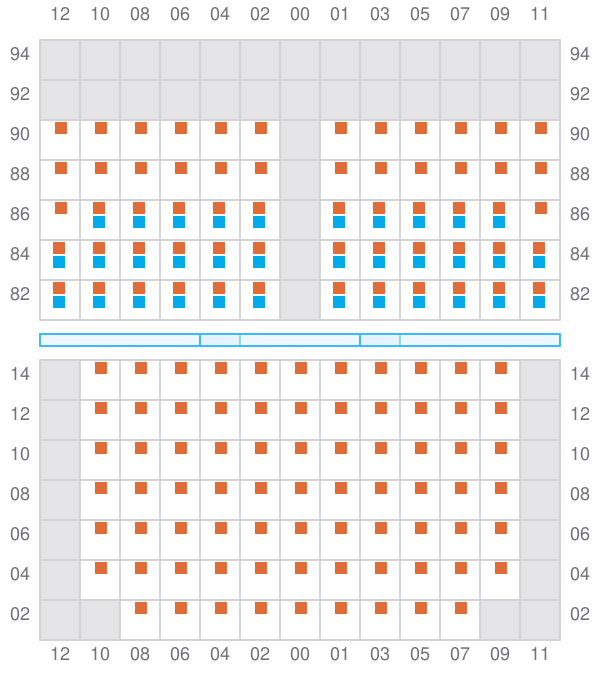

023
- ←
- → / ?
025 (026)
- →
- ← / ?

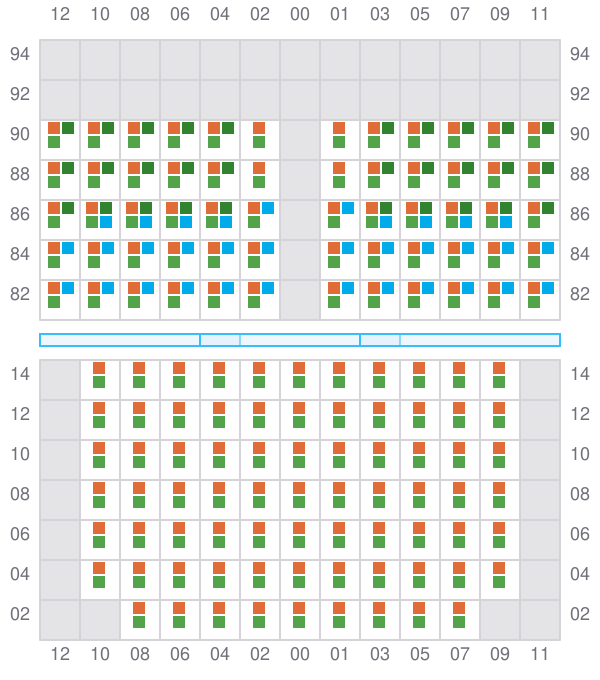

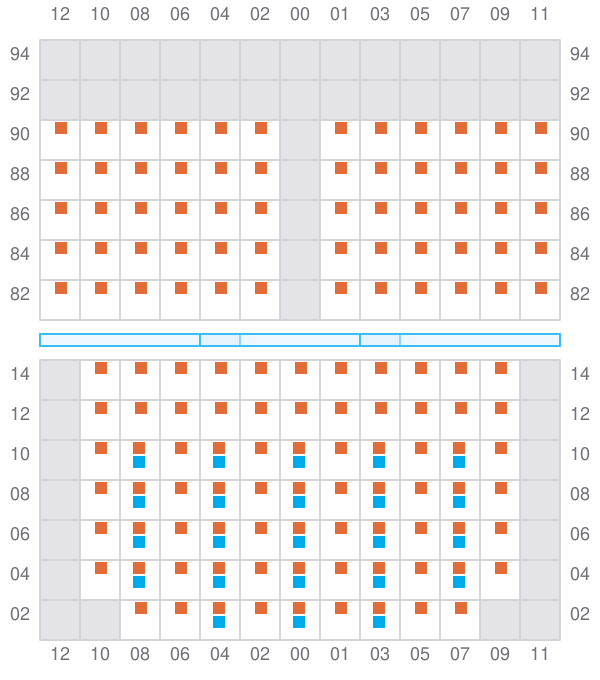

027
- ←
- ? / →
029 (030)
- →
- ? / ←

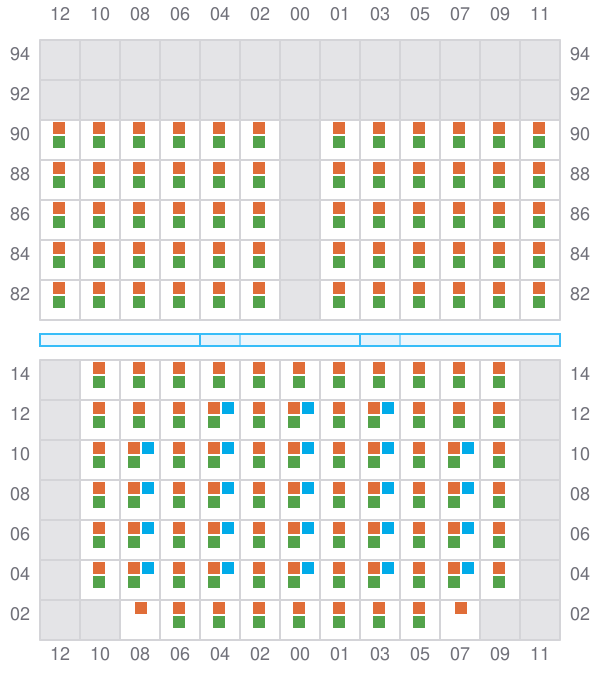

031
- ←
- → / ?

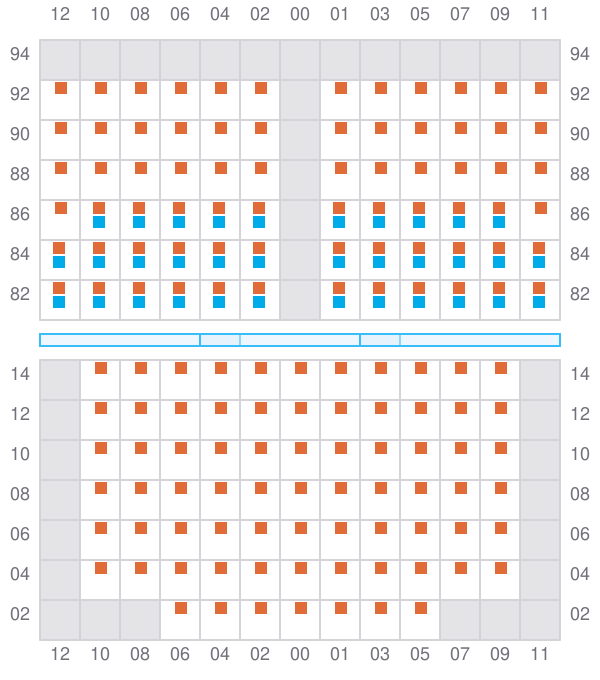

033 (034)
- →

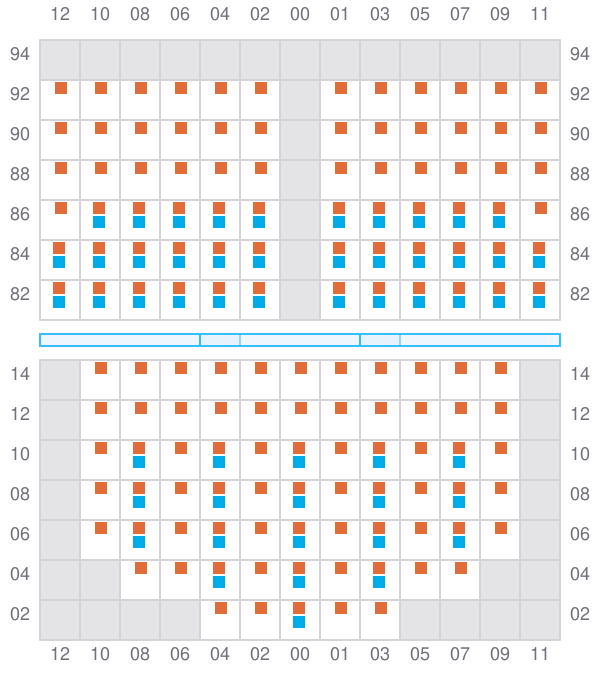

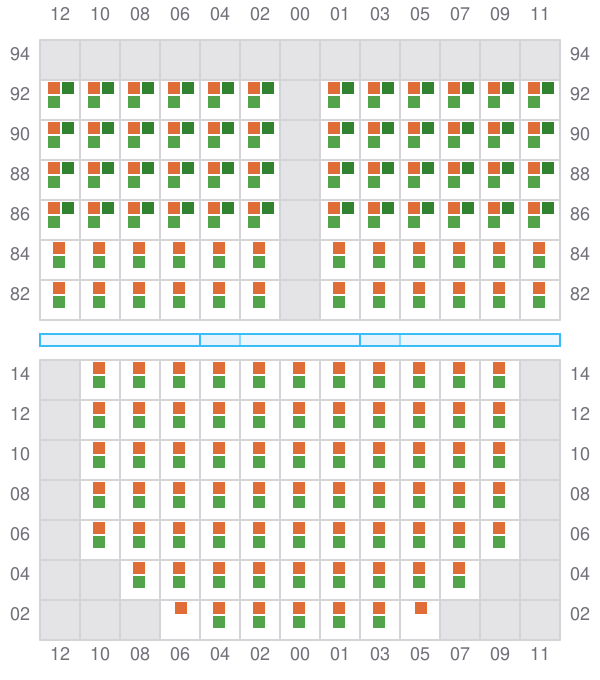

035
- ←
- →

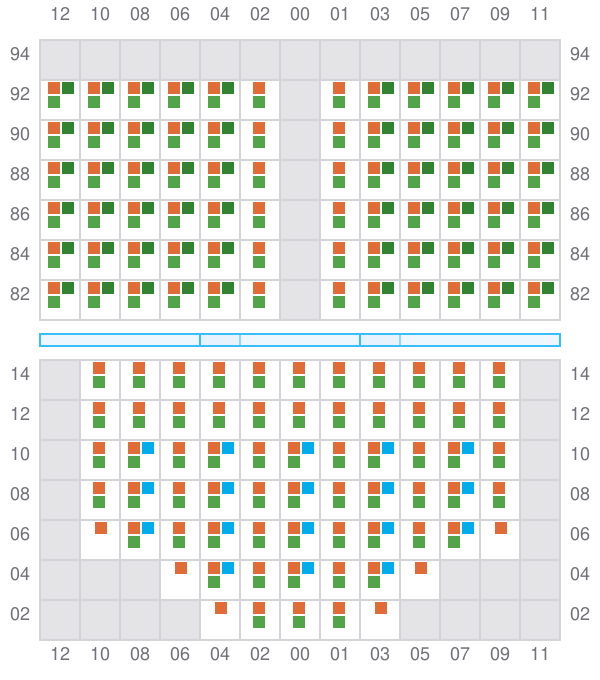

037 (038)
- →
- ? / ←

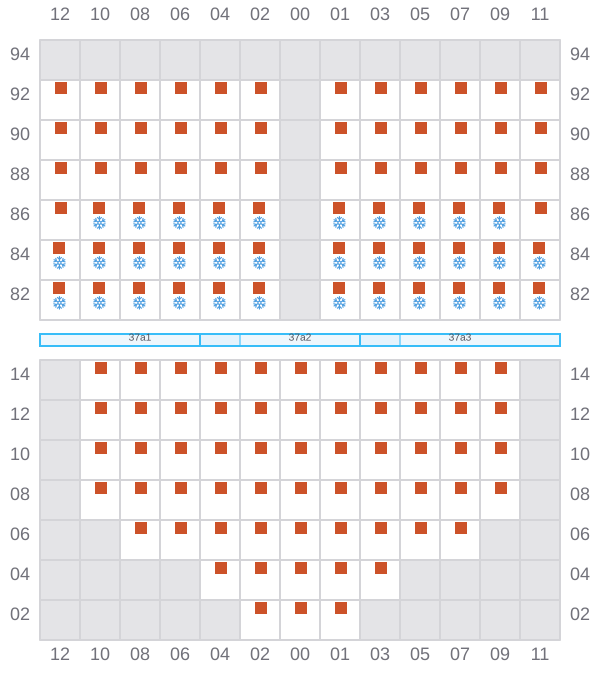

039
- ←
- → / ?

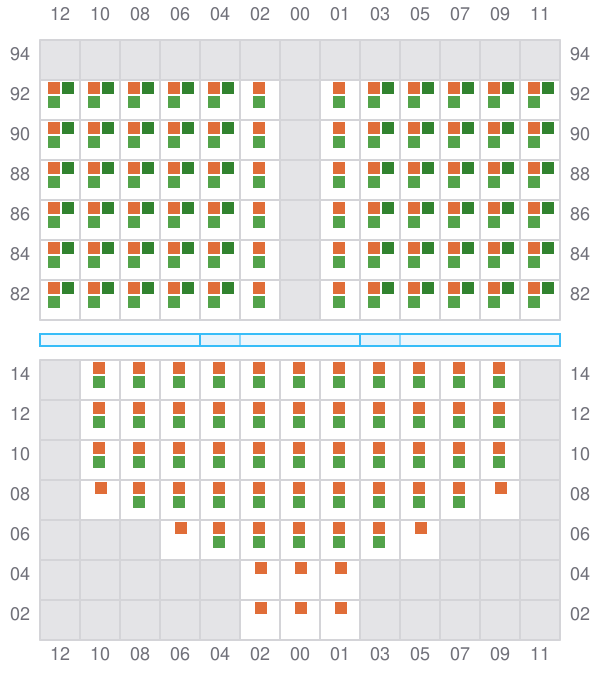

041 (042)
- →
043
- ←
- →

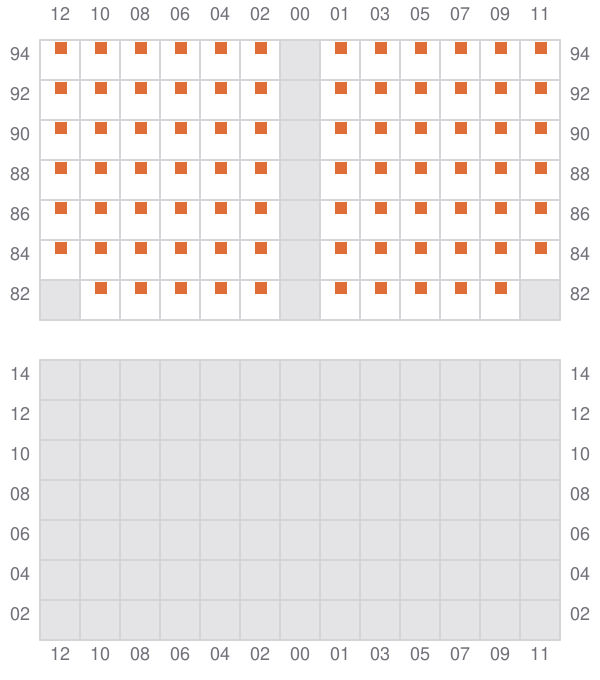

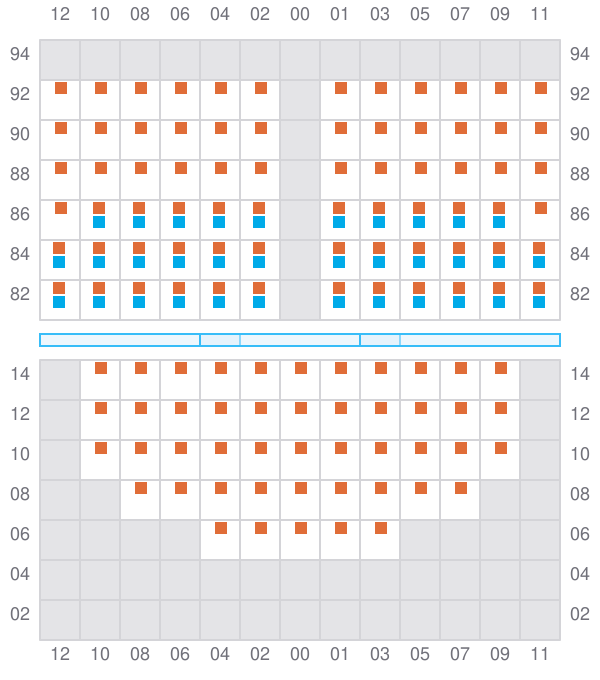

045

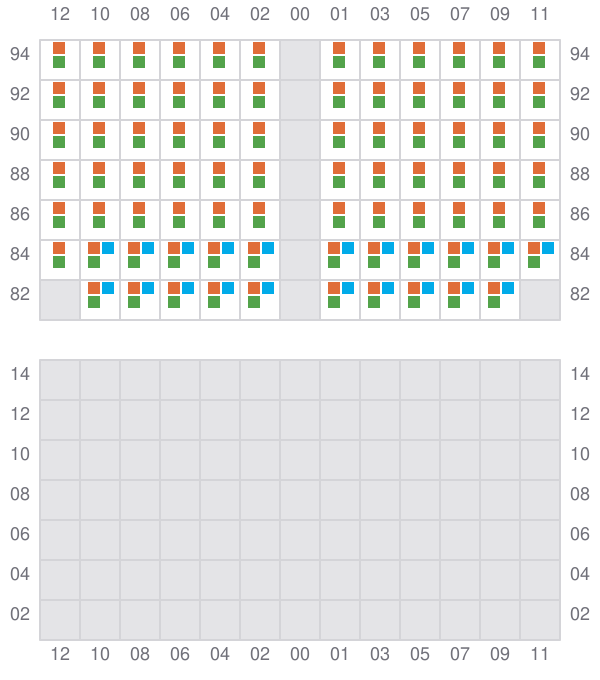

047 (048)
- → / ?
- ← / ?

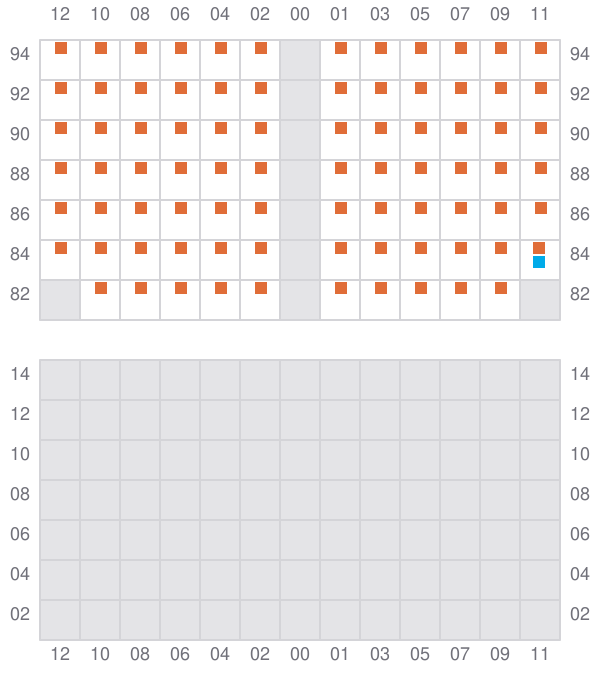

049
- ← / ?
