ROSA
9484534 | D5AY3 | MSK by ************************** Last update: Sun Jun 25 2023
General Info
Ship Name:ROSA
IMO Code:9484534
Call Sign:D5AY3
Line Operator:MSK
Class Name for Sister Ships:RSA
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,395
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

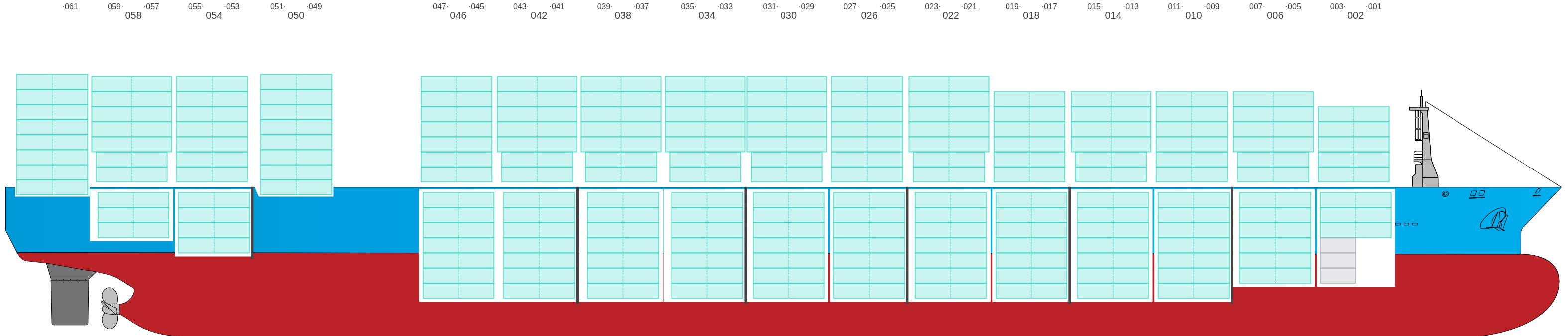

Side View
Hatch-Covers View

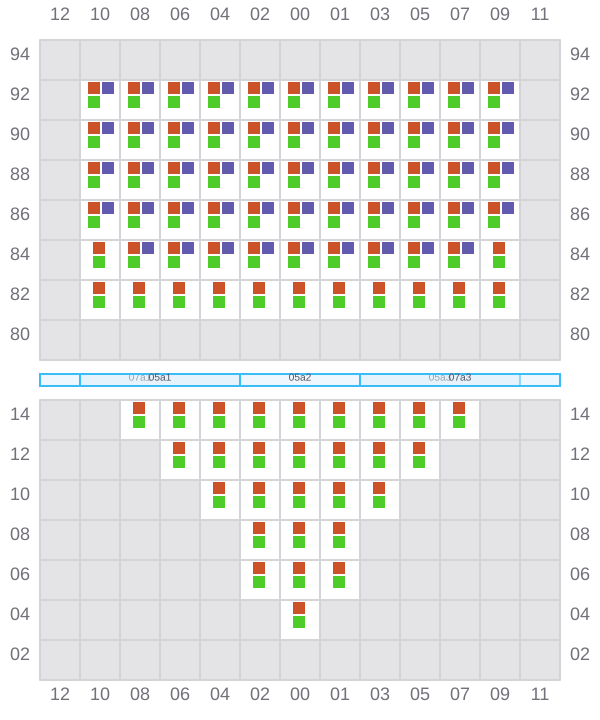

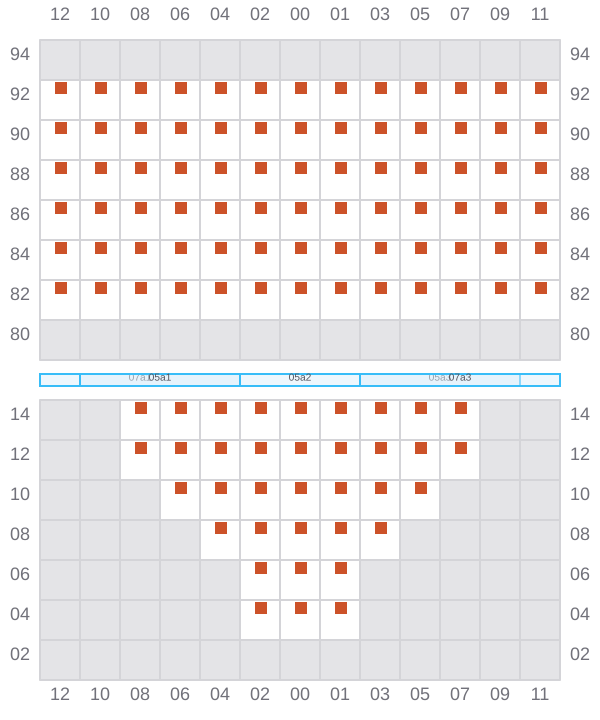

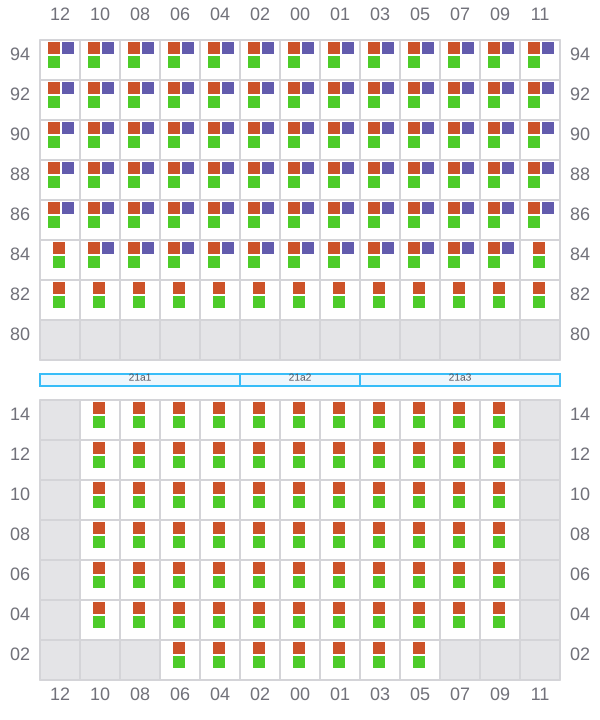

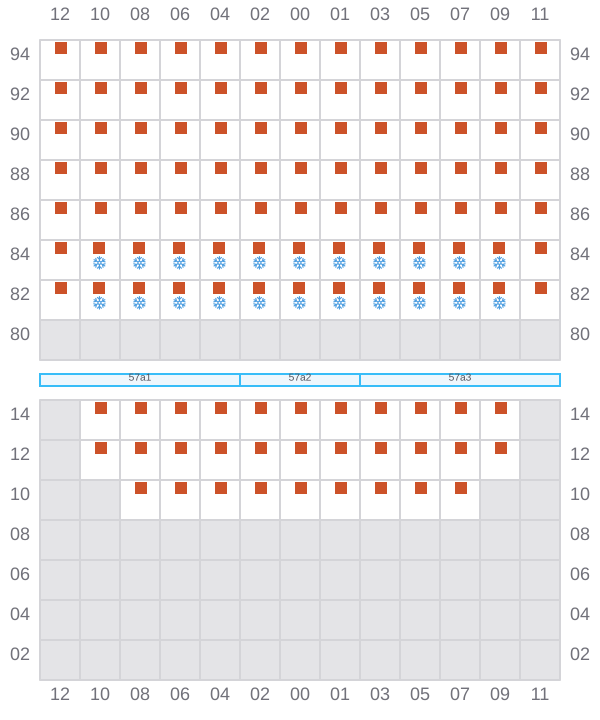

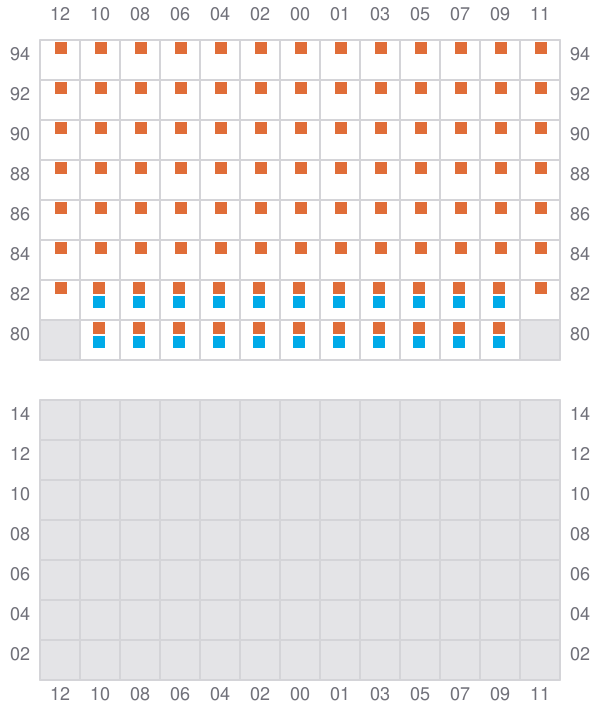

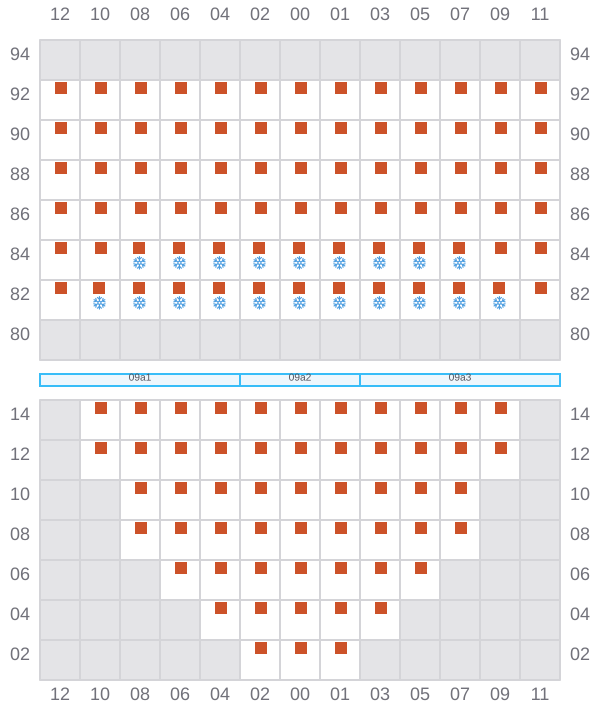

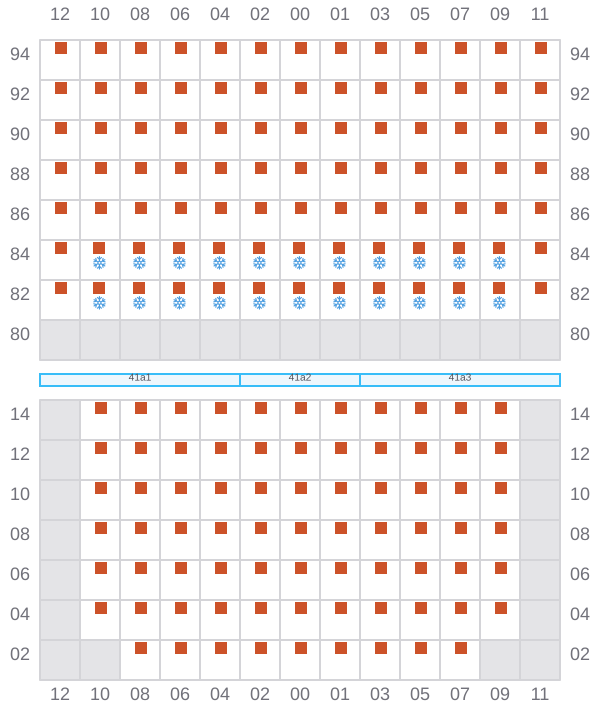

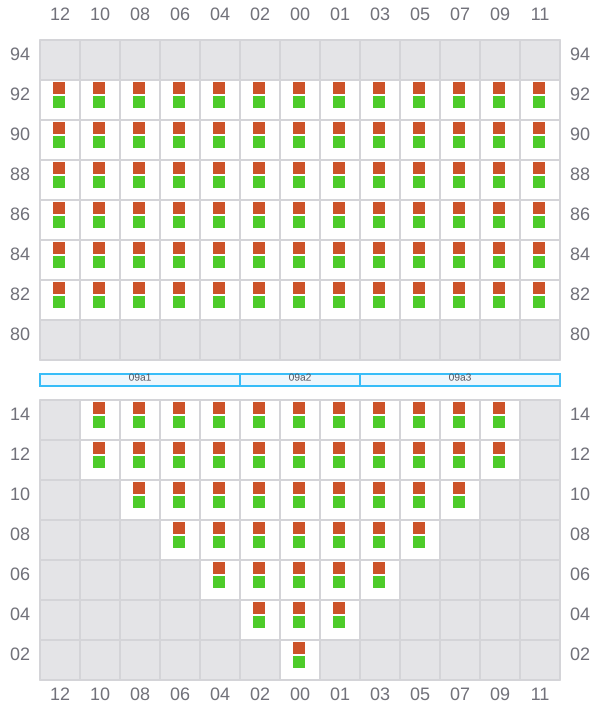

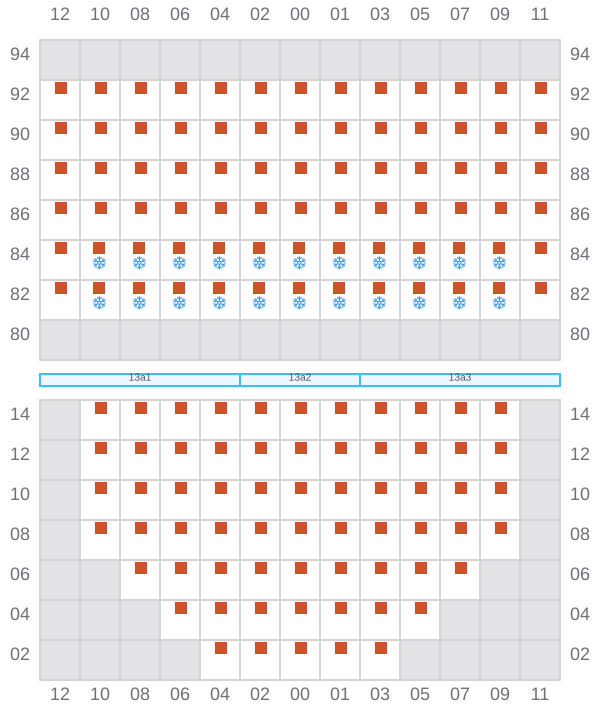

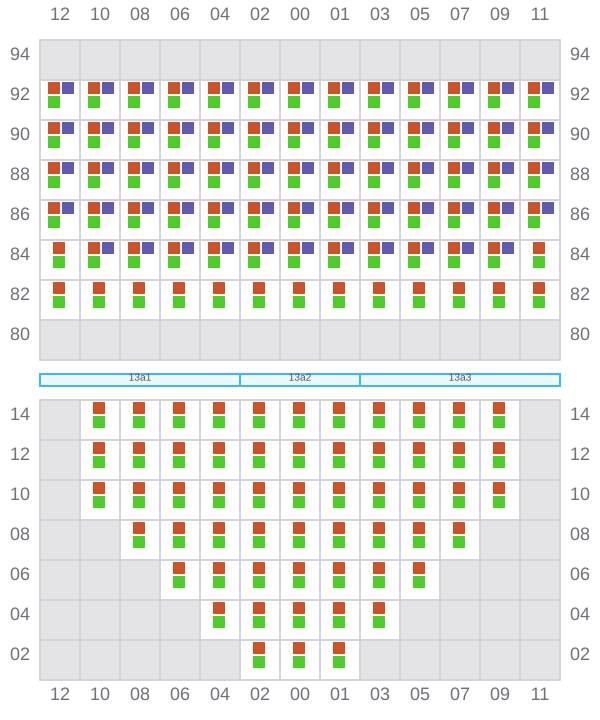

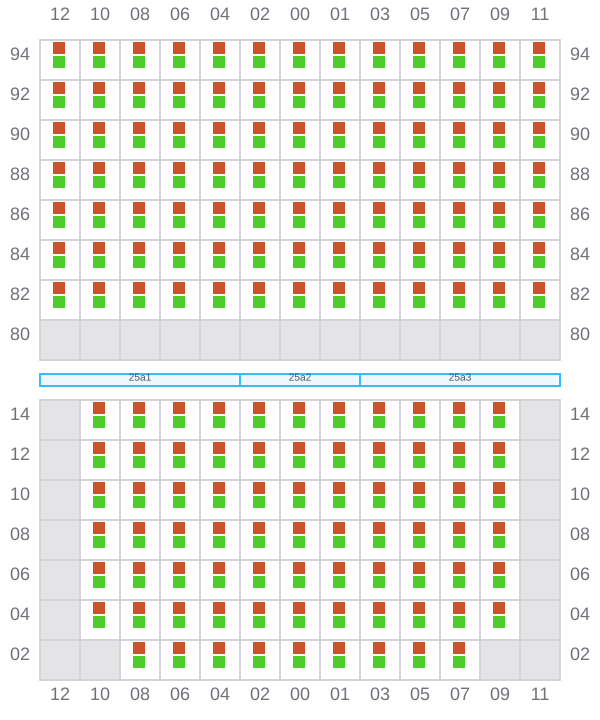

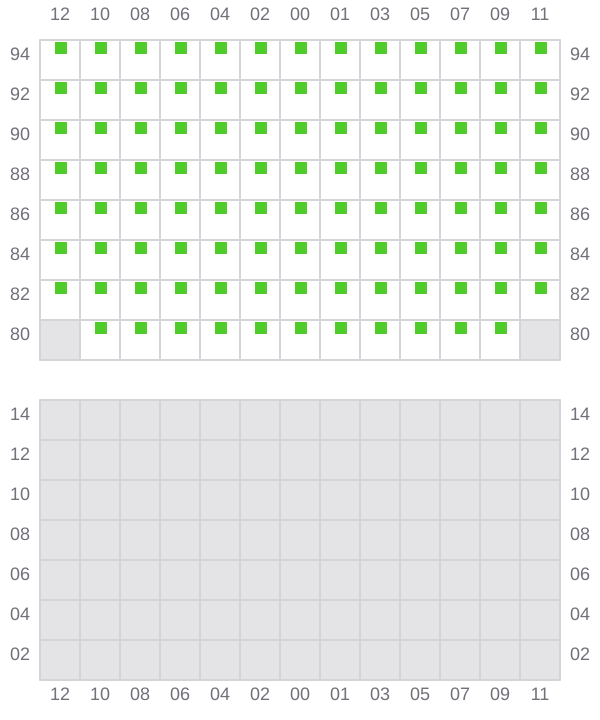

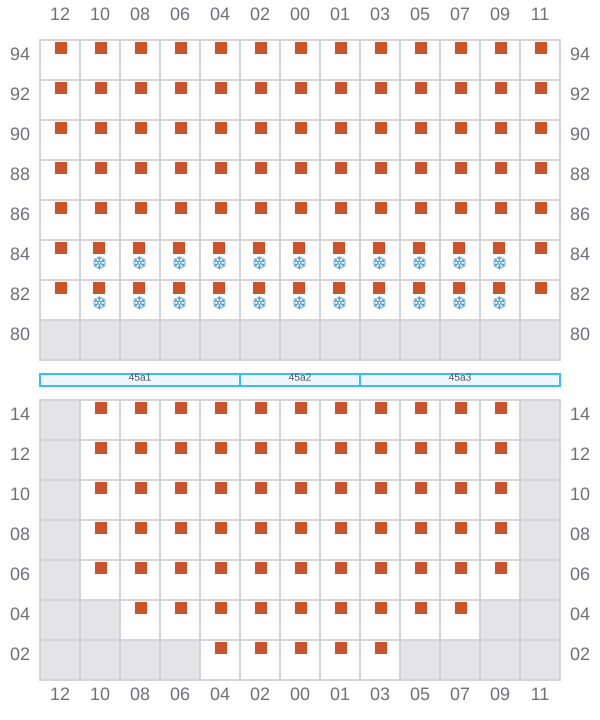

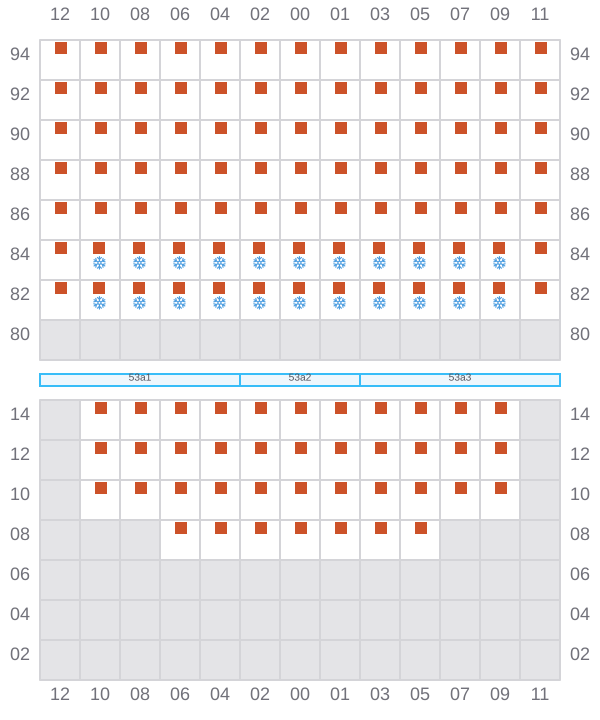

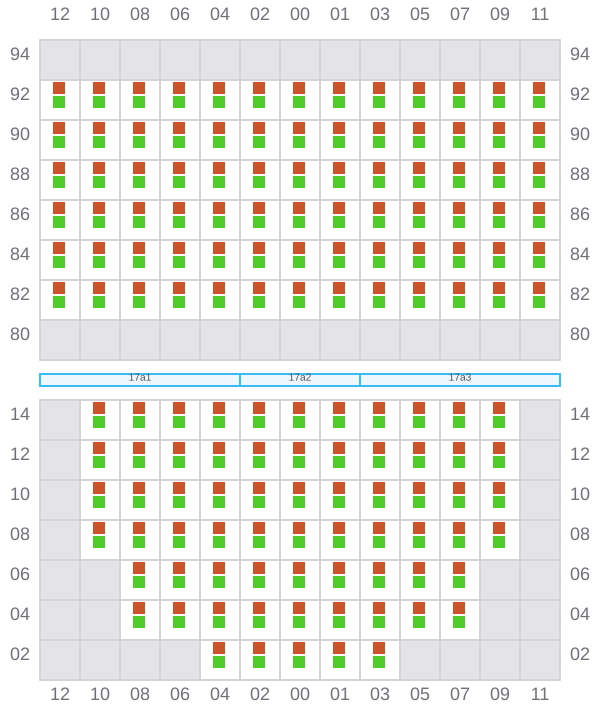

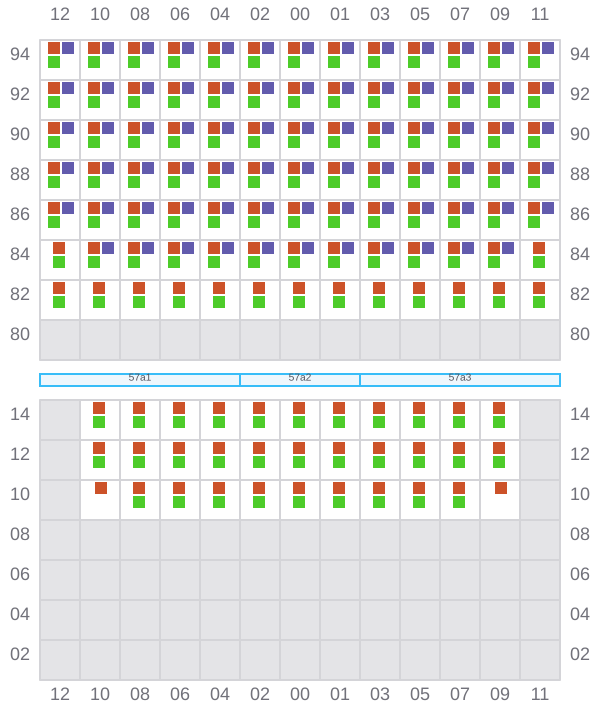

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

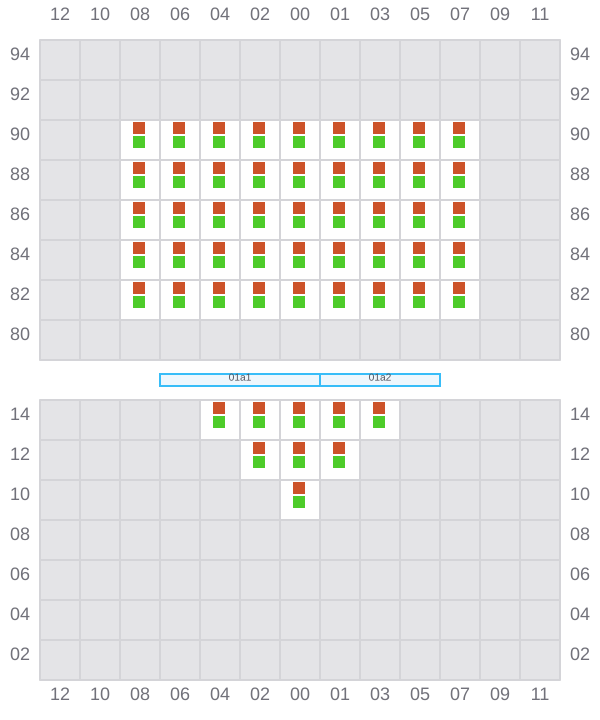

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←

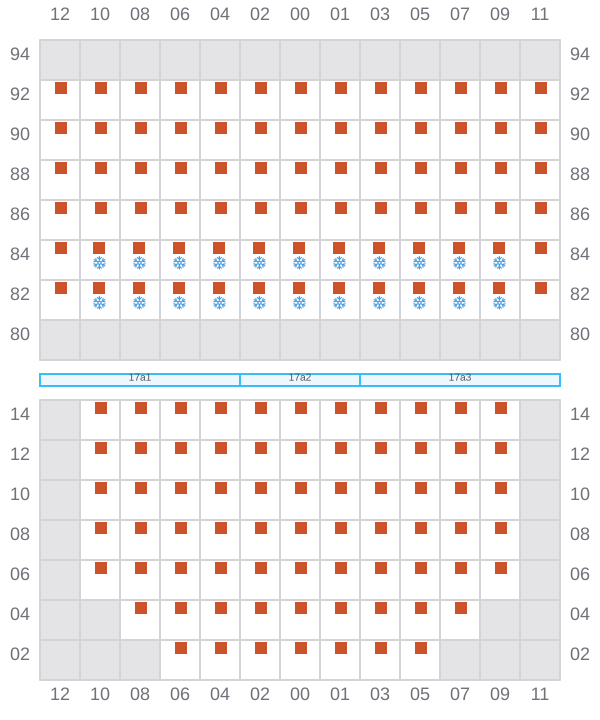

017 (018)
- →
019
- ←
021 (022)
- →
023
- ←

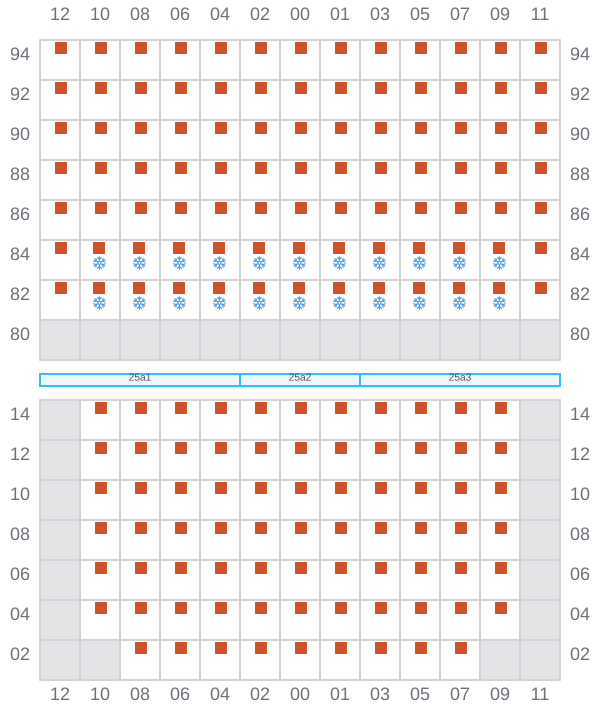

025 (026)
- →
027
- ←
- → / ?

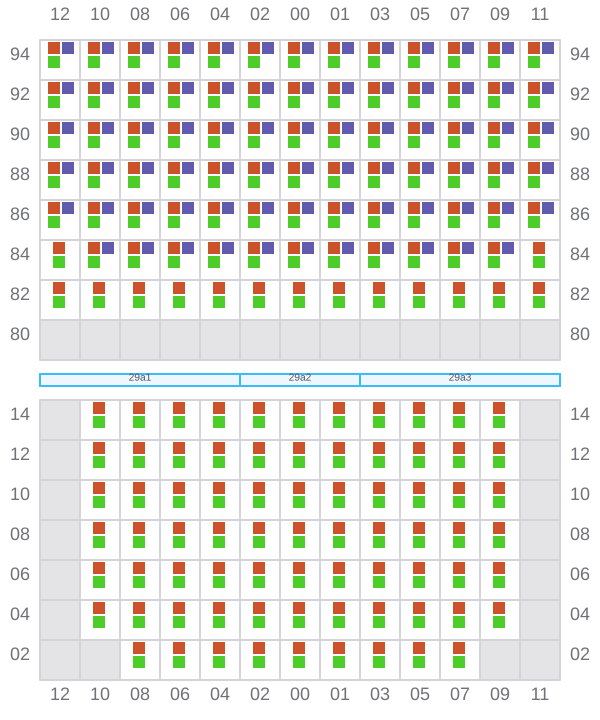

029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
035
- ←
- →

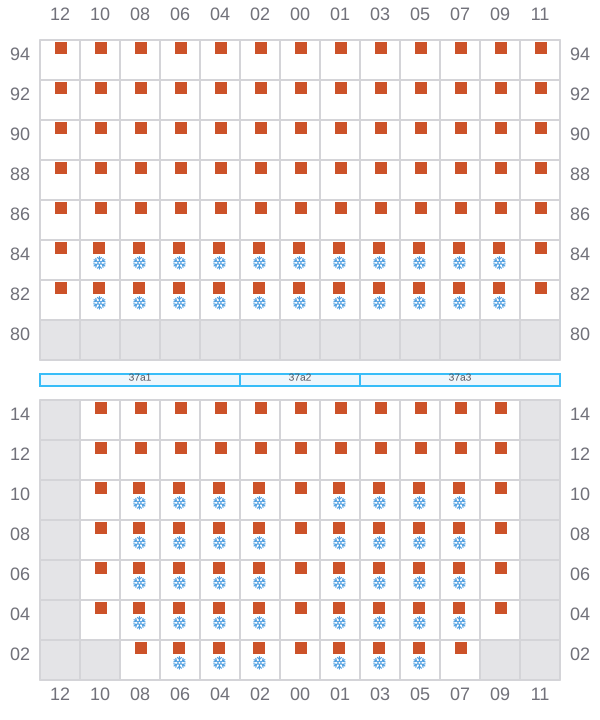

037 (038)
- →
039
- ←
- →
041 (042)
- →
043
- ←
- → / ?

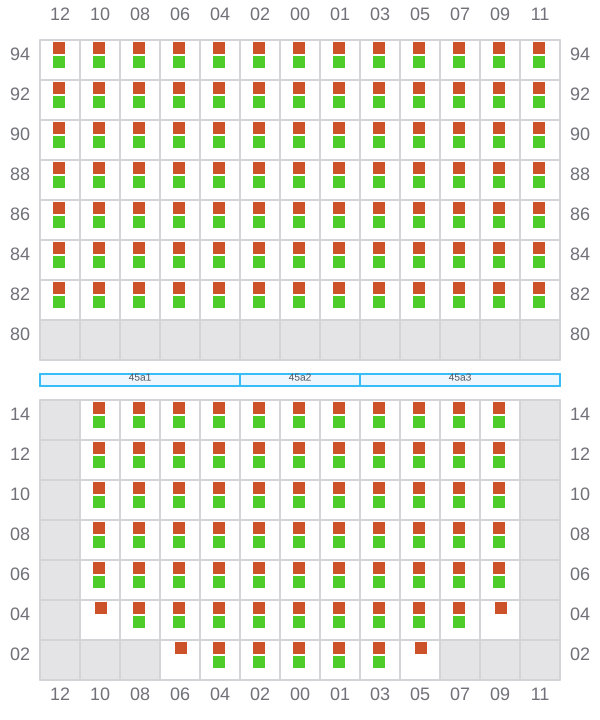

045 (046)
- →
047
- ←
- → / ?
049 (050)
- → / ?
051
- ← / ?
- → / ?

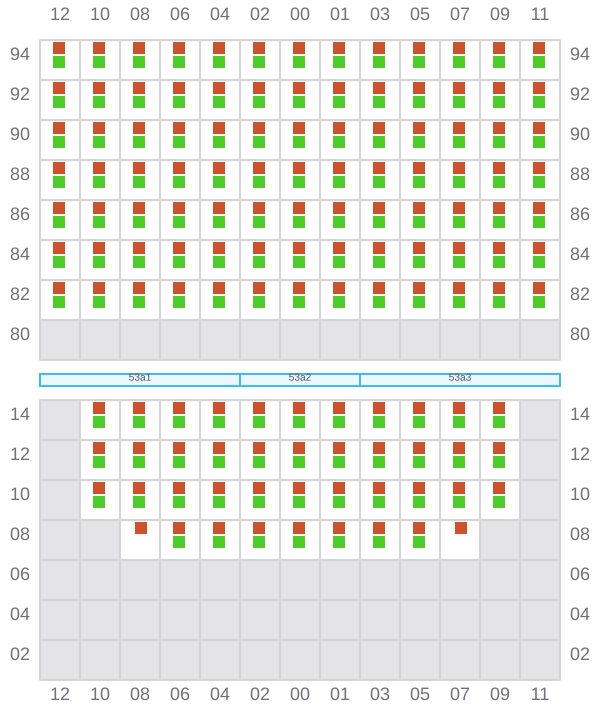

053 (054)
- →
055
- ←
- → / ?
057 (058)
- →
059
- ←
- → / ?
061 (062)
- → / ?
