ROYAL 1
9109005 | V4ML7 | MAS SHIPPING INC by *************************************** Last update: Tue Sep 01 2026
General Info
Ship Name:ROYAL 1
IMO Code:9109005
Call Sign:V4ML7
Line Operator:MAS SHIPPING INC
Class Name for Sister Ships:CSR
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):127.92
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:665
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

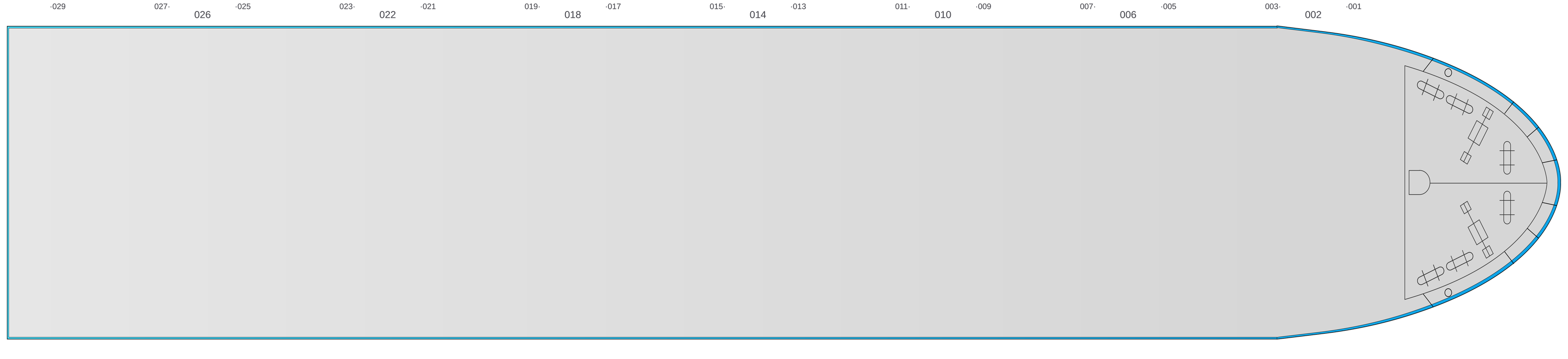

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

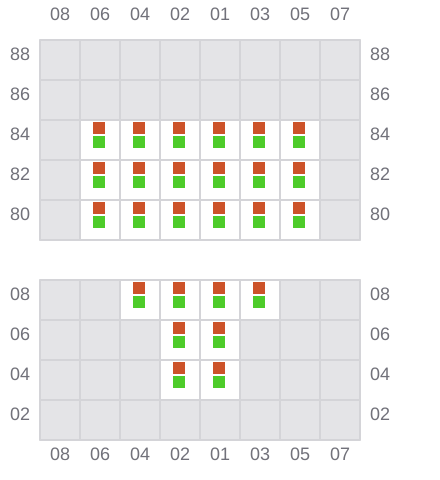

001 (002)
- →
- ✓

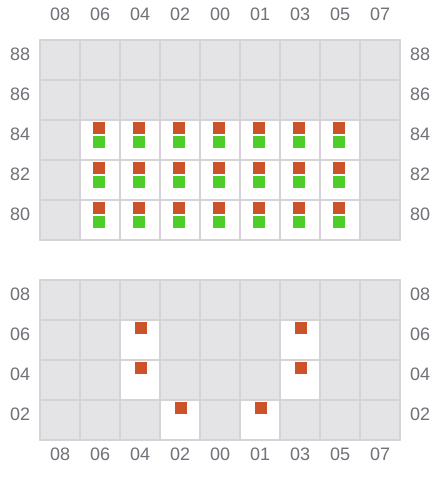

003 (002)
- ←
- ✓

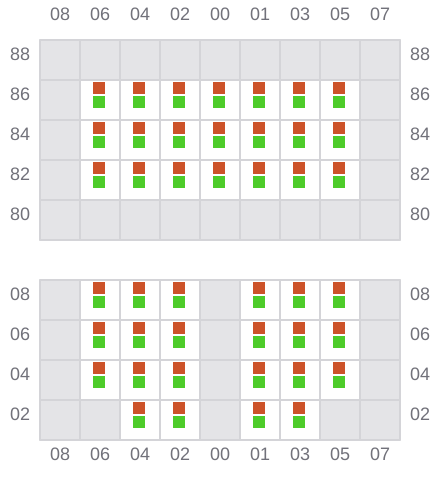

005 (006)
- →
- ✓
007 (006)
- ←
- ✓
009 (010)
- →
- ✓
011 (010)
- ←
- ✓

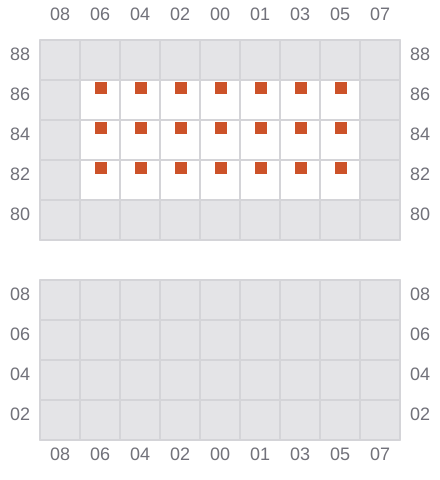

013
- →
- ✓ / ×
015 (014)
- ←
- ✓

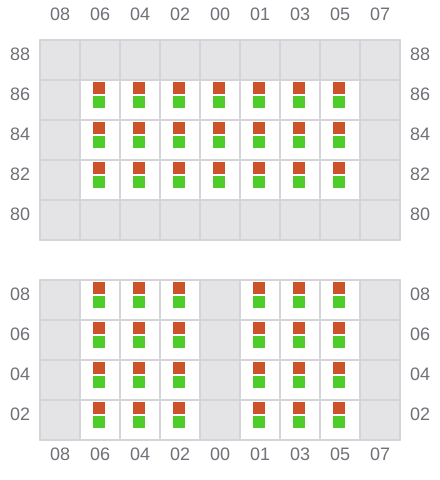

017 (018)
- →
- ✓

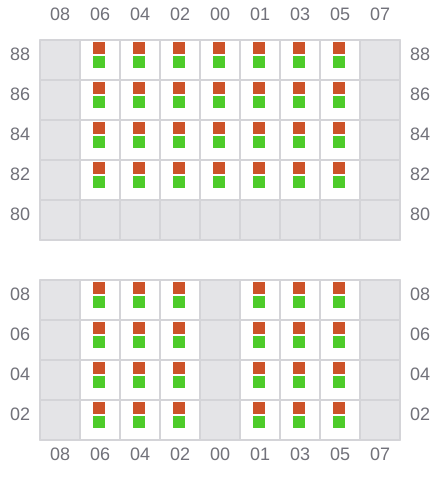

019 (018)
- ←
- ✓
021 (022)
- →
- ✓
023 (022)
- ←
- ✓

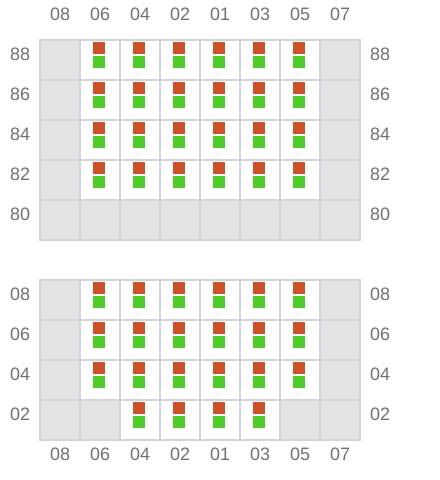

025 (026)
- →
- ✓

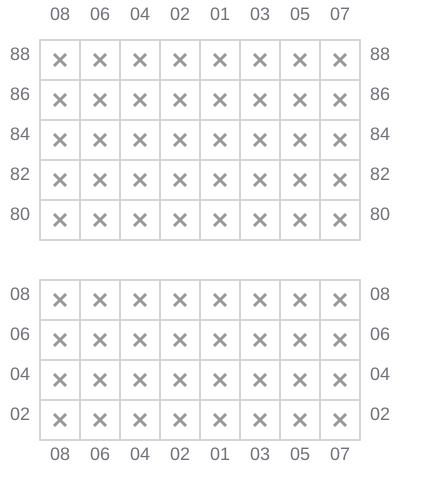

027
- ←
- ✓

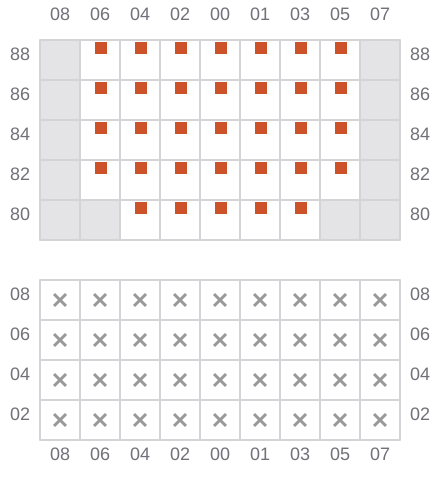

029
- →
- ✓ / ×
