RS PIONEER
9126730 | HC6714 | 9126730 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:RS PIONEER
IMO Code:9126730
Call Sign:HC6714
Line Operator:9126730
Class Name for Sister Ships:26A
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:021
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:361
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

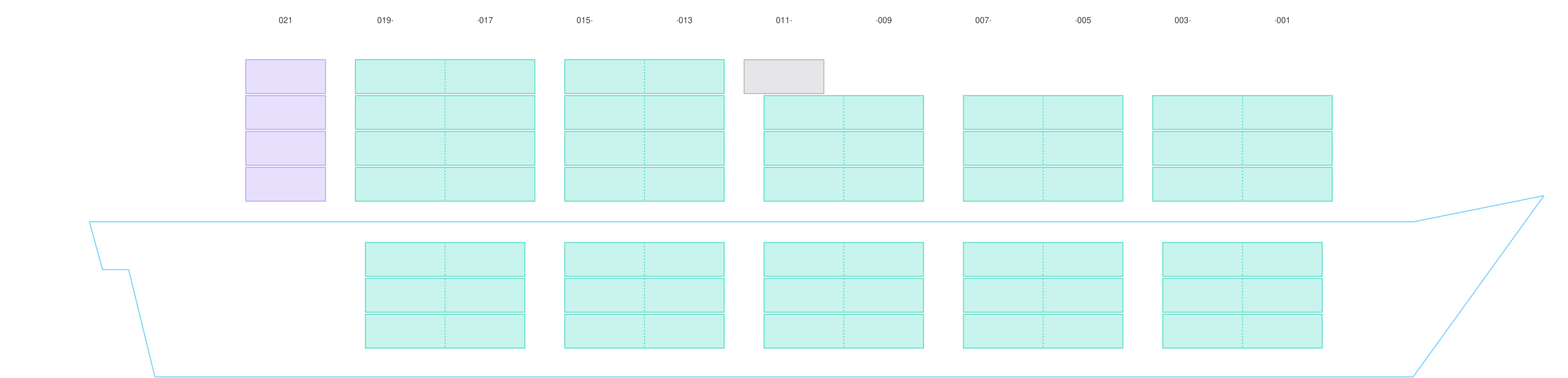

Side View

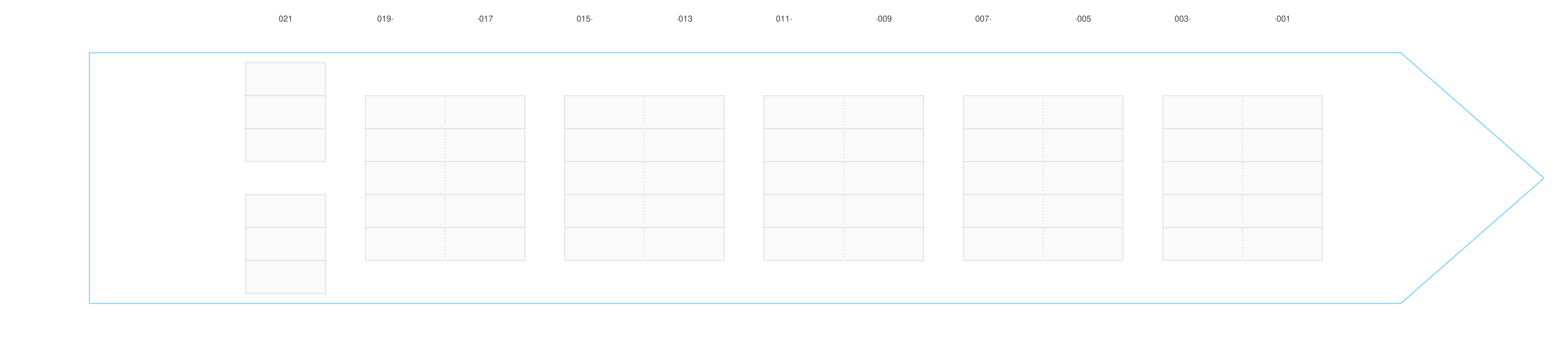

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

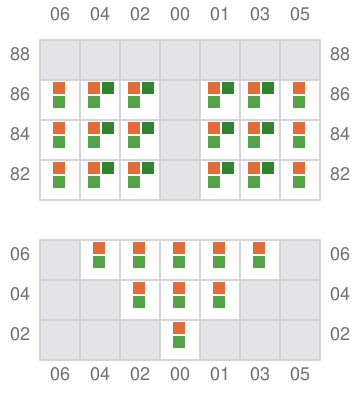

001 (002)
- →

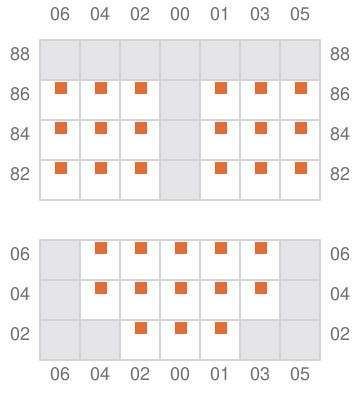

003
- ←

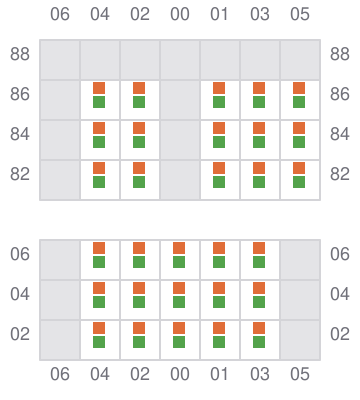

005 (006)
- →

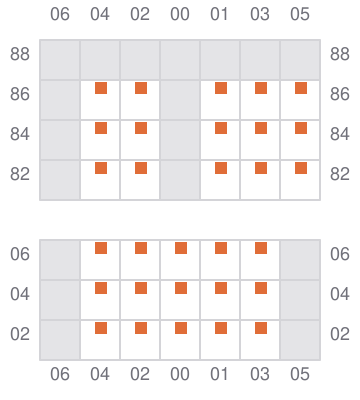

007
- ←
009 (010)
- →

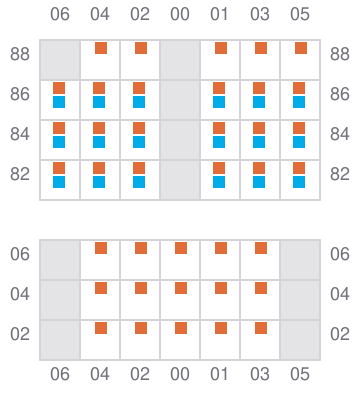

011
- ←
- → / ?

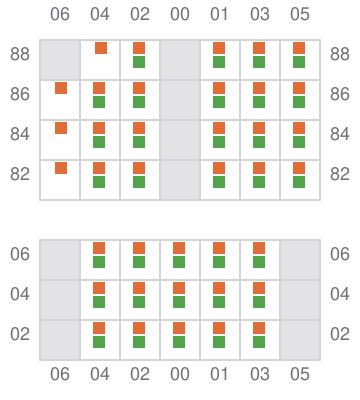

013 (014)
- →

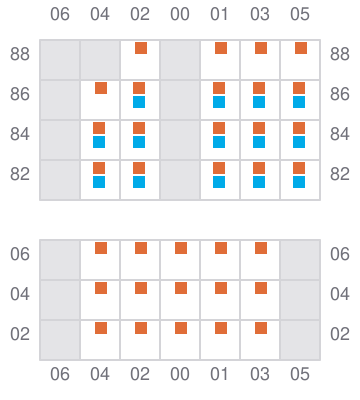

015
- ←
- → / ?

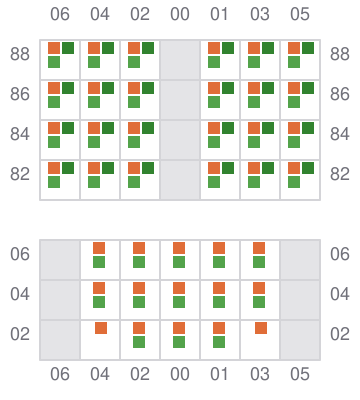

017 (018)
- →

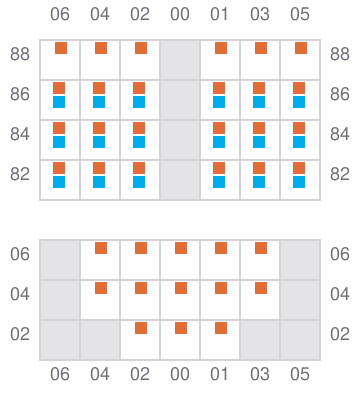

019
- ←
- → / ?

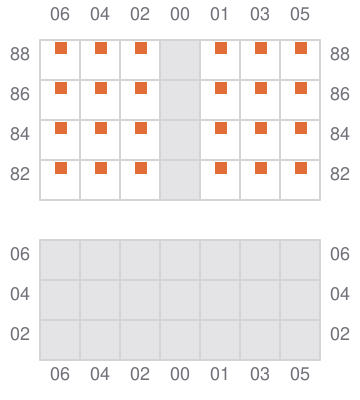

021
