RUBY TOWER
9618276 | 5LXL7 | ZODIAC MARITIME LTD by ********** Last update: Thu Sep 03 2026

General Info

Ship Name:RUBY TOWER
IMO Code:9618276
Call Sign:5LXL7
Line Operator:ZODIAC MARITIME LTD
Class Name for Sister Ships:
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.30
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:86
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,187

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of RUBY TOWER

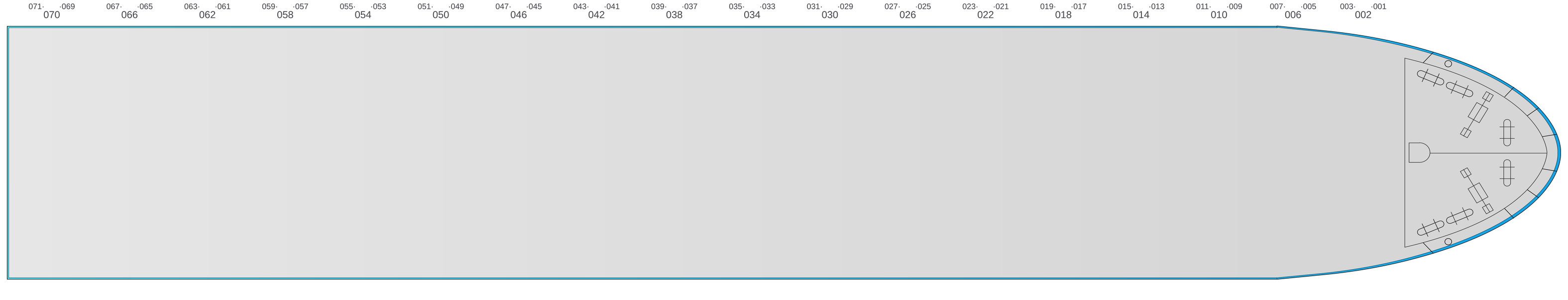

Hatch-Covers View

Deck view of RUBY TOWER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →

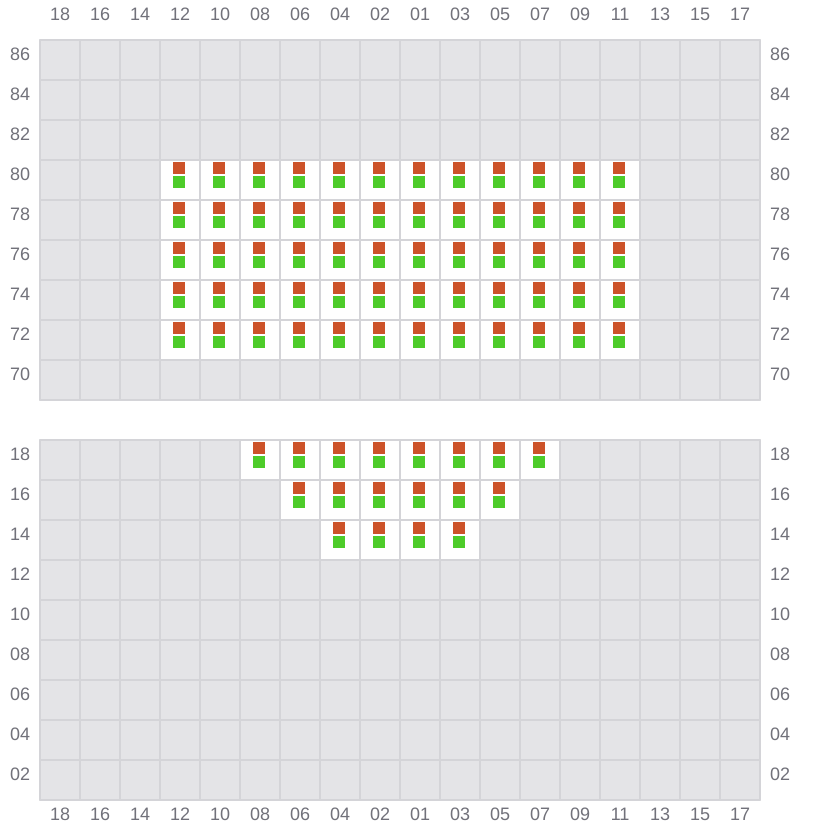

Bay 001 view and slots of RUBY TOWER

003

  • ←

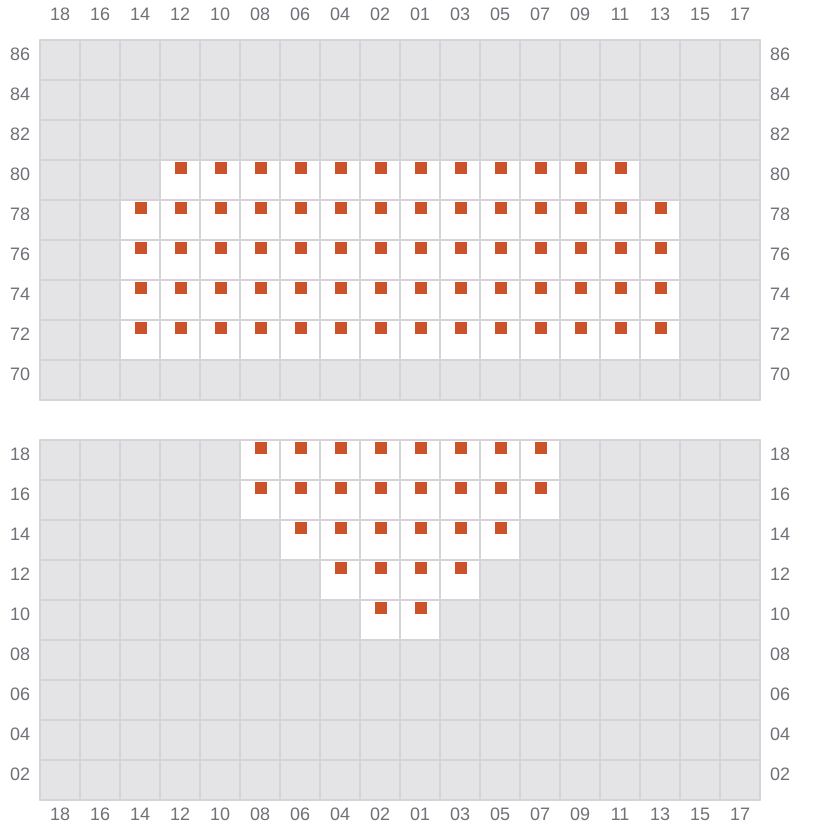

Bay 003 view and slots of RUBY TOWER

005 (006)

  • →

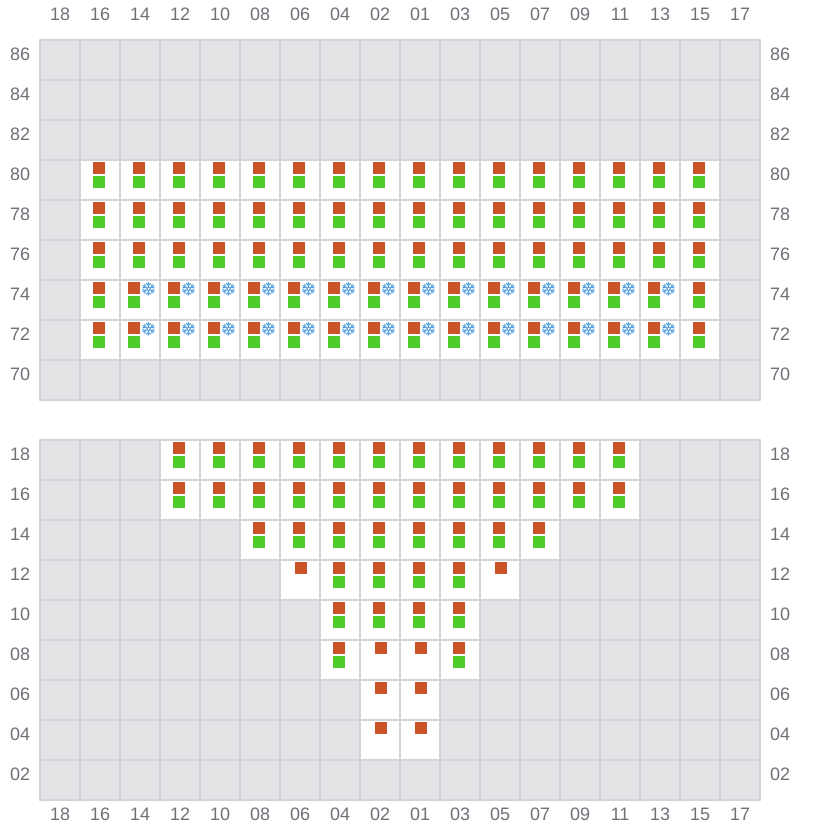

Bay 005 view and slots of RUBY TOWER

007

  • ←

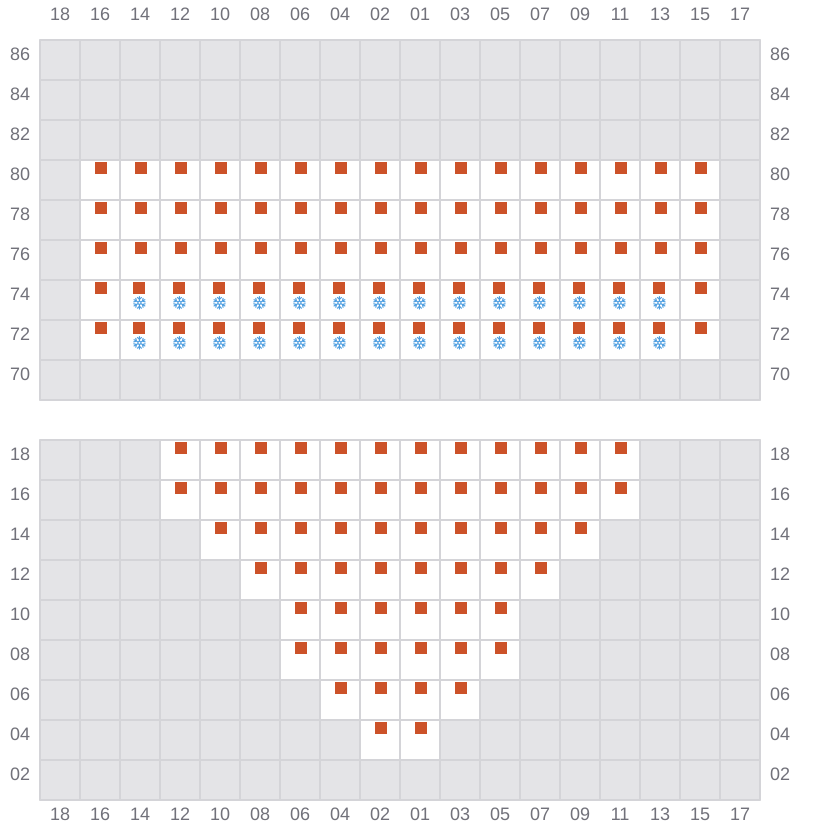

Bay 007 view and slots of RUBY TOWER

009 (010)

  • →

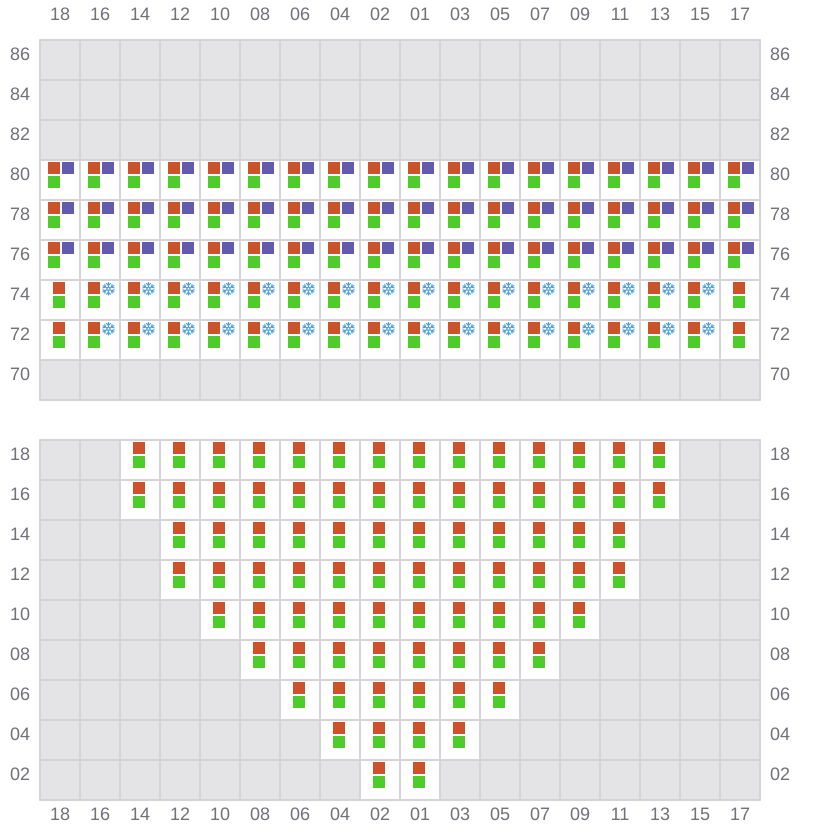

Bay 009 view and slots of RUBY TOWER

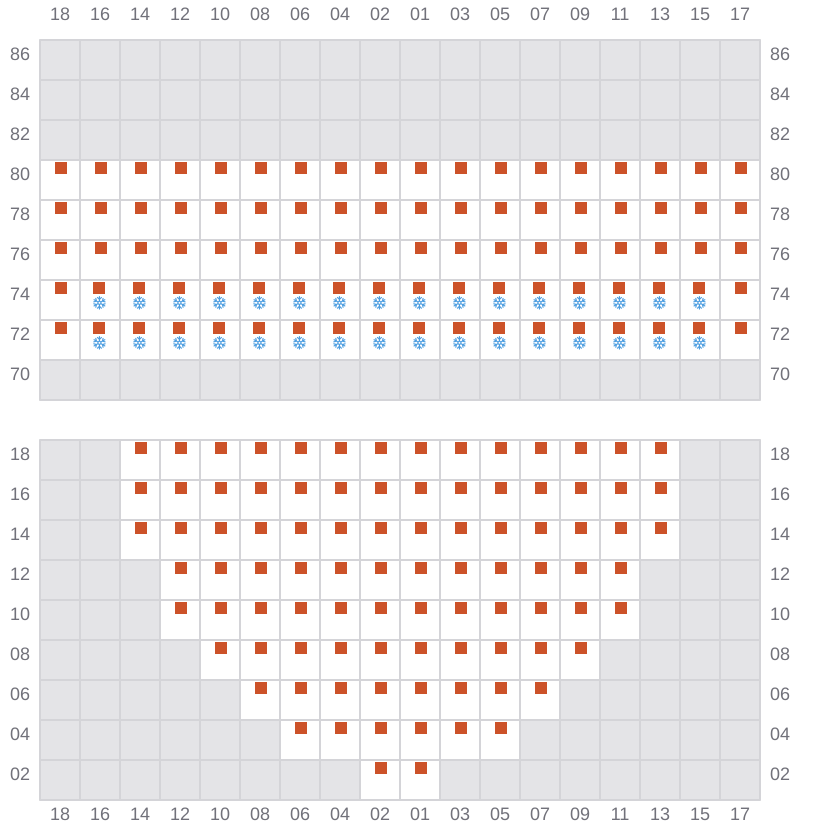

011

  • ←
Bay 011 view and slots of RUBY TOWER

013 (014)

  • →

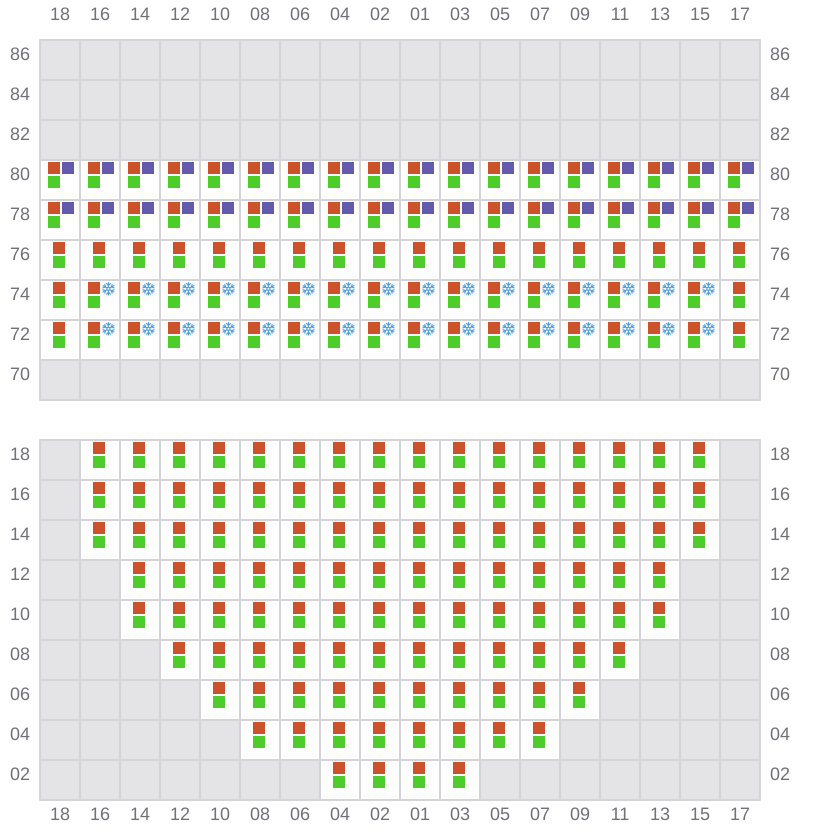

Bay 013 view and slots of RUBY TOWER

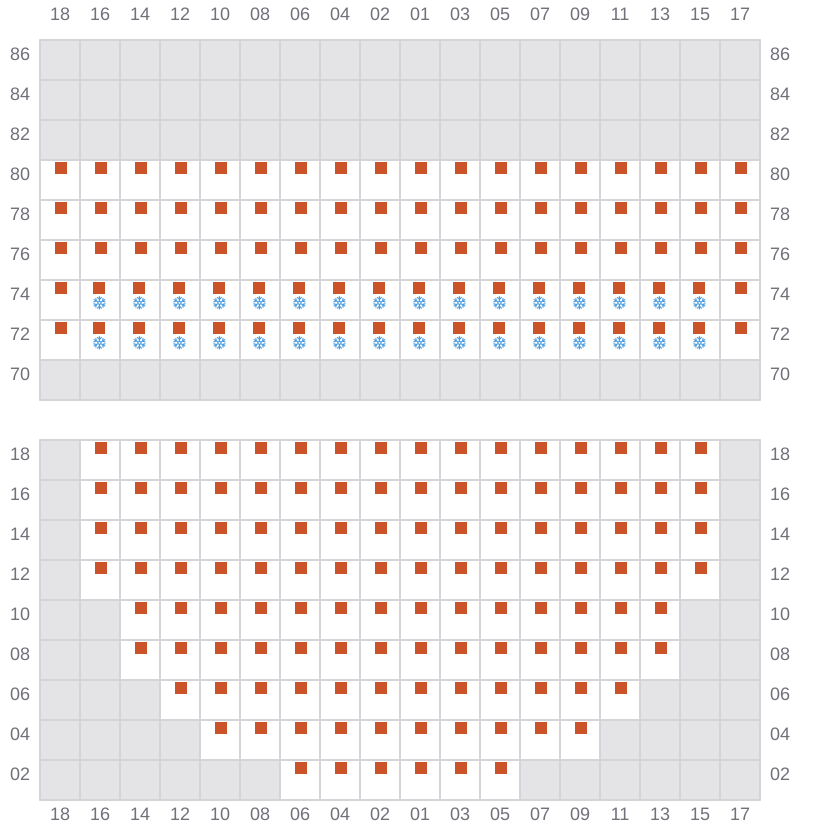

015

  • ←
Bay 015 view and slots of RUBY TOWER

017 (018)

  • →

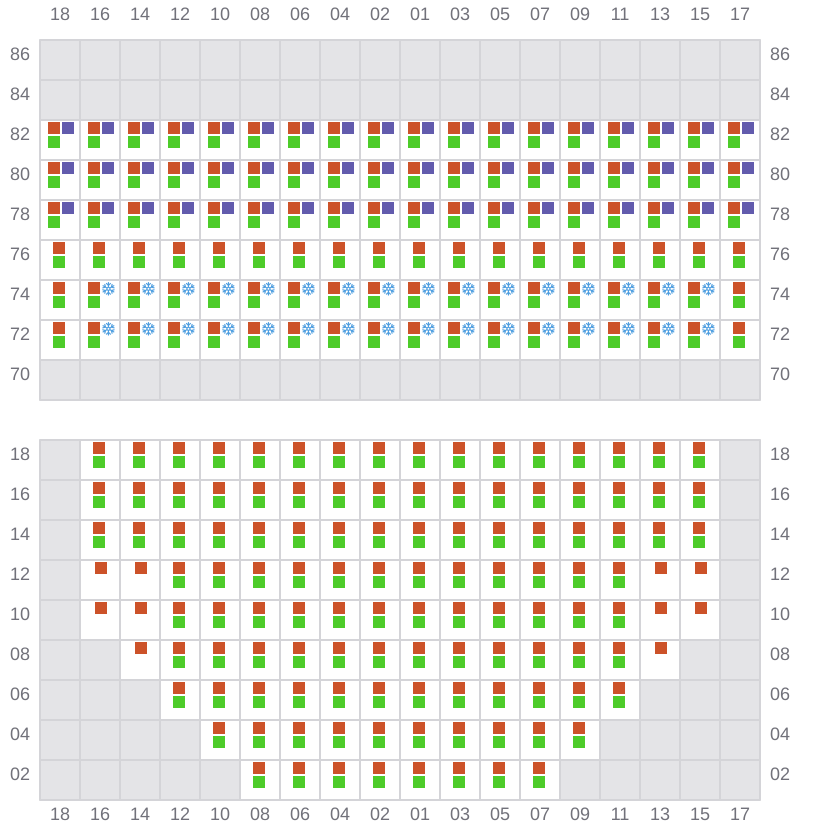

Bay 017 view and slots of RUBY TOWER

019

  • ←

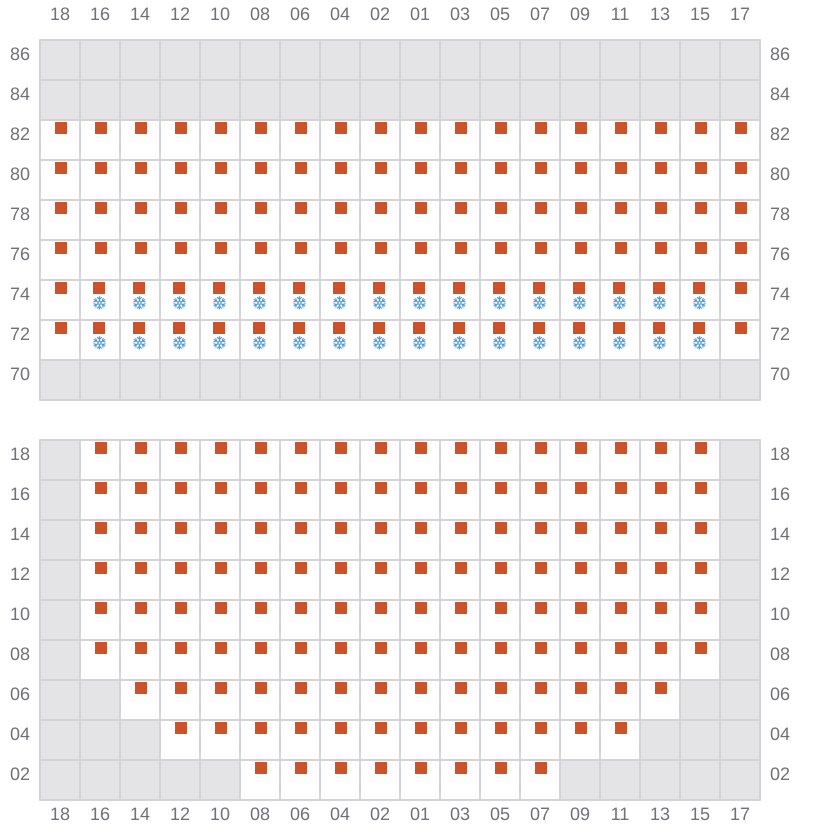

Bay 019 view and slots of RUBY TOWER

021 (022)

  • →

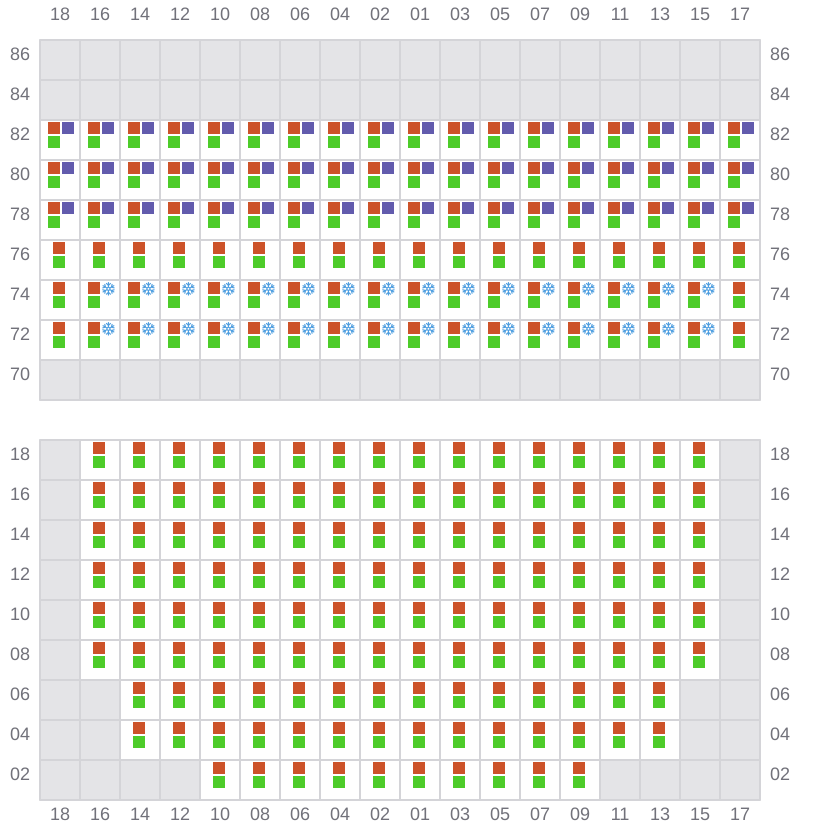

Bay 021 view and slots of RUBY TOWER

023

  • ←

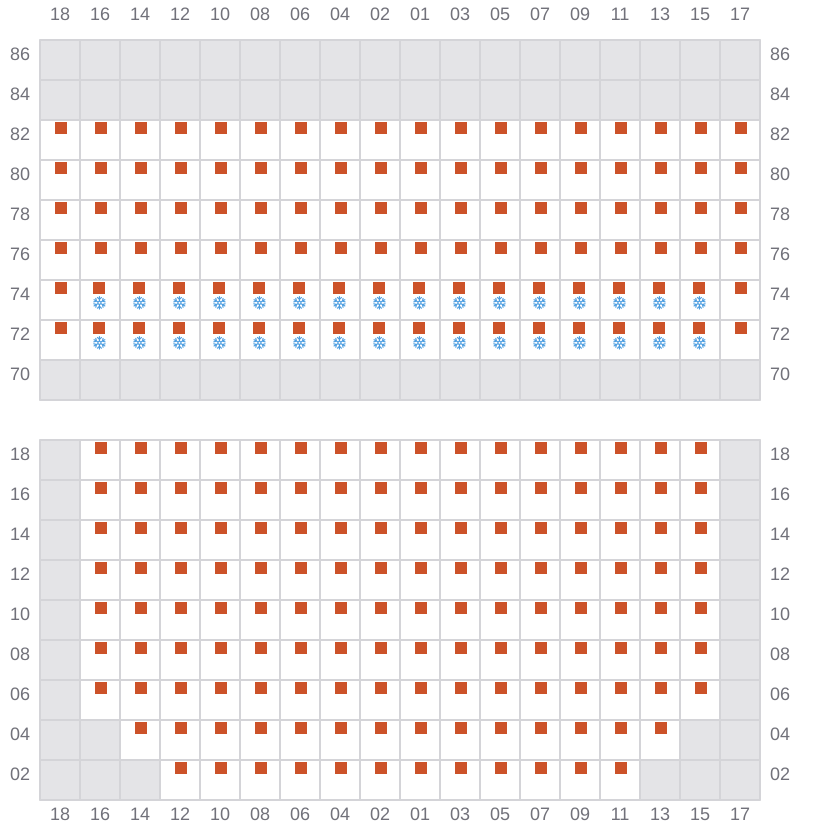

Bay 023 view and slots of RUBY TOWER

025 (026)

  • →

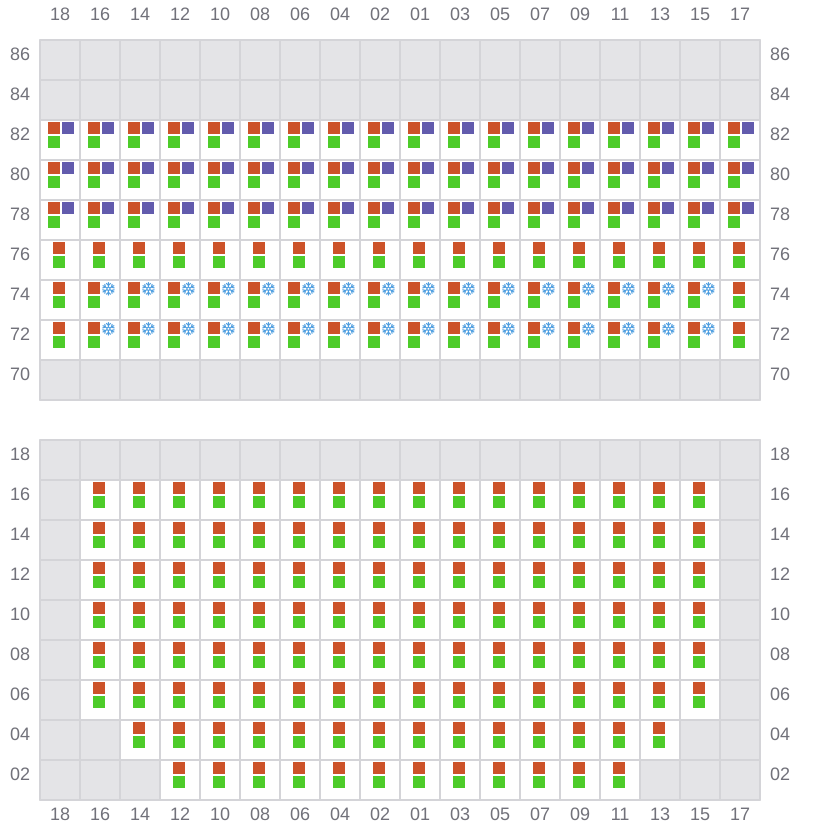

Bay 025 view and slots of RUBY TOWER

027

  • ←

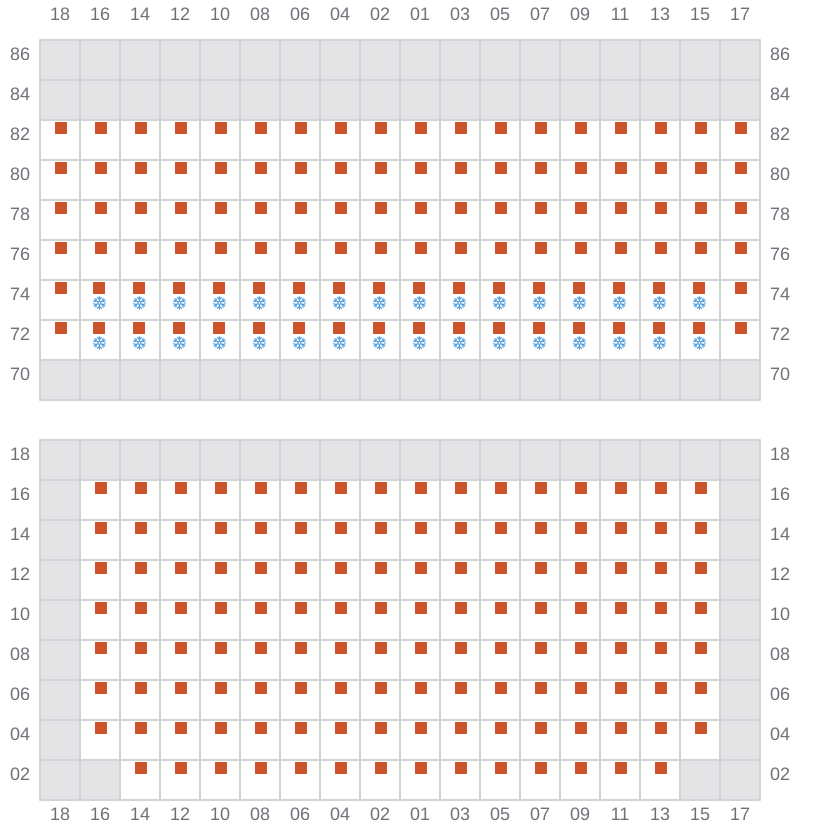

Bay 027 view and slots of RUBY TOWER

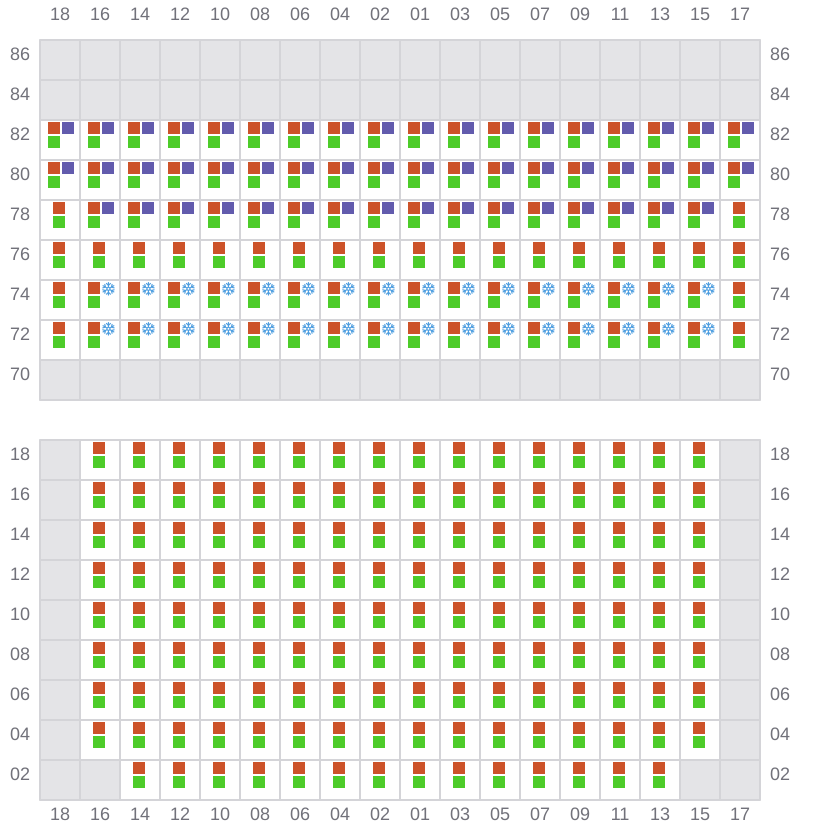

029 (030)

  • →
Bay 029 view and slots of RUBY TOWER

031

  • ←

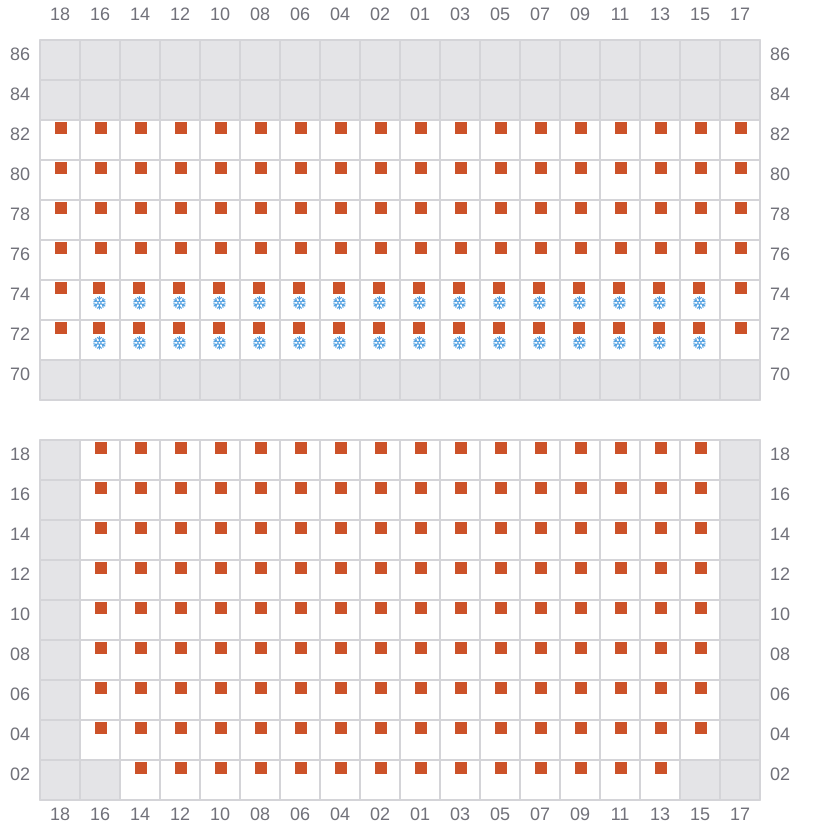

Bay 031 view and slots of RUBY TOWER

033 (034)

  • →

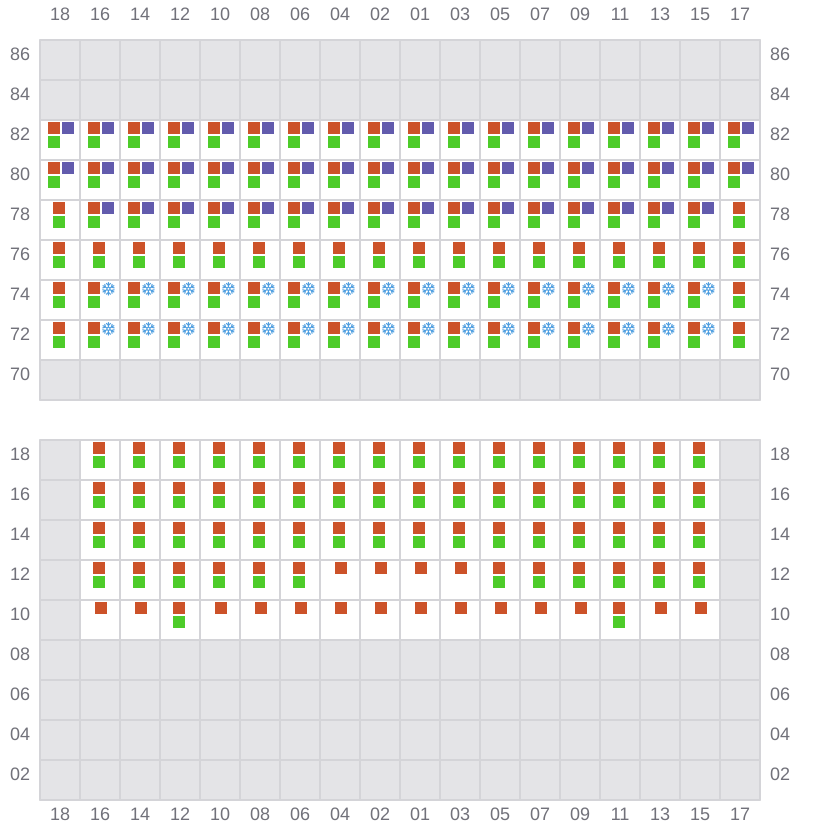

Bay 033 view and slots of RUBY TOWER

035

  • ←

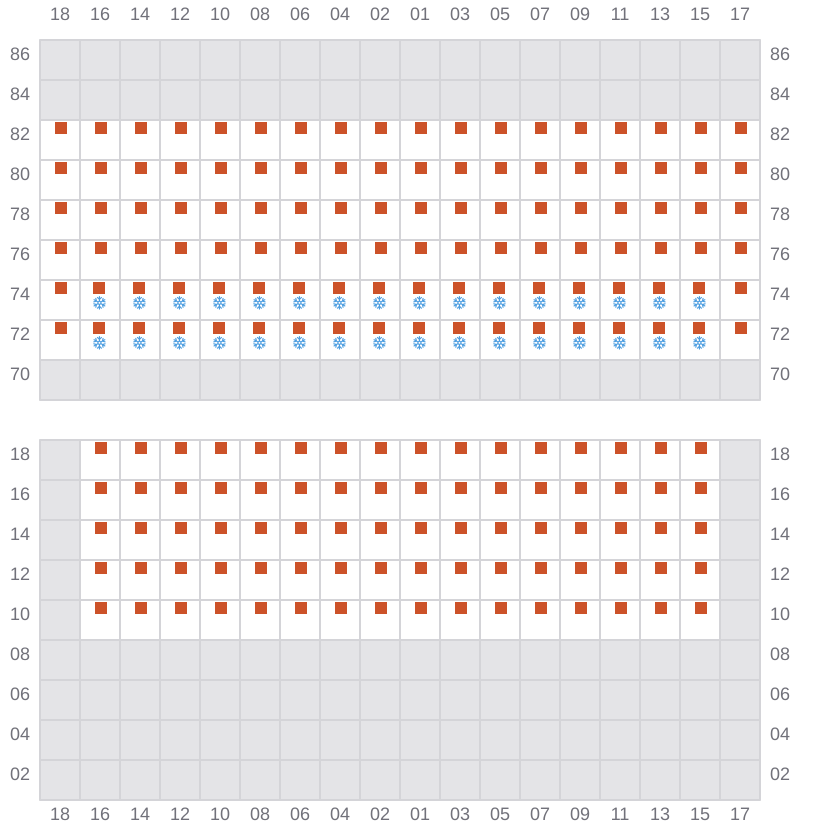

Bay 035 view and slots of RUBY TOWER

037 (038)

  • →
Bay 037 view and slots of RUBY TOWER

039

  • ←

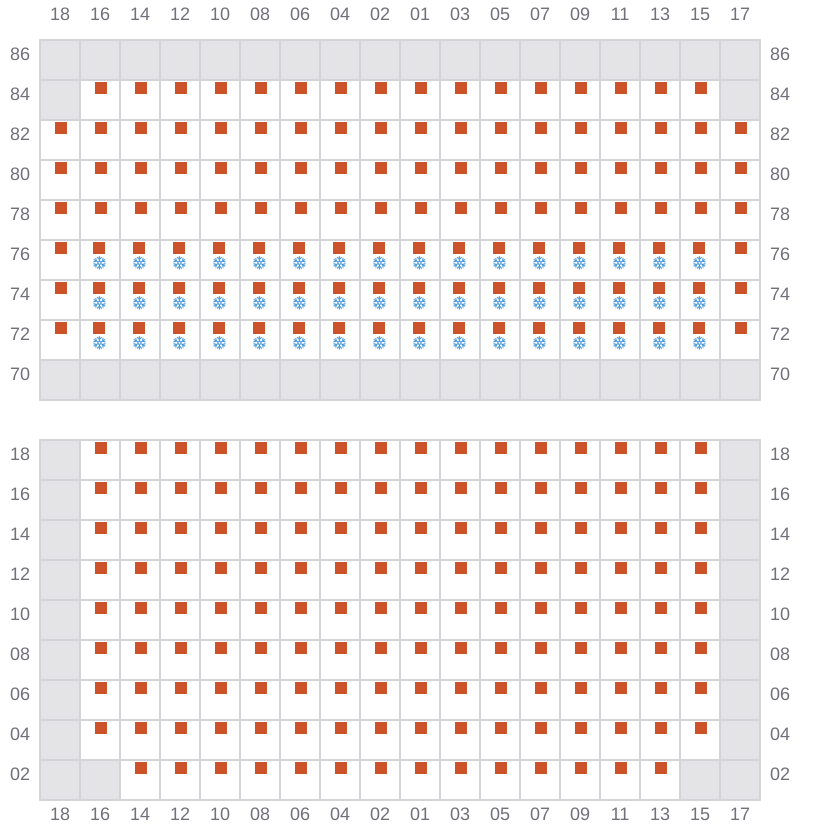

Bay 039 view and slots of RUBY TOWER

041 (042)

  • →

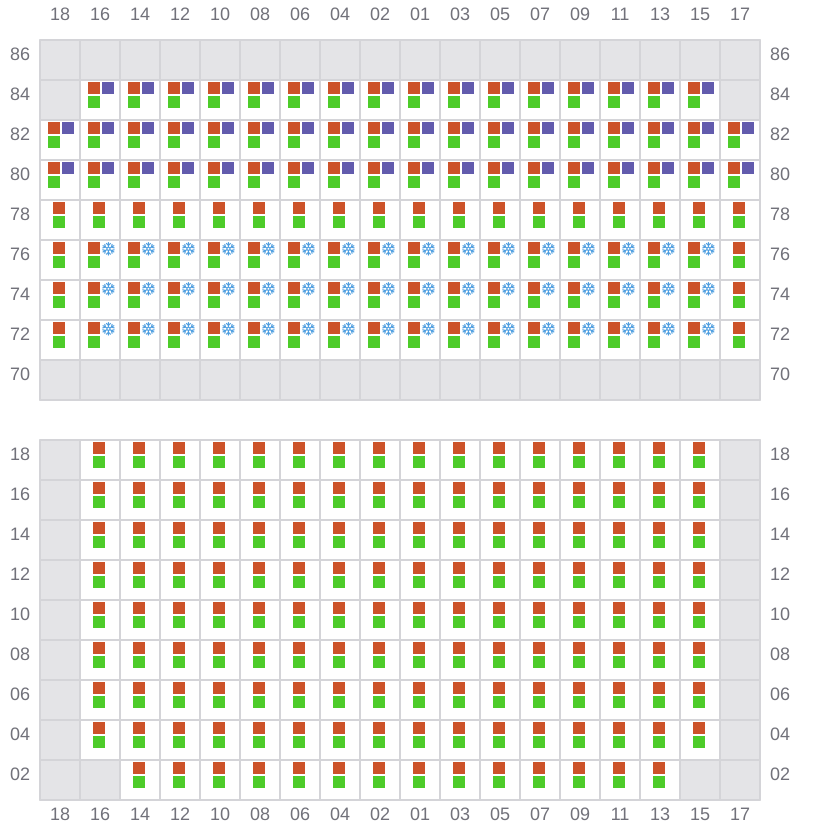

Bay 041 view and slots of RUBY TOWER

043

  • ←
Bay 043 view and slots of RUBY TOWER

045 (046)

  • →

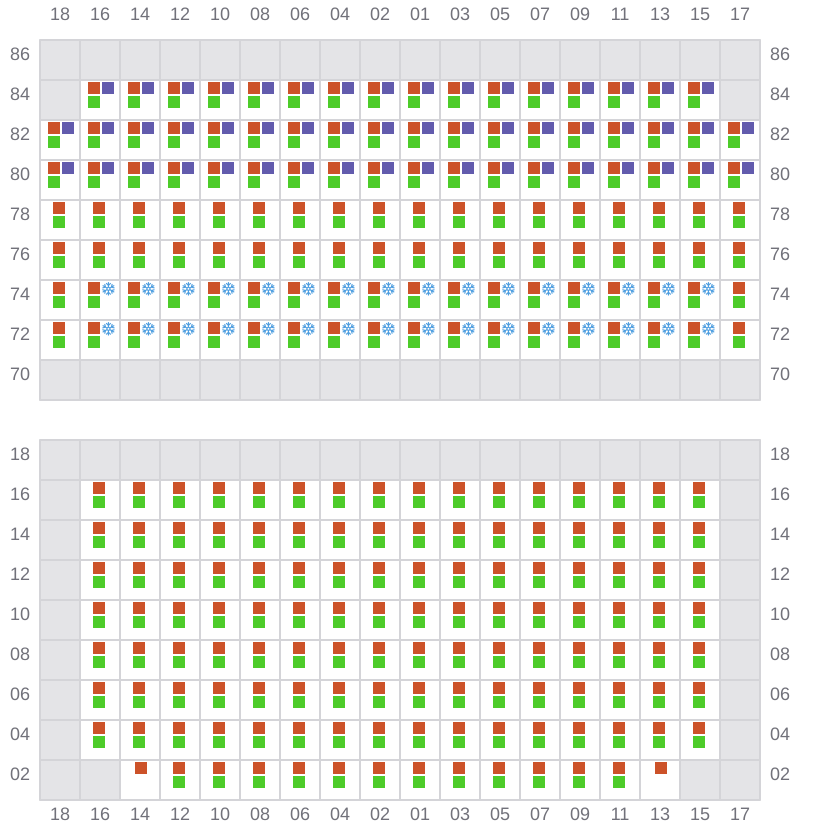

Bay 045 view and slots of RUBY TOWER

047

  • ←

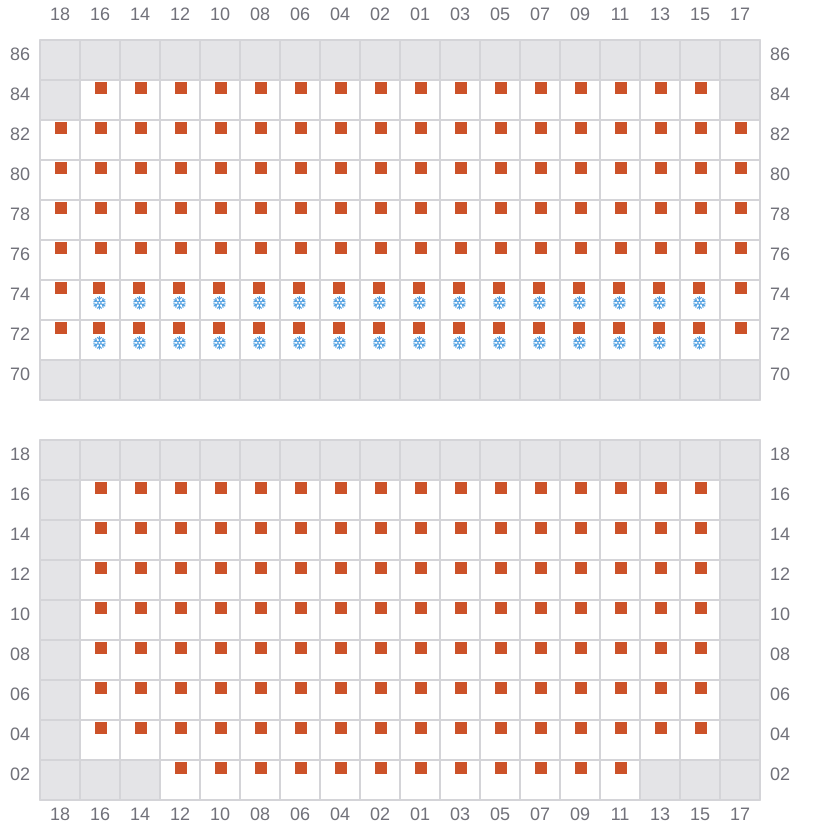

Bay 047 view and slots of RUBY TOWER

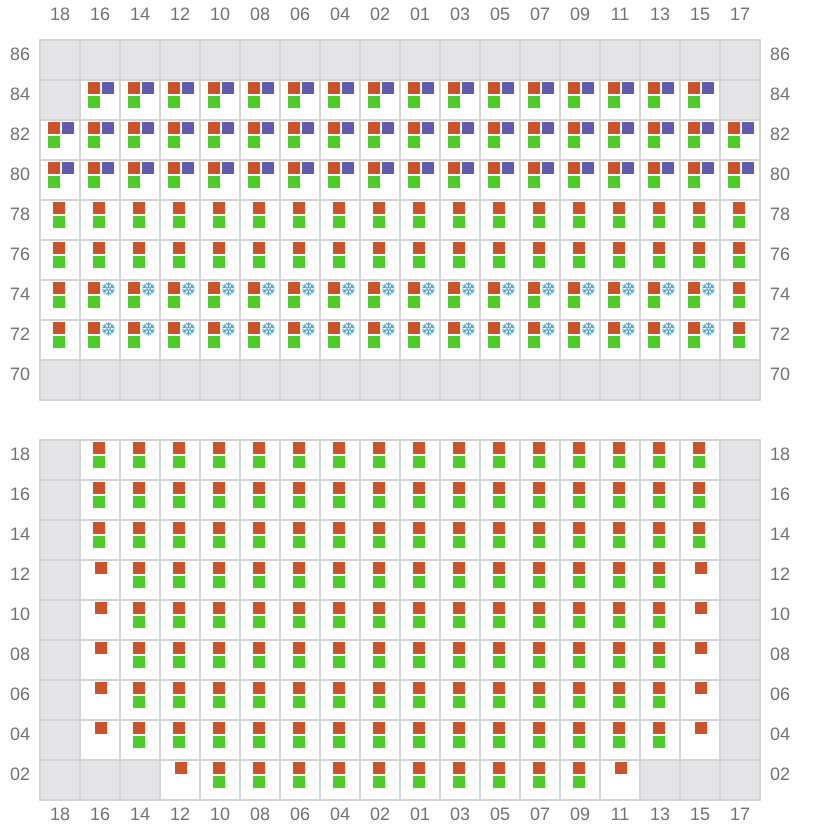

049 (050)

  • →
Bay 049 view and slots of RUBY TOWER

051

  • ←

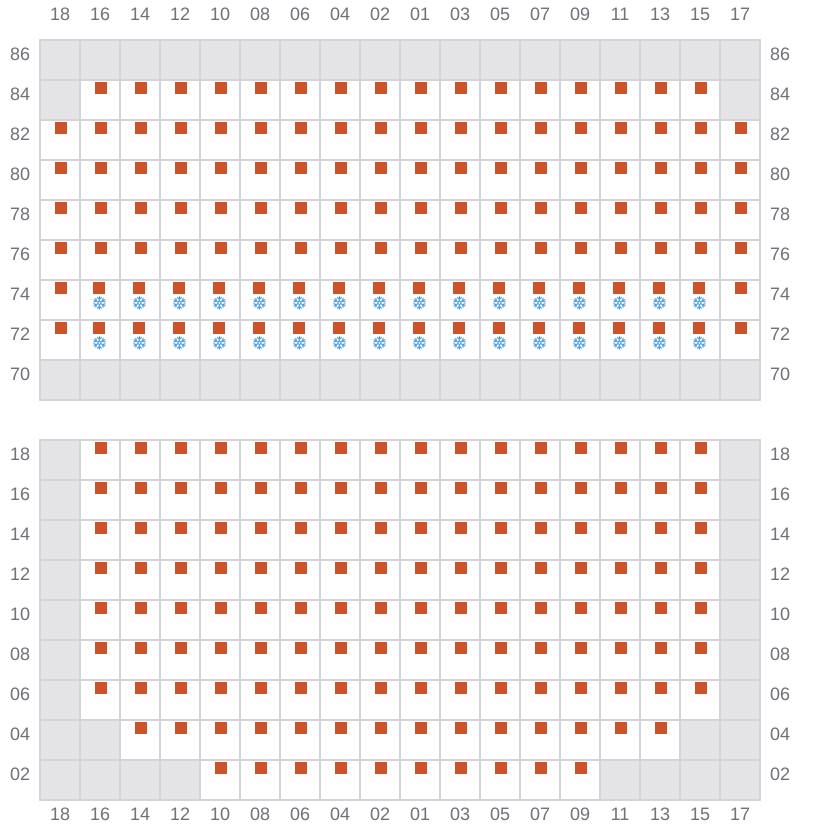

Bay 051 view and slots of RUBY TOWER

053 (054)

  • →

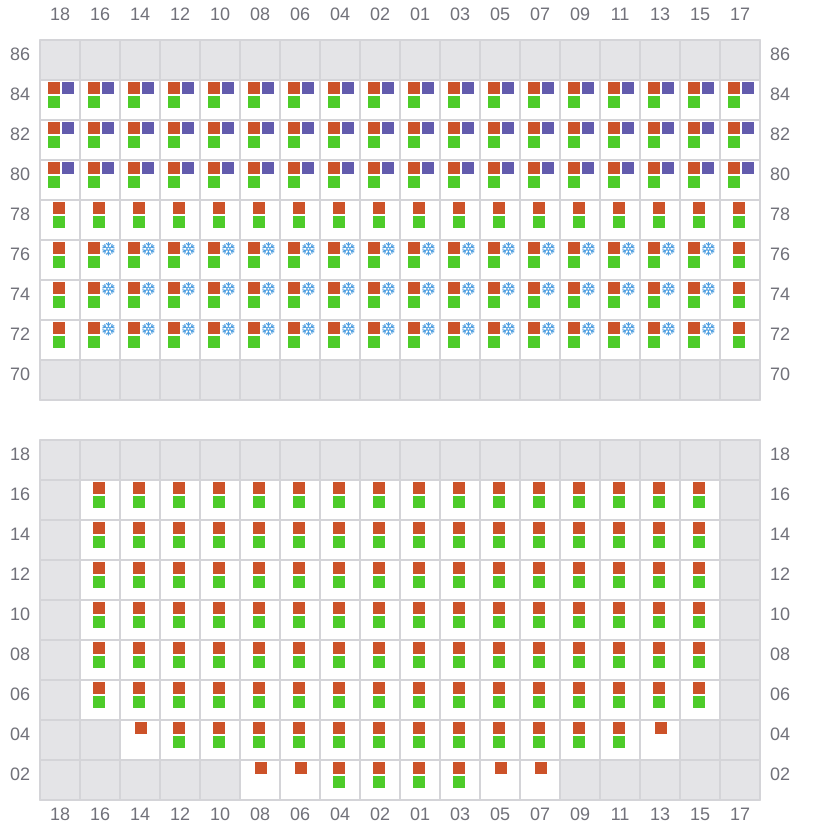

Bay 053 view and slots of RUBY TOWER

055

  • ←

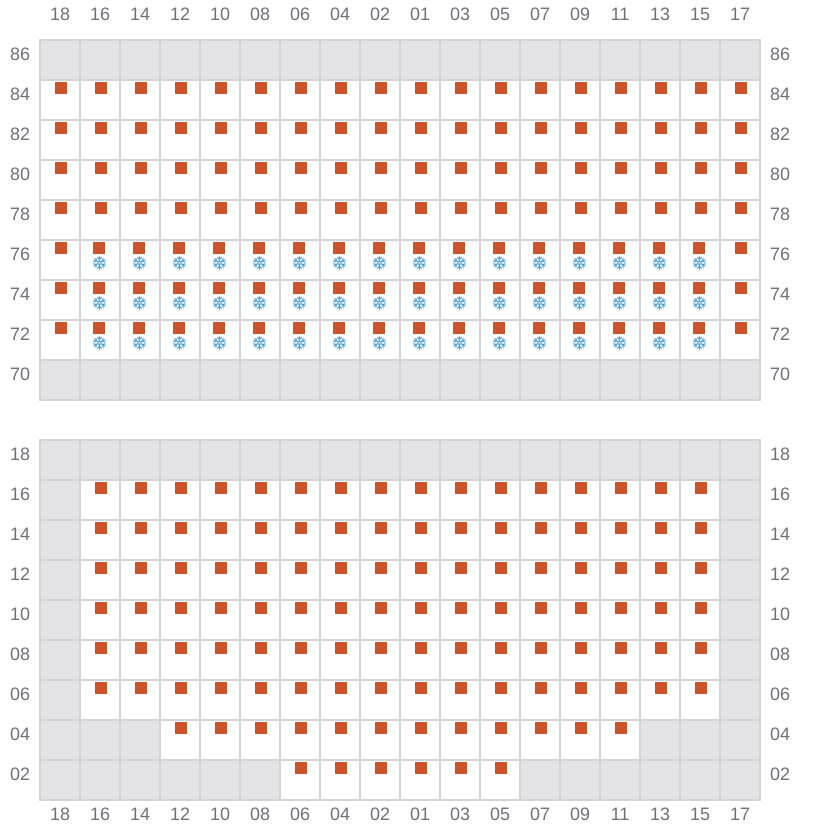

Bay 055 view and slots of RUBY TOWER

057 (058)

  • →

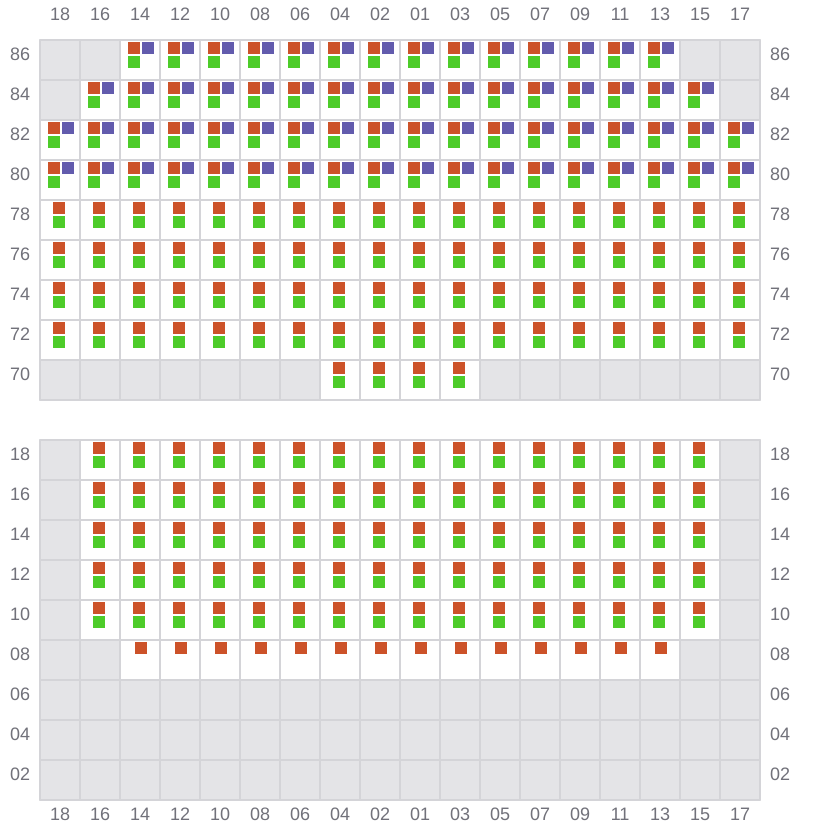

Bay 057 view and slots of RUBY TOWER

059

  • ←

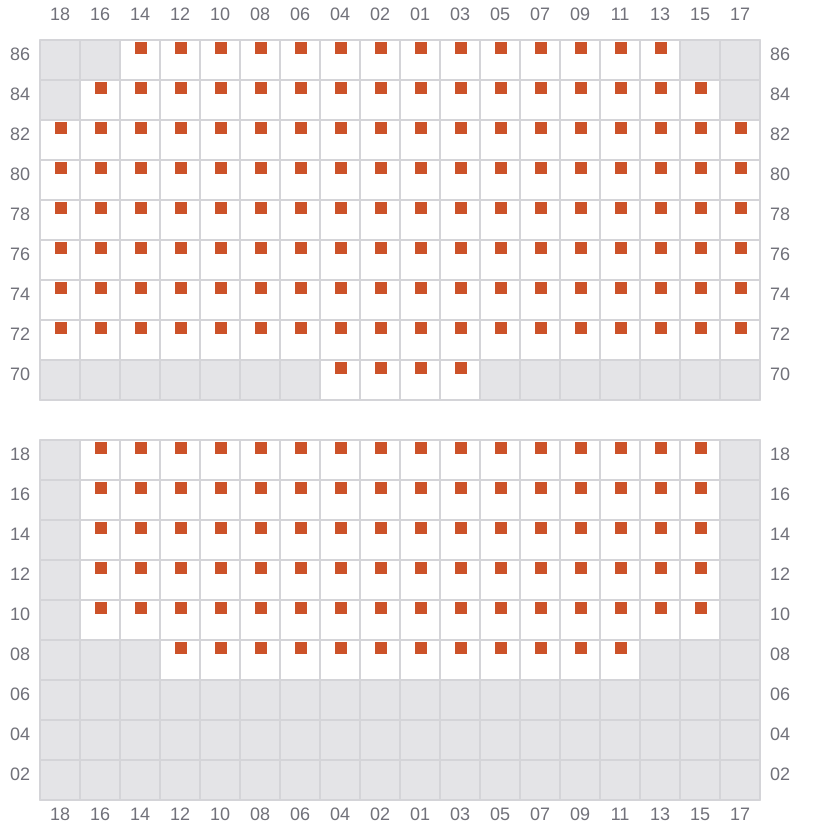

Bay 059 view and slots of RUBY TOWER

061 (062)

  • →

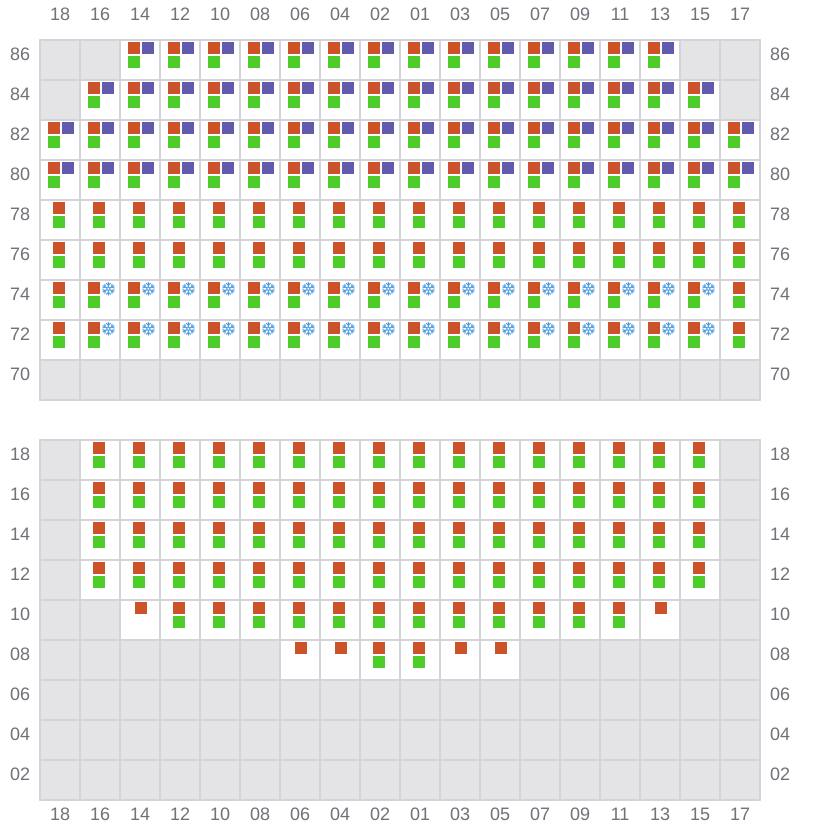

Bay 061 view and slots of RUBY TOWER

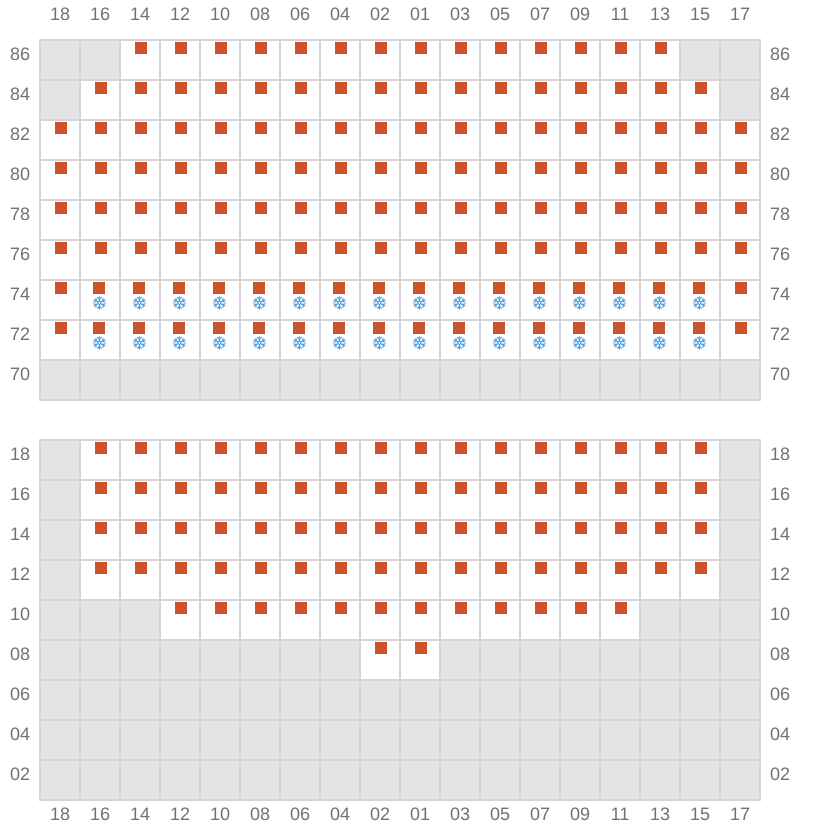

063

  • ←
Bay 063 view and slots of RUBY TOWER

065 (066)

  • →

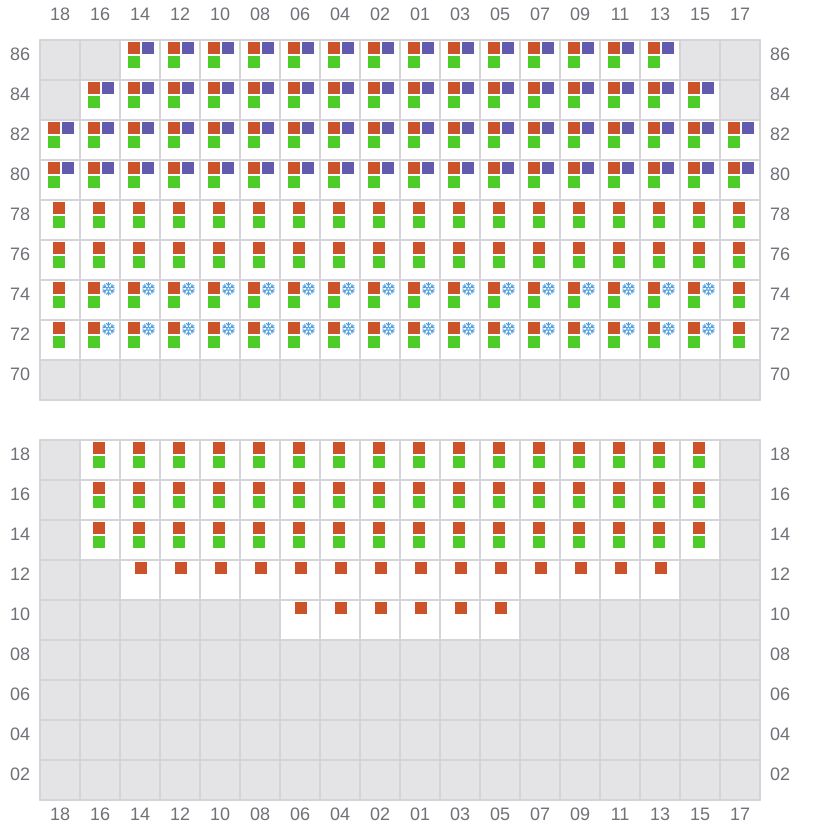

Bay 065 view and slots of RUBY TOWER

067

  • ←

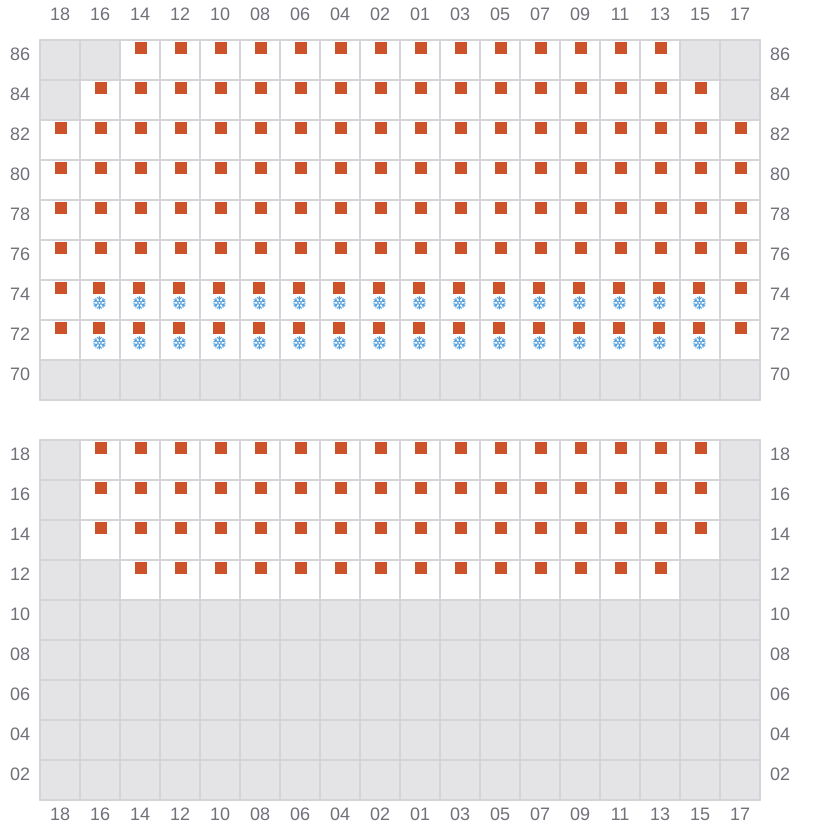

Bay 067 view and slots of RUBY TOWER

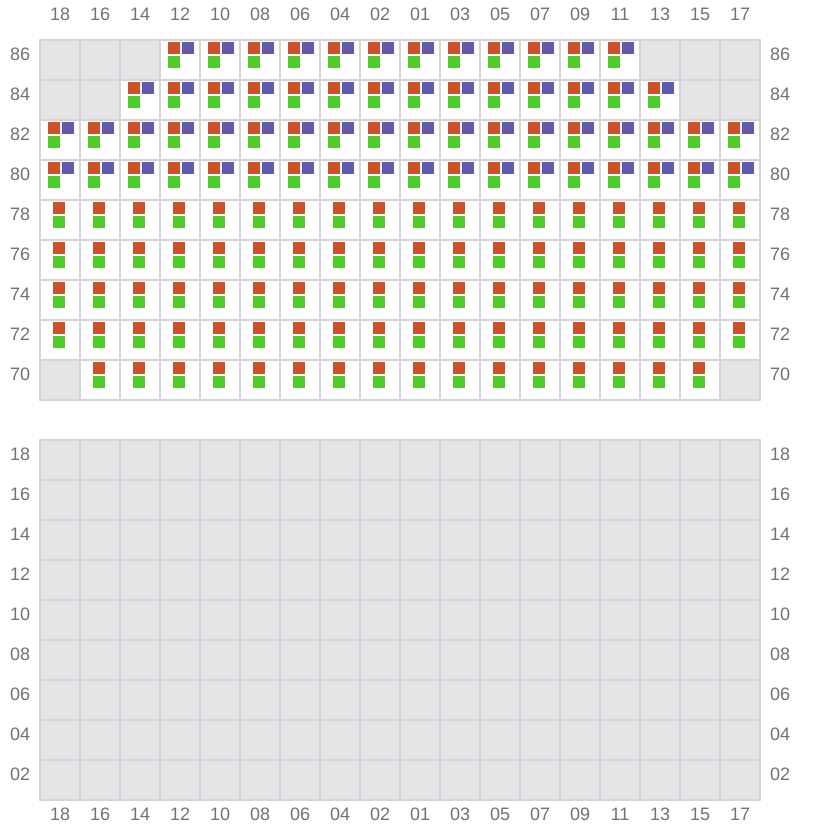

069 (070)

  • →
Bay 069 view and slots of RUBY TOWER

071

  • ←

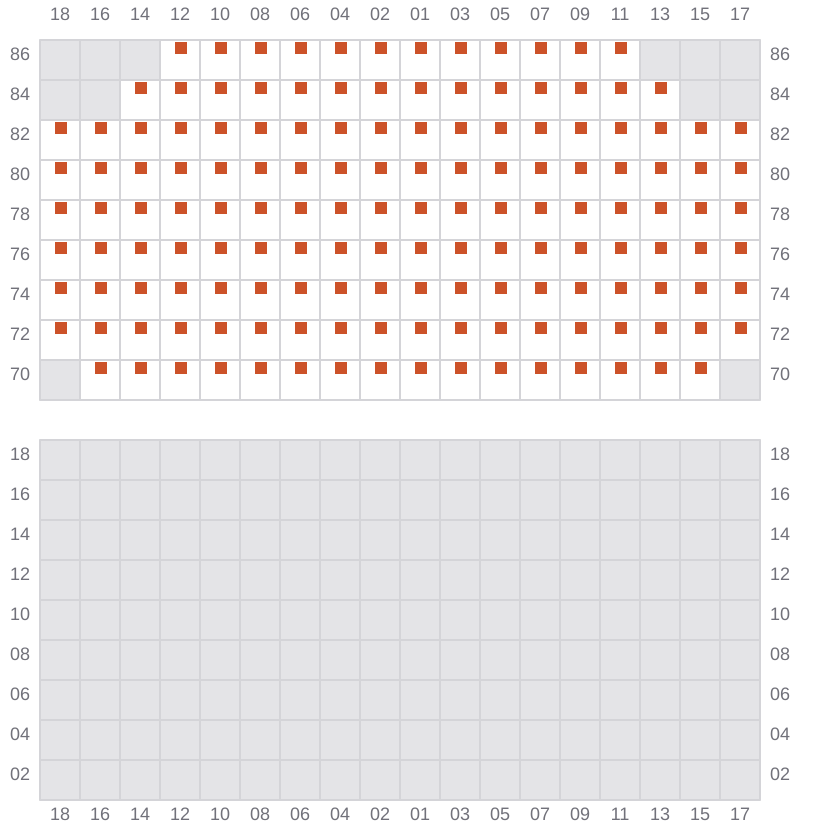

Bay 071 view and slots of RUBY TOWER
