S AENEAS
9426790 | T8A3218 | HMM by *********************** Last update: Wed Jan 29 2025

General Info

Ship Name:S AENEAS

IMO Code:9426790

Call Sign:T8A3218

Line Operator:HMM

Class Name for Sister Ships:HEAN

Year Built:2010

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:069

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:5,089

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Known

TCG Data:100%

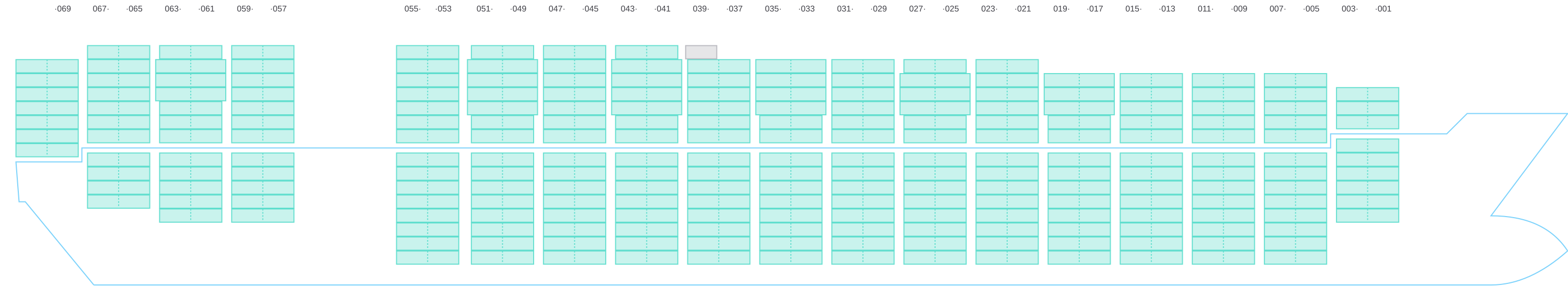

Side View

Side view of S AENEAS

Hatch-Covers View

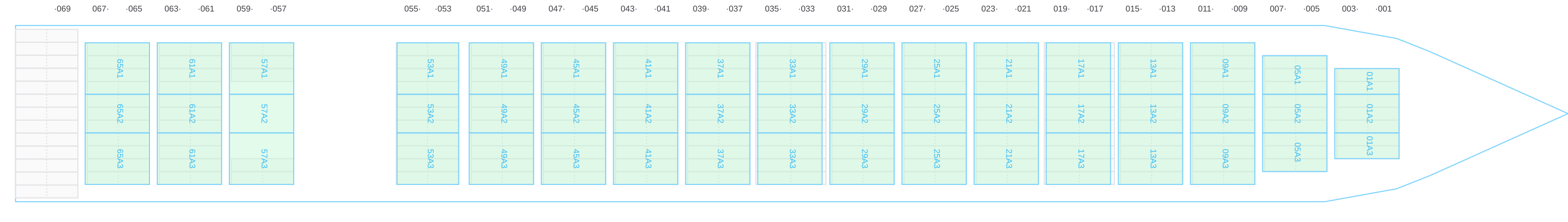

Deck view of S AENEAS

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→
→

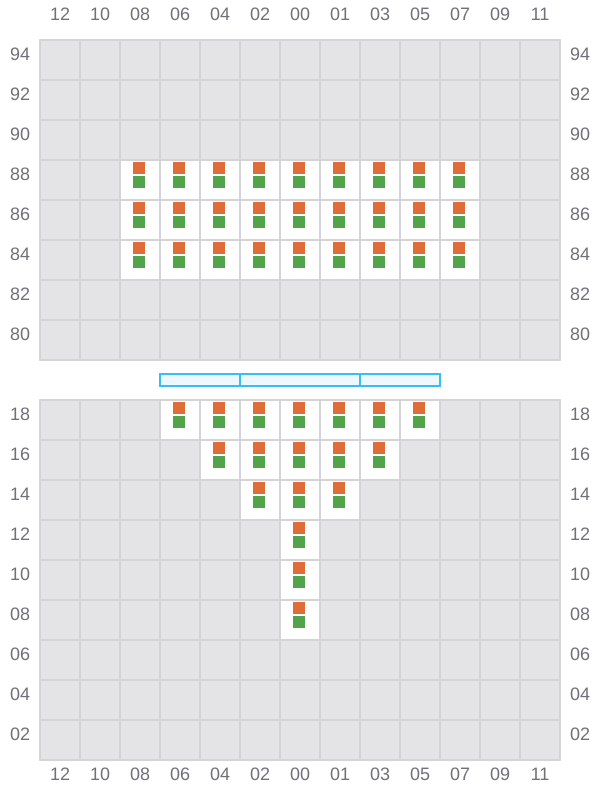

Bay 001 view and slots of S AENEAS

003

←
→

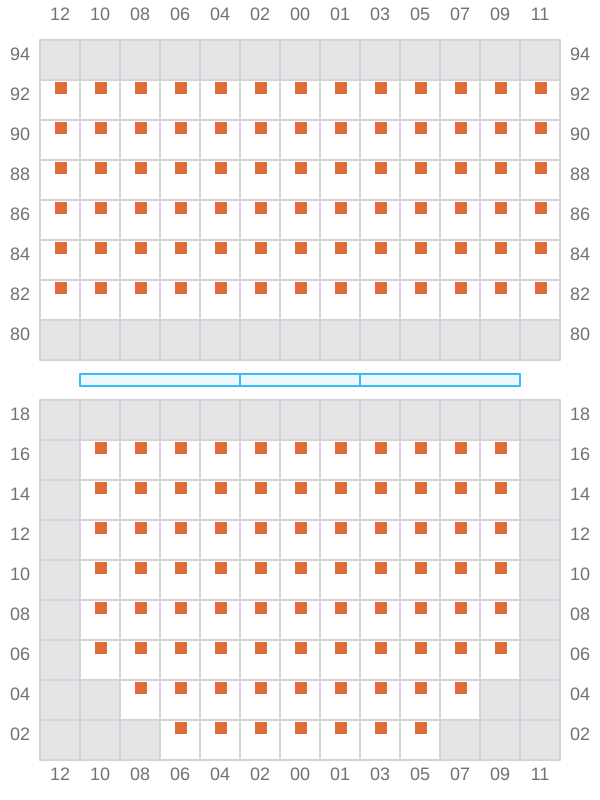

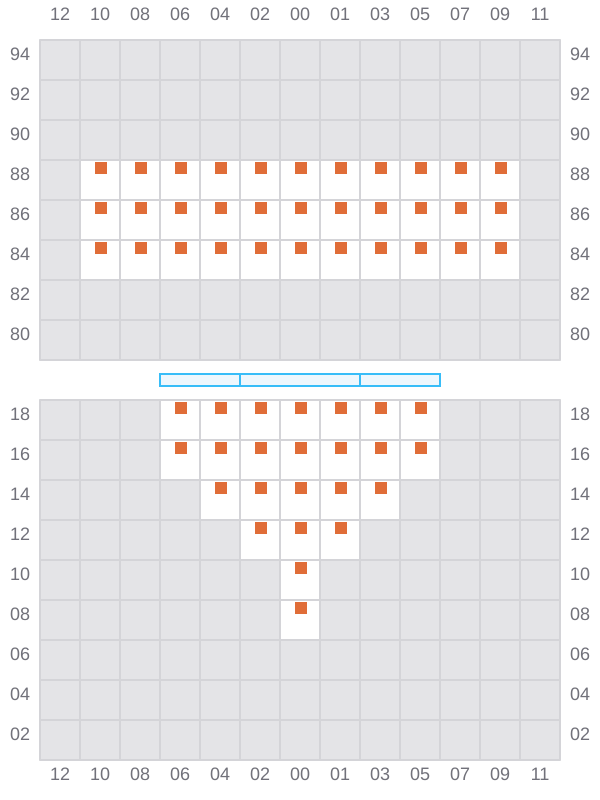

Bay 003 view and slots of S AENEAS

005 (006)

→
→

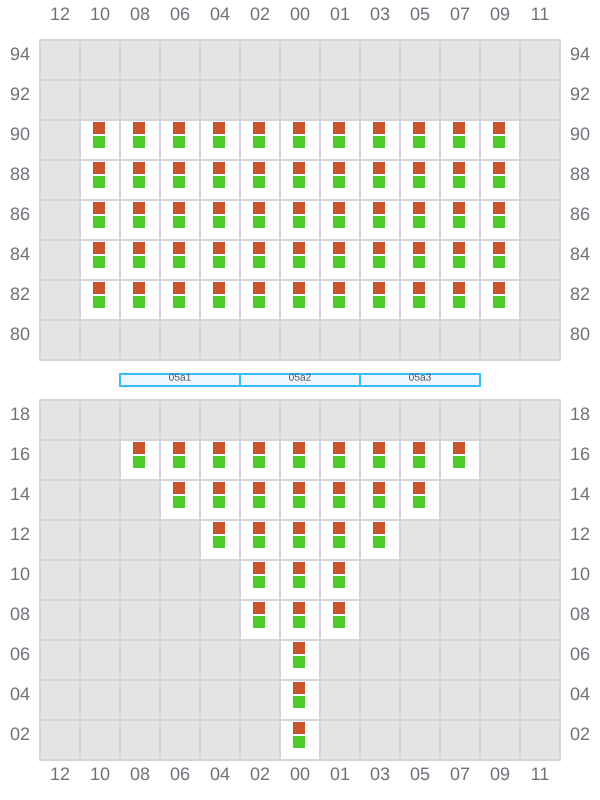

Bay 005 view and slots of S AENEAS

007

←
→

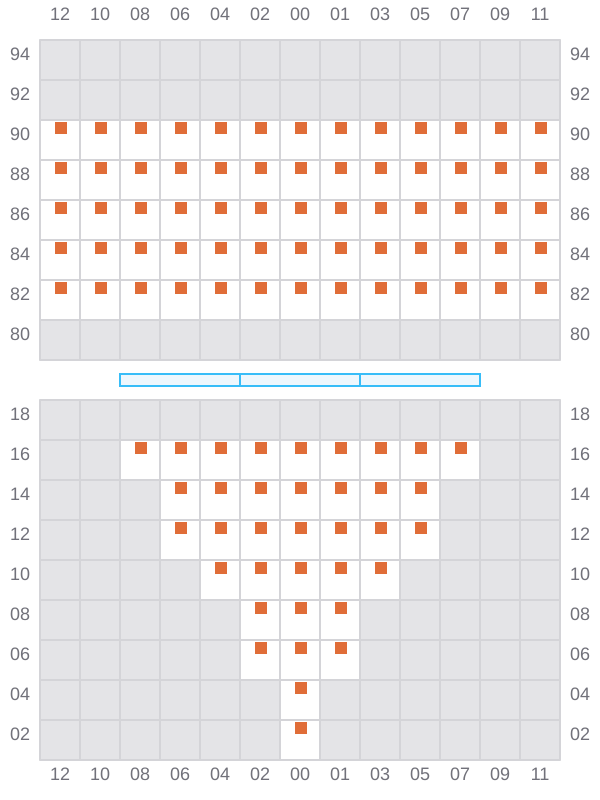

Bay 007 view and slots of S AENEAS

009 (010)

→
→

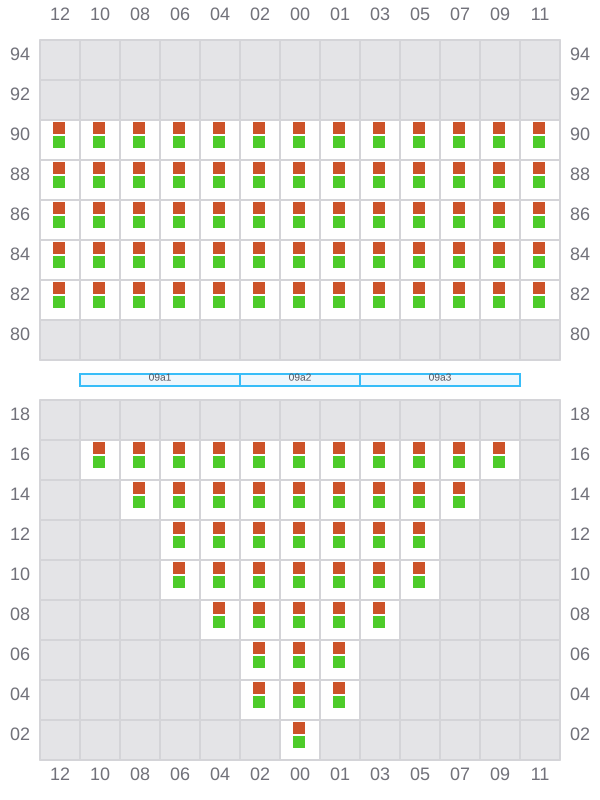

Bay 009 view and slots of S AENEAS

011

←
→

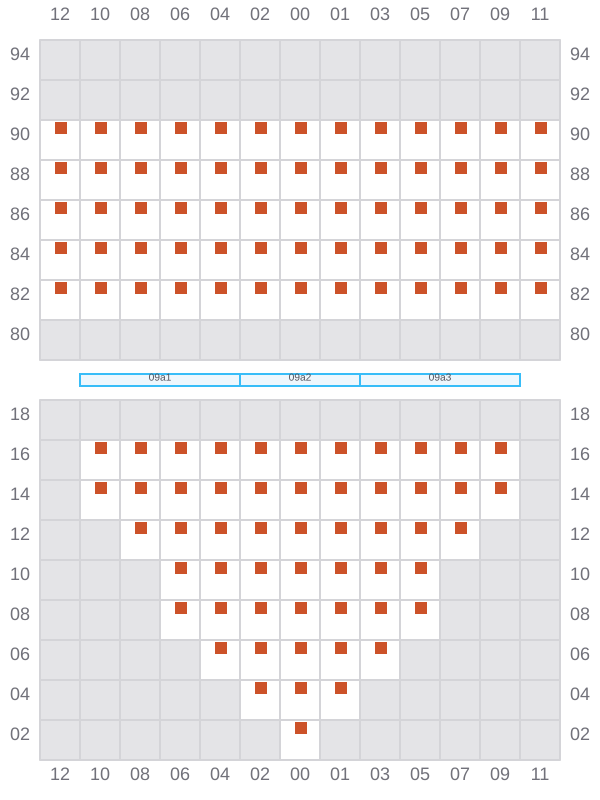

Bay 011 view and slots of S AENEAS

013 (014)

→
→

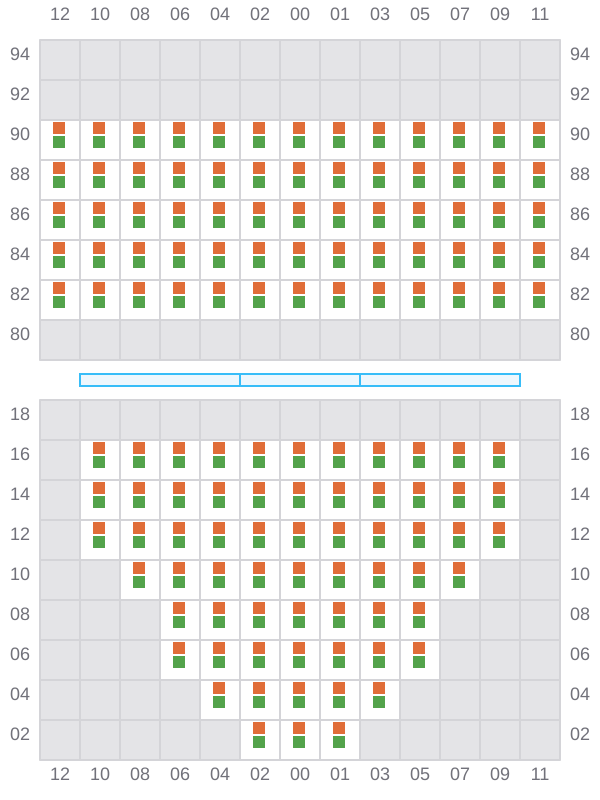

Bay 013 view and slots of S AENEAS

015

←
→

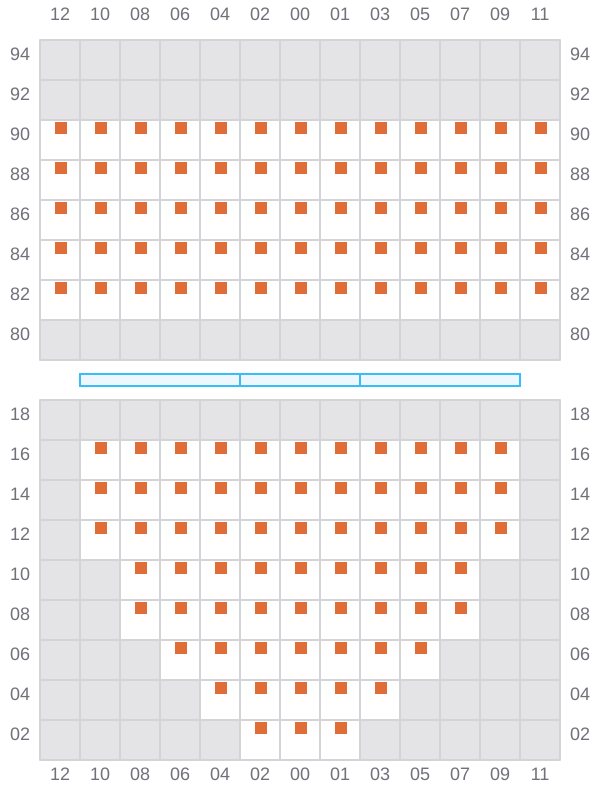

Bay 015 view and slots of S AENEAS

017 (018)

→
→

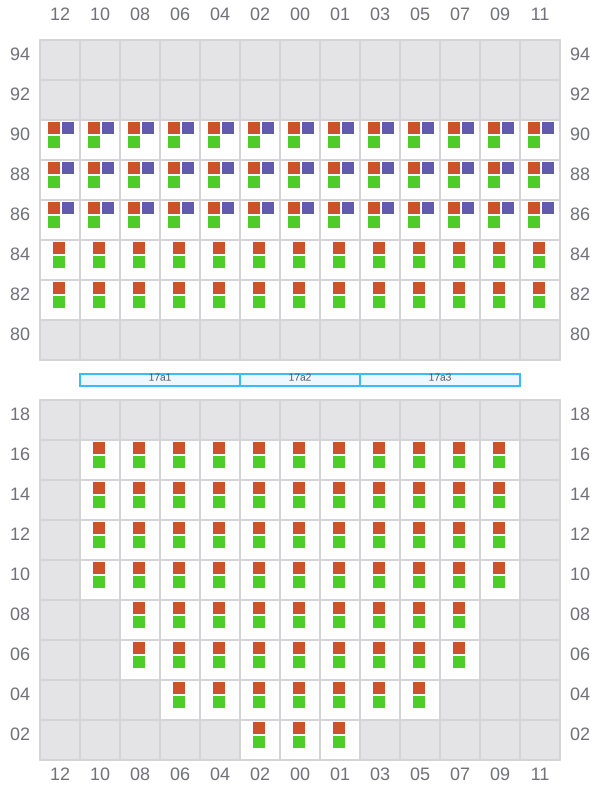

Bay 017 view and slots of S AENEAS

019

←
→

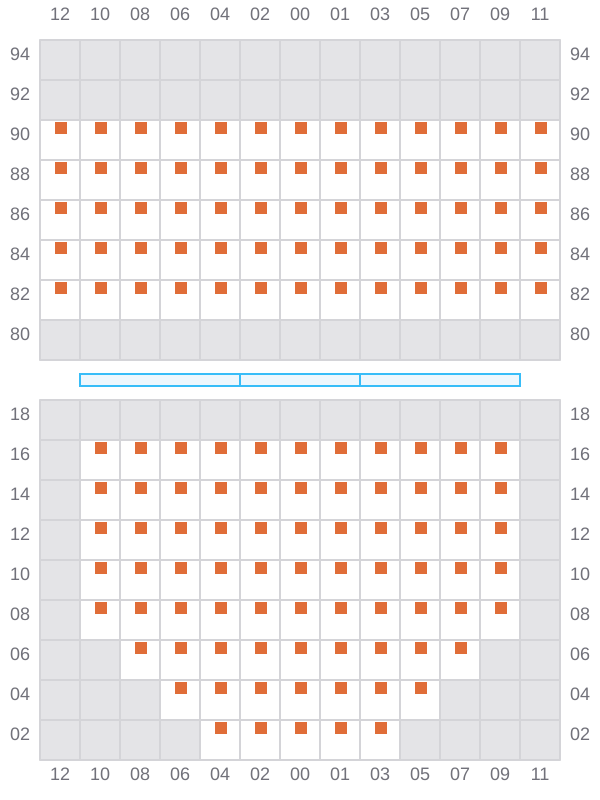

Bay 019 view and slots of S AENEAS

021 (022)

→
→

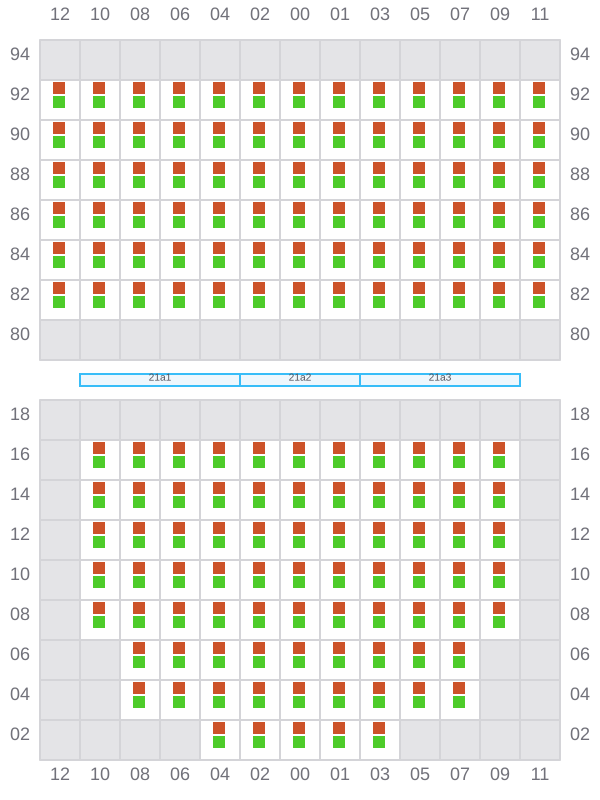

Bay 021 view and slots of S AENEAS

023

←
→

Bay 023 view and slots of S AENEAS

025 (026)

→
→

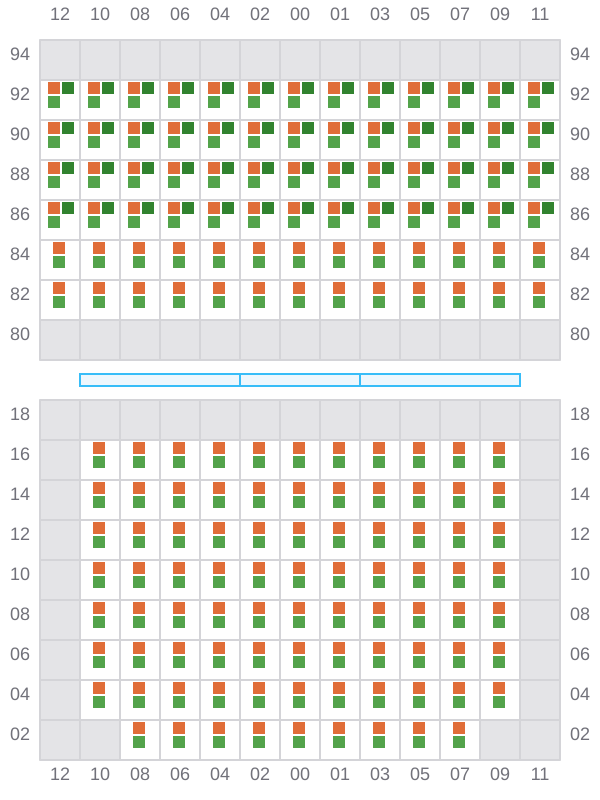

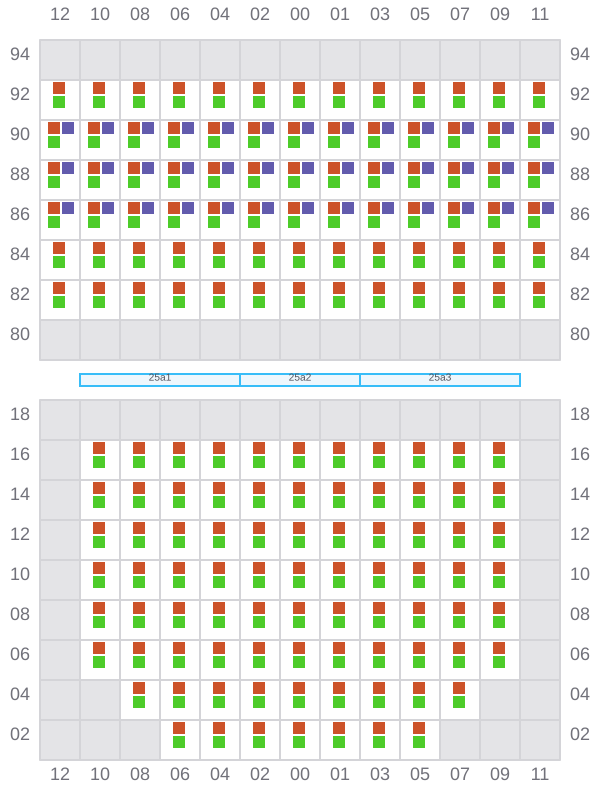

Bay 025 view and slots of S AENEAS

027

←
→

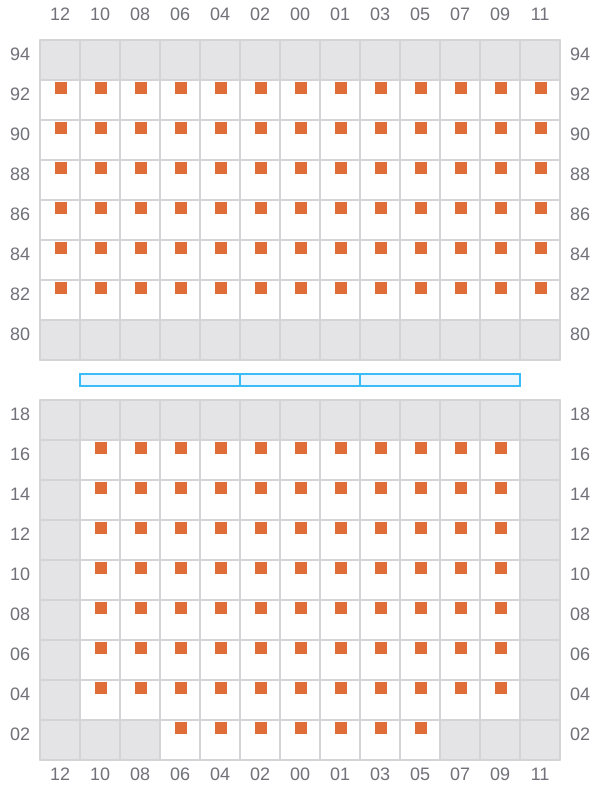

Bay 027 view and slots of S AENEAS

029 (030)

→
→

Bay 029 view and slots of S AENEAS

031

←
→

Bay 031 view and slots of S AENEAS

033 (034)

→
→

Bay 033 view and slots of S AENEAS

035

←
→

Bay 035 view and slots of S AENEAS

037 (038)

→
→

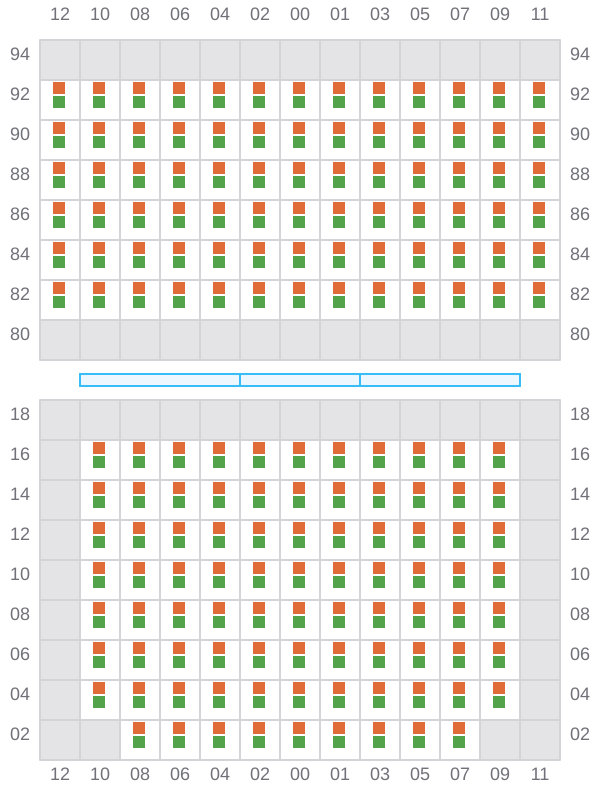

Bay 037 view and slots of S AENEAS

039

←
→

Bay 039 view and slots of S AENEAS

041 (042)

→
→

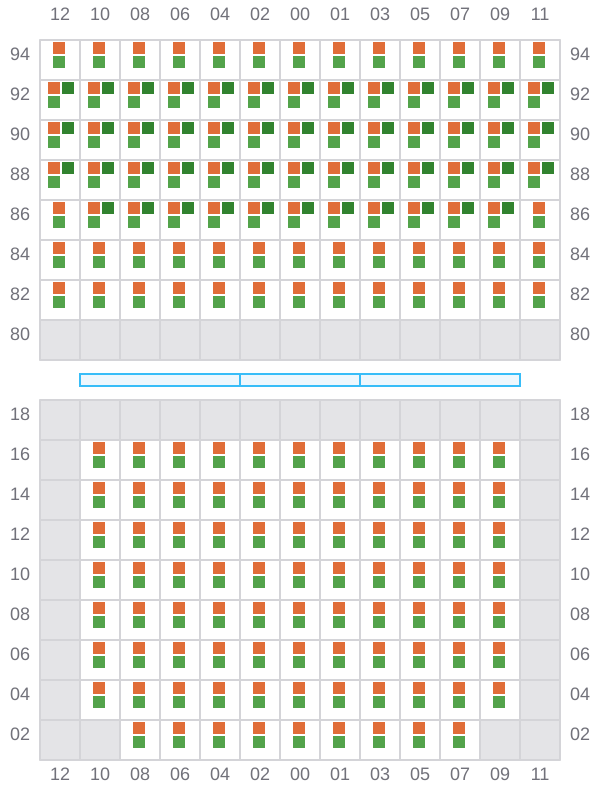

Bay 041 view and slots of S AENEAS

043

←
→

Bay 043 view and slots of S AENEAS

045 (046)

→
→

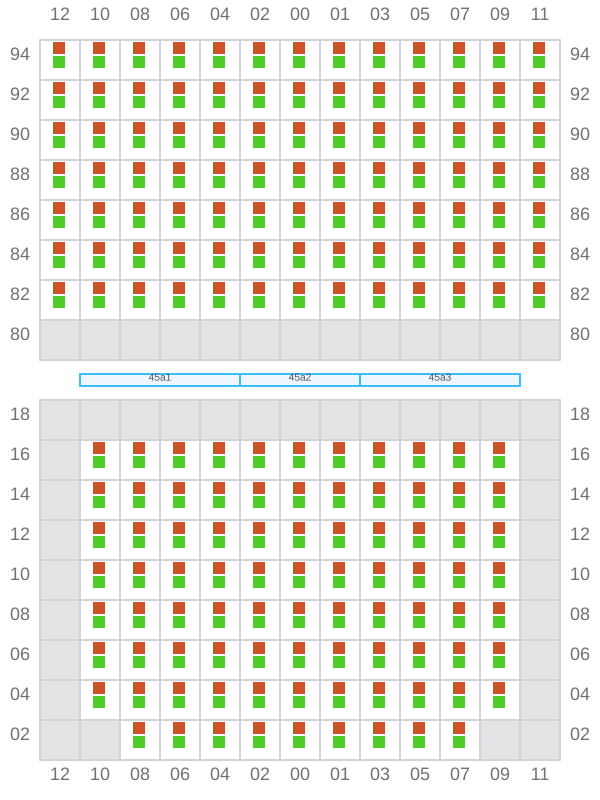

Bay 045 view and slots of S AENEAS

047

←
→

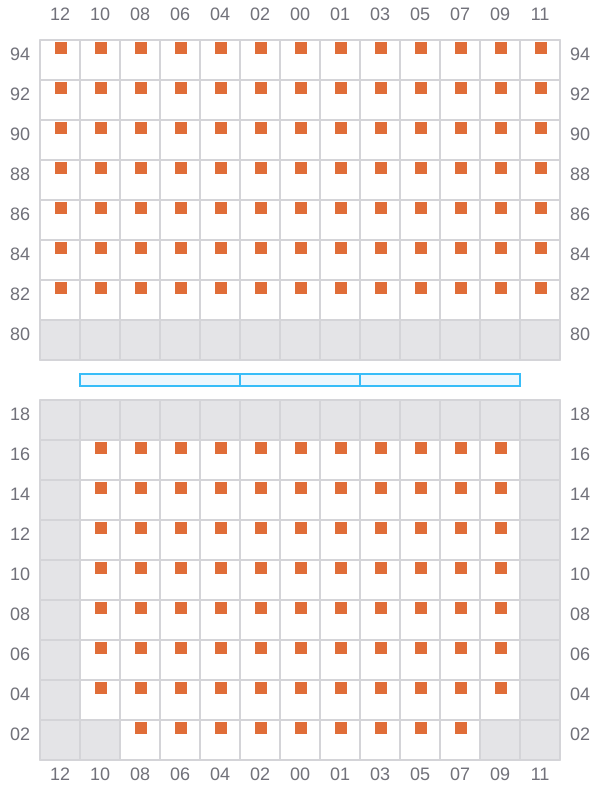

Bay 047 view and slots of S AENEAS

049 (050)

→
→

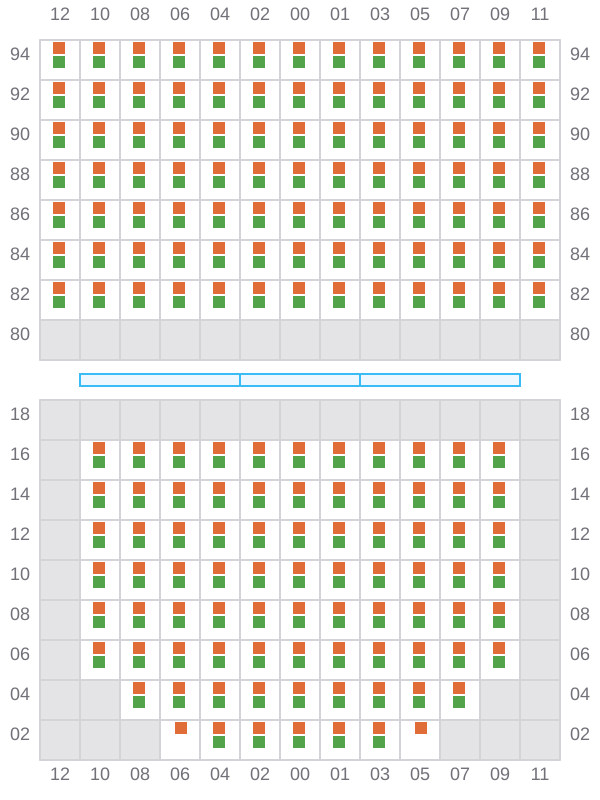

Bay 049 view and slots of S AENEAS

051

←
→

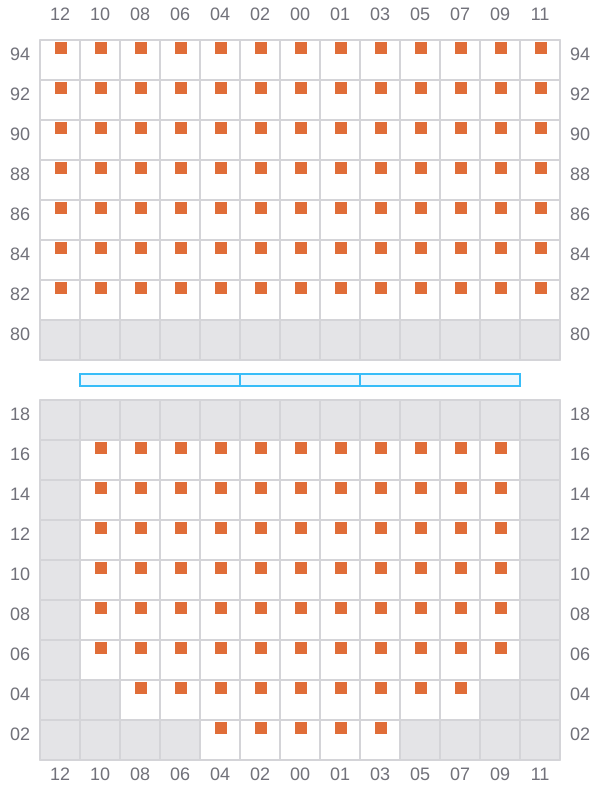

Bay 051 view and slots of S AENEAS

053 (054)

→
→

Bay 053 view and slots of S AENEAS

055

←
→

Bay 055 view and slots of S AENEAS

057 (058)

→
→

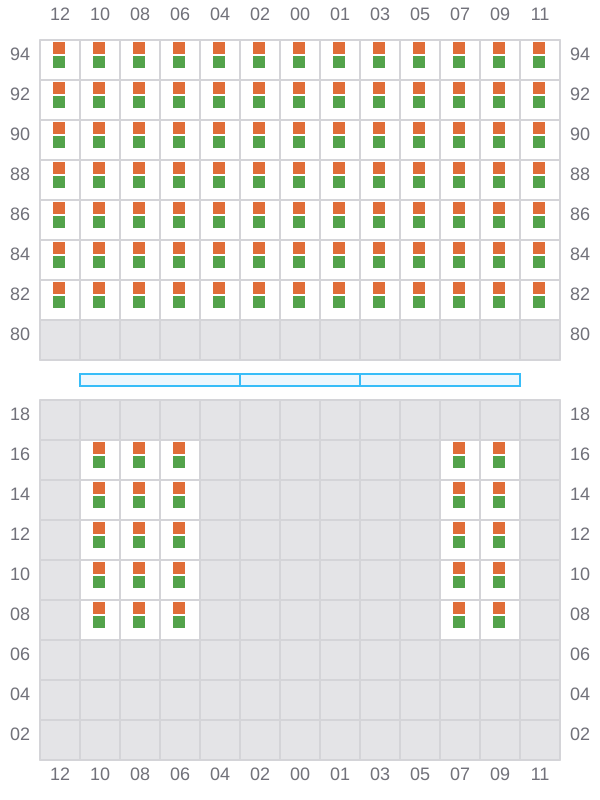

Bay 057 view and slots of S AENEAS

059

←
→

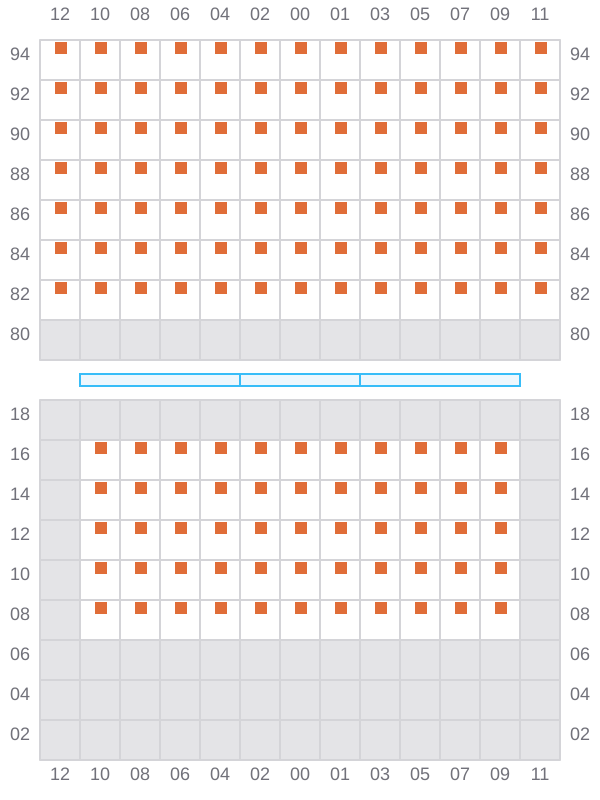

Bay 059 view and slots of S AENEAS

061 (062)

→
→

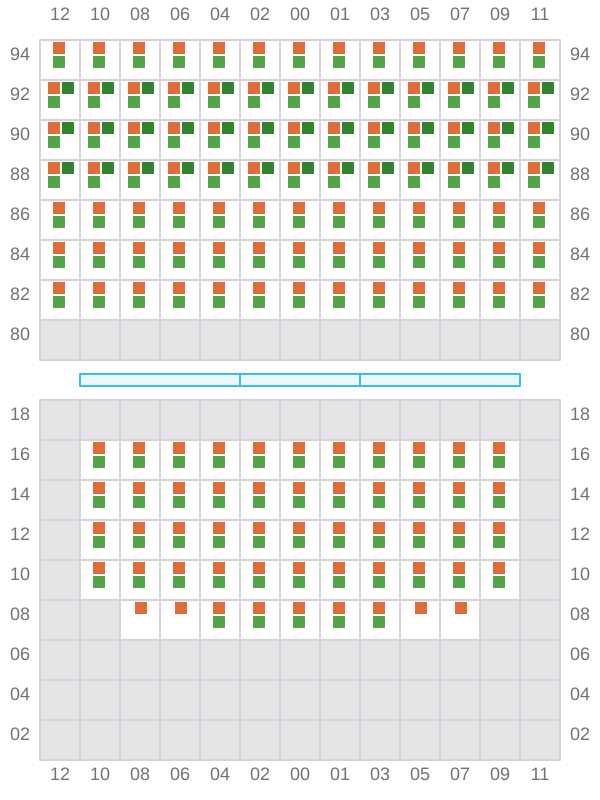

Bay 061 view and slots of S AENEAS

063

←
→

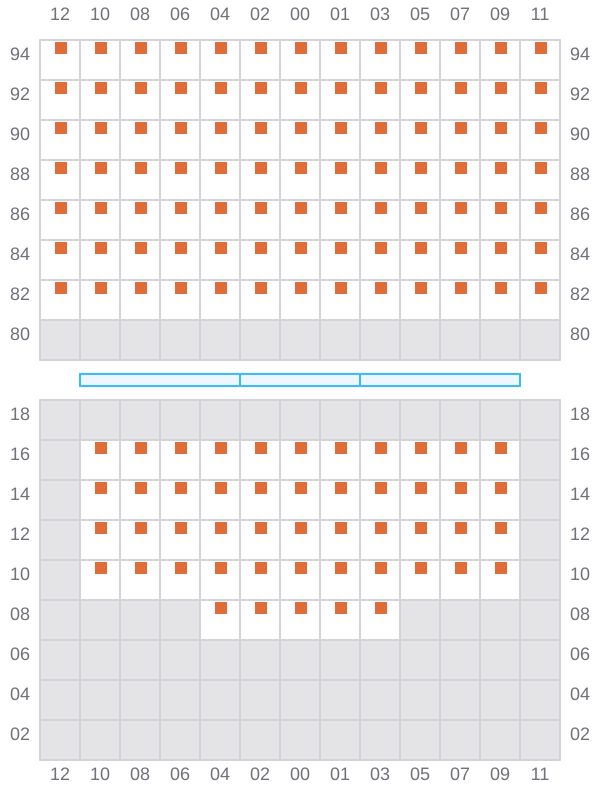

Bay 063 view and slots of S AENEAS

065 (066)

→
→

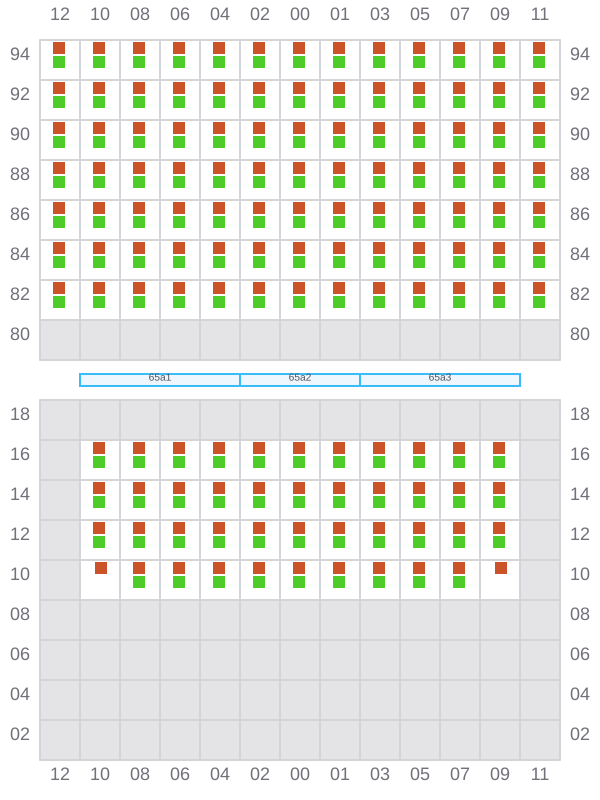

Bay 065 view and slots of S AENEAS

067

←
→

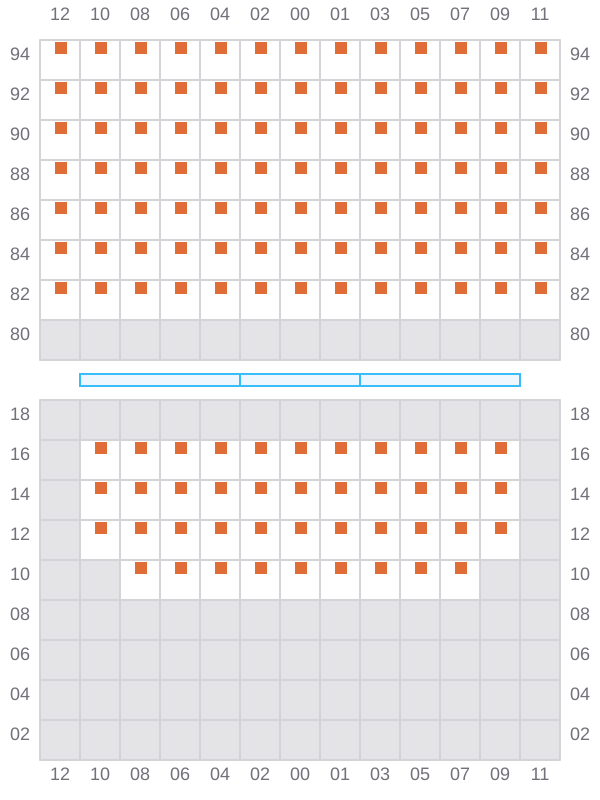

Bay 067 view and slots of S AENEAS

069 (070)

^→ / _?
^→ / _?

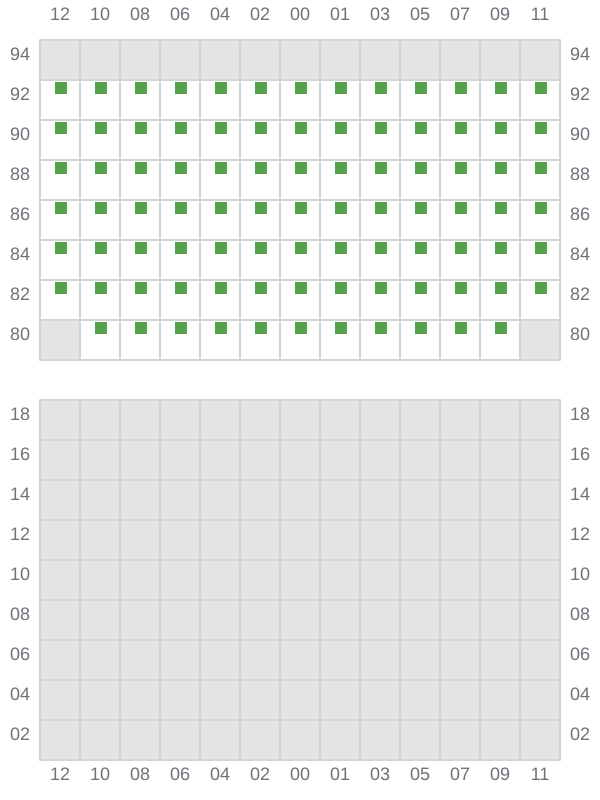

Bay 069 view and slots of S AENEAS
