SAFEEN PRESTIGE
9593517 | V7CC7 | 9593517 by ********* Last update: Tue May 07 2024

General Info

Ship Name:SAFEEN PRESTIGE

IMO Code:9593517

Call Sign:V7CC7

Line Operator:9593517

Class Name for Sister Ships:BINDI IPSA

Year Built:2013

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:035

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:1,804

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

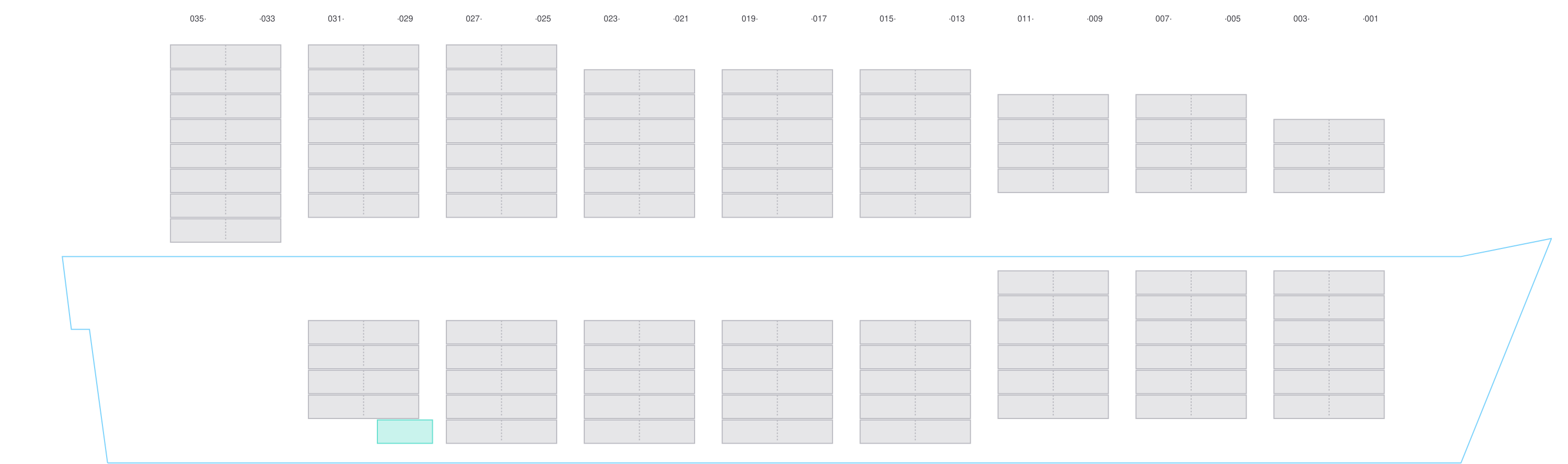

Side View

Side view of SAFEEN PRESTIGE

Hatch-Covers View

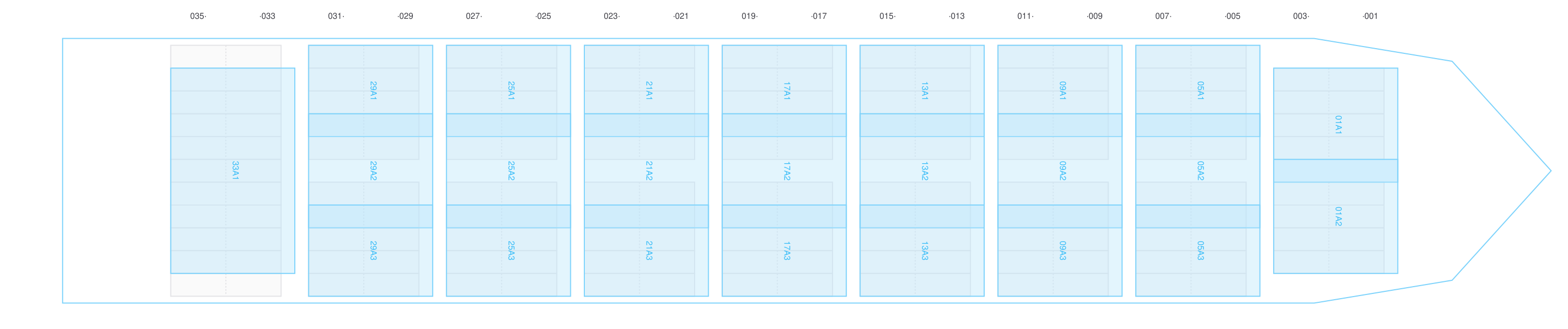

Deck view of SAFEEN PRESTIGE

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

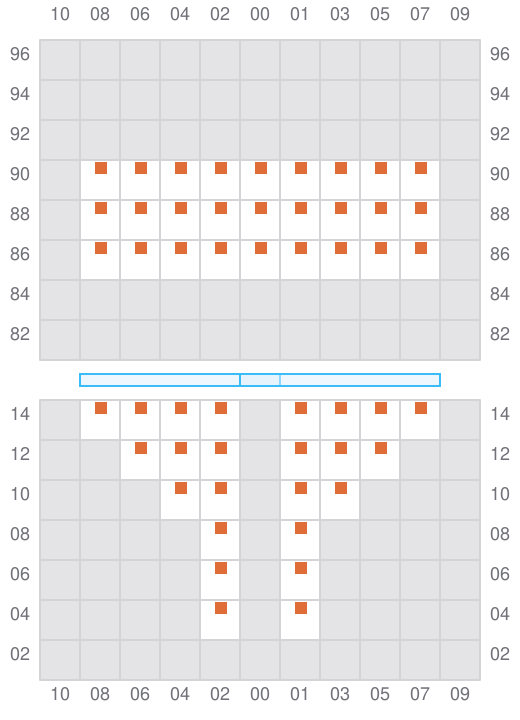

Bay 001 view and slots of SAFEEN PRESTIGE

003 (002)

←

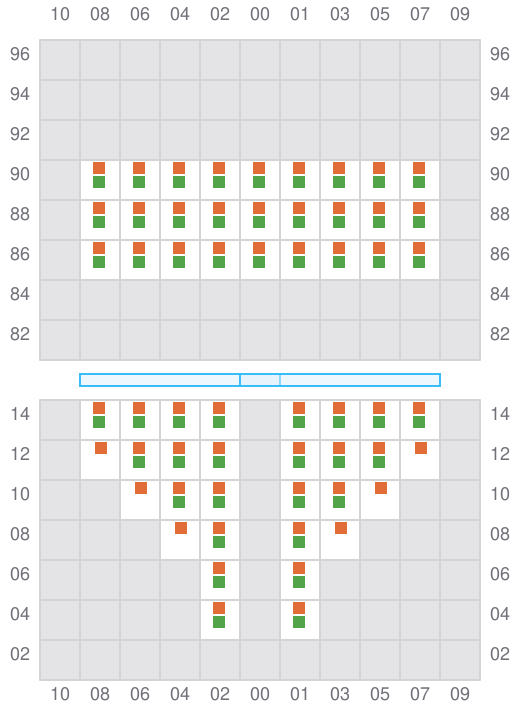

Bay 003 view and slots of SAFEEN PRESTIGE

005

→

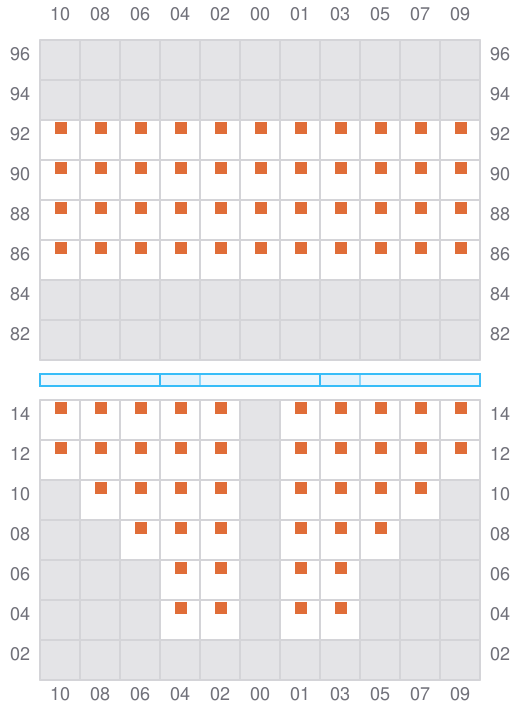

Bay 005 view and slots of SAFEEN PRESTIGE

007 (006)

←

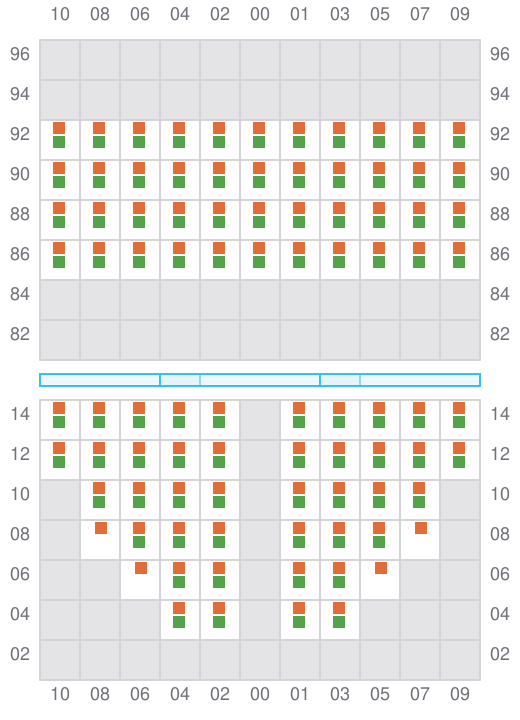

Bay 007 view and slots of SAFEEN PRESTIGE

009

→

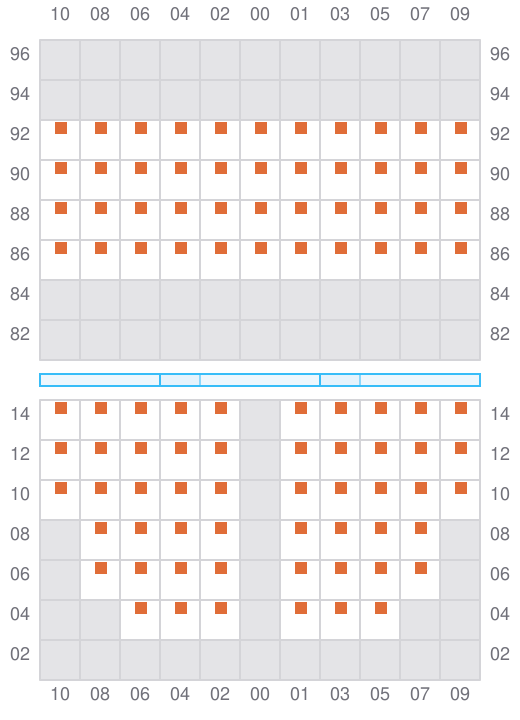

Bay 009 view and slots of SAFEEN PRESTIGE

011 (010)

←

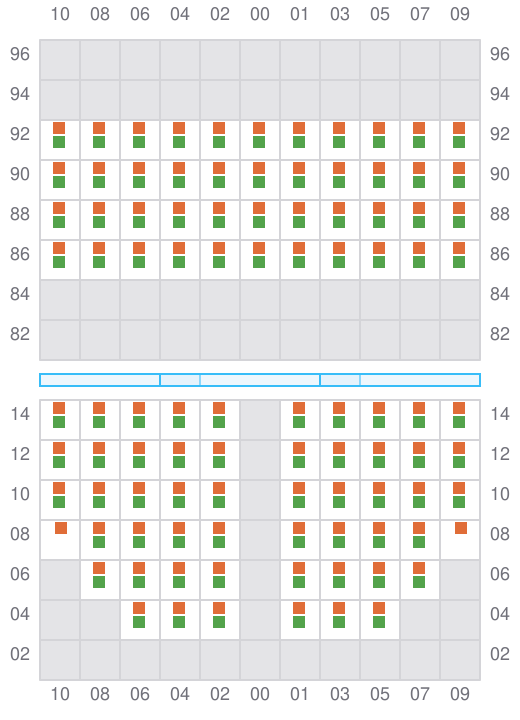

Bay 011 view and slots of SAFEEN PRESTIGE

013

→

Bay 013 view and slots of SAFEEN PRESTIGE

015 (014)

←

Bay 015 view and slots of SAFEEN PRESTIGE

017

→

Bay 017 view and slots of SAFEEN PRESTIGE

019 (018)

←

Bay 019 view and slots of SAFEEN PRESTIGE

021

→

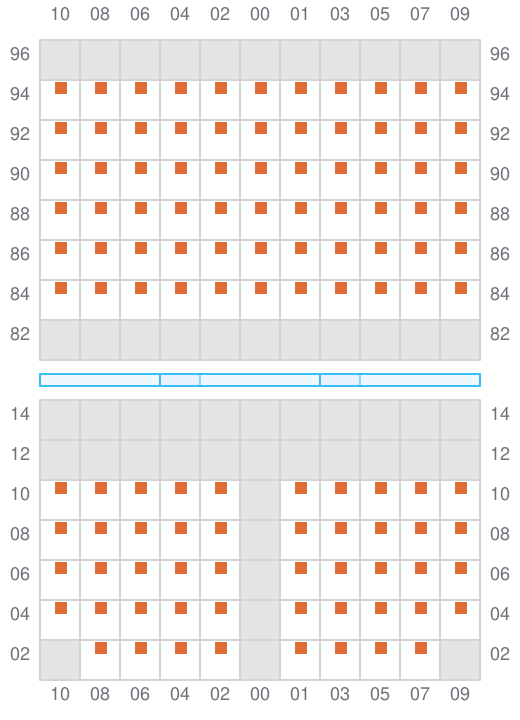

Bay 021 view and slots of SAFEEN PRESTIGE

023 (022)

←

Bay 023 view and slots of SAFEEN PRESTIGE

025

→

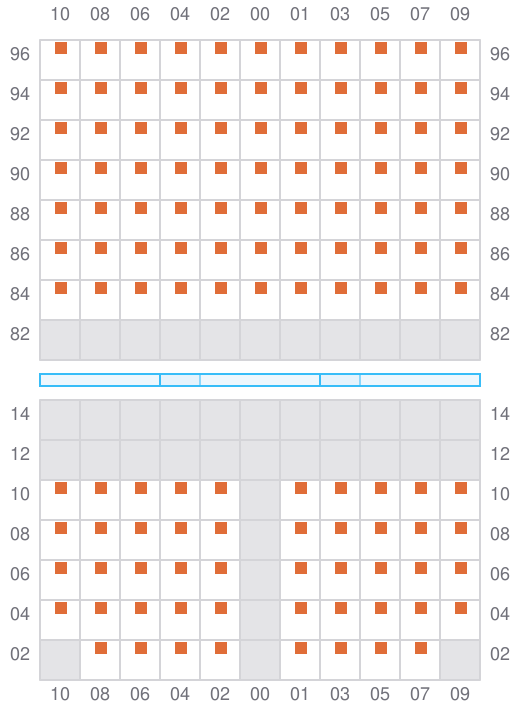

Bay 025 view and slots of SAFEEN PRESTIGE

027 (026)

←

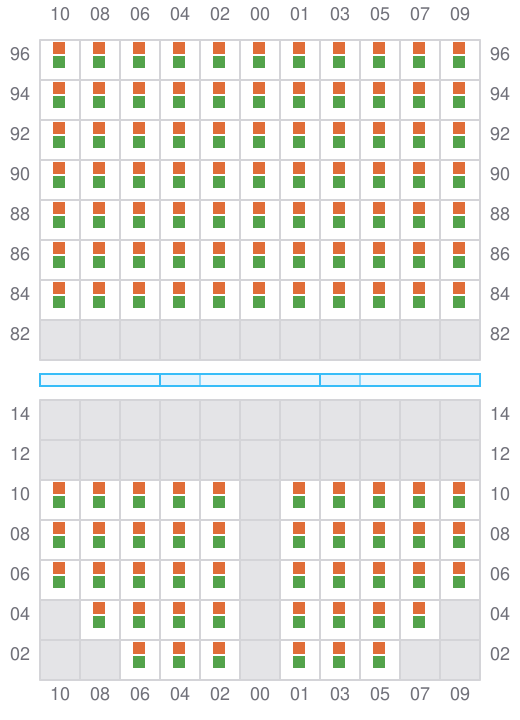

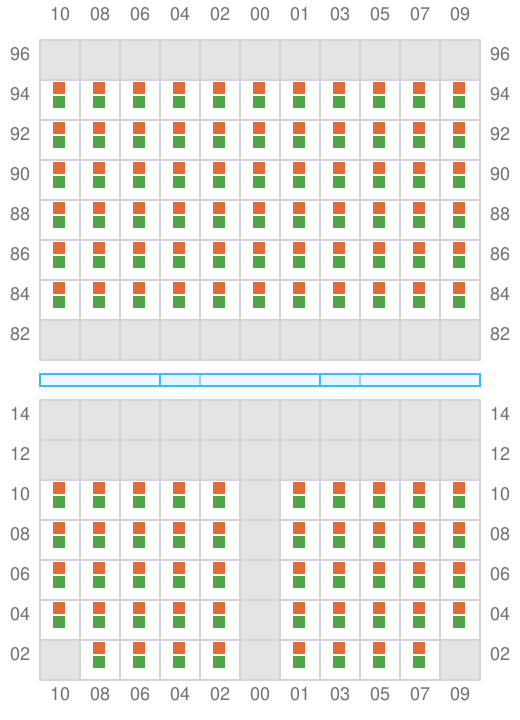

Bay 027 view and slots of SAFEEN PRESTIGE

029

→

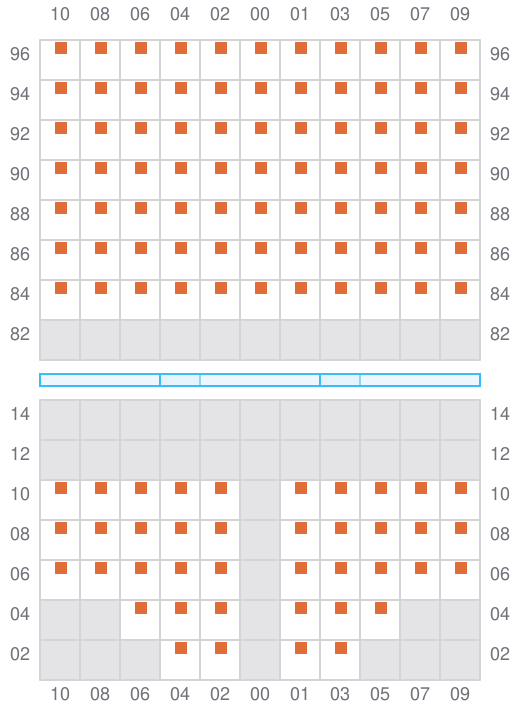

Bay 029 view and slots of SAFEEN PRESTIGE

031 (030)

←

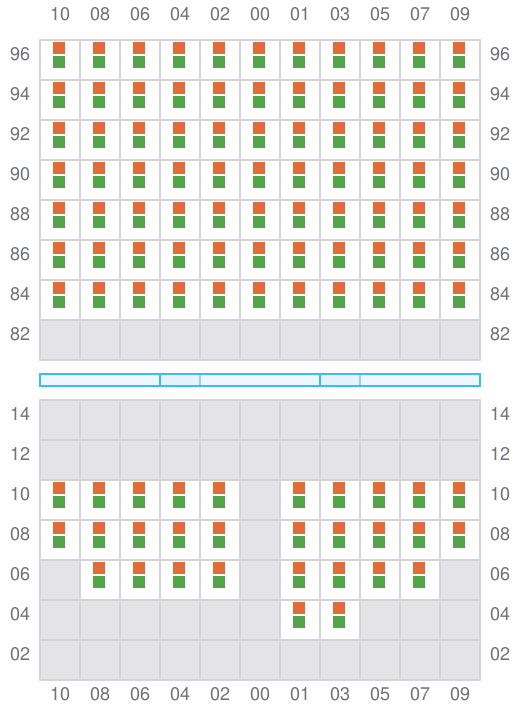

Bay 031 view and slots of SAFEEN PRESTIGE

033

^→ / _?

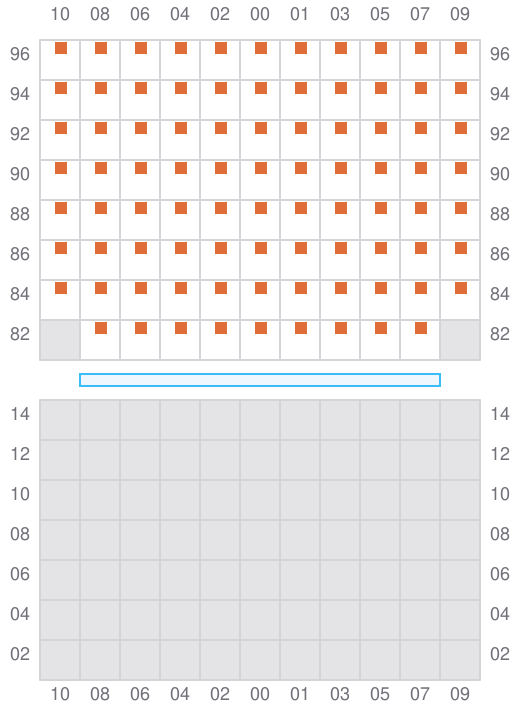

Bay 033 view and slots of SAFEEN PRESTIGE

035 (034)

^← / _?

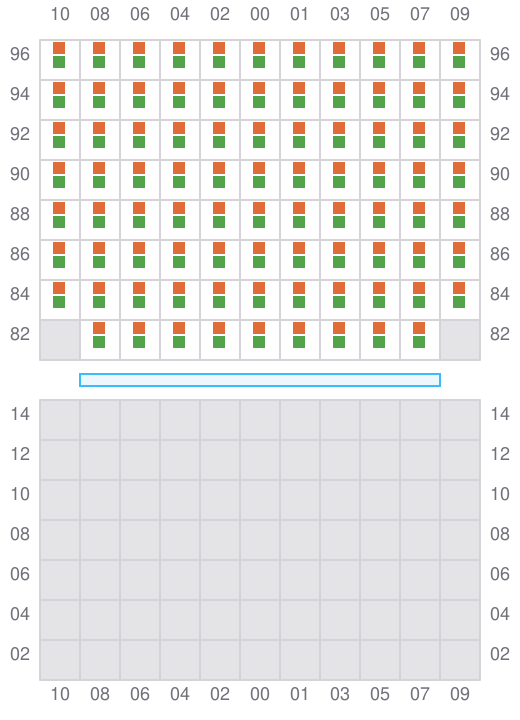

Bay 035 view and slots of SAFEEN PRESTIGE
