The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
SAFEEN PRIZE
9603594 | V7AR9 | HLC by *********************** Last update: Tue Feb 04 2025
General Info
Ship Name:SAFEEN PRIZE
IMO Code:9603594
Call Sign:V7AR9
Line Operator:HLC
Class Name for Sister Ships:JIANGSU 2500
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):196.90
LOA (Length Overall):208.93
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,542
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

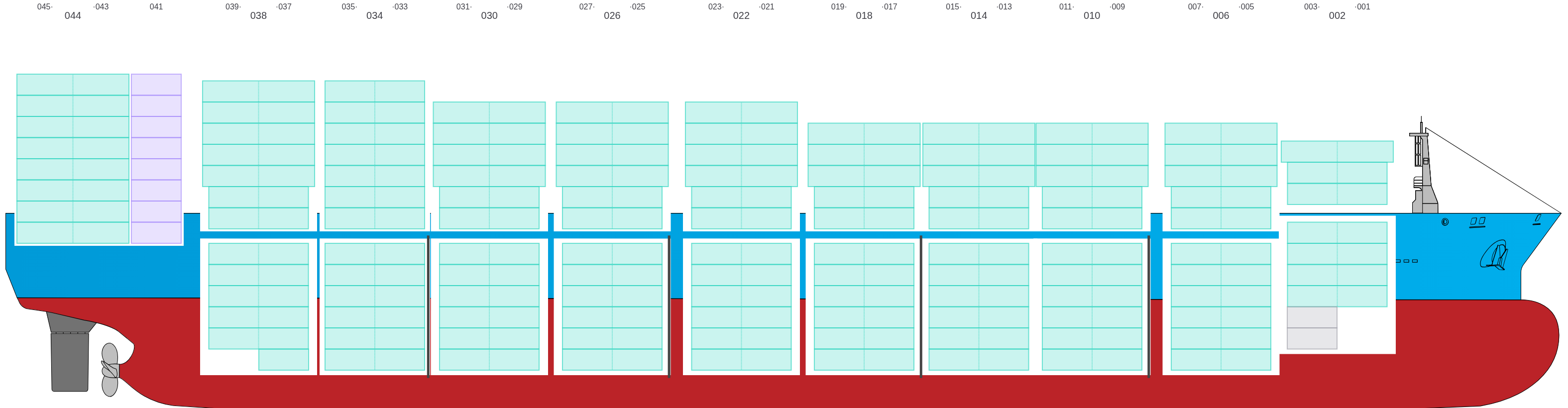

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

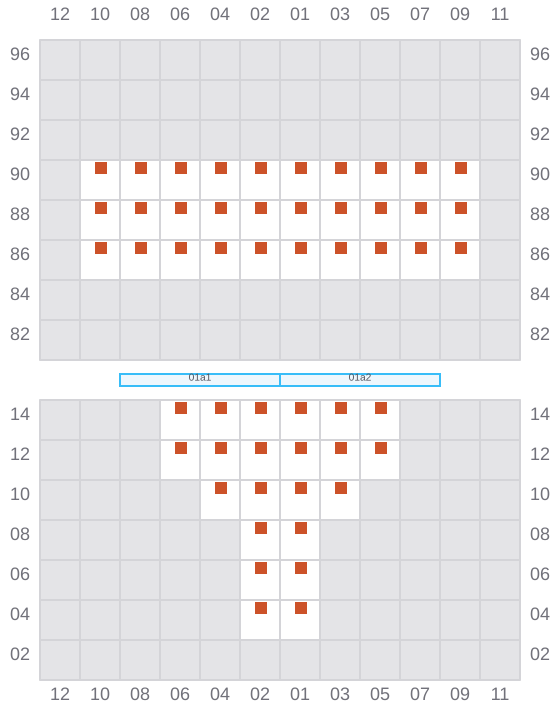

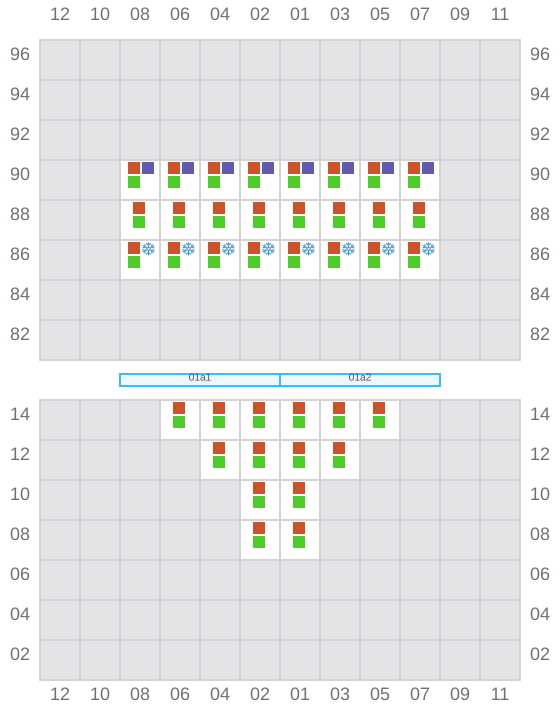

001 (002)
- →
- ← / ?
- →
003
- ←
- → / ?
- →

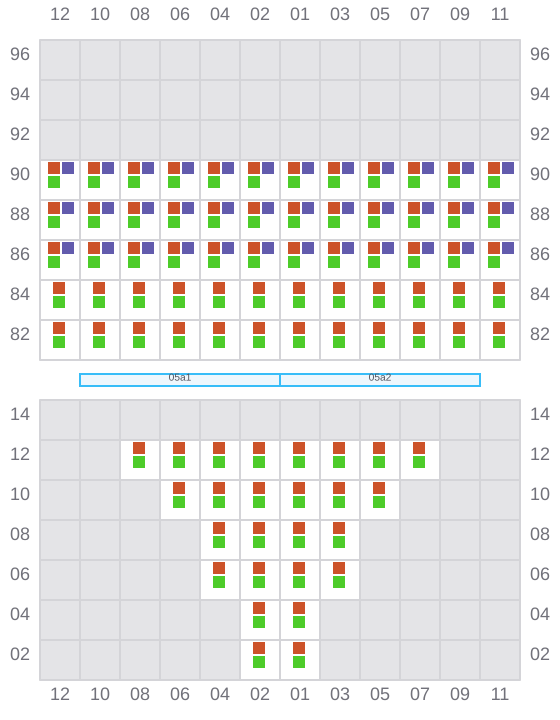

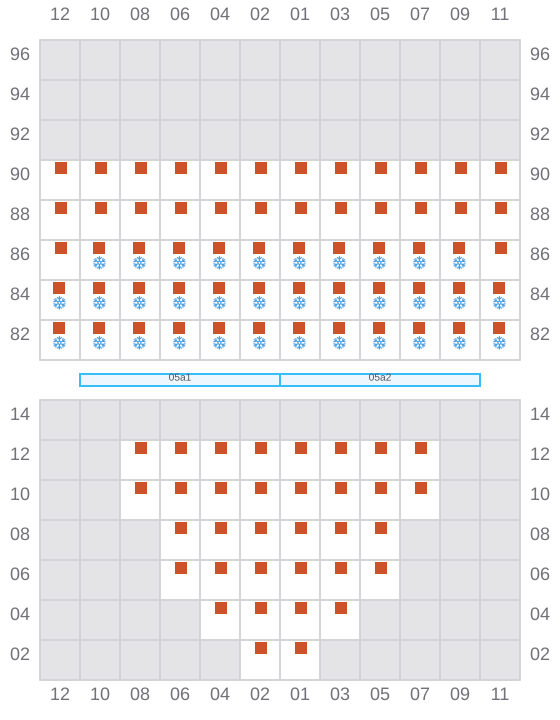

005 (006)
- →
- →
007
- ←
- → / ?
- →

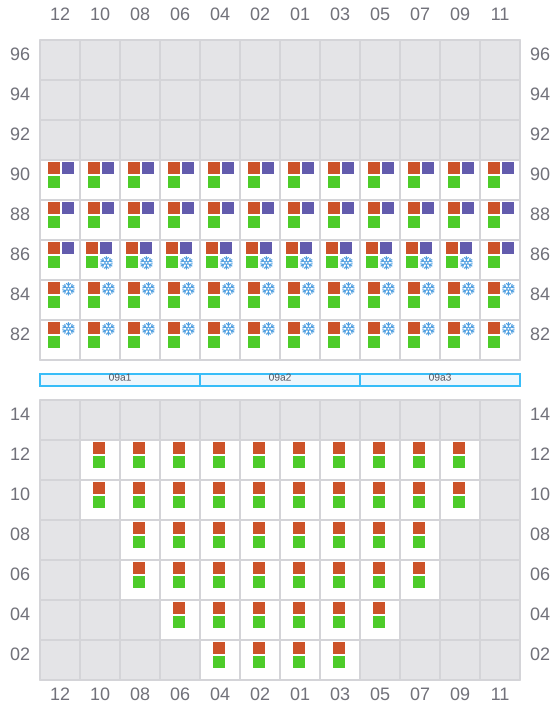

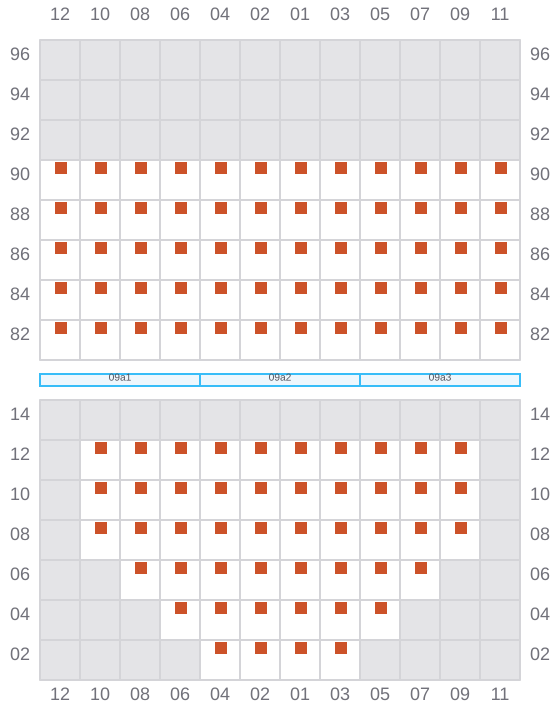

009 (010)
- →
- ← / ?
- →
011
- ←
- → / ?
- →

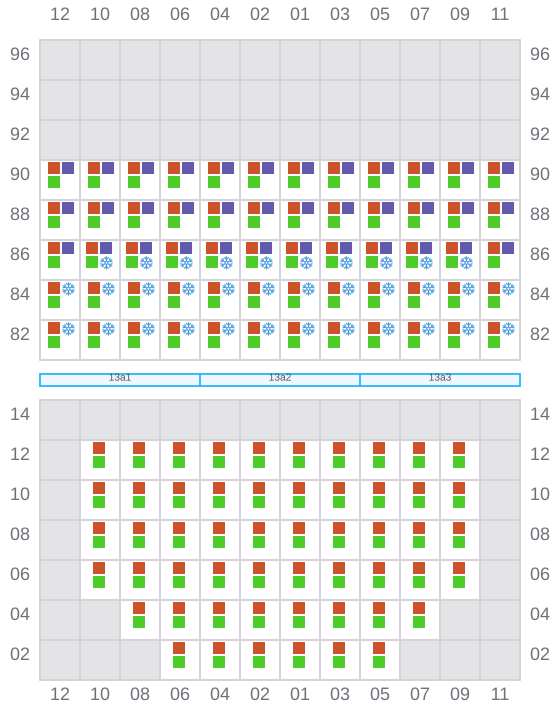

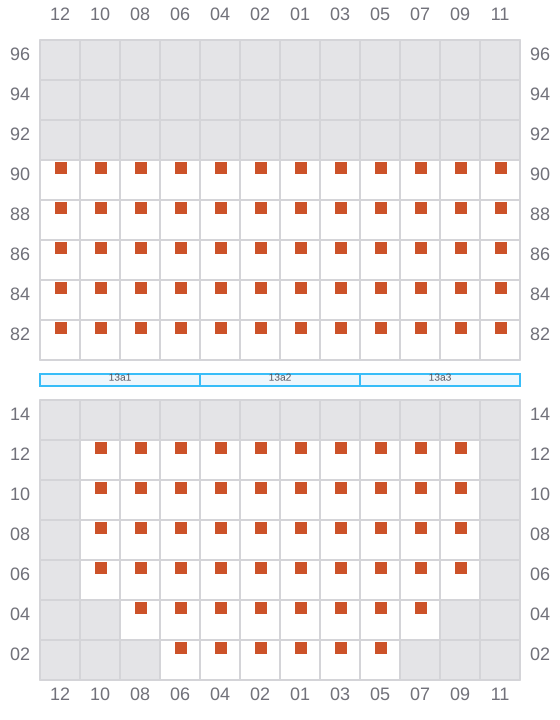

013 (014)
- →
- ← / ?
- →
015
- ←
- → / ?
- →

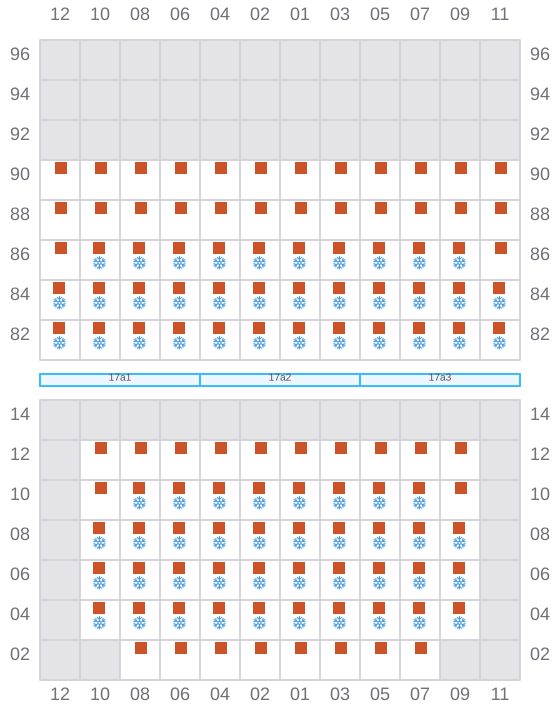

017 (018)
- →
- →
019
- ←
- →
- →

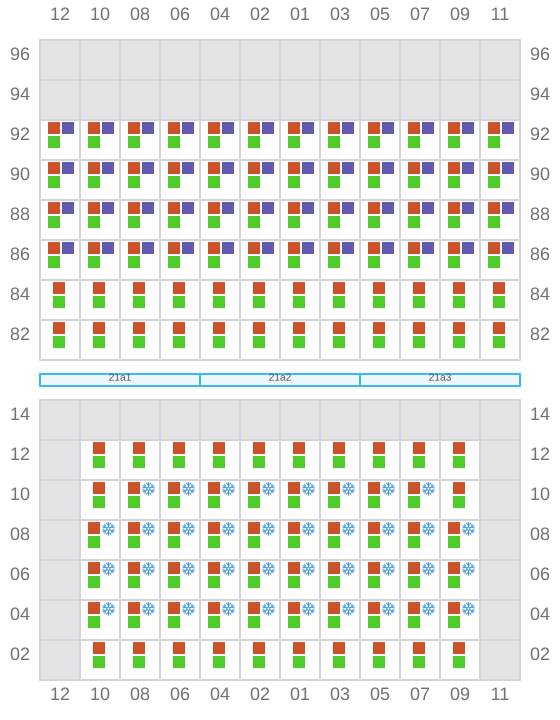

021 (022)
- →
- ? / ←
- →
023
- ←
- → / ?
- →

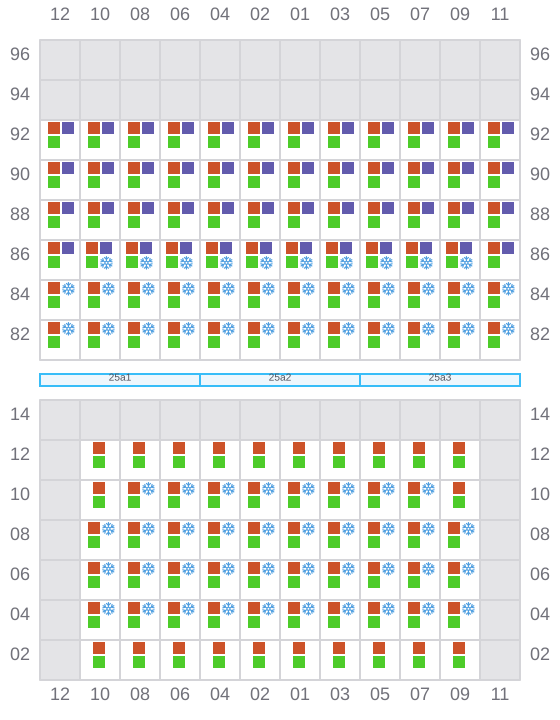

025 (026)
- →
- ←
- →
027
- ←
- → / ?
- →

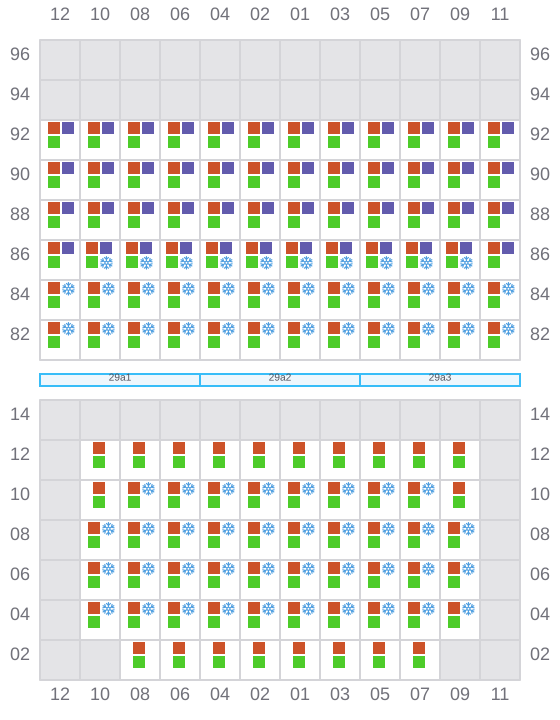

029 (030)
- →
- ←
- →

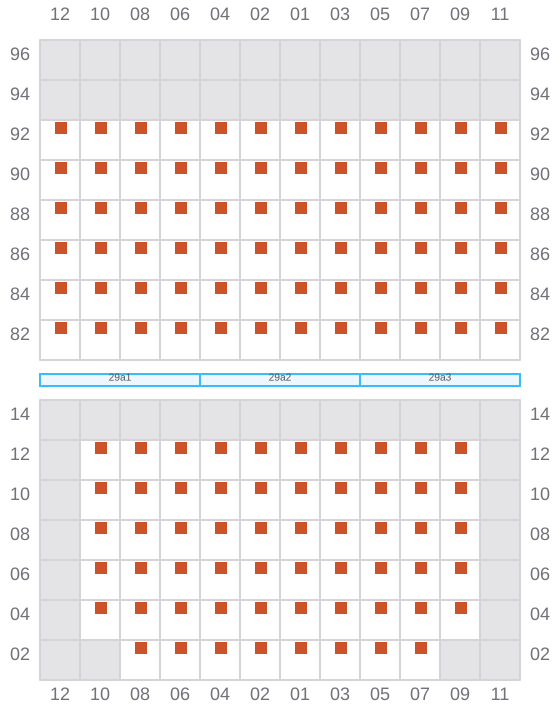

031
- ←
- → / ?
- →
033 (034)
- →
- →

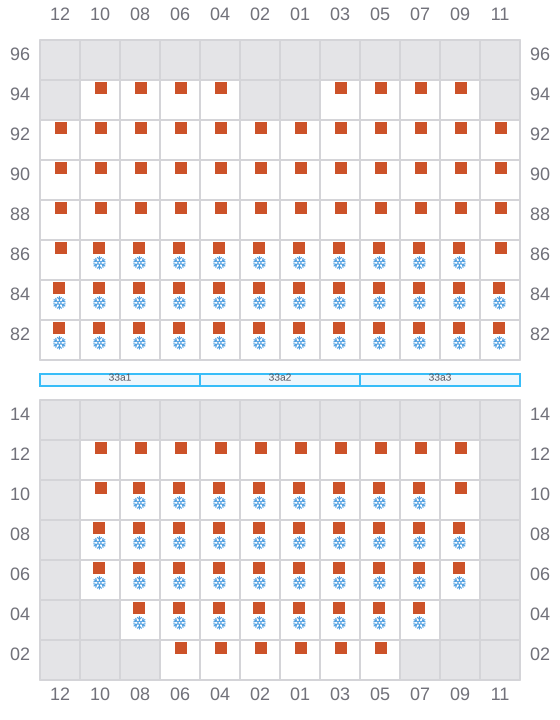

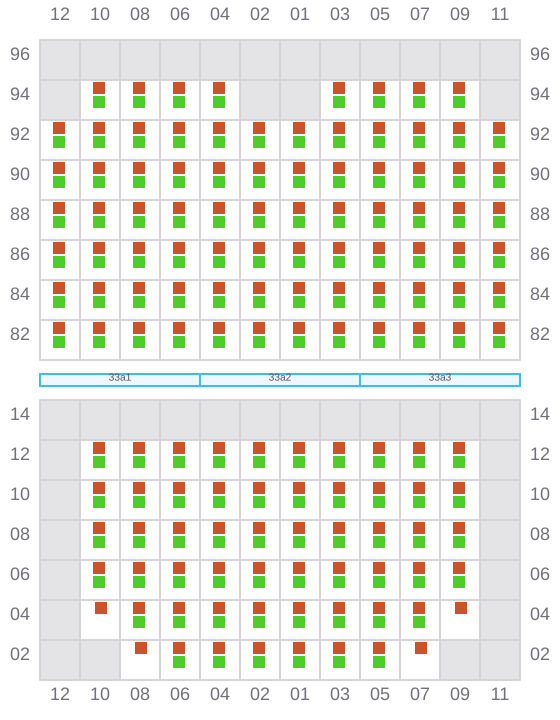

035
- ←
- →
- →

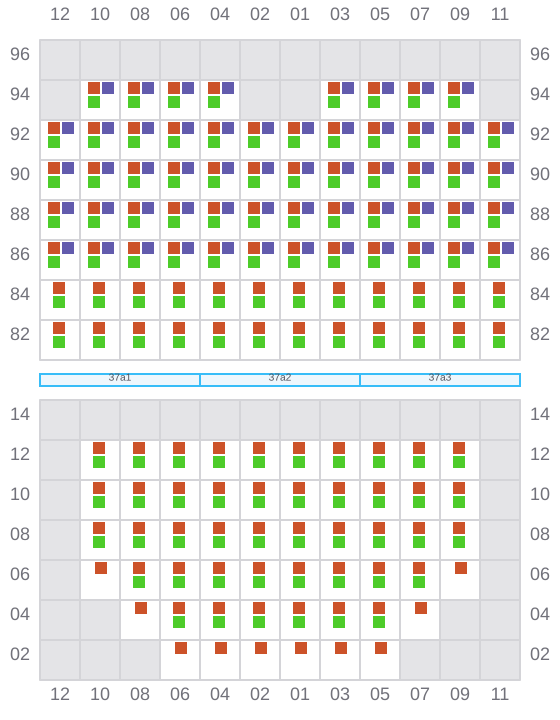

037 (038)
- →
- →

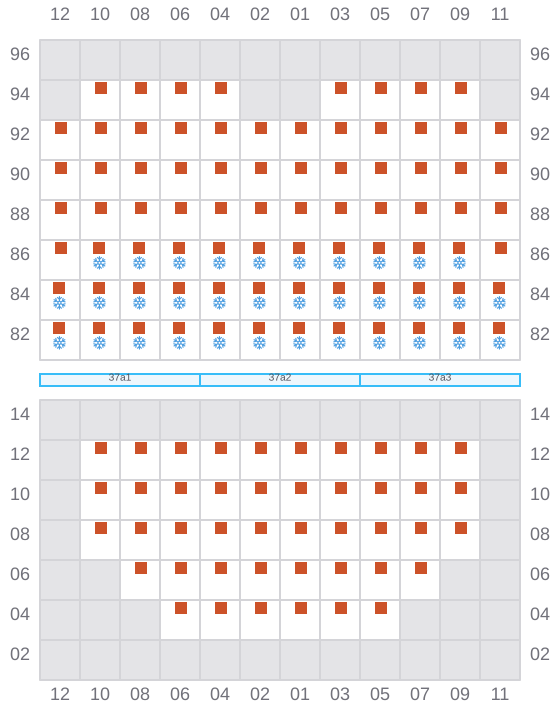

039
- ←
- → / ?
- →

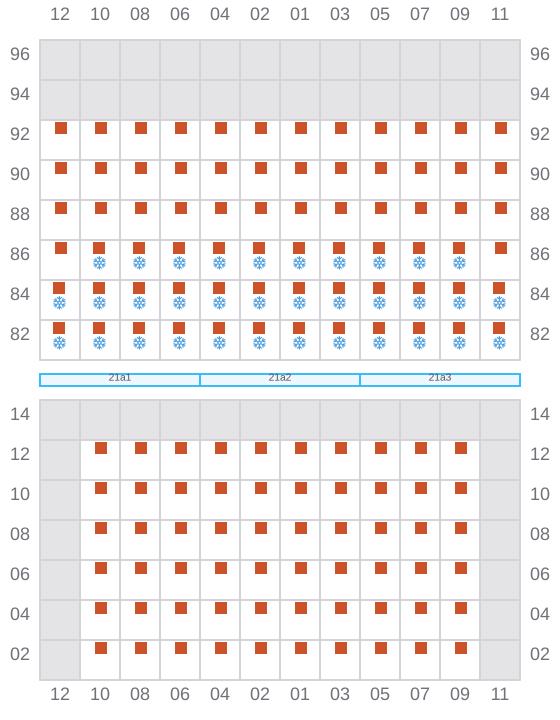

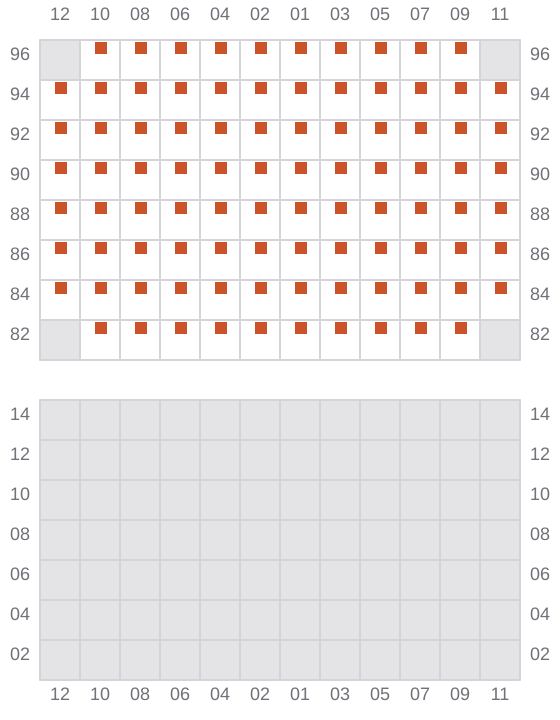

041
- → / ?

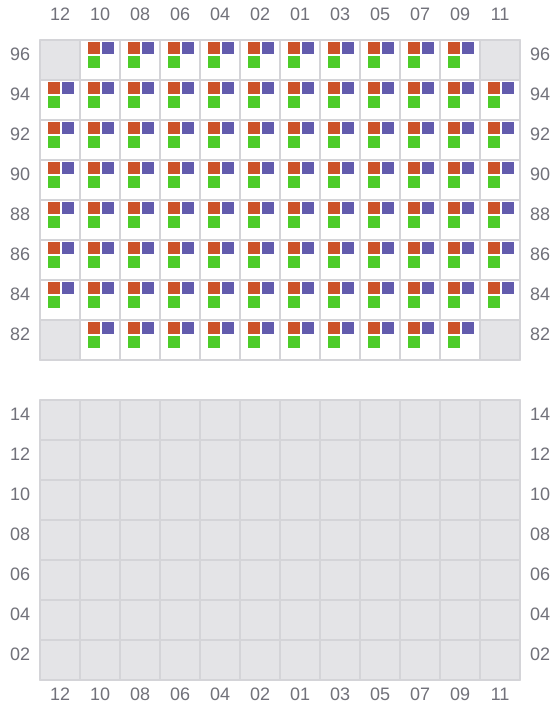

043 (044)
- → / ?
- → / ?

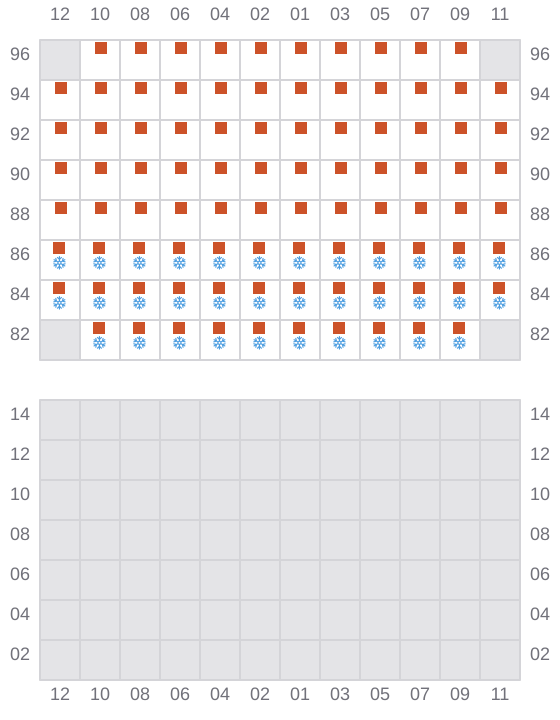

045
- ← / ?
- → / ?
- → / ?
