SAFMARINE NOKWANDA
9294393 | VRLA4 | 92943 by ********* Last update: Sun Mar 17 2024

General Info

Ship Name:SAFMARINE NOKWANDA
IMO Code:9294393
Call Sign:VRLA4
Line Operator:92943
Class Name for Sister Ships:4G6
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:059
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:5,856

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

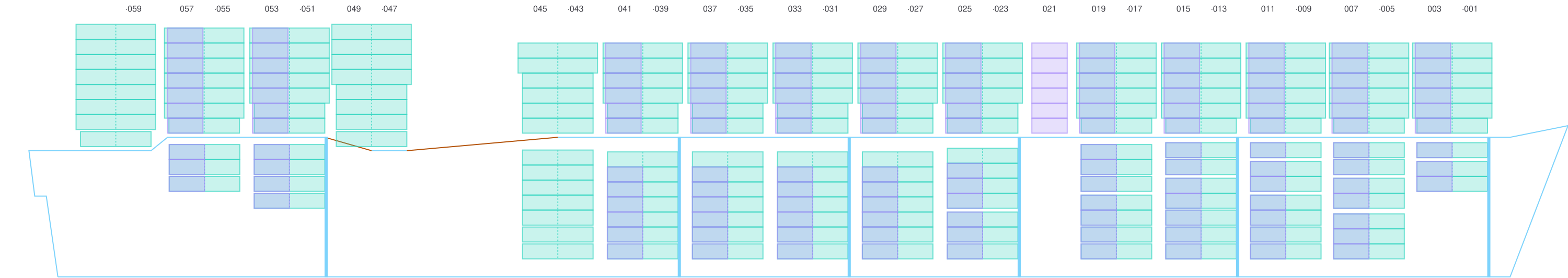

Side view of SAFMARINE NOKWANDA

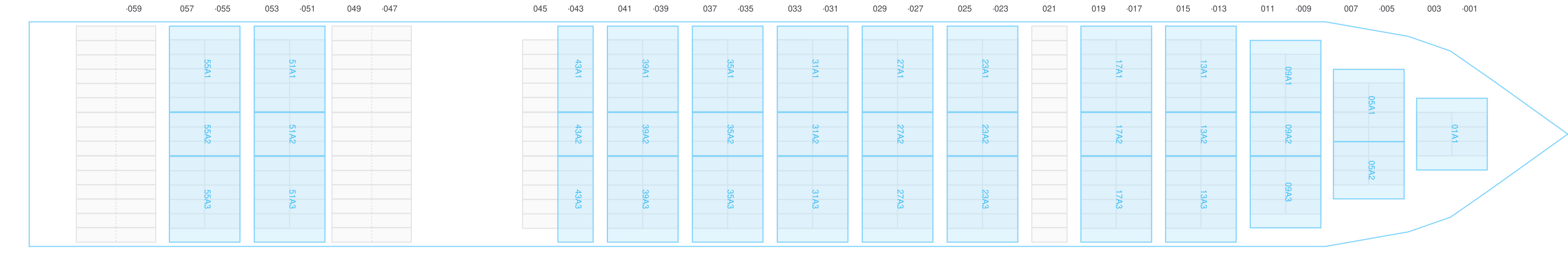

Hatch-Covers View

Deck view of SAFMARINE NOKWANDA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

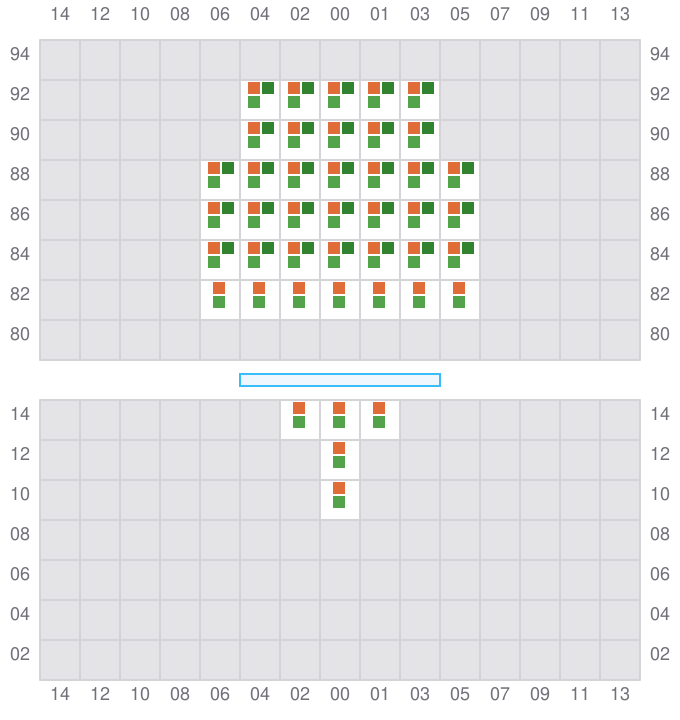

Bay 001 view and slots of SAFMARINE NOKWANDA

003

  • →

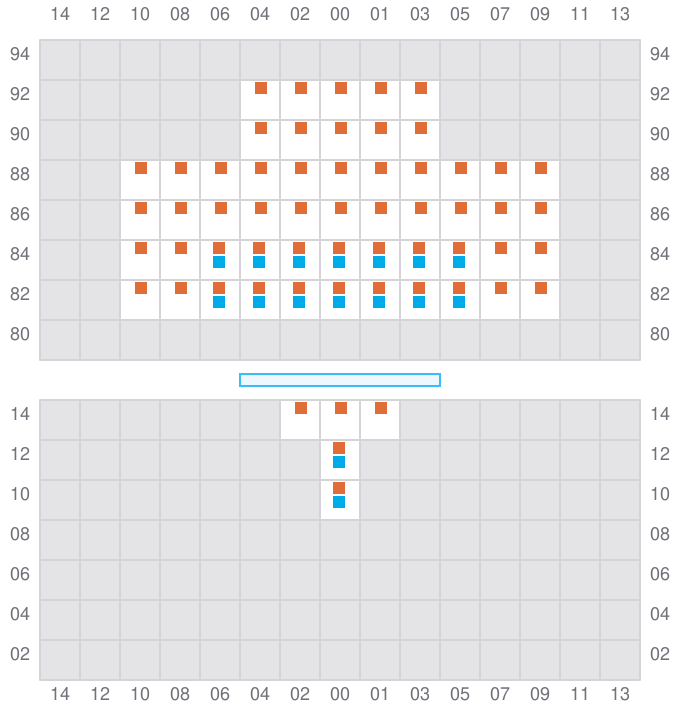

Bay 003 view and slots of SAFMARINE NOKWANDA

005 (006)

  • →
  • ? / →
Bay 005 view and slots of SAFMARINE NOKWANDA

007

  • →

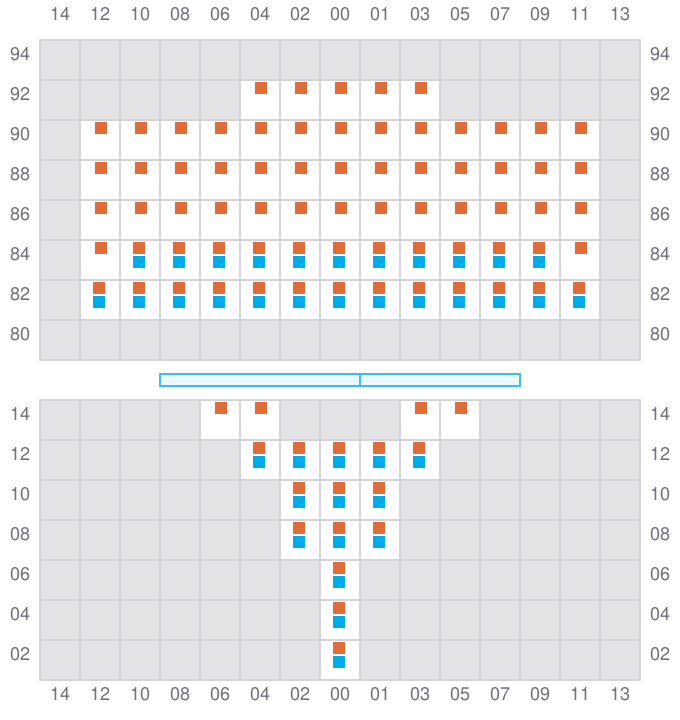

Bay 007 view and slots of SAFMARINE NOKWANDA

009 (010)

  • →
  • ? / →

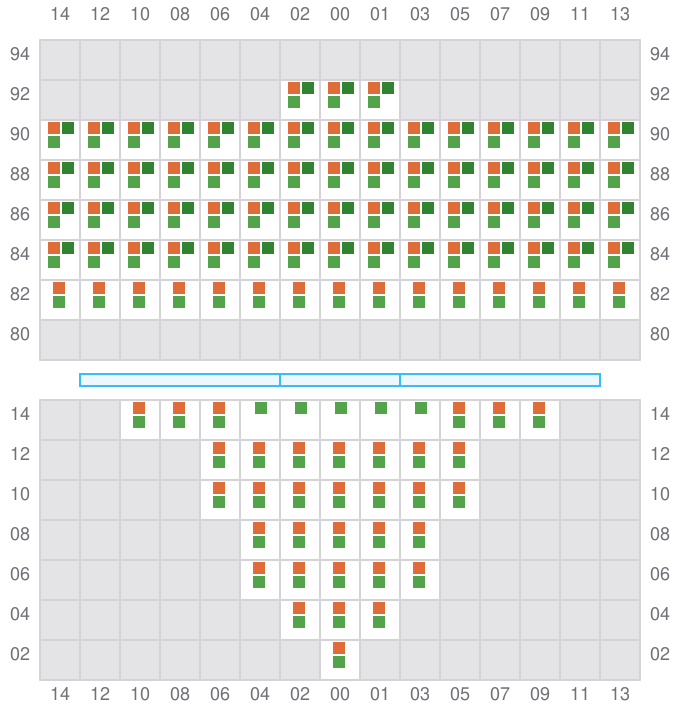

Bay 009 view and slots of SAFMARINE NOKWANDA

011

  • →

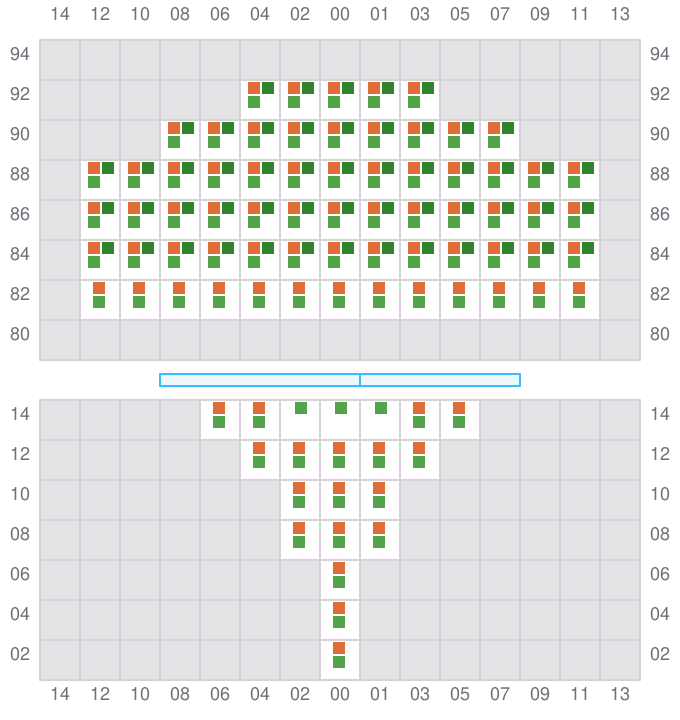

Bay 011 view and slots of SAFMARINE NOKWANDA

013 (014)

  • →
  • ? / →
Bay 013 view and slots of SAFMARINE NOKWANDA

015

  • →
Bay 015 view and slots of SAFMARINE NOKWANDA

017 (018)

  • →
  • ? / →
Bay 017 view and slots of SAFMARINE NOKWANDA

019

  • →
Bay 019 view and slots of SAFMARINE NOKWANDA

021

  • ← / ?

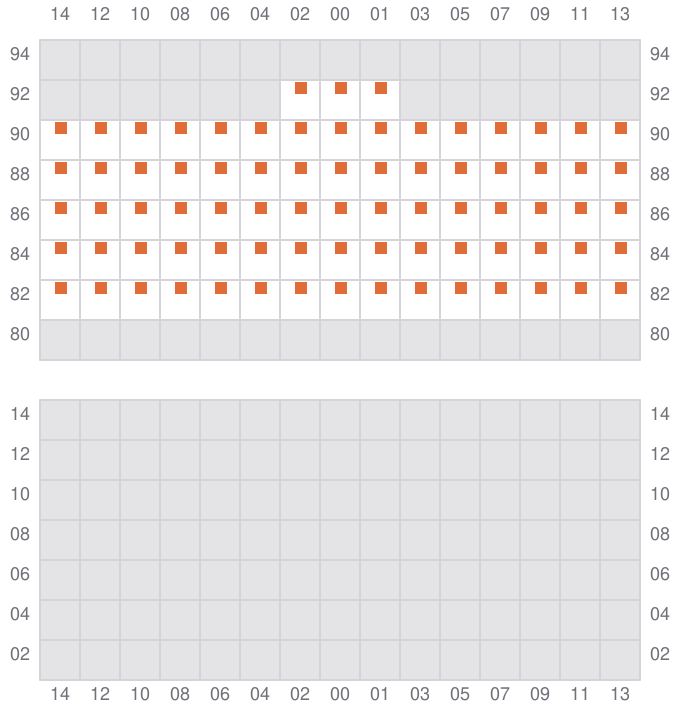

Bay 021 view and slots of SAFMARINE NOKWANDA

023 (024)

  • →
  • ? / →
Bay 023 view and slots of SAFMARINE NOKWANDA

025

  • →

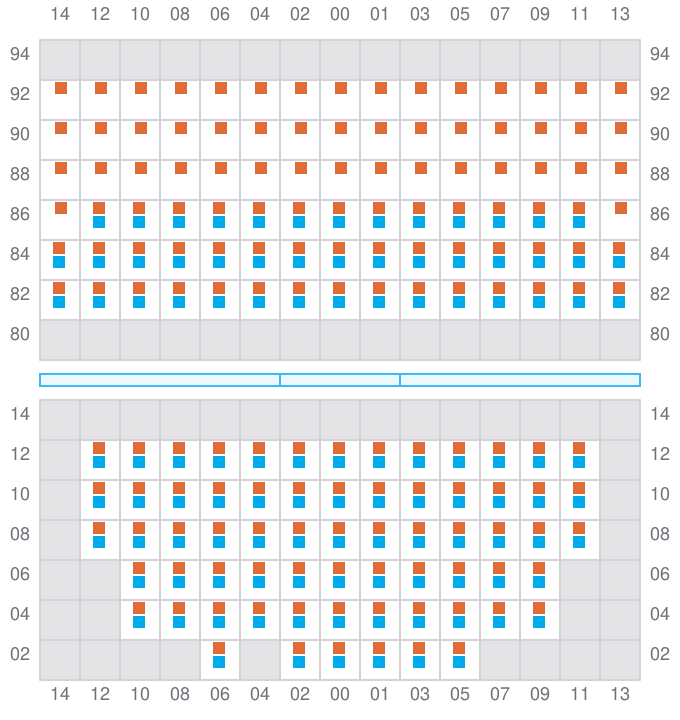

Bay 025 view and slots of SAFMARINE NOKWANDA

027 (028)

  • →
  • ? / →
Bay 027 view and slots of SAFMARINE NOKWANDA

029

  • →

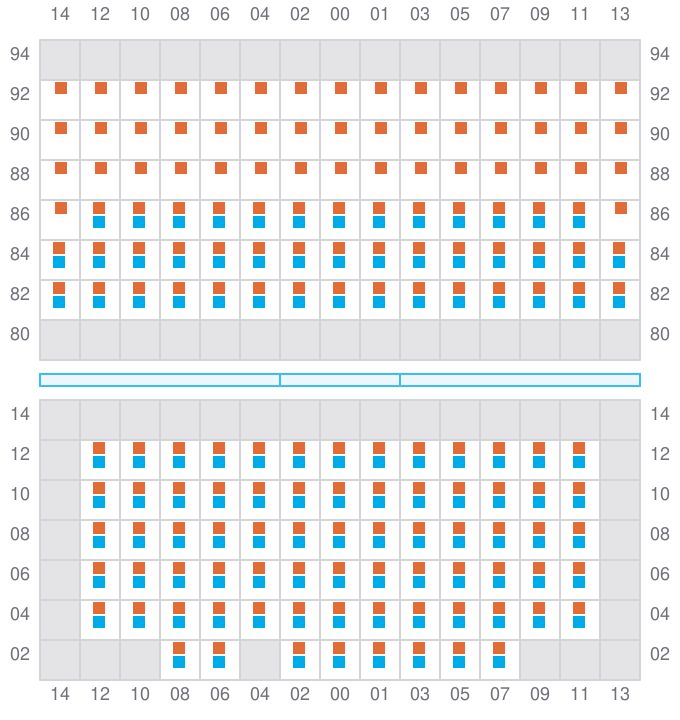

Bay 029 view and slots of SAFMARINE NOKWANDA

031 (032)

  • →
  • ? / →
Bay 031 view and slots of SAFMARINE NOKWANDA

033

  • →
Bay 033 view and slots of SAFMARINE NOKWANDA

035 (036)

  • →
  • ? / →
Bay 035 view and slots of SAFMARINE NOKWANDA

037

  • →
Bay 037 view and slots of SAFMARINE NOKWANDA

039 (040)

  • →
  • ? / →
Bay 039 view and slots of SAFMARINE NOKWANDA

041

  • →
Bay 041 view and slots of SAFMARINE NOKWANDA

043 (044)

  • →
  • →

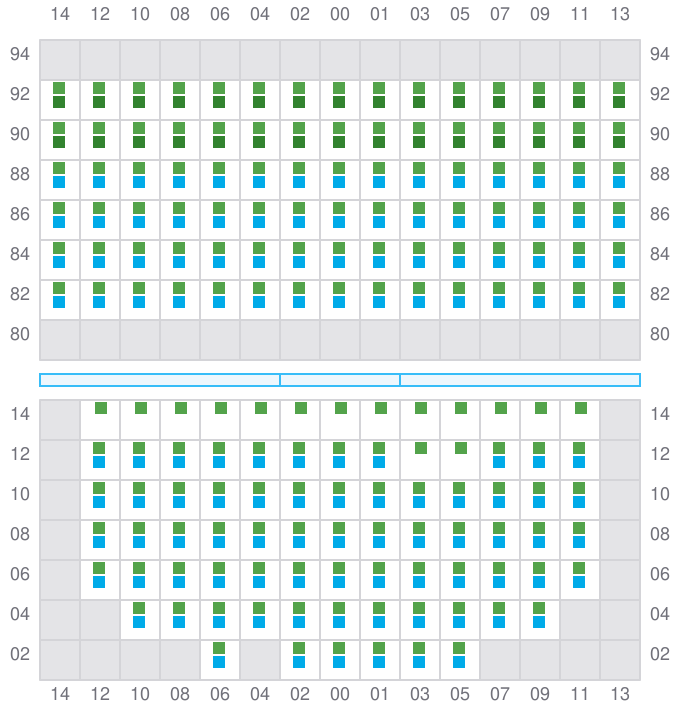

Bay 043 view and slots of SAFMARINE NOKWANDA

045

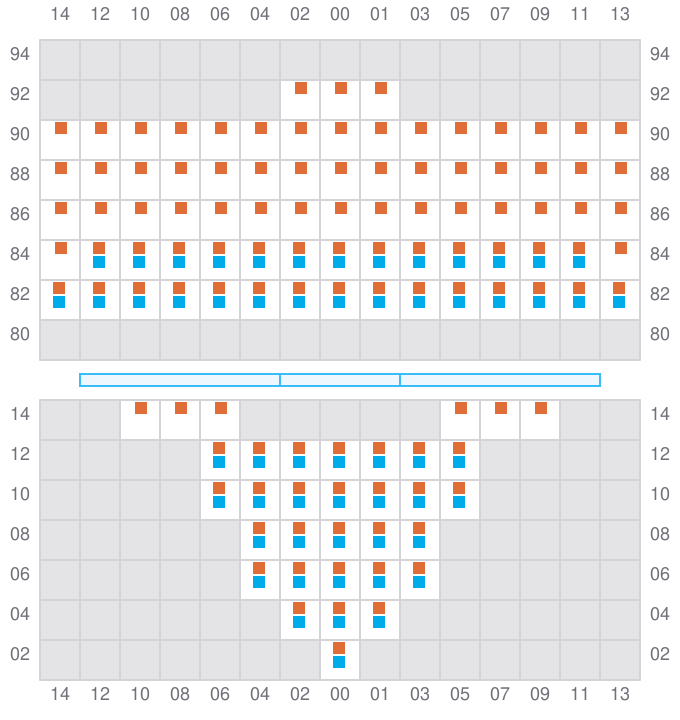

Bay 045 view and slots of SAFMARINE NOKWANDA

047 (048)

  • → / ?
  • ← / ?
Bay 047 view and slots of SAFMARINE NOKWANDA

049

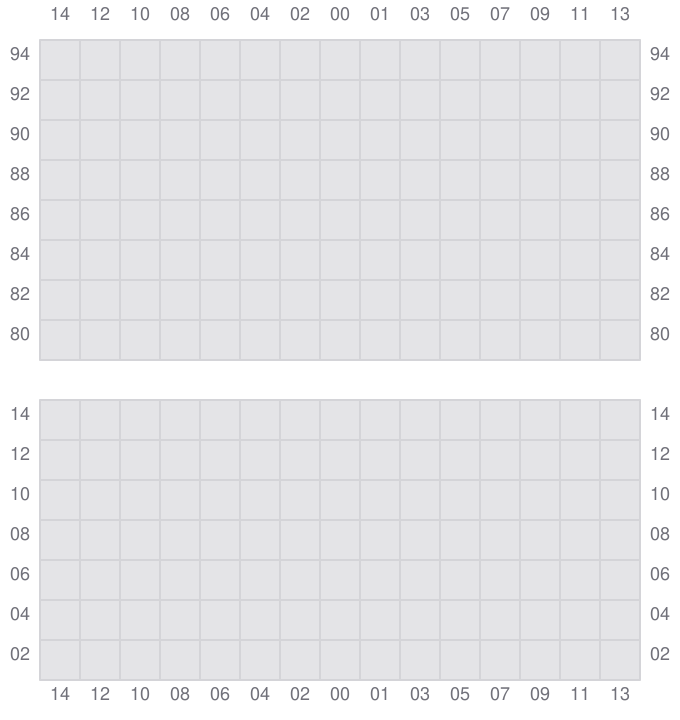

Bay 049 view and slots of SAFMARINE NOKWANDA

051 (052)

  • →
  • ← / ?

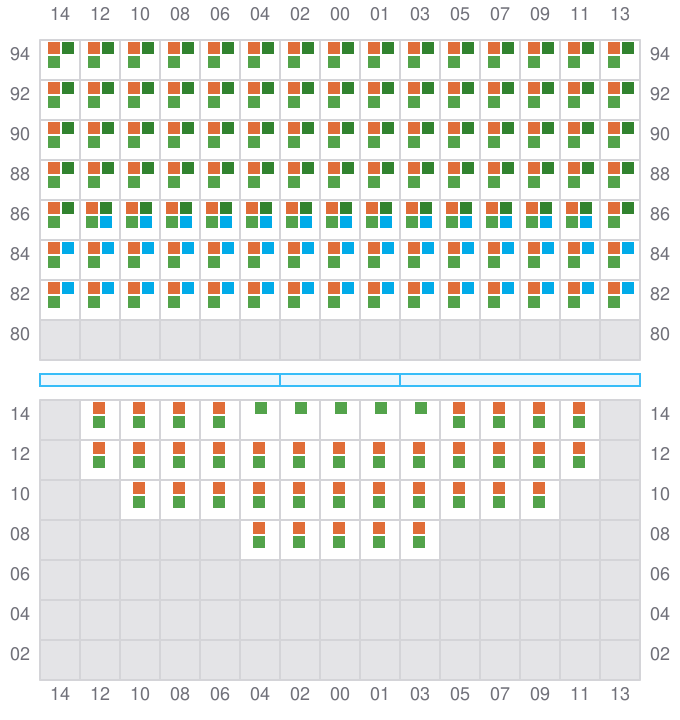

Bay 051 view and slots of SAFMARINE NOKWANDA

053

  • ? / →
Bay 053 view and slots of SAFMARINE NOKWANDA

055 (056)

  • →
  • ← / ?
Bay 055 view and slots of SAFMARINE NOKWANDA

057

  • ? / →

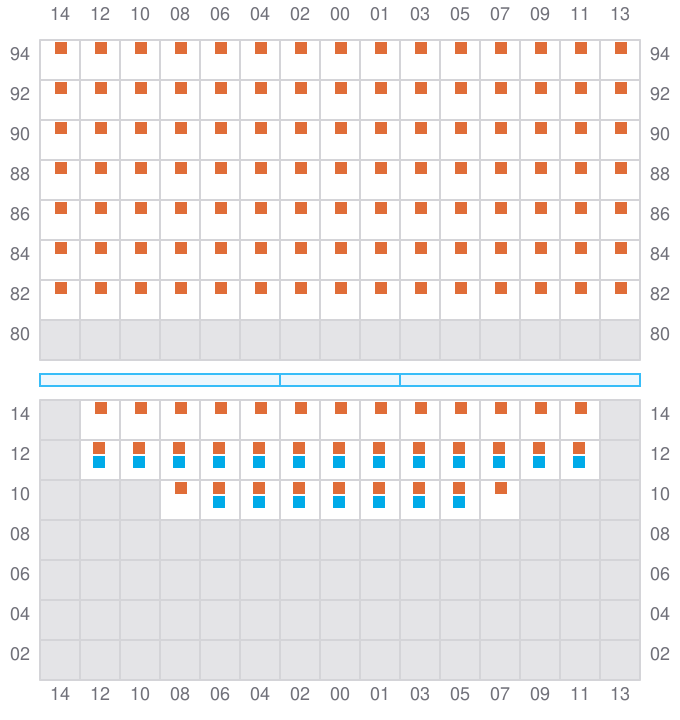

Bay 057 view and slots of SAFMARINE NOKWANDA

059 (060)

  • → / ?
  • ← / ?
Bay 059 view and slots of SAFMARINE NOKWANDA
