SALAHUDDIN
9708796 | 5LKX3 | HLC by *********************** Last update: Fri Feb 07 2025
General Info
Ship Name:SALAHUDDIN
IMO Code:9708796
Call Sign:5LKX3
Line Operator:HLC
Class Name for Sister Ships:HSAL
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):352.00
LOA (Length Overall):368.52
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,994
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

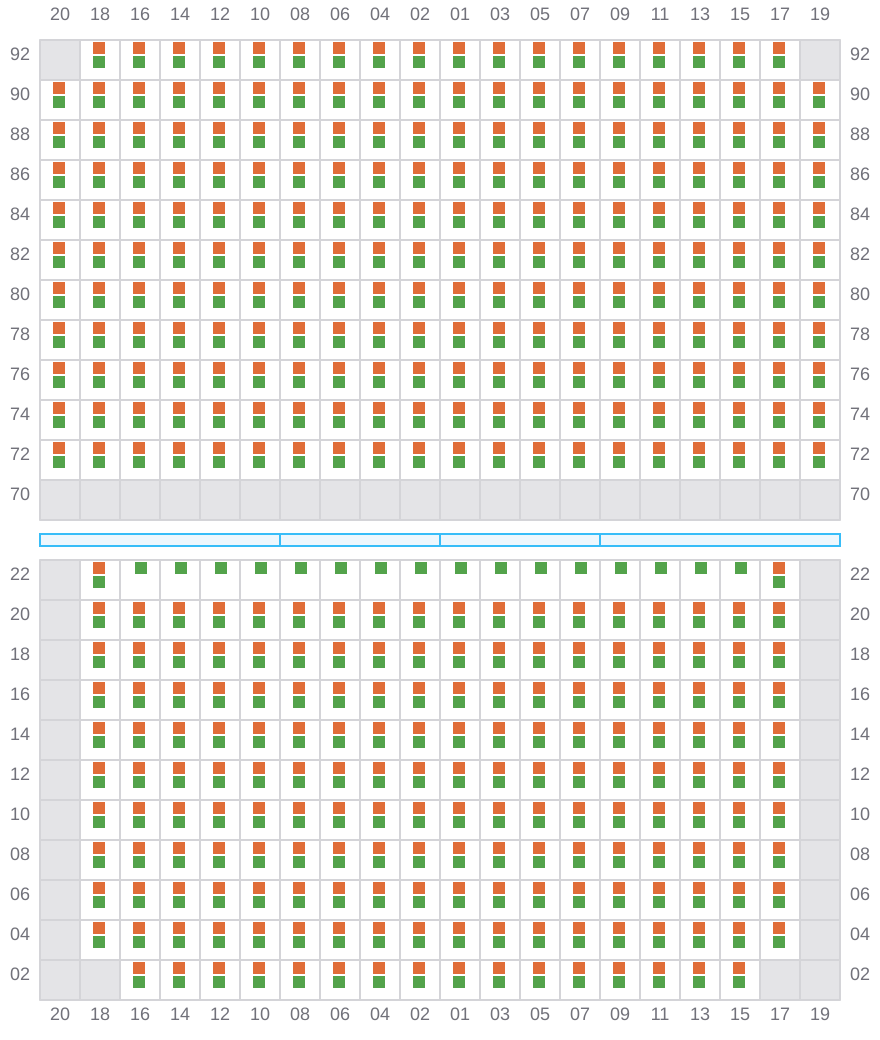

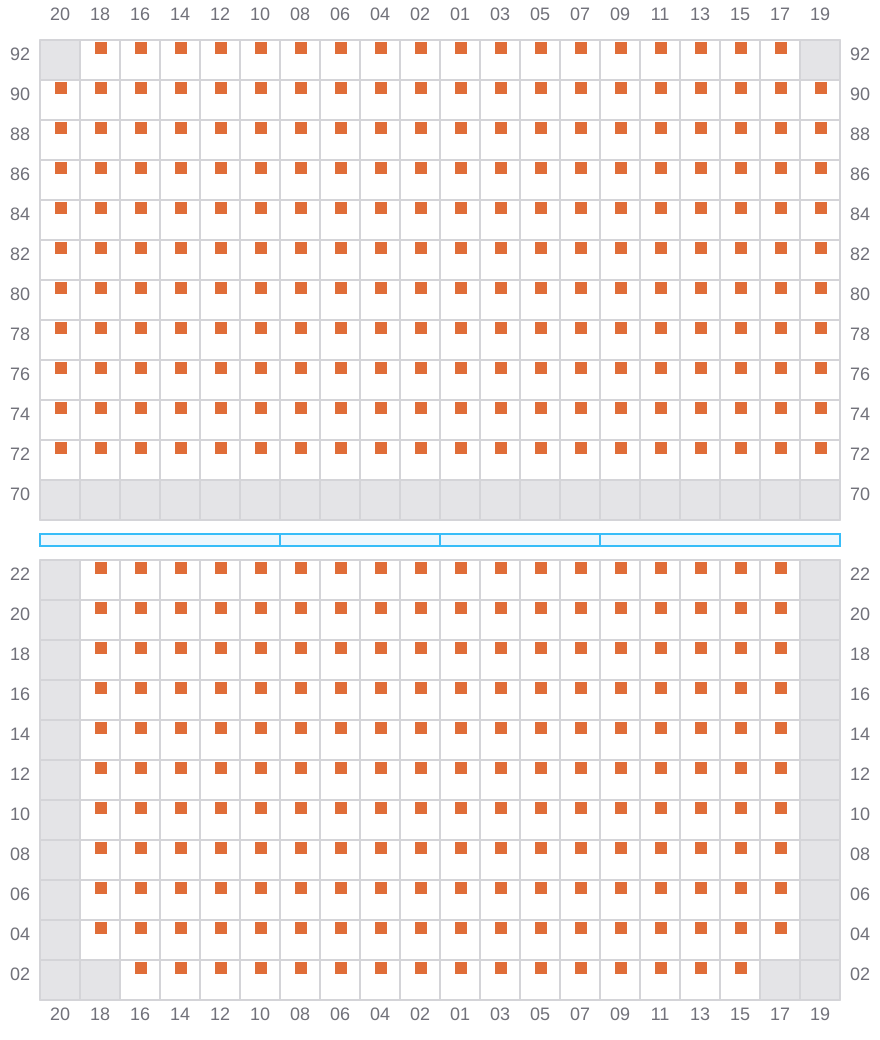

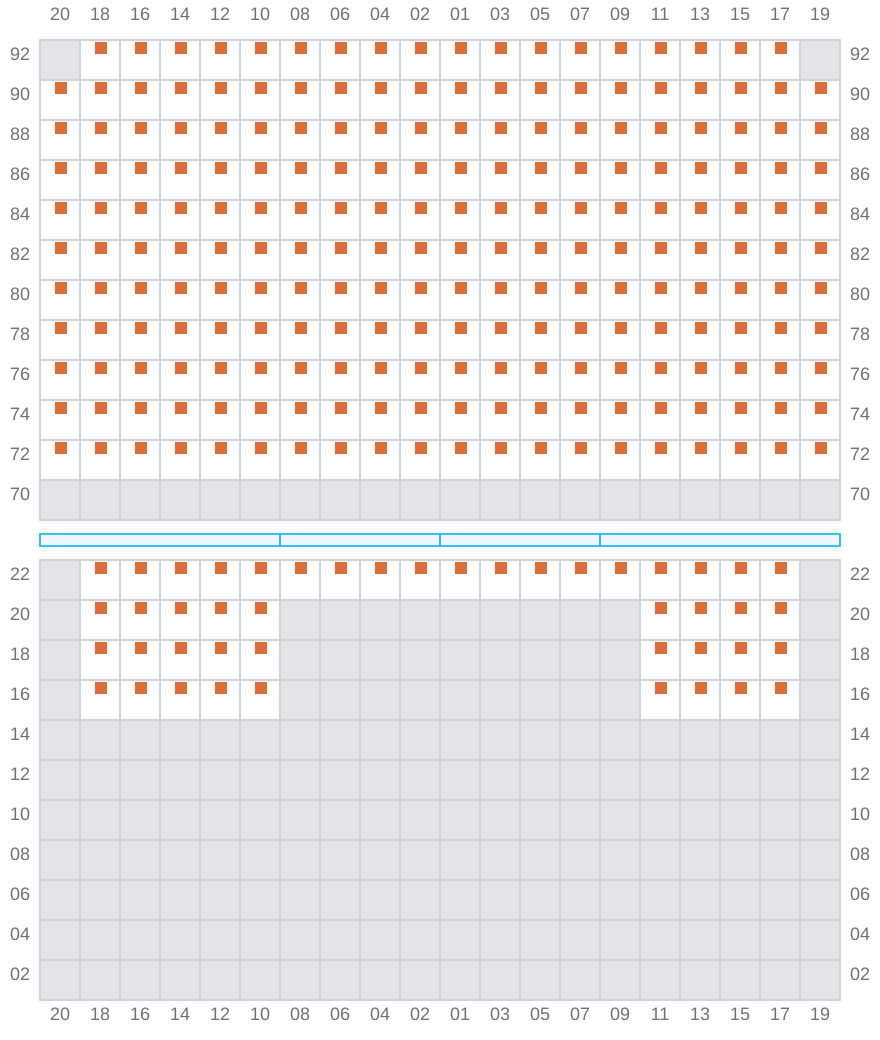

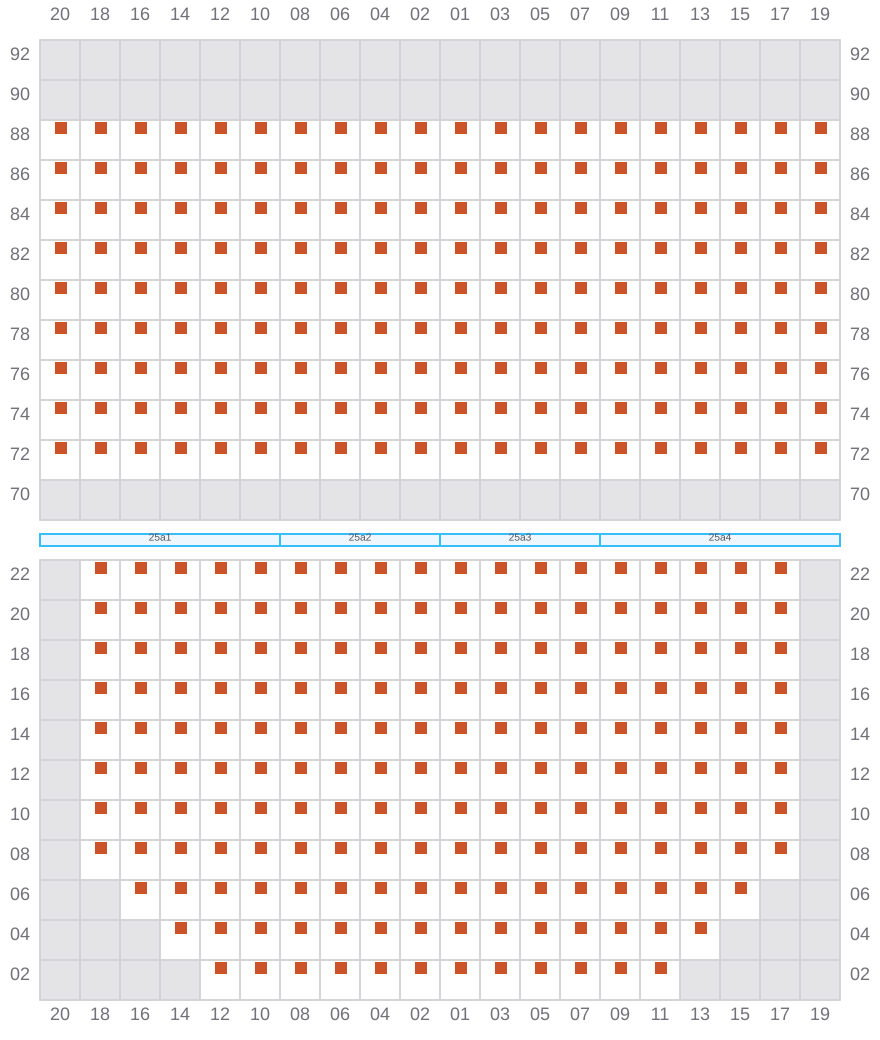

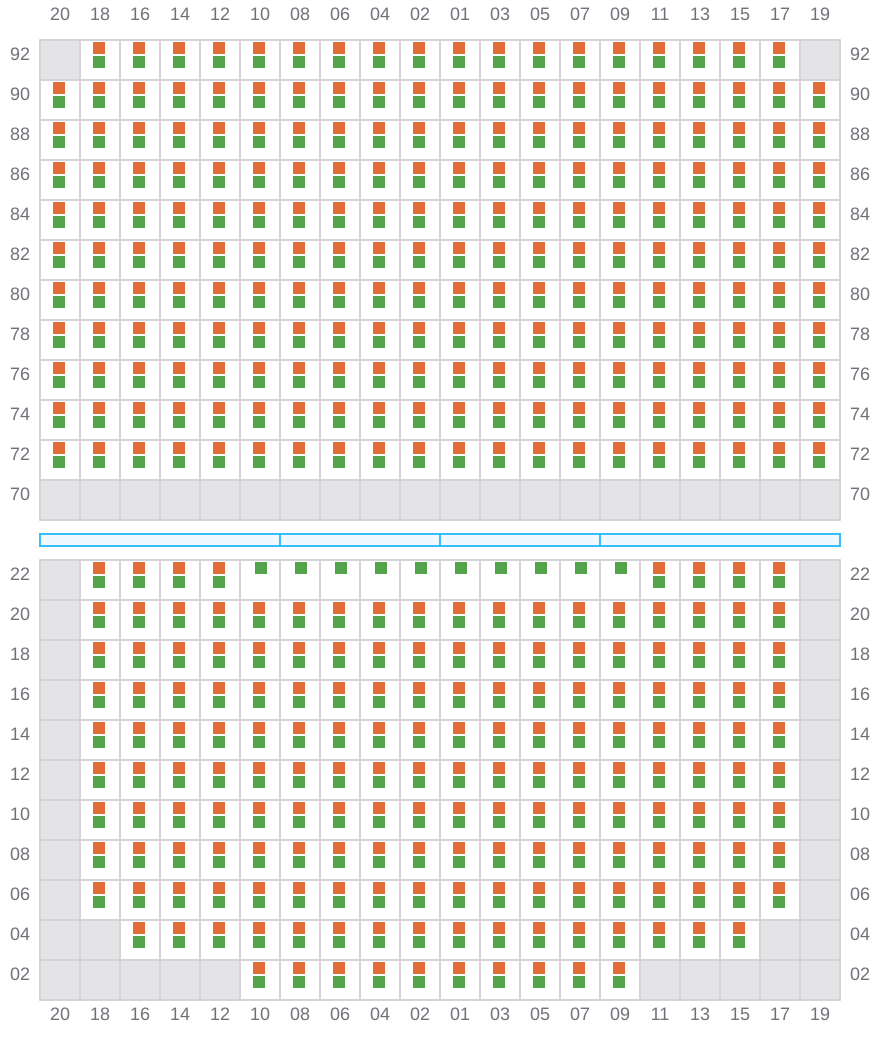

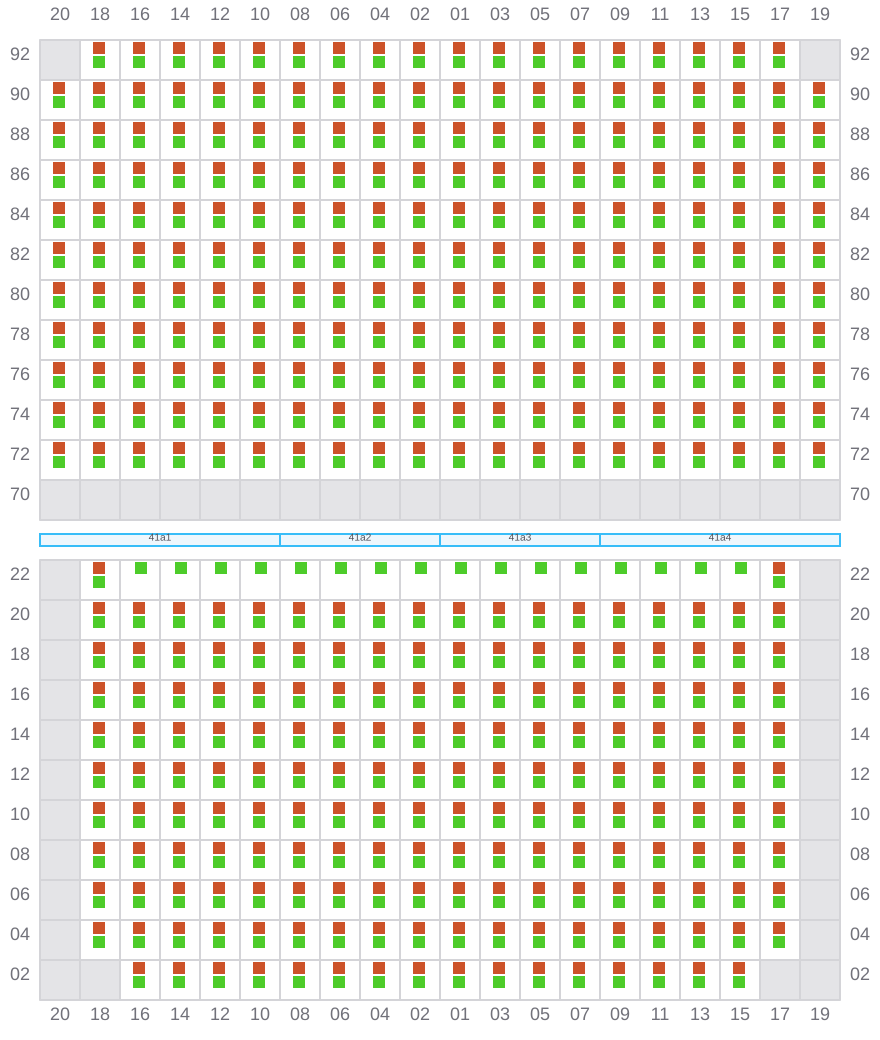

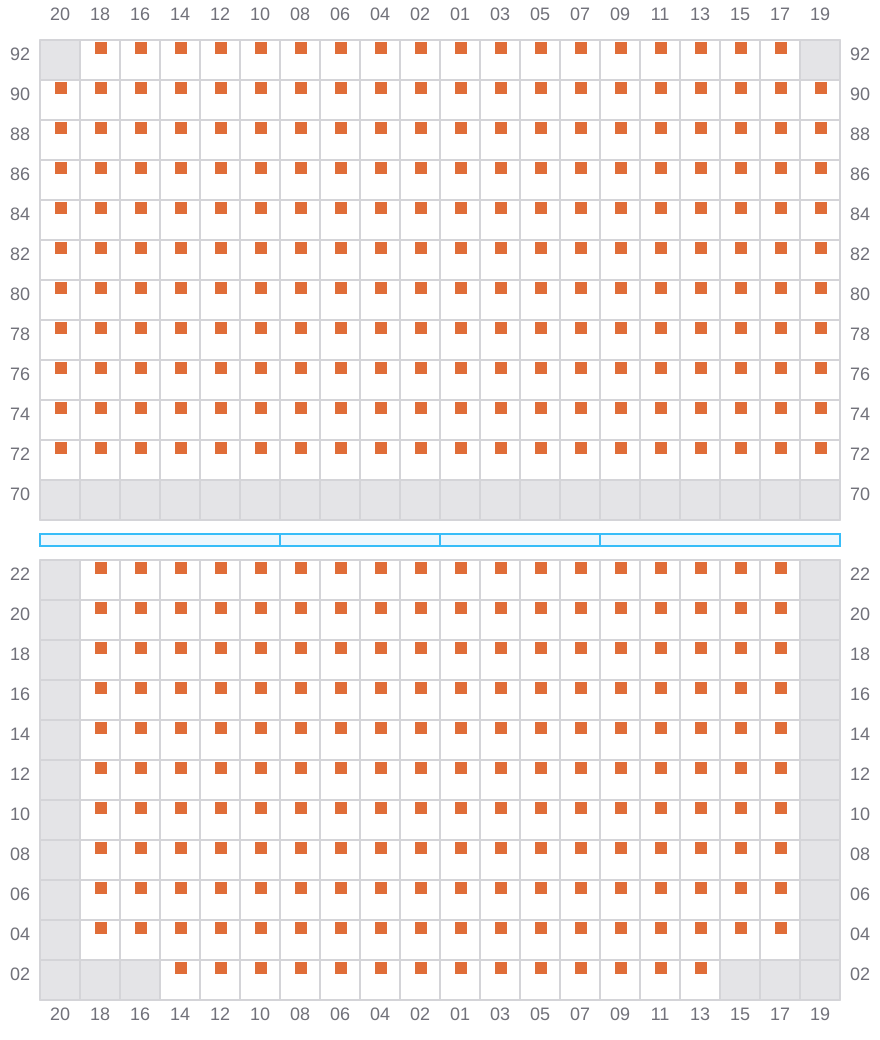

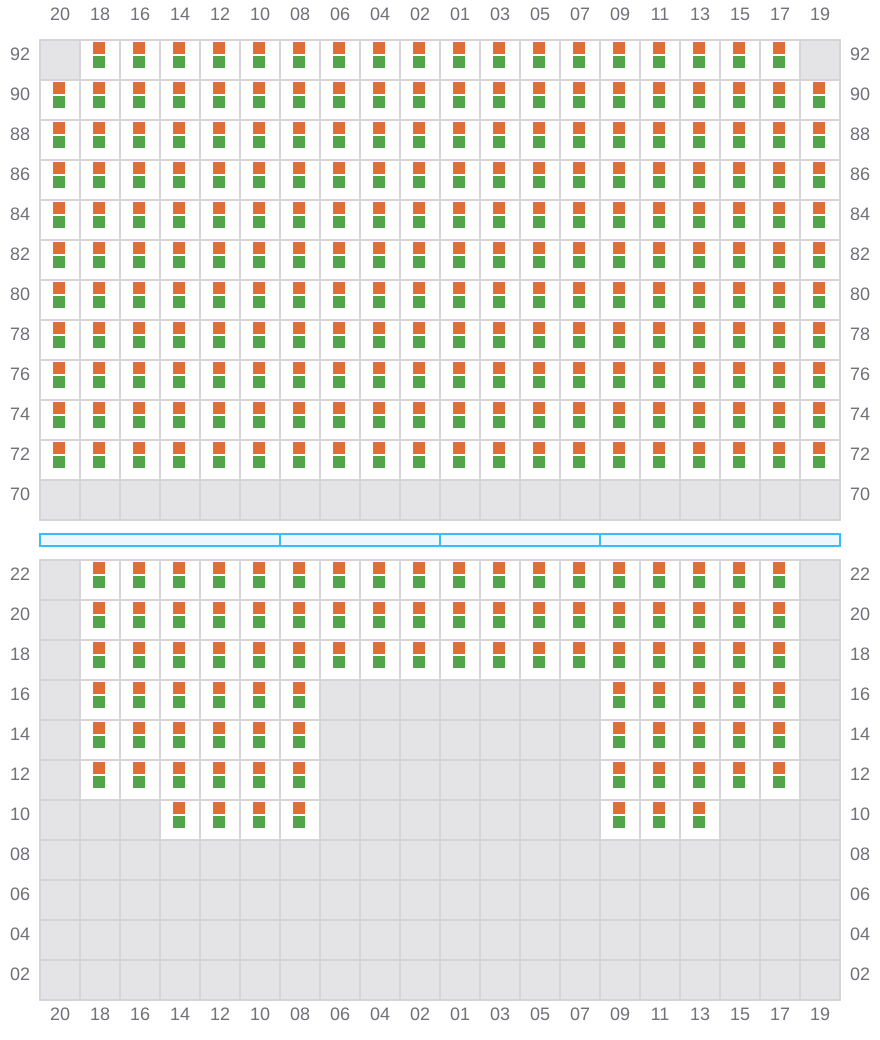

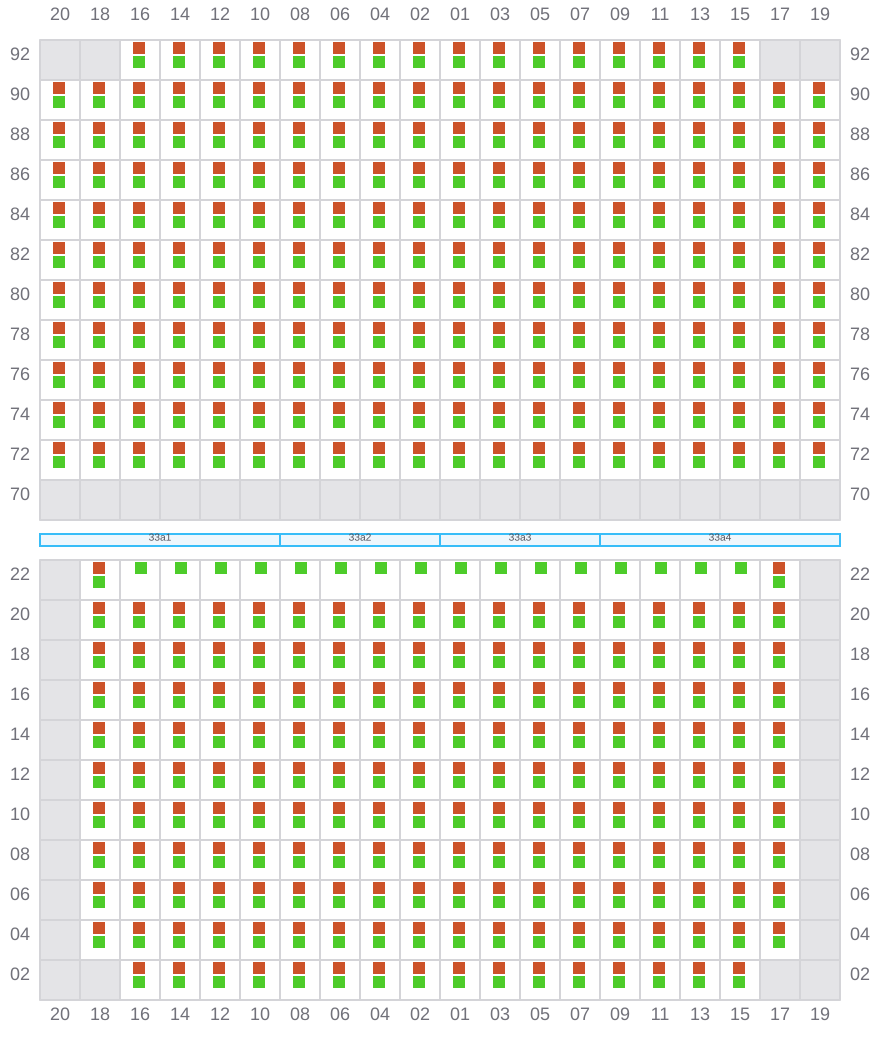

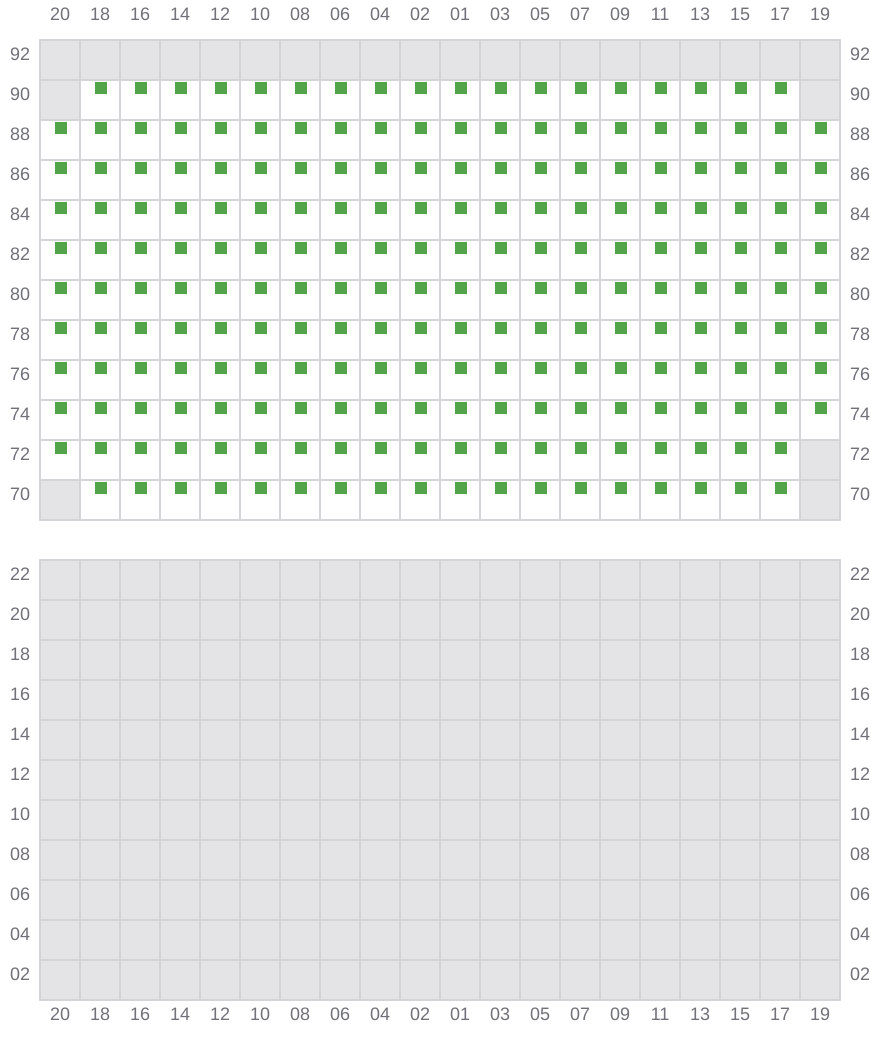

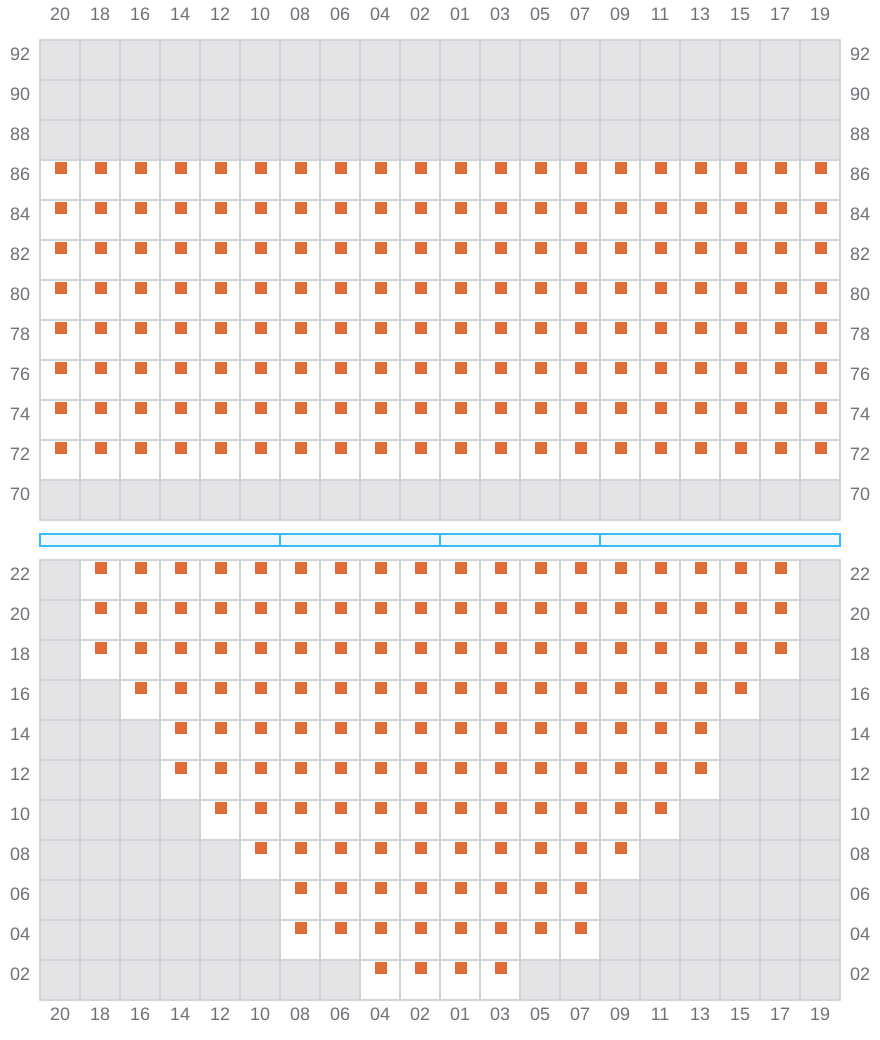

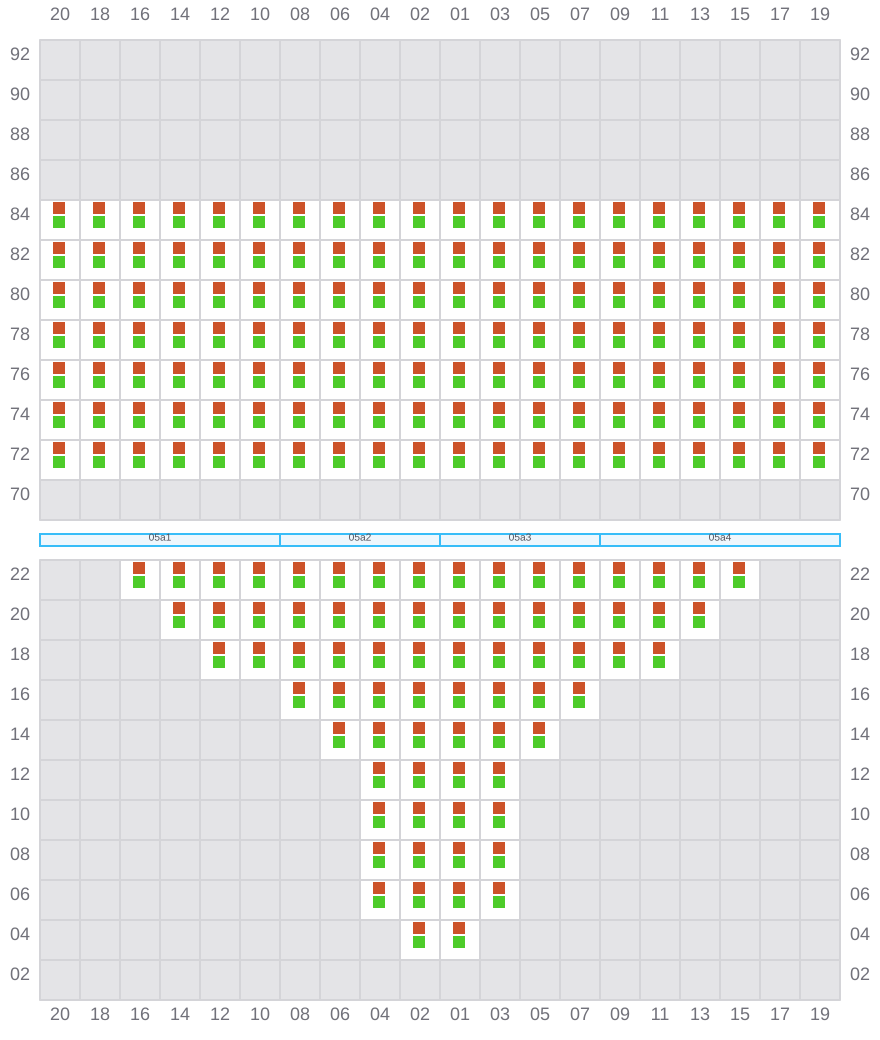

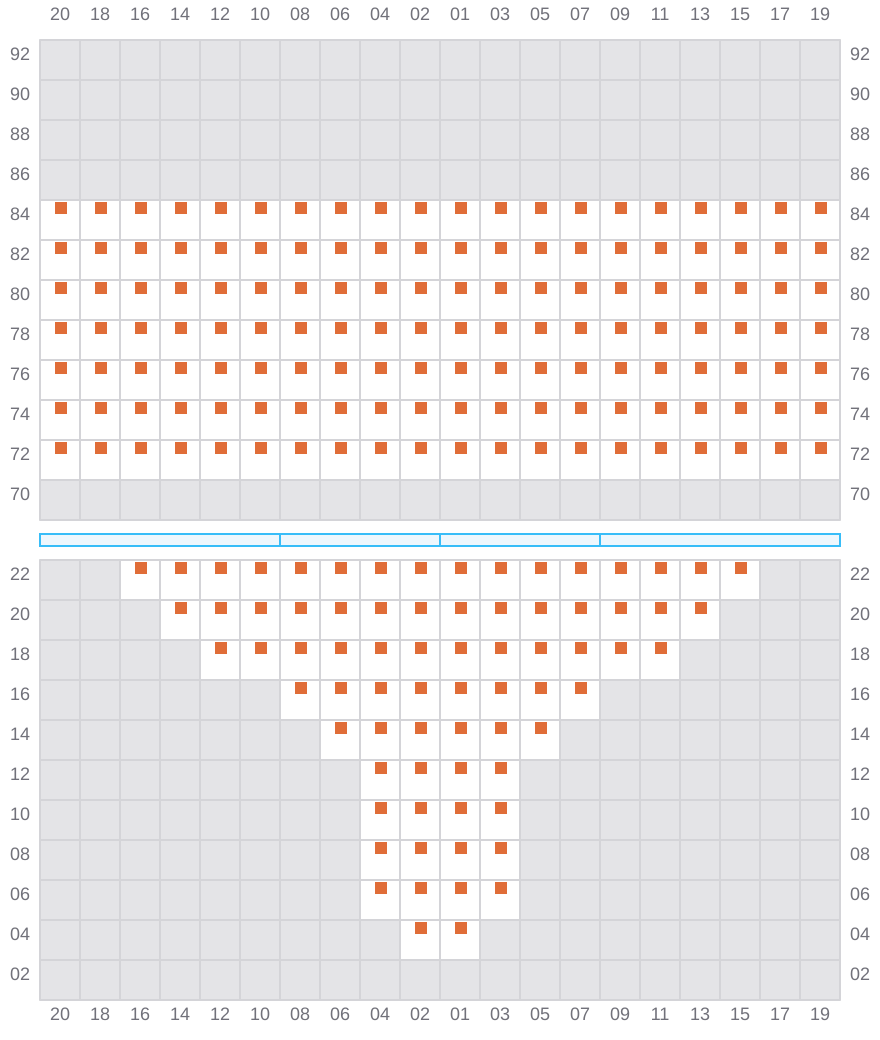

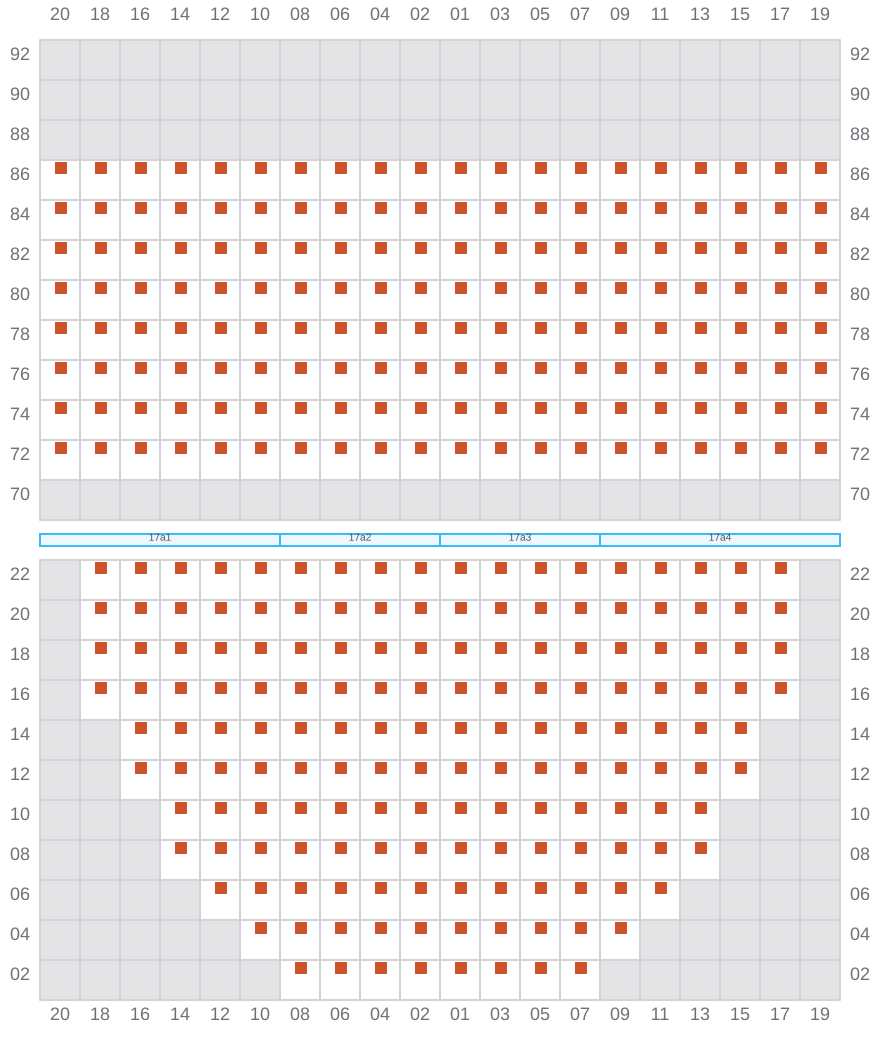

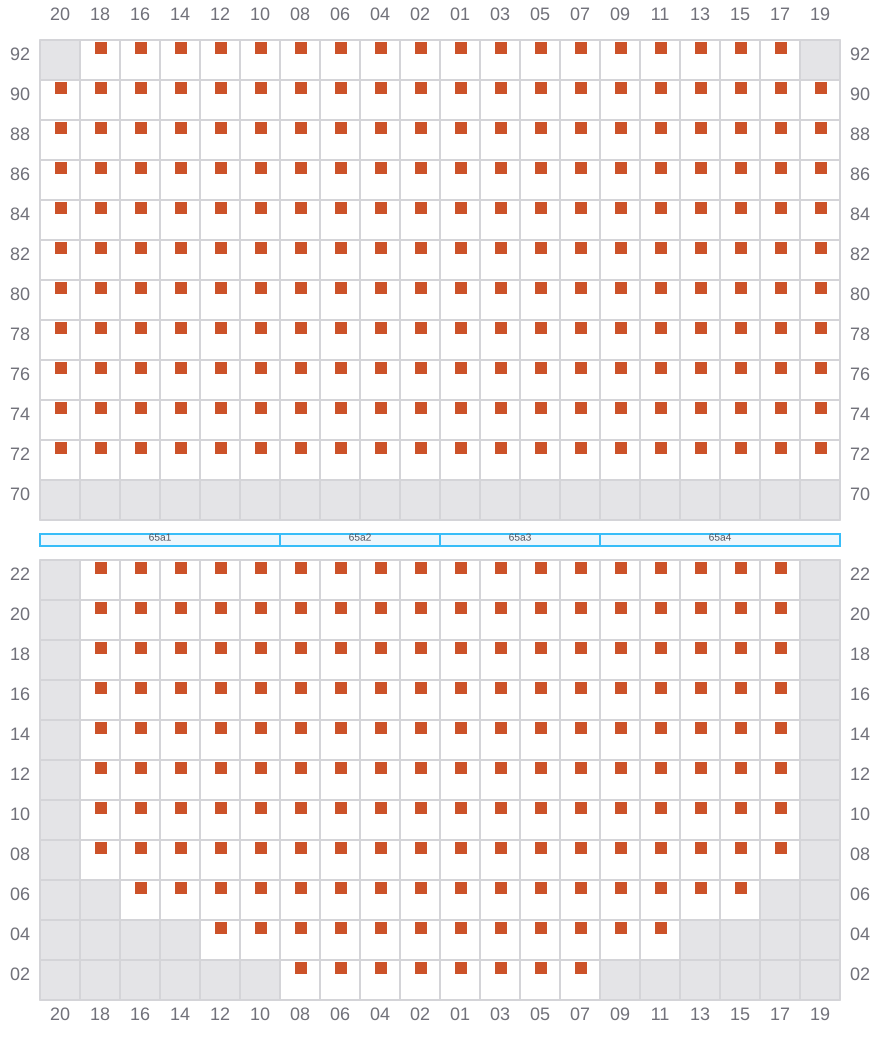

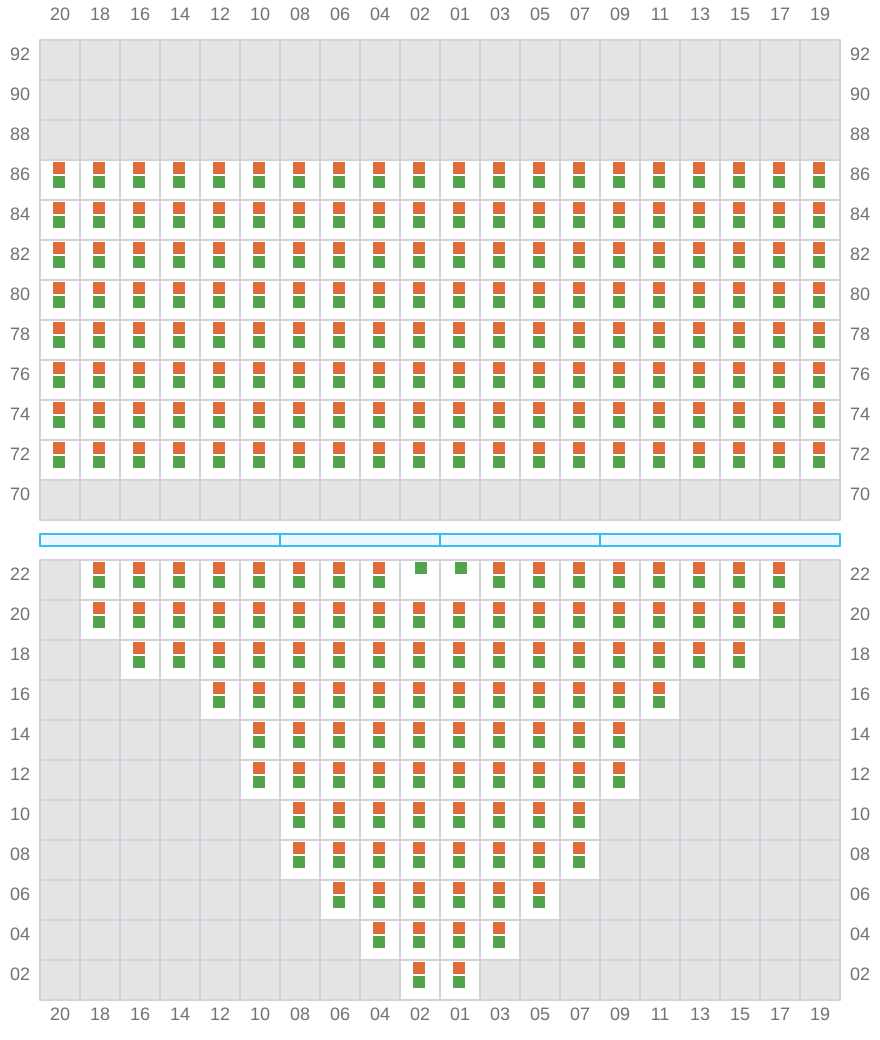

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

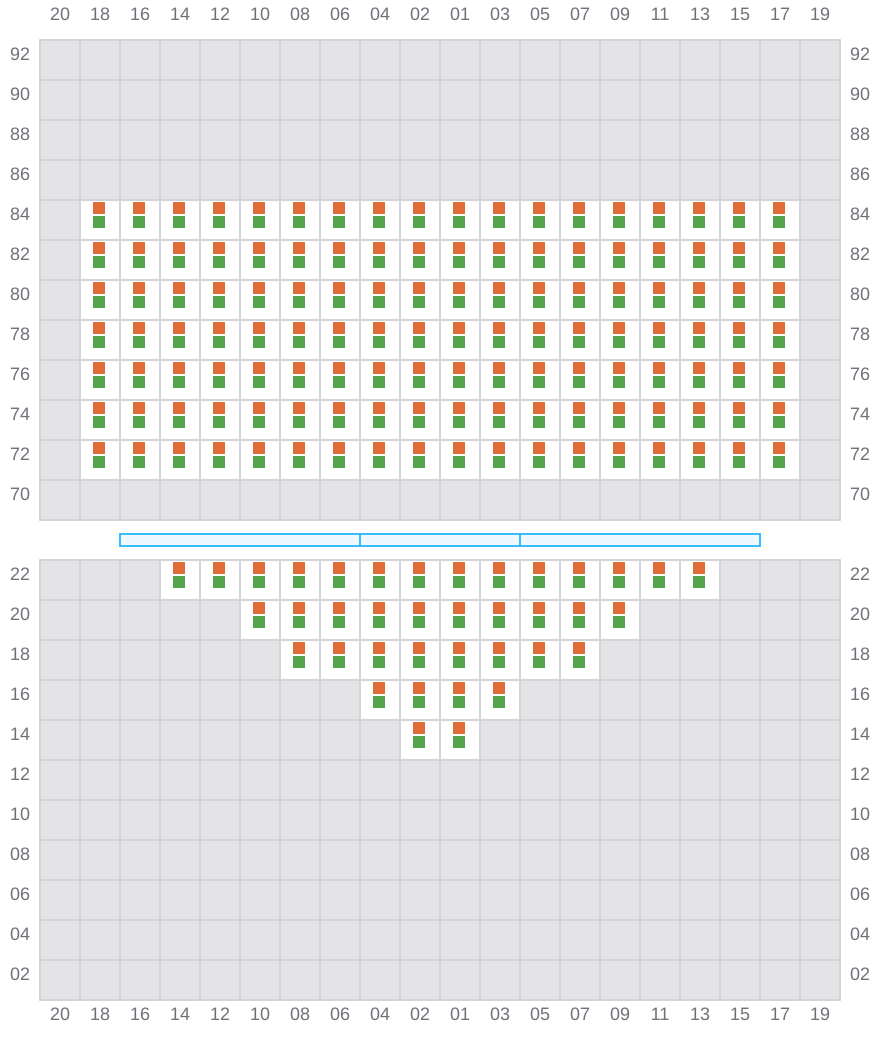

001 (002)
- →
- →
003
- ←
- → / ?
005 (006)
- →
- → / ?
- →
007
- ←
- → / ?
- →
009 (010)
- →
- → / ?
- →
011
- ←
- → / ?
- →
013 (014)
- →
- → / ?
- →
015
- ←
- → / ?
- →
017 (018)
- →
- → / ?
- →
019
- ←
- → / ?
- →
021 (022)
- →
- → / ?
- →
023
- ←
- → / ?
- →
025 (026)
- →
- → / ?
- →
027
- ←
- → / ?
- →
029 (030)
- →
- → / ?
- →
031
- ←
- → / ?
- →
033 (034)
- →
- → / ?
- →
035
- ←
- → / ?
- →
037 (038)
- →
- → / ?
- →
039
- ←
- → / ?
- →
041 (042)
- →
- → / ?
- →
043
- ←
- → / ?
- →
045 (046)
- →
- → / ?
- →

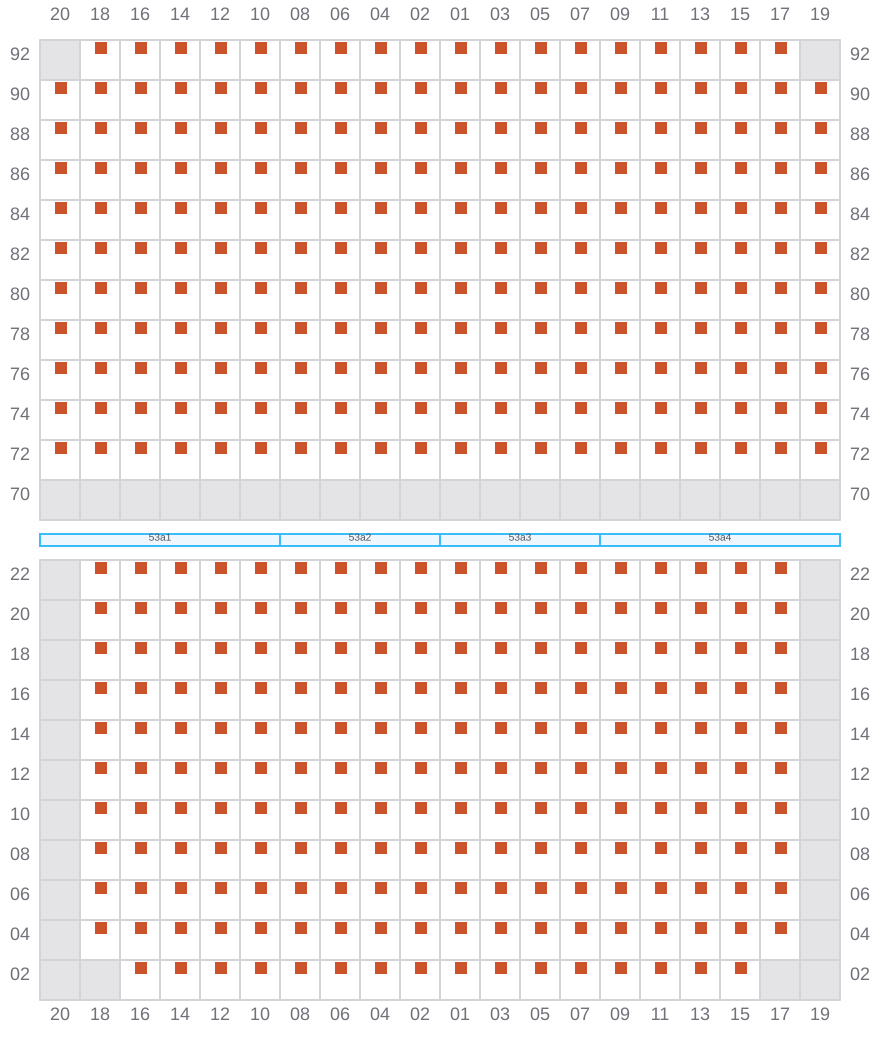

047
- ←
- → / ?
- →
049 (050)
- →
- →
051
- ←
- → / ?
- →
053 (054)
- →
- → / ?
- →

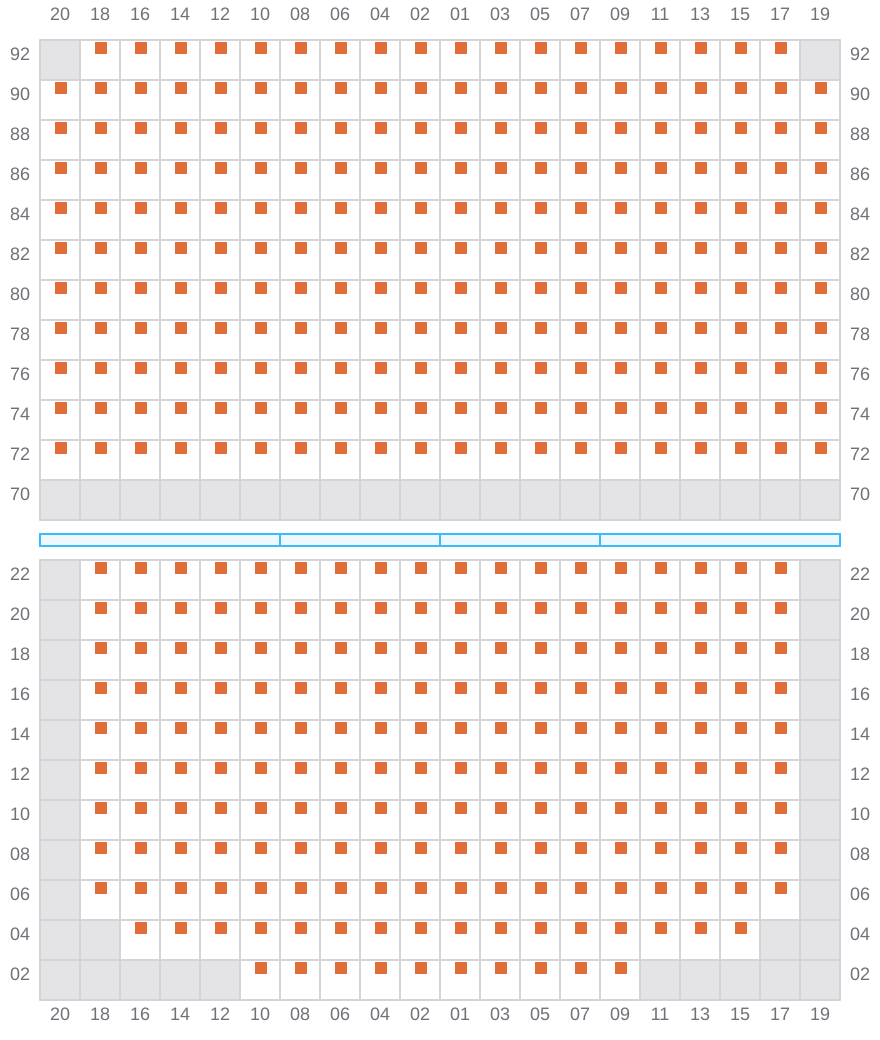

055
- ←
- → / ?
- →
057 (058)
- →
- → / ?
- →
059
- ←
- → / ?
- →

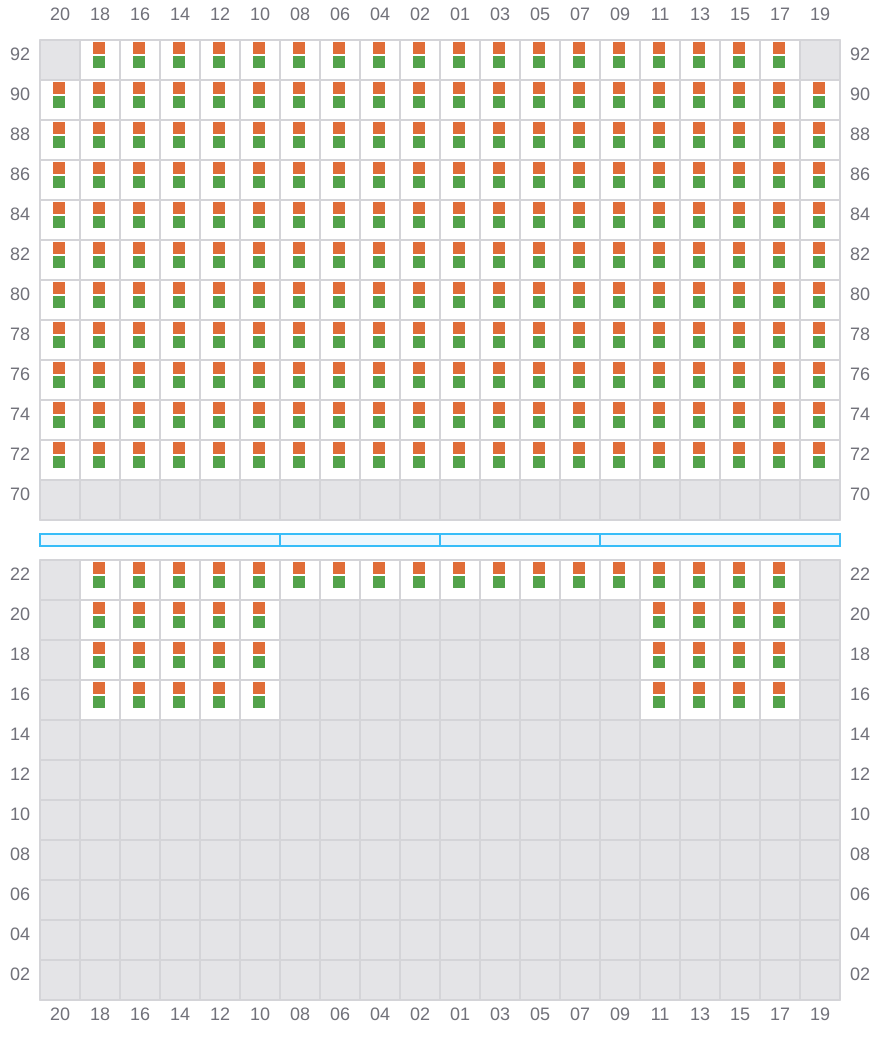

061 (062)
- →
- → / ?
- →
063
- ←
- → / ?
- →
065 (066)
- →
- → / ?
- →
067
- ←
- → / ?
- →

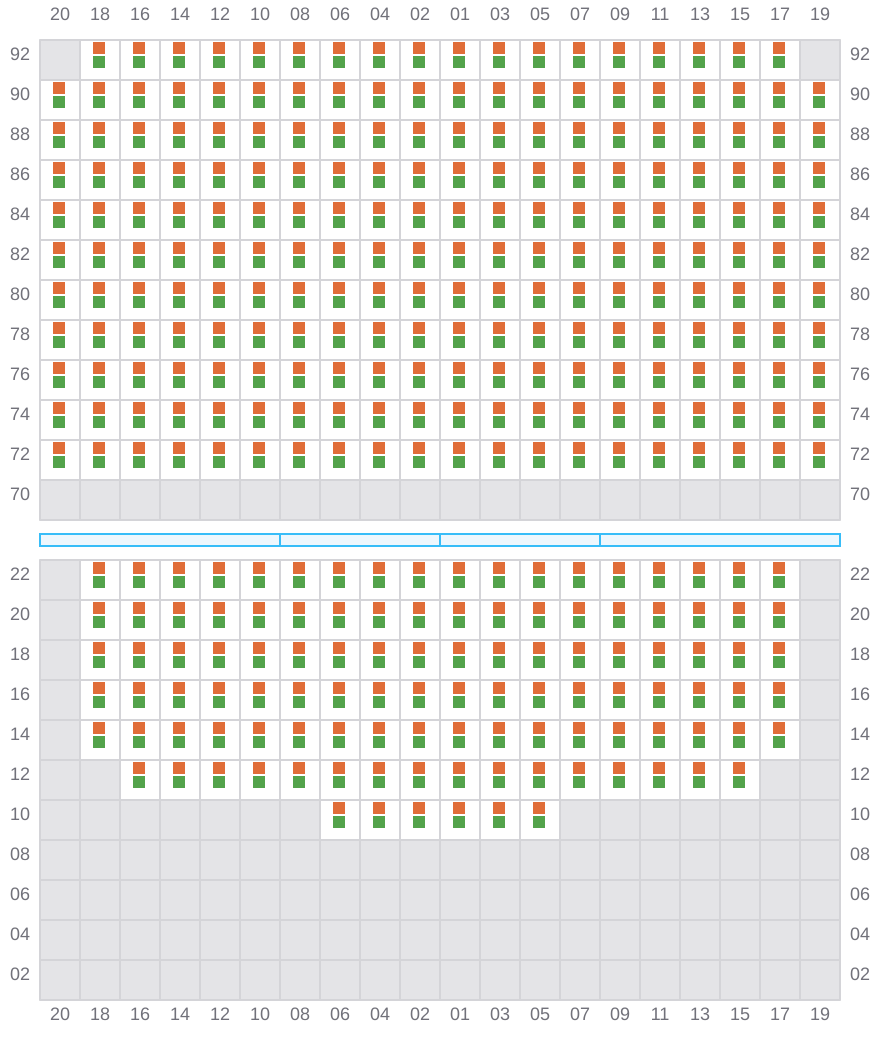

069 (070)
- →
- → / ?
- →

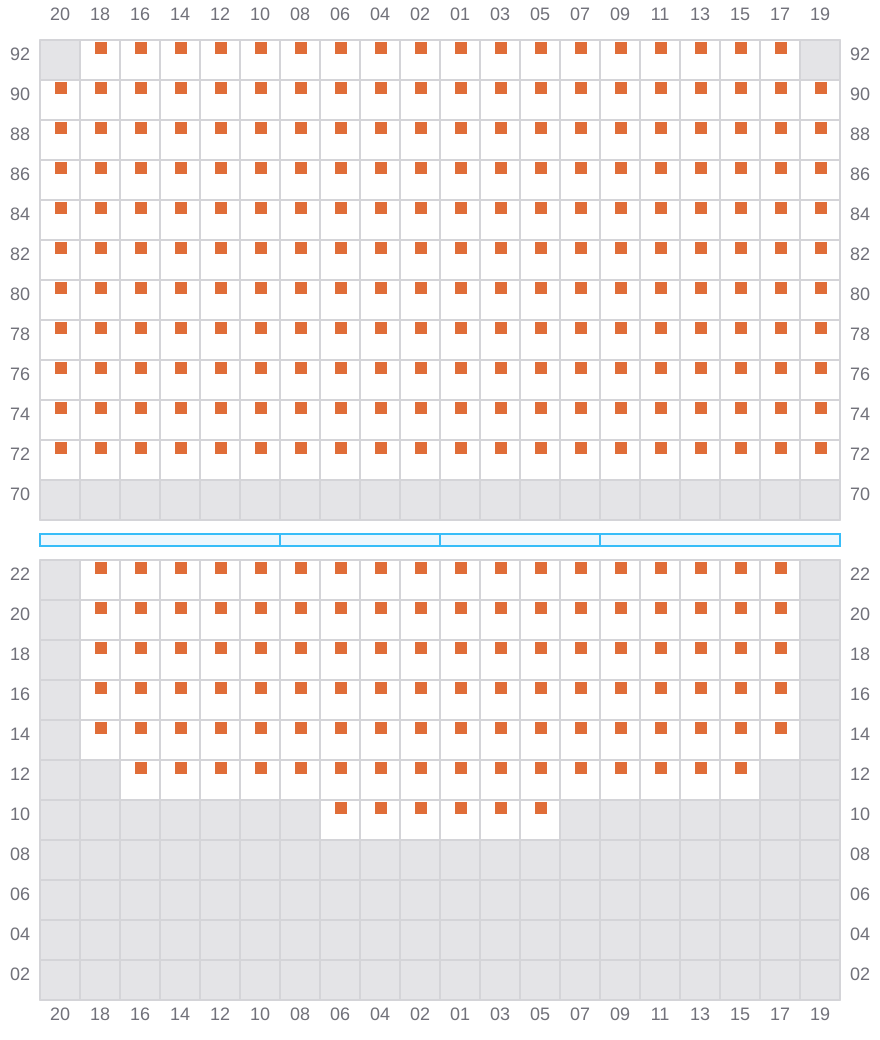

071
- ←
- → / ?
- →
073 (074)
- →
- → / ?
- →
075
- ←
- → / ?
- →
077 (078)
- →
- → / ?
- →
079
- ←
- → / ?
- →
081 (082)
- →
- → / ?
- →
083
- ←
- → / ?
- →
085 (086)
- → / ?
- → / ?
- → / ?
