SALAM MAJU
9245225 | 9M2383 | 9245225 by ********* Last update: Wed Jul 03 2024

General Info

Ship Name:SALAM MAJU
IMO Code:9245225
Call Sign:9M2383
Line Operator:9245225
Class Name for Sister Ships:PIL
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,332

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

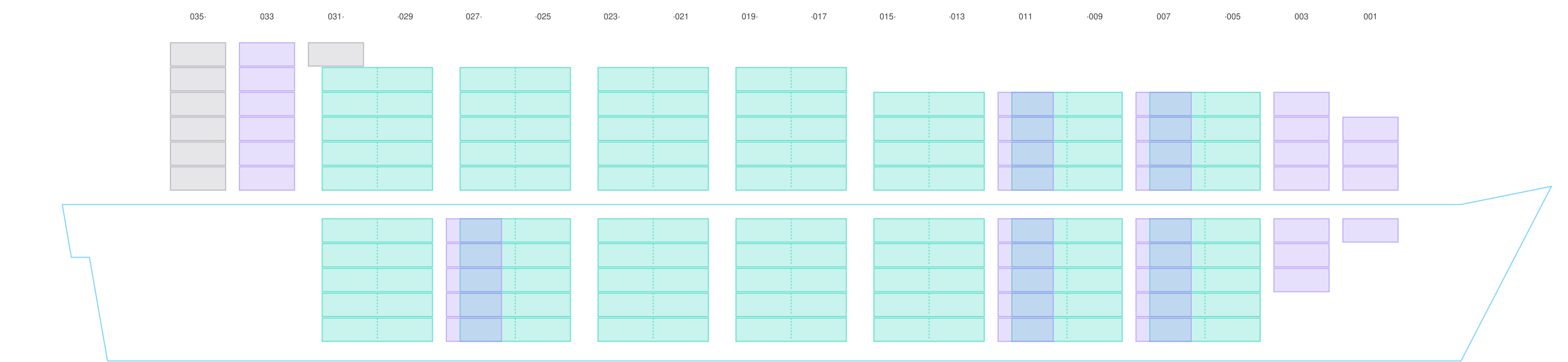

Side view of SALAM MAJU

Hatch-Covers View

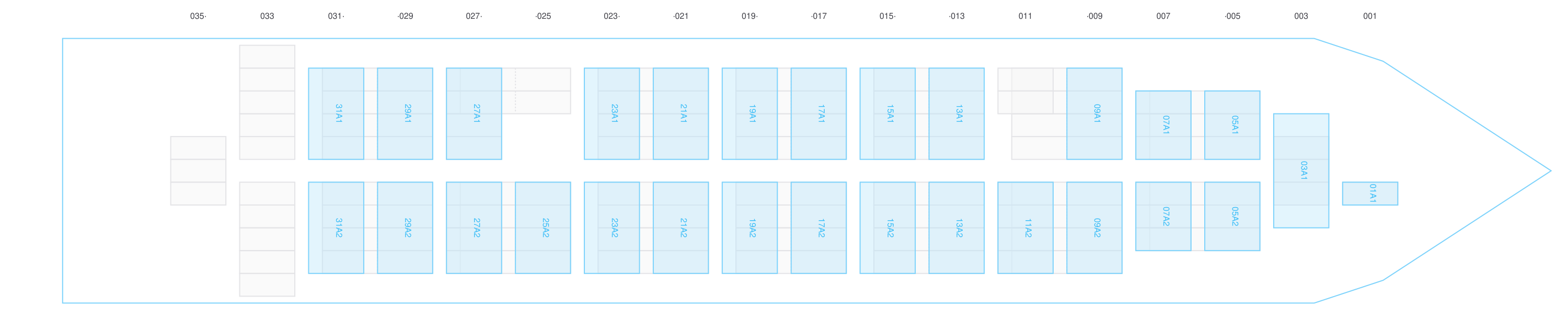

Deck view of SALAM MAJU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

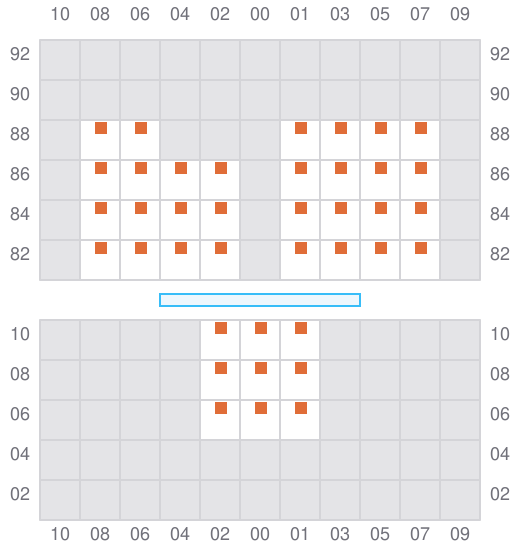

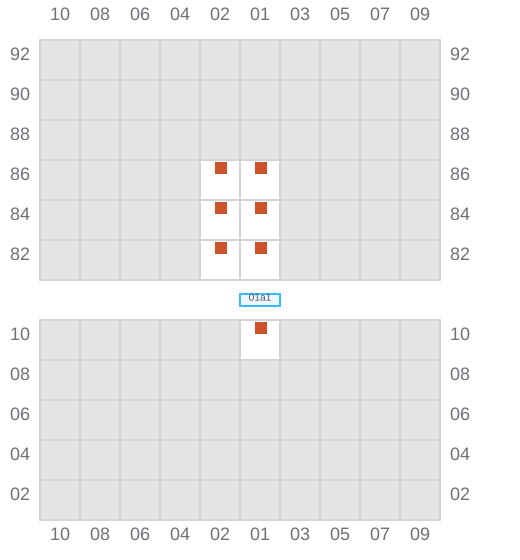

Bay 001 view and slots of SALAM MAJU

003

Bay 003 view and slots of SALAM MAJU

005 (006)

  • →
Bay 005 view and slots of SALAM MAJU

007

Bay 007 view and slots of SALAM MAJU

009 (010)

  • →
Bay 009 view and slots of SALAM MAJU

011

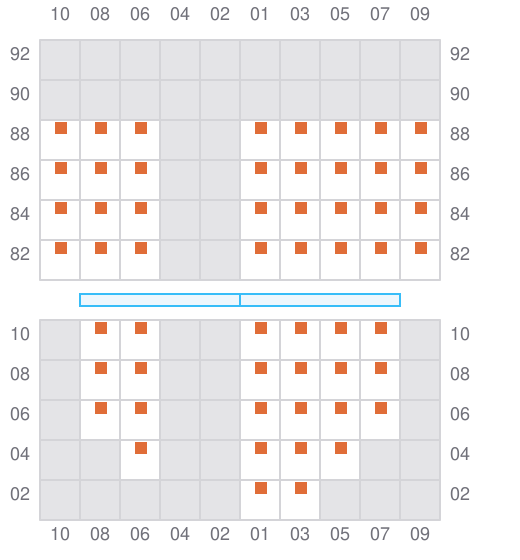

Bay 011 view and slots of SALAM MAJU

013 (014)

  • →

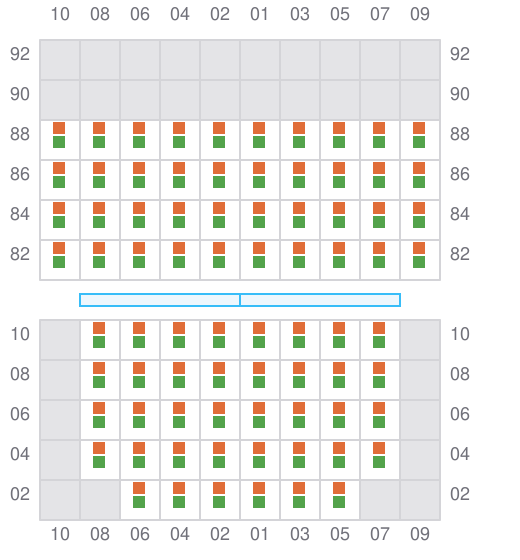

Bay 013 view and slots of SALAM MAJU

015

  • ←

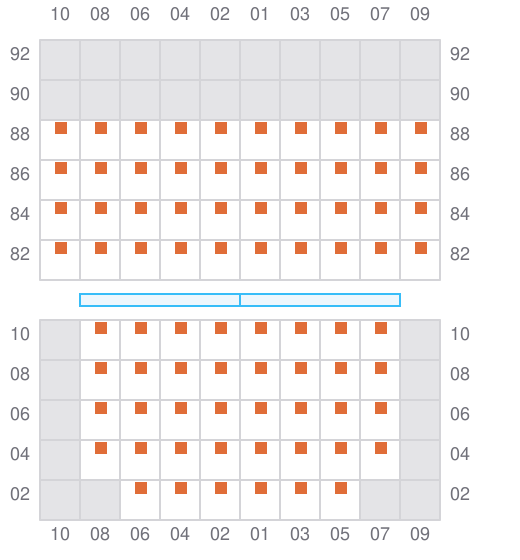

Bay 015 view and slots of SALAM MAJU

017 (018)

  • →
Bay 017 view and slots of SALAM MAJU

019

  • ←
Bay 019 view and slots of SALAM MAJU

021 (022)

  • →
Bay 021 view and slots of SALAM MAJU

023

  • ←
Bay 023 view and slots of SALAM MAJU

025 (026)

  • →
Bay 025 view and slots of SALAM MAJU

027

  • ← / ?

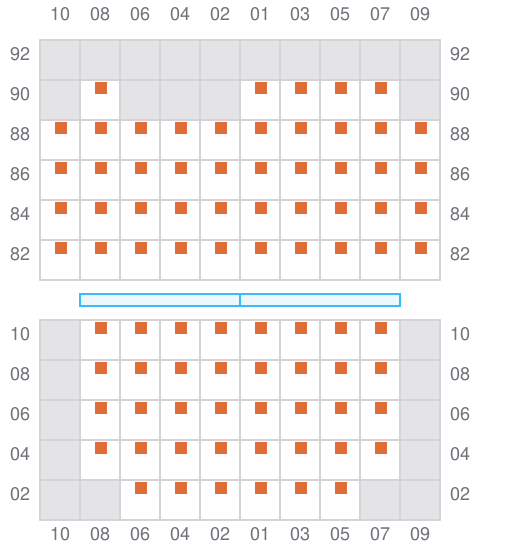

Bay 027 view and slots of SALAM MAJU

029 (030)

  • →

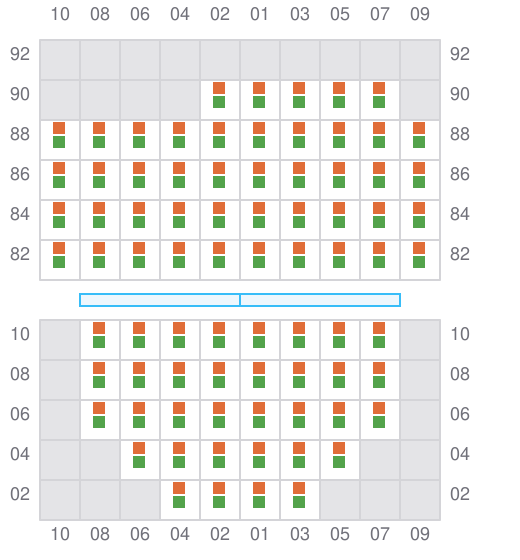

Bay 029 view and slots of SALAM MAJU

031

  • ←

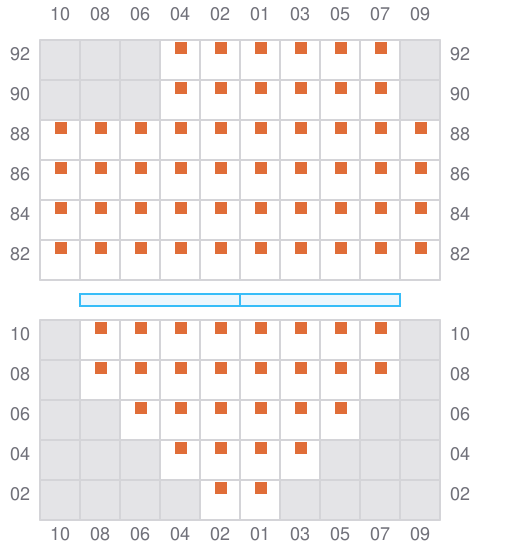

Bay 031 view and slots of SALAM MAJU

033

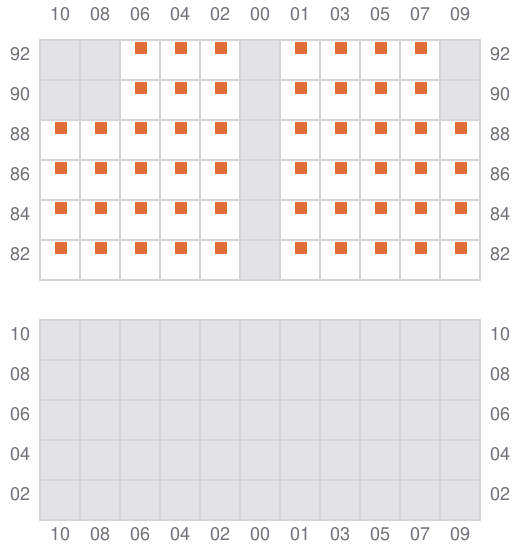

Bay 033 view and slots of SALAM MAJU

035

  • ← / ?

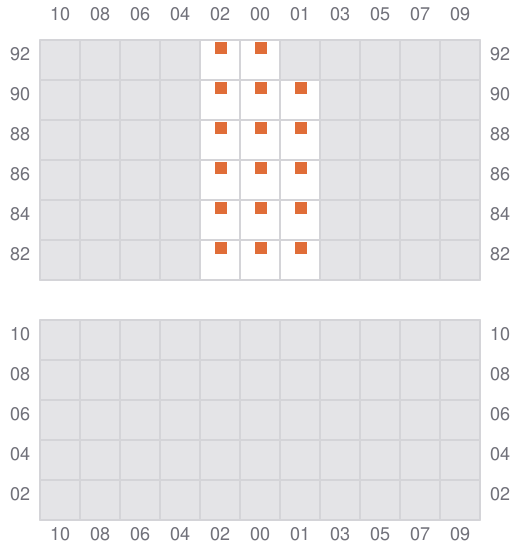

Bay 035 view and slots of SALAM MAJU
