SAMSKIP CHALLENGER
9114787 | 8PTT | 9114787 by ********* Last update: Thu Mar 07 2024

General Info

Ship Name:SAMSKIP CHALLENGER
IMO Code:9114787
Call Sign:8PTT
Line Operator:9114787
Class Name for Sister Ships:1ST
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:025
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:372

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

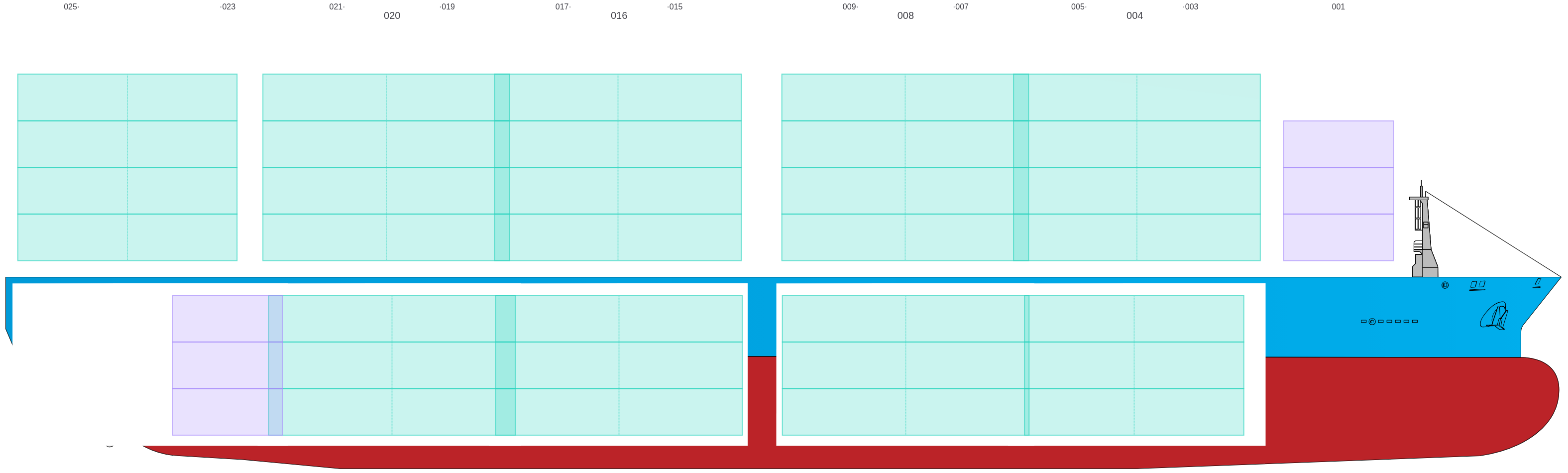

Side View

Side view of SAMSKIP CHALLENGER

Hatch-Covers View

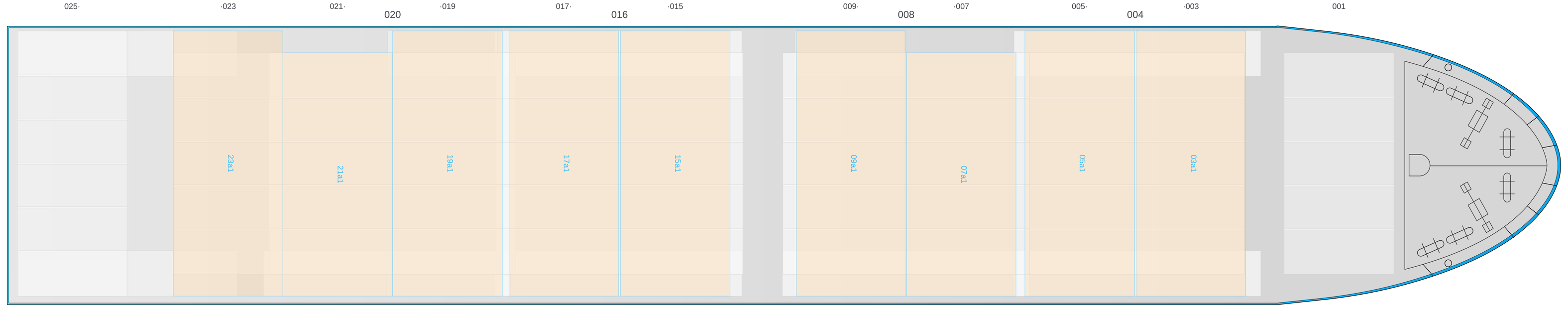

Deck view of SAMSKIP CHALLENGER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

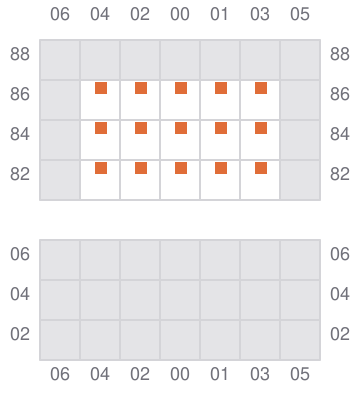

001

Bay 001 view and slots of SAMSKIP CHALLENGER

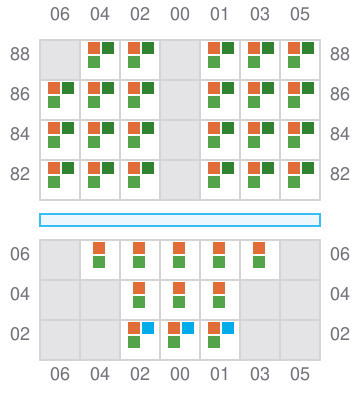

003 (004)

  • →
  • ? / ←
Bay 003 view and slots of SAMSKIP CHALLENGER

005

  • ←
  • → / ?

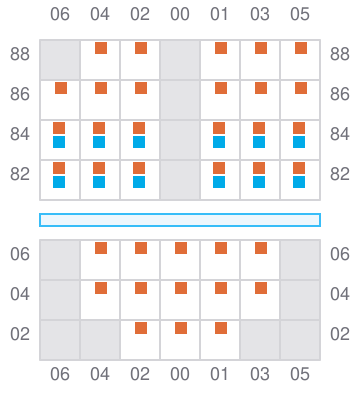

Bay 005 view and slots of SAMSKIP CHALLENGER

007 (008)

  • →

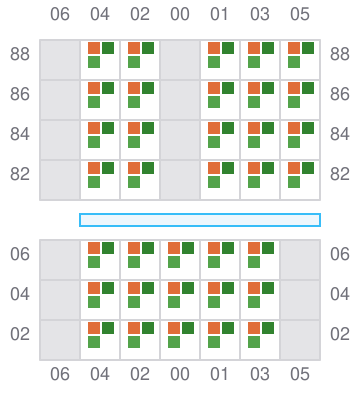

Bay 007 view and slots of SAMSKIP CHALLENGER

009

  • ←
  • →

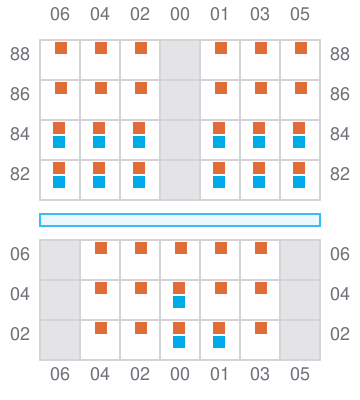

Bay 009 view and slots of SAMSKIP CHALLENGER

011

Bay 011 view and slots of SAMSKIP CHALLENGER

013

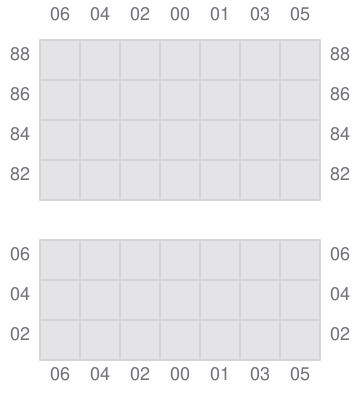

Bay 013 view and slots of SAMSKIP CHALLENGER

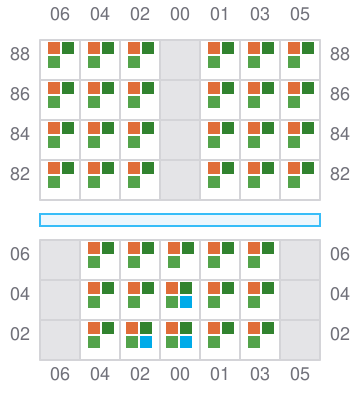

015 (016)

  • →
  • ? / ←
Bay 015 view and slots of SAMSKIP CHALLENGER

017

  • ←
  • → / ?

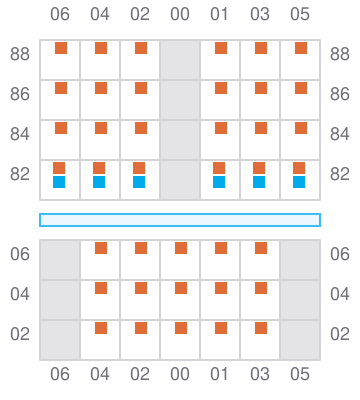

Bay 017 view and slots of SAMSKIP CHALLENGER

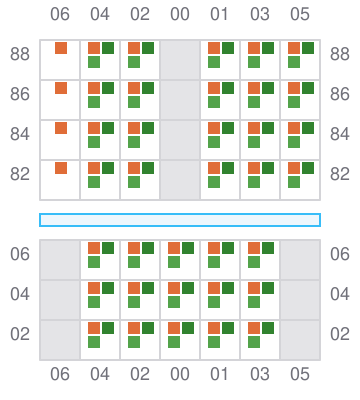

019 (020)

  • →
Bay 019 view and slots of SAMSKIP CHALLENGER

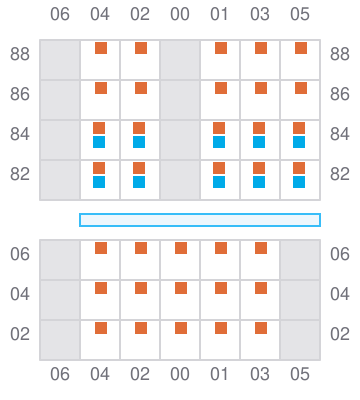

021

  • ←
  • → / ?
Bay 021 view and slots of SAMSKIP CHALLENGER

023 (024)

  • → / ?
  • ← / ?

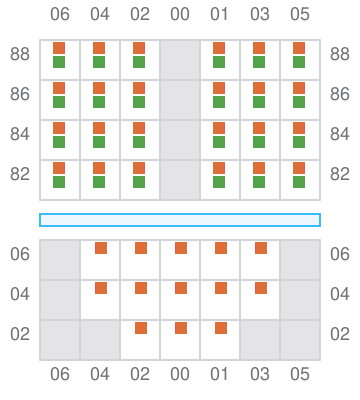

Bay 023 view and slots of SAMSKIP CHALLENGER

025

  • ← / ?
  • → / ?

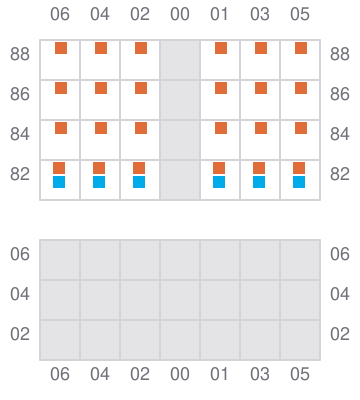

Bay 025 view and slots of SAMSKIP CHALLENGER
