SAN CHRISTOBAL
9699191 | 9V8584 | MSK by ************************** Last update: Sat Jun 24 2023
General Info
Ship Name:SAN CHRISTOBAL
IMO Code:9699191
Call Sign:9V8584
Line Operator:MSK
Class Name for Sister Ships:CTB
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,048
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-sideView.png?v=1687566515265)
Hatch-Covers View
![Deck view of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-deckView.png?v=1687566515265)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

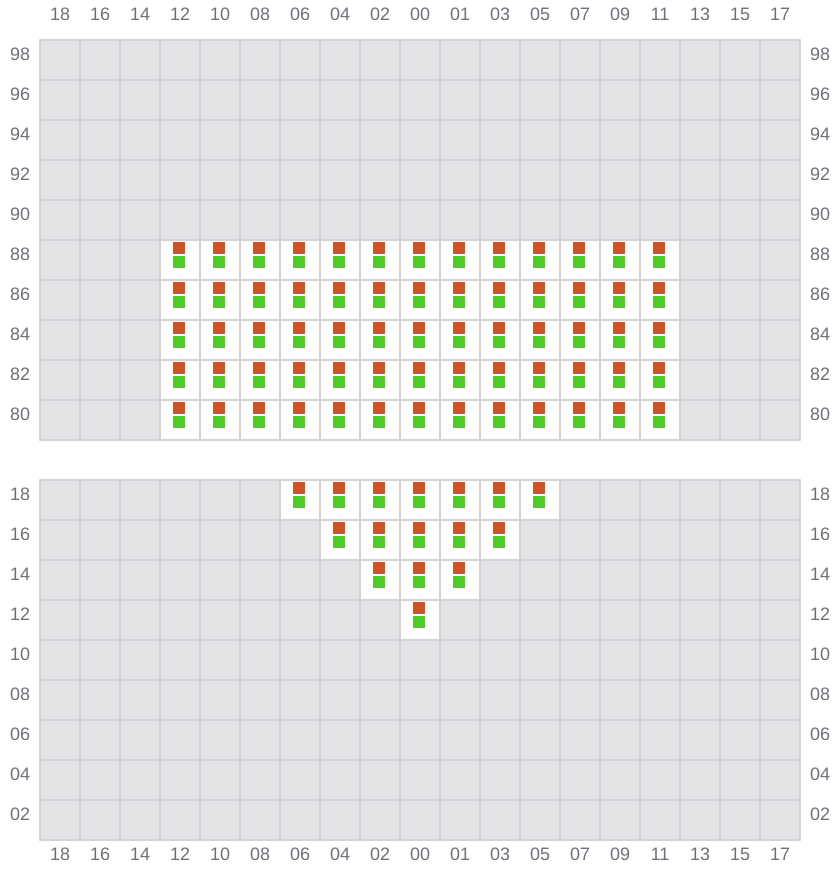

001 (002)
- →
![Bay 001 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b001.png?v=1687566515265)

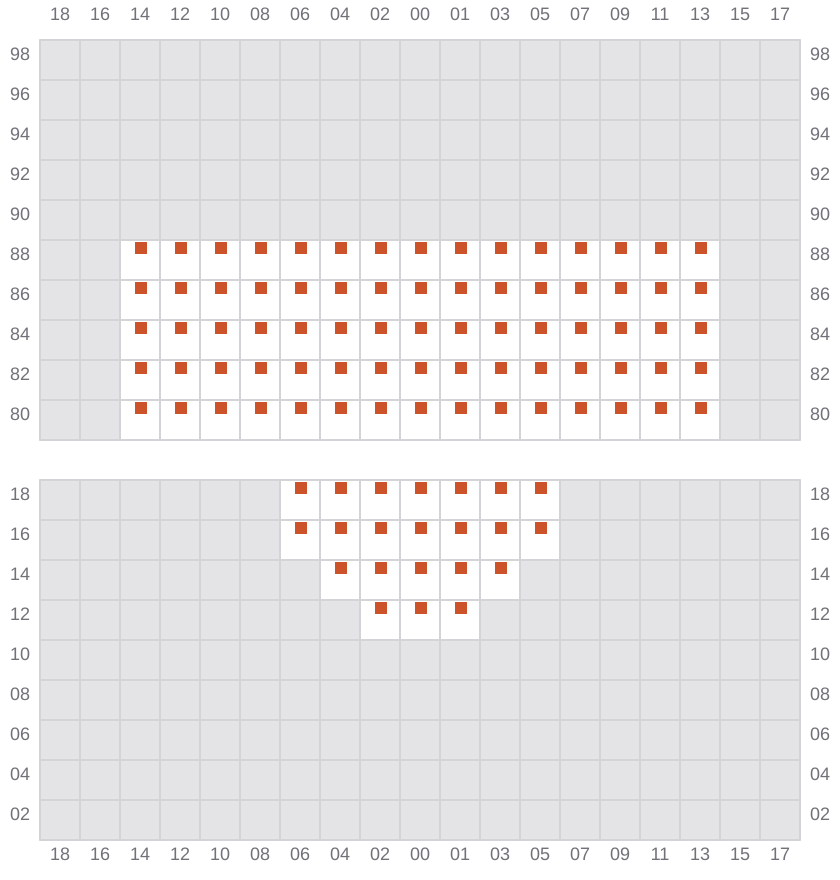

003
- ←
![Bay 003 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b003.png?v=1687566515265)

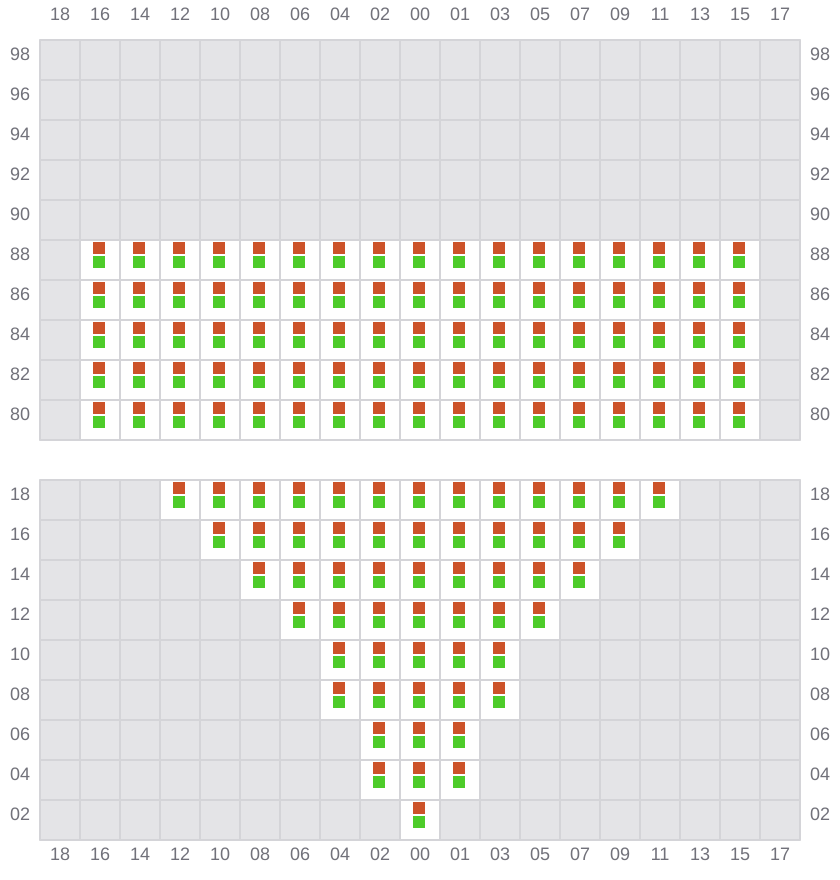

005 (006)
- →
![Bay 005 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b005.png?v=1687566515265)

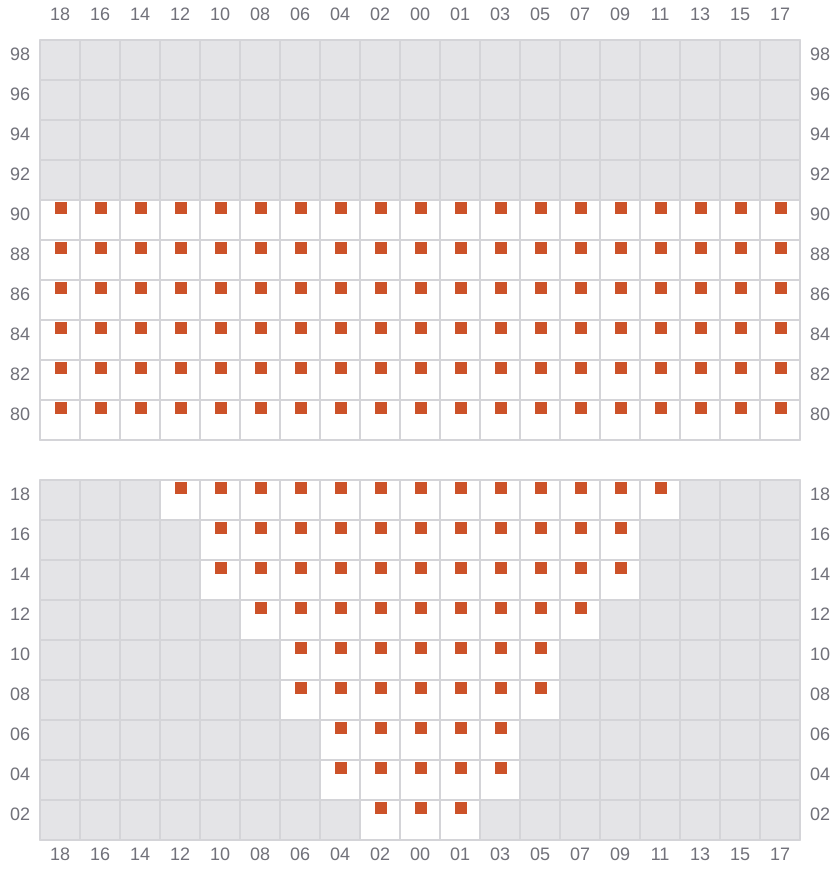

007
- ←
![Bay 007 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b007.png?v=1687566515265)
009 (010)
- →
![Bay 009 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b009.png?v=1687566515265)

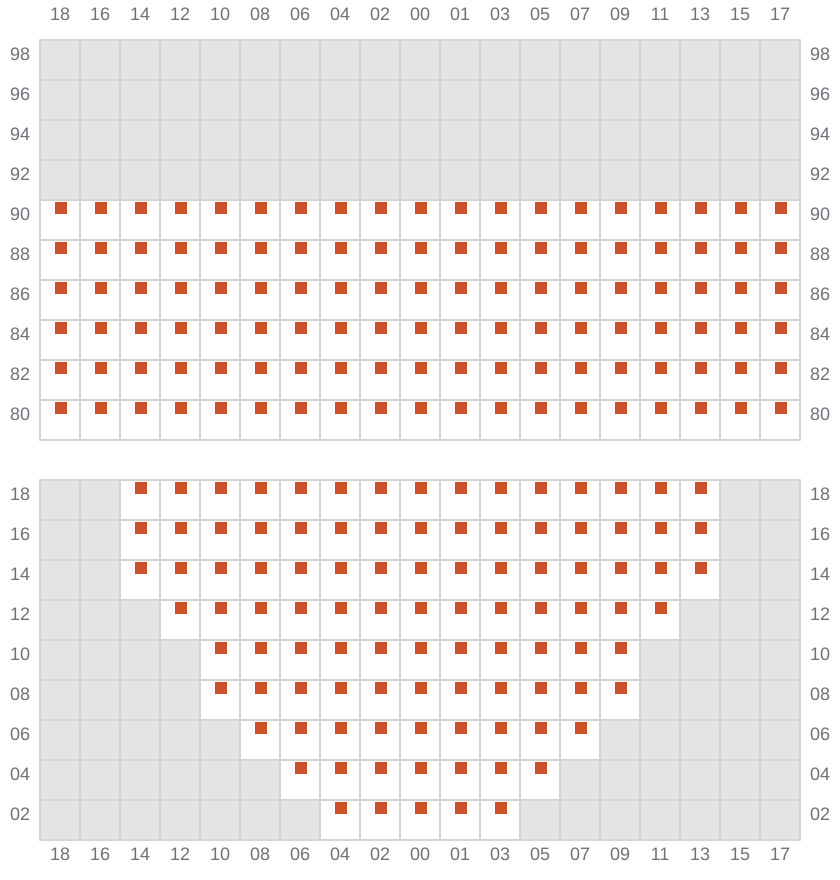

011
- ←
![Bay 011 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b011.png?v=1687566515265)

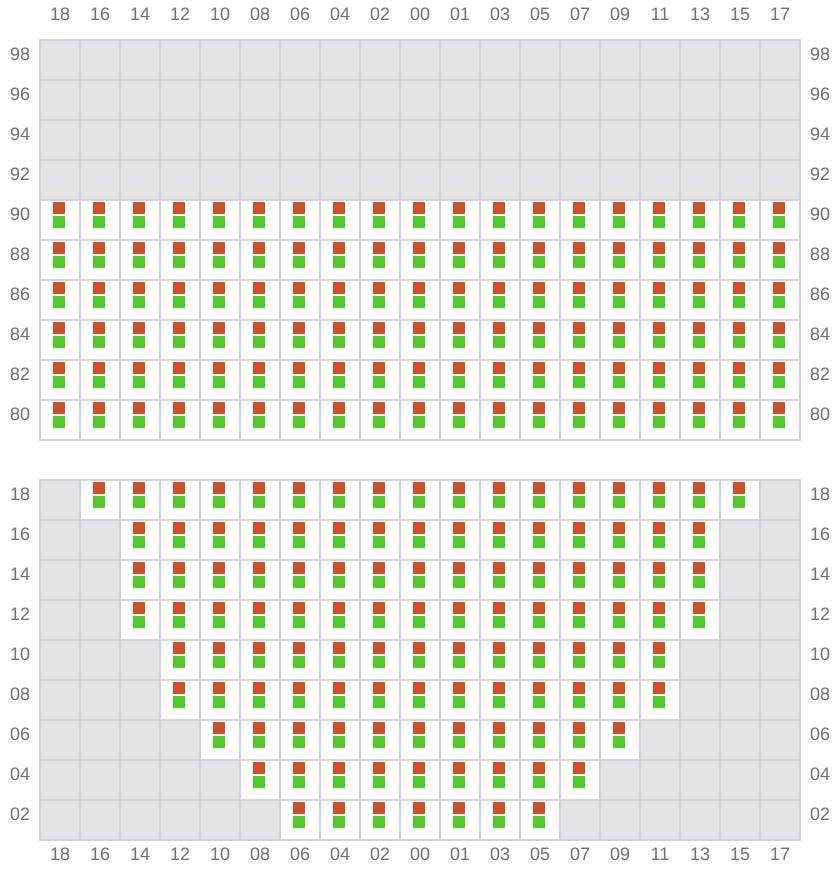

013 (014)
- →
![Bay 013 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b013.png?v=1687566515265)
015
- ←
![Bay 015 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b015.png?v=1687566515265)

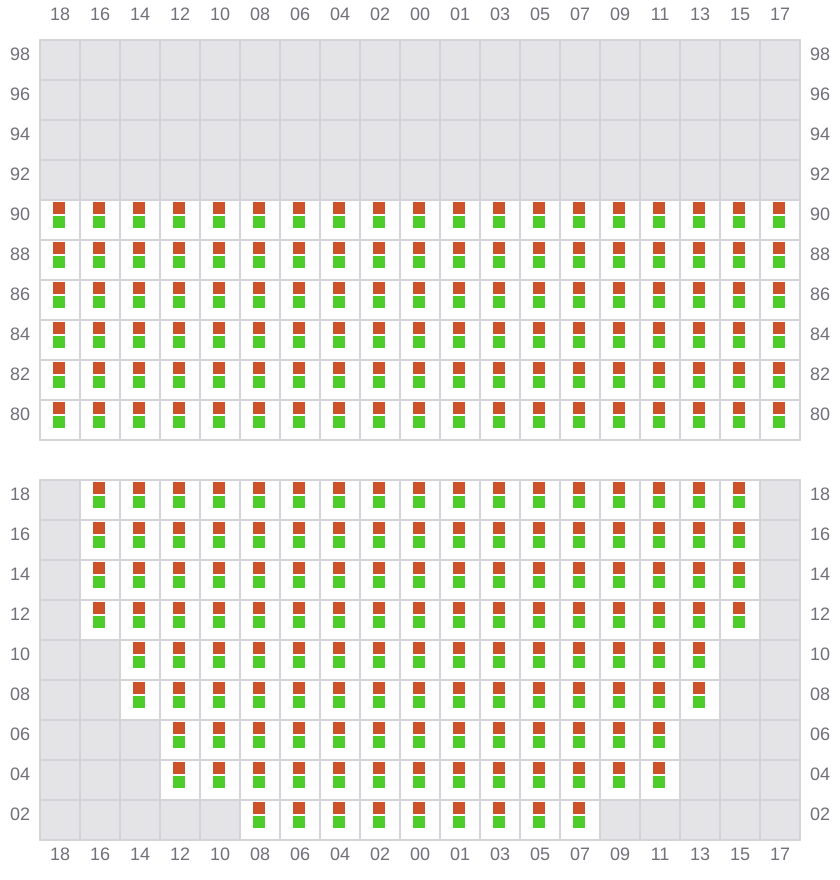

017 (018)
- →
![Bay 017 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b017.png?v=1687566515265)

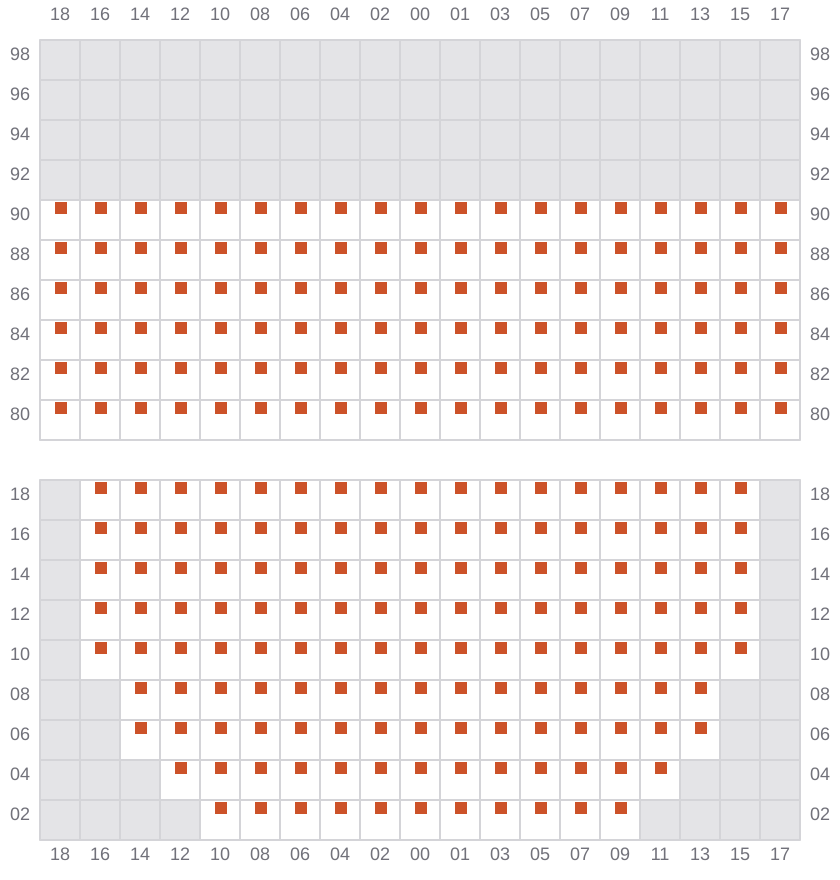

019
- ←
![Bay 019 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b019.png?v=1687566515265)
021 (022)
- →
![Bay 021 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b021.png?v=1687566515265)

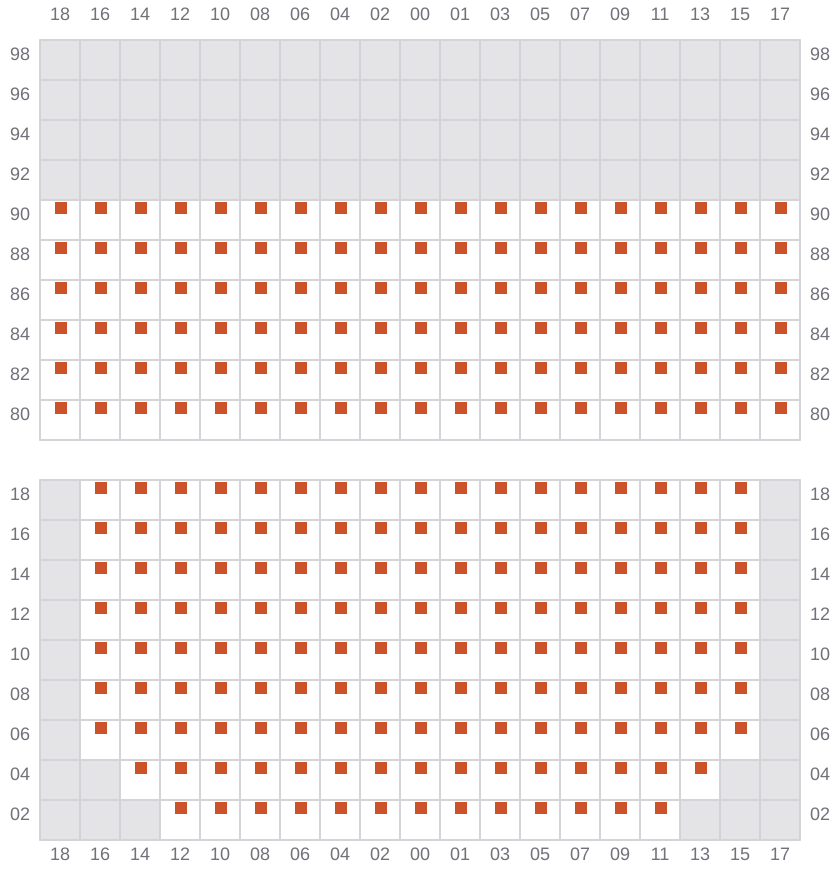

023
- ←
![Bay 023 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b023.png?v=1687566515265)

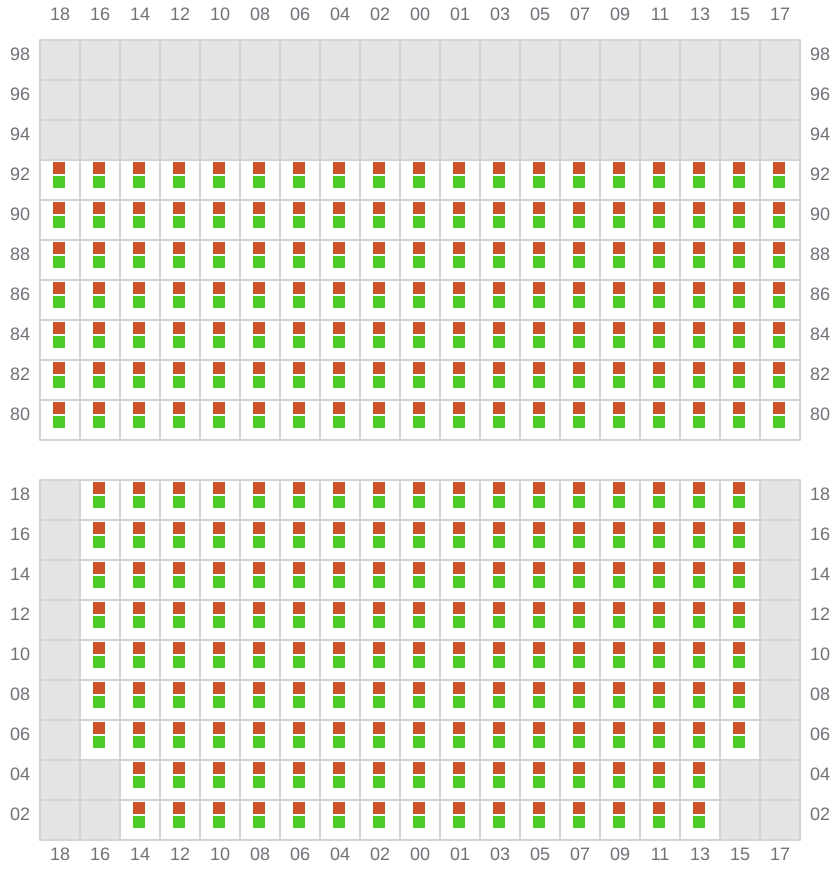

025 (026)
- →
![Bay 025 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b025.png?v=1687566515265)
027
- ←
![Bay 027 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b027.png?v=1687566515265)
029 (030)
- →
![Bay 029 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b029.png?v=1687566515265)

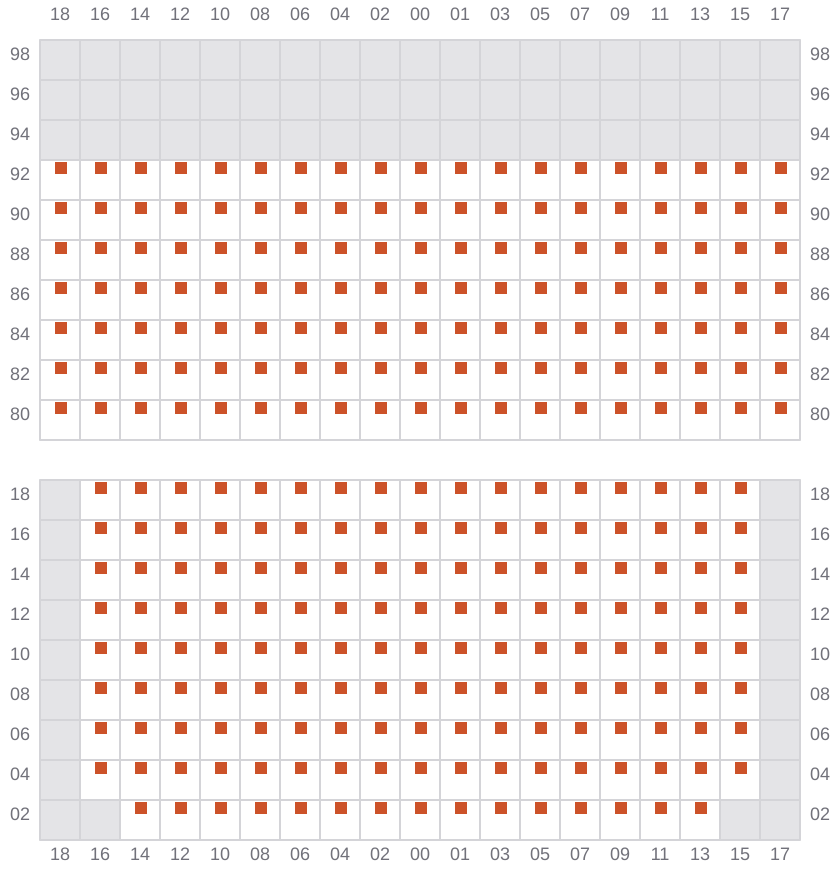

031
- ←
![Bay 031 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b031.png?v=1687566515265)

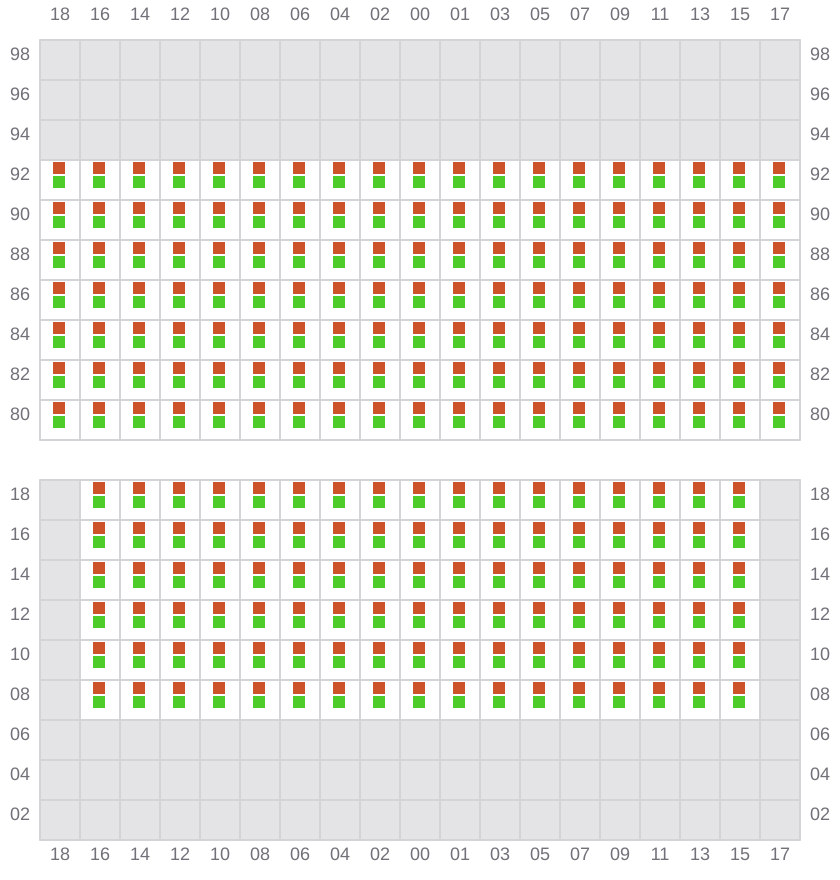

033 (034)
- →
![Bay 033 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b033.png?v=1687566515265)

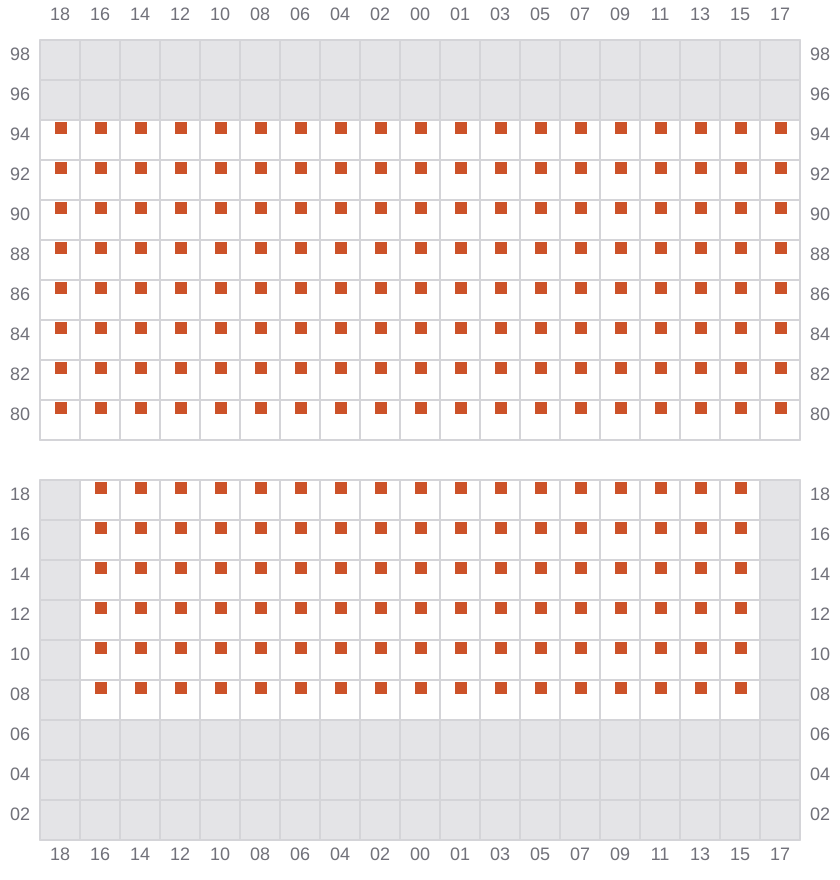

035
- ←
![Bay 035 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b035.png?v=1687566515265)
037 (038)
- →
![Bay 037 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b037.png?v=1687566515265)
039
- ←
![Bay 039 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b039.png?v=1687566515265)

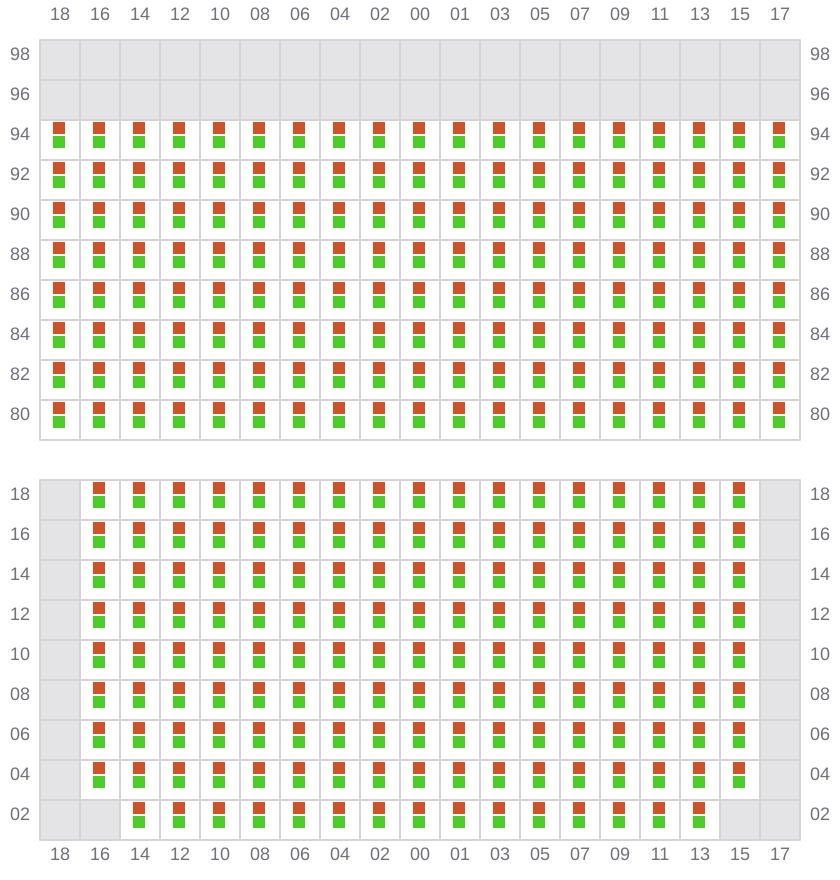

041 (042)
- →
![Bay 041 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b041.png?v=1687566515265)

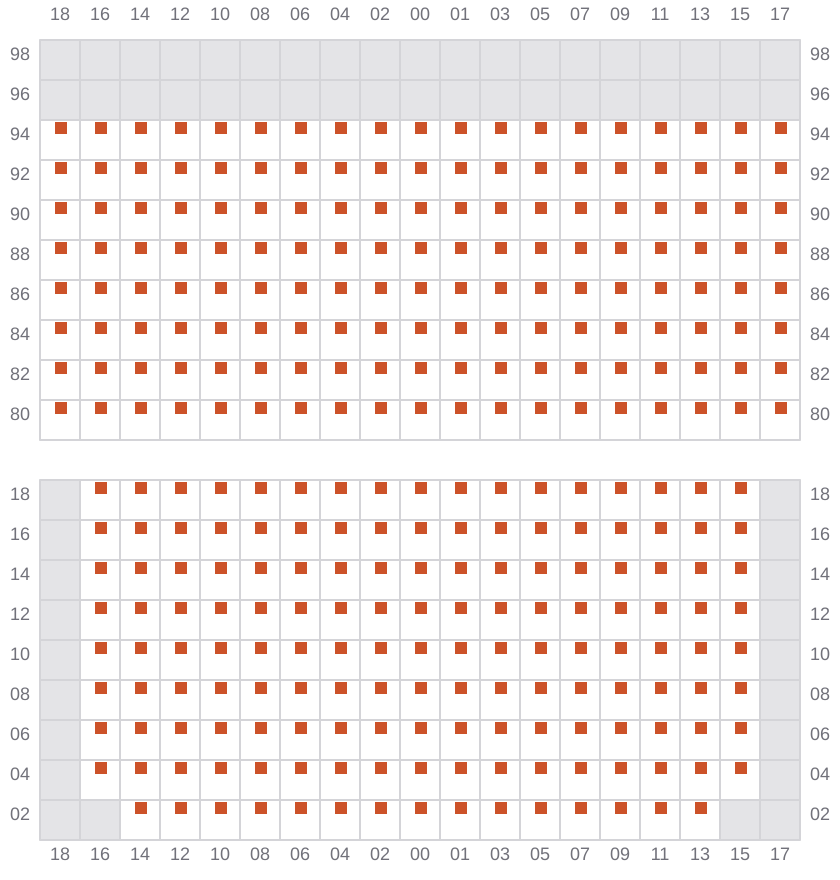

043
- ←
![Bay 043 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b043.png?v=1687566515265)
045 (046)
- →
![Bay 045 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b045.png?v=1687566515265)
047
- ←
![Bay 047 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b047.png?v=1687566515265)

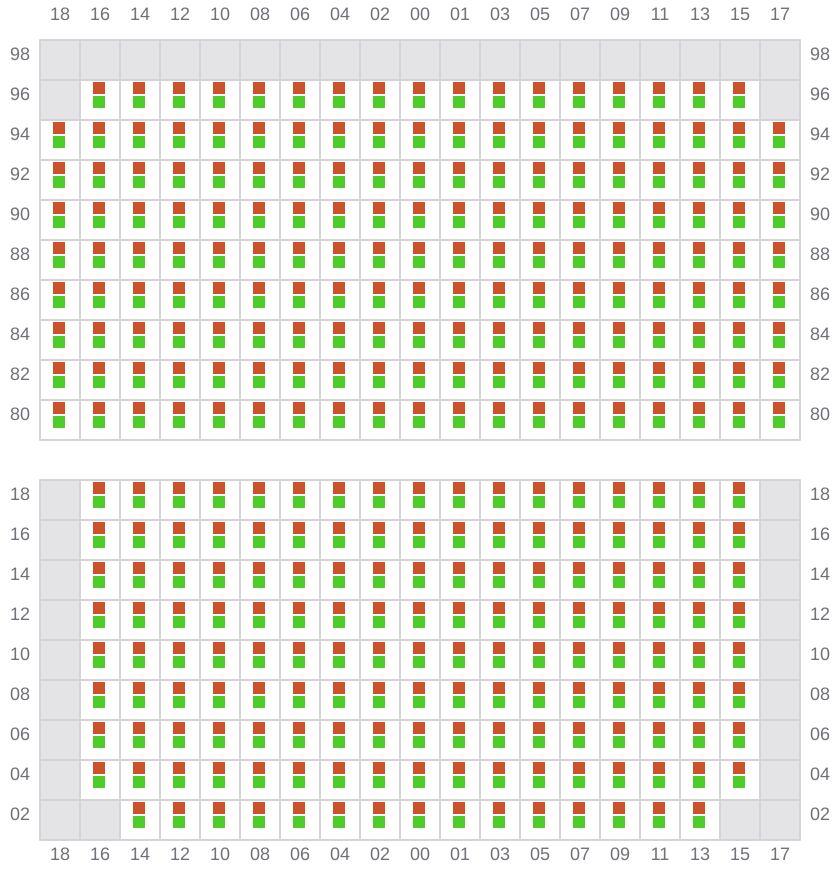

049 (050)
- →
![Bay 049 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b049.png?v=1687566515265)
051
- ←
![Bay 051 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b051.png?v=1687566515265)
053 (054)
- →
![Bay 053 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b053.png?v=1687566515265)

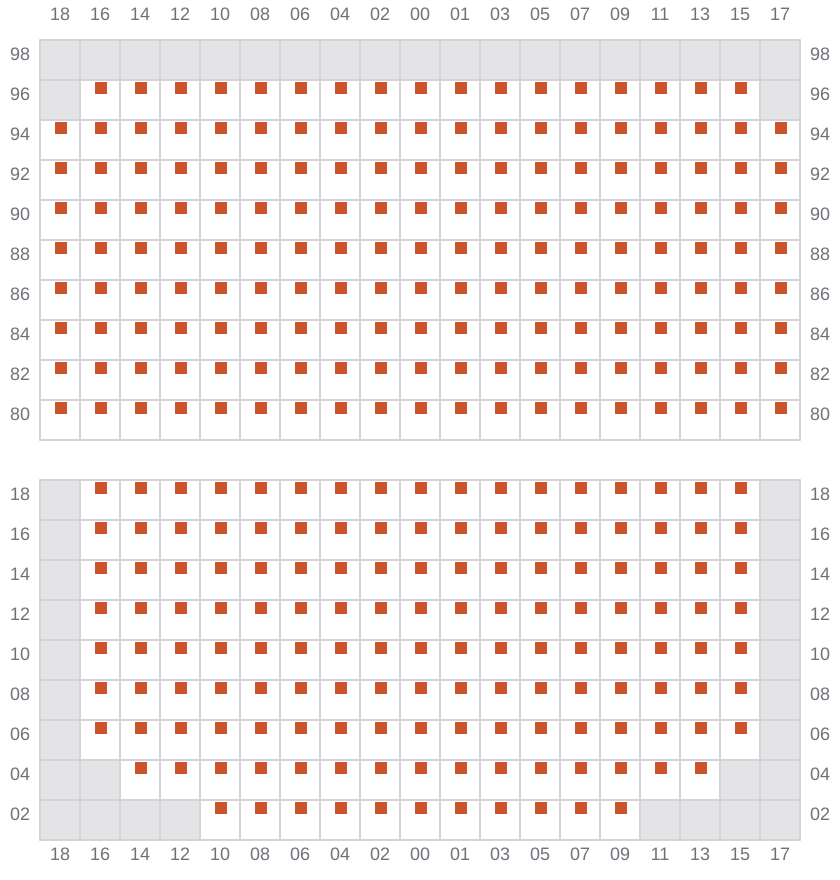

055
- ←
![Bay 055 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b055.png?v=1687566515265)

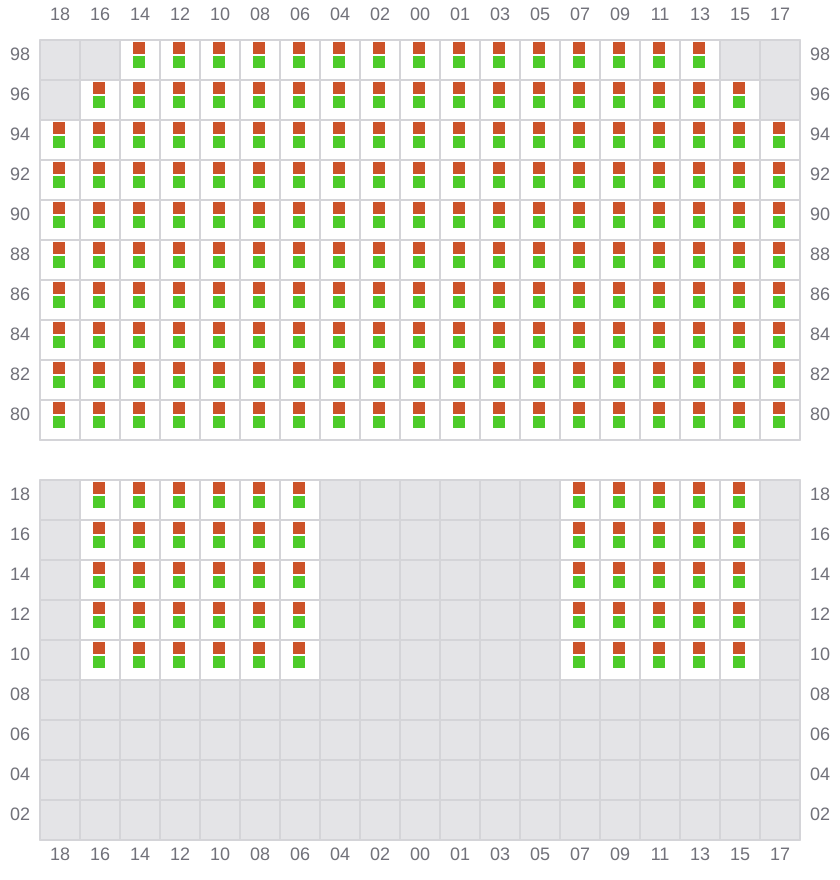

057 (058)
- →
![Bay 057 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b057.png?v=1687566515265)

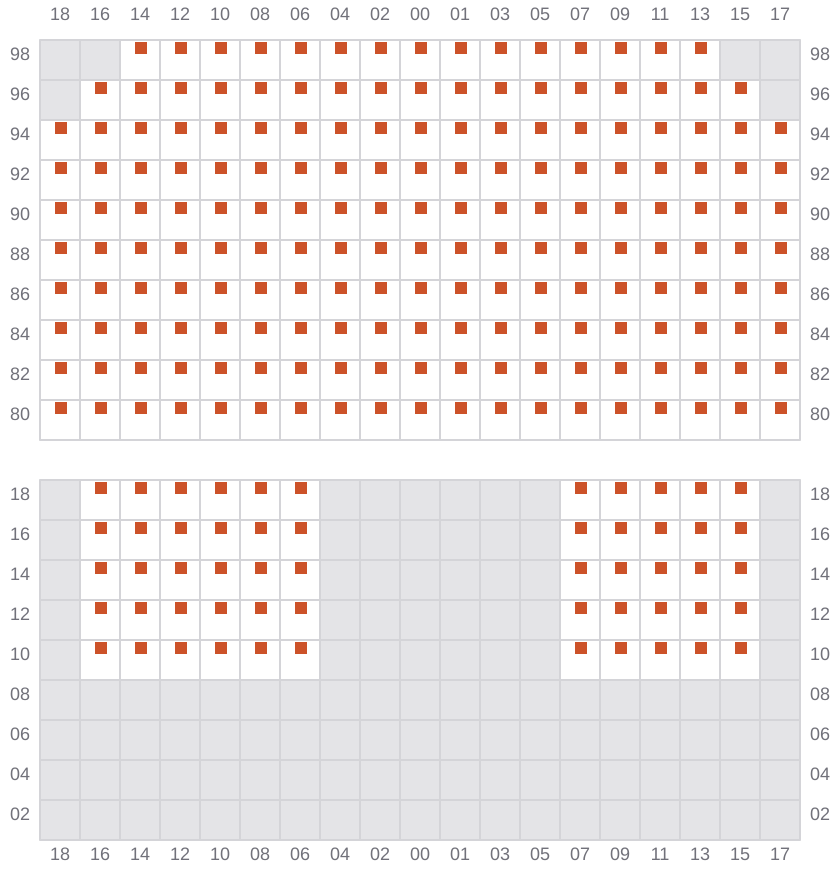

059
- ←
![Bay 059 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b059.png?v=1687566515265)

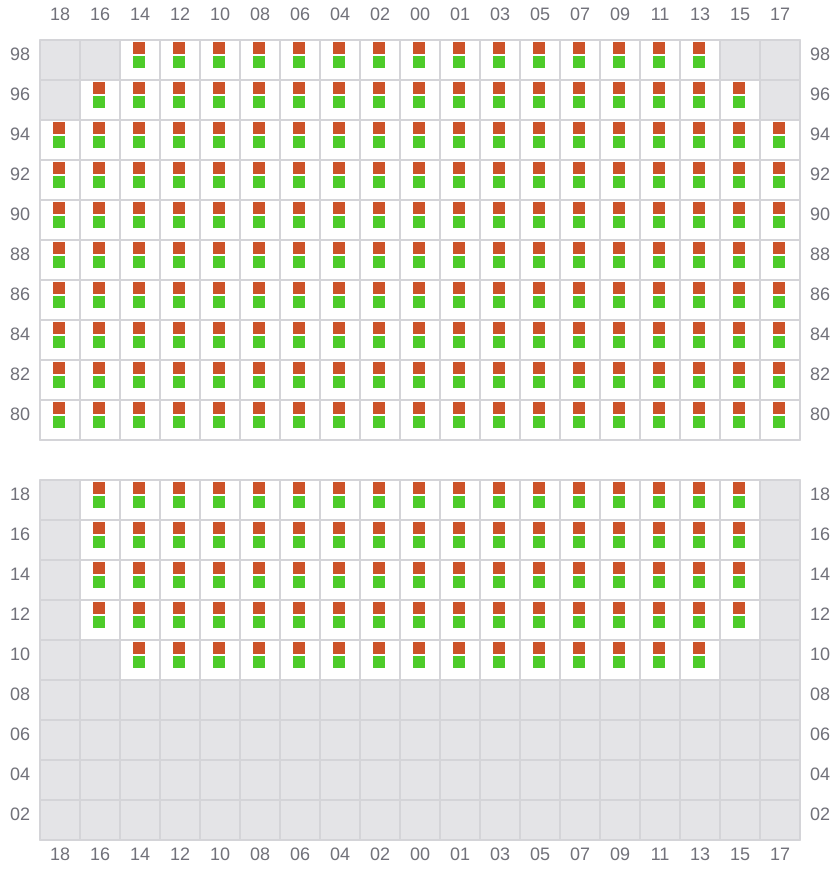

061 (062)
- →
![Bay 061 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b061.png?v=1687566515265)

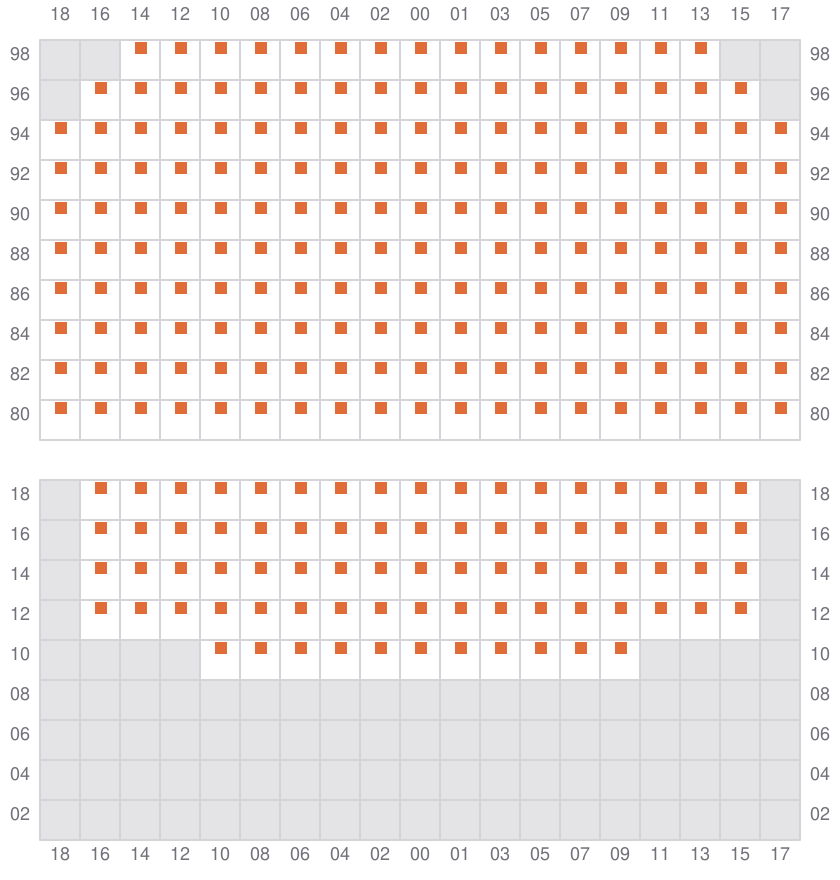

063
- ←
![Bay 063 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b063.png?v=1687566515265)

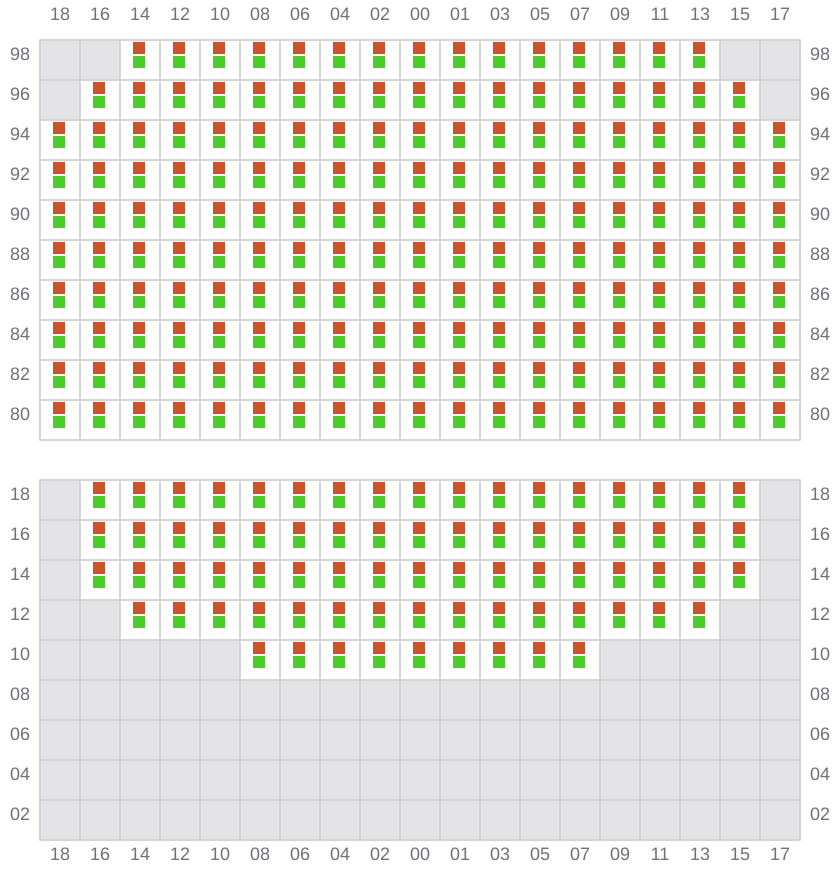

065 (066)
- →
![Bay 065 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b065.png?v=1687566515265)
067
- ←
![Bay 067 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b067.png?v=1687566515265)

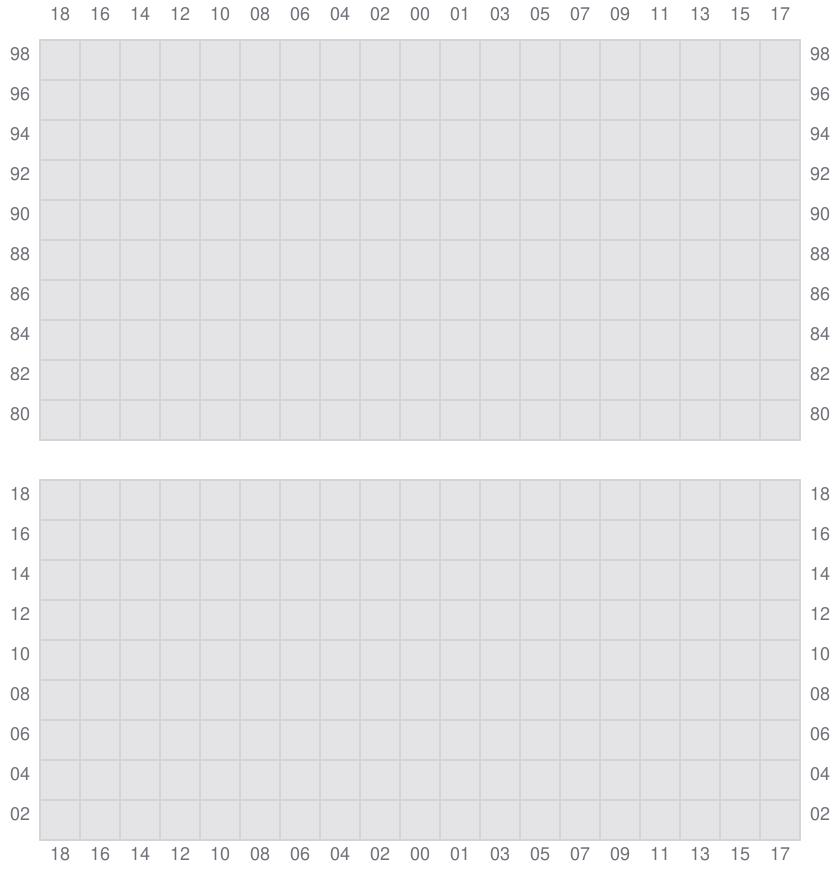

069
![Bay 069 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b069.png?v=1687566515265)
071 (070)
- ← / ?
![Bay 071 view and slots of SAN CHRISTOBAL](/vessel-images/36e17611-da81-4696-b99e-cd4a9ab44ba3-b071.png?v=1687566515265)
