SAN FELIX
9698630 | V7GN9 by ************************** Last update: Fri Aug 02 2024
General Info
Ship Name:SAN FELIX
IMO Code:9698630
Call Sign:V7GN9
Line Operator:
Class Name for Sister Ships:
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,320
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

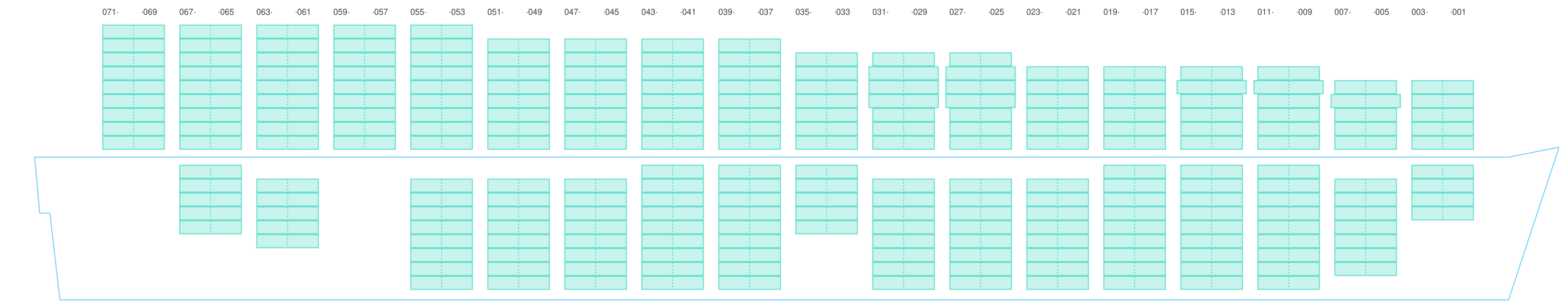

Side View

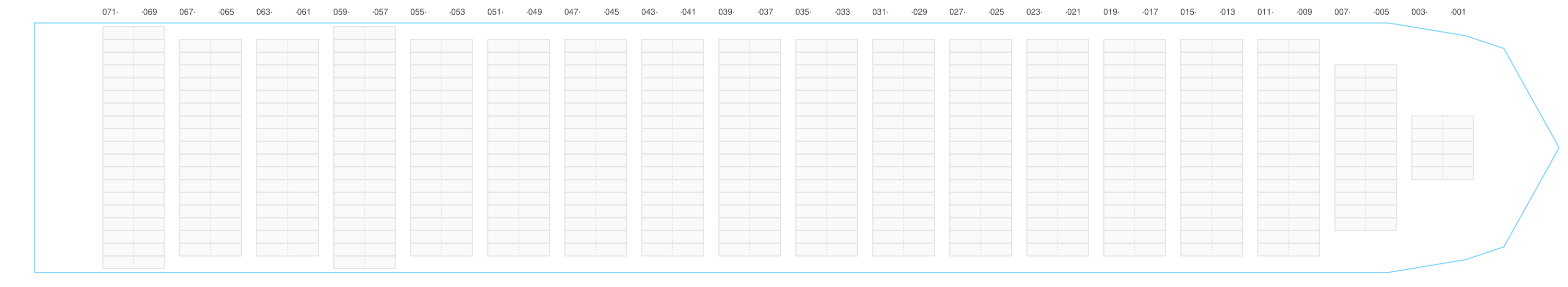

Hatch-Covers View

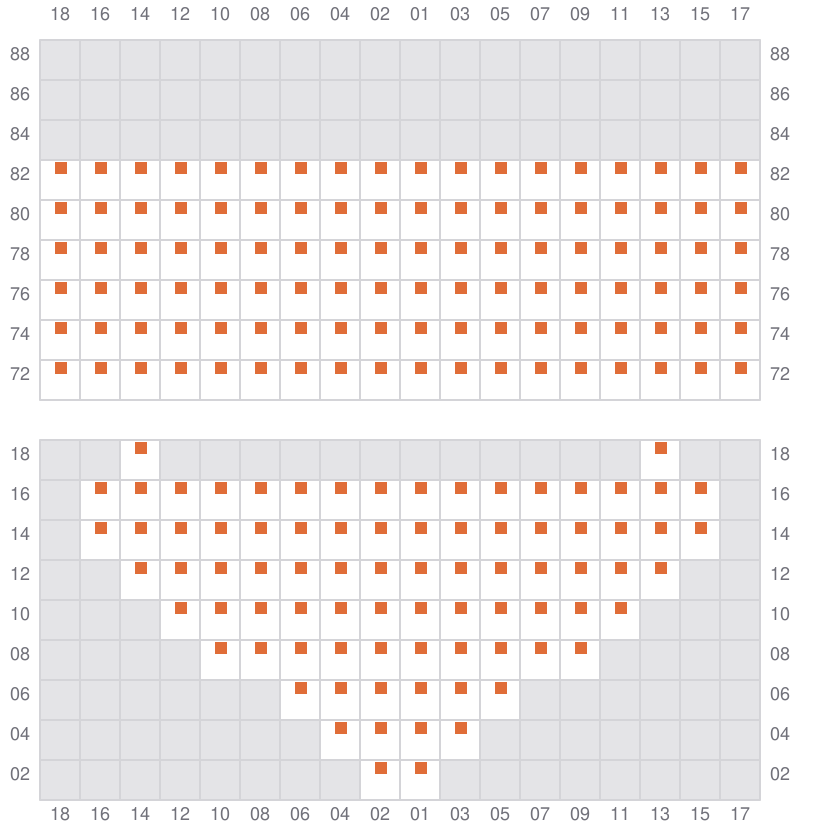

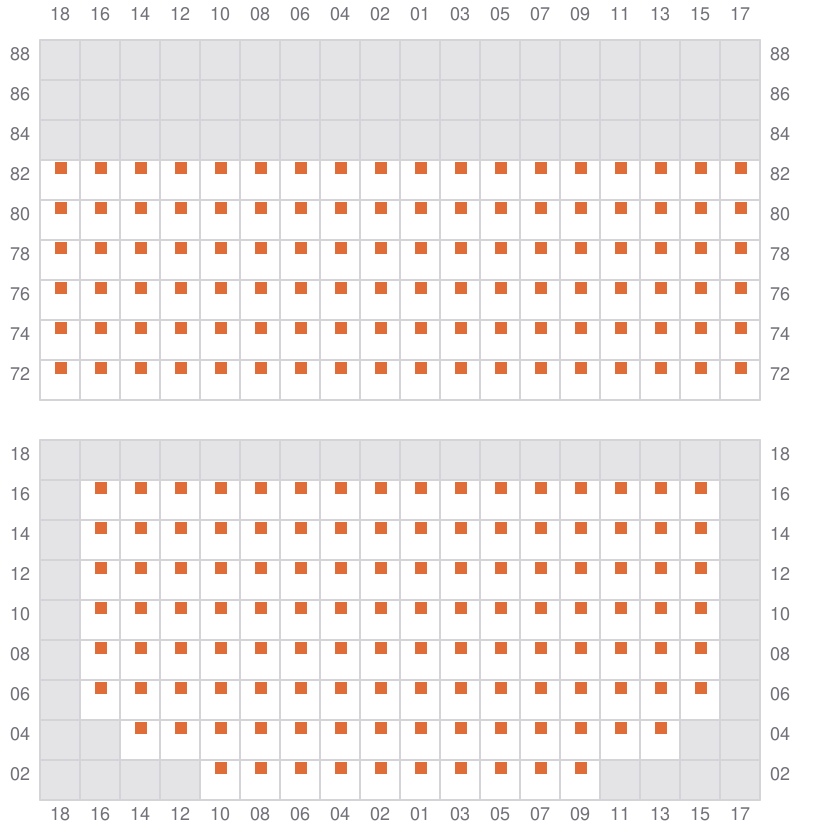

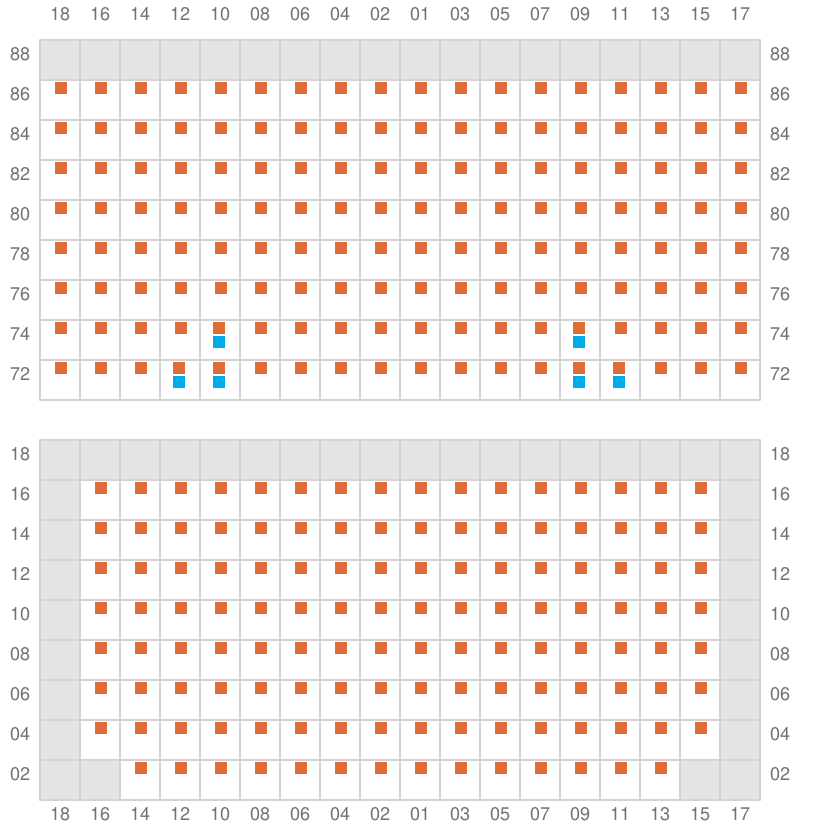

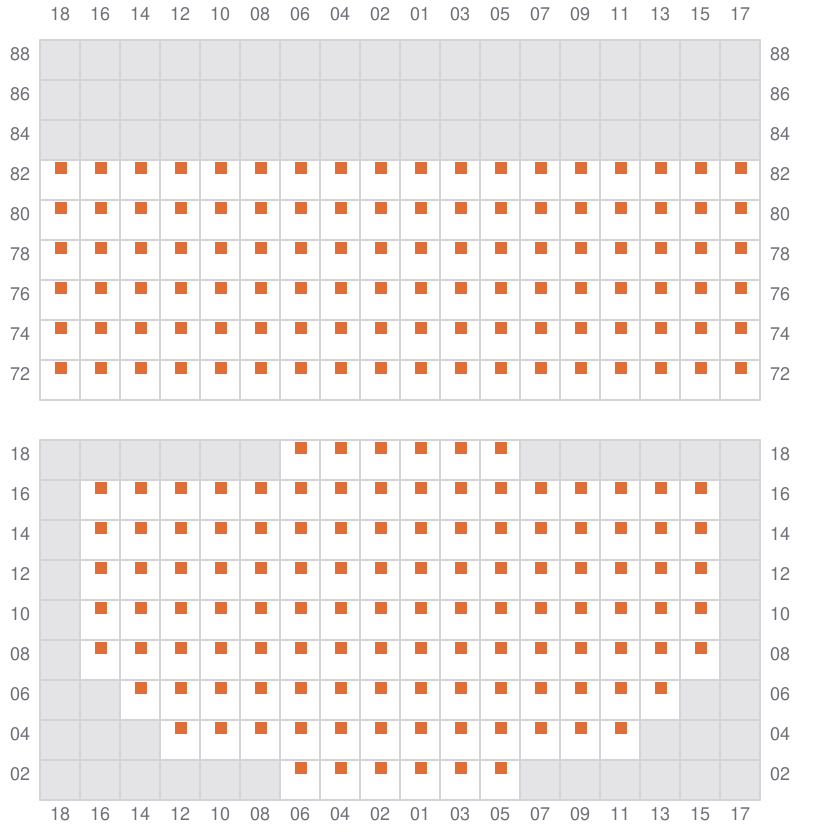

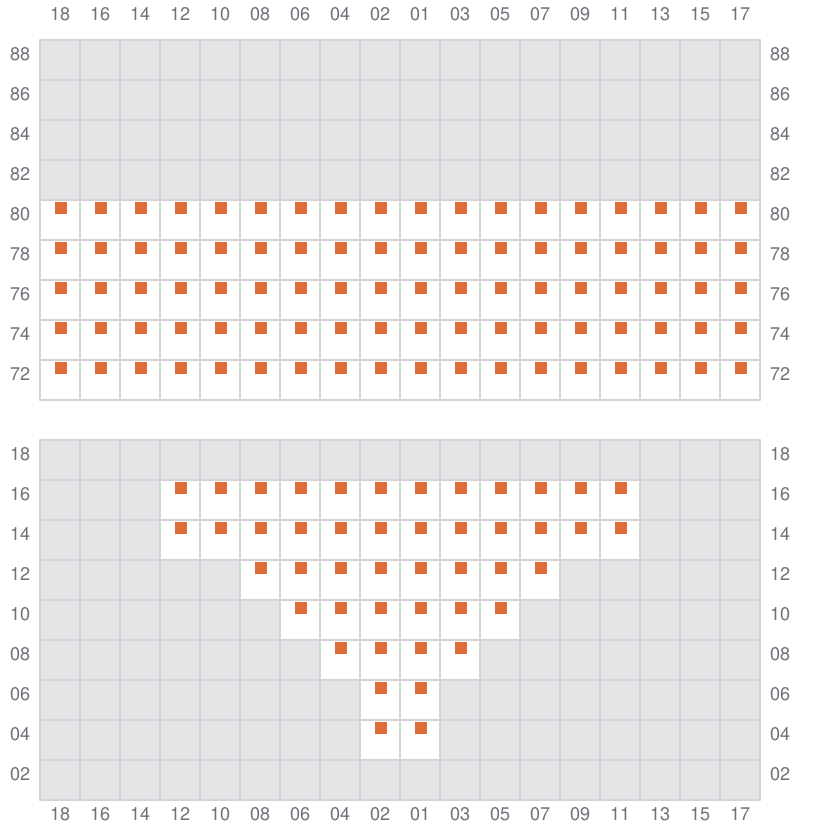

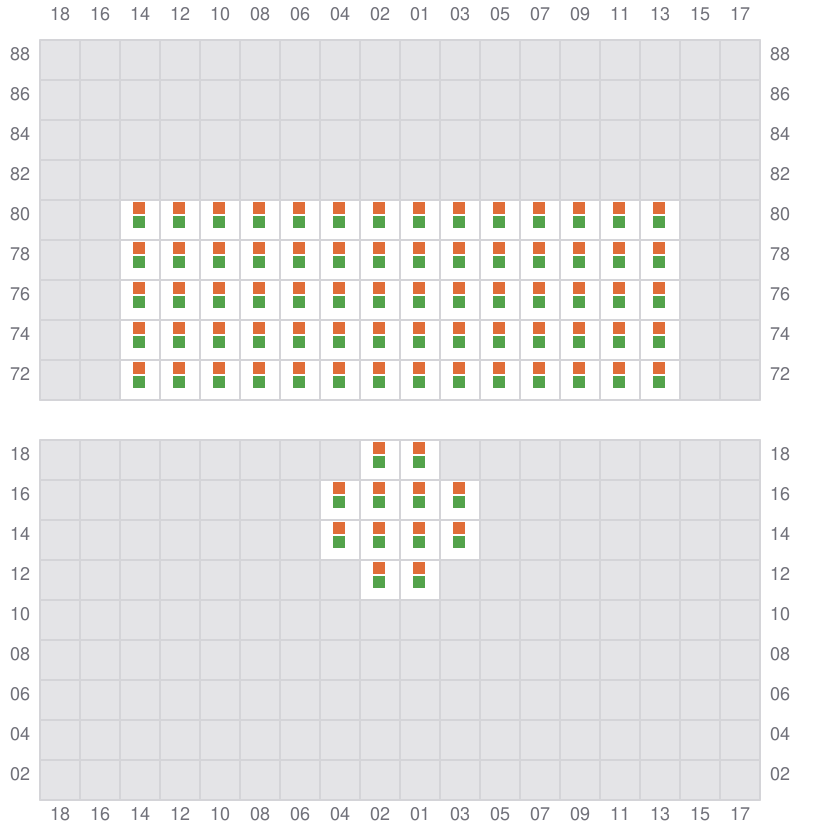

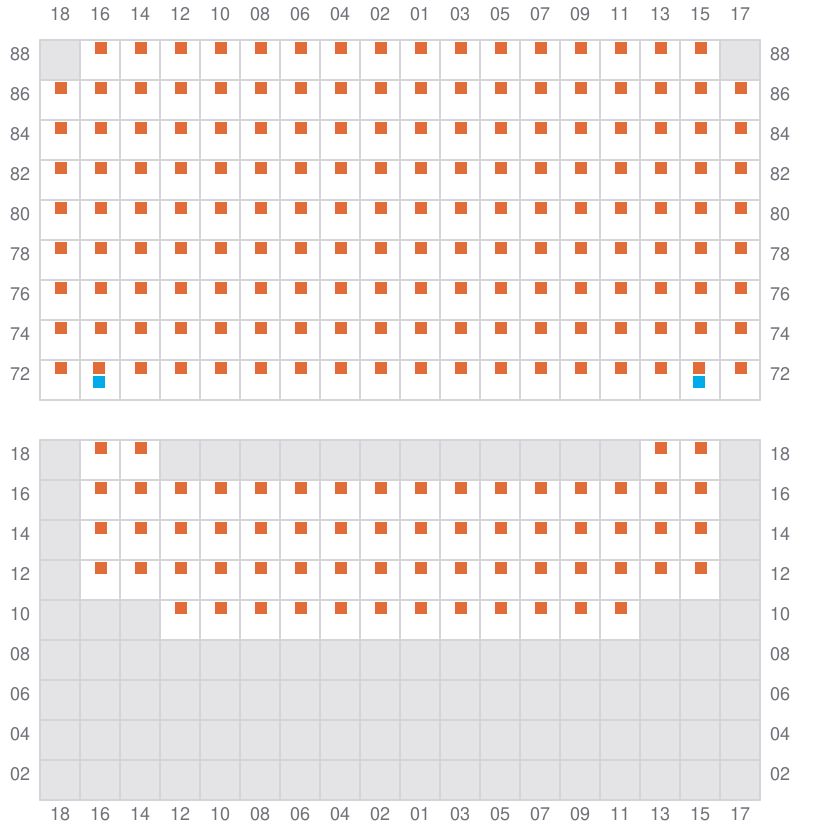

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →

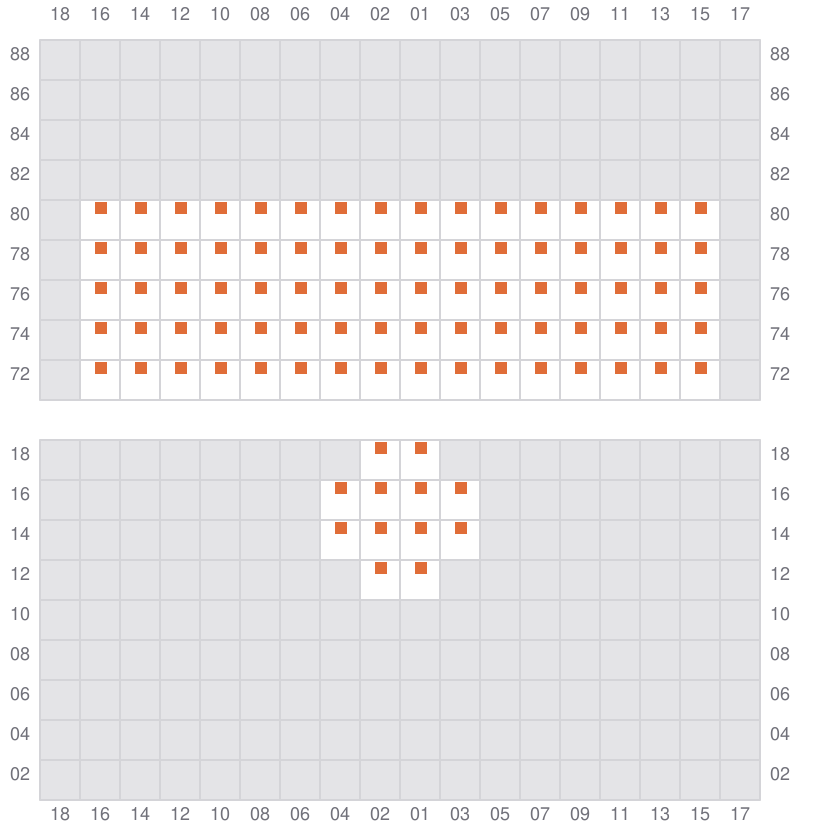

003
- ←

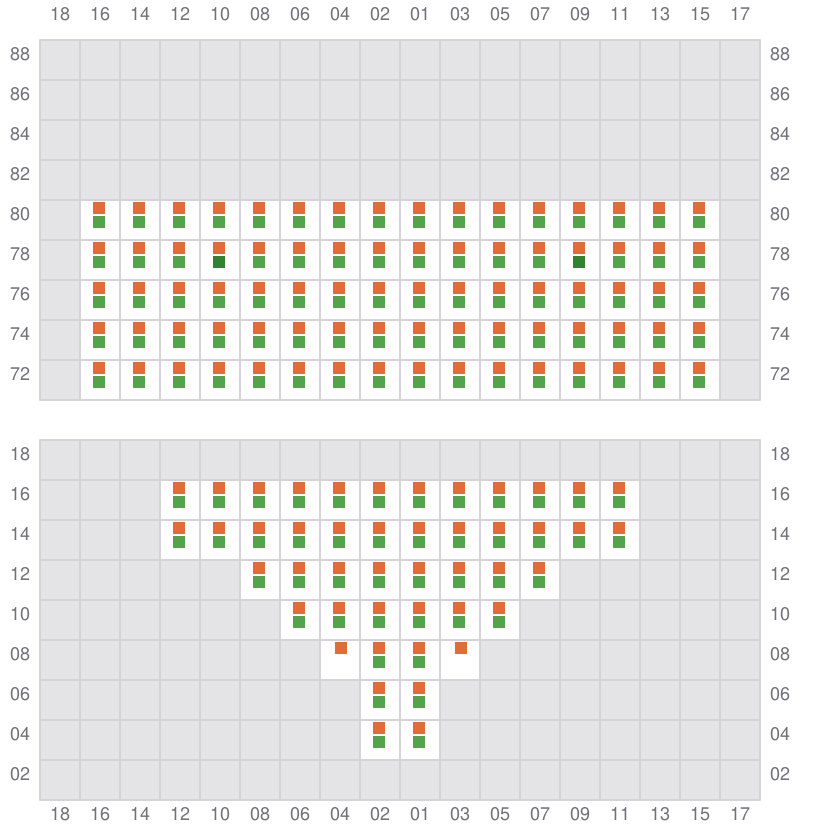

005 (006)
- →

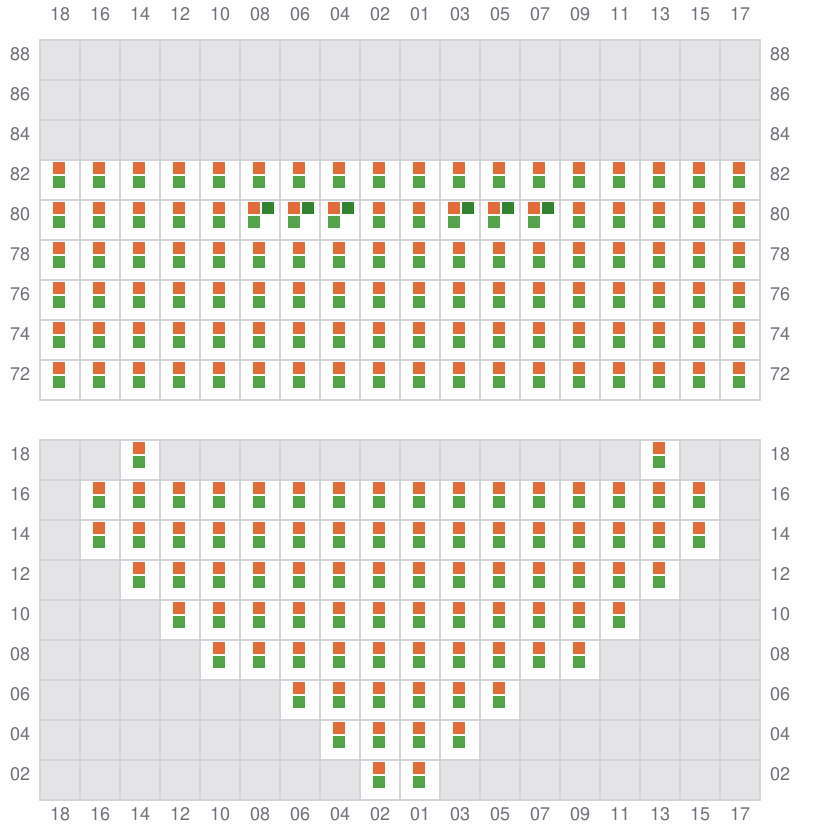

007
- ←
009 (010)
- →
011
- ←

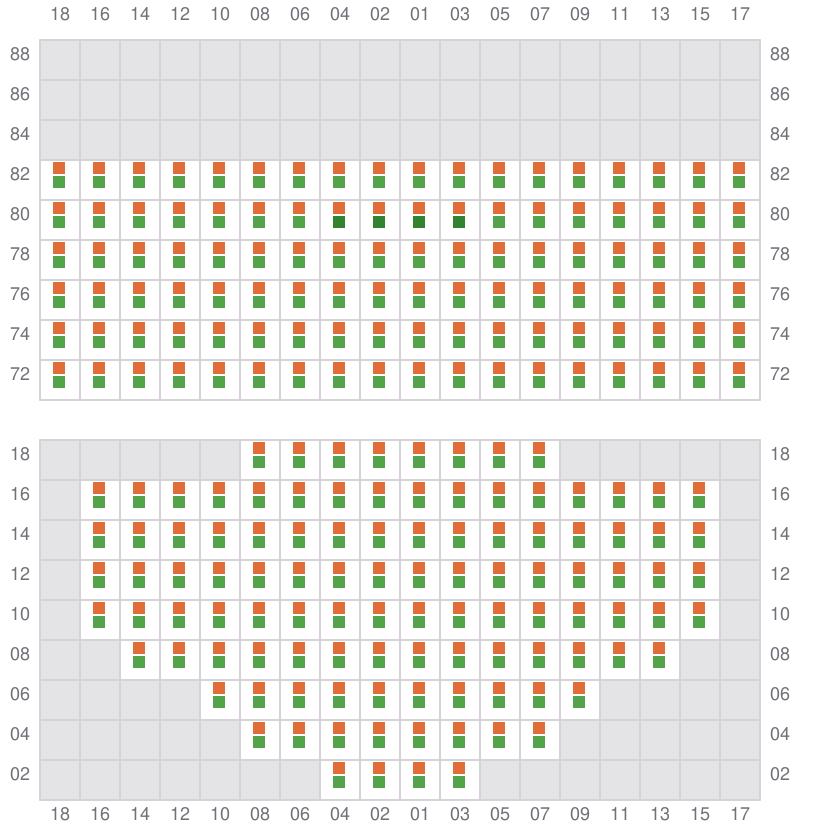

013 (014)
- →

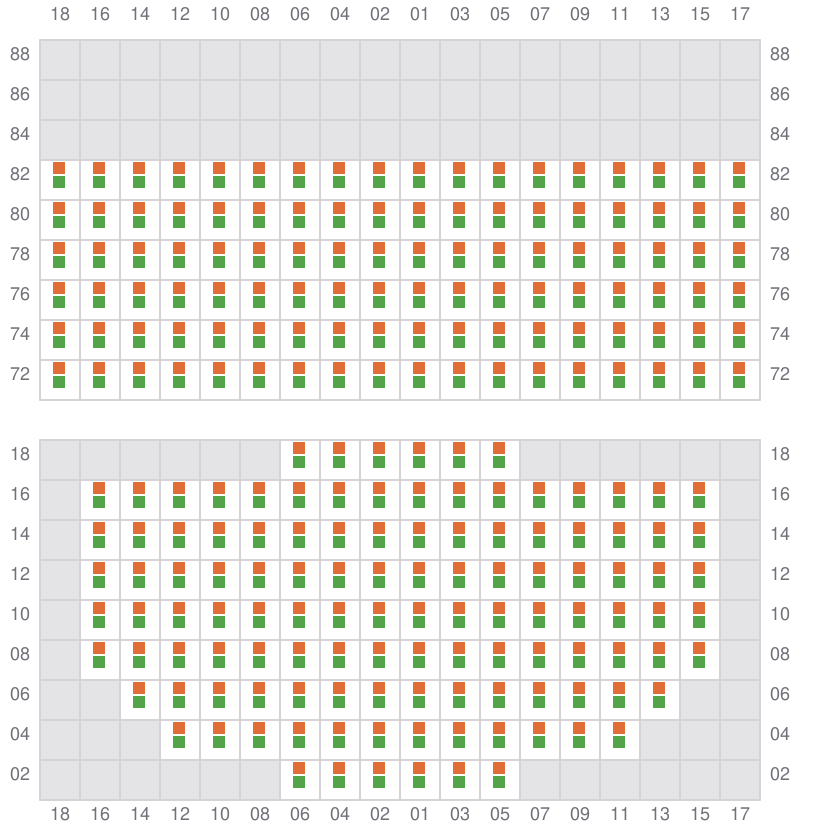

015
- ←

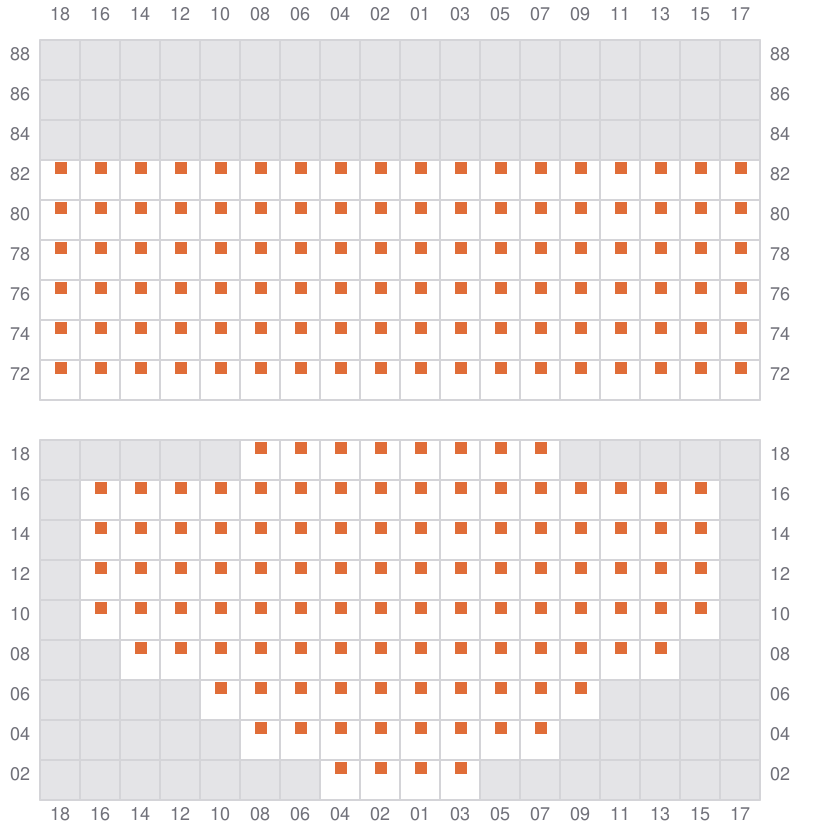

017 (018)
- →
019
- ←

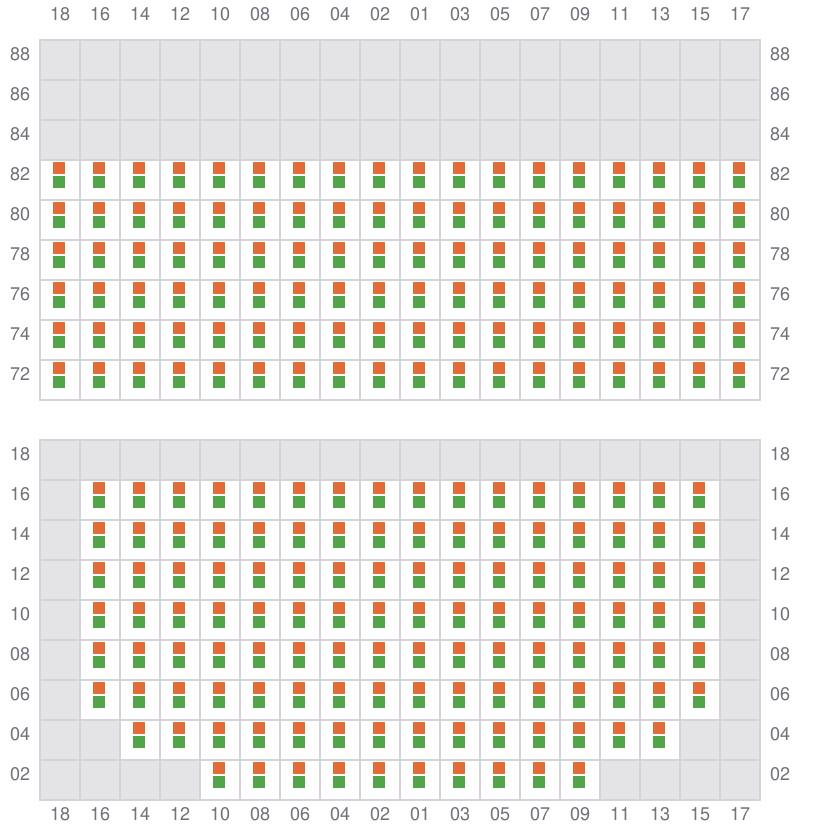

021 (022)
- →
023
- ←

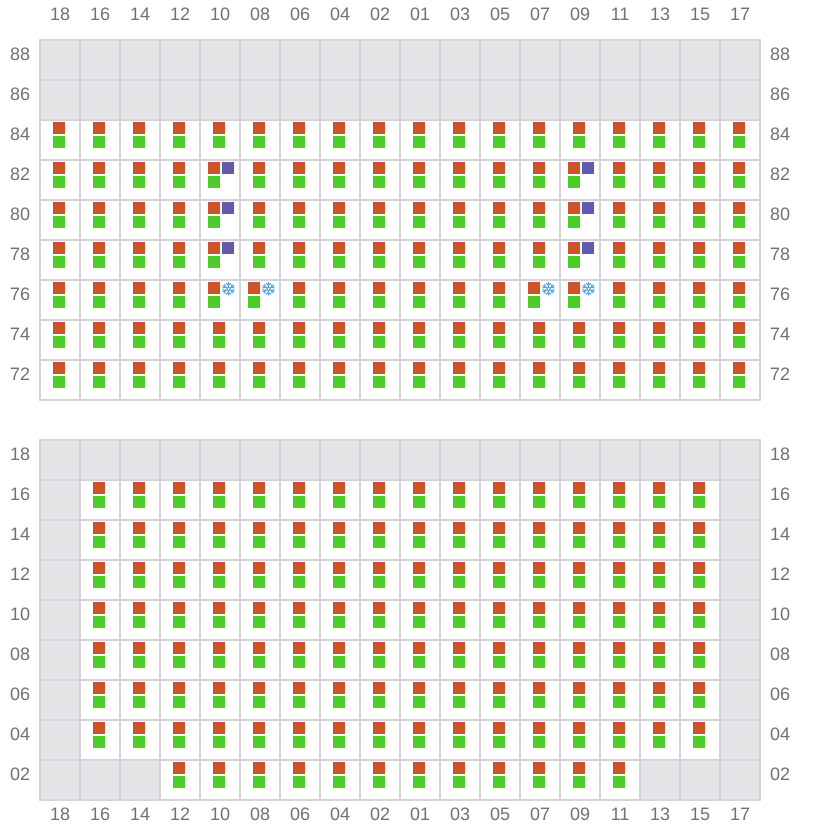

025 (026)
- →

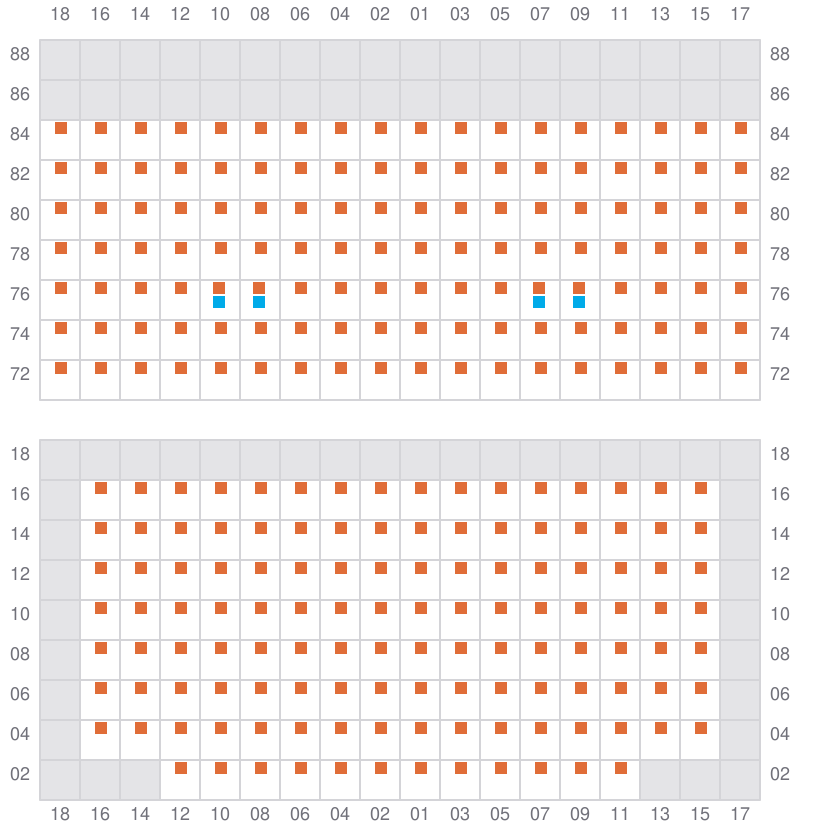

027
- ←

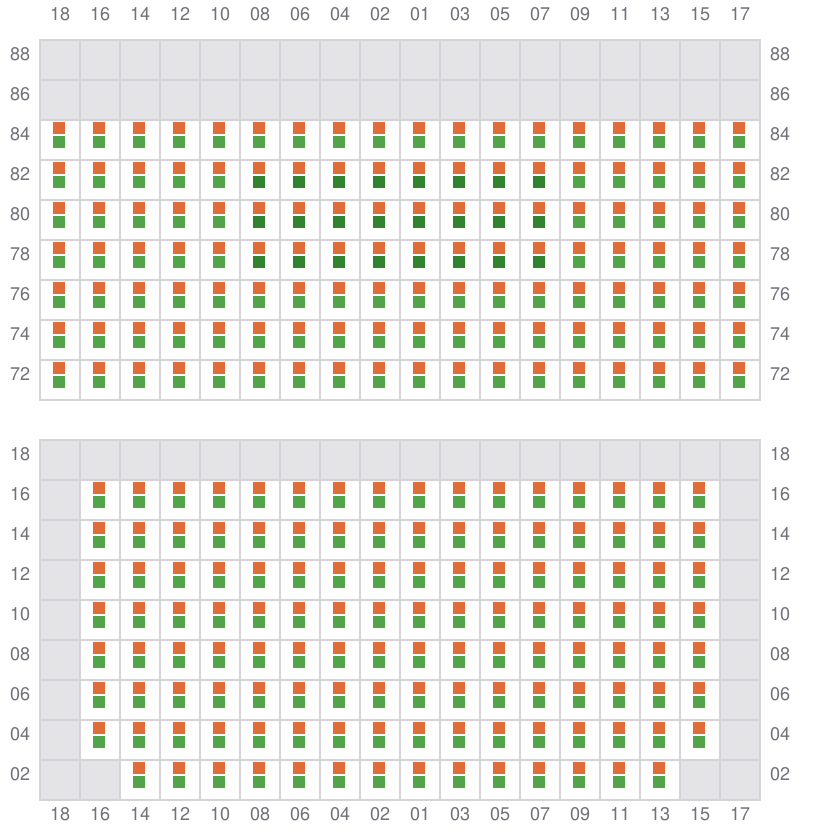

029 (030)
- →

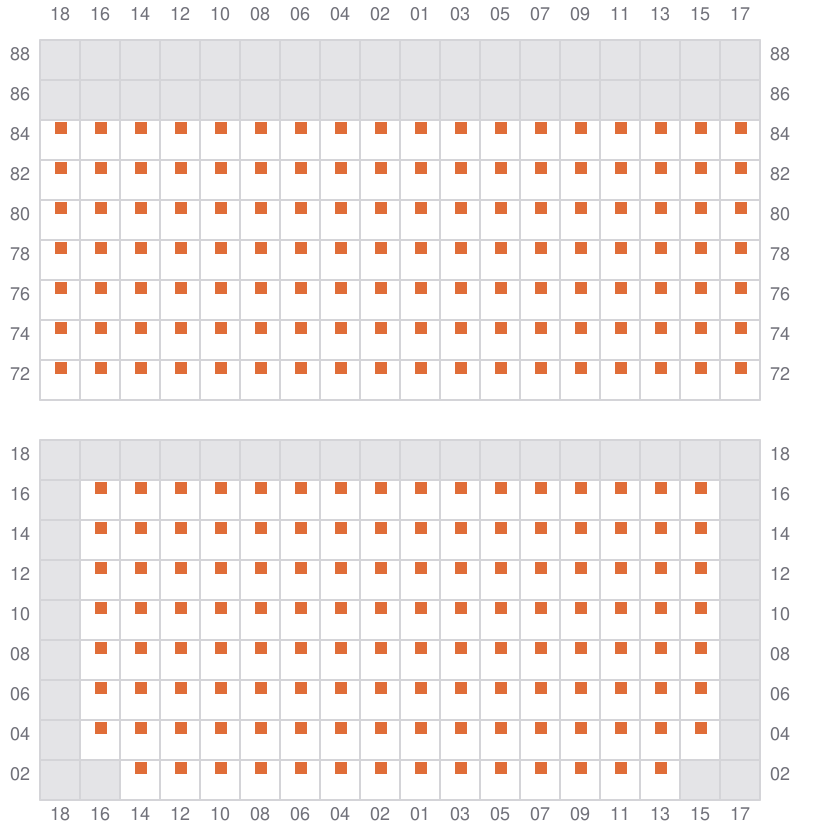

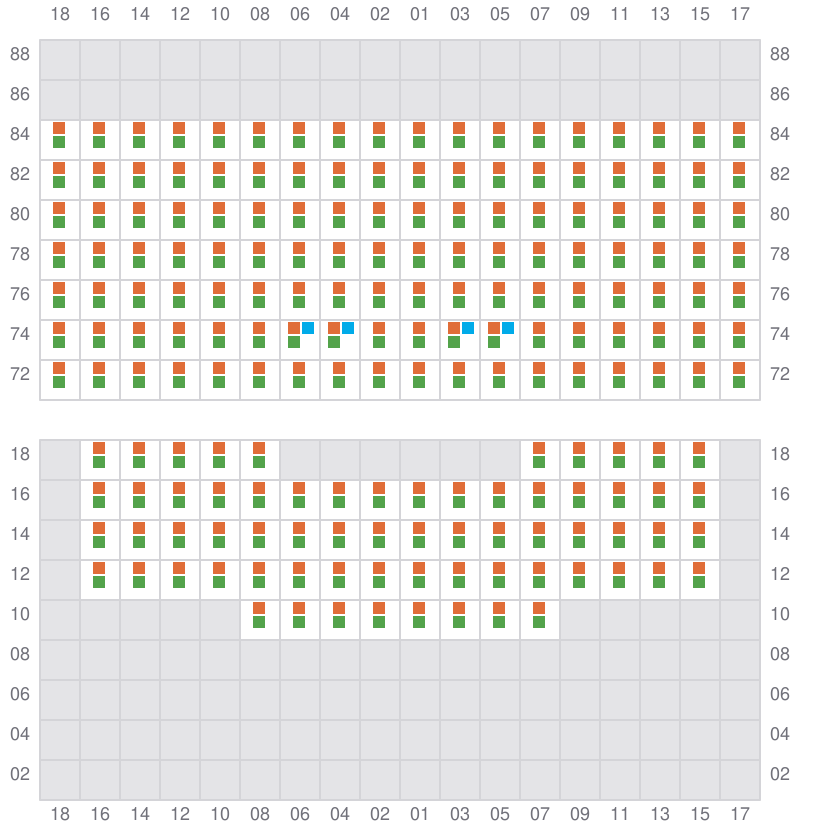

031
- ←
033 (034)
- →

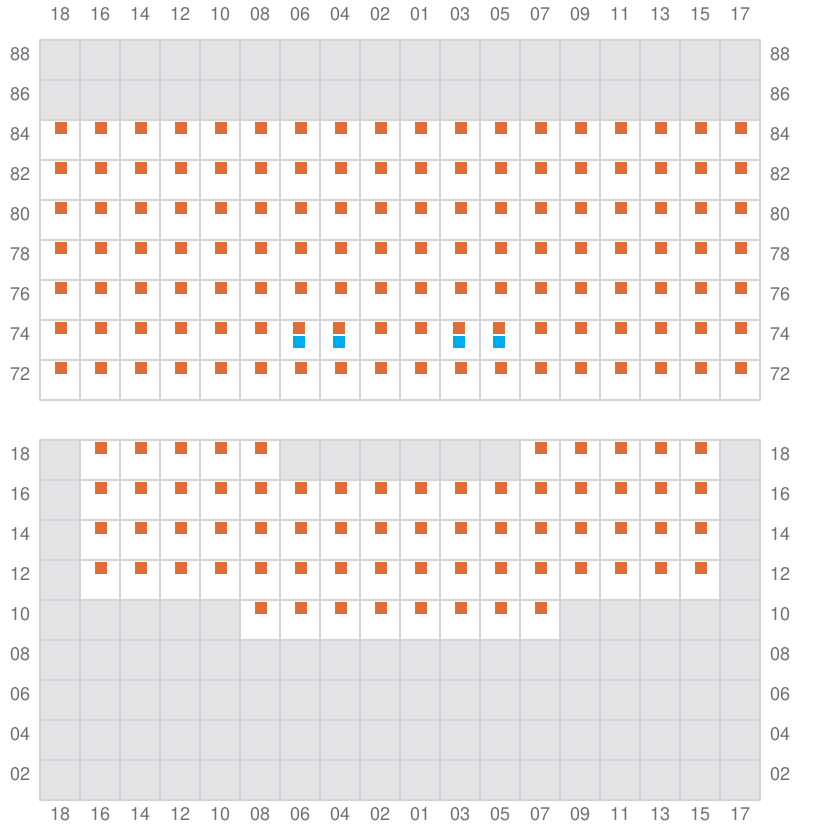

035
- ←

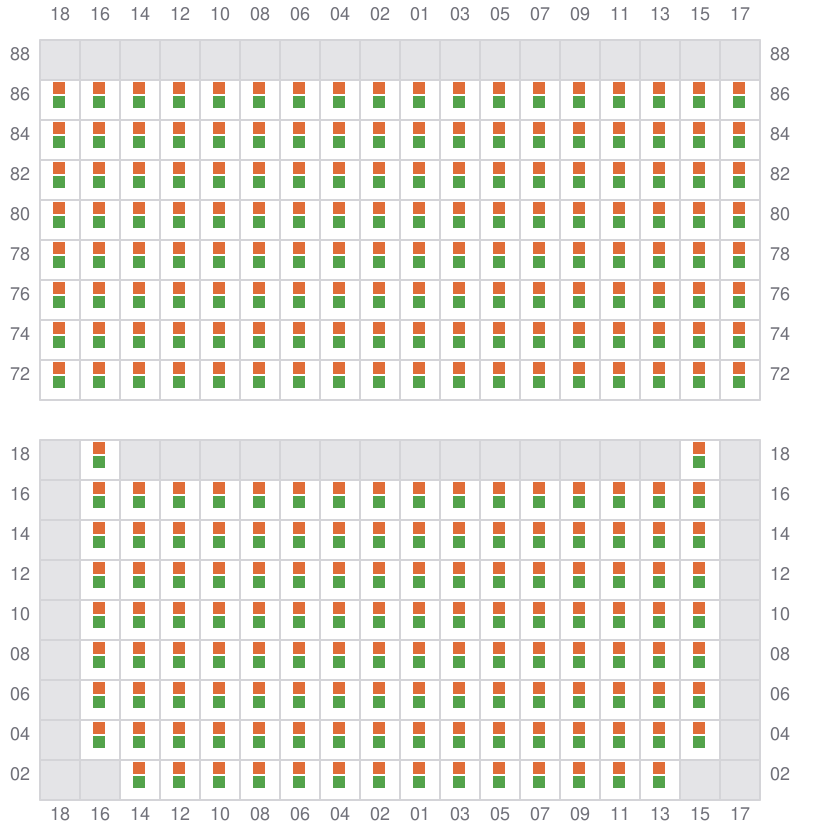

037 (038)
- →

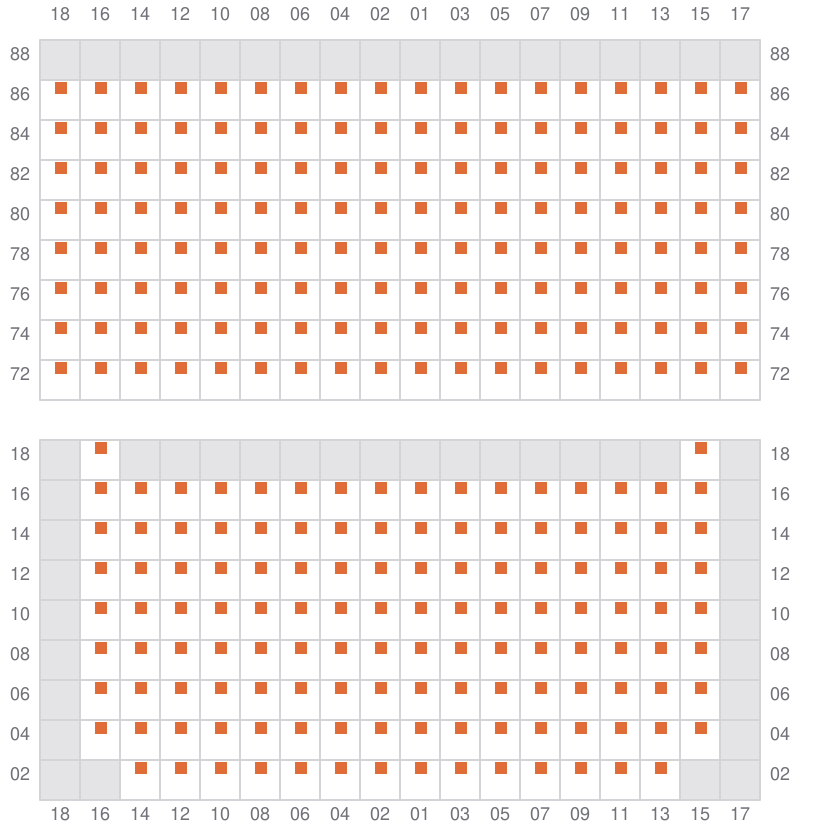

039
- ←

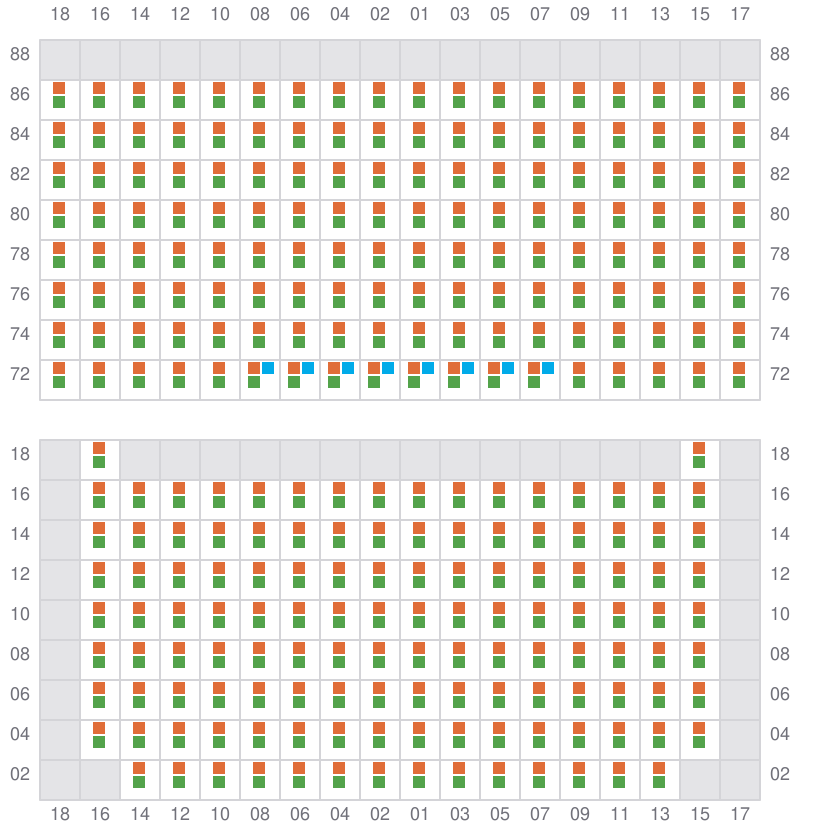

041 (042)
- →

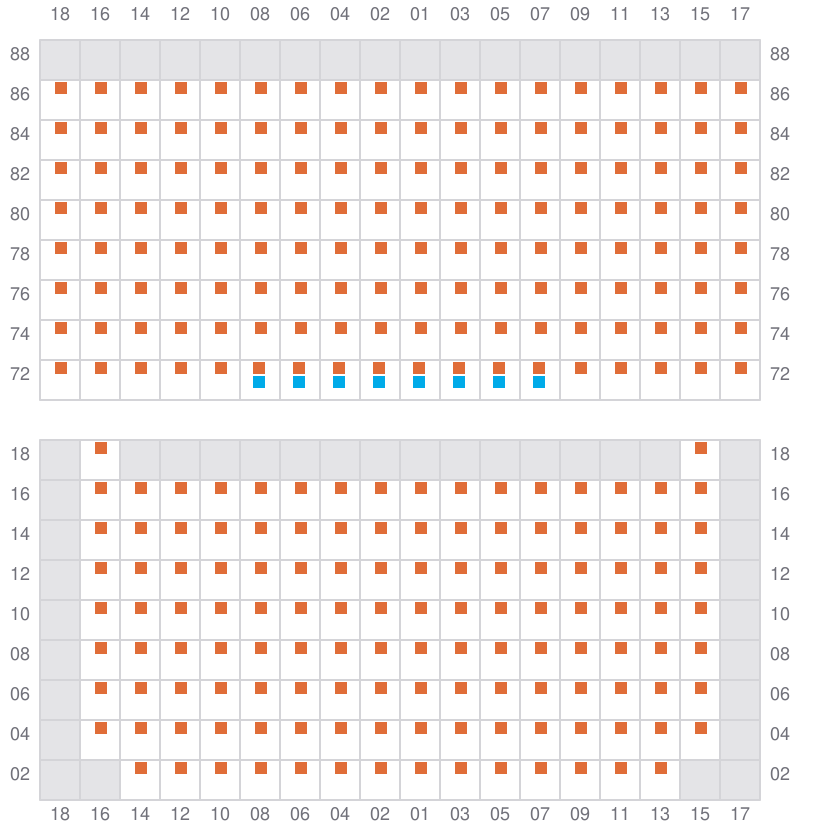

043
- ←

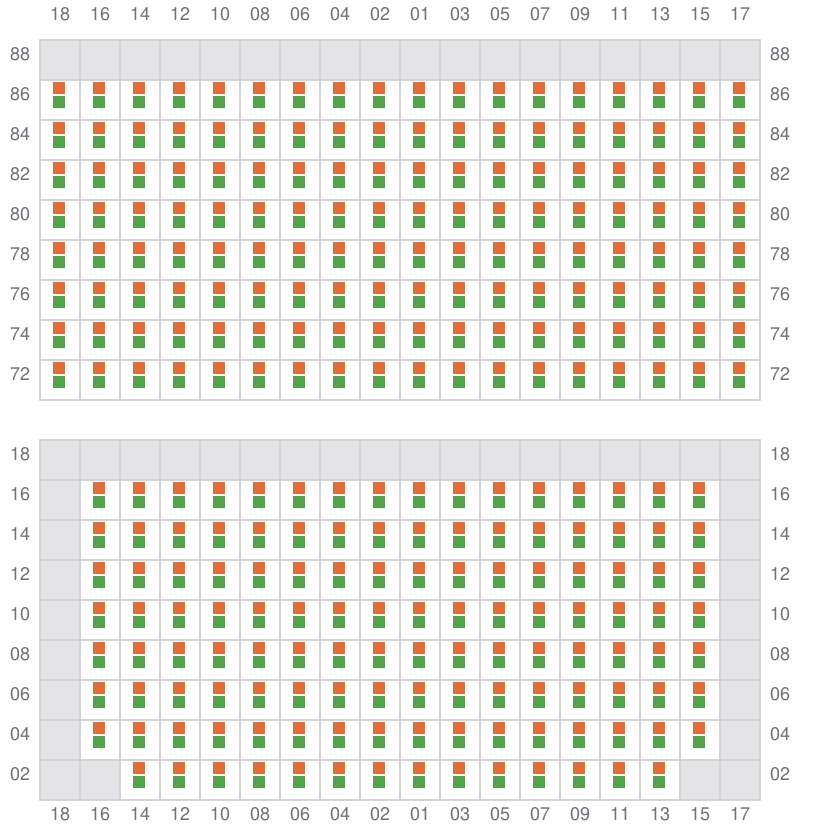

045 (046)
- →

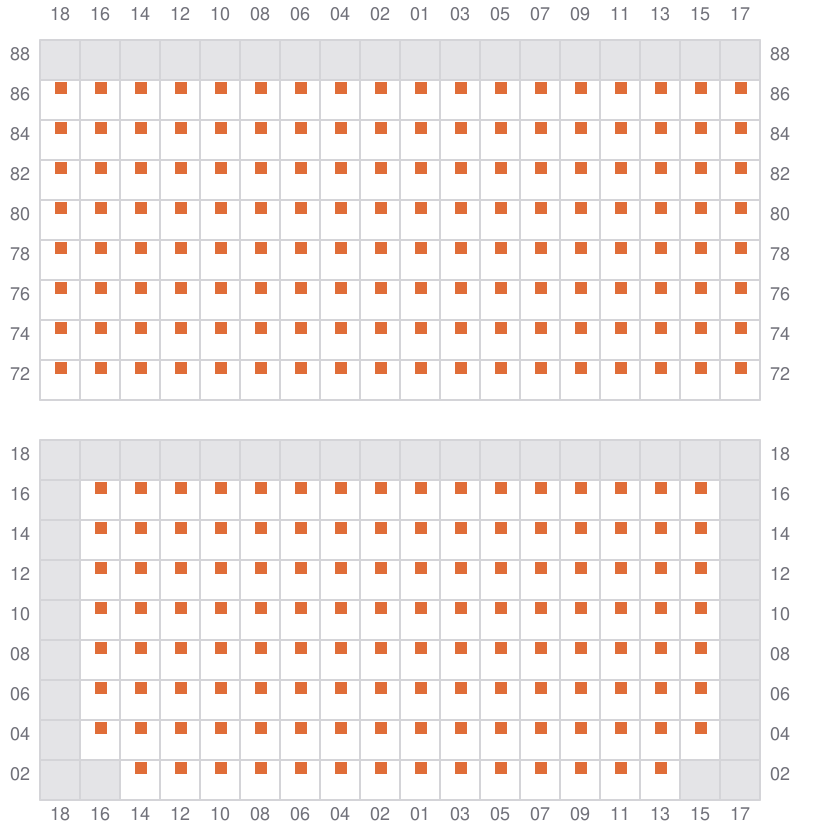

047
- ←

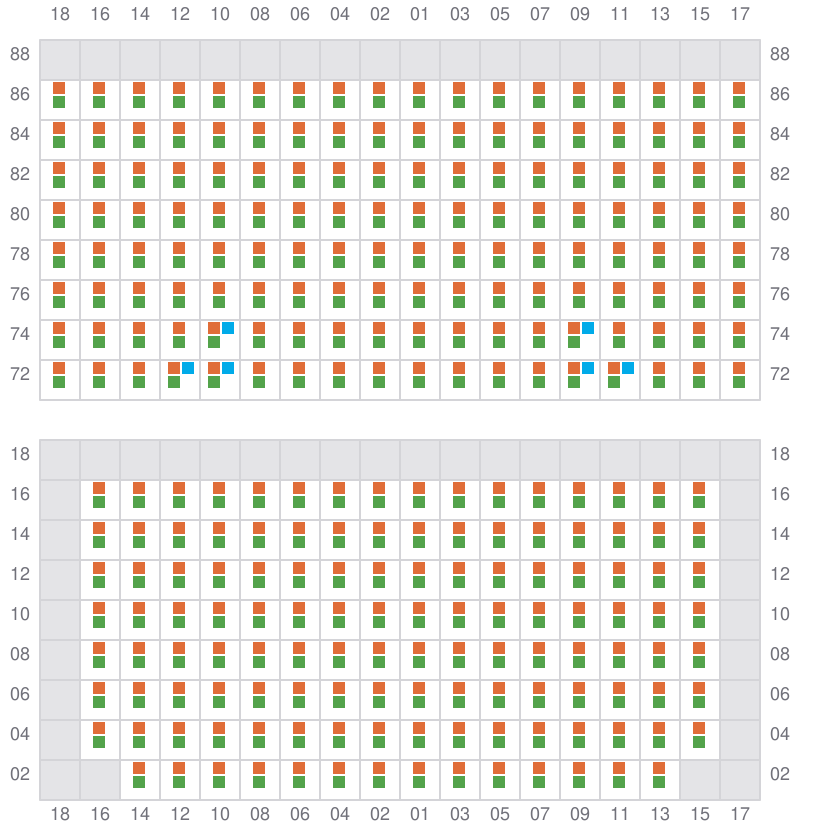

049 (050)
- →
051
- ←
053 (054)
- →

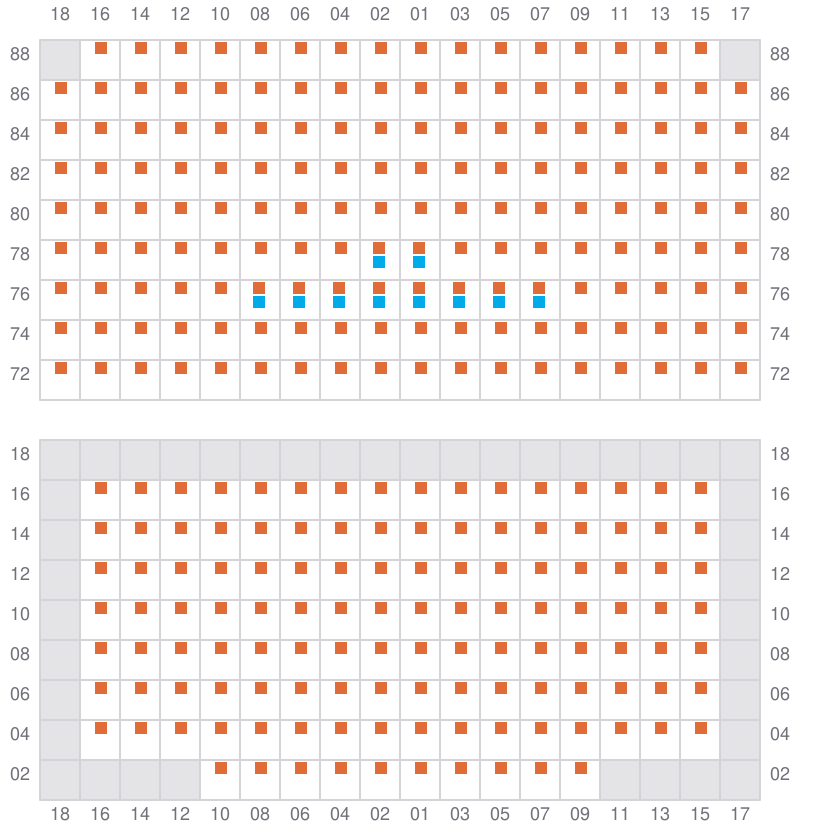

055
- ←
057 (058)
- → /
059
- ← /

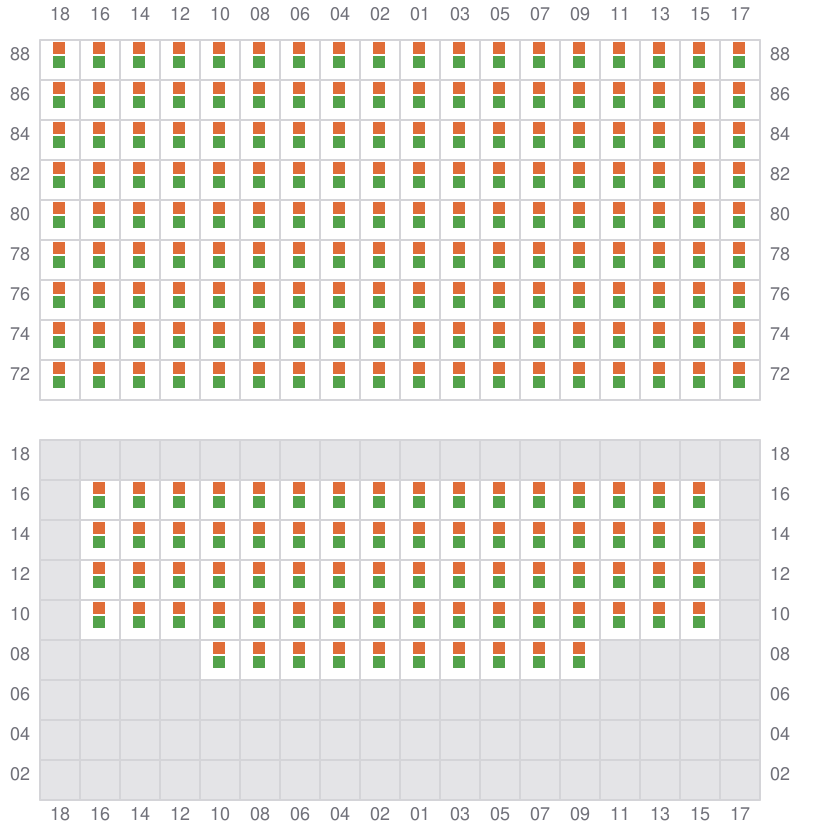

061 (062)
- →

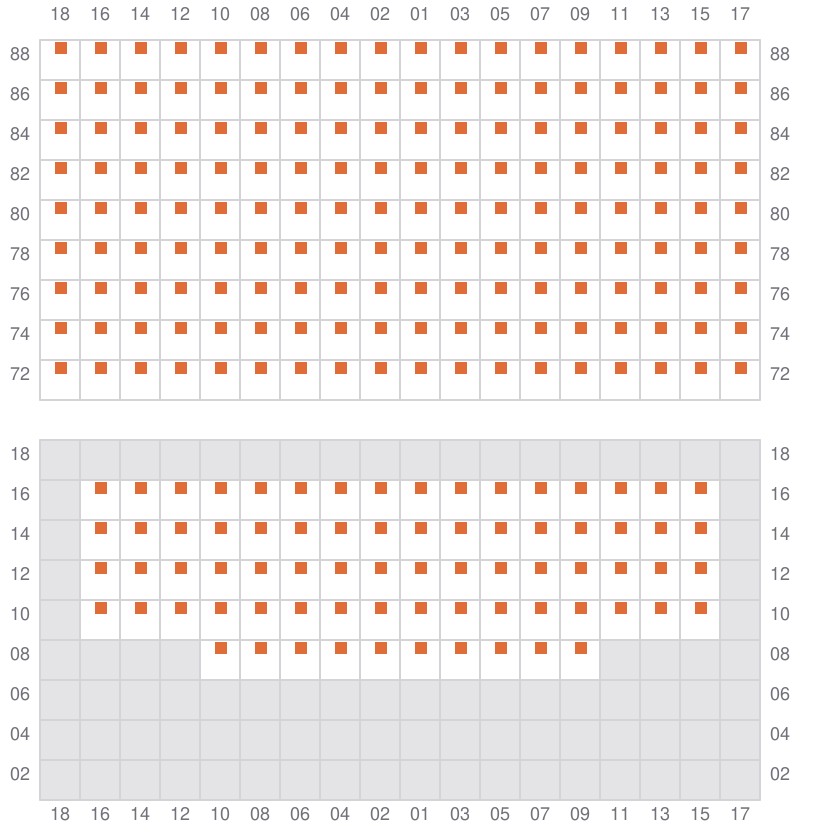

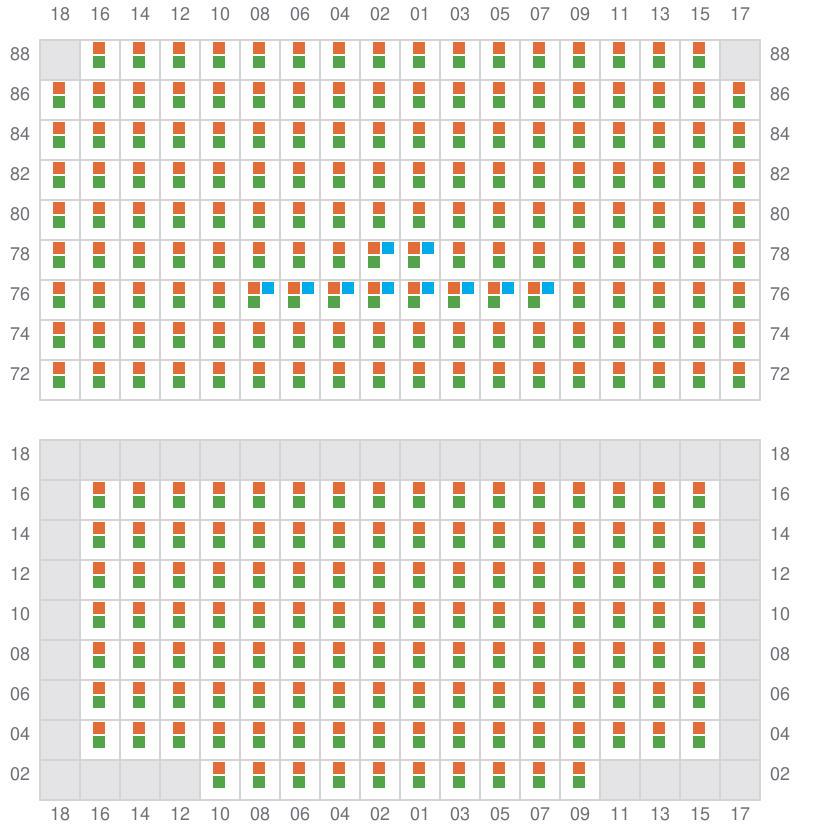

063
- ←

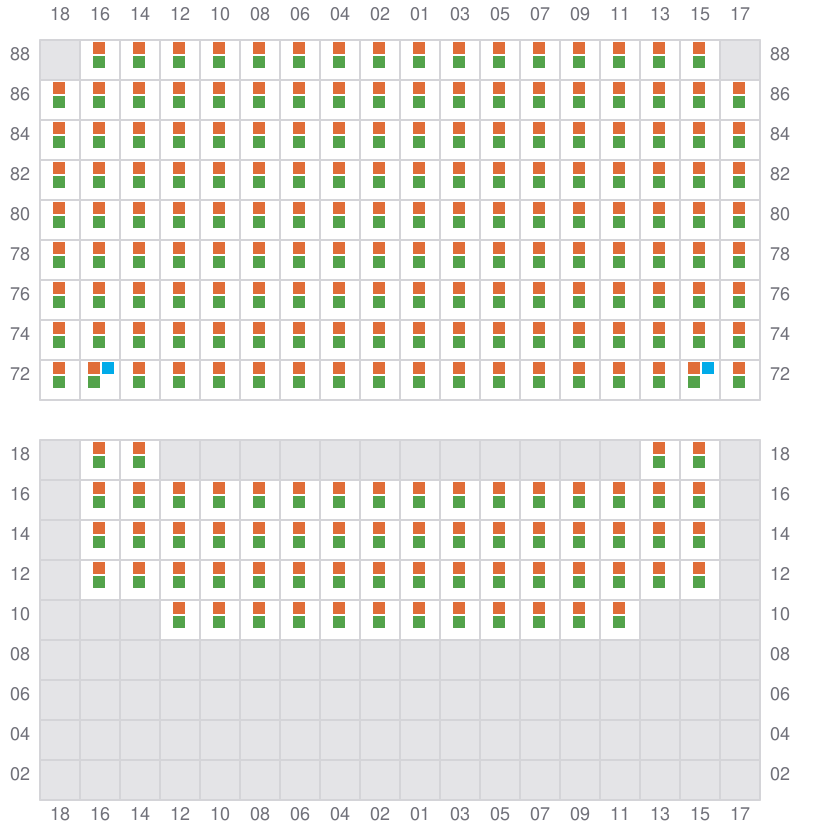

065 (066)
- →
067
- ←

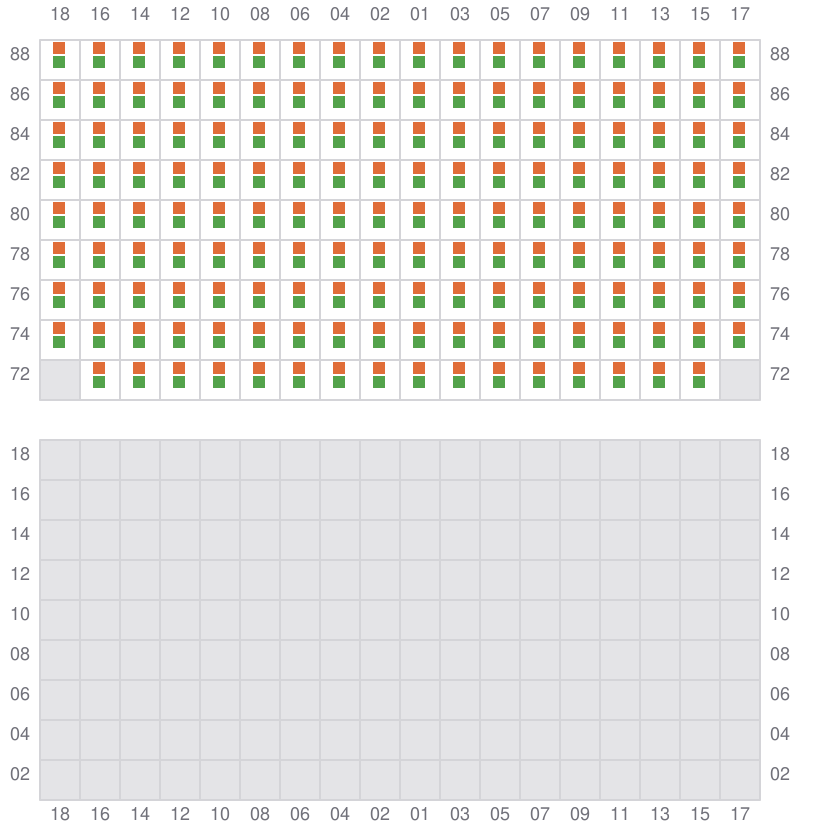

069 (070)
- → /

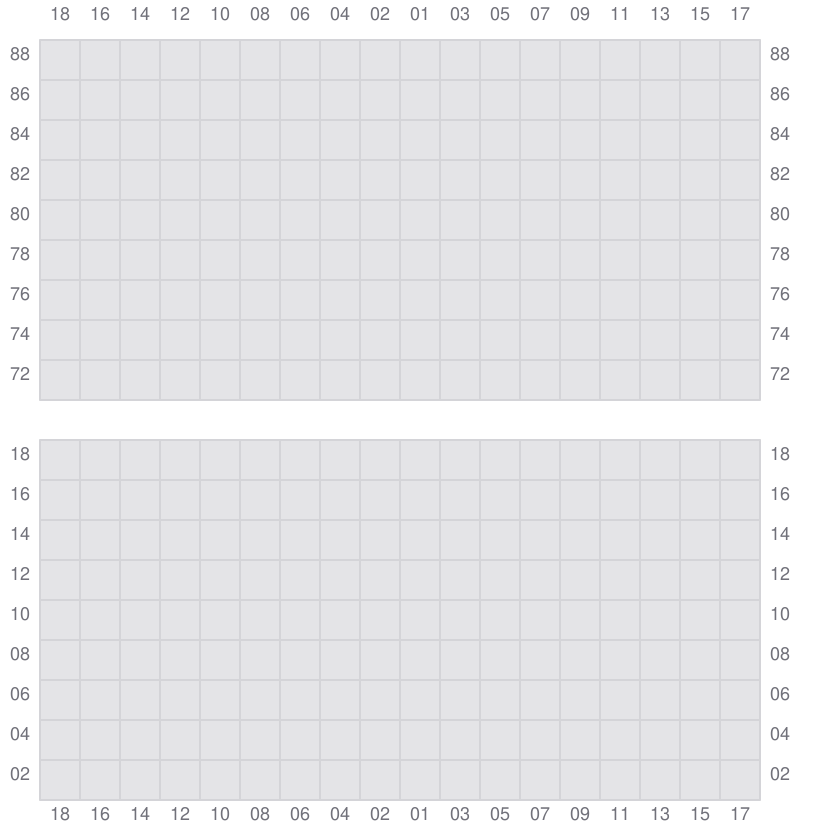

071
- ← /
