SAN LORENZO RUIZ UNO
9141053 | DUH3507 | 9141053 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:SAN LORENZO RUIZ UNO
IMO Code:9141053
Call Sign:DUH3507
Line Operator:9141053
Class Name for Sister Ships:70R
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:608
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

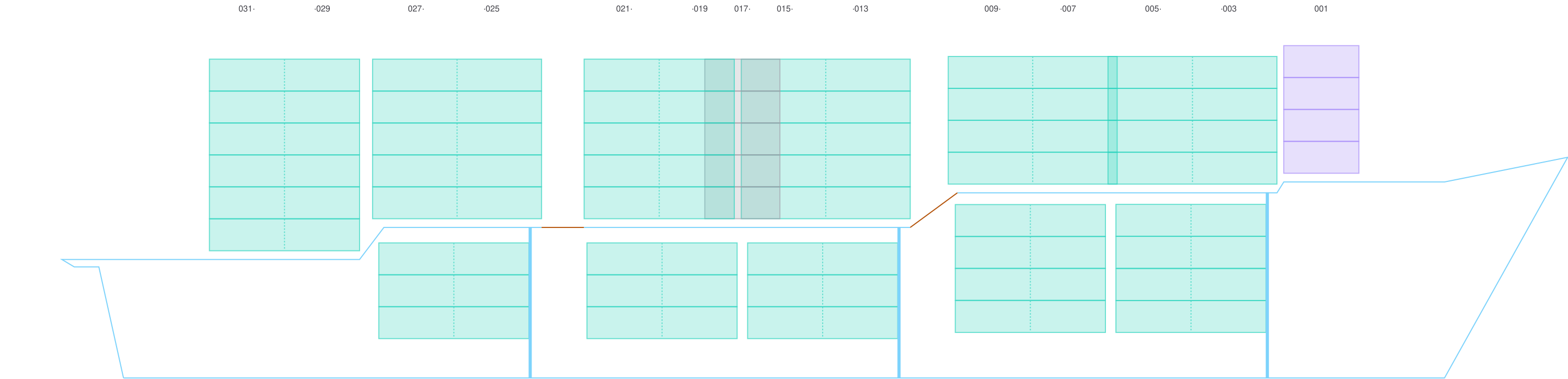

Side View
Hatch-Covers View

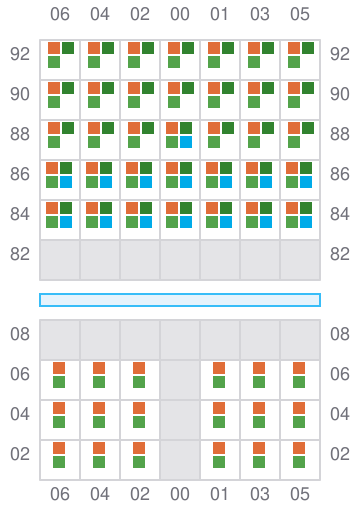

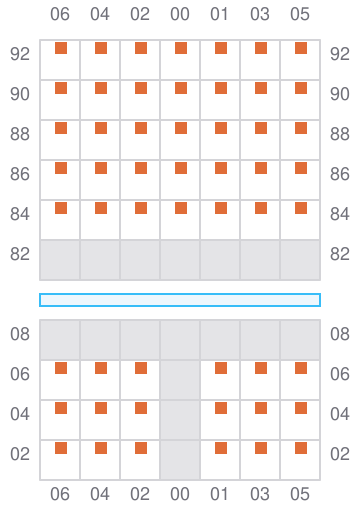

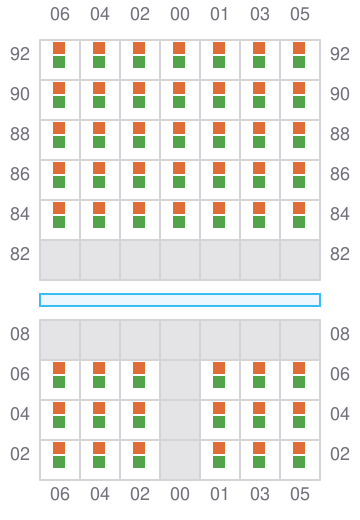

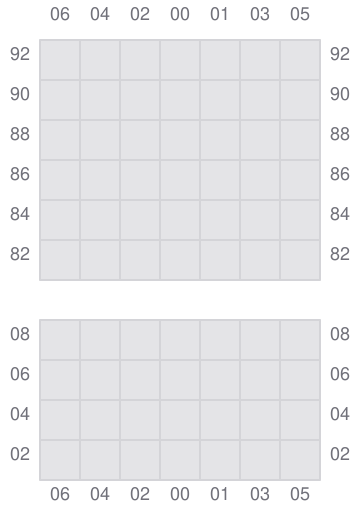

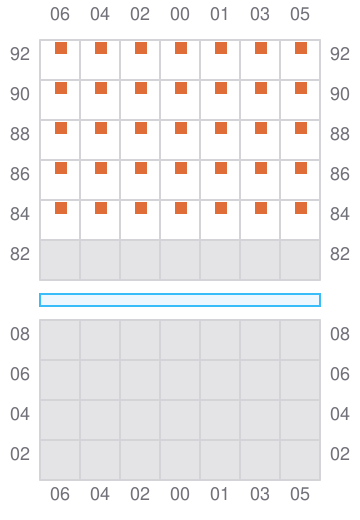

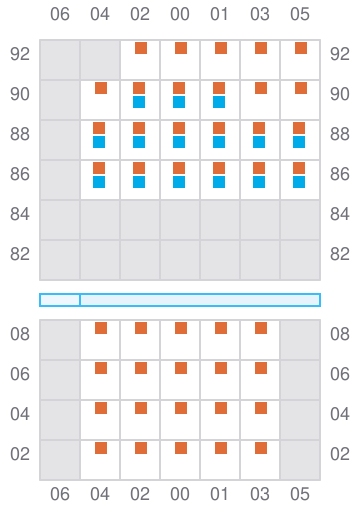

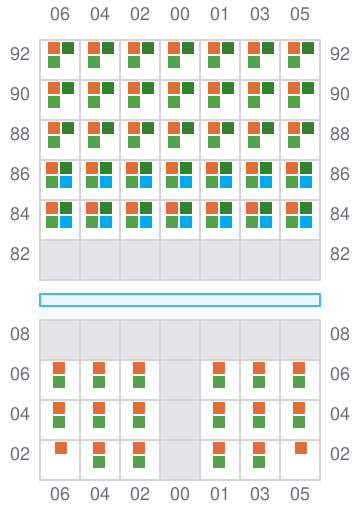

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

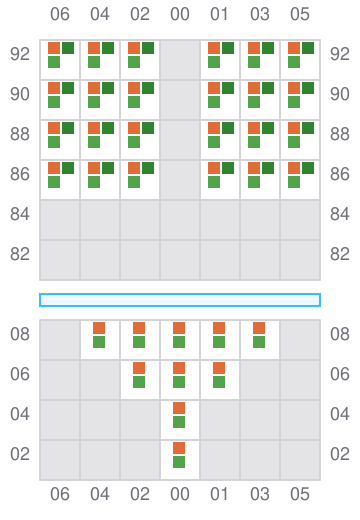

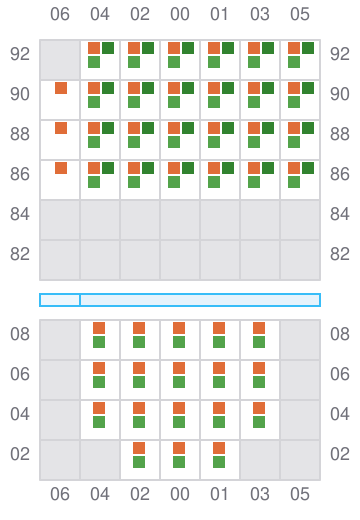

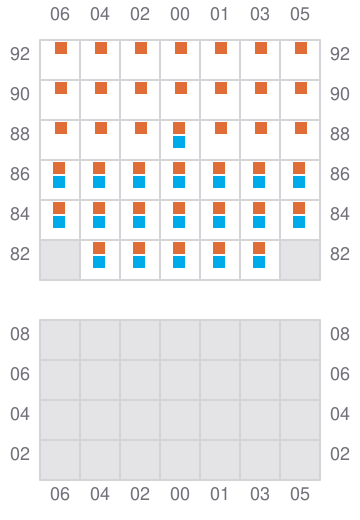

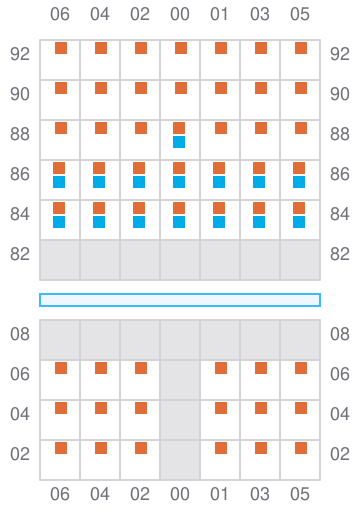

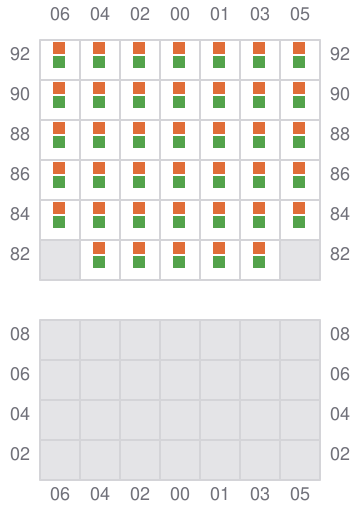

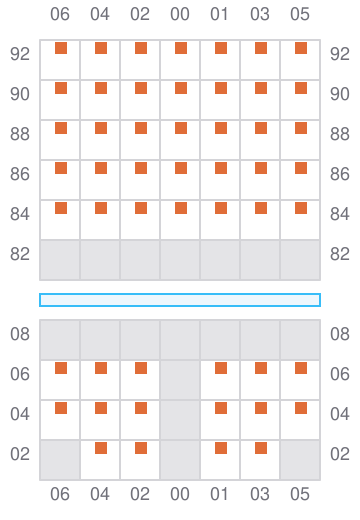

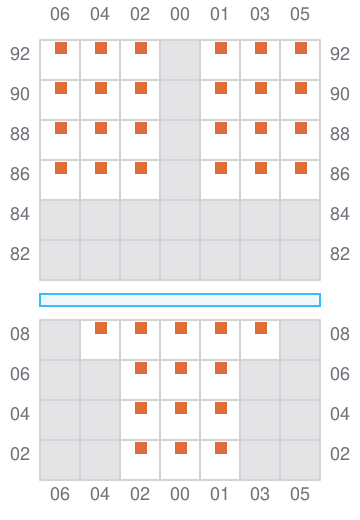

001
003 (004)
- →
005
- ←
007 (008)
- →
009
- ←
- → / ?
011
013 (014)
- →
- ← / ?
015
- ←
017
- ← / ?
019 (020)
- →
021
- ←
- → / ?
023
025 (026)
- →
- ← / ?
027
- ←
029 (030)
- → / ?
031
- ← / ?
- → / ?
