SANTA CRUZ
9444742 | OXTN2 | MSL by ************* Last update: Thu Jun 22 2023

General Info

Ship Name:SANTA CRUZ
IMO Code:9444742
Call Sign:OXTN2
Line Operator:MSL
Class Name for Sister Ships:CRUZ
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,148

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

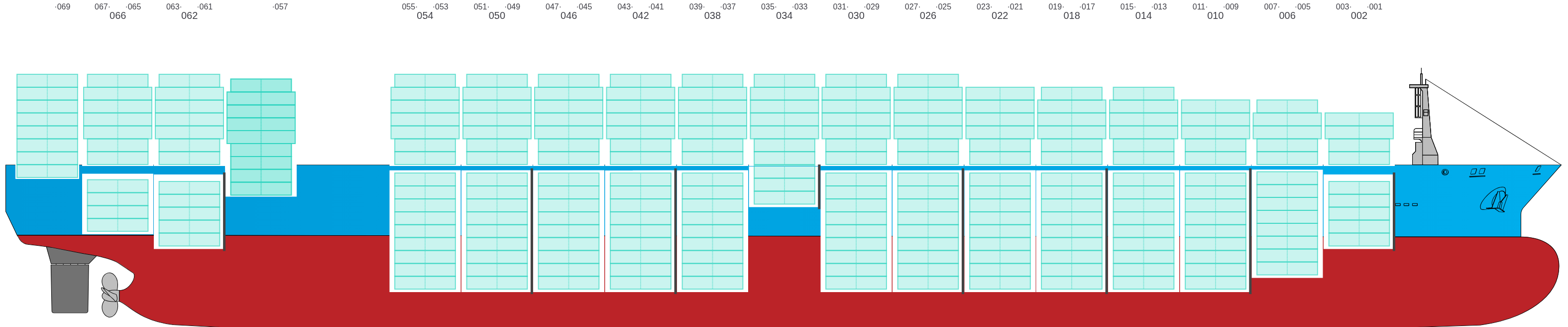

Side view of SANTA CRUZ

Hatch-Covers View

Deck view of SANTA CRUZ

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • /

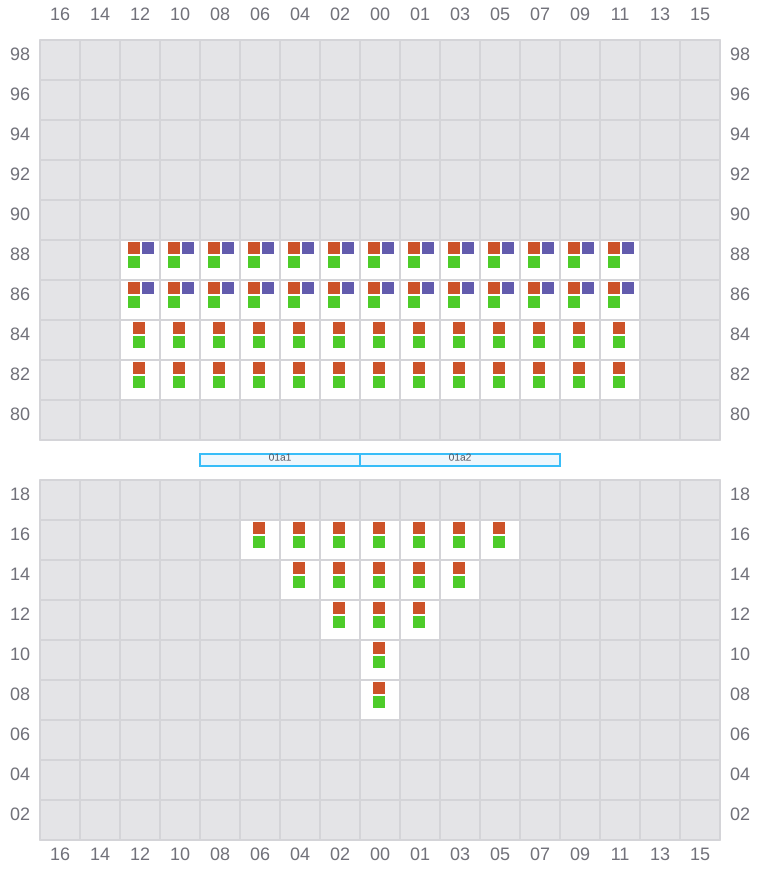

Bay 001 view and slots of SANTA CRUZ

003

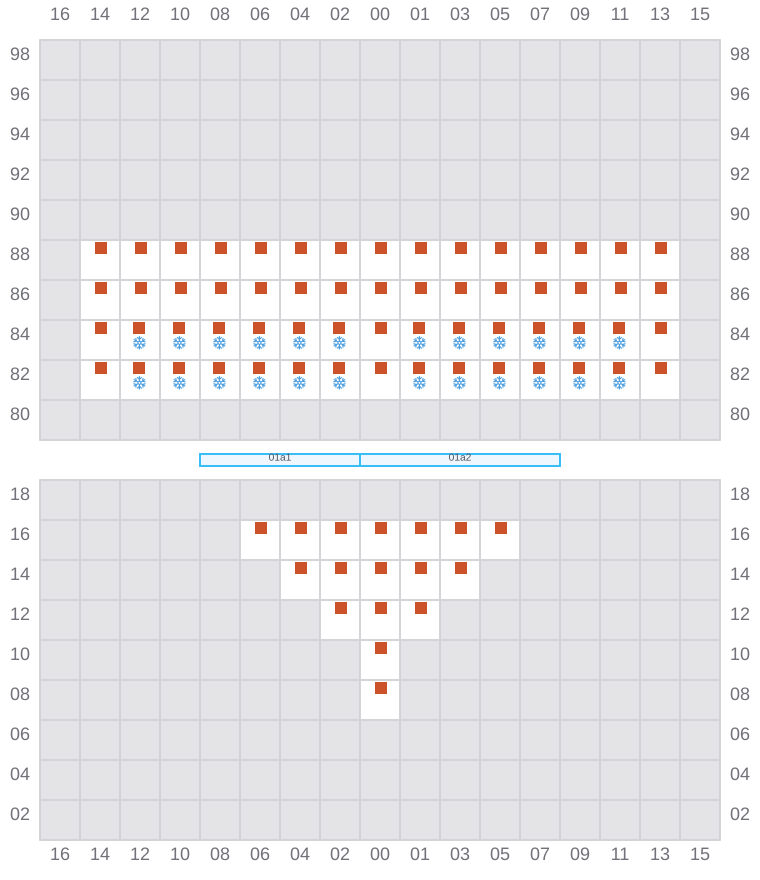

Bay 003 view and slots of SANTA CRUZ

005 (006)

  • /

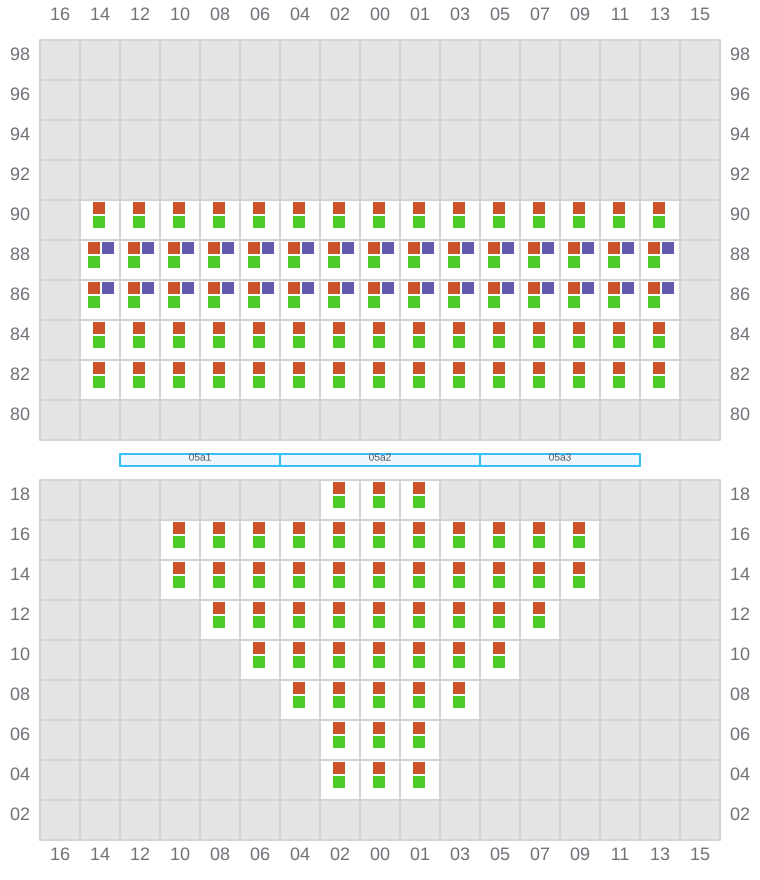

Bay 005 view and slots of SANTA CRUZ

007

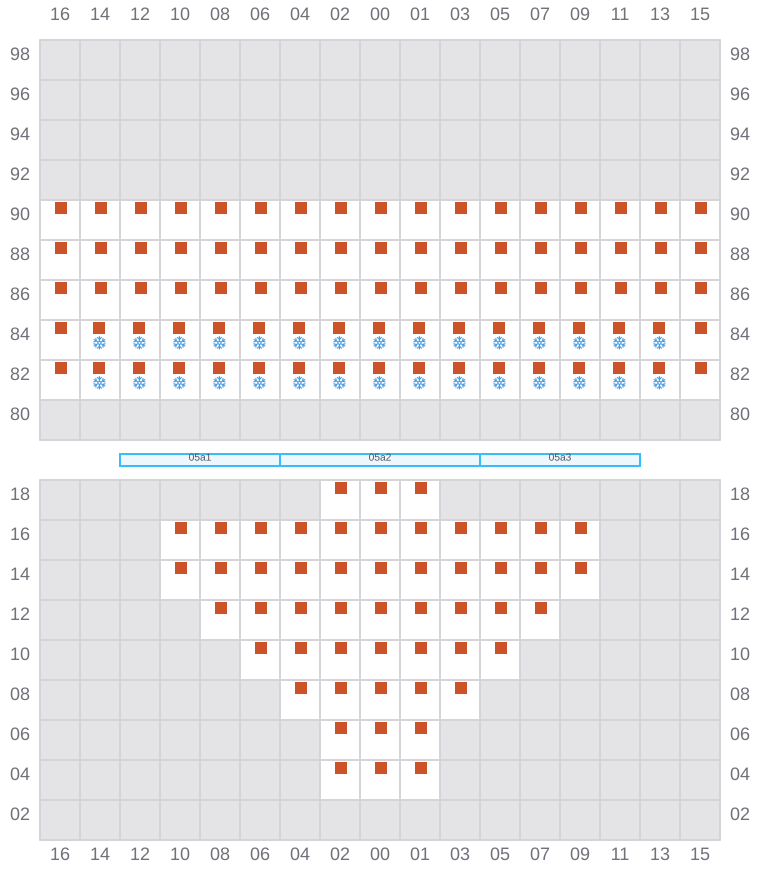

Bay 007 view and slots of SANTA CRUZ

009 (010)

  • /

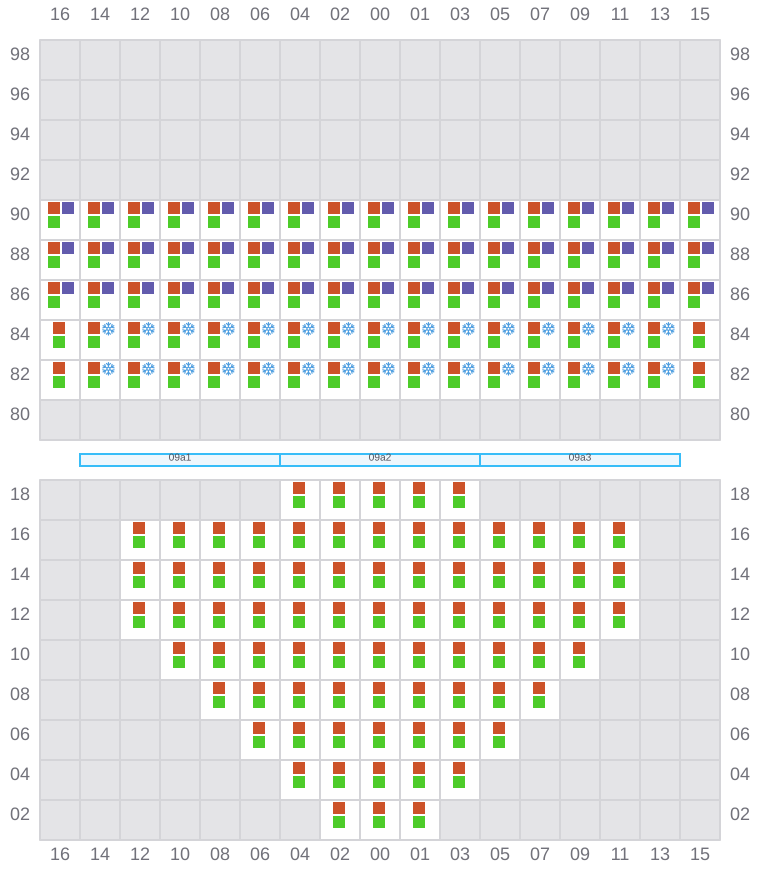

Bay 009 view and slots of SANTA CRUZ

011

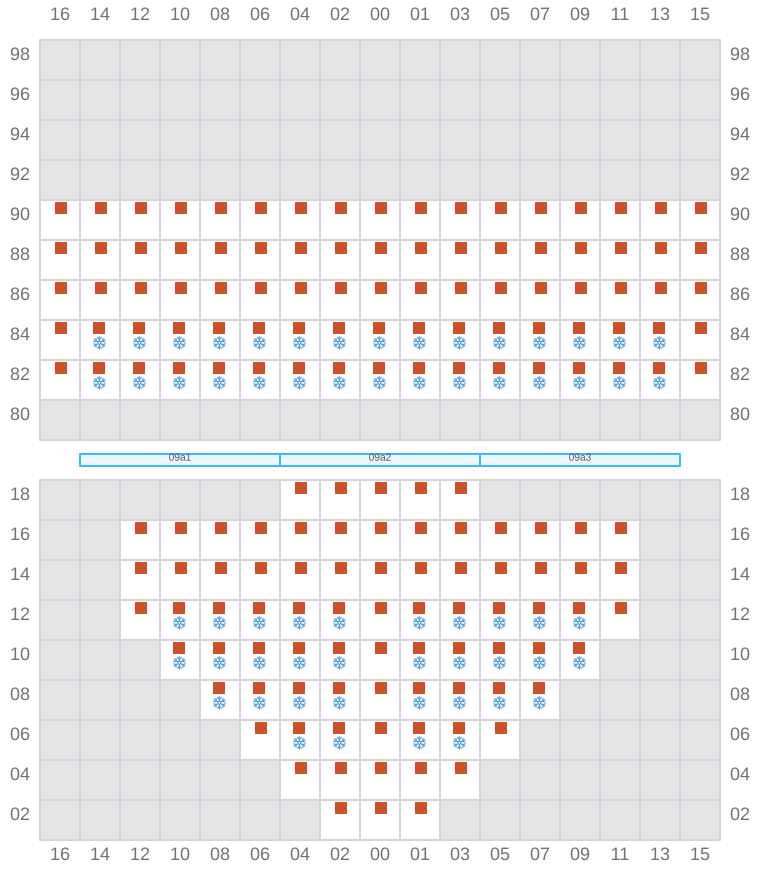

Bay 011 view and slots of SANTA CRUZ

013 (014)

  • /

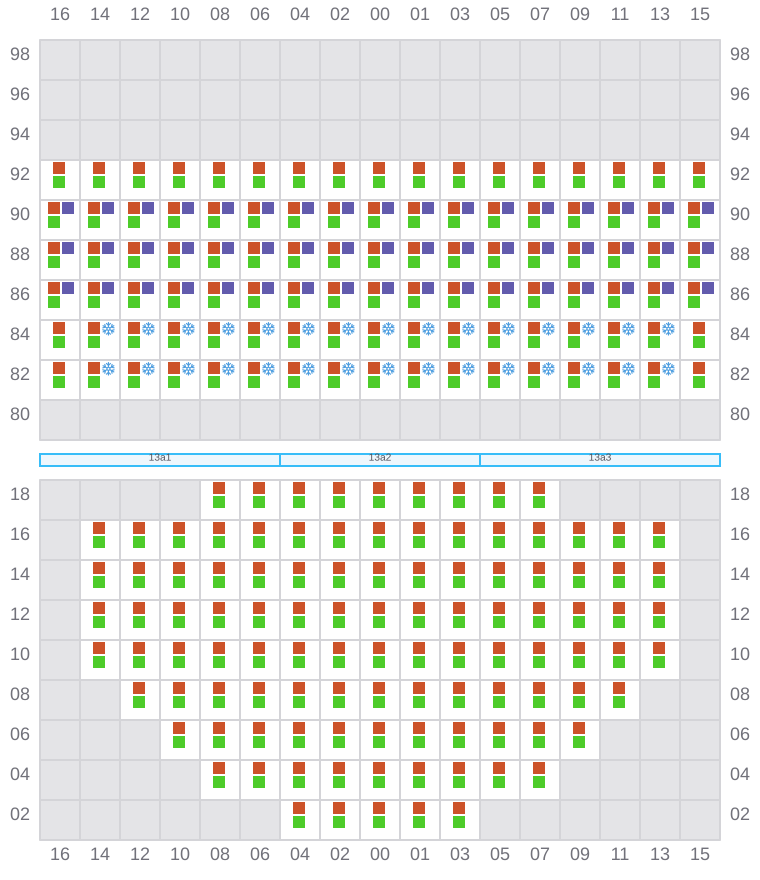

Bay 013 view and slots of SANTA CRUZ

015

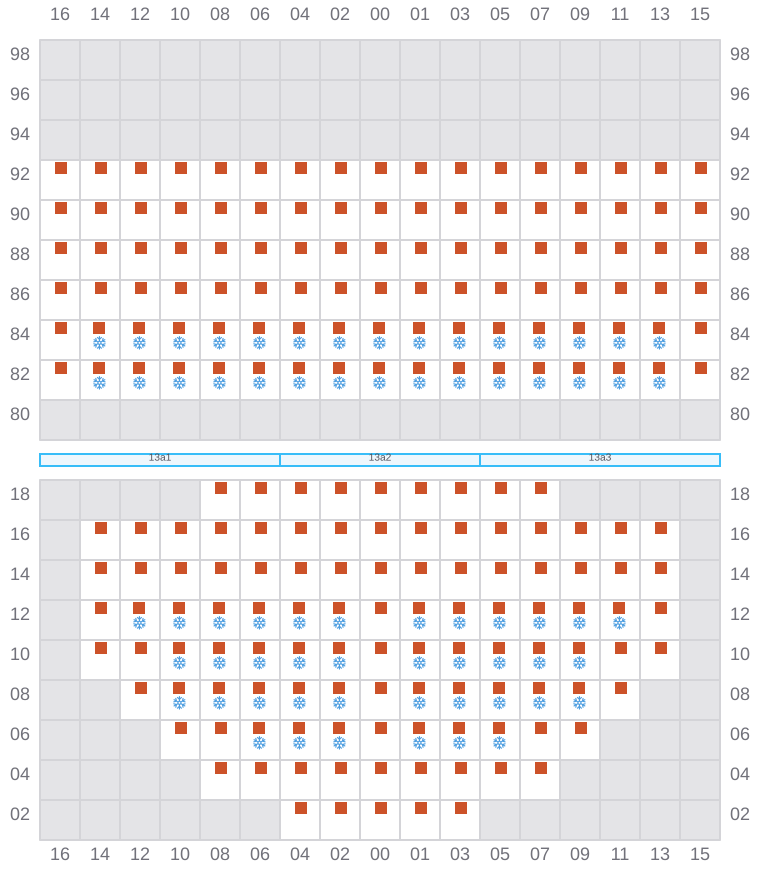

Bay 015 view and slots of SANTA CRUZ

017 (018)

  • /

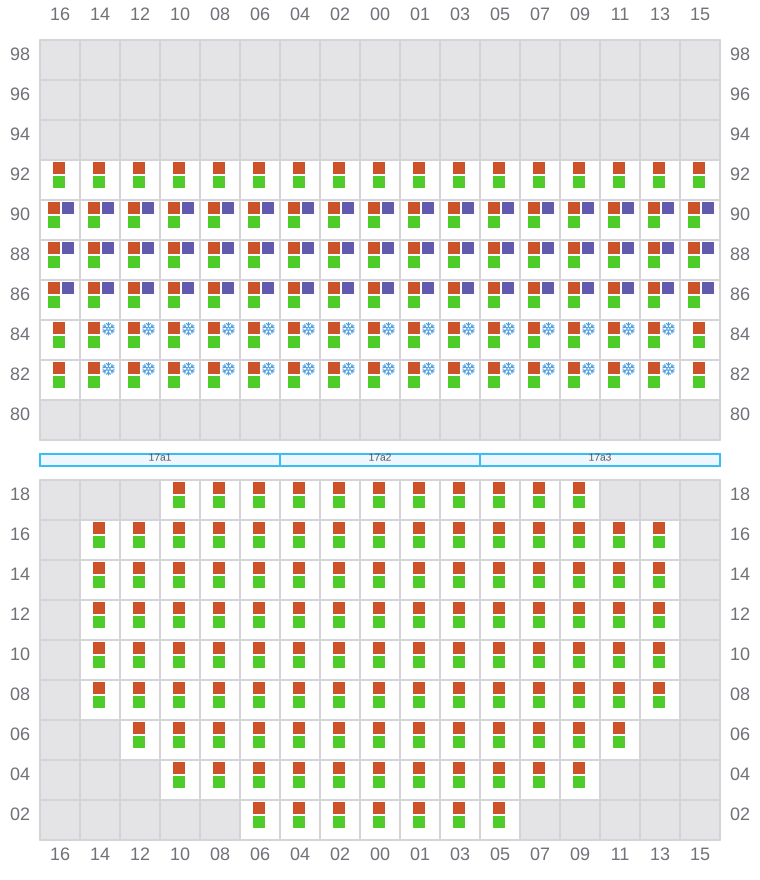

Bay 017 view and slots of SANTA CRUZ

019

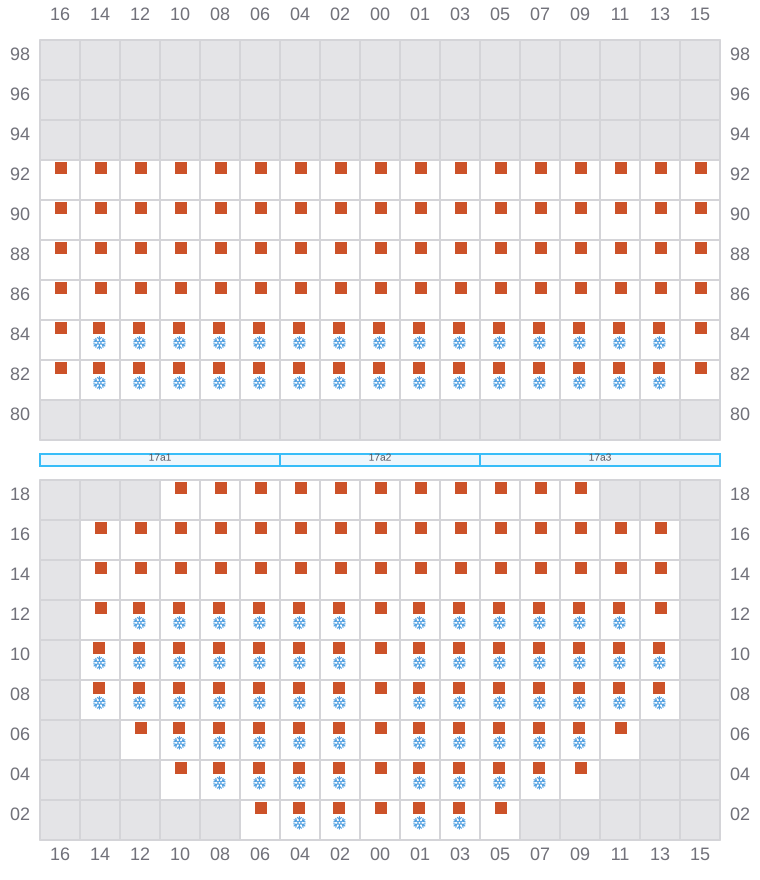

Bay 019 view and slots of SANTA CRUZ

021 (022)

  • /

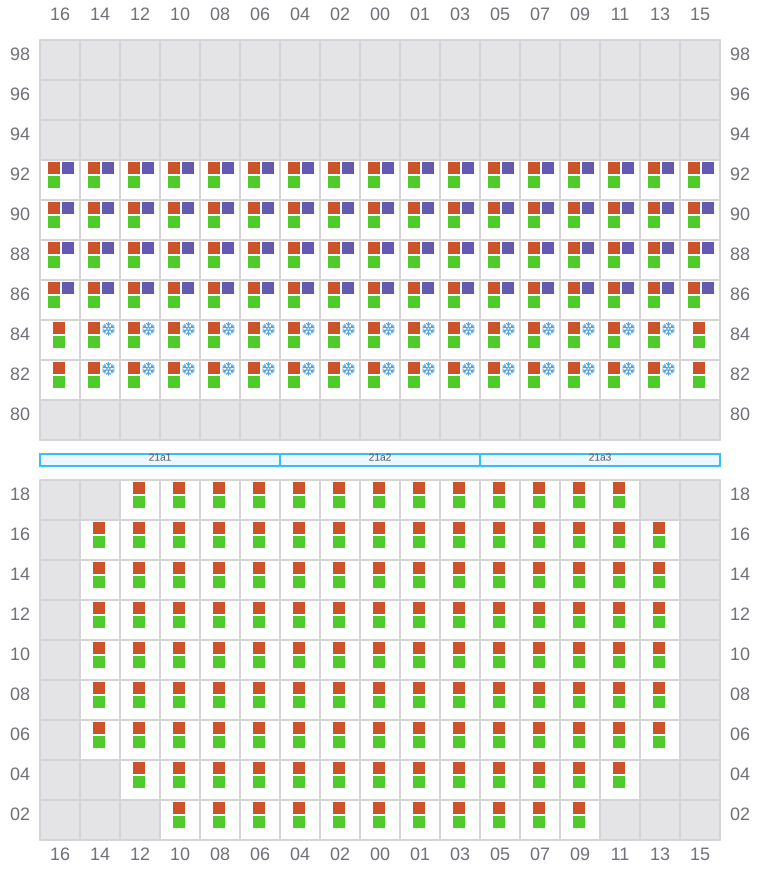

Bay 021 view and slots of SANTA CRUZ

023

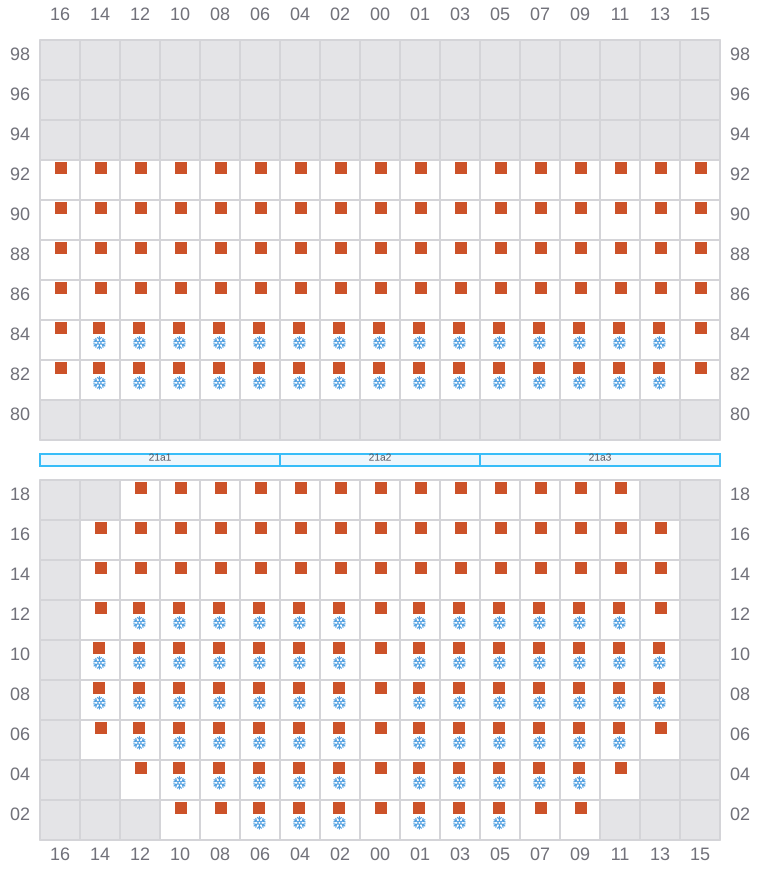

Bay 023 view and slots of SANTA CRUZ

025 (026)

  • /
Bay 025 view and slots of SANTA CRUZ

027

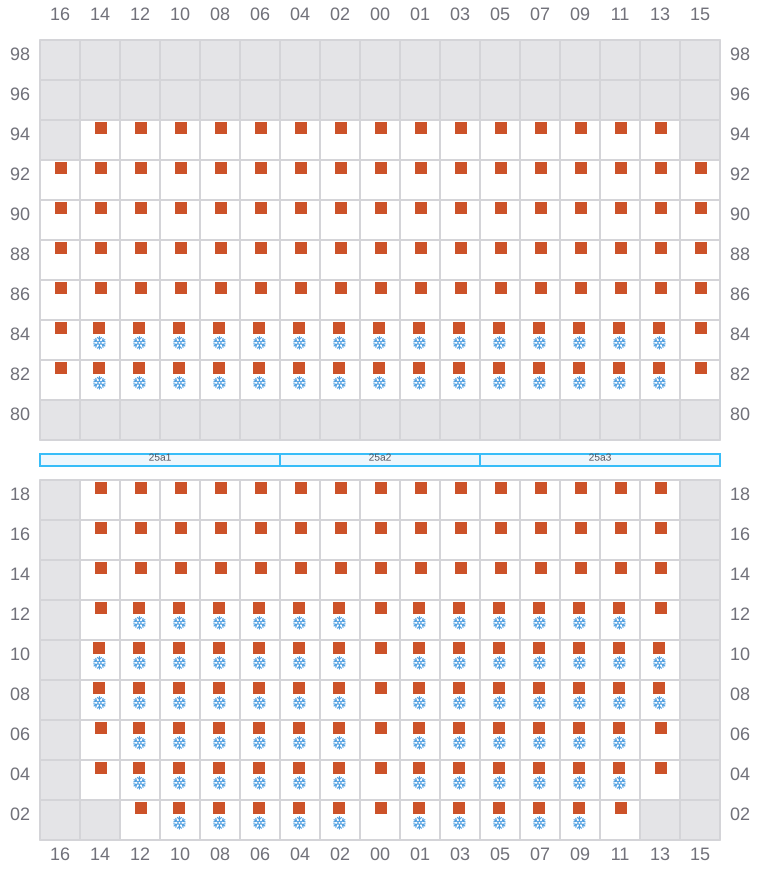

Bay 027 view and slots of SANTA CRUZ

029 (030)

  • /

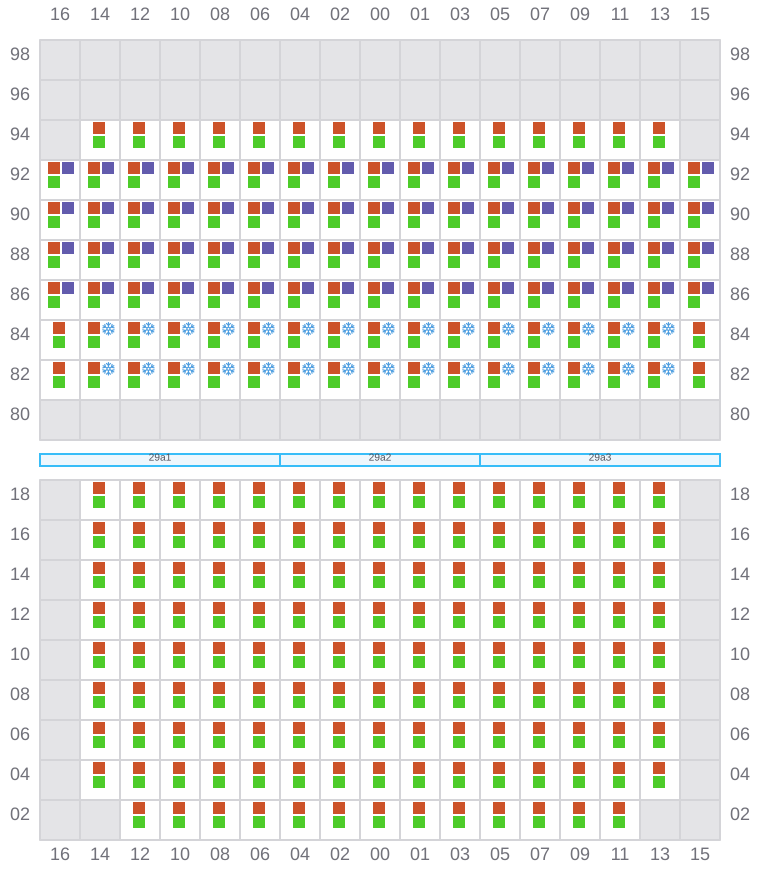

Bay 029 view and slots of SANTA CRUZ

031

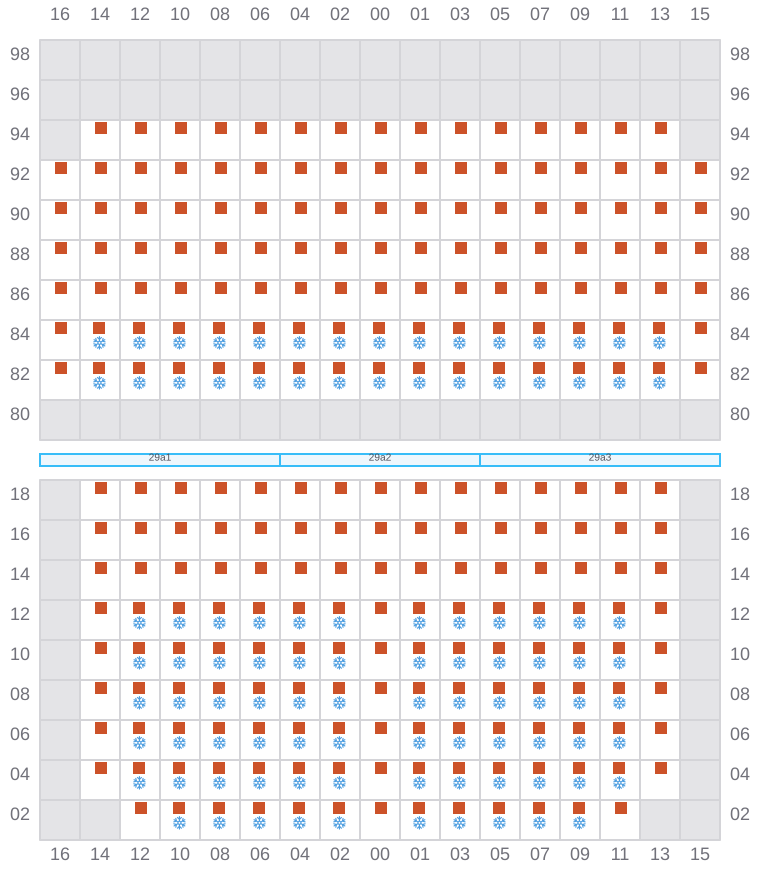

Bay 031 view and slots of SANTA CRUZ

033 (034)

  • /

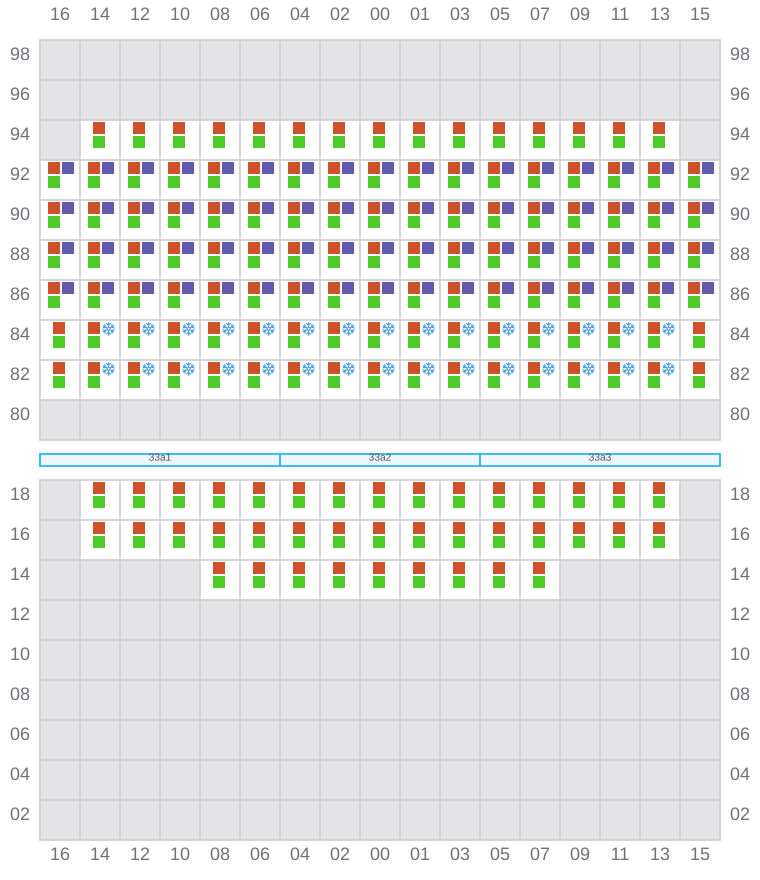

Bay 033 view and slots of SANTA CRUZ

035

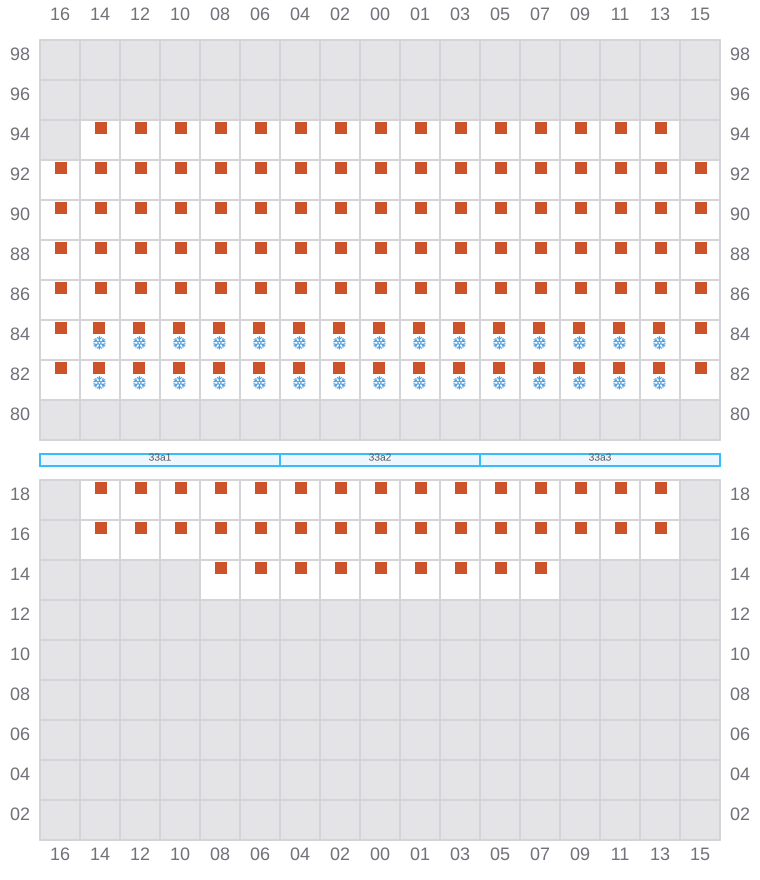

Bay 035 view and slots of SANTA CRUZ

037 (038)

  • /
Bay 037 view and slots of SANTA CRUZ

039

Bay 039 view and slots of SANTA CRUZ

041 (042)

  • /
Bay 041 view and slots of SANTA CRUZ

043

Bay 043 view and slots of SANTA CRUZ

045 (046)

  • /
Bay 045 view and slots of SANTA CRUZ

047

Bay 047 view and slots of SANTA CRUZ

049 (050)

  • /
Bay 049 view and slots of SANTA CRUZ

051

Bay 051 view and slots of SANTA CRUZ

053 (054)

  • /

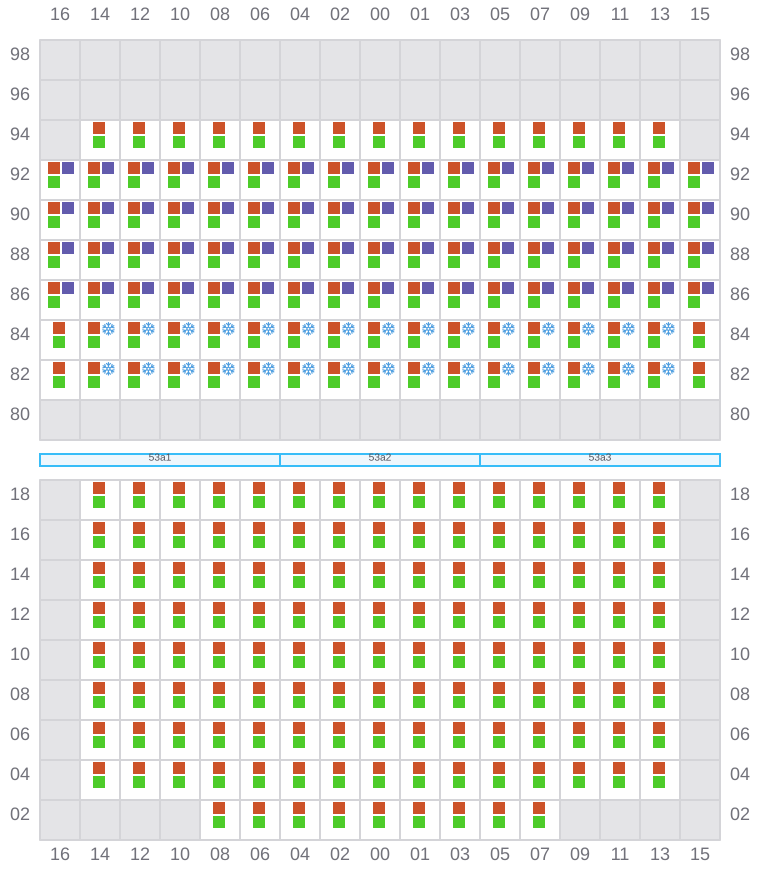

Bay 053 view and slots of SANTA CRUZ

055

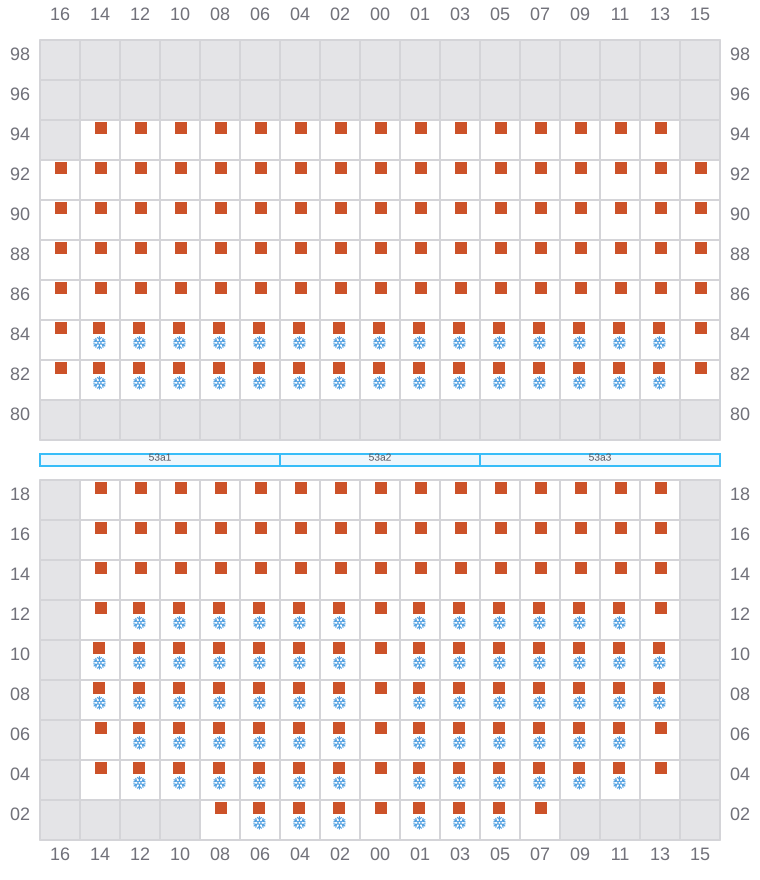

Bay 055 view and slots of SANTA CRUZ

057 (058)

  • / ?

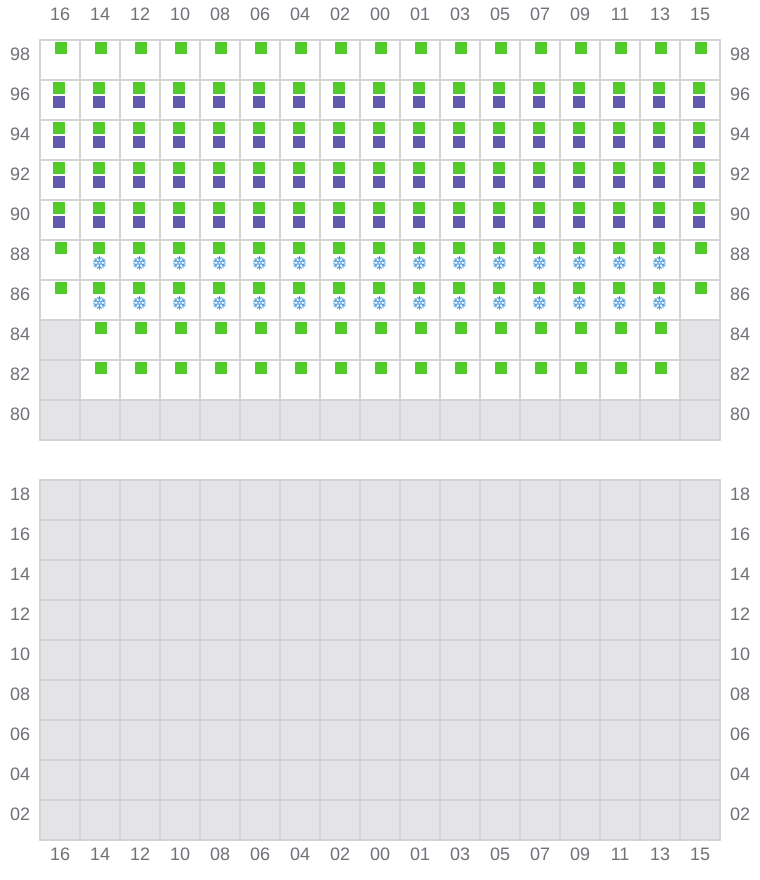

Bay 057 view and slots of SANTA CRUZ

059

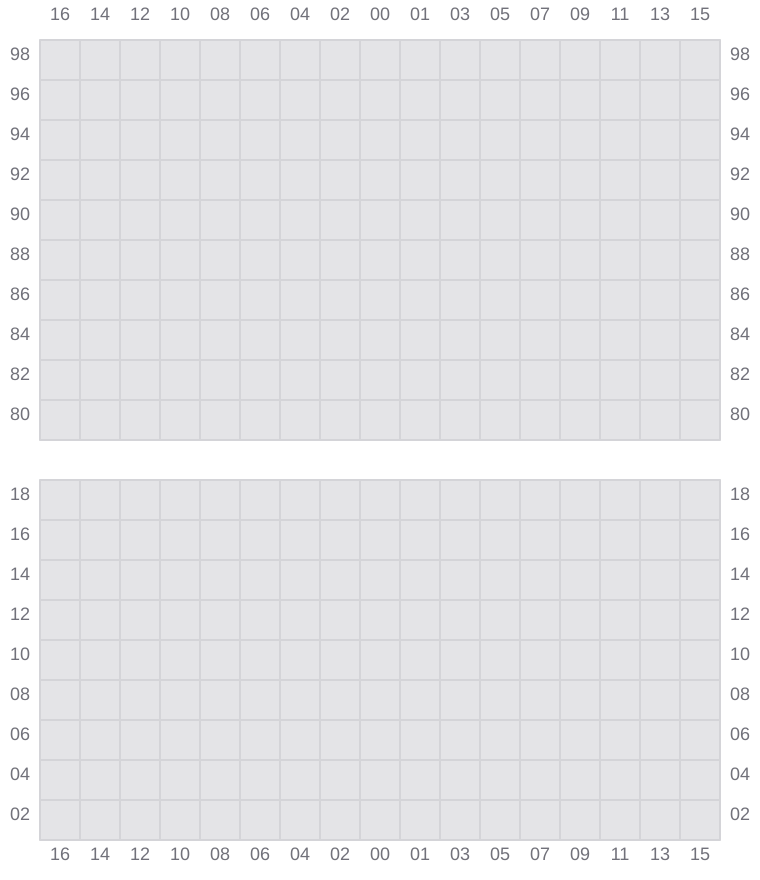

Bay 059 view and slots of SANTA CRUZ

061 (062)

  • ? /

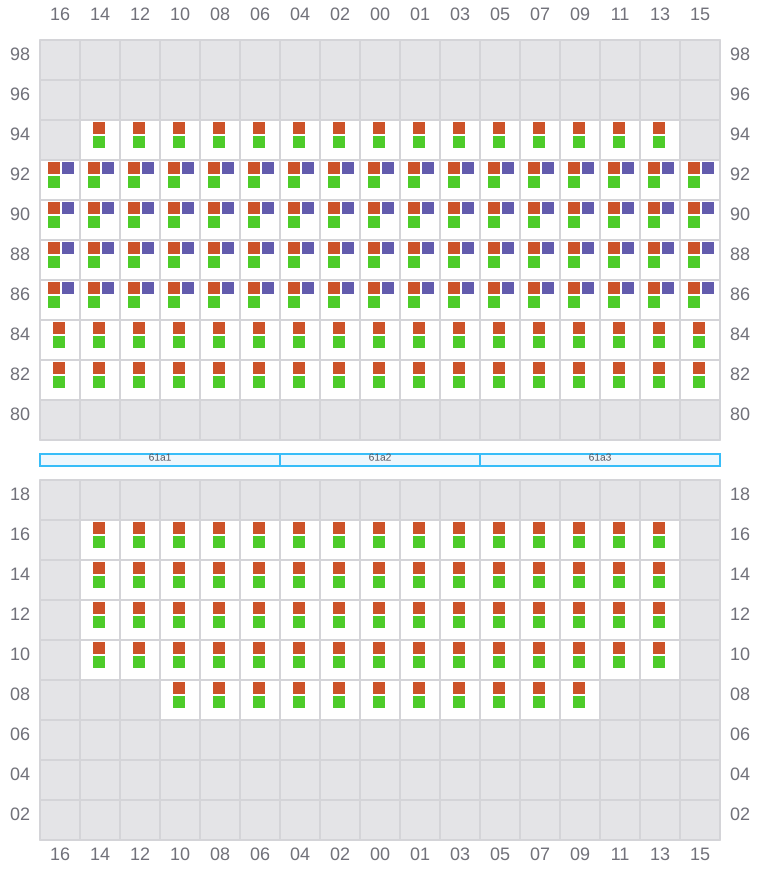

Bay 061 view and slots of SANTA CRUZ

063

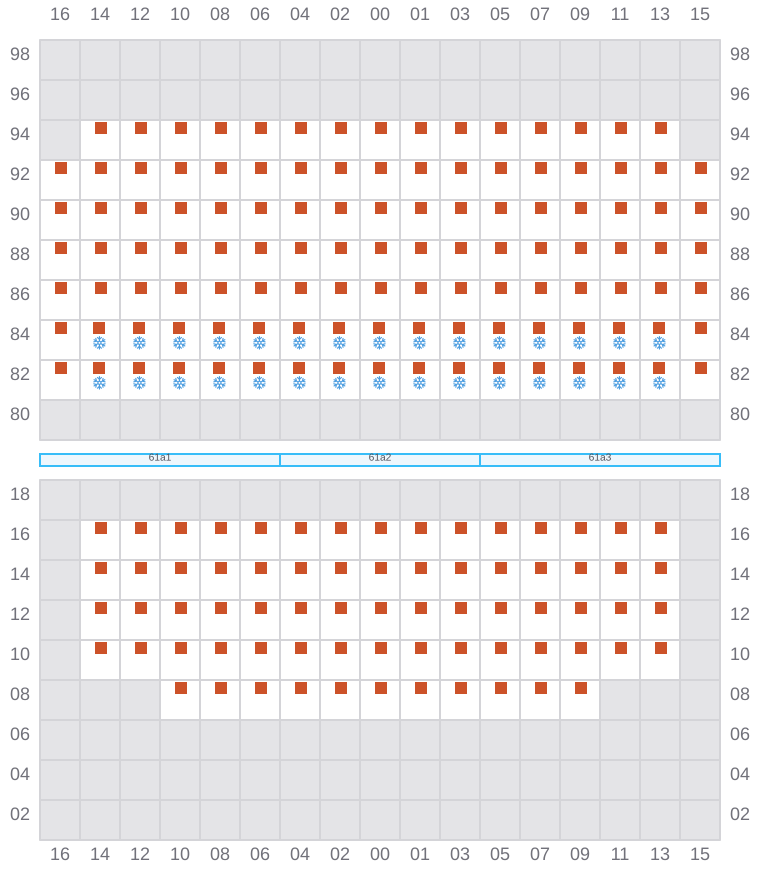

Bay 063 view and slots of SANTA CRUZ

065 (066)

  • ? /

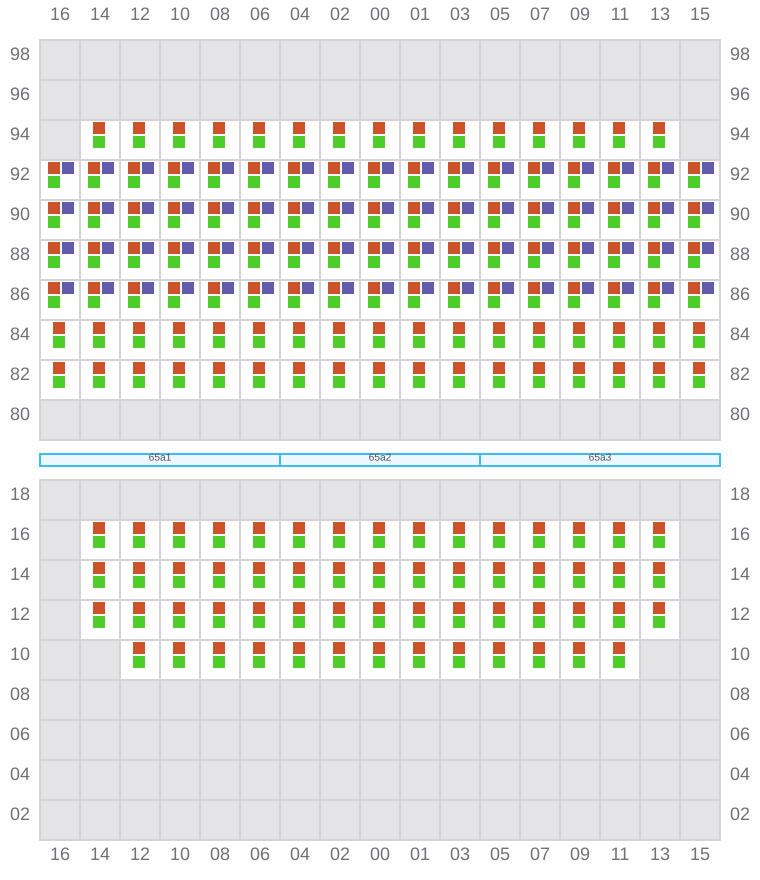

Bay 065 view and slots of SANTA CRUZ

067

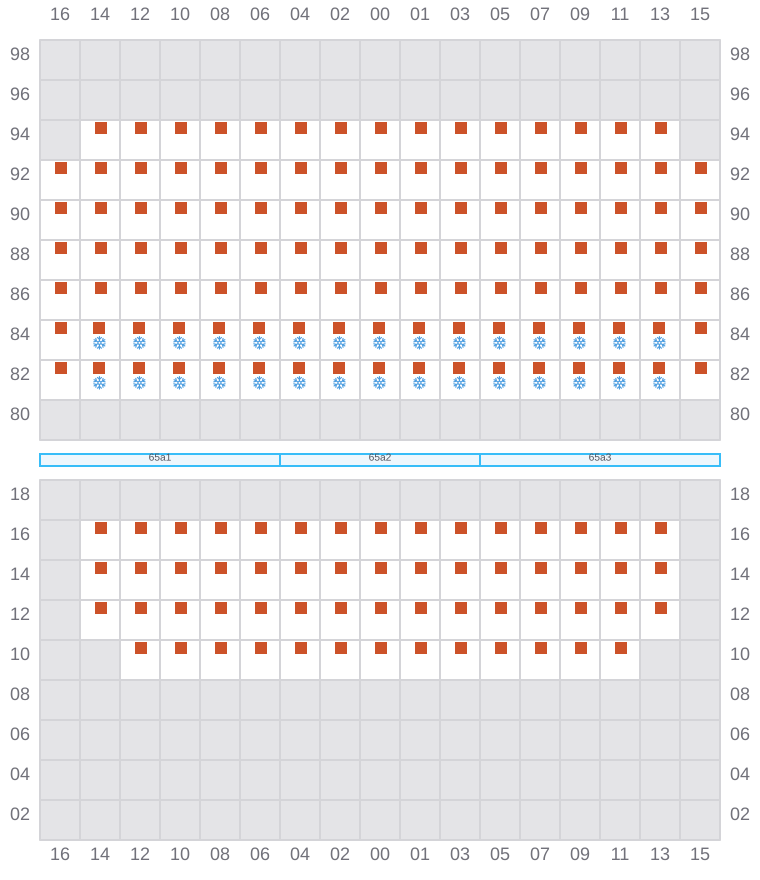

Bay 067 view and slots of SANTA CRUZ

069 (070)

  • / ?

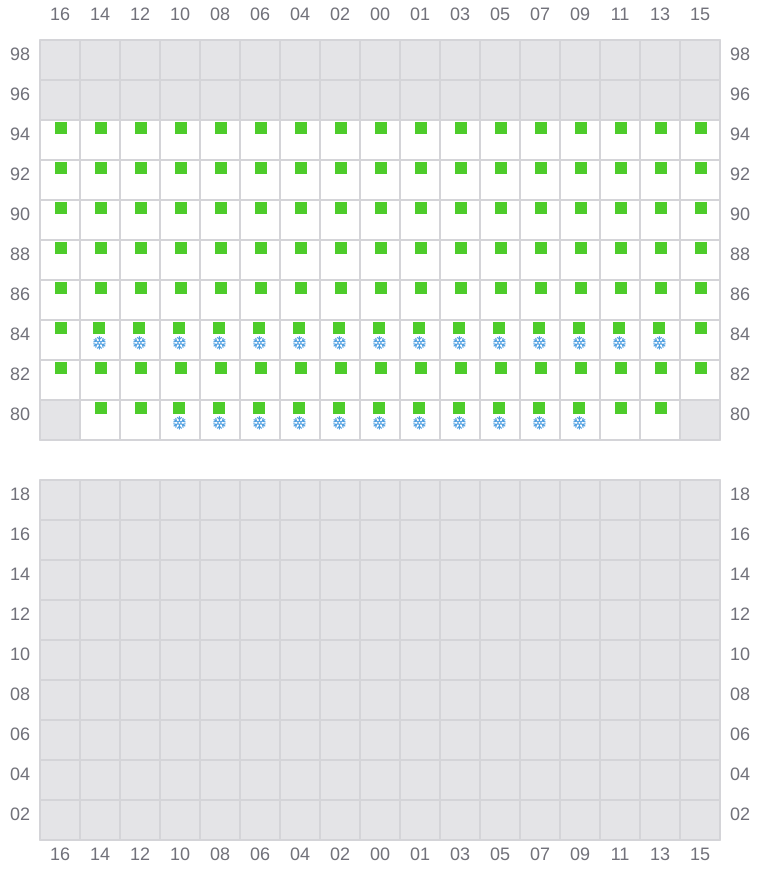

Bay 069 view and slots of SANTA CRUZ
