SANTA ROSA
9430363 | OXMP2 | MSK by ************************** Last update: Mon Jun 26 2023
General Info
Ship Name:SANTA ROSA
IMO Code:9430363
Call Sign:OXMP2
Line Operator:MSK
Class Name for Sister Ships:SAR
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,186
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

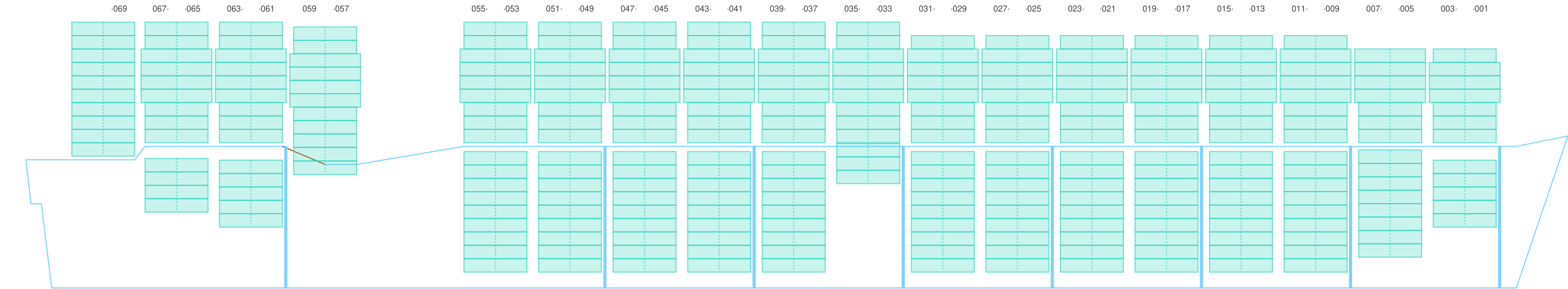

Side View

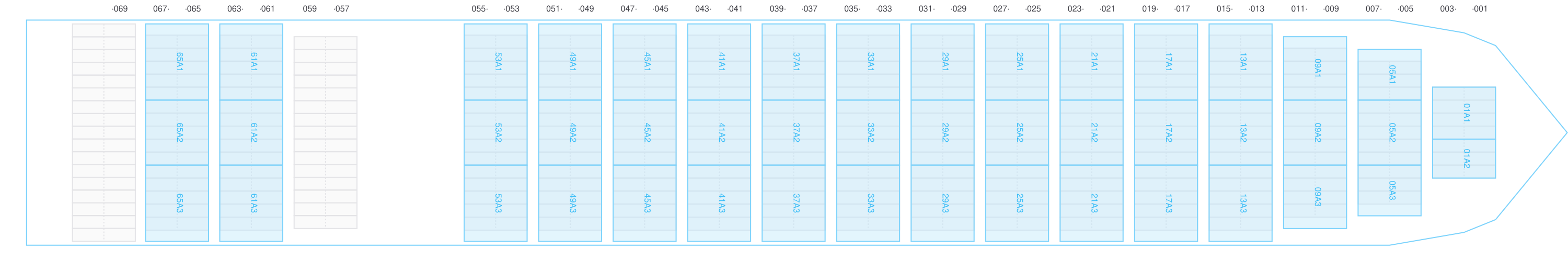

Hatch-Covers View

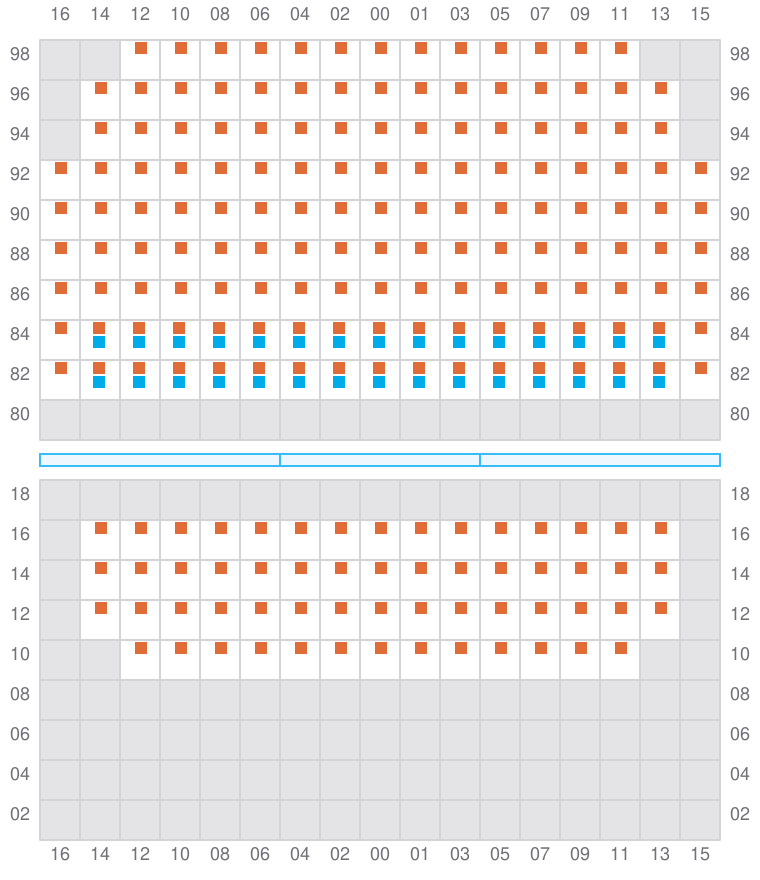

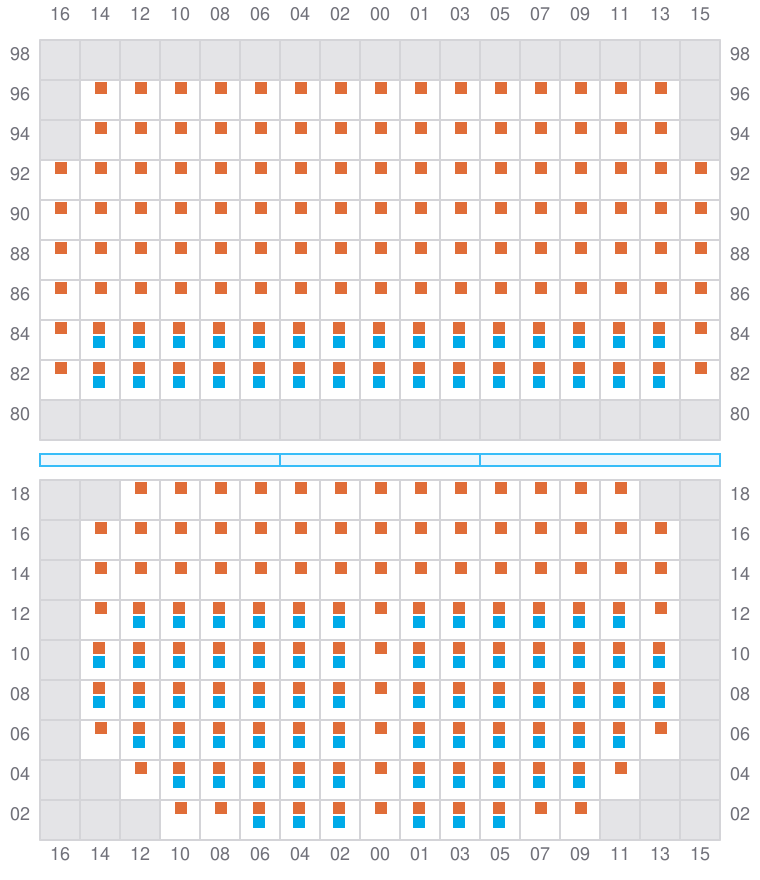

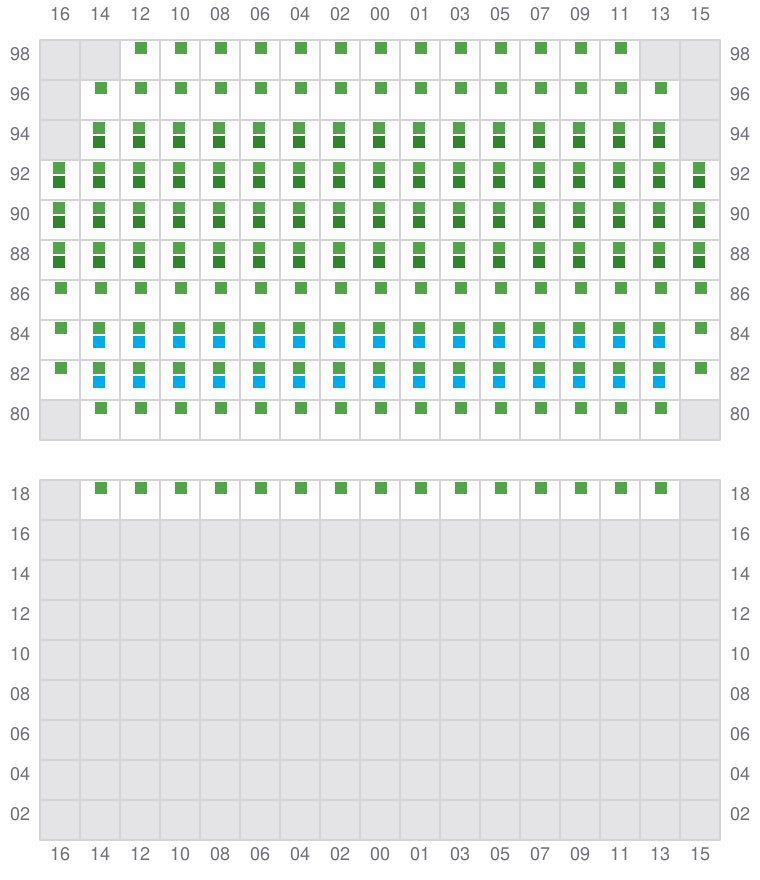

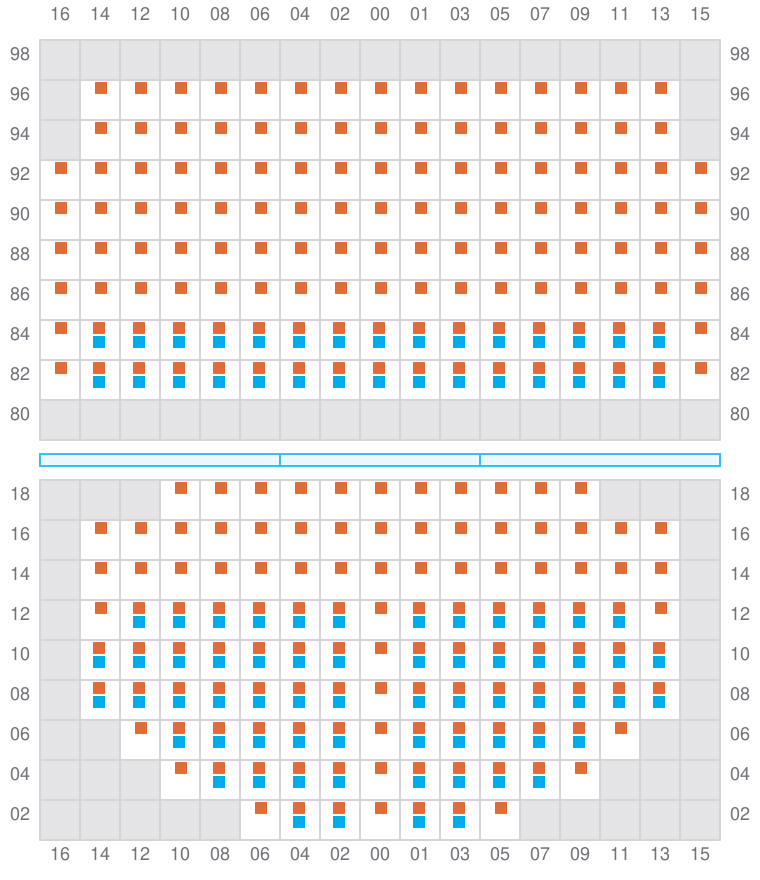

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

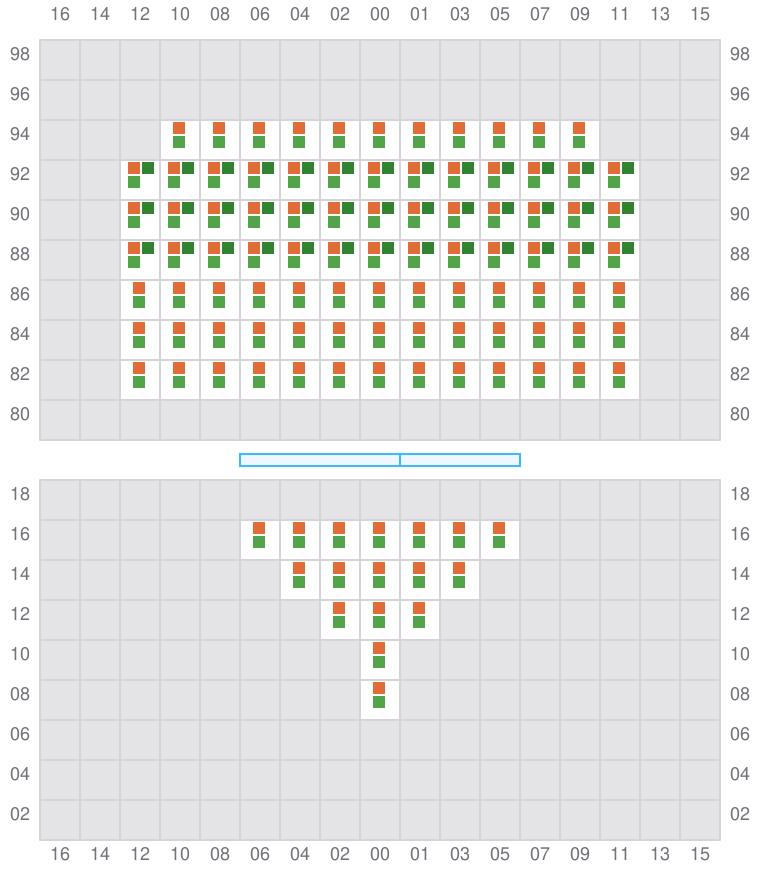

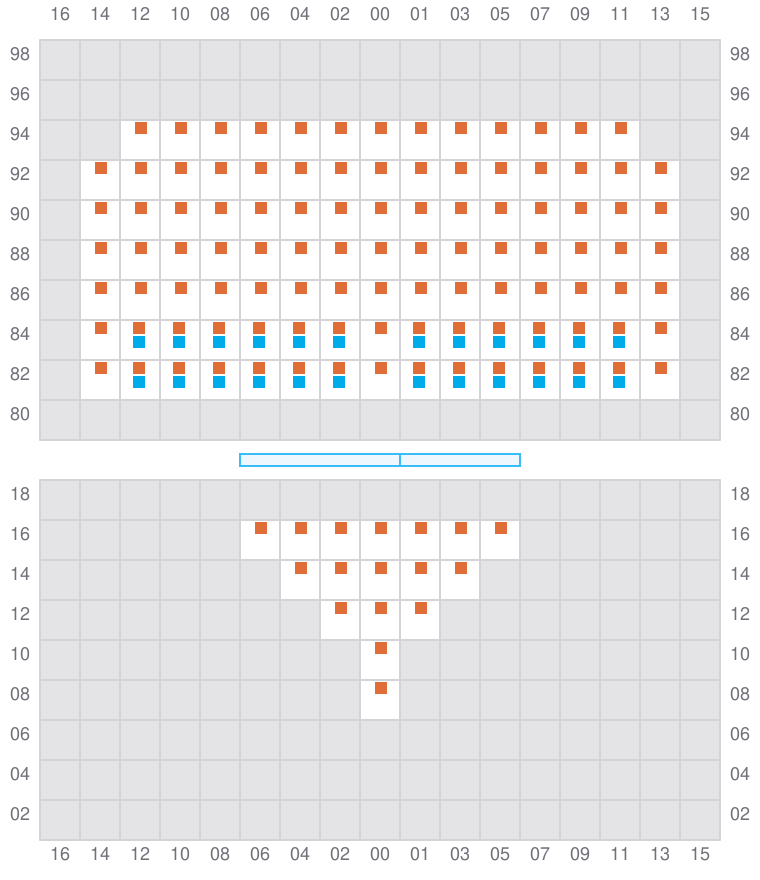

001 (002)
- →
- ← / →
003
- ←
- →

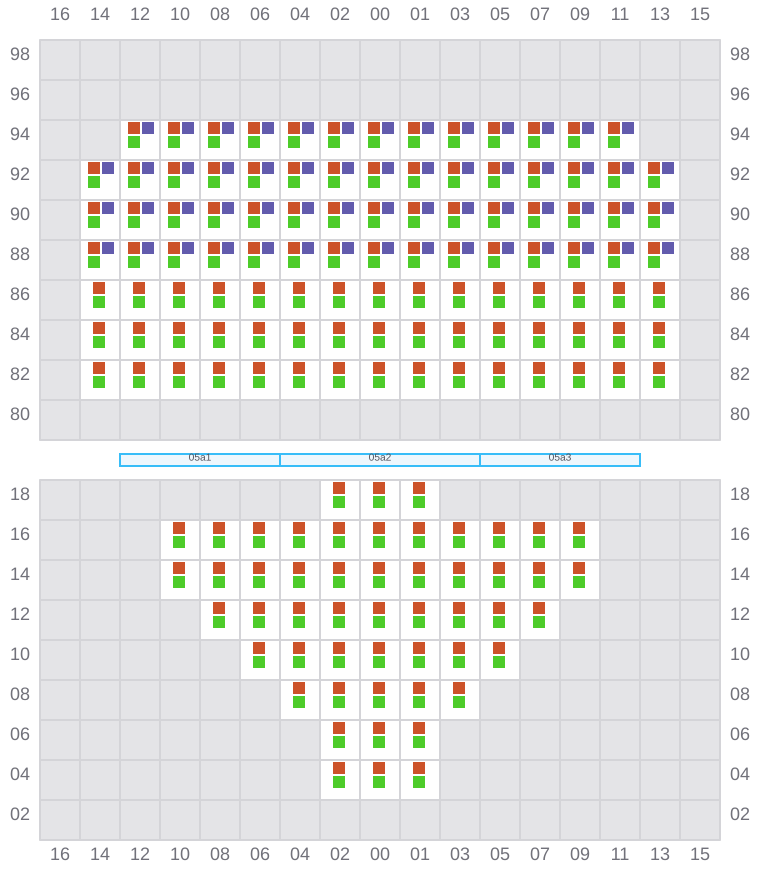

005 (006)
- →
- ← / →
007
- ←
- →

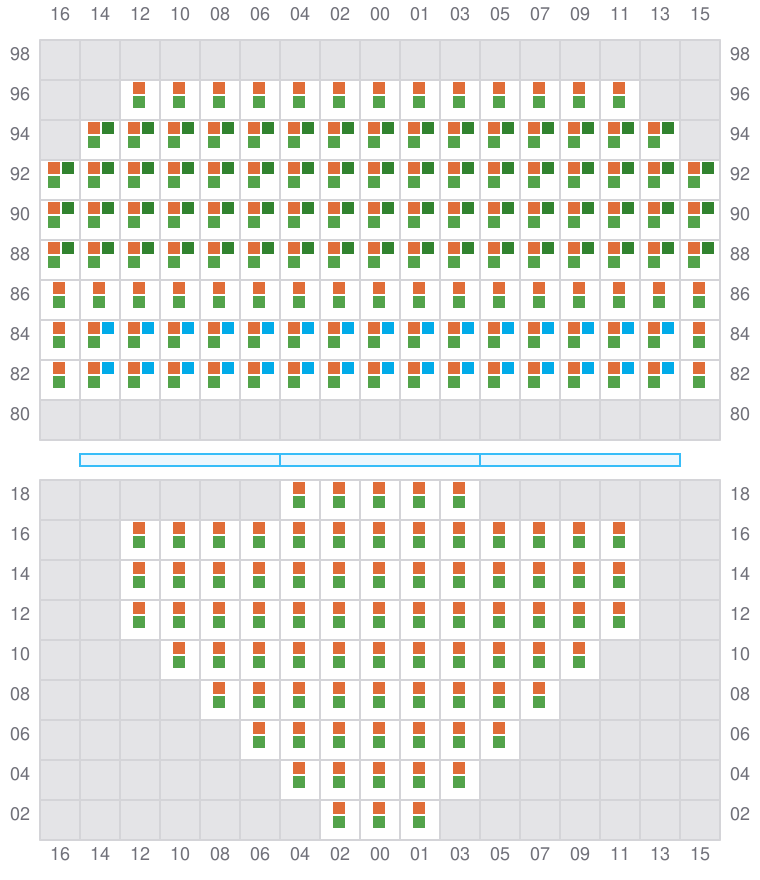

009 (010)
- →
- ← / →
011
- ←
- →
013 (014)
- →
- ← / →

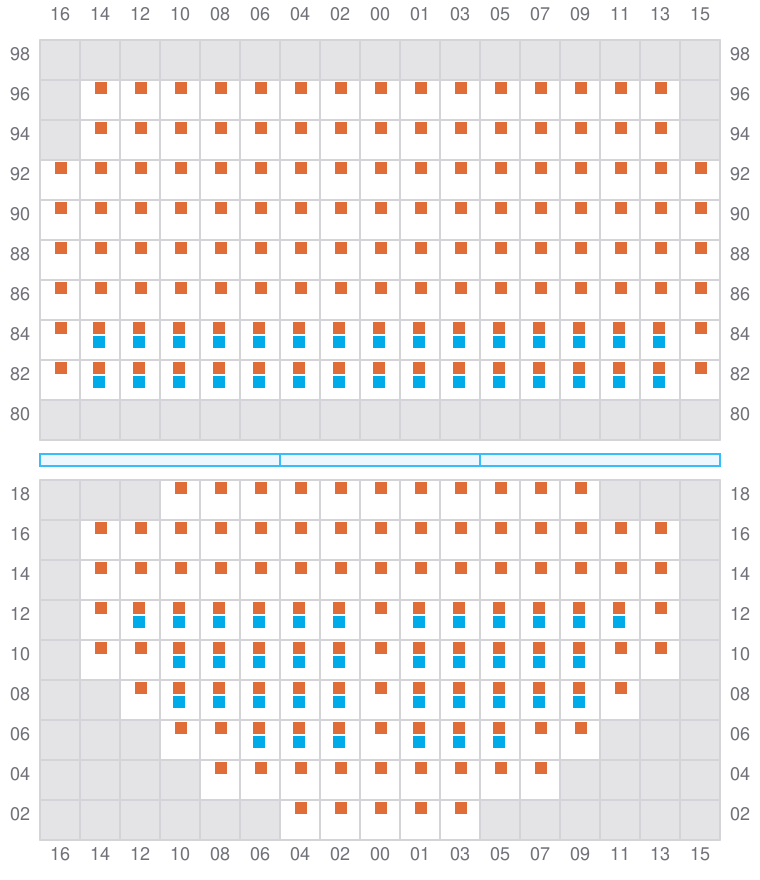

015
- ←
- →
017 (018)
- →
- ← / →
019
- ←
- →
021 (022)
- →
- ← / →
023
- ←
- →
025 (026)
- →
- ← / →

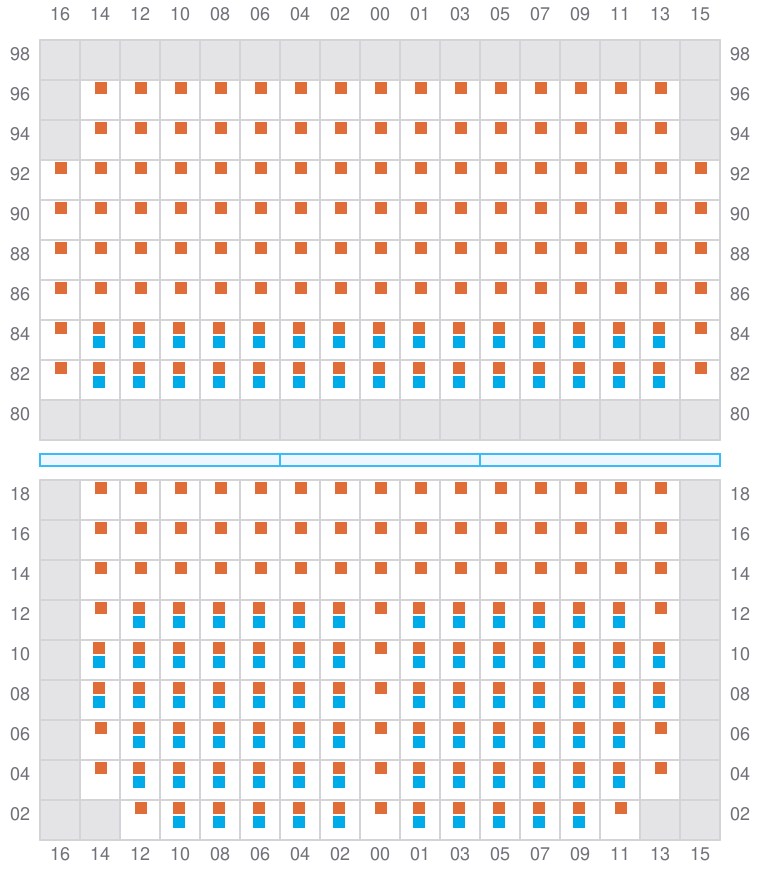

027
- ←
- →
029 (030)
- →
- ← / →
031
- ←
- →

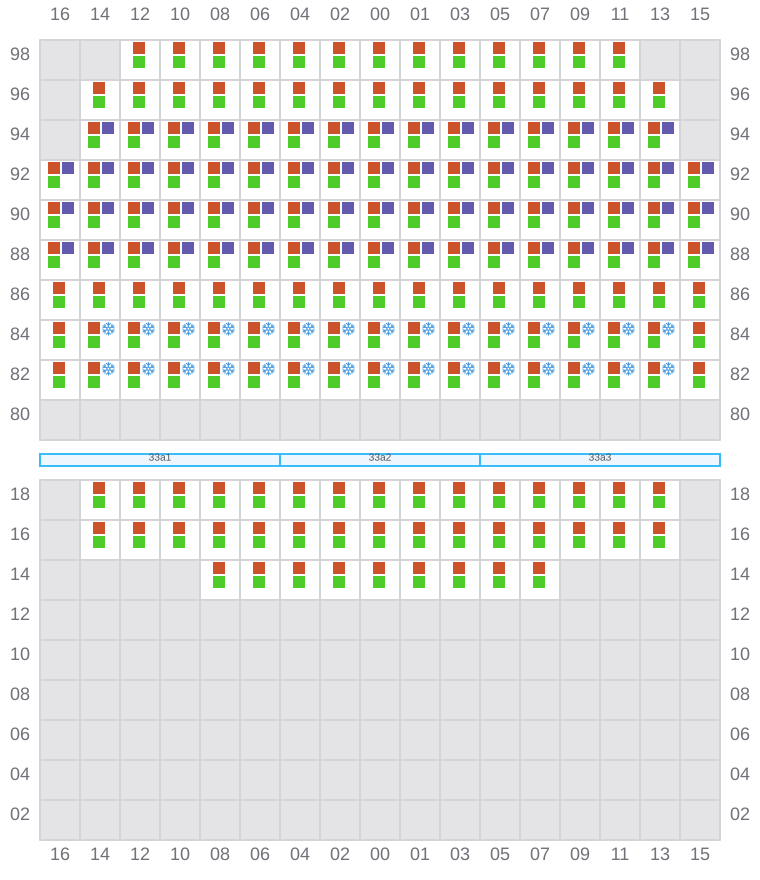

033 (034)
- →
- ← / →

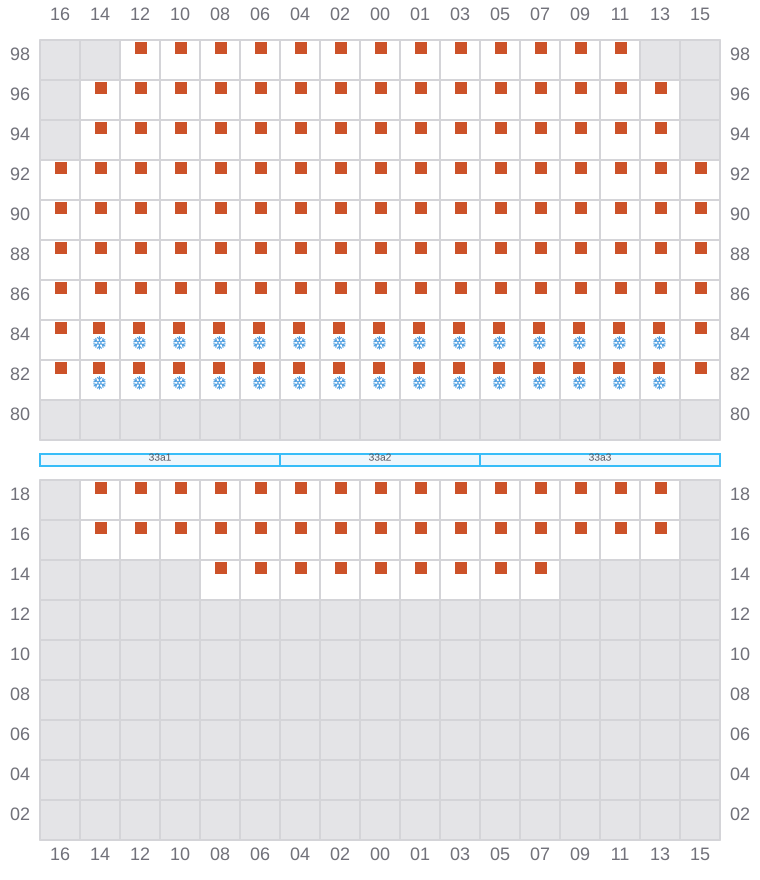

035
- ←
- →
037 (038)
- →
- ← / →
039
- ←
- →
041 (042)
- →
- ← / →
043
- ←
- →

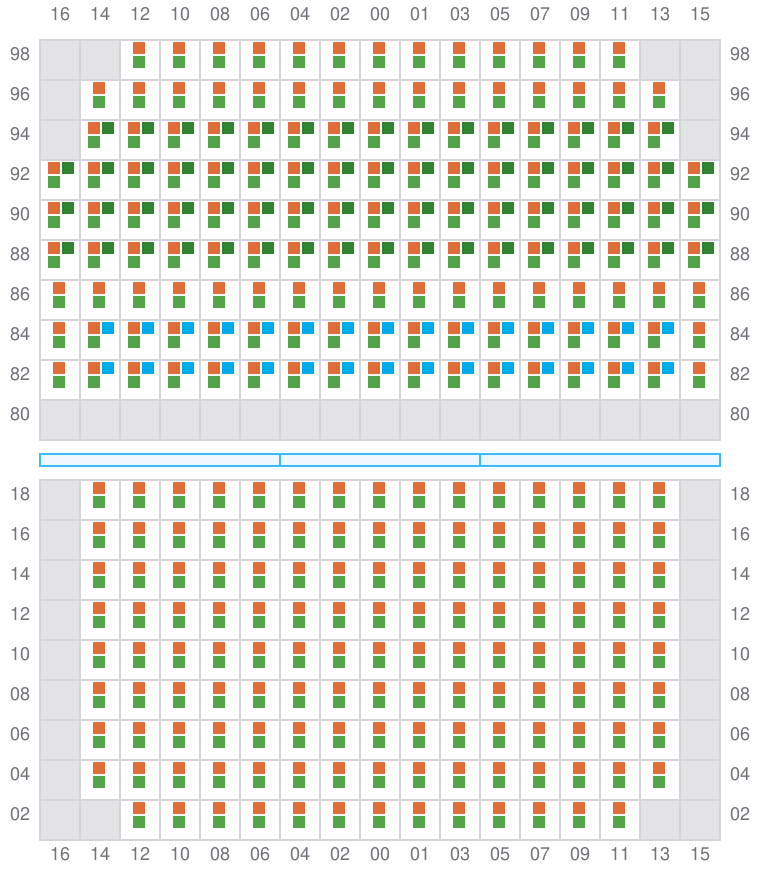

045 (046)
- →
- ← / →
047
- ←
- →
049 (050)
- →
- ← / →

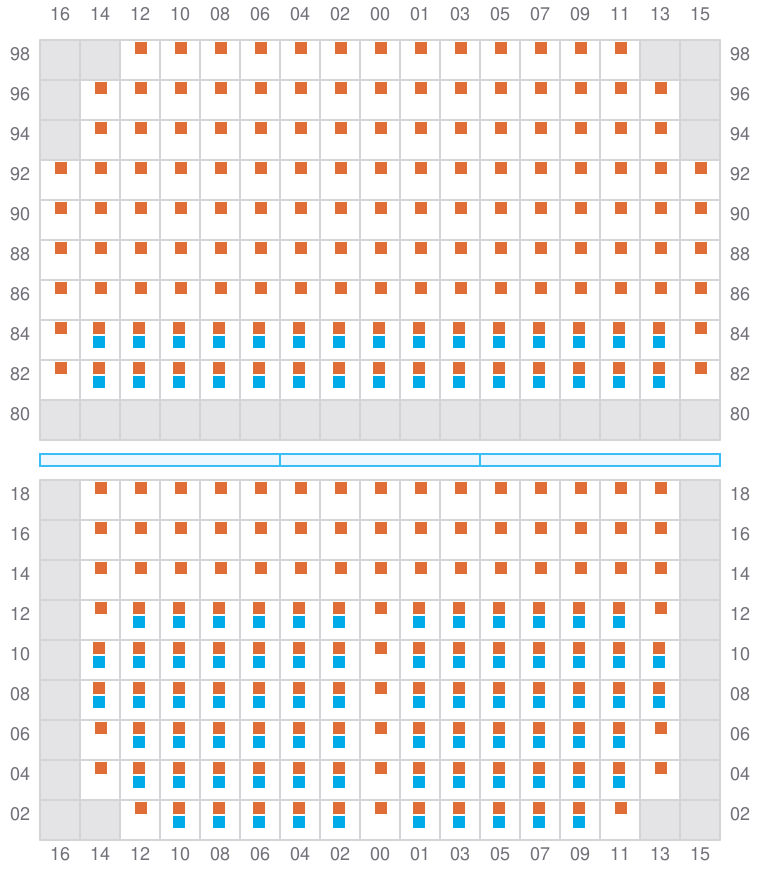

051
- ←
- →

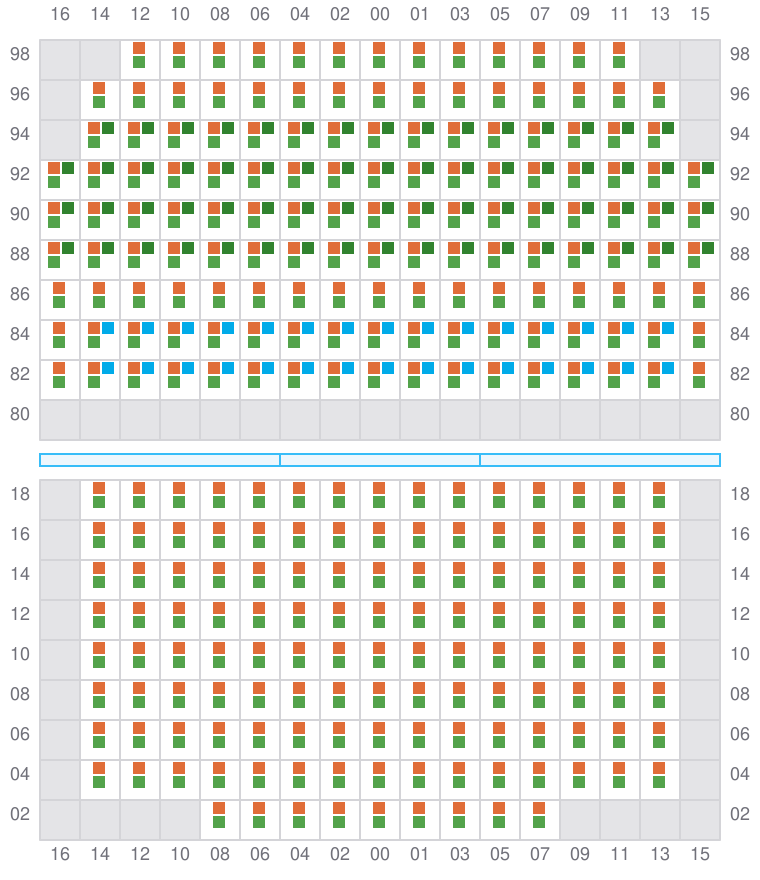

053 (054)
- →
- ← / →
055
- ←
- →
057 (058)
- →
- → / ?
059

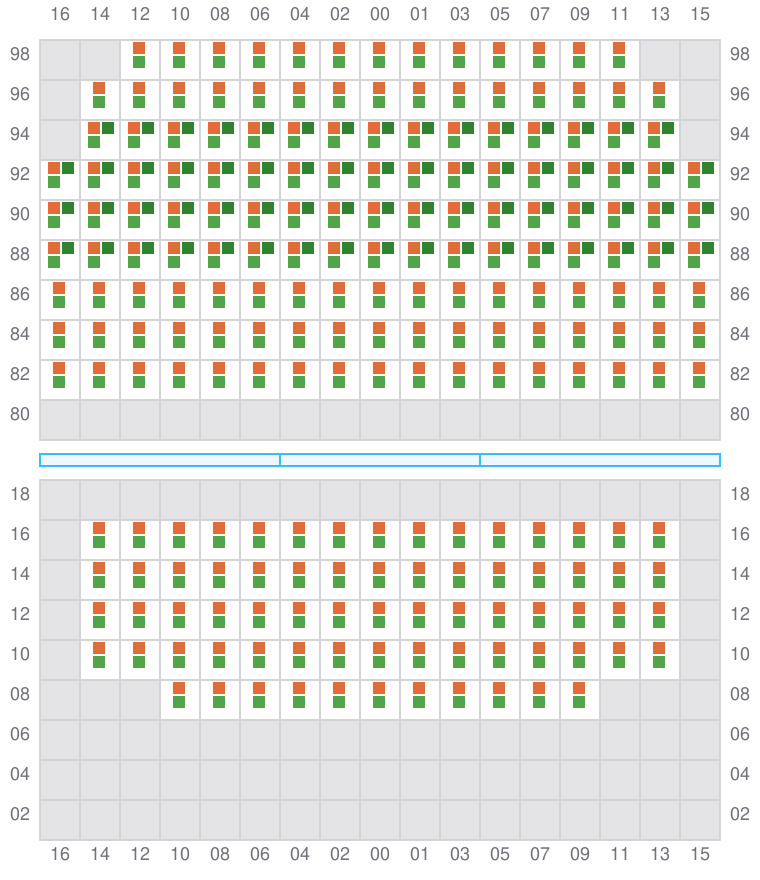

061 (062)
- →
- ? / →

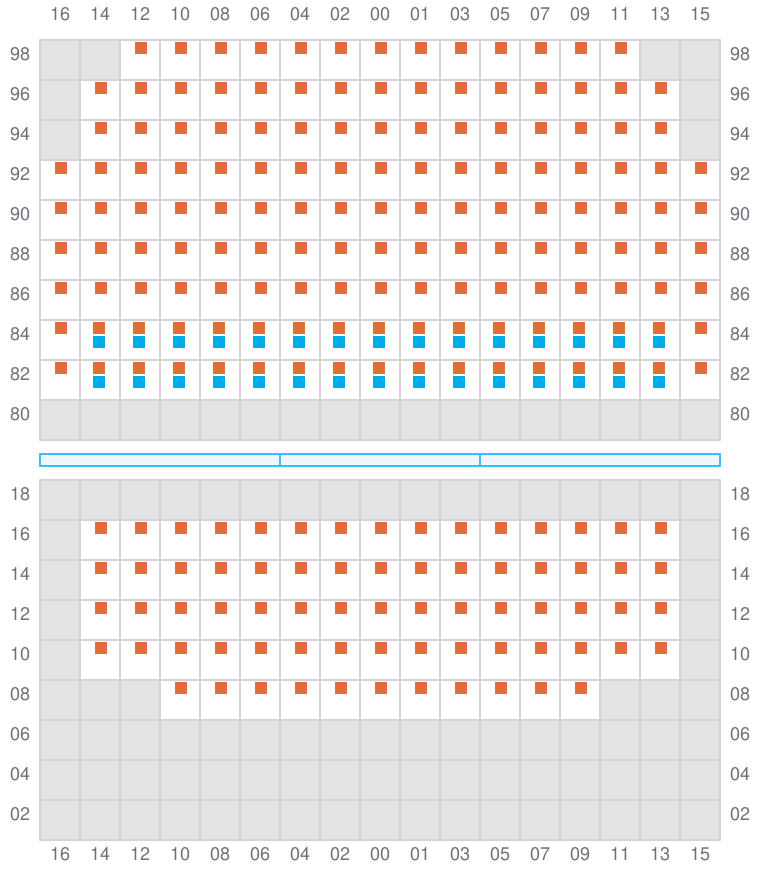

063
- ←
- →

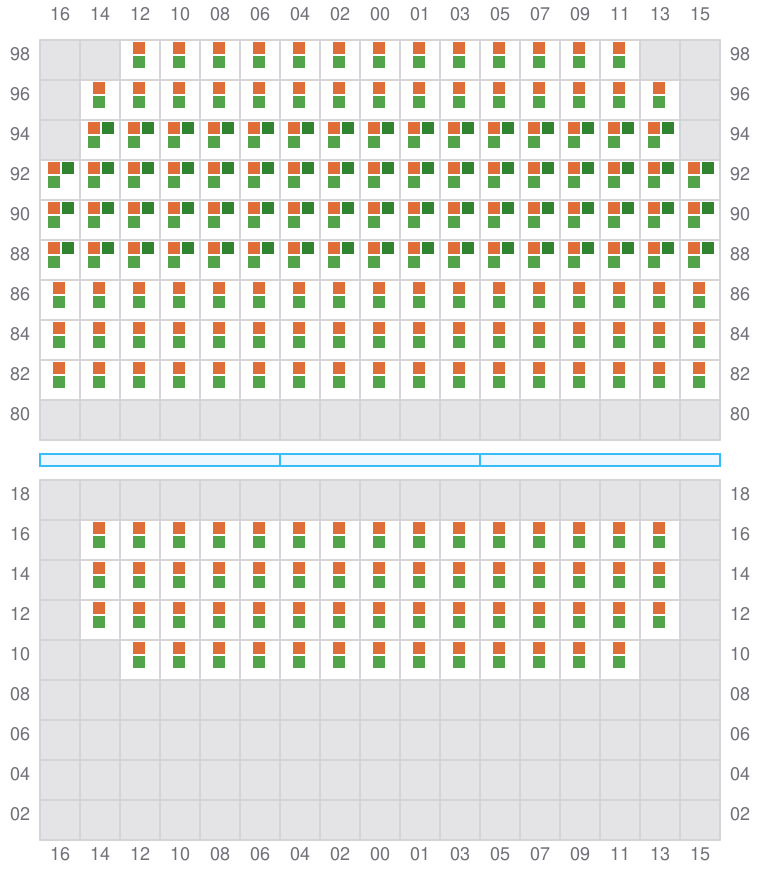

065 (066)
- →
- ? / →
067
- ←
- →
069 (070)
- → / ?
- ← / ?
