SANTUCA B
9287687 | CQFZ | 9287687 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:SANTUCA B
IMO Code:9287687
Call Sign:CQFZ
Line Operator:9287687
Class Name for Sister Ships:09N
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:822
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

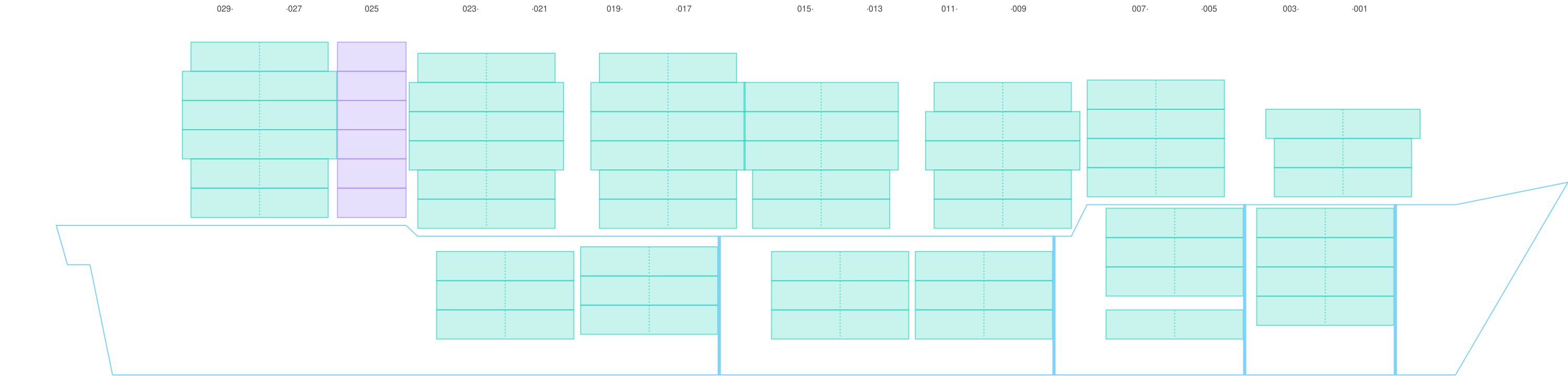

Side View

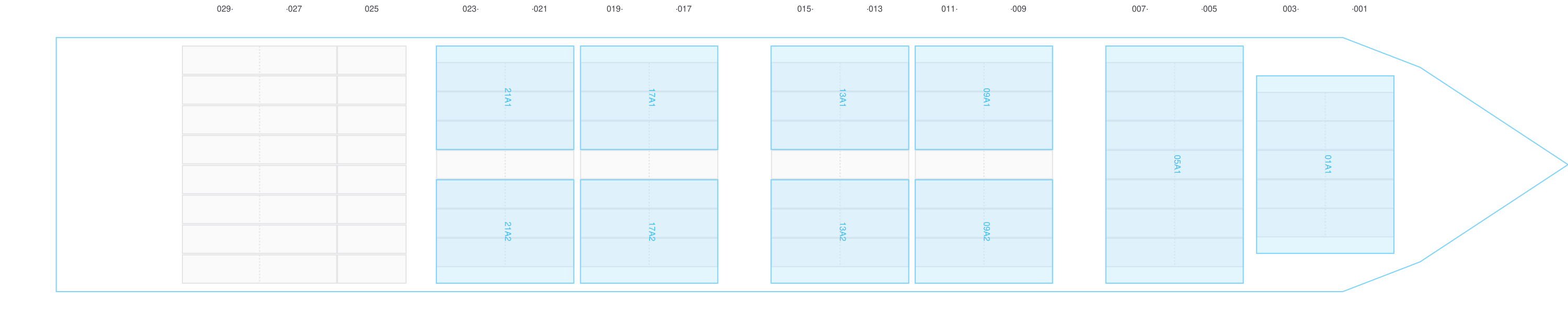

Hatch-Covers View

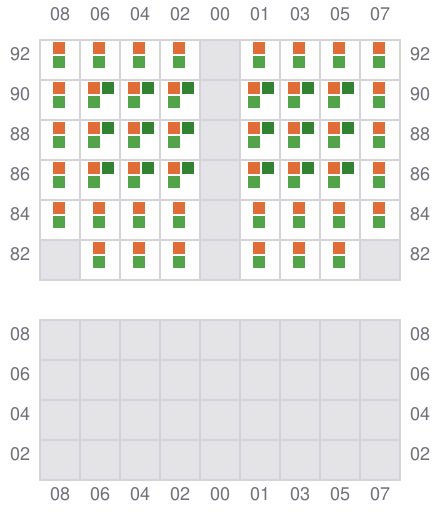

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

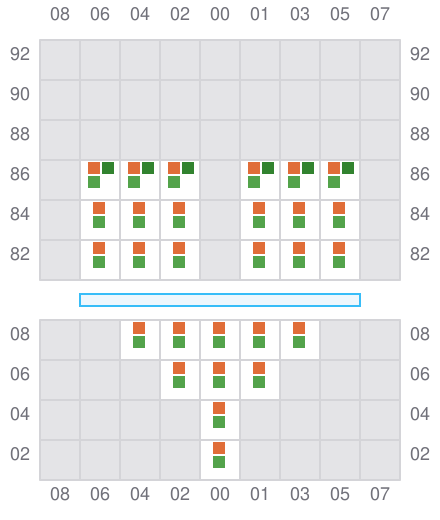

001 (002)
- →

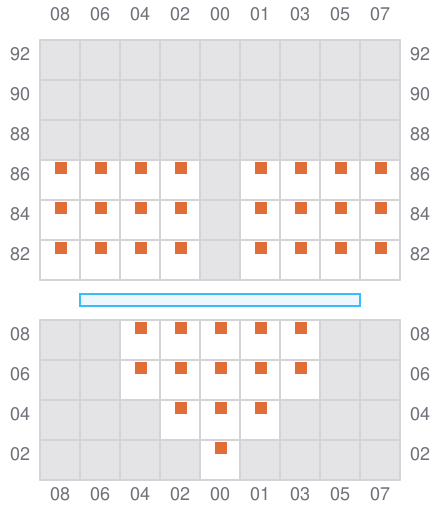

003
- ←

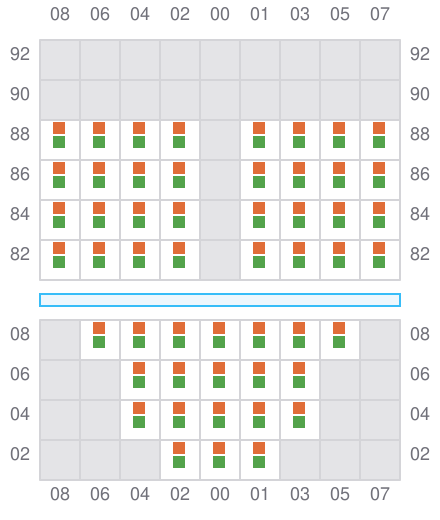

005 (006)
- →
- → / ?

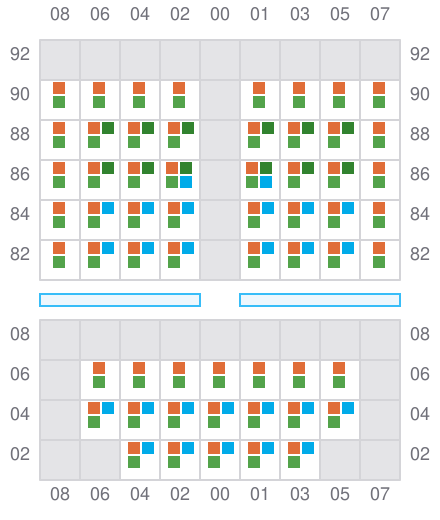

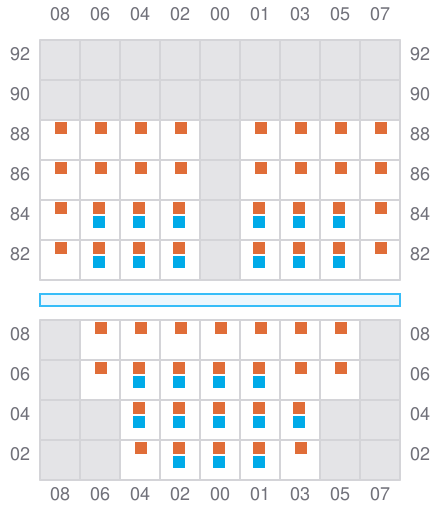

007
- ←
- →

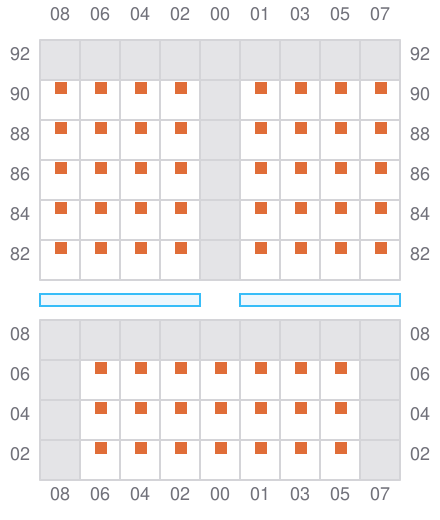

009 (010)
- →
- ←
011
- ←

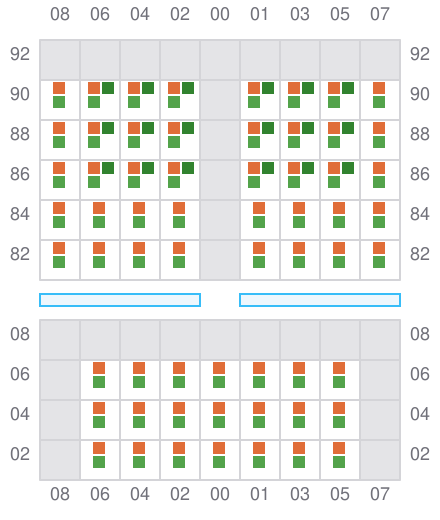

013 (014)
- →

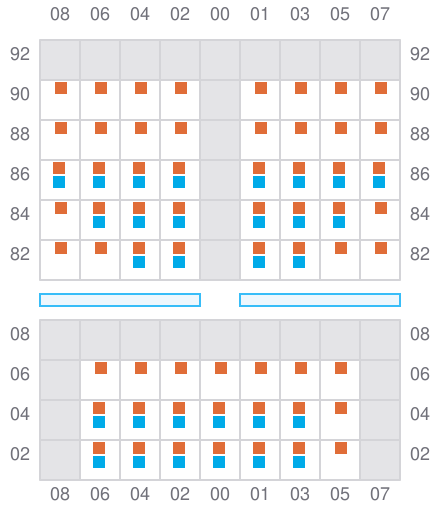

015
- ←
- →

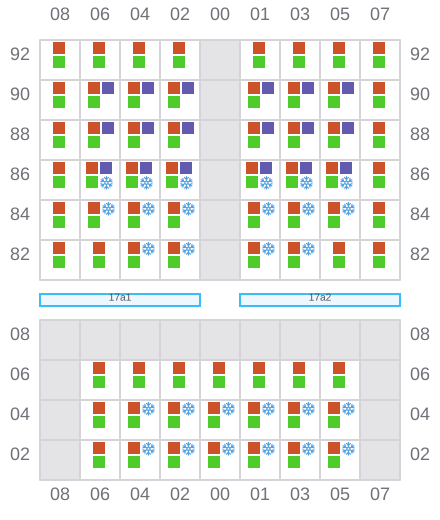

017 (018)
- →
- ←

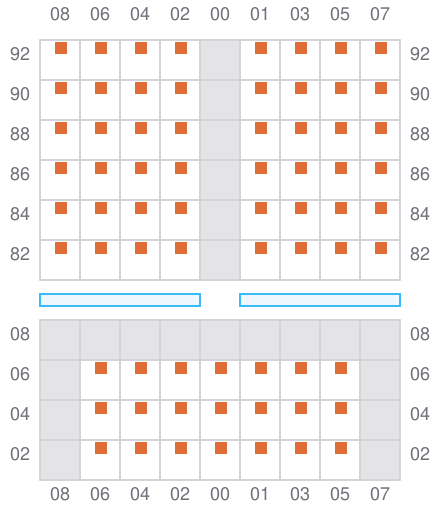

019
- ←

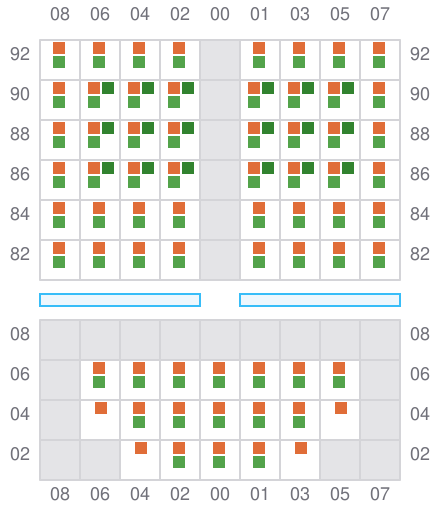

021 (022)
- →

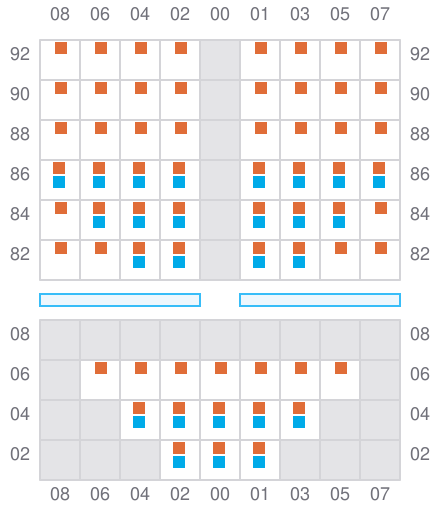

023
- ←
- →

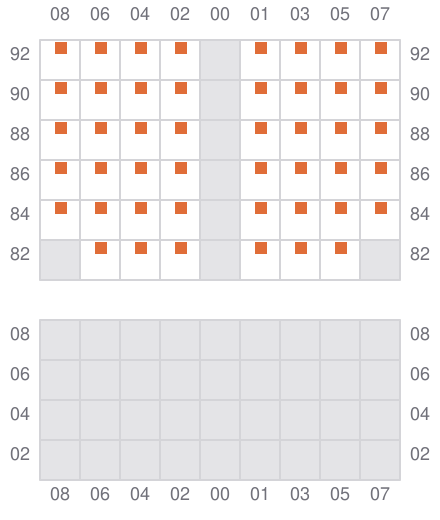

025
027 (028)
- → / ?

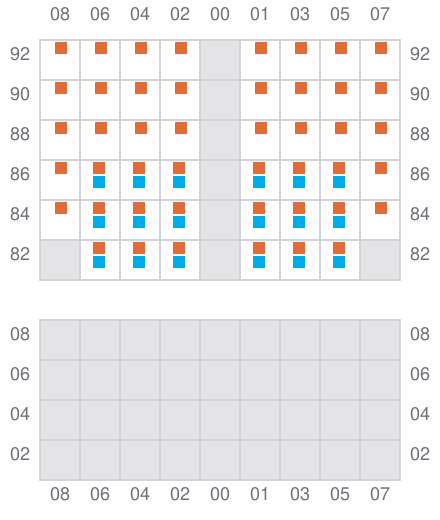

029
- ← / ?
- → / ?
