SASKIA A
9315927 | TCA3543 | 9315927 by ********* Last update: Thu May 16 2024

General Info

Ship Name:SASKIA A
IMO Code:9315927
Call Sign:TCA3543
Line Operator:9315927
Class Name for Sister Ships:SFLFALCON
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):212.20
LOA (Length Overall):222.17
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

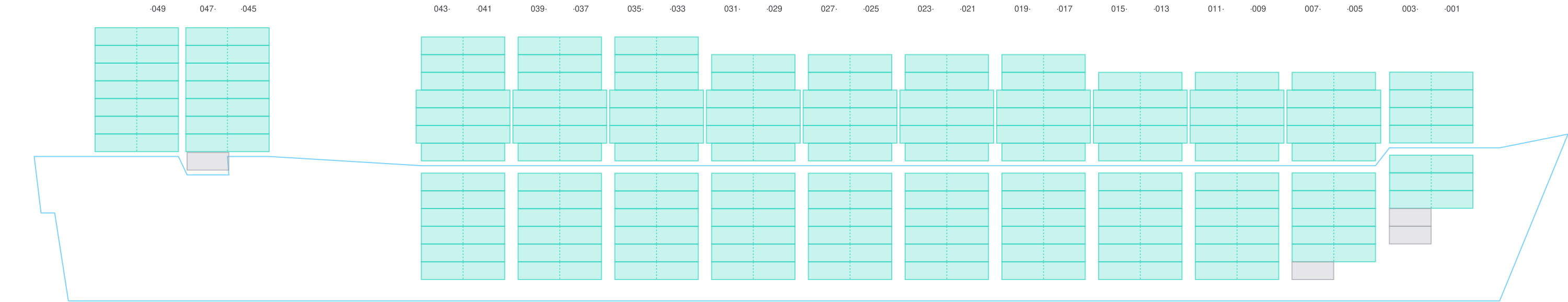

Side View

Side view of SASKIA A

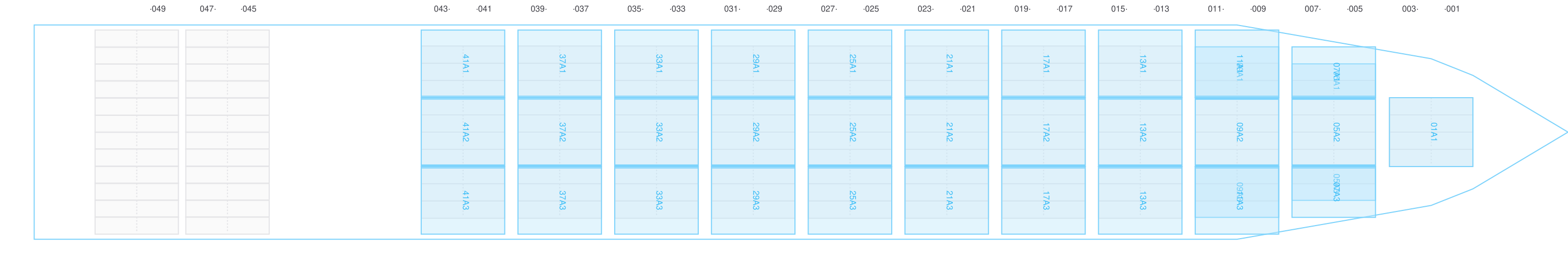

Hatch-Covers View

Deck view of SASKIA A

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

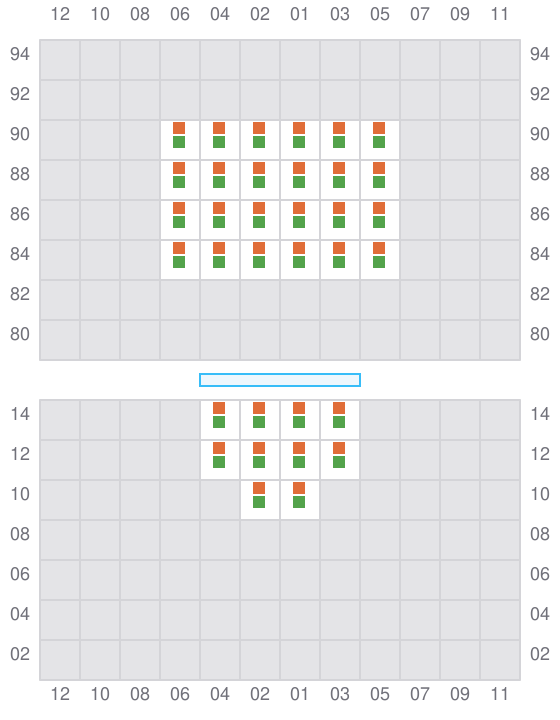

Bay 001 view and slots of SASKIA A

003

  • ←
  • → / ?

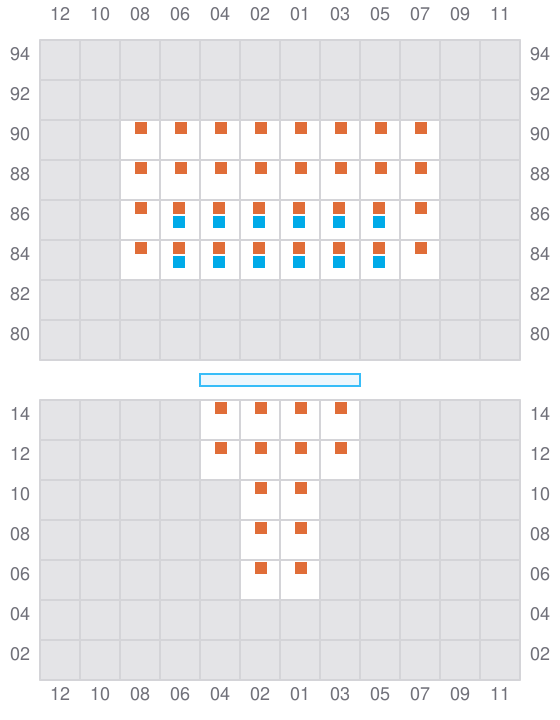

Bay 003 view and slots of SASKIA A

005 (006)

  • →

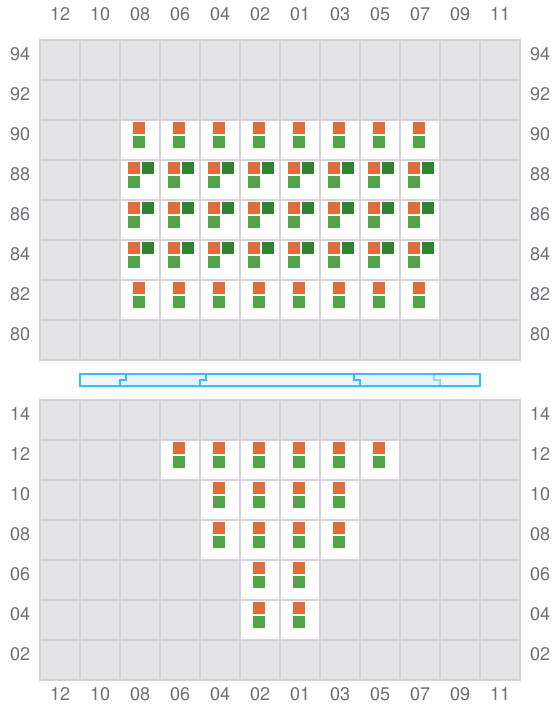

Bay 005 view and slots of SASKIA A

007

  • ←
  • → / ?

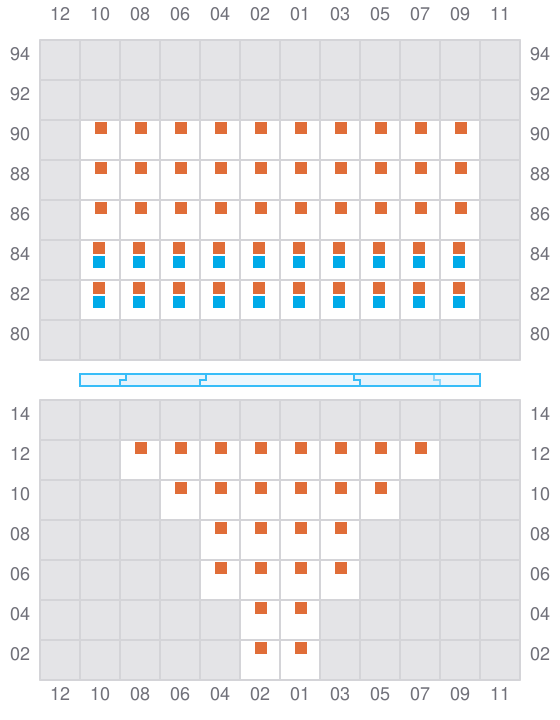

Bay 007 view and slots of SASKIA A

009 (010)

  • →
  • ← / ?

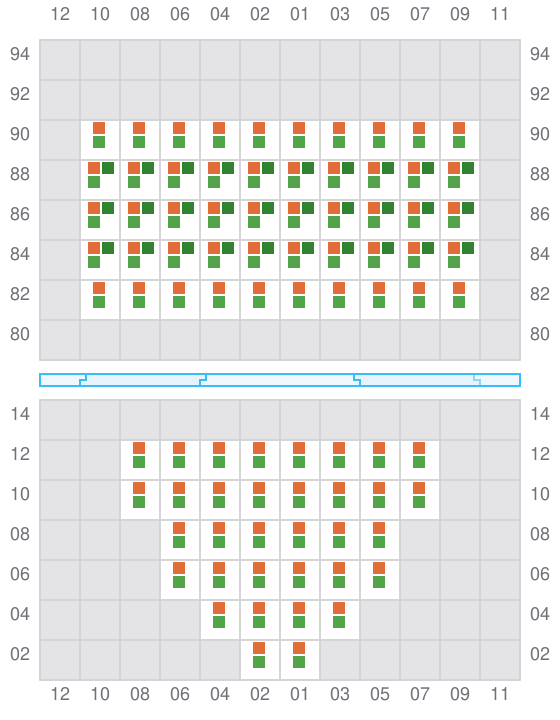

Bay 009 view and slots of SASKIA A

011

  • ←
  • → / ?

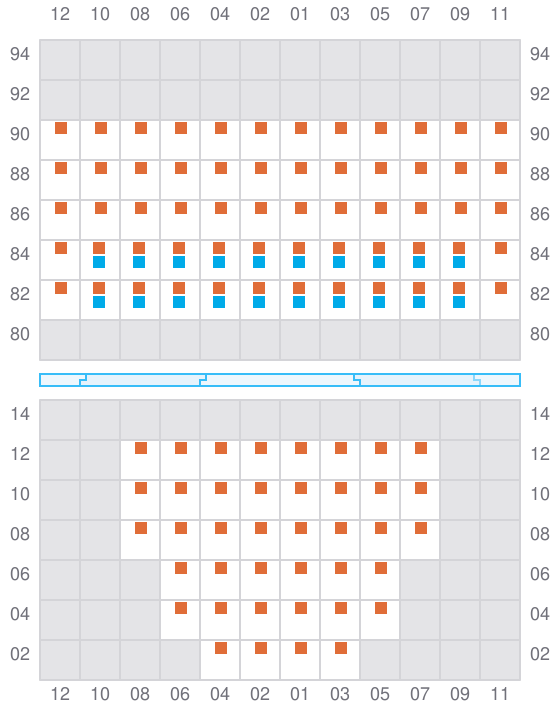

Bay 011 view and slots of SASKIA A

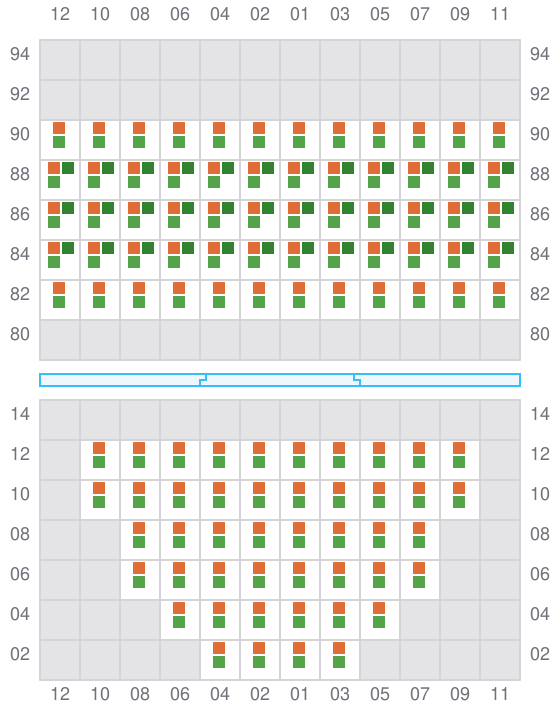

013 (014)

  • →
  • → / ?
Bay 013 view and slots of SASKIA A

015

  • ←
  • →

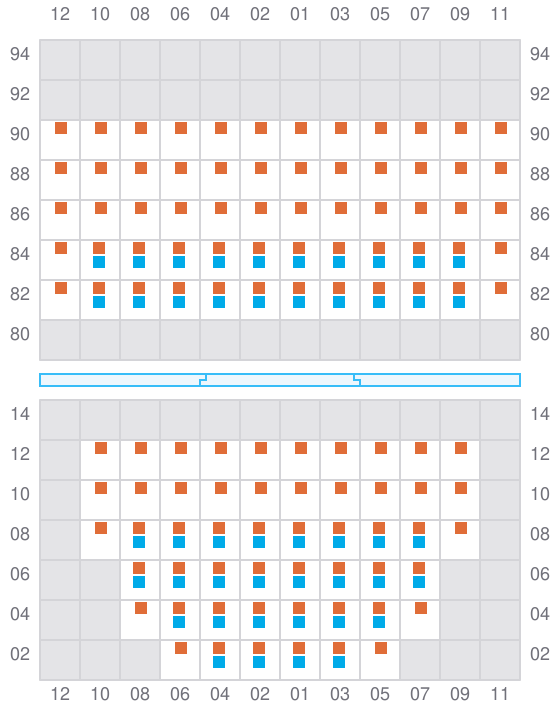

Bay 015 view and slots of SASKIA A

017 (018)

  • →

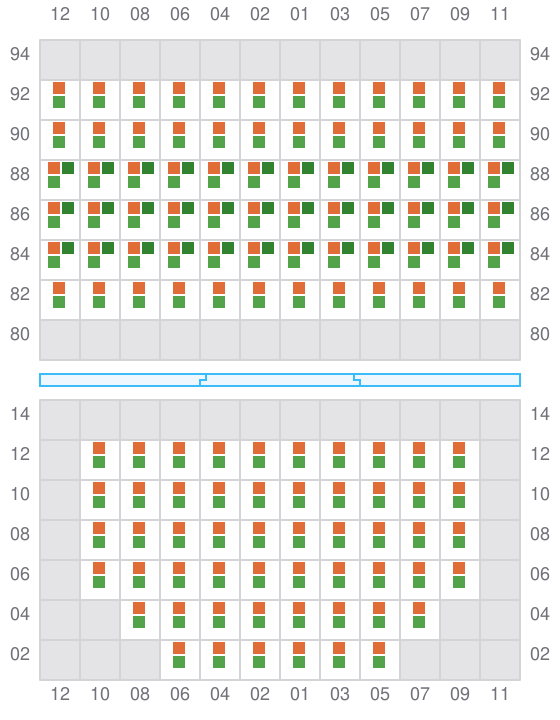

Bay 017 view and slots of SASKIA A

019

  • ←
  • →

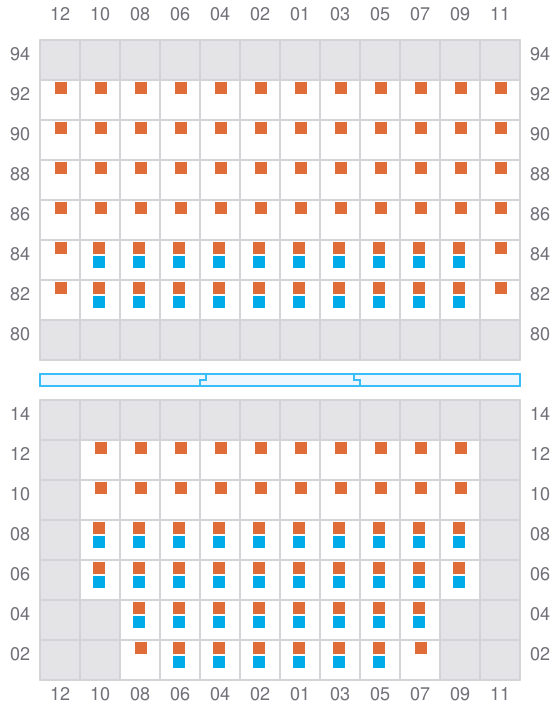

Bay 019 view and slots of SASKIA A

021 (022)

  • →
Bay 021 view and slots of SASKIA A

023

  • ←
  • →

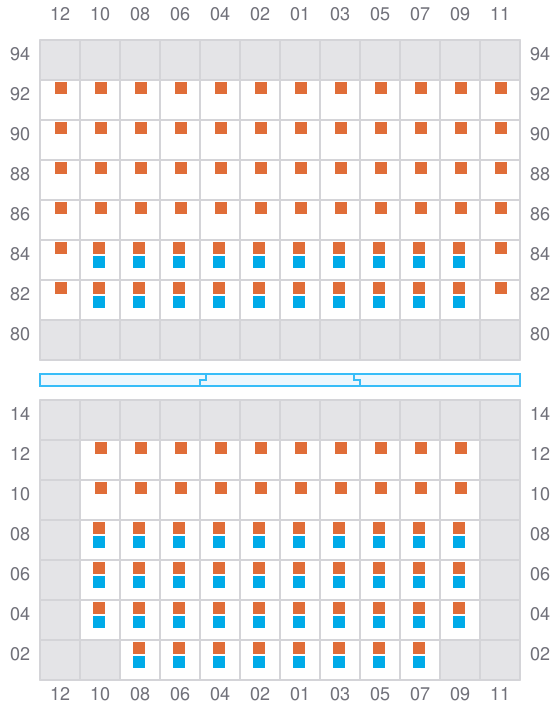

Bay 023 view and slots of SASKIA A

025 (026)

  • →
Bay 025 view and slots of SASKIA A

027

  • ←
  • →
Bay 027 view and slots of SASKIA A

029 (030)

  • →
Bay 029 view and slots of SASKIA A

031

  • ←
  • →
Bay 031 view and slots of SASKIA A

033 (034)

  • →

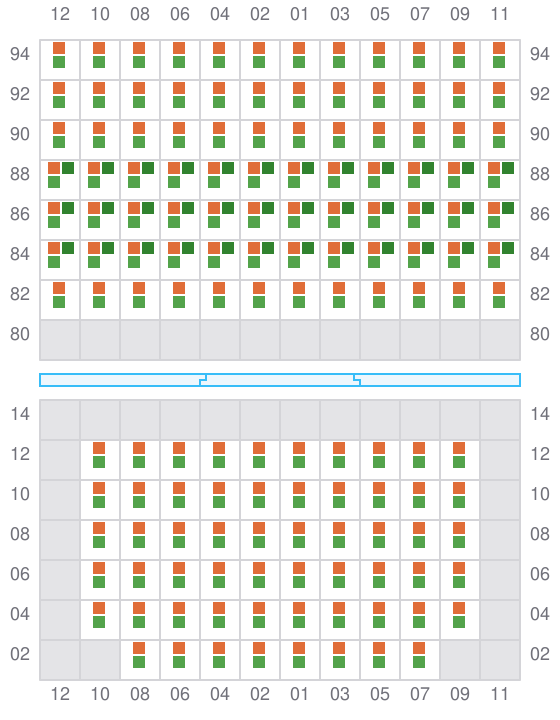

Bay 033 view and slots of SASKIA A

035

  • ←
  • →

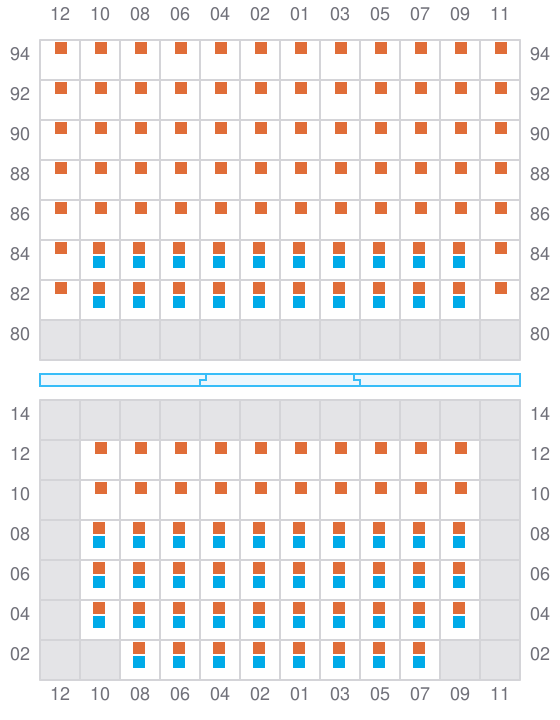

Bay 035 view and slots of SASKIA A

037 (038)

  • →

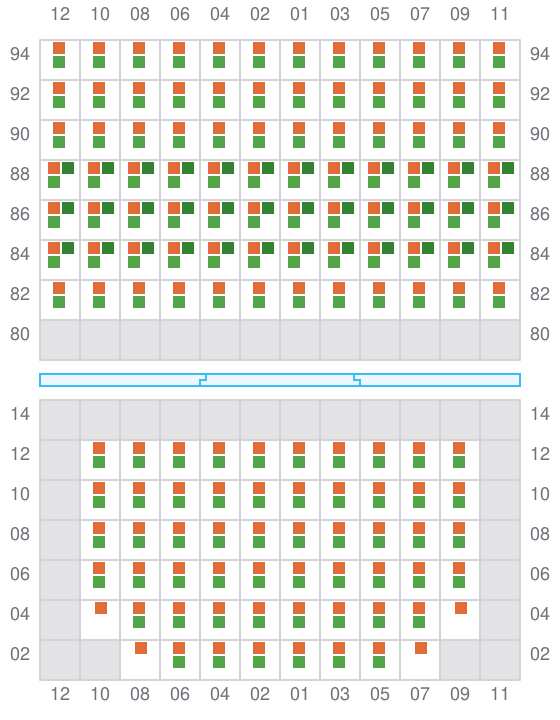

Bay 037 view and slots of SASKIA A

039

  • ←
  • →

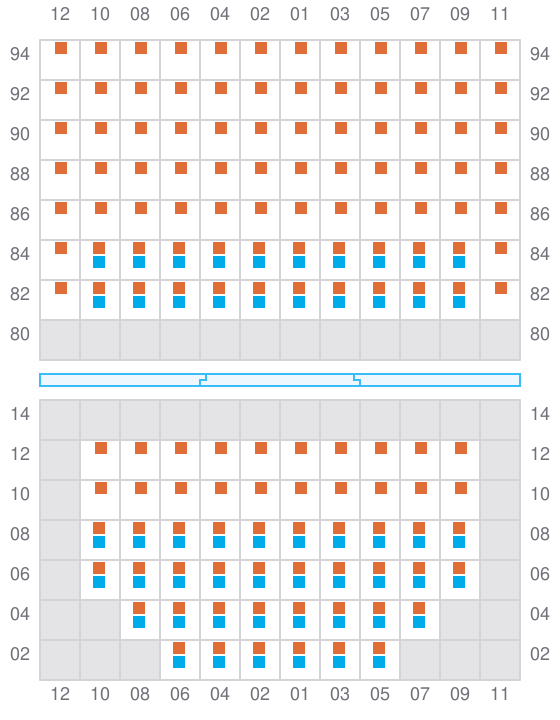

Bay 039 view and slots of SASKIA A

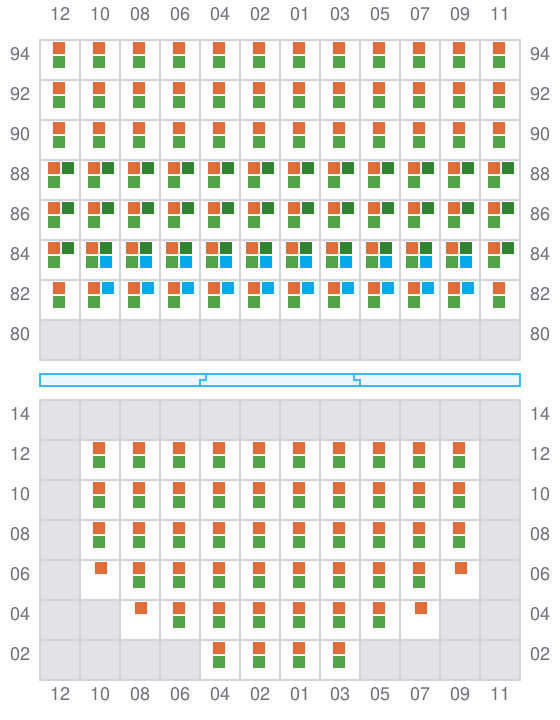

041 (042)

  • →
  • ← / ?
Bay 041 view and slots of SASKIA A

043

  • ←
  • →
Bay 043 view and slots of SASKIA A

045 (046)

  • → / ?
  • ← / ?

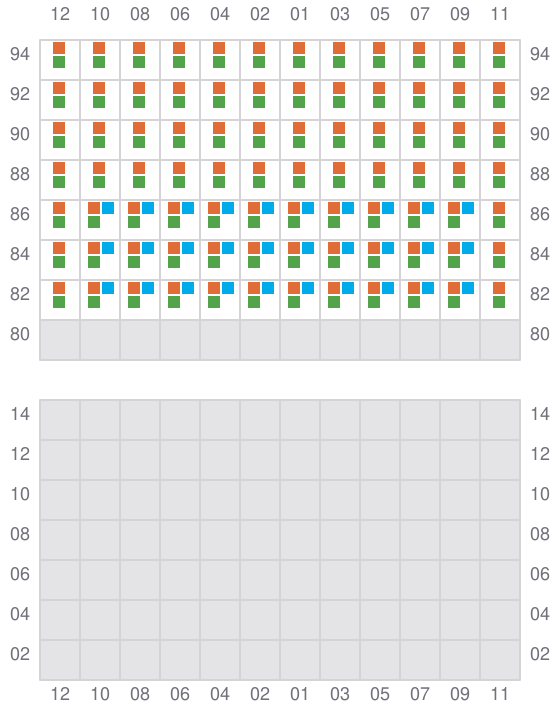

Bay 045 view and slots of SASKIA A

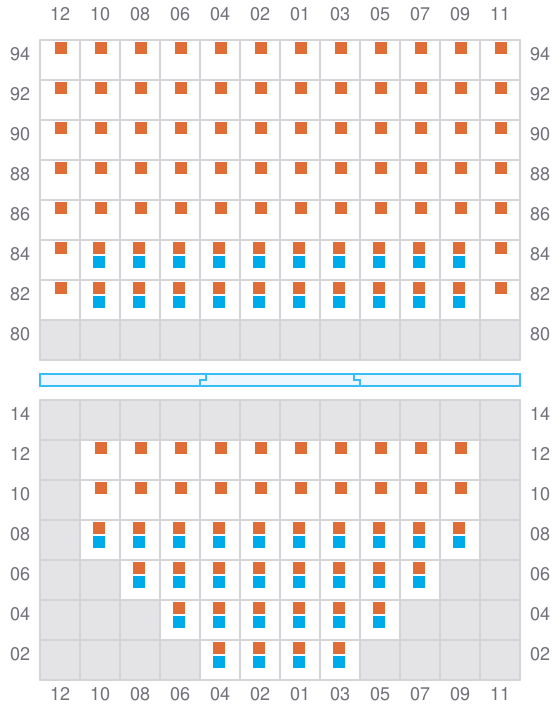

047

  • ← / ?
  • → / ?

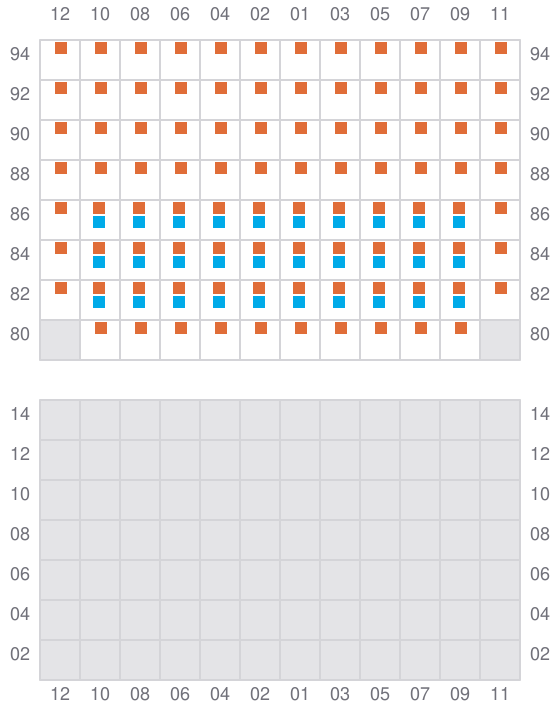

Bay 047 view and slots of SASKIA A

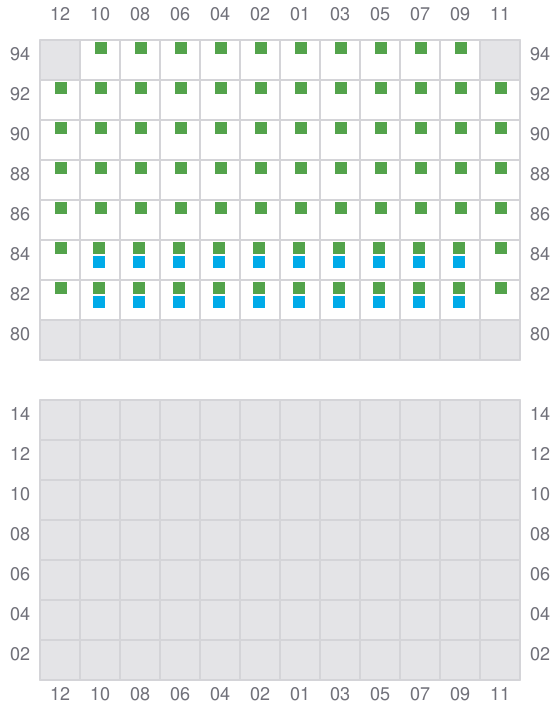

049 (050)

  • → / ?
  • ← / ?
Bay 049 view and slots of SASKIA A
