SATIE
9330513 | 9HA3767 | 9330513 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:SATIE
IMO Code:9330513
Call Sign:9HA3767
Line Operator:9330513
Class Name for Sister Ships:29R
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

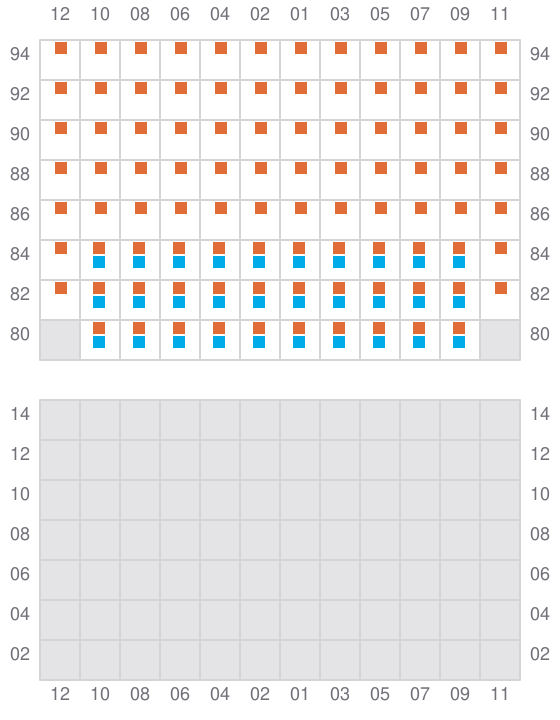

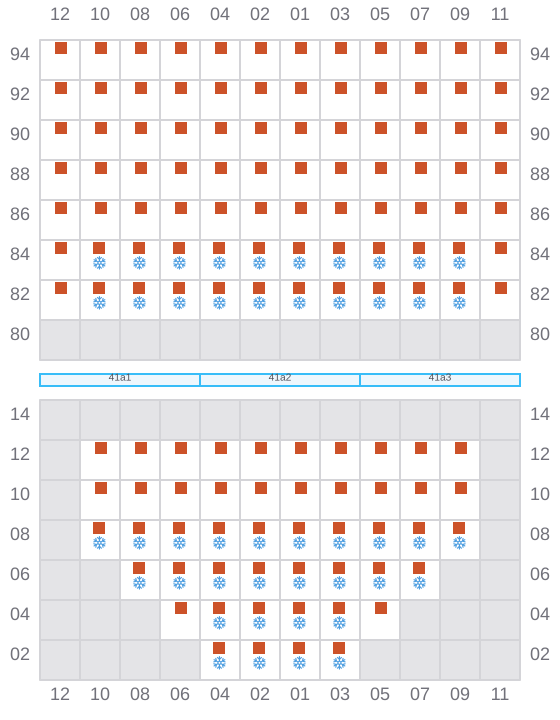

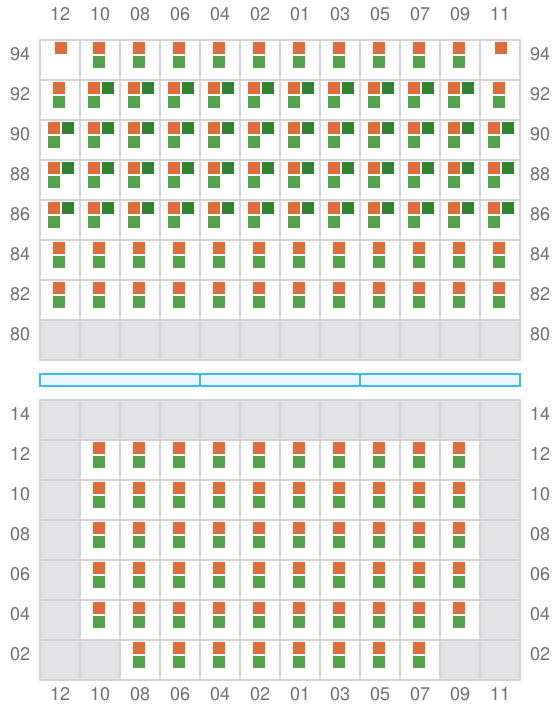

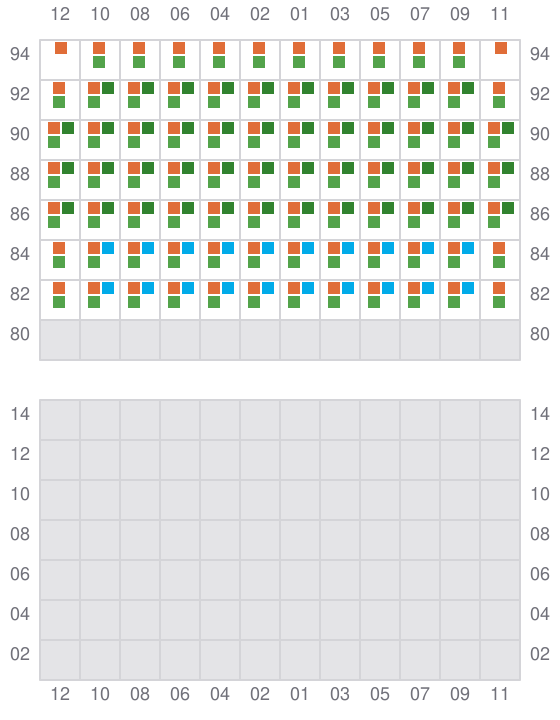

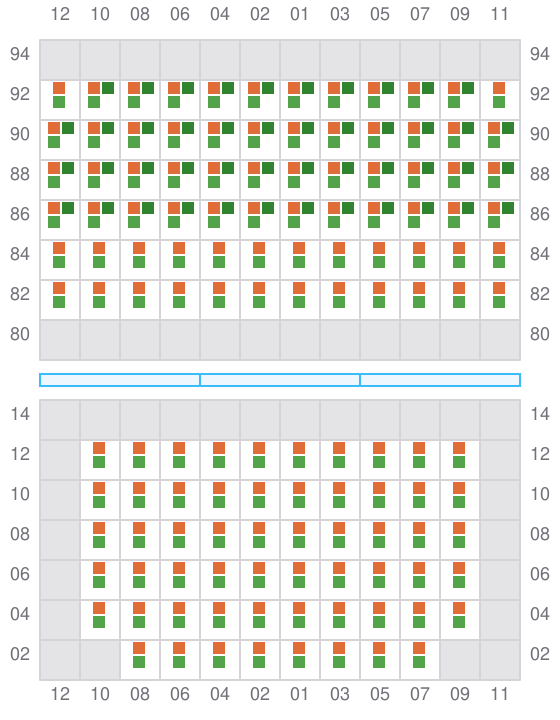

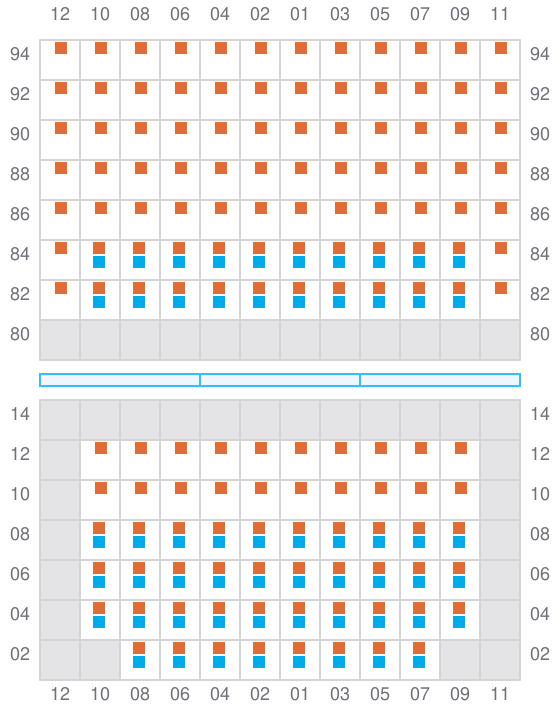

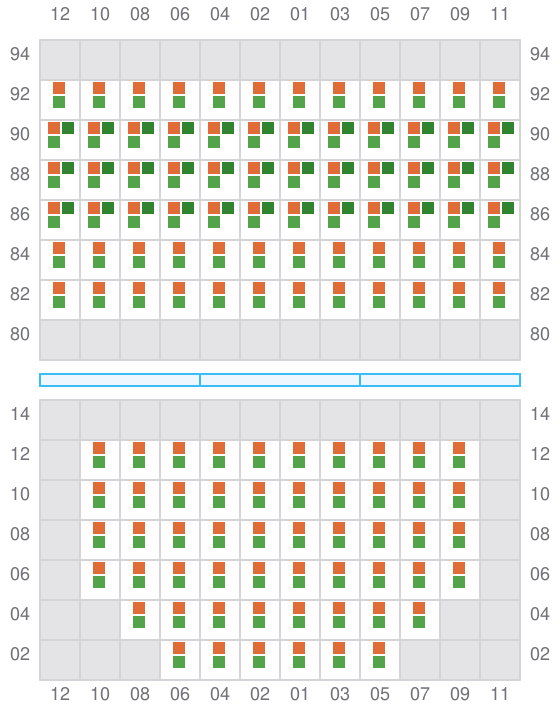

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

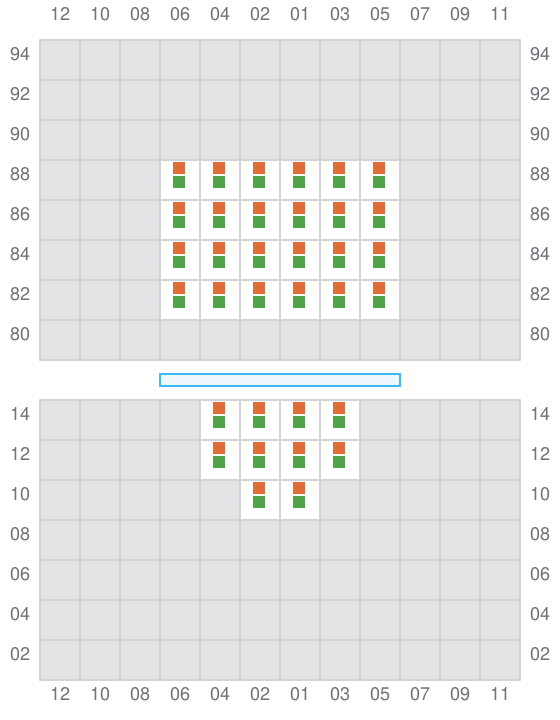

001 (002)
- →

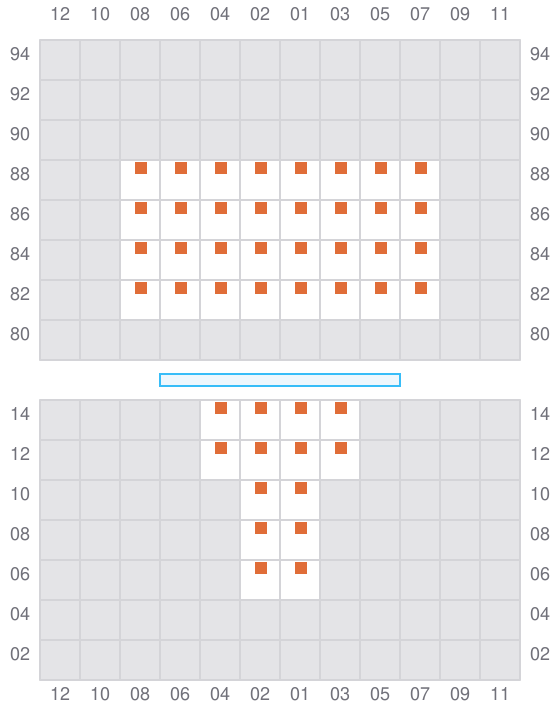

003
- ←

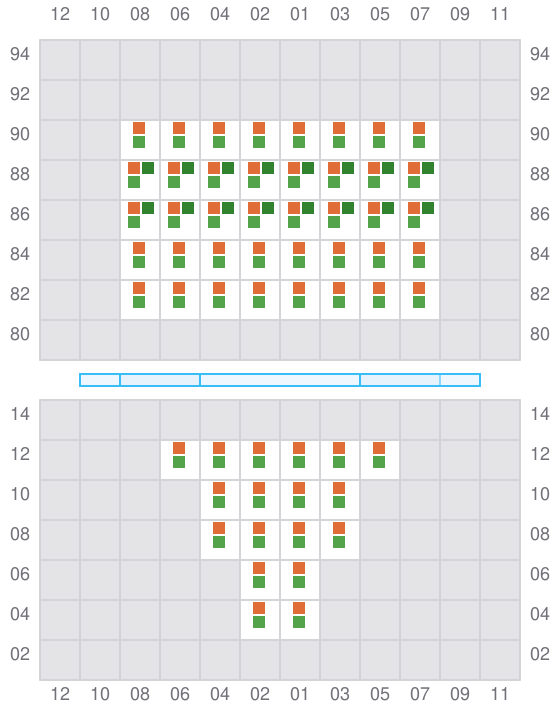

005 (006)
- →

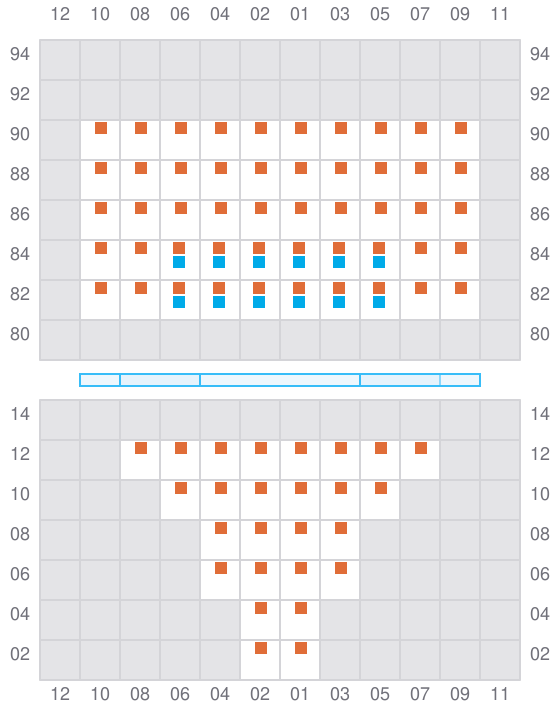

007
- ←
- → / ?

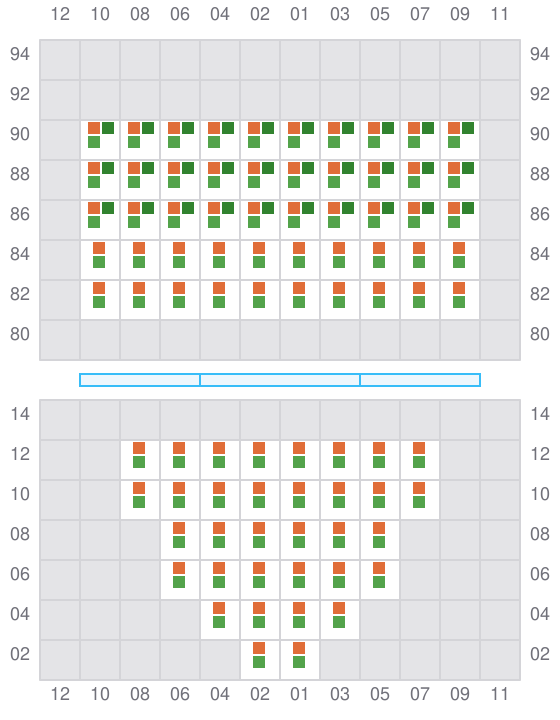

009 (010)
- →

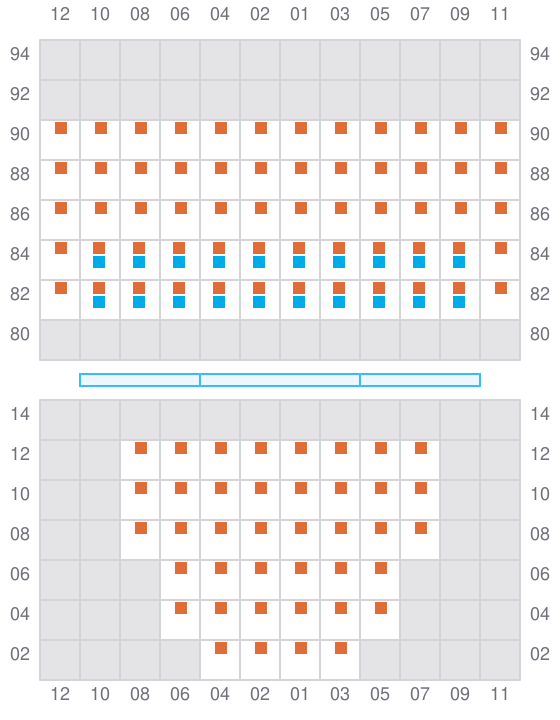

011
- ←
- → / ?

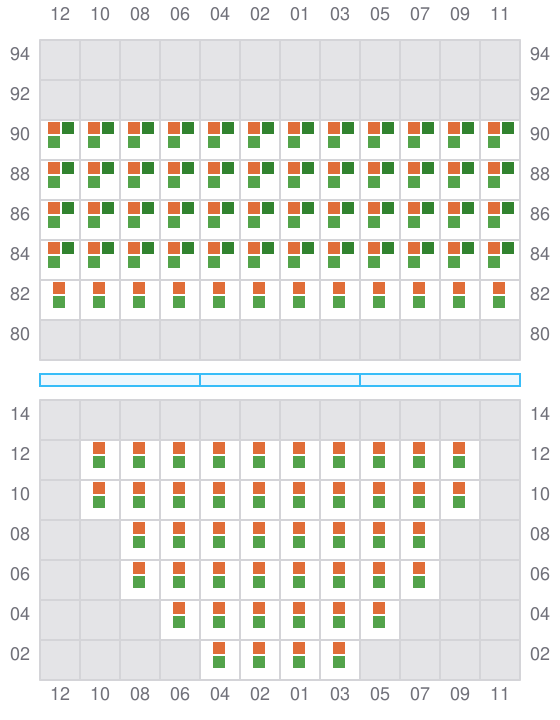

013 (014)
- →
- → / ?
015
- ←
- →
017 (018)
- →

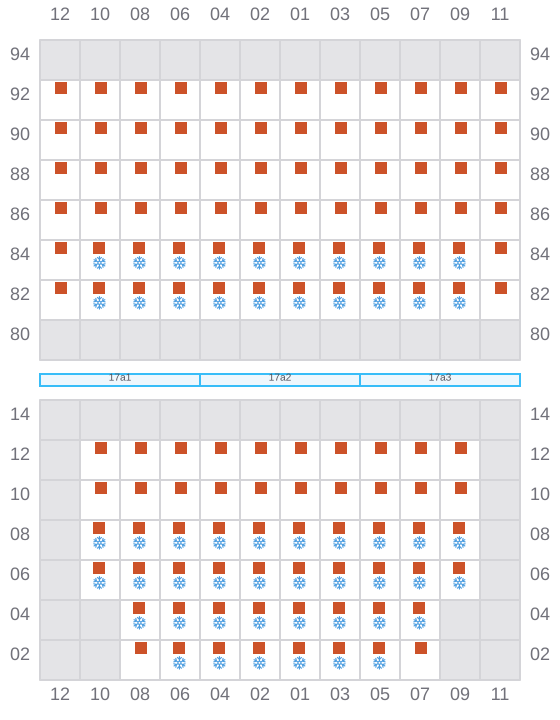

019
- ←
- →

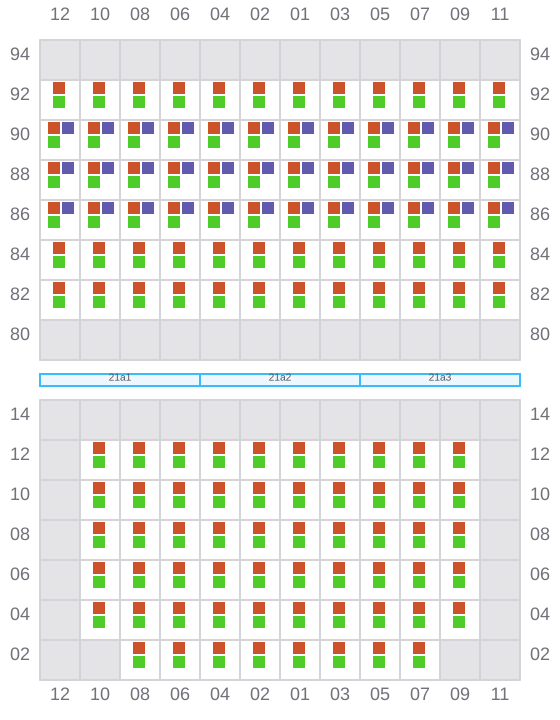

021 (022)
- →
023
- ←
- →
025 (026)
- →
027
- ←
- →

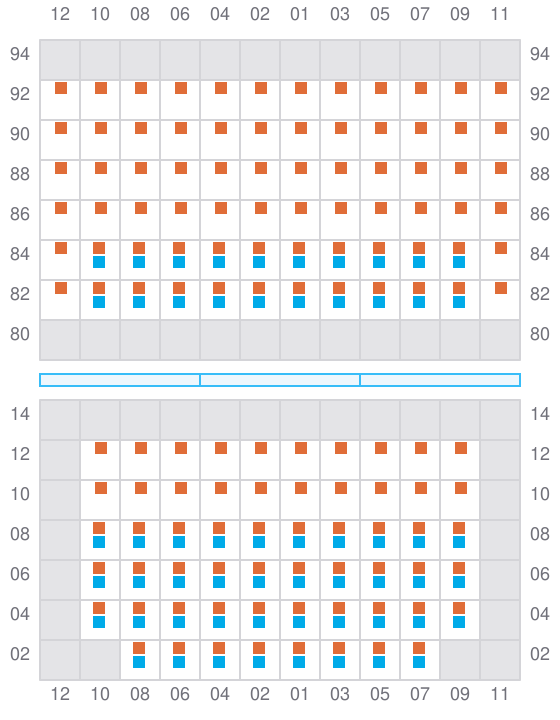

029 (030)
- →
031
- ←
- →
033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
039
- ←
- →

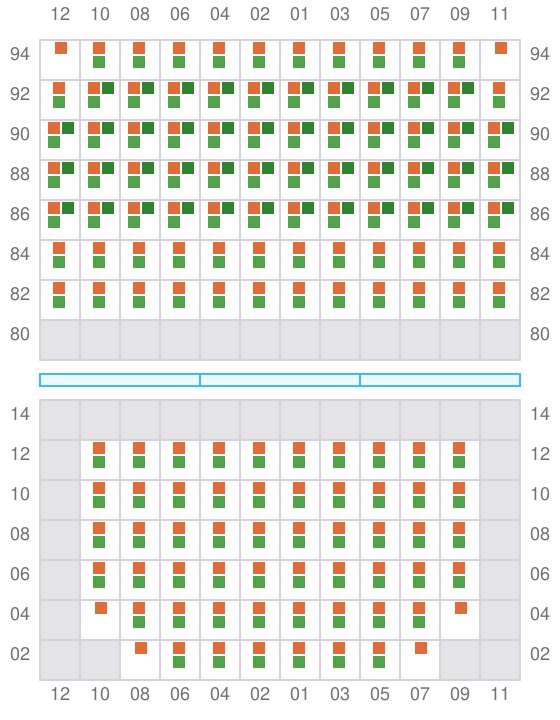

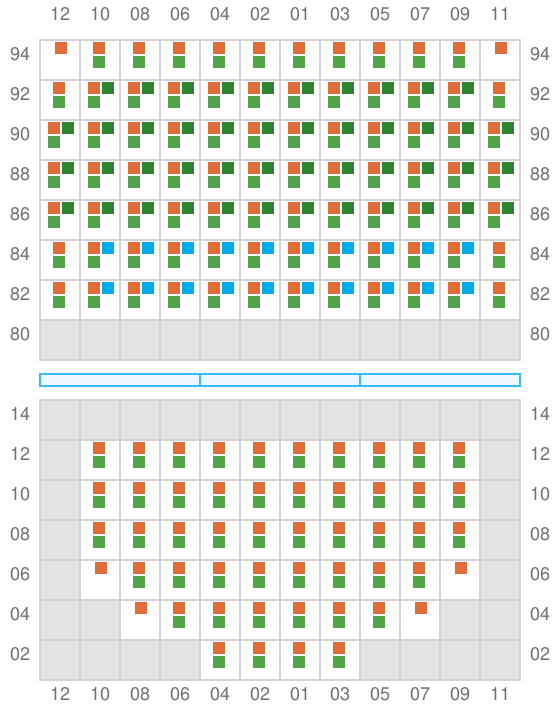

041 (042)
- →
- ← / ?
043
- ←
- →

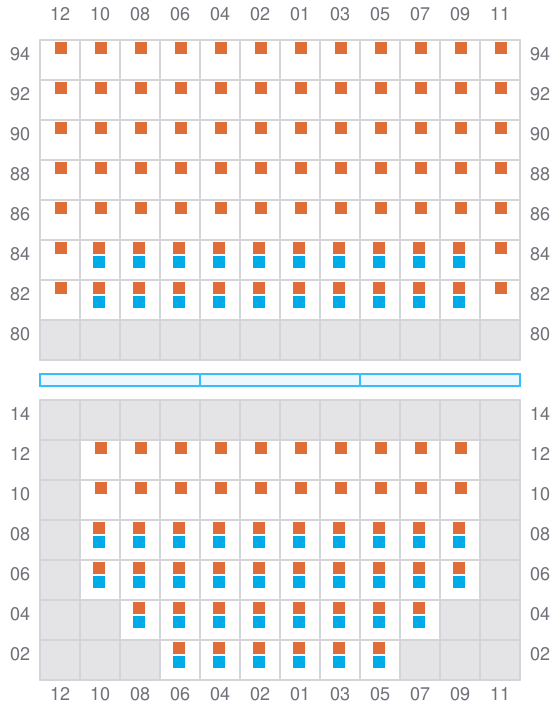

045 (046)
- → / ?
- ← / ?
047
- ← / ?
- → / ?

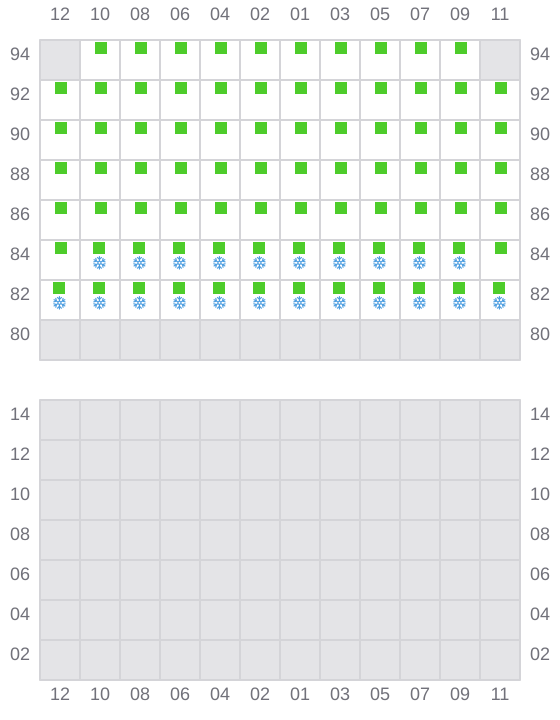

049 (050)
- → / ?
- ← / ?
