The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
SATTHA BHUM
9240330 | 9VPQ2 | 9240330 by ********* Last update: Fri May 17 2024
General Info
Ship Name:SATTHA BHUM
IMO Code:9240330
Call Sign:9VPQ2
Line Operator:9240330
Class Name for Sister Ships:SATTHA BHUM
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:2,732
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

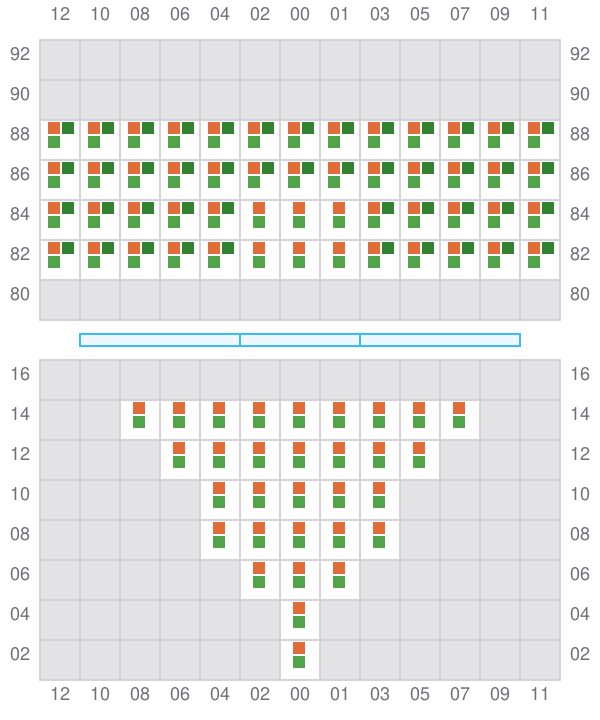

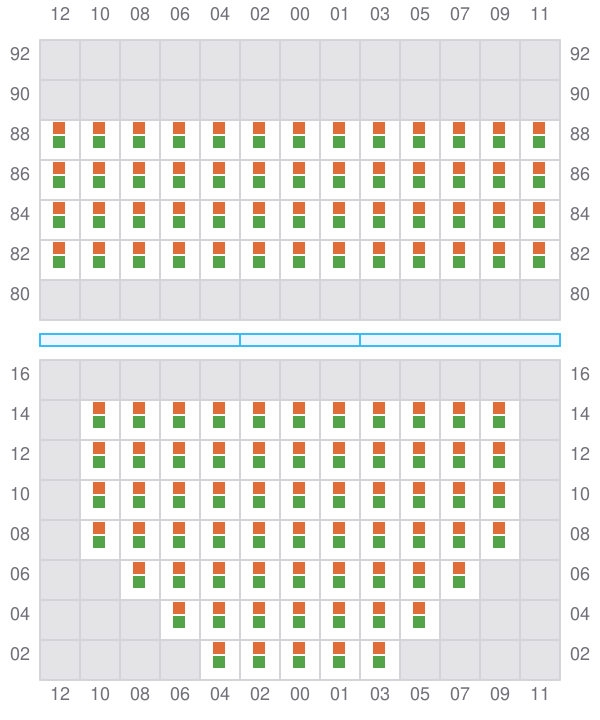

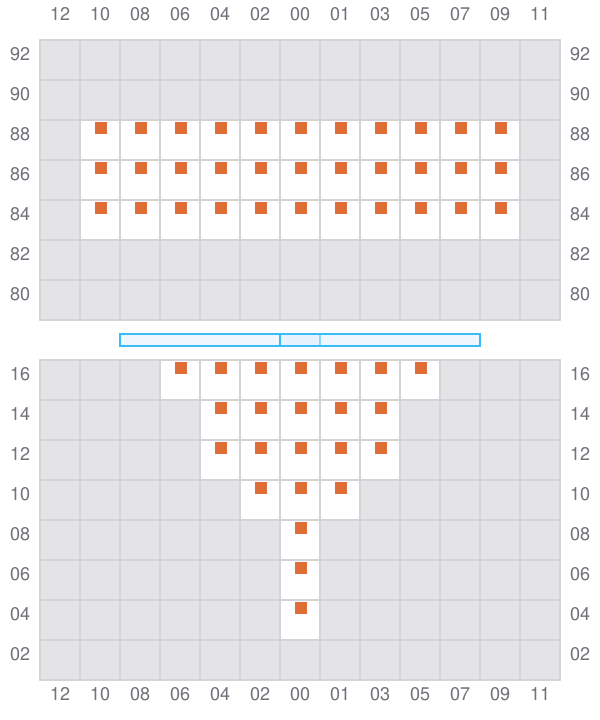

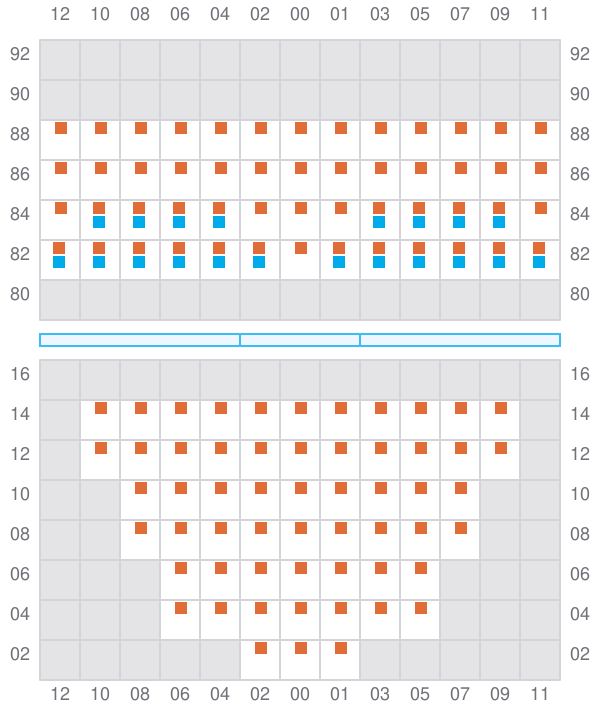

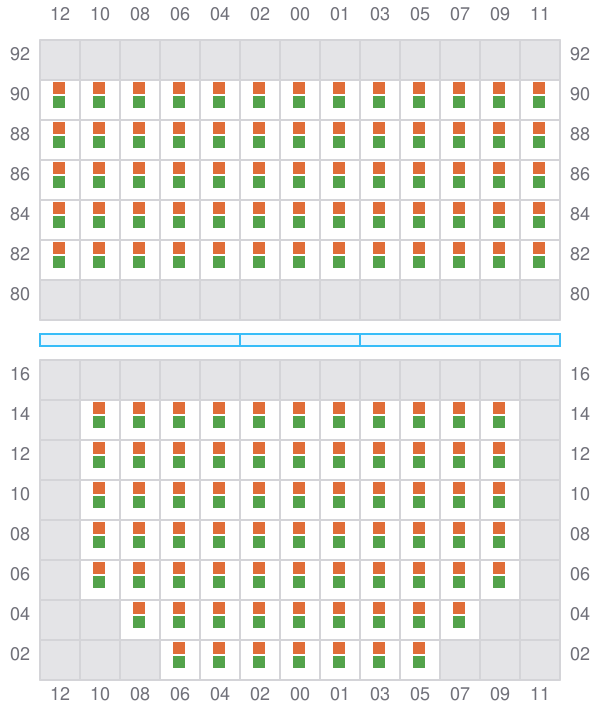

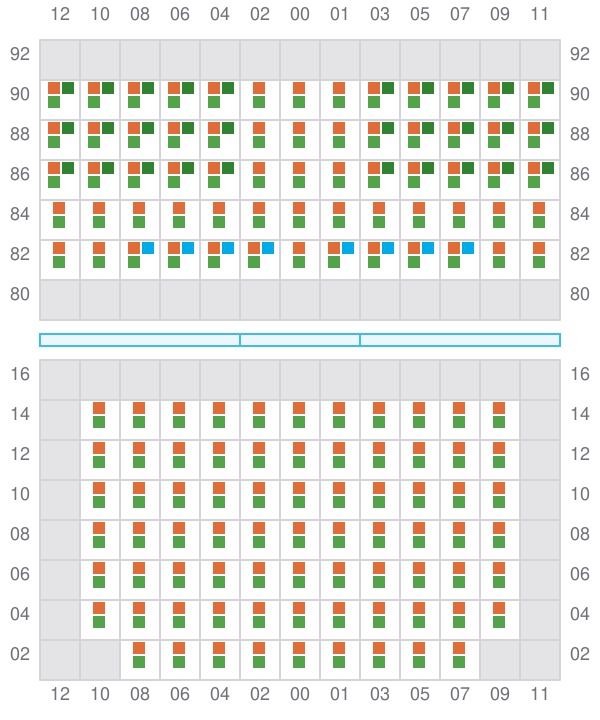

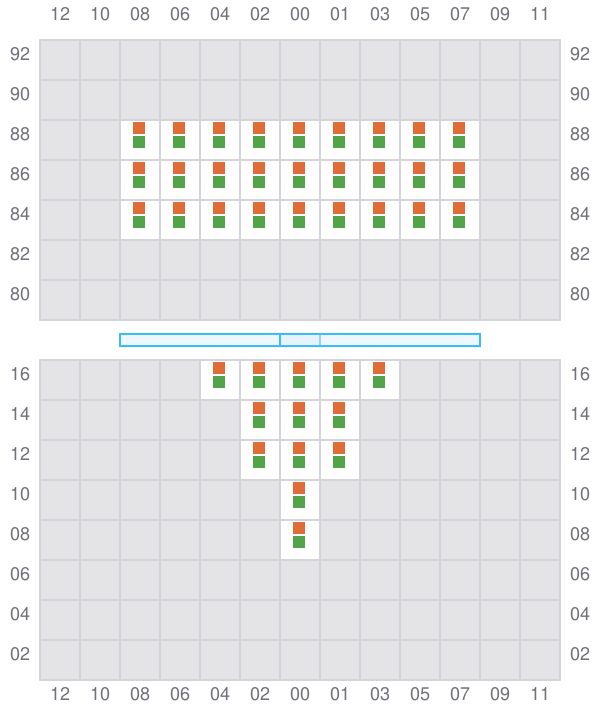

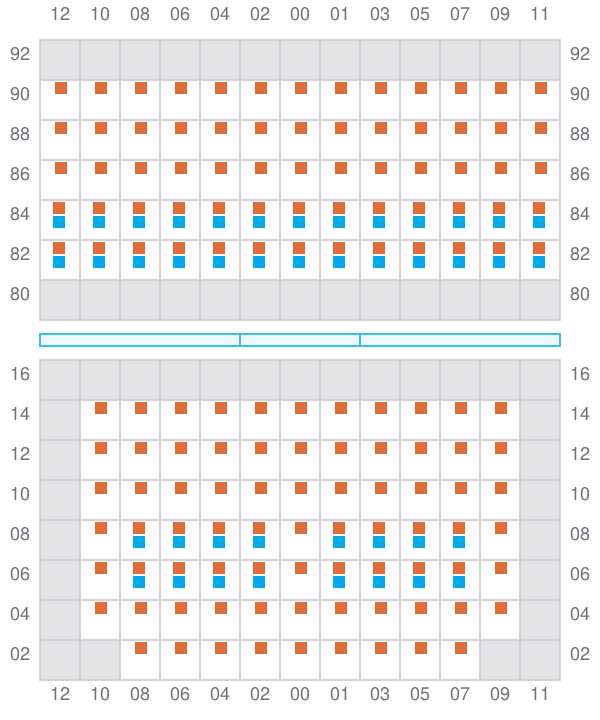

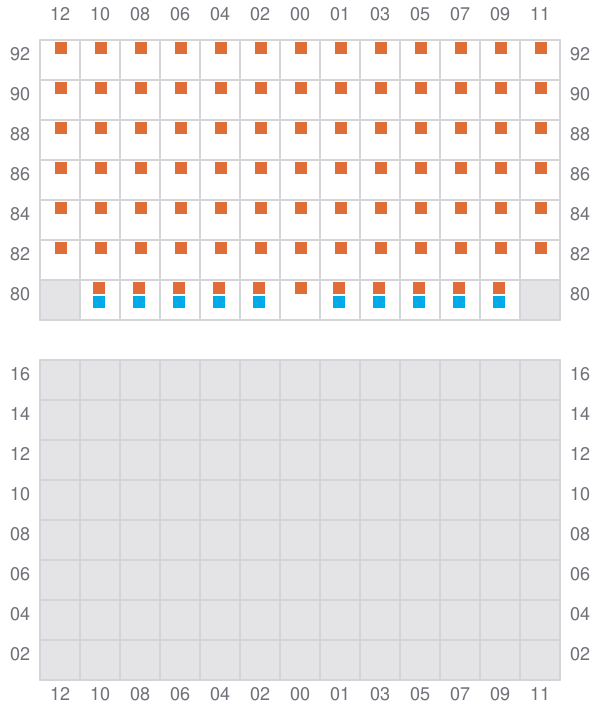

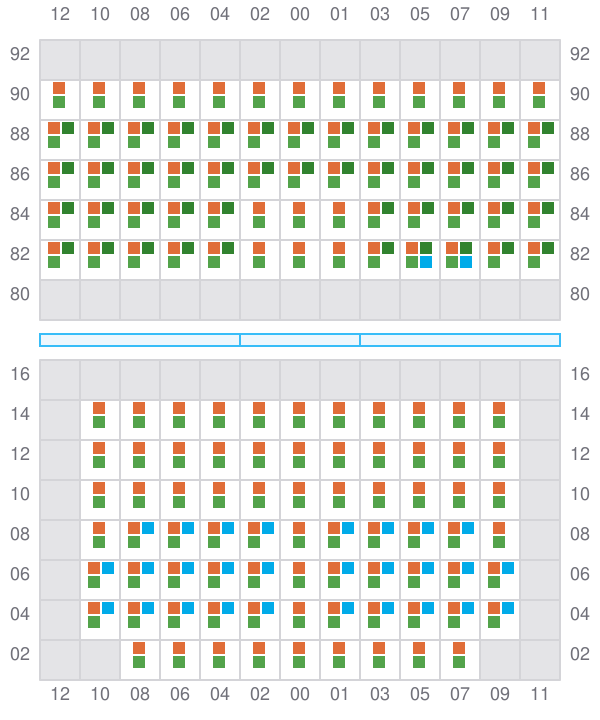

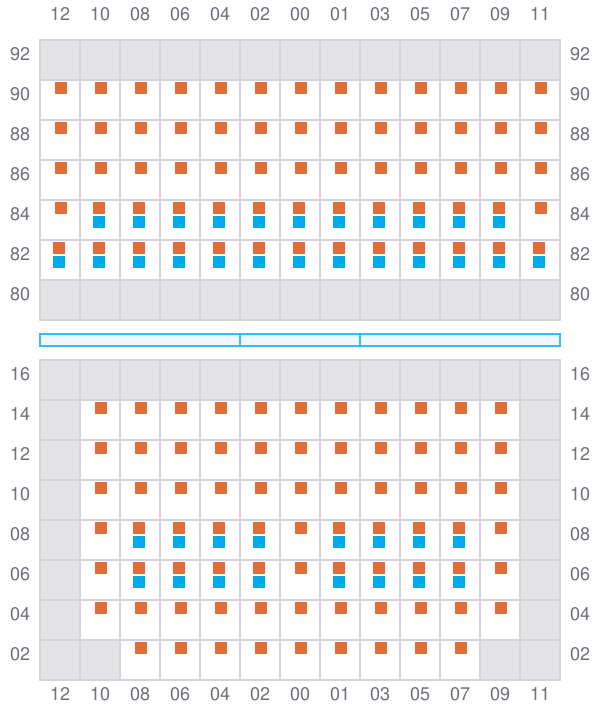

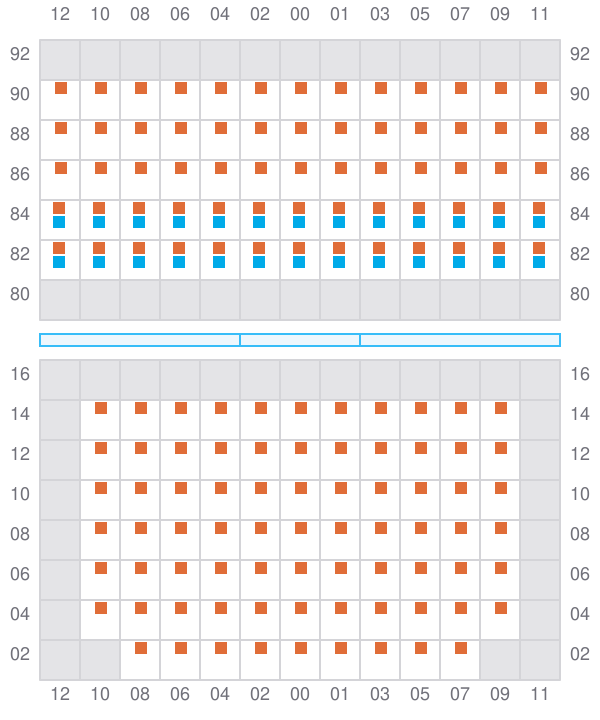

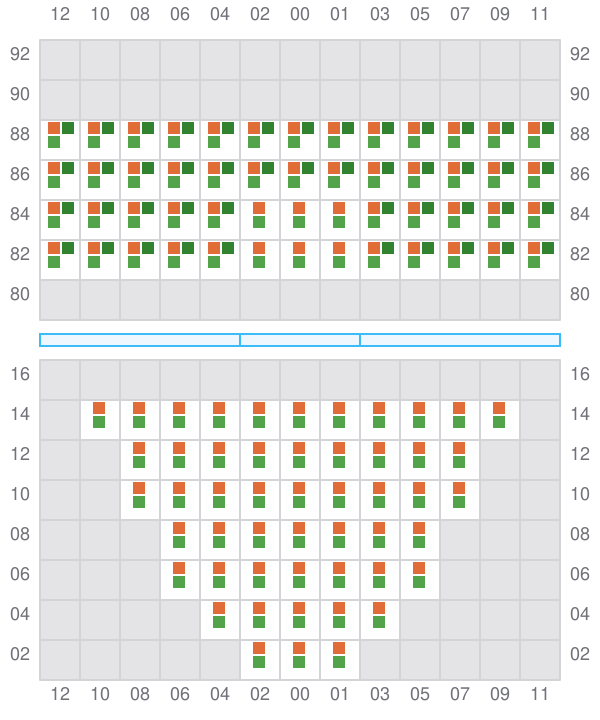

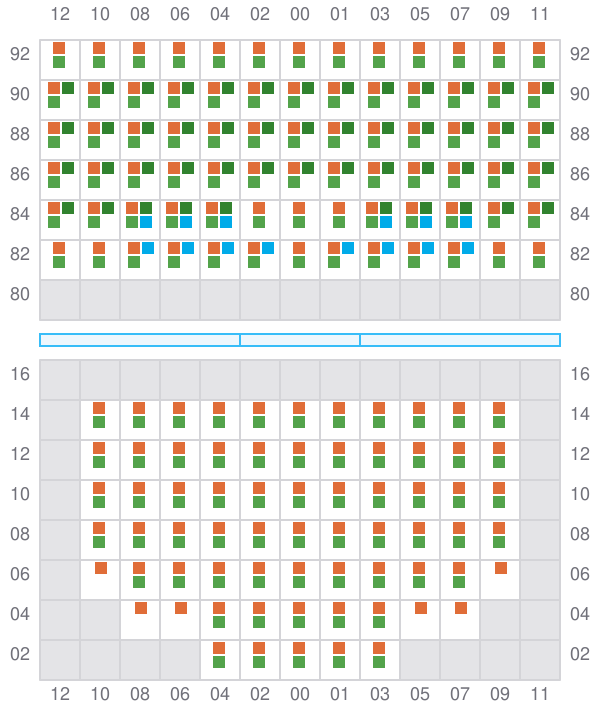

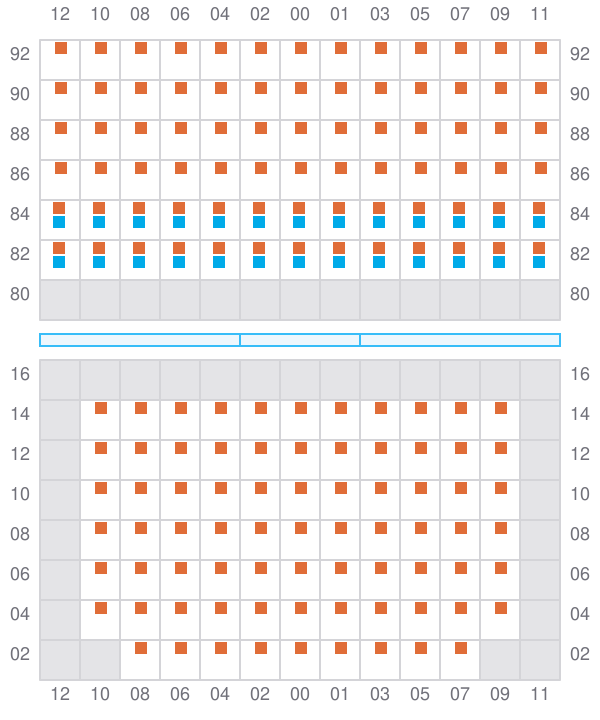

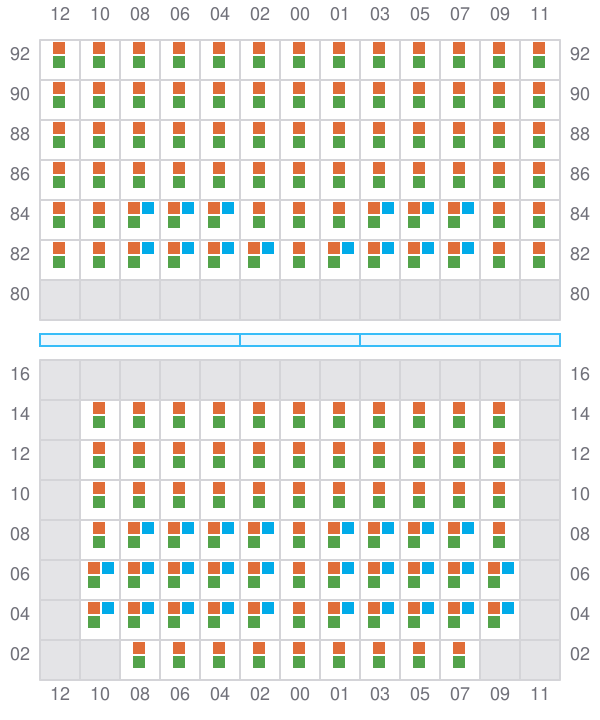

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

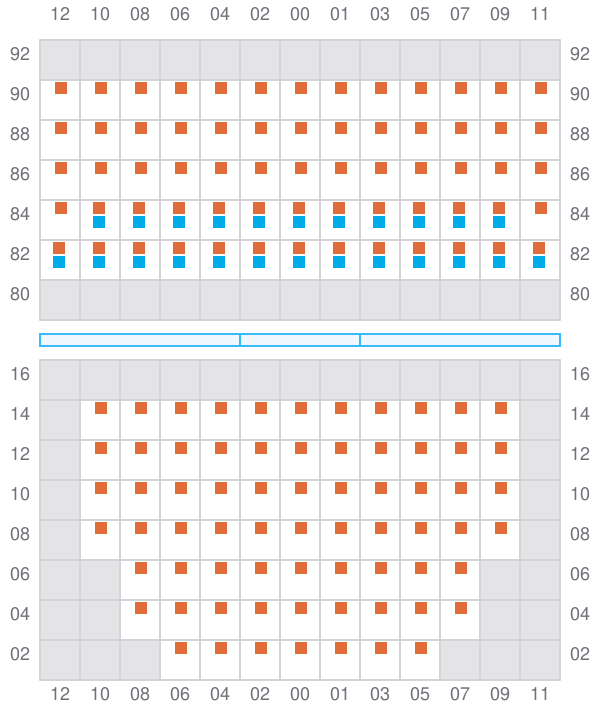

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
- ← / ?
015
- ←
- → / ?
017 (018)
- →
019
- ←
- →
021 (022)
- →
- ←
023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- →
029 (030)
- →
- ←
031
- ←
- → / ?

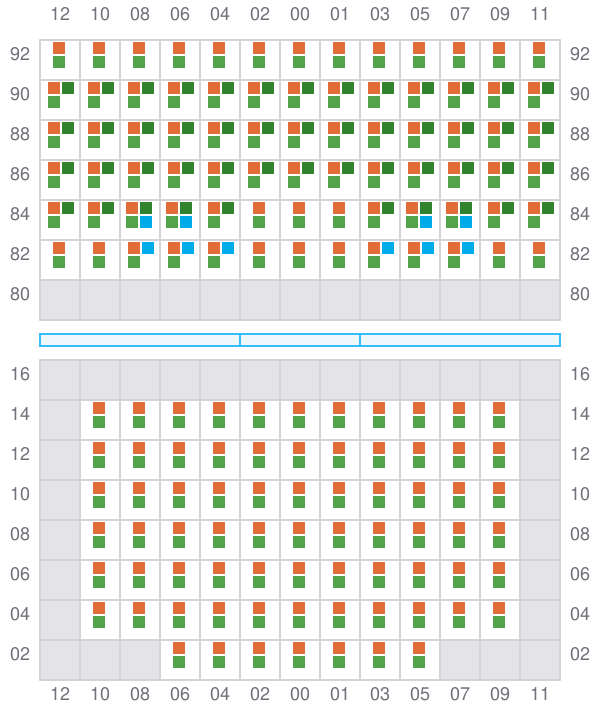

033 (034)
- →
- ← / ?
035
- ←
- →
037 (038)
- →
- ←
039
- ←
- →

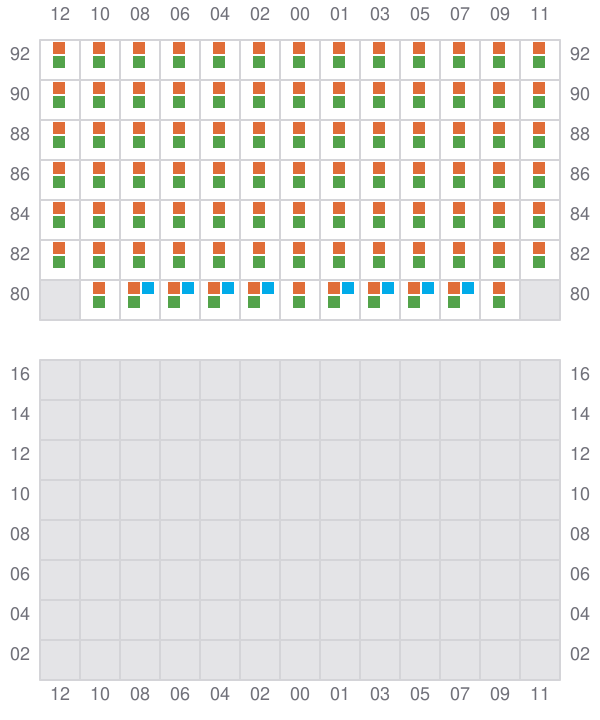

041 (042)
- → / ?
- ← / ?
043
- ← / ?
- → / ?

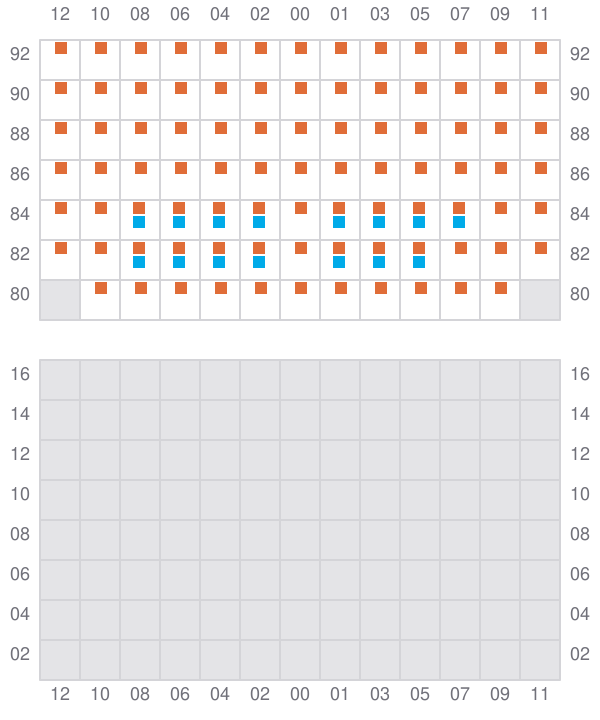

045
- ← / ?
