SAVANNAH
9250971 | 9HA3804 | 9250971 by ********* Last update: Fri Aug 16 2024
General Info
Ship Name:SAVANNAH
IMO Code:9250971
Call Sign:9HA3804
Line Operator:9250971
Class Name for Sister Ships:MSL
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):281.40
LOA (Length Overall):293.87
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,402
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

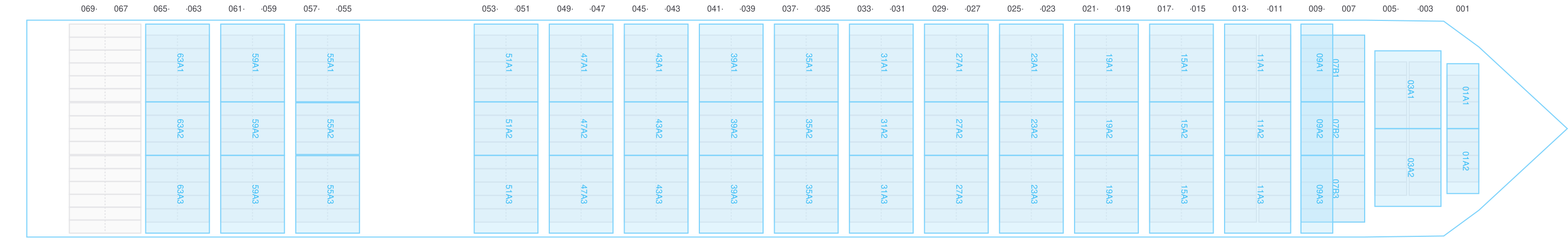

Hatch-Covers View

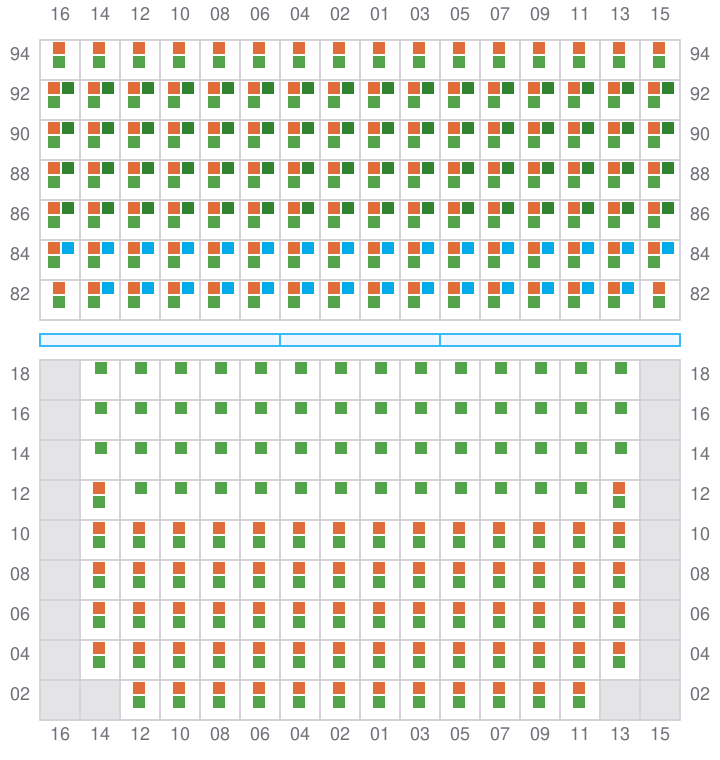

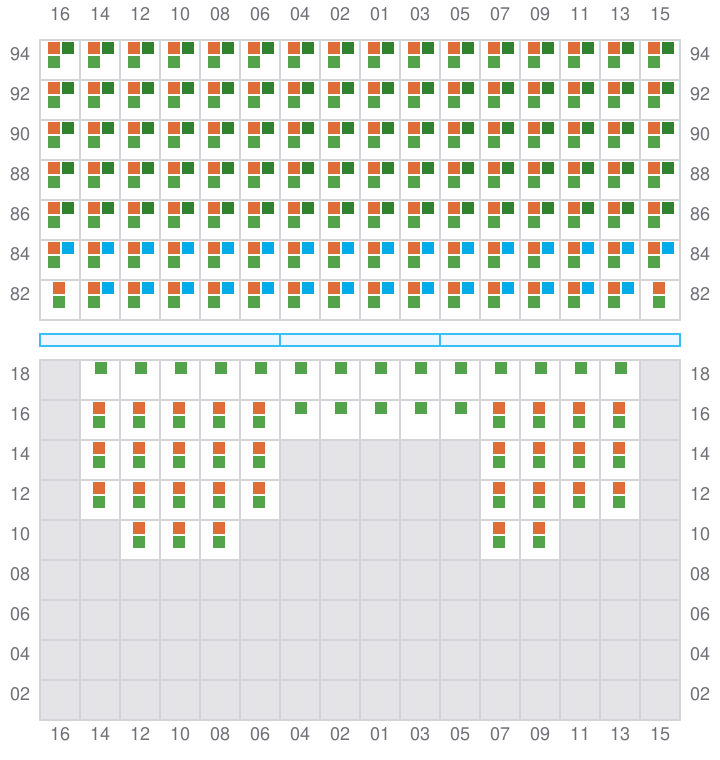

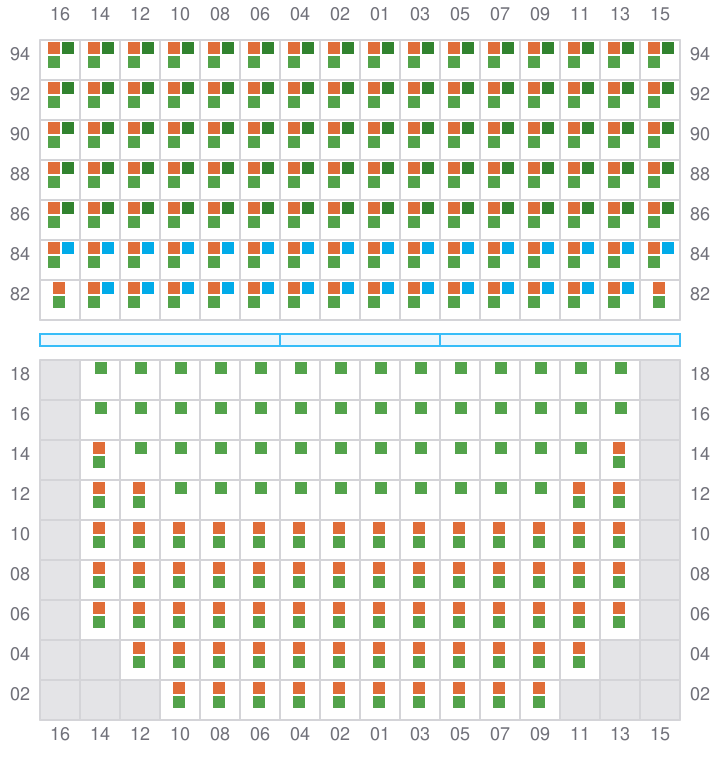

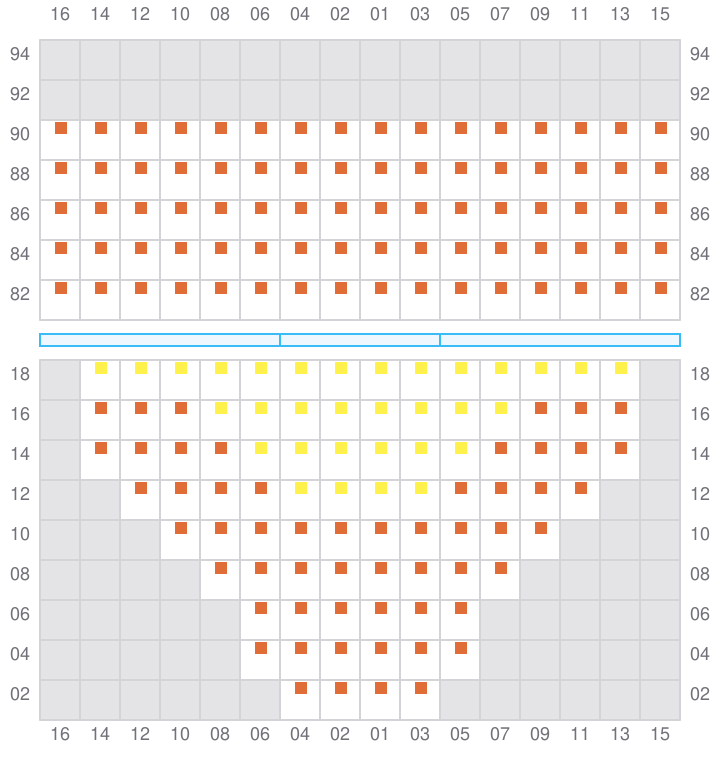

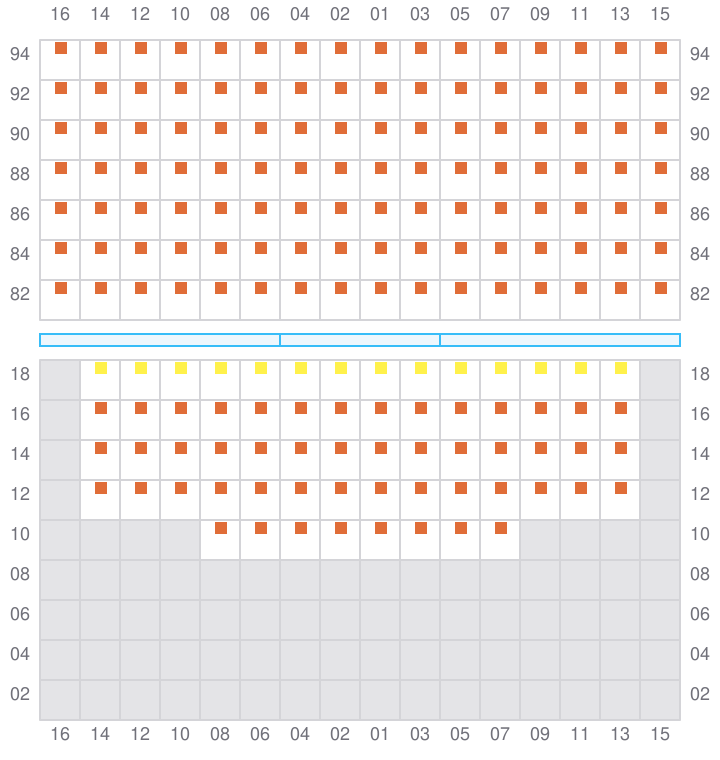

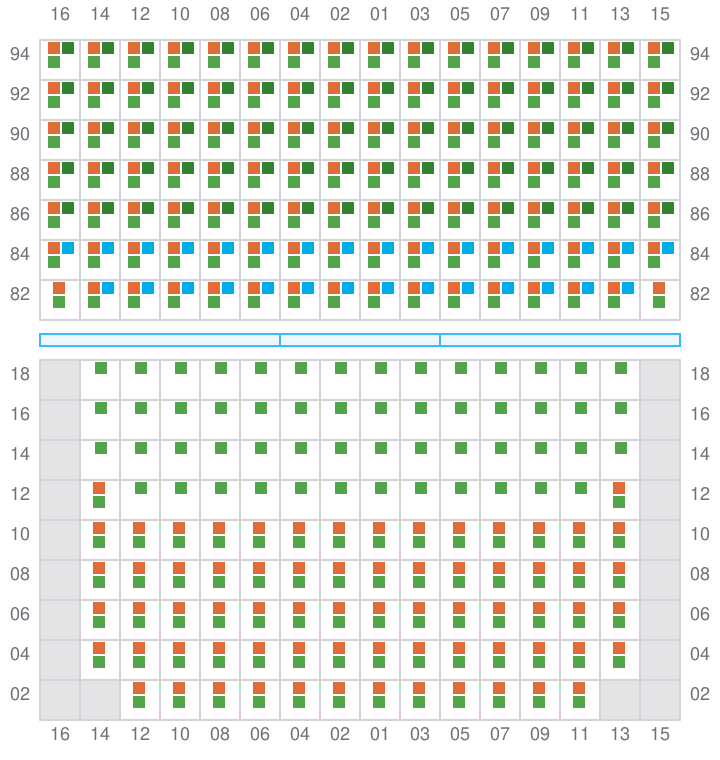

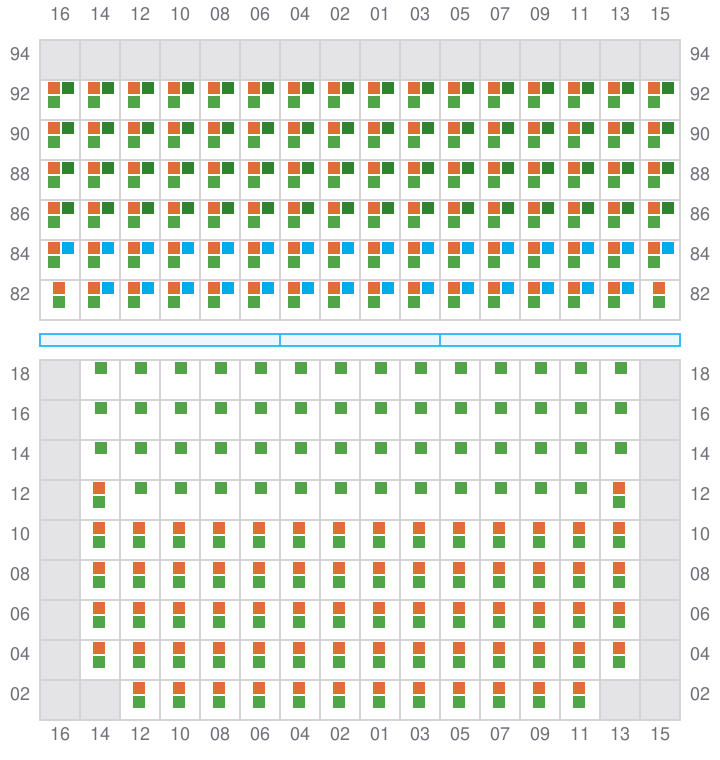

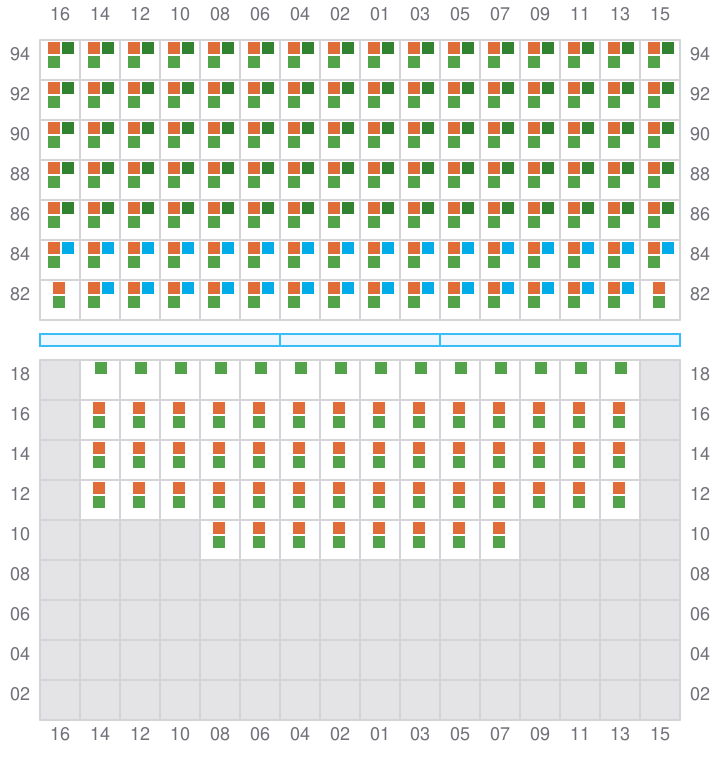

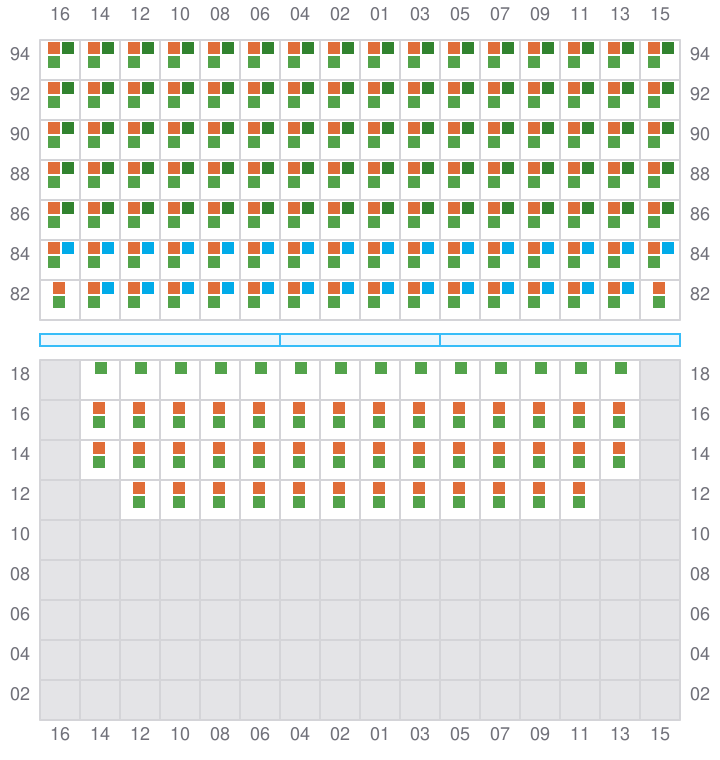

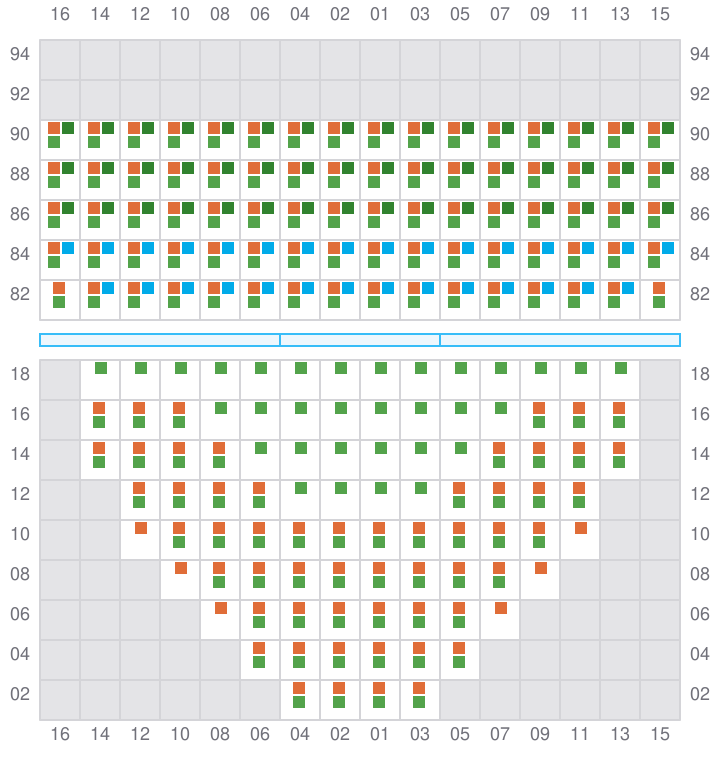

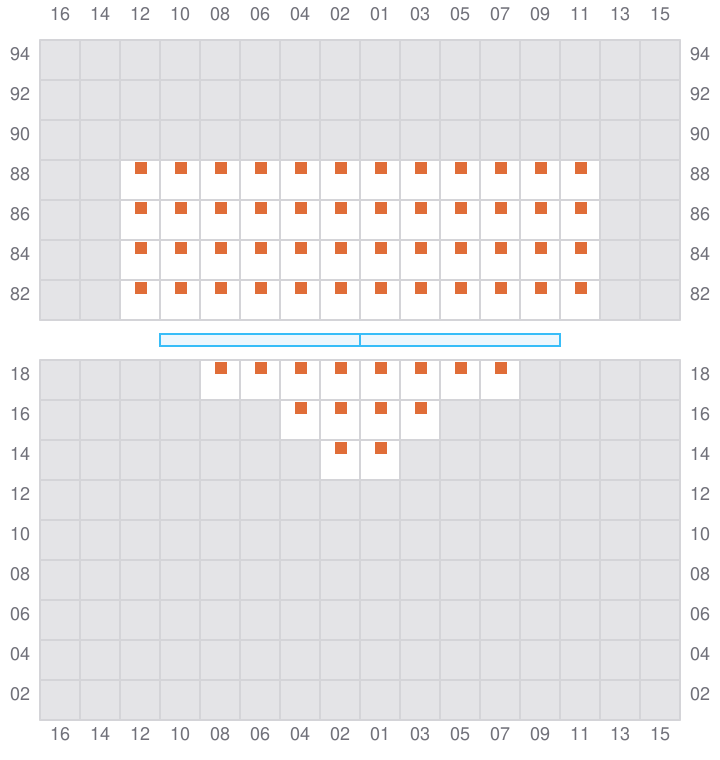

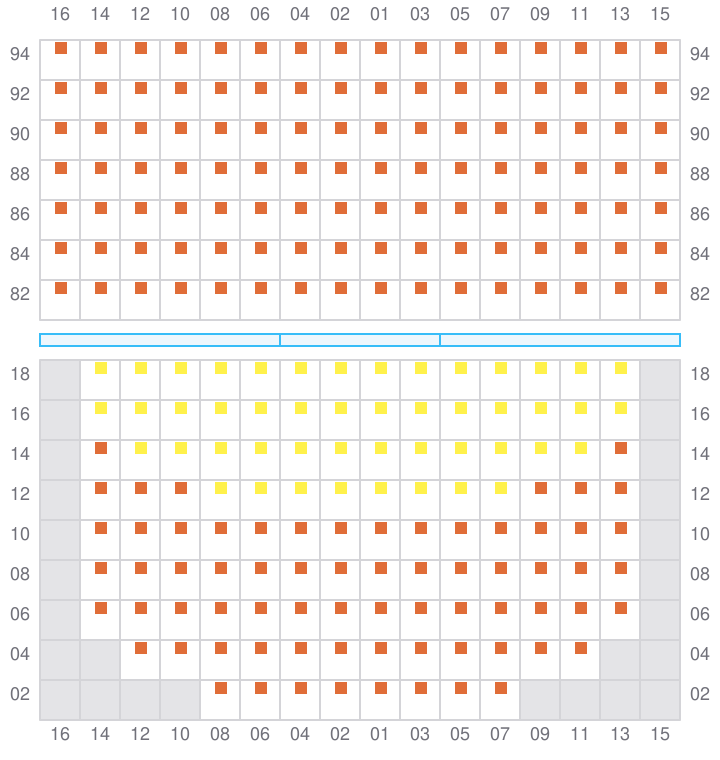

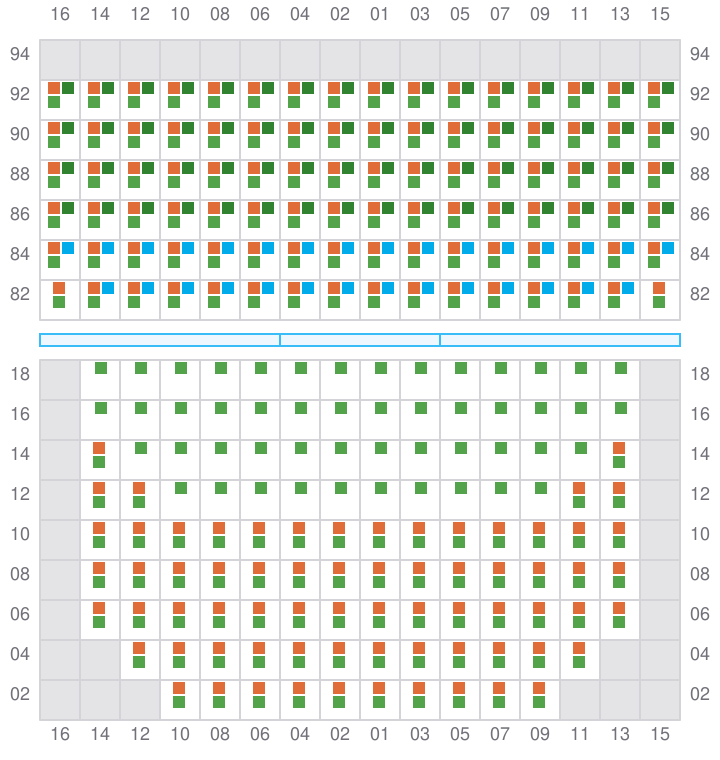

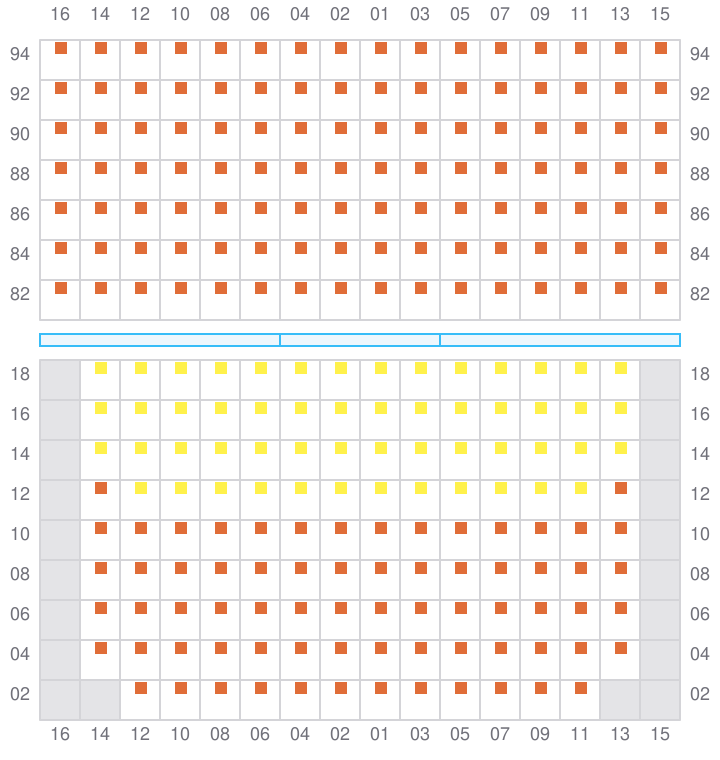

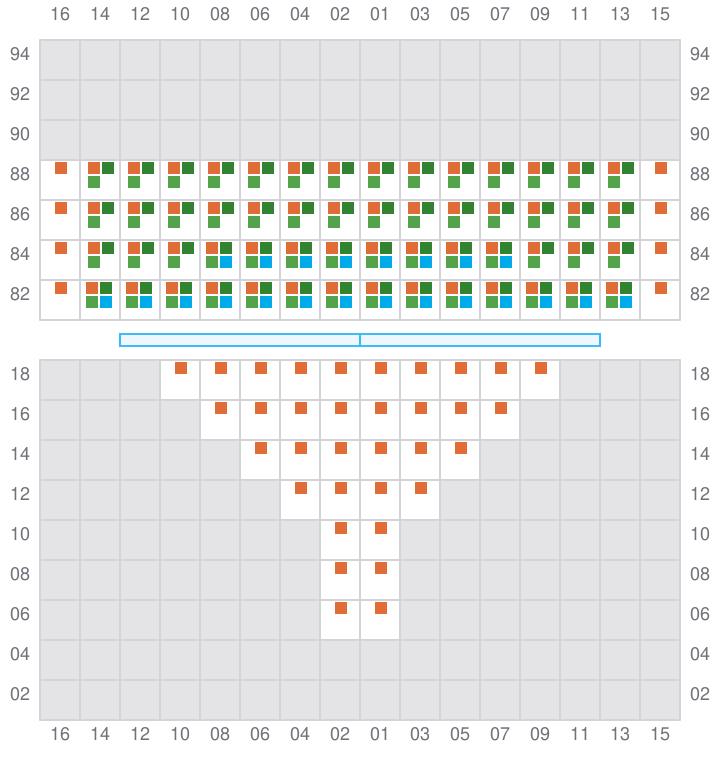

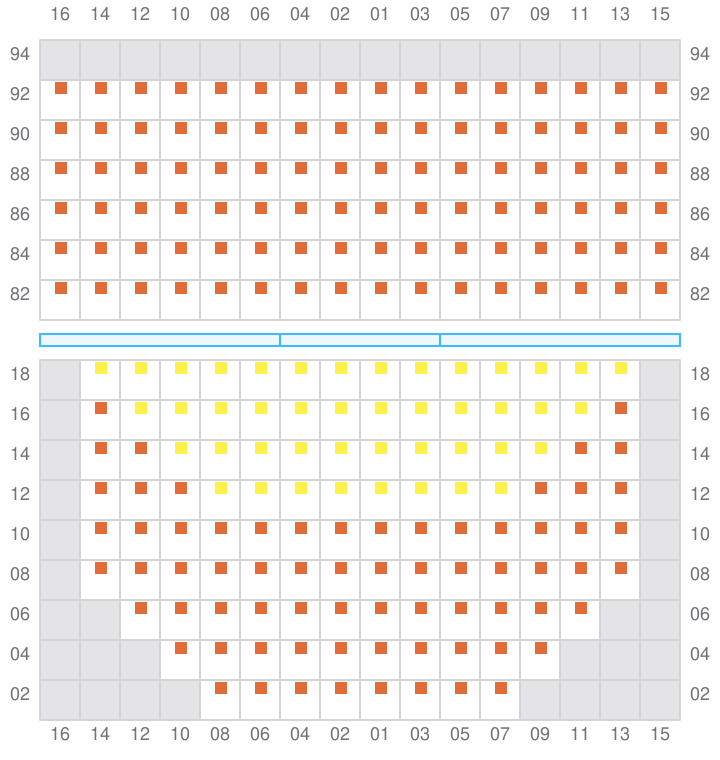

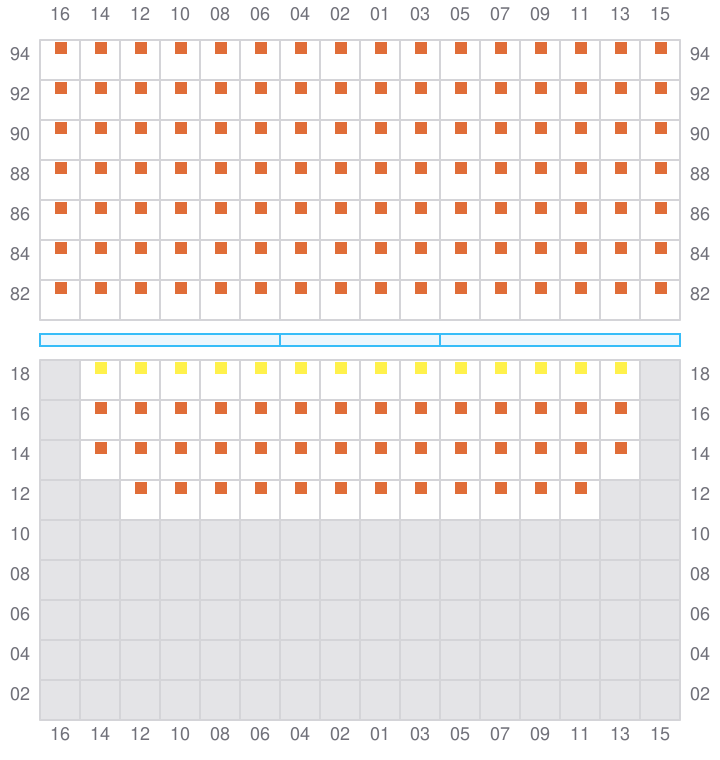

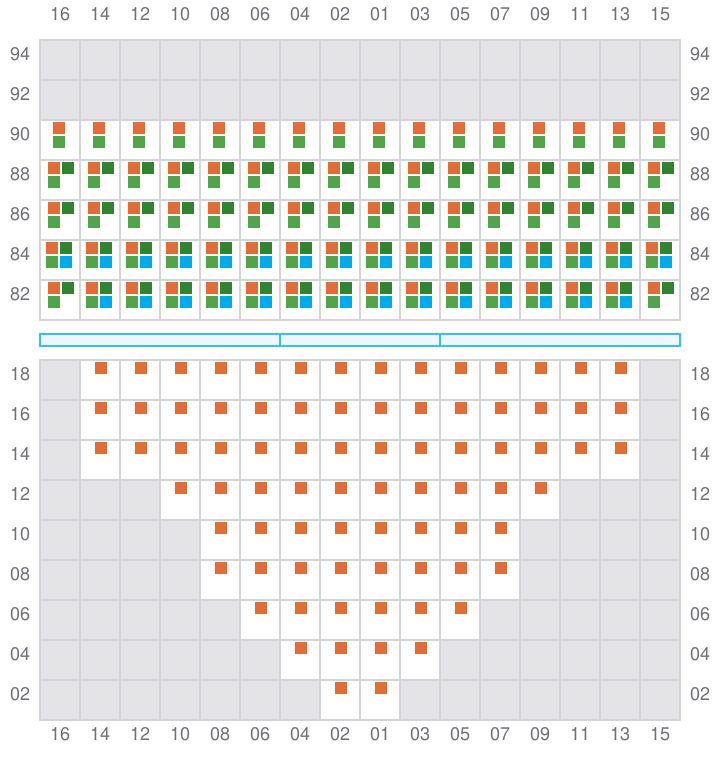

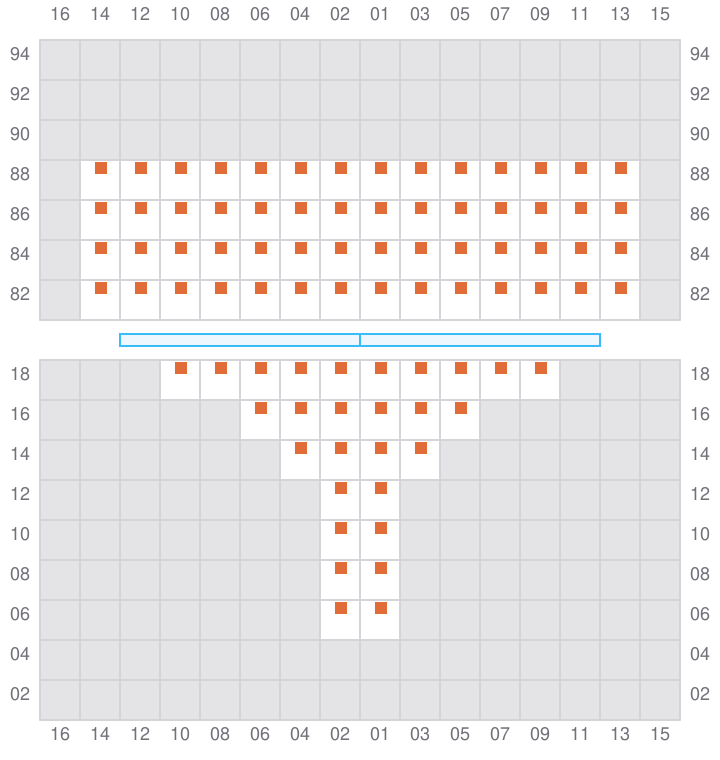

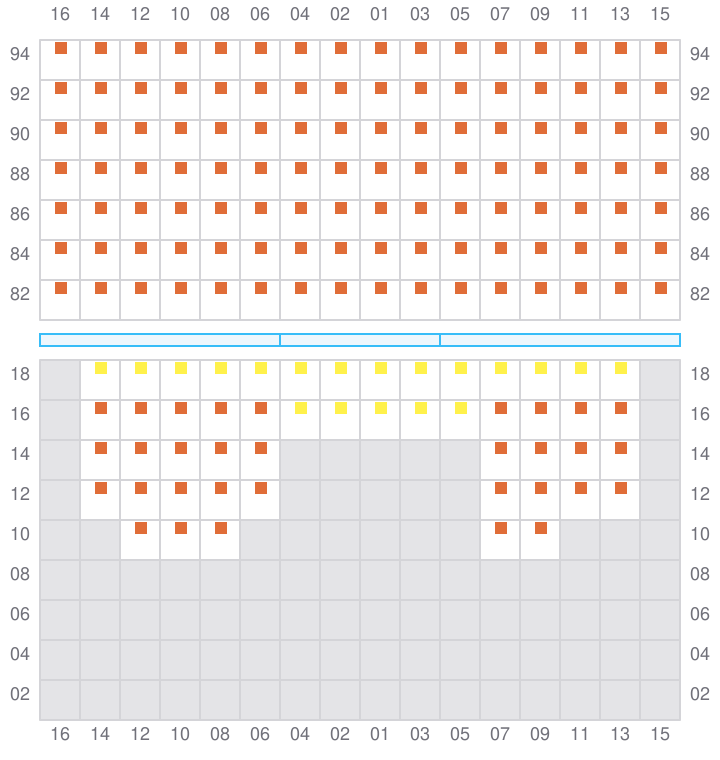

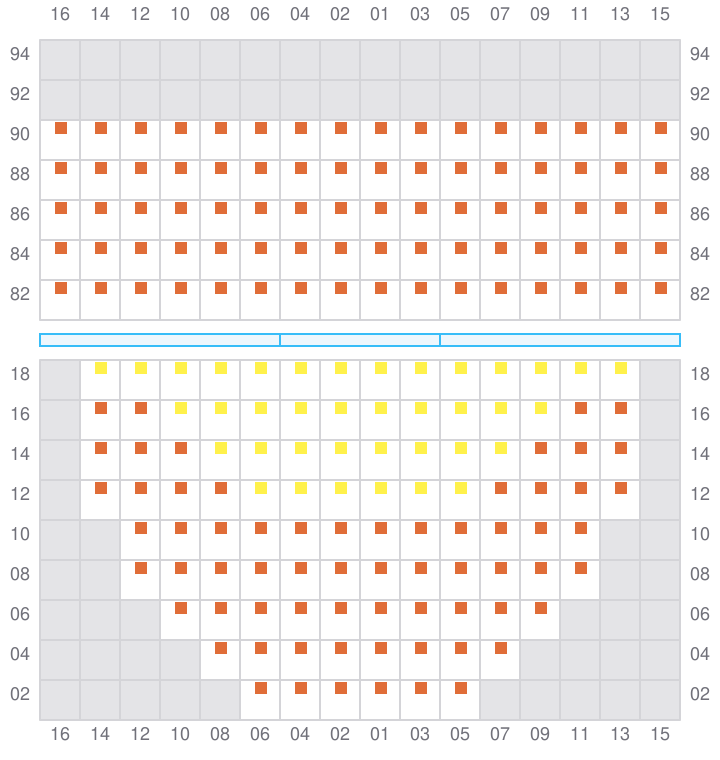

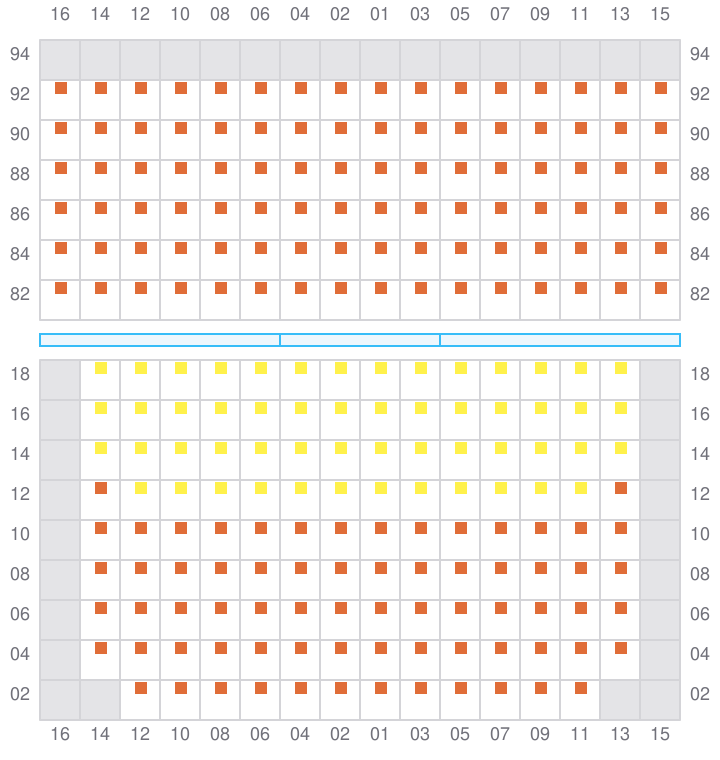

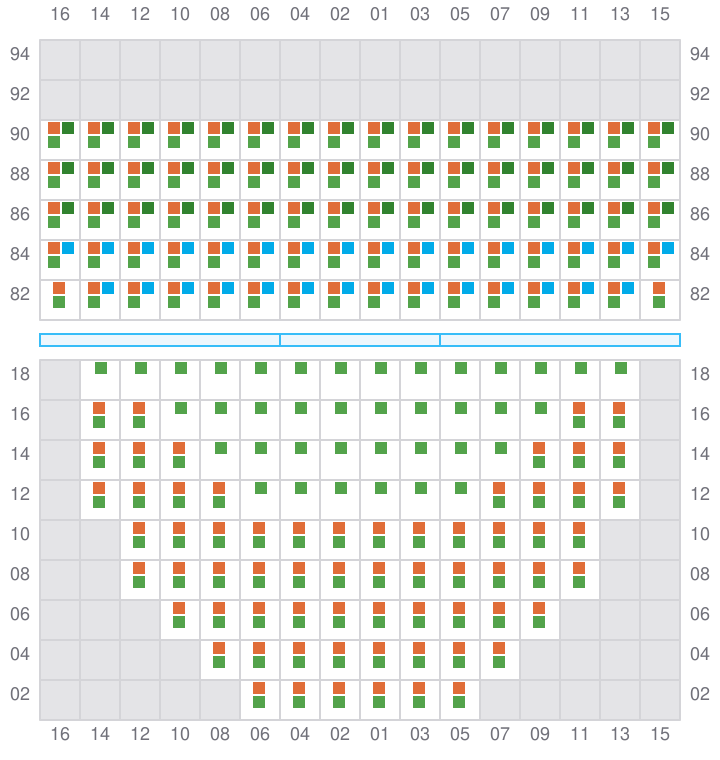

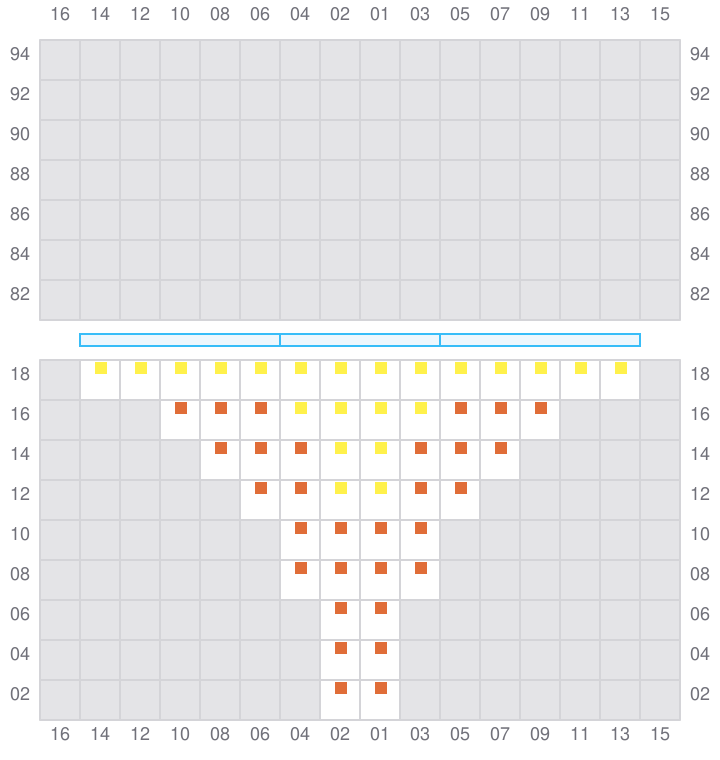

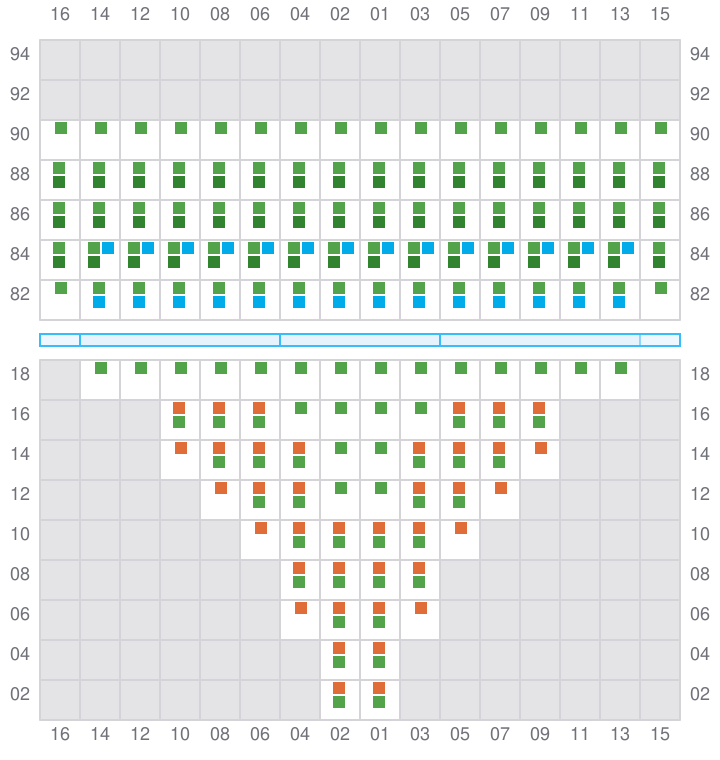

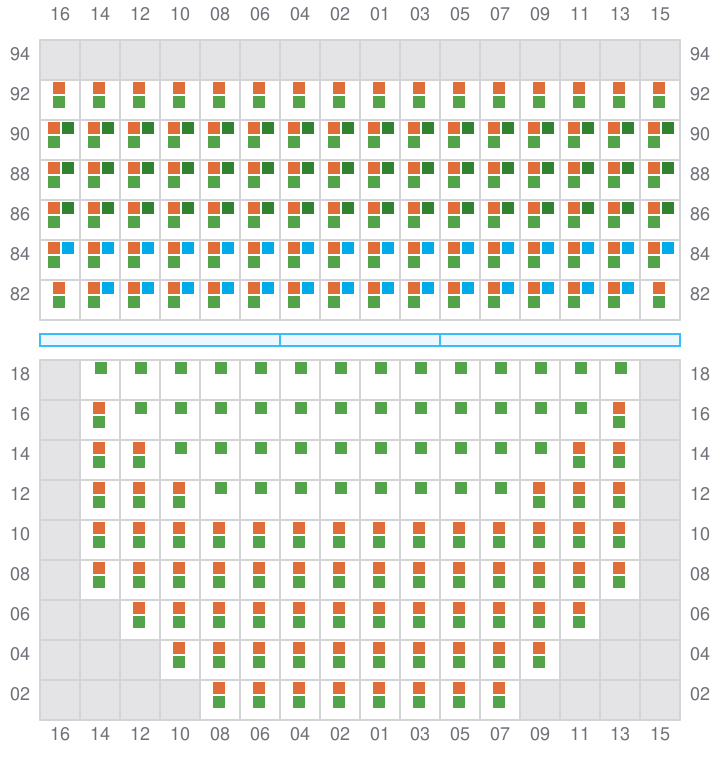

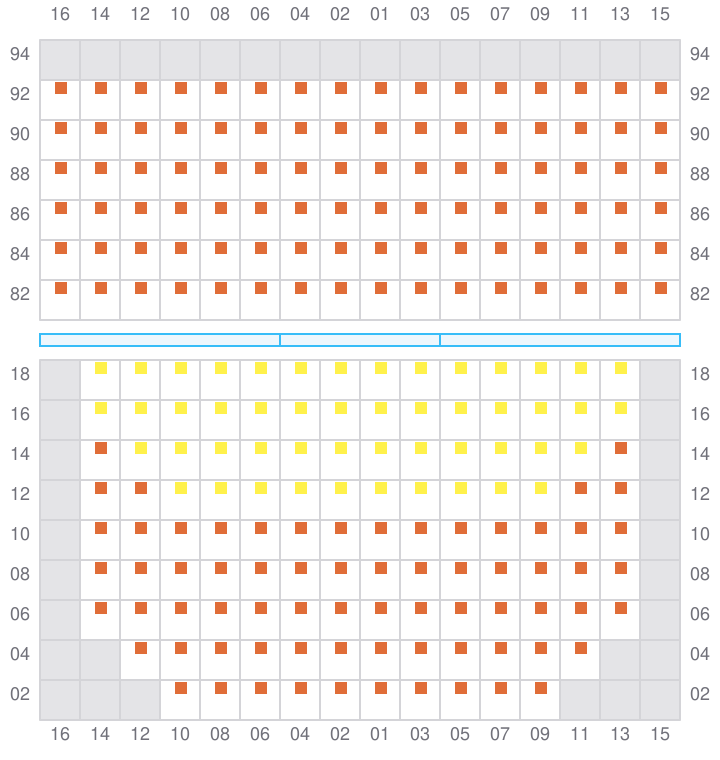

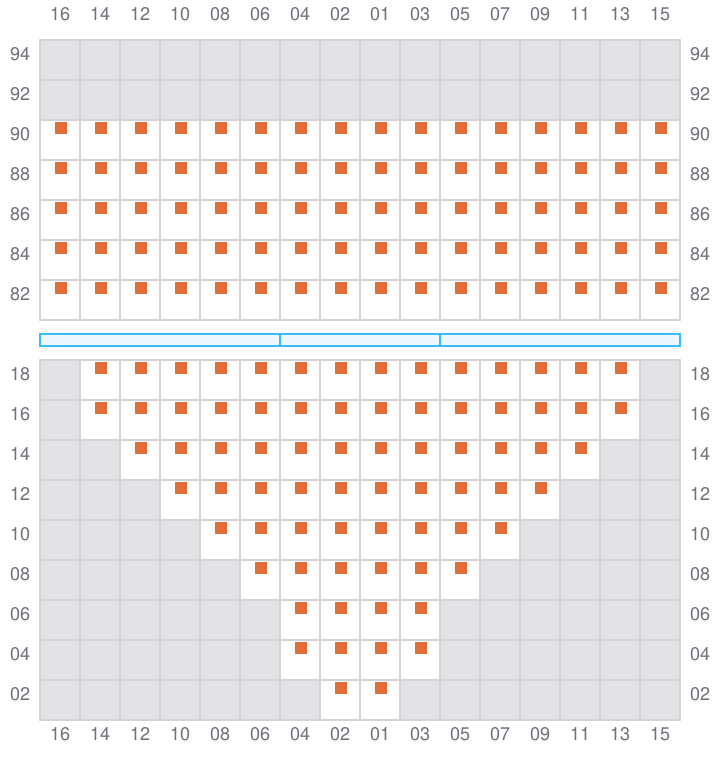

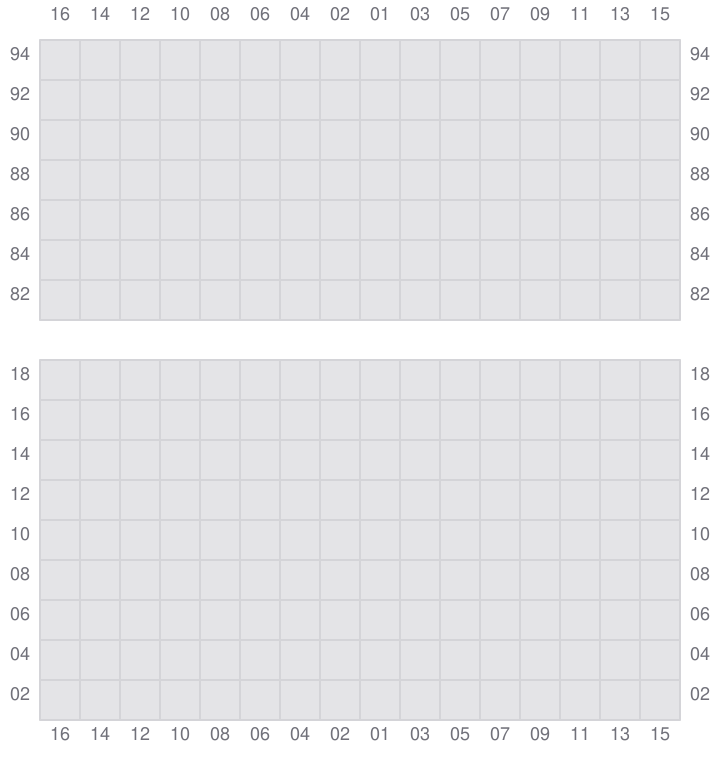

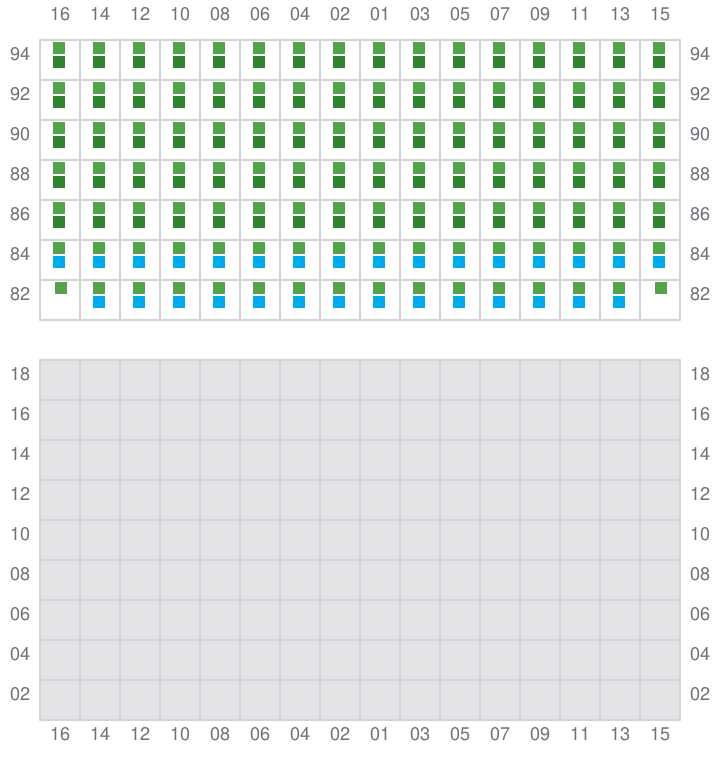

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
003
- → / ?
005 (004)
- ← / ?
- → / ?
007
- ? / →
009 (008)
- ←
- → / ?
011
- → / ?
013 (012)
- ← / ?
- → / ?
015
- →
017 (016)
- ←
- → / ?
019
- →
021 (020)
- ←
- → / ?
023
- →
025 (024)
- ←
- → / ?
027
- →
029 (028)
- ←
- → / ?
031
- →
033 (032)
- ←
- → / ?
035
- →
037 (036)
- ←
- → / ?
039
- →
041 (040)
- ←
- → / ?
043
- →
045 (044)
- ←
- → / ?
047
- →
049 (048)
- ←
- → / ?
051
- →
053 (052)
- ←
- → / ?
055
- →
057 (056)
- ←
- → / ?
059
- →
061 (060)
- ←
- → / ?
063
- →
065 (064)
- ←
- → / ?
067
069 (068)
- ← / ?
- ← / ?
