SC MARA
9302578 | V7NF9 | 9302578 by ********* Last update: Mon Jul 08 2024

General Info

Ship Name:SC MARA
IMO Code:9302578
Call Sign:V7NF9
Line Operator:9302578
Class Name for Sister Ships:MAE
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):278.43
LOA (Length Overall):294.09
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,060

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

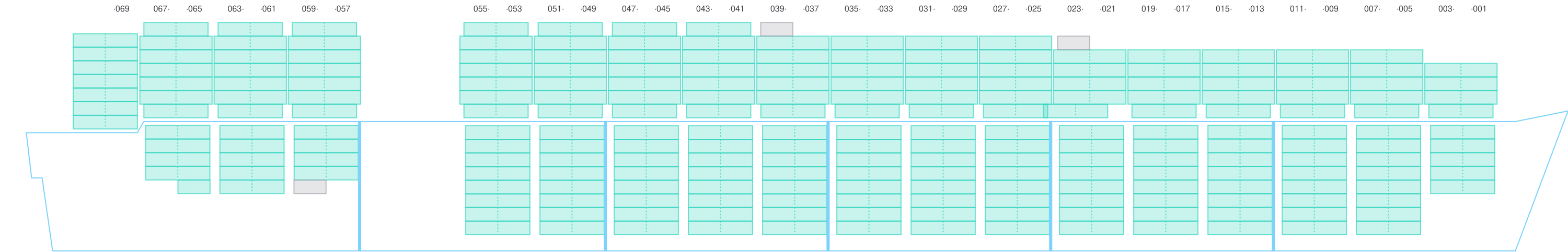

Side View

Side view of SC MARA

Hatch-Covers View

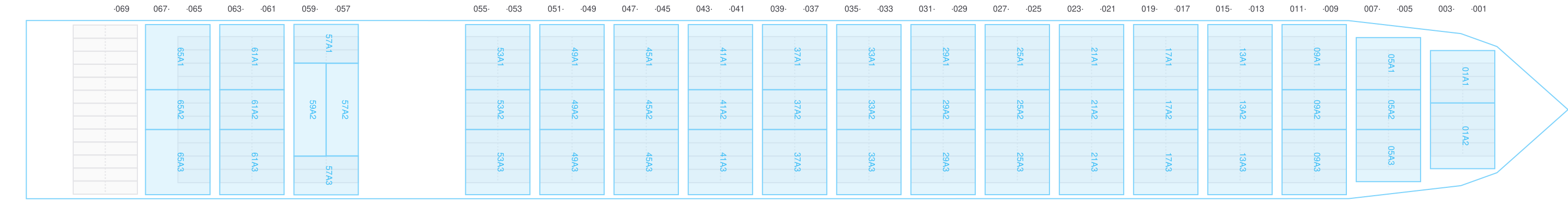

Deck view of SC MARA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

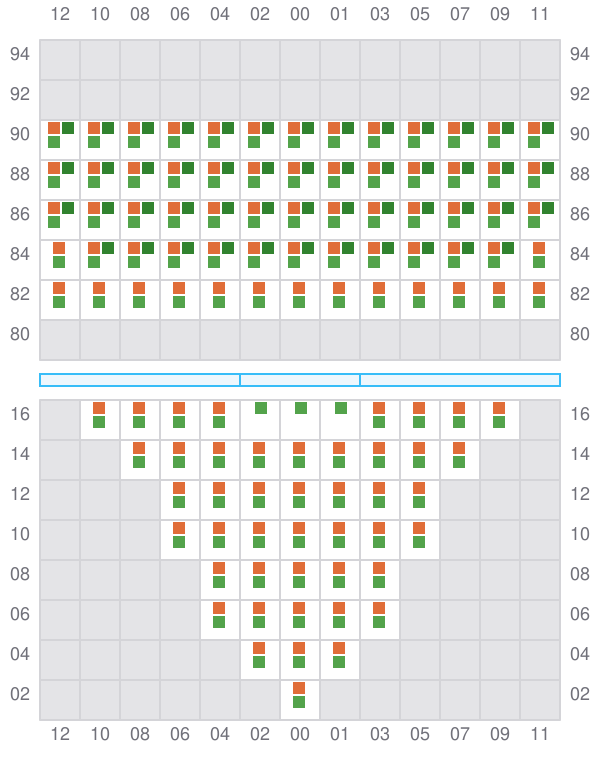

Bay 001 view and slots of SC MARA

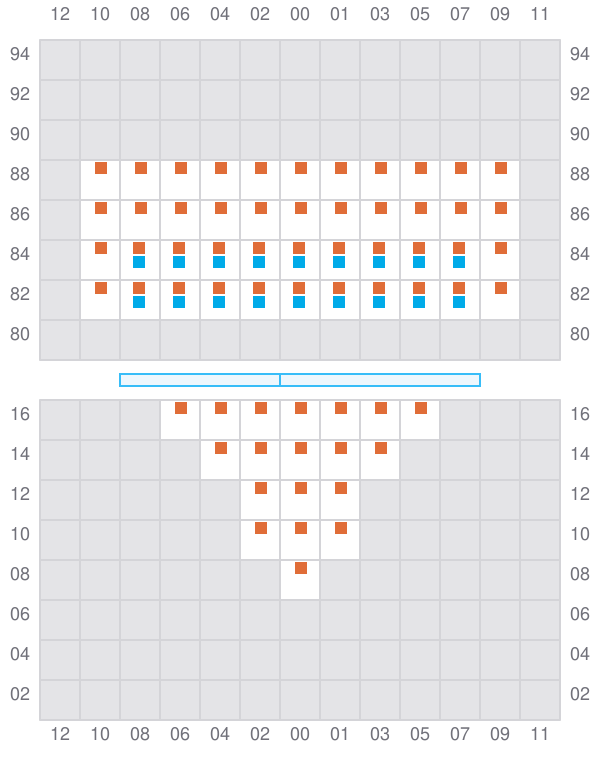

003

  • ←
  • → / ?
Bay 003 view and slots of SC MARA

005 (006)

  • →
Bay 005 view and slots of SC MARA

007

  • ←
  • → / ?
Bay 007 view and slots of SC MARA

009 (010)

  • →

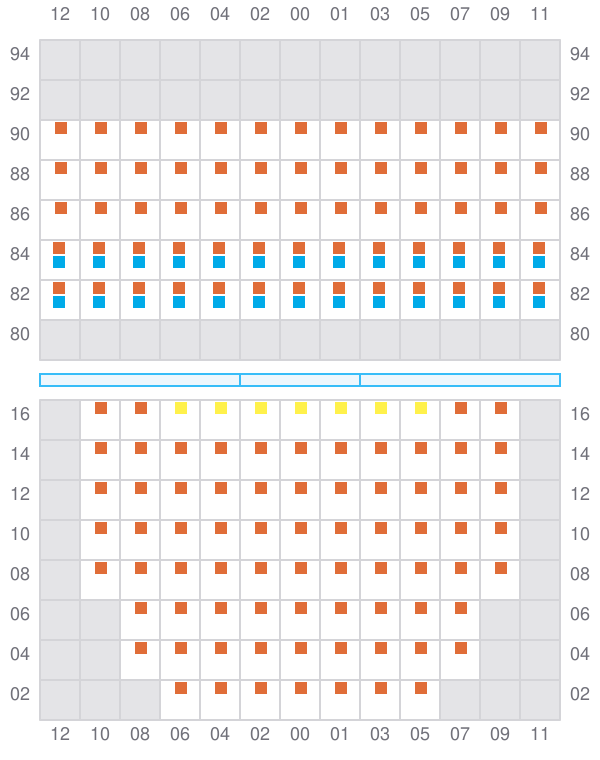

Bay 009 view and slots of SC MARA

011

  • ←
  • → / ?

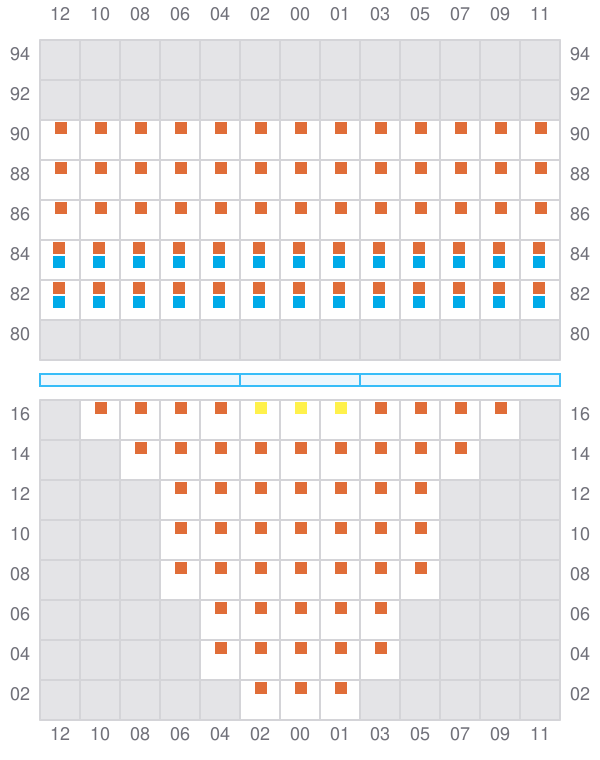

Bay 011 view and slots of SC MARA

013 (014)

  • →
Bay 013 view and slots of SC MARA

015

  • ←
  • → / ?

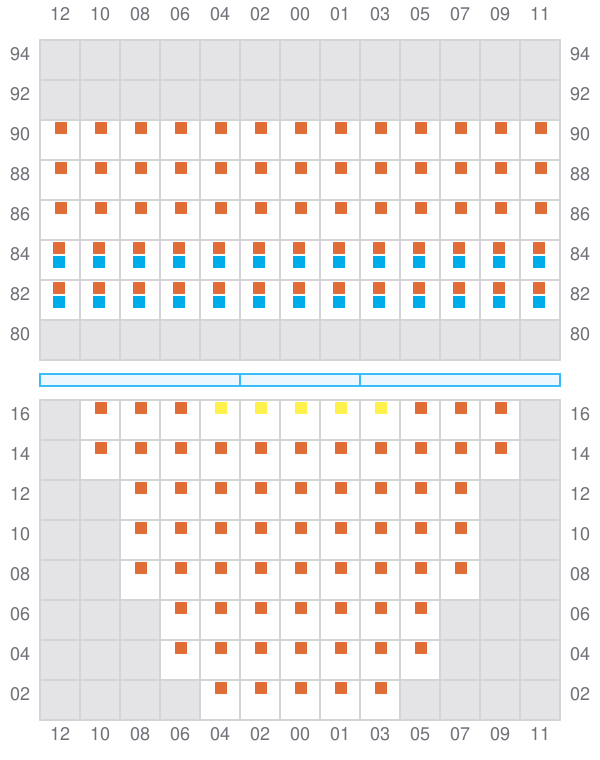

Bay 015 view and slots of SC MARA

017 (018)

  • →
Bay 017 view and slots of SC MARA

019

  • ←
  • → / ?
Bay 019 view and slots of SC MARA

021 (022)

  • →

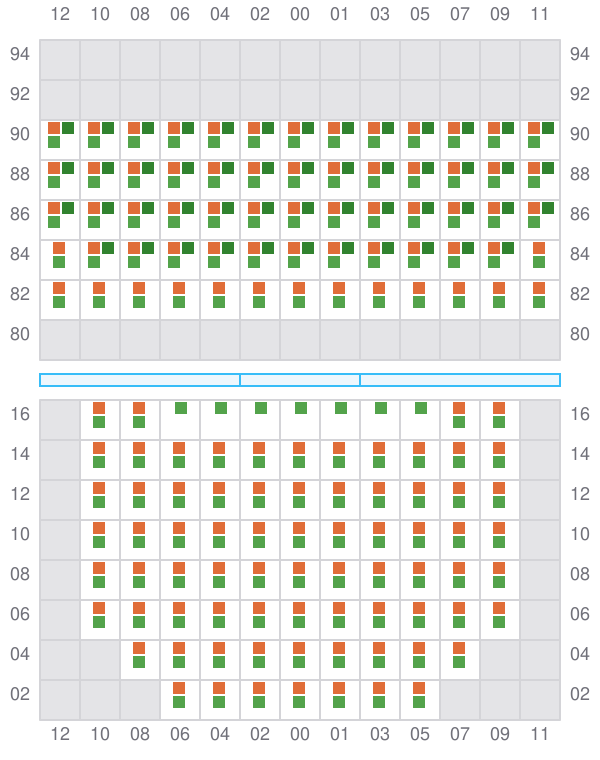

Bay 021 view and slots of SC MARA

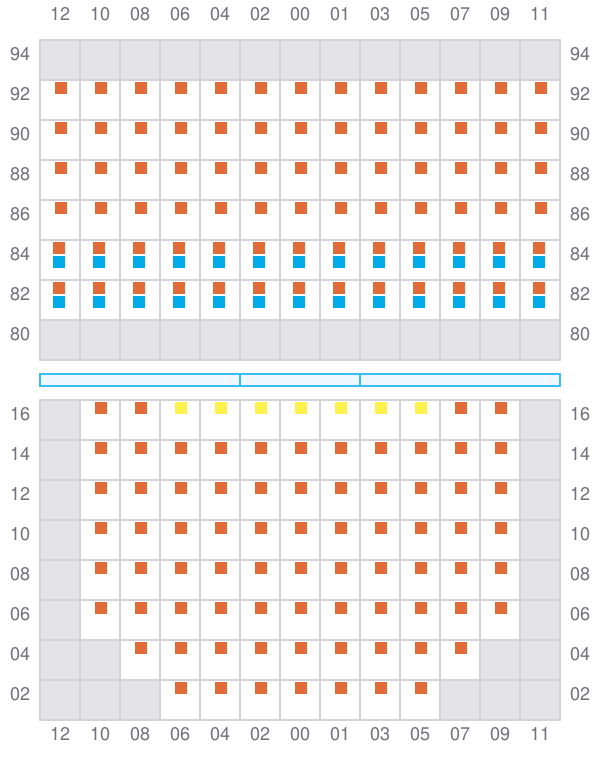

023

  • ←
  • → / ?
Bay 023 view and slots of SC MARA

025 (026)

  • →
Bay 025 view and slots of SC MARA

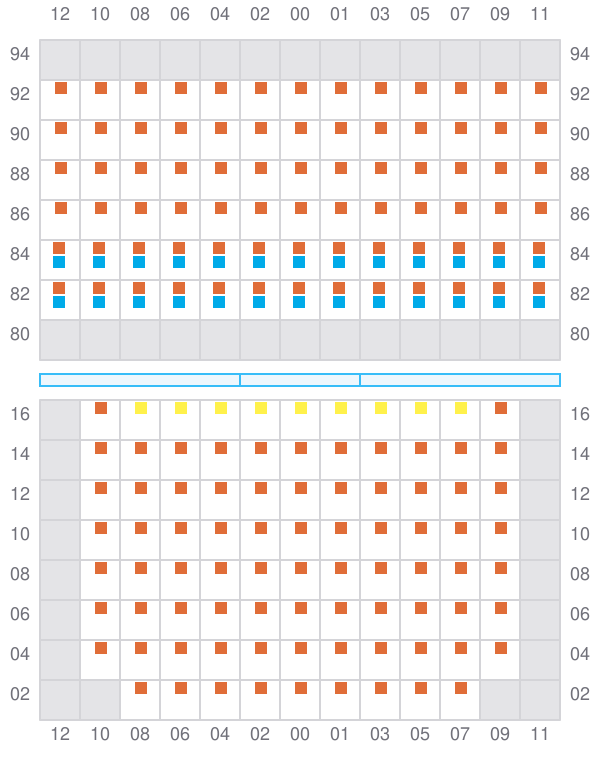

027

  • ←
  • → / ?
Bay 027 view and slots of SC MARA

029 (030)

  • →
Bay 029 view and slots of SC MARA

031

  • ←
  • → / ?
Bay 031 view and slots of SC MARA

033 (034)

  • →
Bay 033 view and slots of SC MARA

035

  • ←
  • → / ?
Bay 035 view and slots of SC MARA

037 (038)

  • →
Bay 037 view and slots of SC MARA

039

  • ←
  • → / ?
Bay 039 view and slots of SC MARA

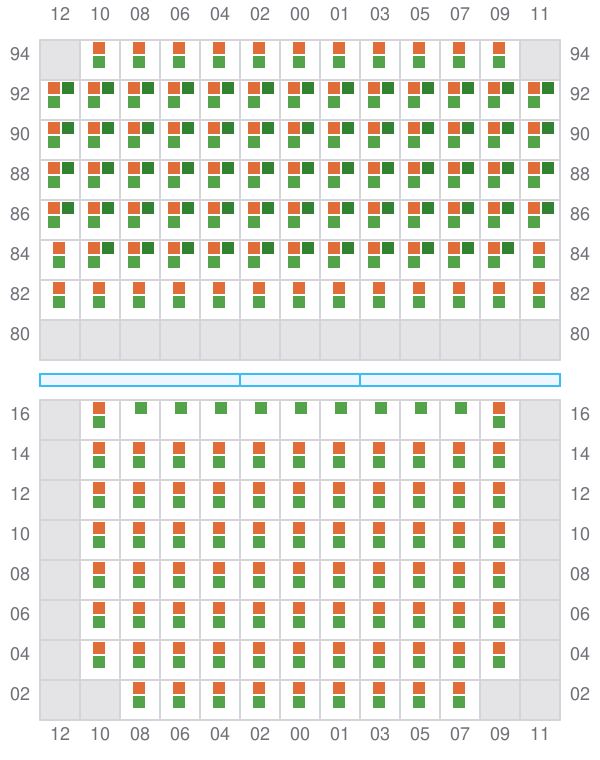

041 (042)

  • →
Bay 041 view and slots of SC MARA

043

  • ←
  • → / ?

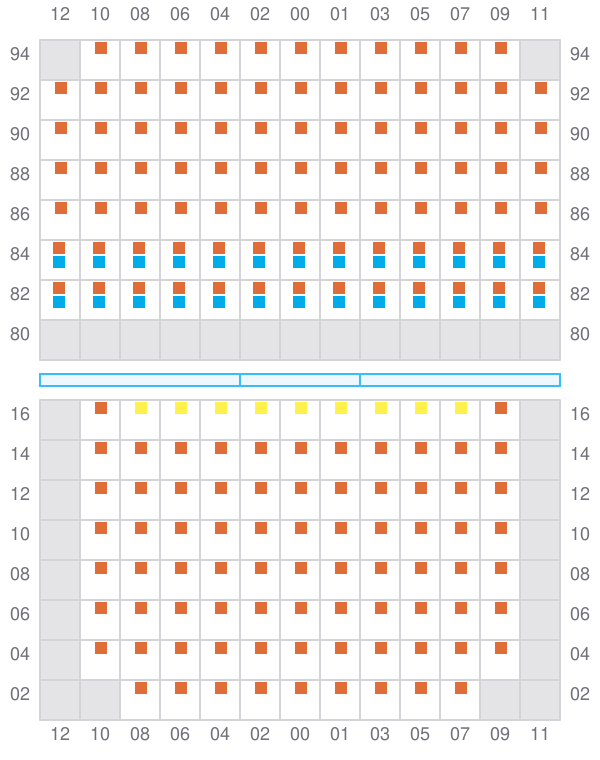

Bay 043 view and slots of SC MARA

045 (046)

  • →
Bay 045 view and slots of SC MARA

047

  • ←
  • → / ?
Bay 047 view and slots of SC MARA

049 (050)

  • →
Bay 049 view and slots of SC MARA

051

  • ←
  • → / ?
Bay 051 view and slots of SC MARA

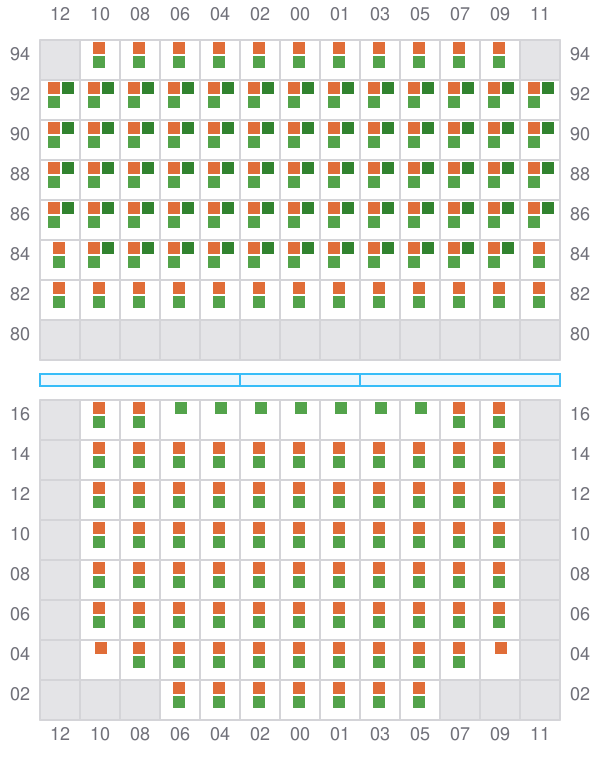

053 (054)

  • →
Bay 053 view and slots of SC MARA

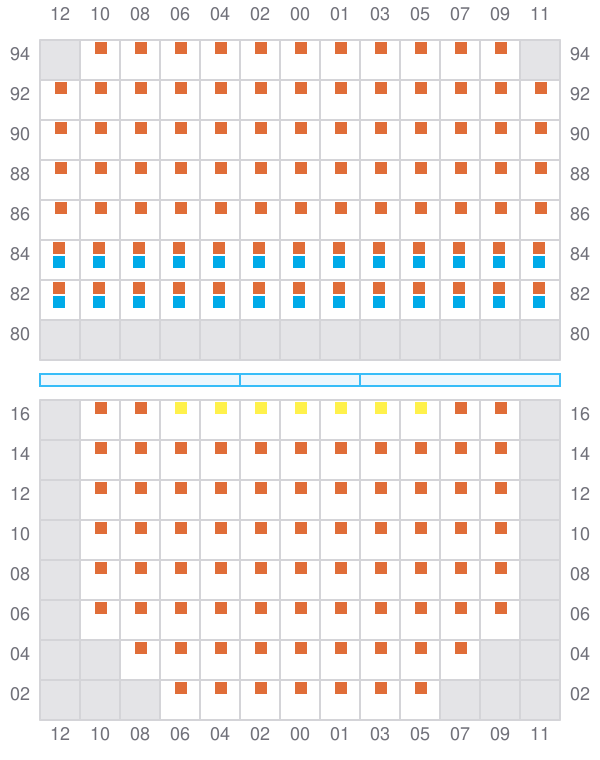

055

  • ←
  • → / ?
Bay 055 view and slots of SC MARA

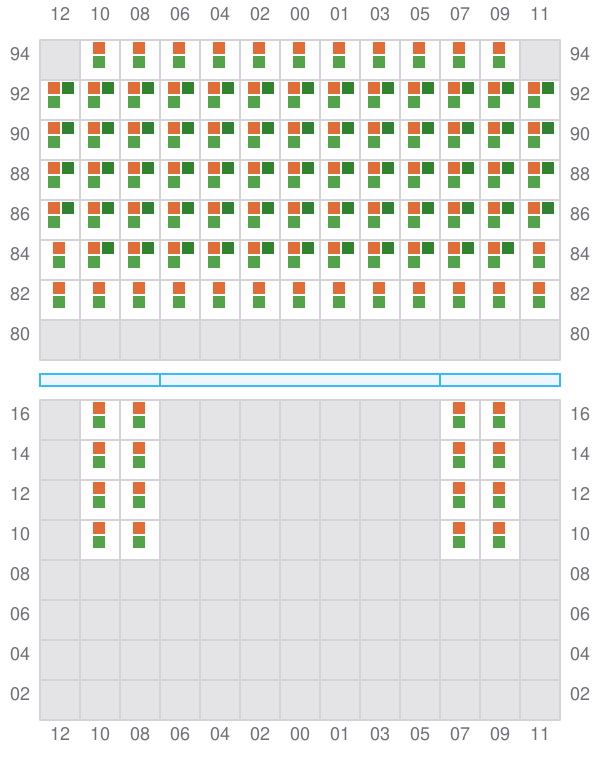

057 (058)

  • →
Bay 057 view and slots of SC MARA

059

  • ←
  • → / ?
Bay 059 view and slots of SC MARA

061 (062)

  • →
Bay 061 view and slots of SC MARA

063

  • ←
  • → / ?

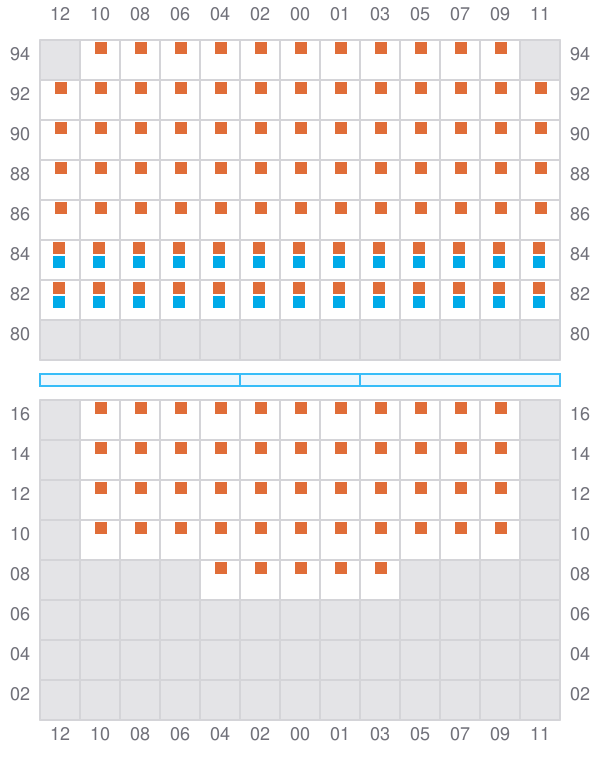

Bay 063 view and slots of SC MARA

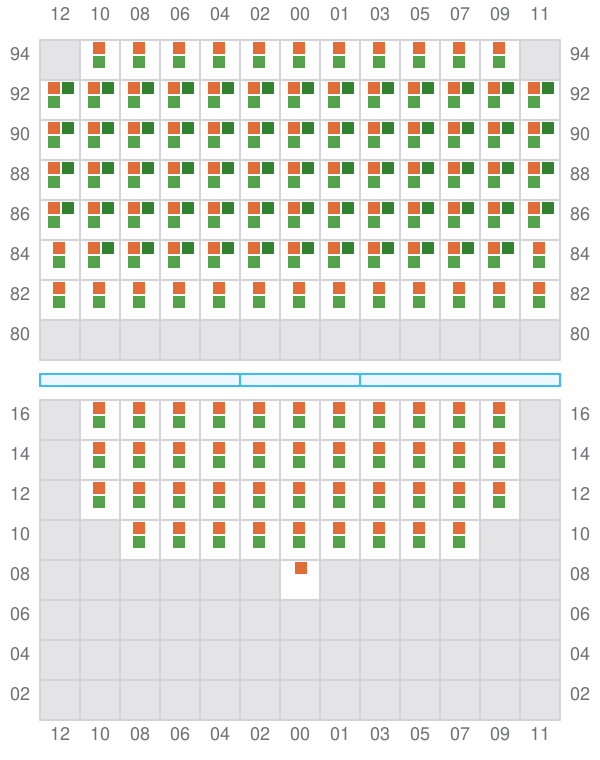

065 (066)

  • →
Bay 065 view and slots of SC MARA

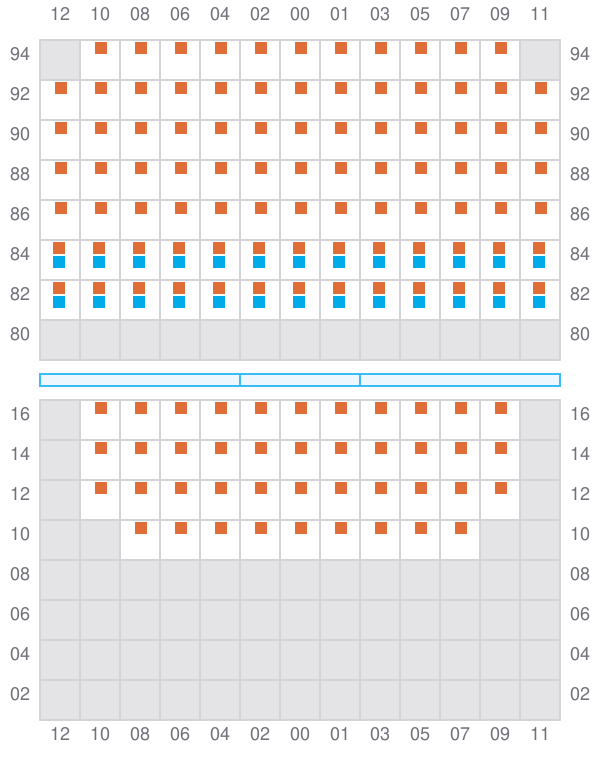

067

  • ←
  • → / ?
Bay 067 view and slots of SC MARA

069 (070)

  • → / ?
  • → / ?

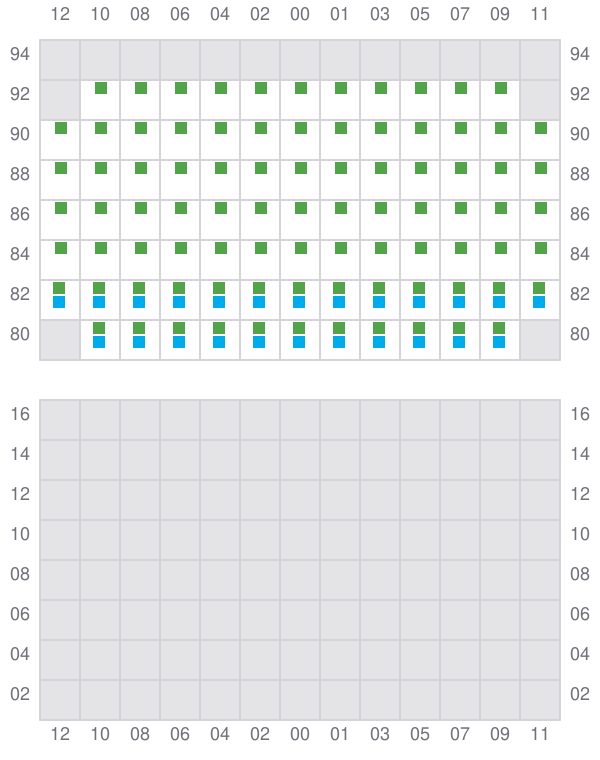

Bay 069 view and slots of SC MARA
