SC MEMPHIS
9324174 | 5LAC9 | 9324174 by ********* Last update: Fri Jun 14 2024
General Info
Ship Name:SC MEMPHIS
IMO Code:9324174
Call Sign:5LAC9
Line Operator:9324174
Class Name for Sister Ships:MCC
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,240
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

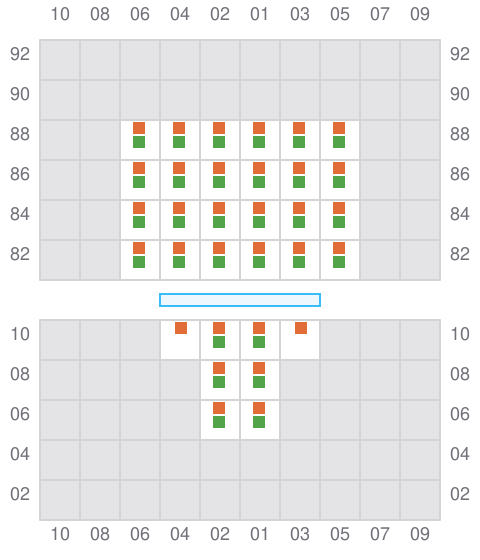

001 (002)
- →
003
- ←
005 (006)
- →

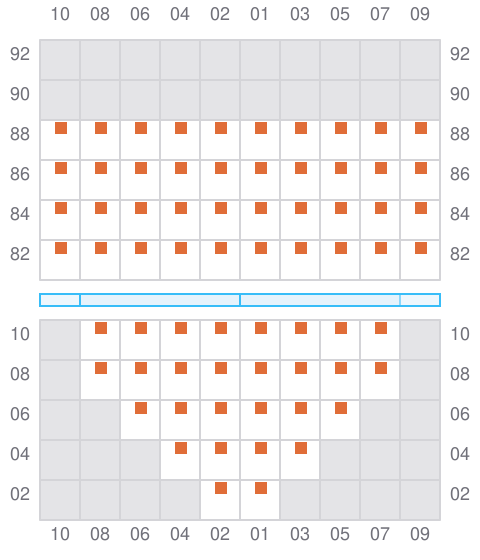

007
- ←

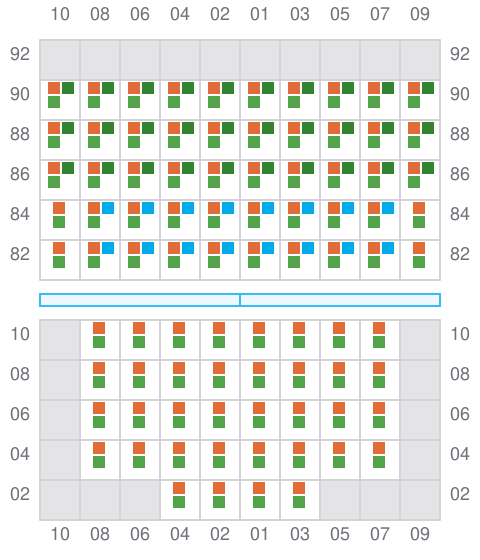

009 (010)
- →
- ← / ?
011
- ←
013 (014)
- →
- ← / ?

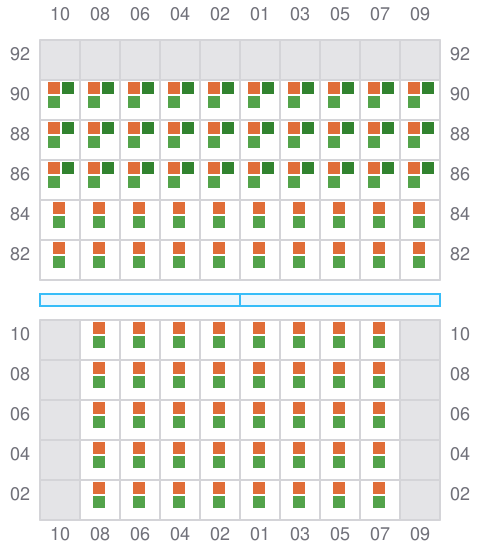

015
- ←
- → / ?
017 (018)
- →
019
- ←
- →
021 (022)
- →
023
- ←
- → / ?

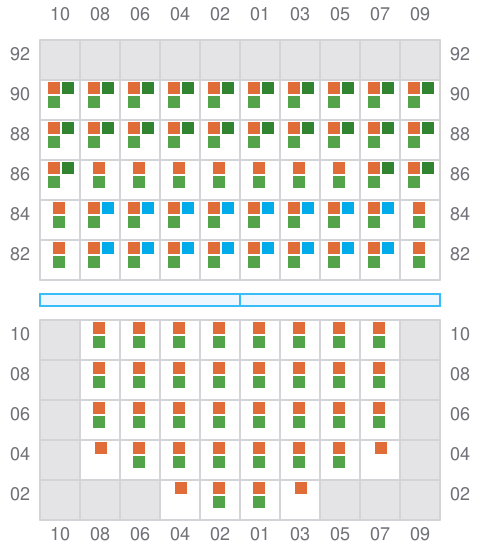

025 (026)
- →
- ←
027
- ←
- → / ?
029 (030)
- → / ?
- ← / ?

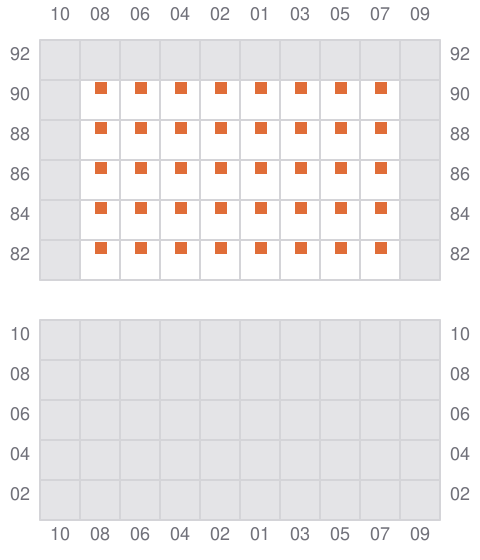

031
