SC MONTREUX
9295414 | V7A2549 | 9295414 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:SC MONTREUX
IMO Code:9295414
Call Sign:V7A2549
Line Operator:9295414
Class Name for Sister Ships:01I
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):252.00
LOA (Length Overall):264.04
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,132

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SC MONTREUX

Hatch-Covers View

Deck view of SC MONTREUX

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →
Bay 001 view and slots of SC MONTREUX

003

  • ←
  • → / ?
  • →

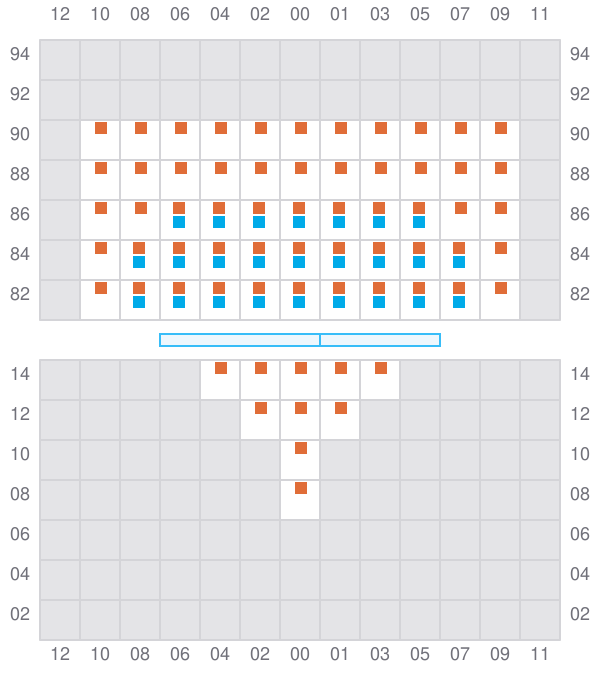

Bay 003 view and slots of SC MONTREUX

005 (006)

  • →
  • →
Bay 005 view and slots of SC MONTREUX

007

  • ←
  • → / ?
  • →

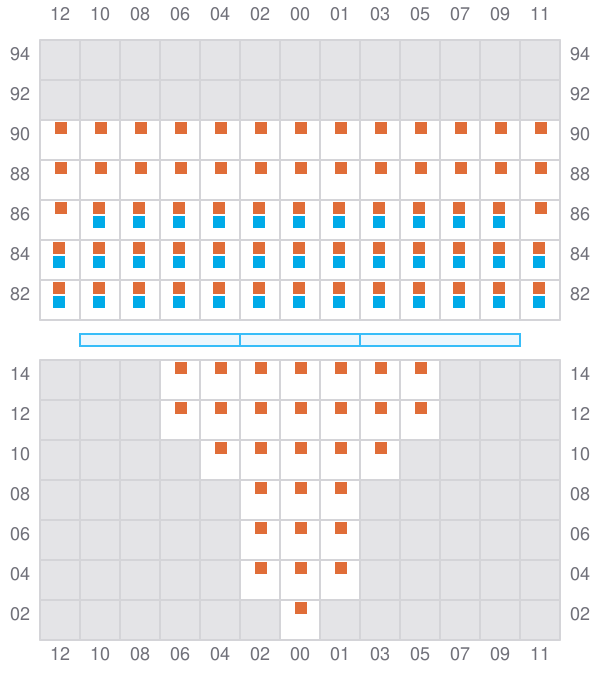

Bay 007 view and slots of SC MONTREUX

009 (010)

  • →
  • →

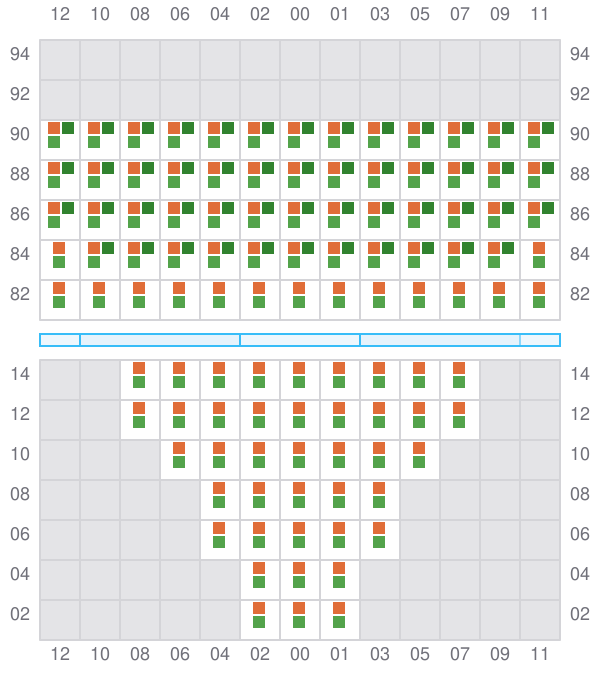

Bay 009 view and slots of SC MONTREUX

011

  • ←
  • →
  • →
Bay 011 view and slots of SC MONTREUX

013 (014)

  • →
  • →

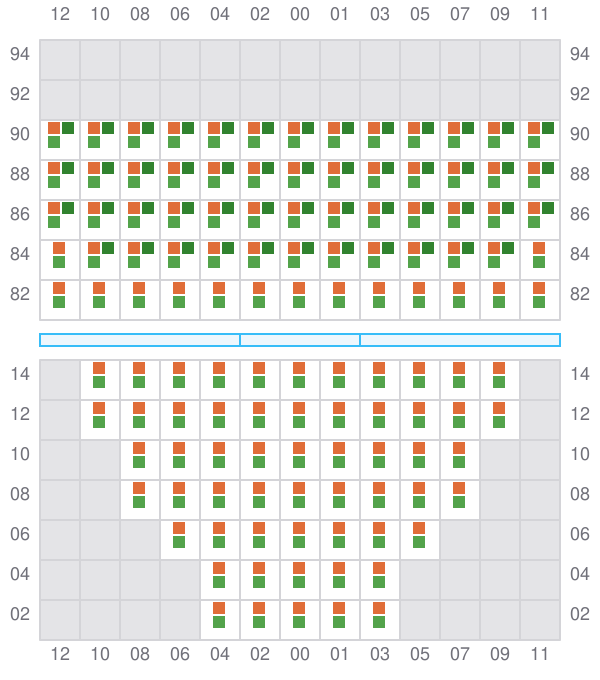

Bay 013 view and slots of SC MONTREUX

015

  • ←
  • →
  • →

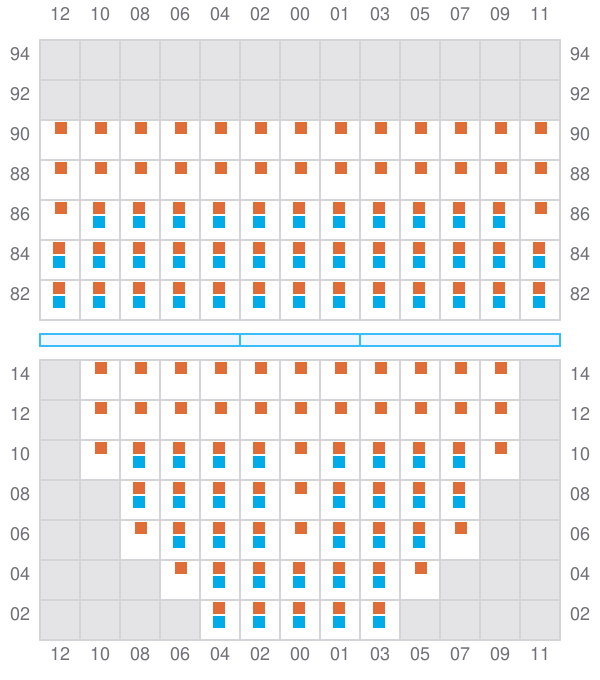

Bay 015 view and slots of SC MONTREUX

017 (018)

  • →
  • →

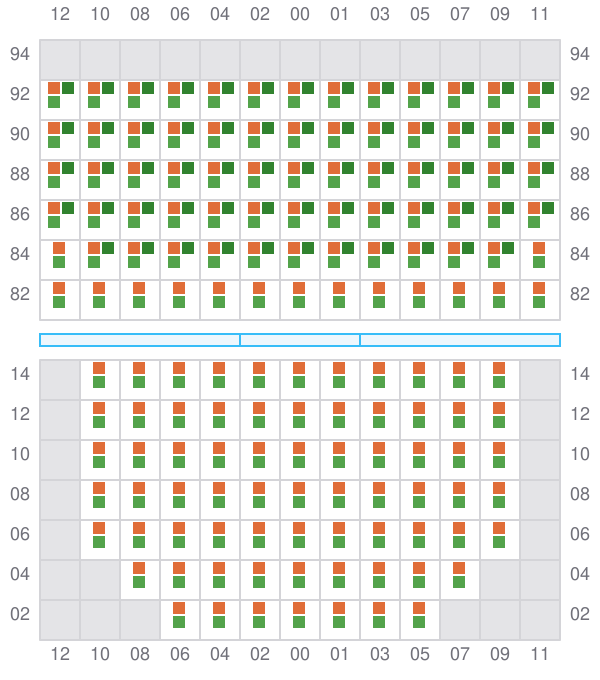

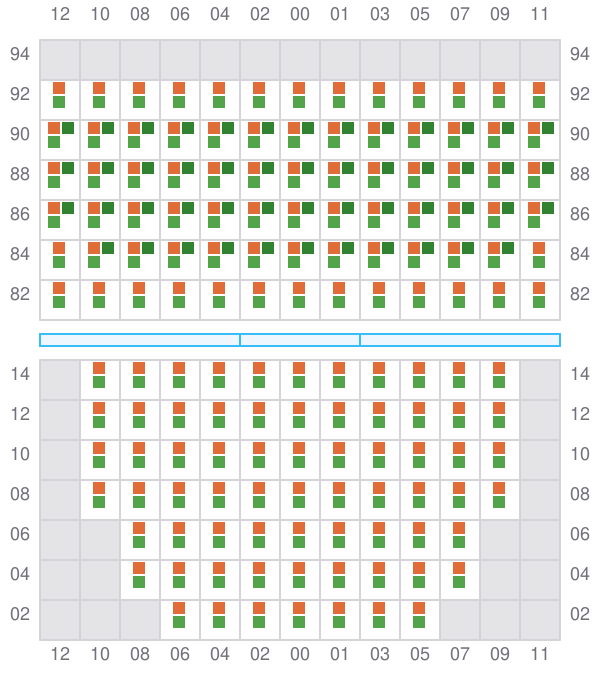

Bay 017 view and slots of SC MONTREUX

019

  • ←
  • →
  • →

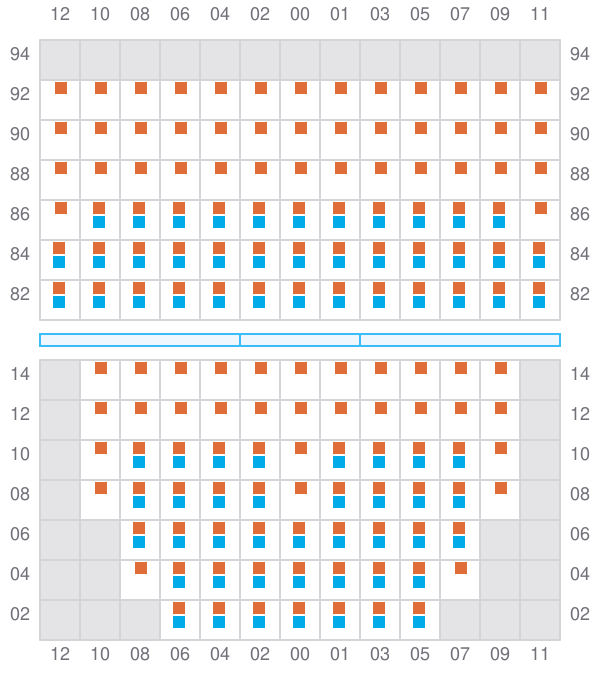

Bay 019 view and slots of SC MONTREUX

021 (022)

  • →
  • →
Bay 021 view and slots of SC MONTREUX

023

  • ←
  • →
  • →
Bay 023 view and slots of SC MONTREUX

025 (026)

  • →
  • →

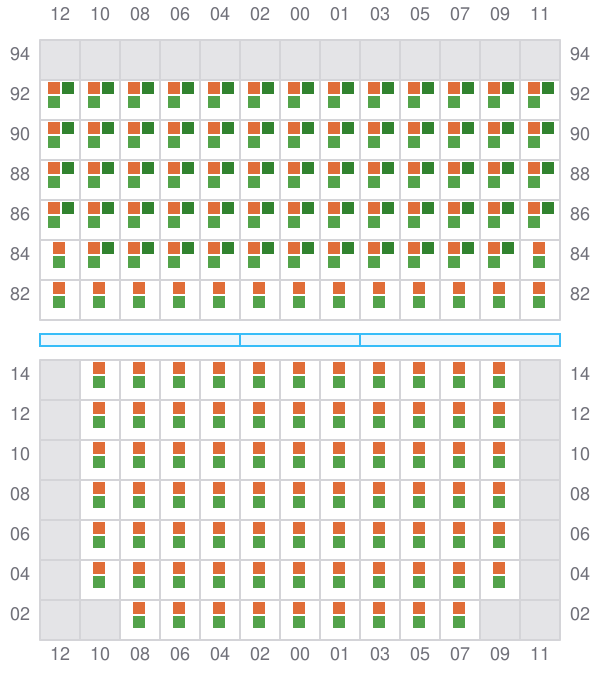

Bay 025 view and slots of SC MONTREUX

027

  • ←
  • →
  • →
Bay 027 view and slots of SC MONTREUX

029 (030)

  • →
  • →
Bay 029 view and slots of SC MONTREUX

031

  • ←
  • →
  • →
Bay 031 view and slots of SC MONTREUX

033 (034)

  • →
  • →
Bay 033 view and slots of SC MONTREUX

035

  • ←
  • →
  • →
Bay 035 view and slots of SC MONTREUX

037 (038)

  • →
  • →

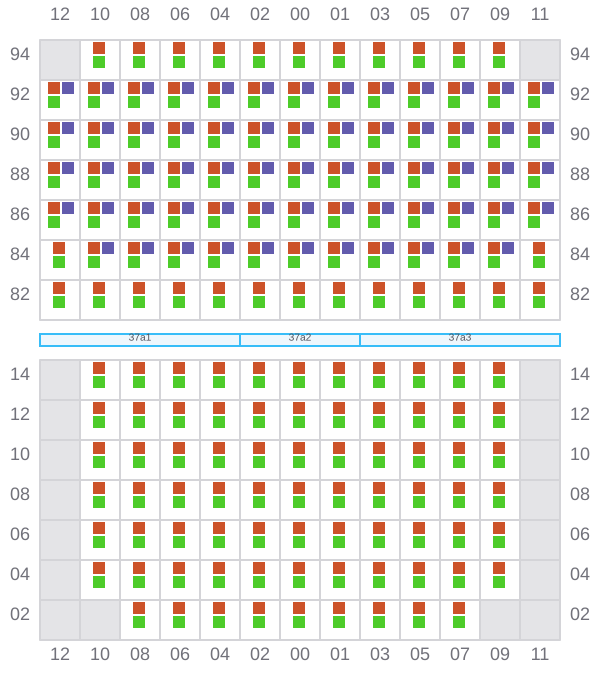

Bay 037 view and slots of SC MONTREUX

039

  • ←
  • →
  • →

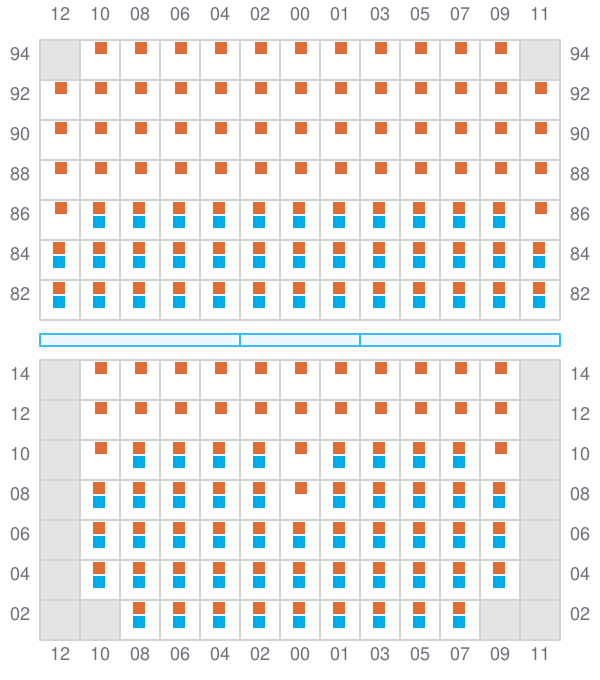

Bay 039 view and slots of SC MONTREUX

041 (042)

  • →
  • →

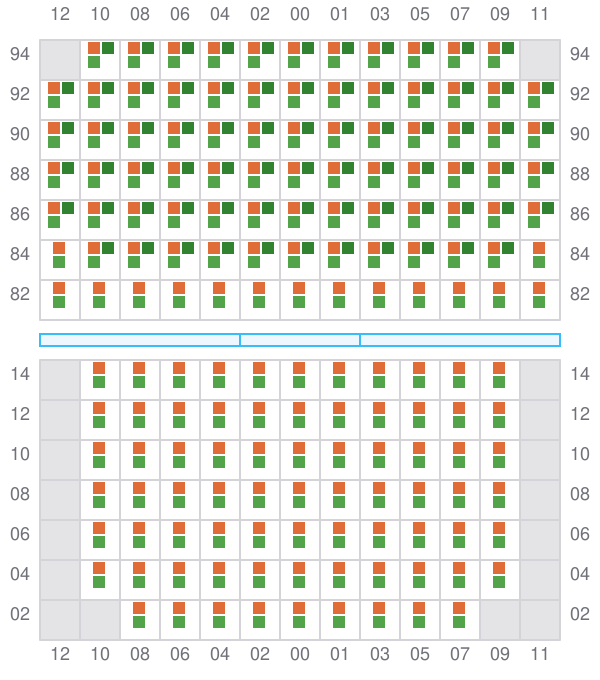

Bay 041 view and slots of SC MONTREUX

043

  • ←
  • →
  • →
Bay 043 view and slots of SC MONTREUX

045 (046)

  • →
  • →

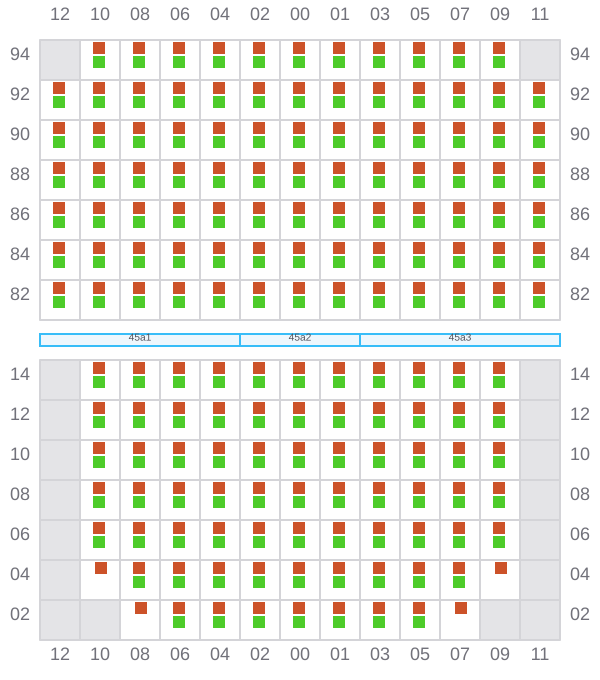

Bay 045 view and slots of SC MONTREUX

047

  • ←
  • →
  • →

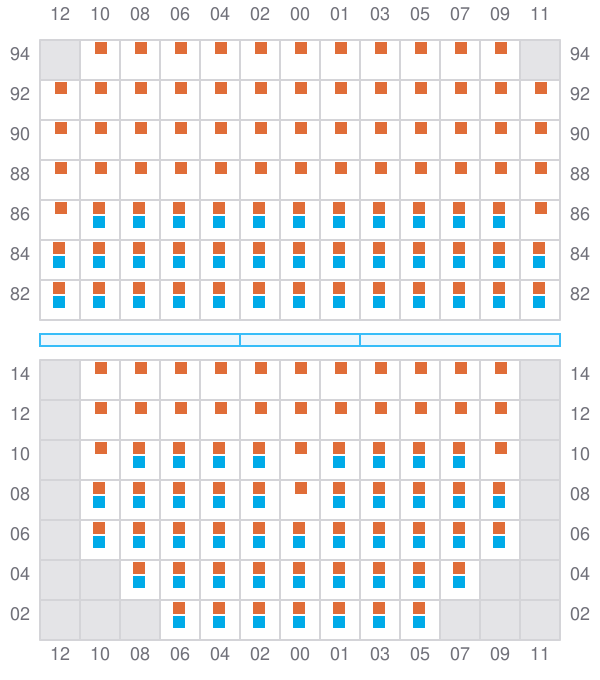

Bay 047 view and slots of SC MONTREUX

049 (050)

  • → / ?
  • ← / ?
  • → / ?

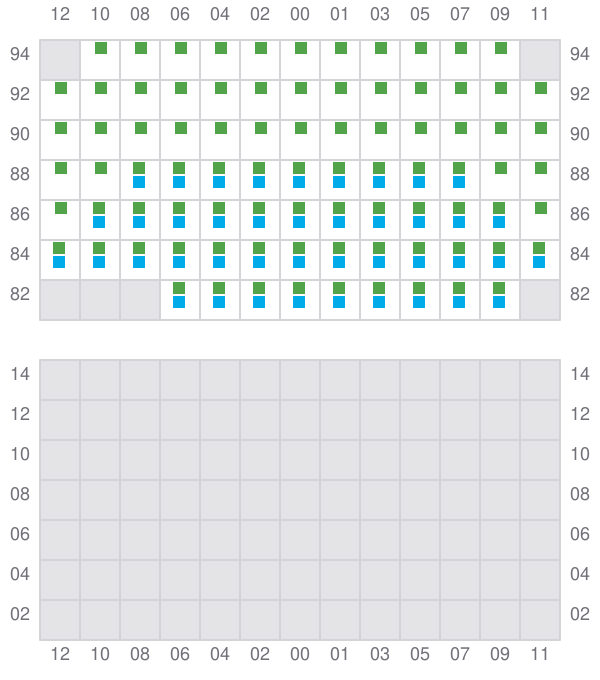

Bay 049 view and slots of SC MONTREUX

051

Bay 051 view and slots of SC MONTREUX

053 (054)

  • →
  • ← / ?
  • →
Bay 053 view and slots of SC MONTREUX

055

  • ←
  • →
Bay 055 view and slots of SC MONTREUX

057 (058)

  • →
  • ← / ?
  • →

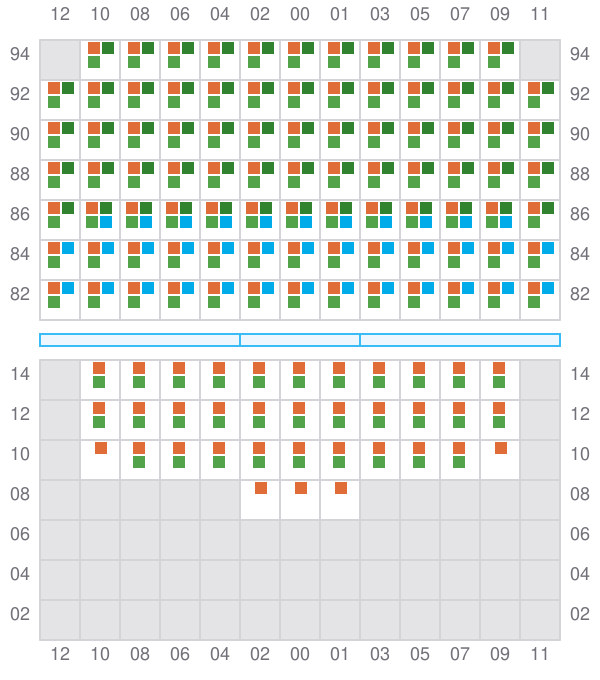

Bay 057 view and slots of SC MONTREUX

059

  • ←
  • →
Bay 059 view and slots of SC MONTREUX

061 (062)

  • → / ?
  • ← / ?
  • → / ?
Bay 061 view and slots of SC MONTREUX
