The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
SEA OF LUCK
9202481 | 3FZM6 | 9202481 by ********* Last update: Mon Mar 11 2024
General Info
Ship Name:SEA OF LUCK
IMO Code:9202481
Call Sign:3FZM6
Line Operator:9202481
Class Name for Sister Ships:Q57
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):168.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,672
Centers of Gravity
LCG Values:Known
LCG Data:93%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

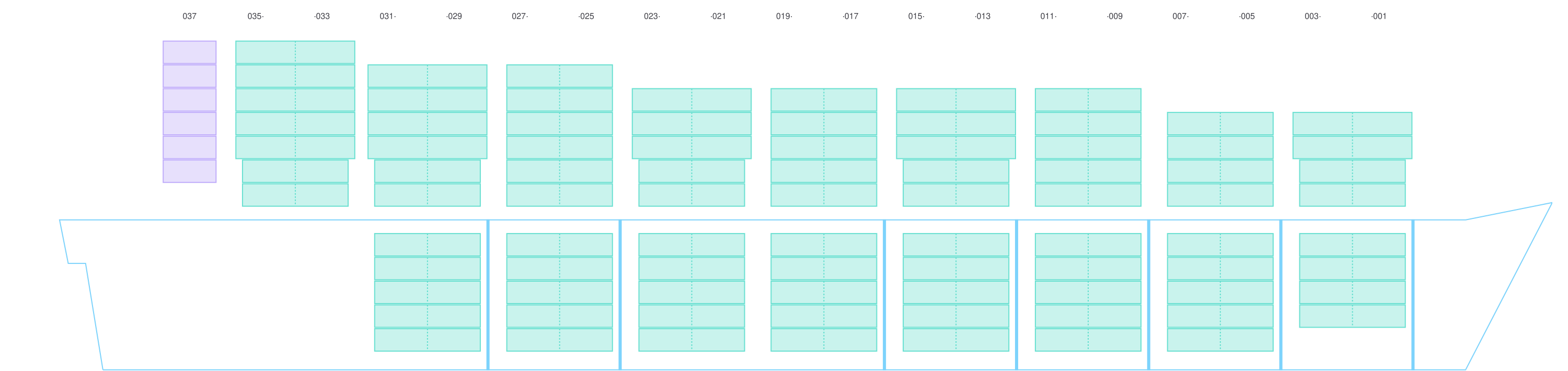

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

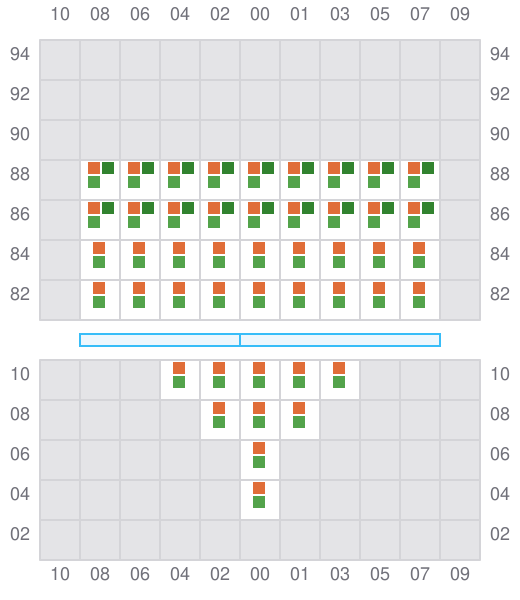

001 (002)
- →

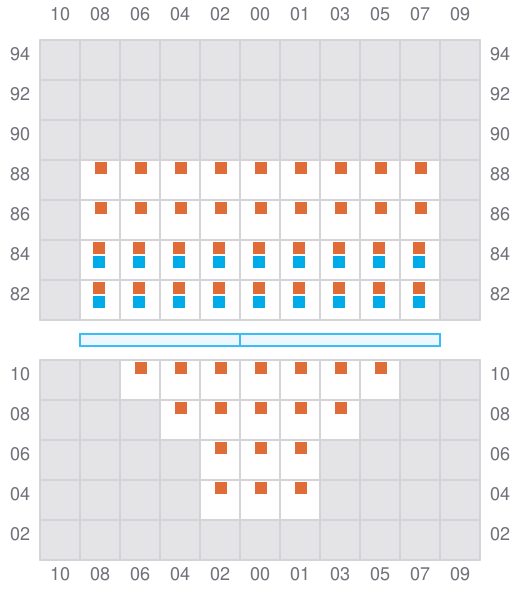

003
- ←

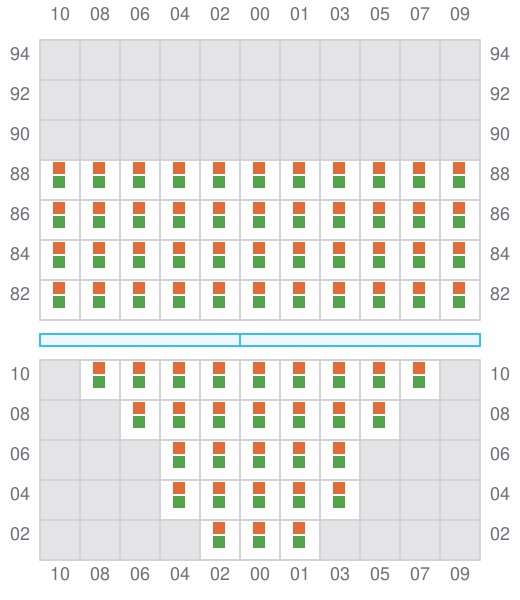

005 (006)
- →

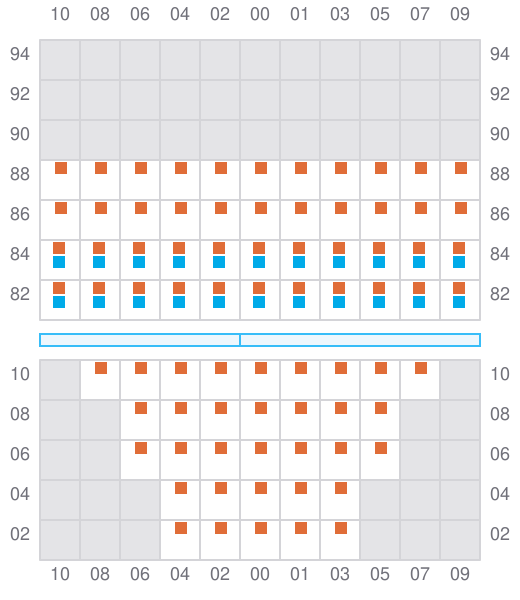

007
- ←
- → / ?

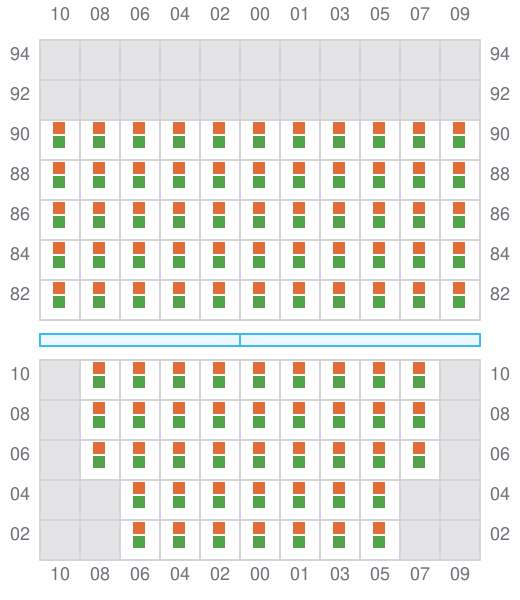

009 (010)
- →
- ← / ?

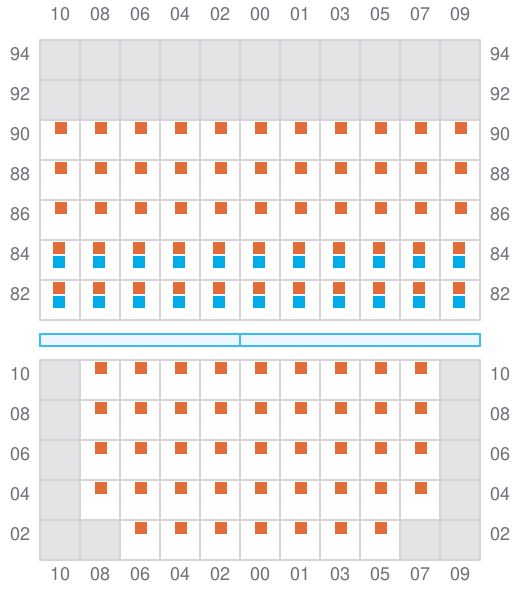

011
- ←
- → / ?
013 (014)
- →

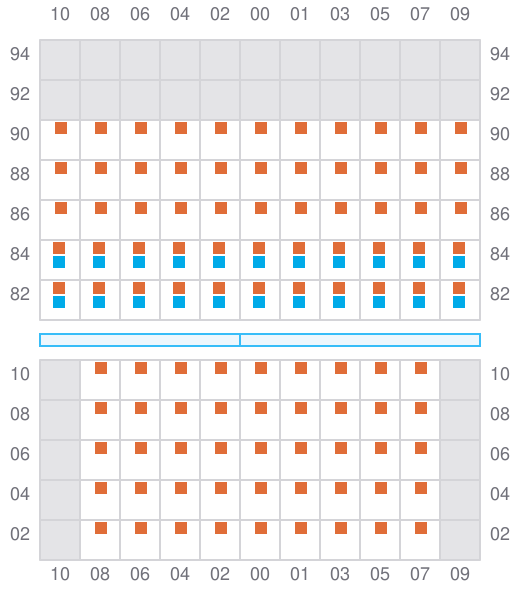

015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←

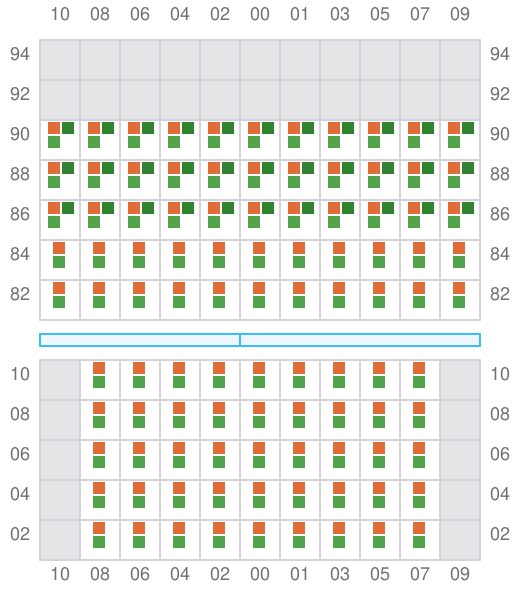

021 (022)
- →
- ← / ?

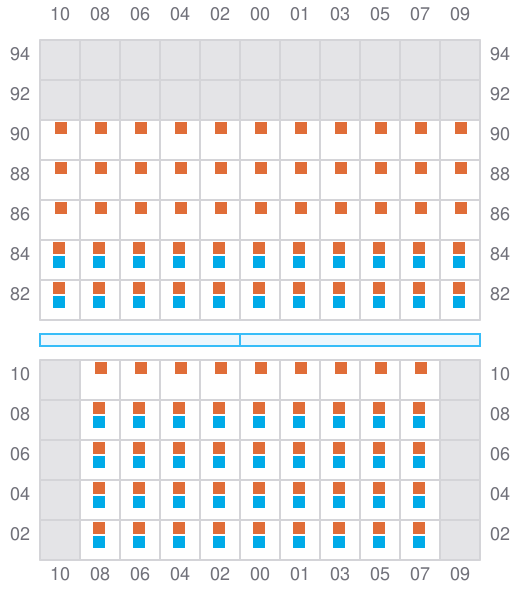

023
- ←
- → / ?

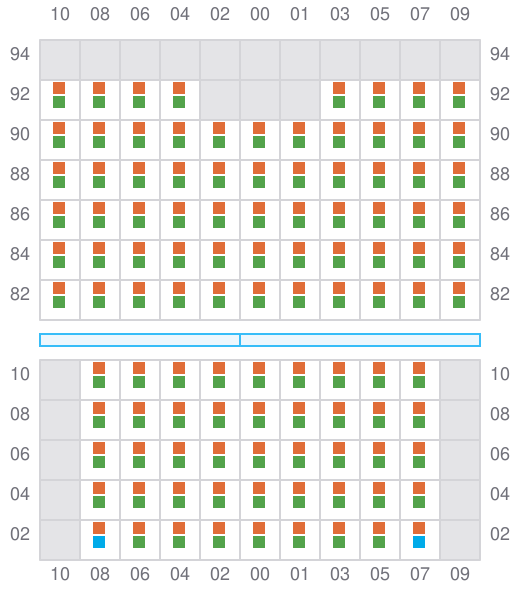

025 (026)
- →
- ← / ?
027
- ←
- → / ?

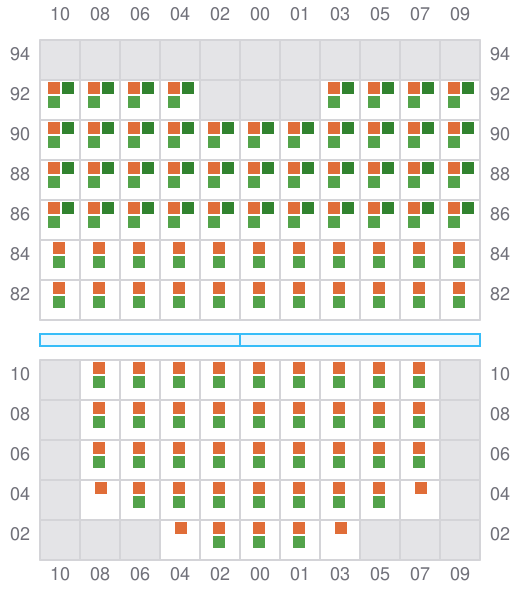

029 (030)
- →

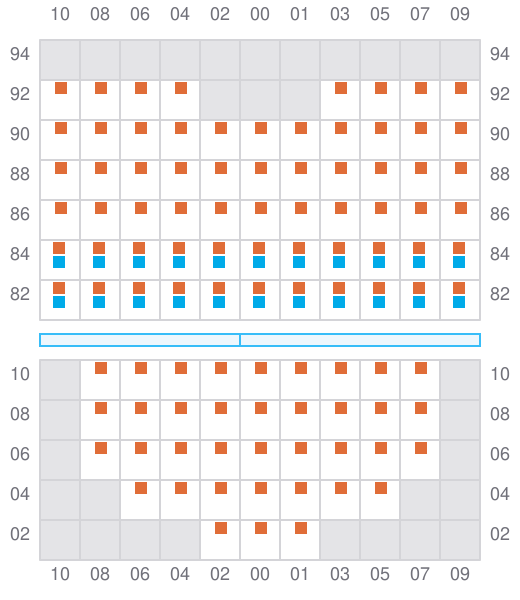

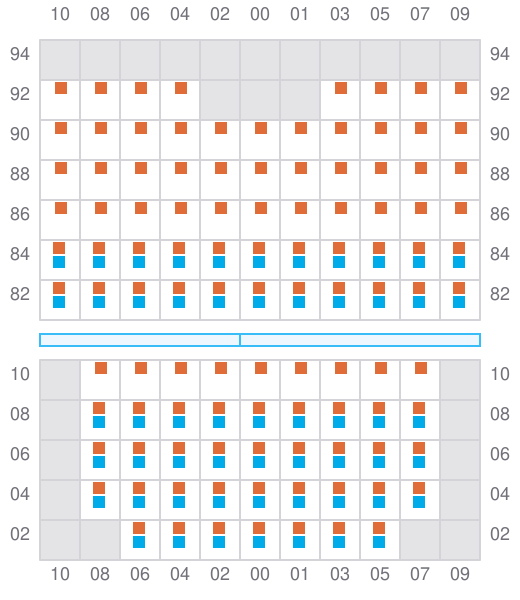

031
- ←
- → / ?
033 (034)
- → / ?
- ← / ?

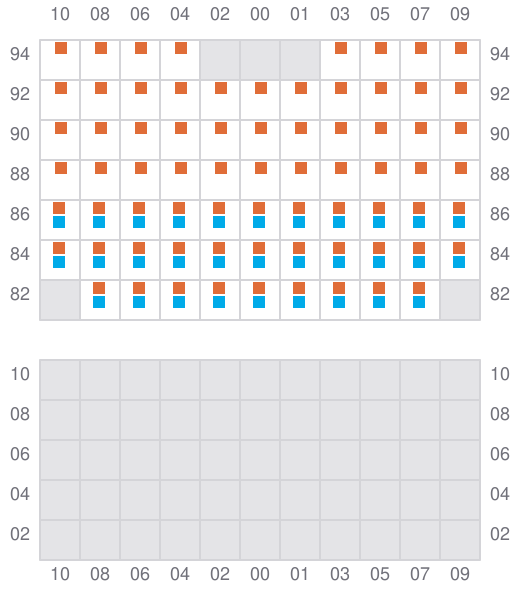

035
- ← / ?
- → / ?

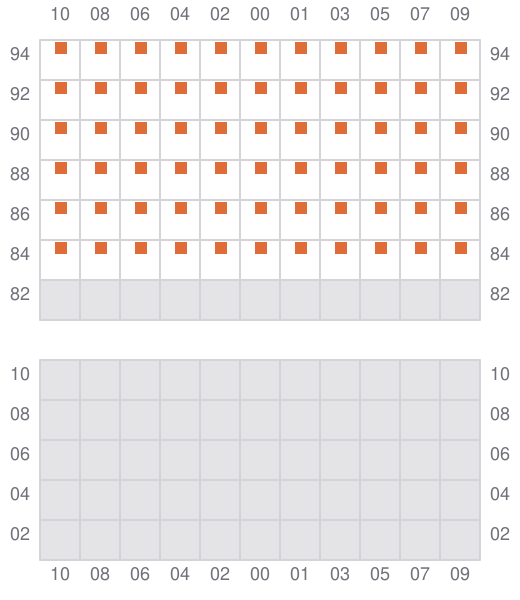

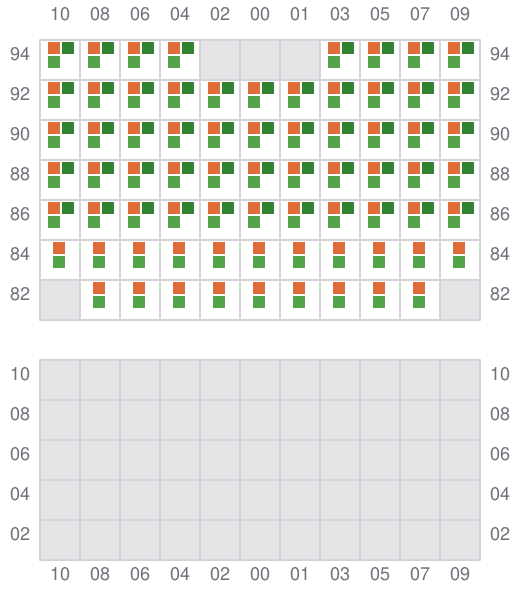

037
- ← / ?
