SEA RHYME
9005833 | WDL5112 | 9005833 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:SEA RHYME
IMO Code:9005833
Call Sign:WDL5112
Line Operator:9005833
Class Name for Sister Ships:99K
Year Built:1993
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:930
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

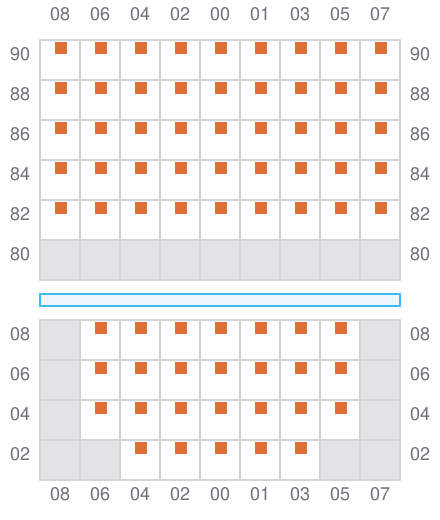

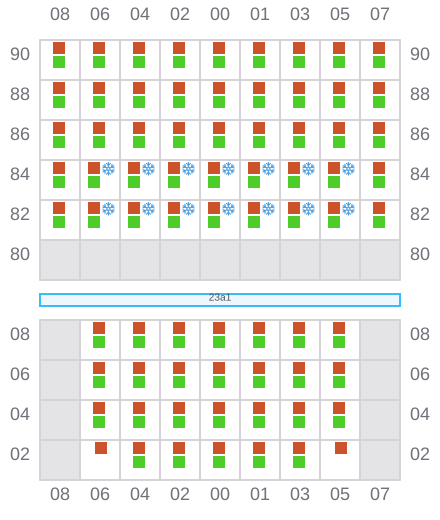

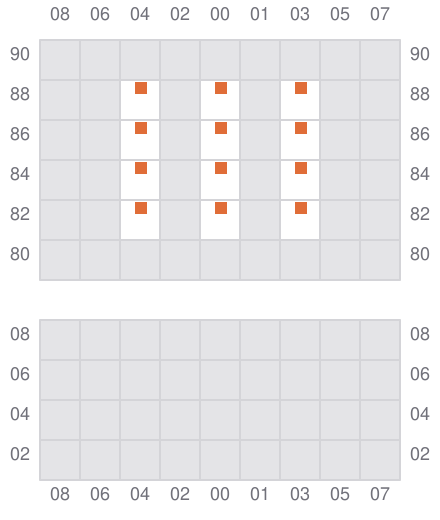

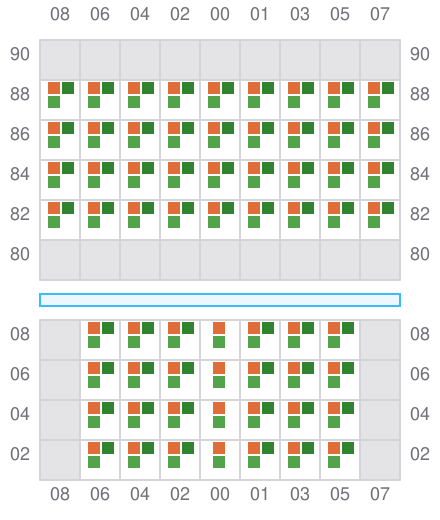

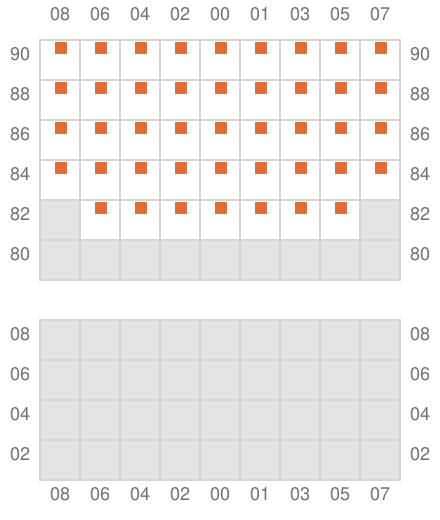

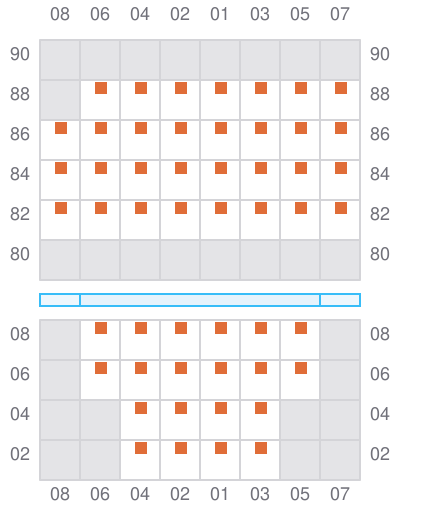

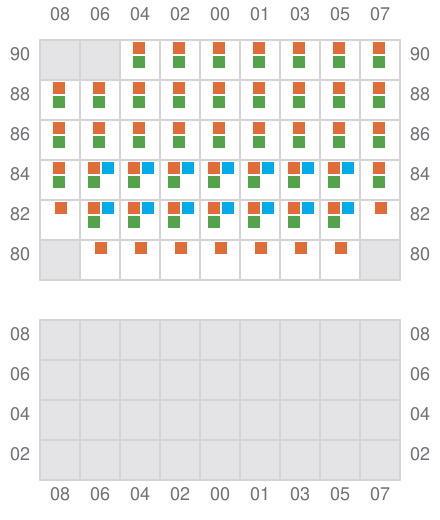

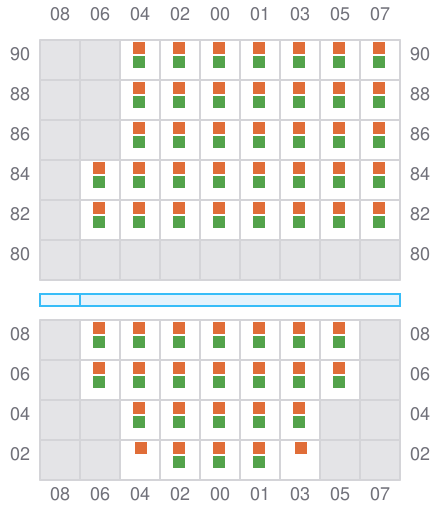

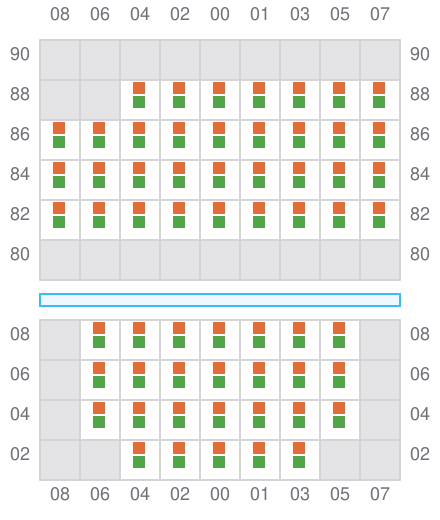

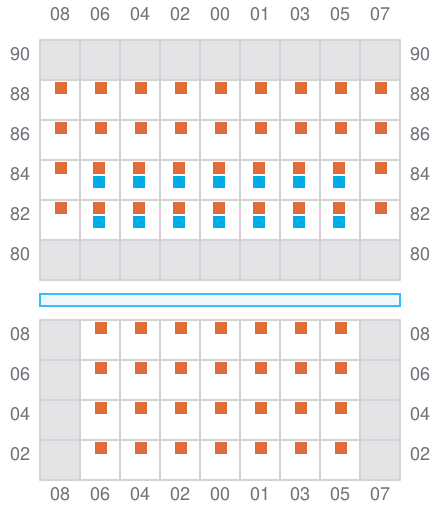

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- → / ?
003
- ←
005 (006)
- →
007
- ←
- → / ?
009
011 (012)
- →
- ← / ?
013
- ←
015
017 (018)
- →
- ← / ?
019
- ←
- → / ?
021
023 (024)
- →
- ← / ?
025
- ←
027 (028)
- →
029
- ←
- → / ?
031
033 (034)
- → / ?
- ← / ?
035
- ← / ?
