SEABOARD EXPLORER
9347267 | A8PC7 | 9347267 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:SEABOARD EXPLORER
IMO Code:9347267
Call Sign:A8PC7
Line Operator:9347267
Class Name for Sister Ships:2FR
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,819
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

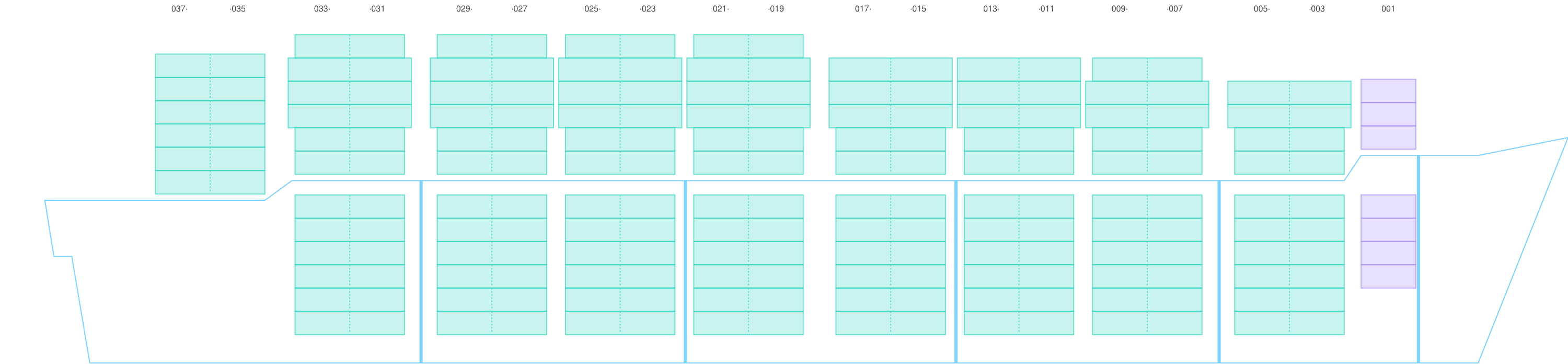

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

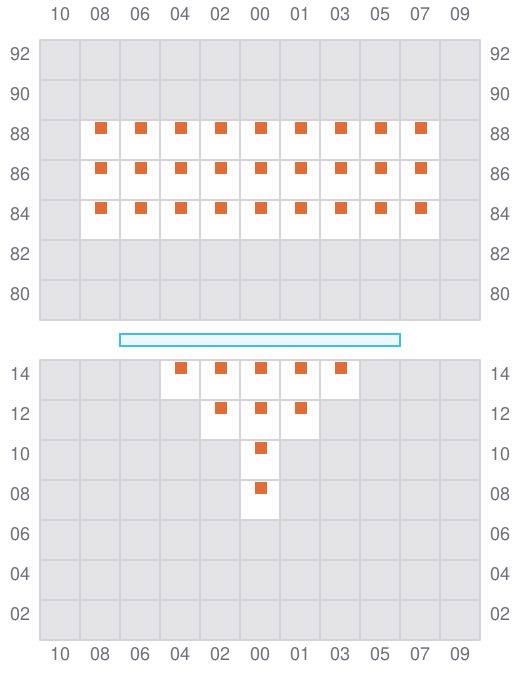

001
003 (004)
- →
005
- ←
007 (008)
- →

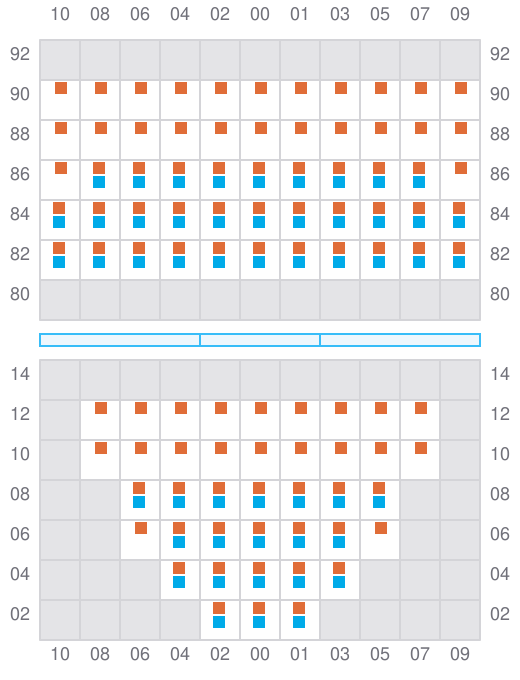

009
- ←
011 (012)
- →

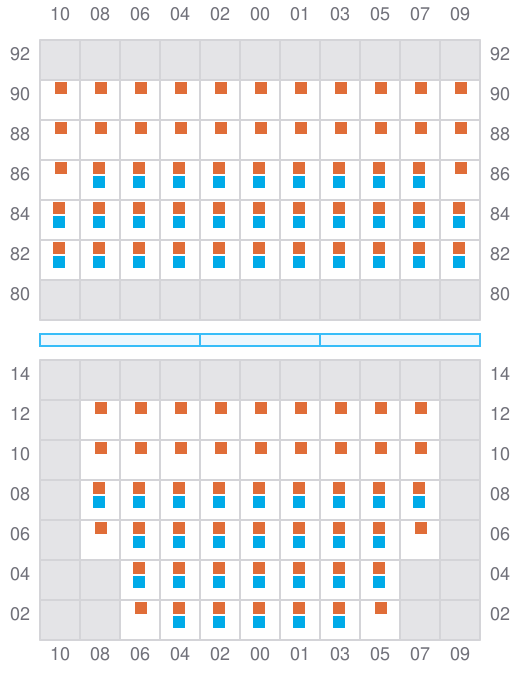

013
- ←

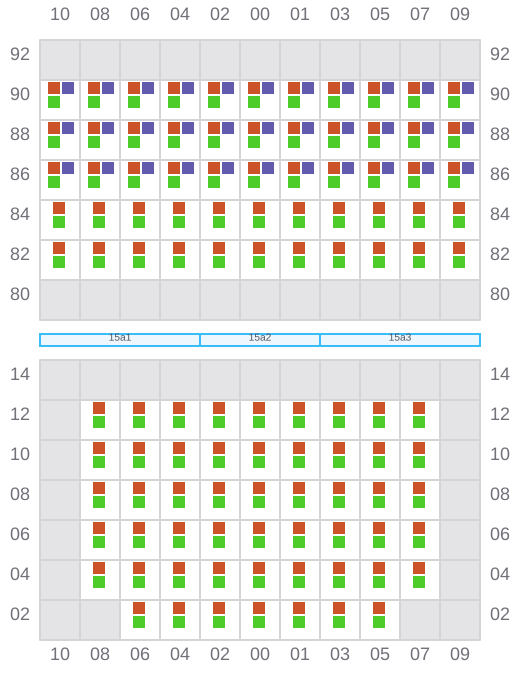

015 (016)
- →
017
- ←
019 (020)
- →
021
- ←
023 (024)
- →
025
- ←
027 (028)
- →

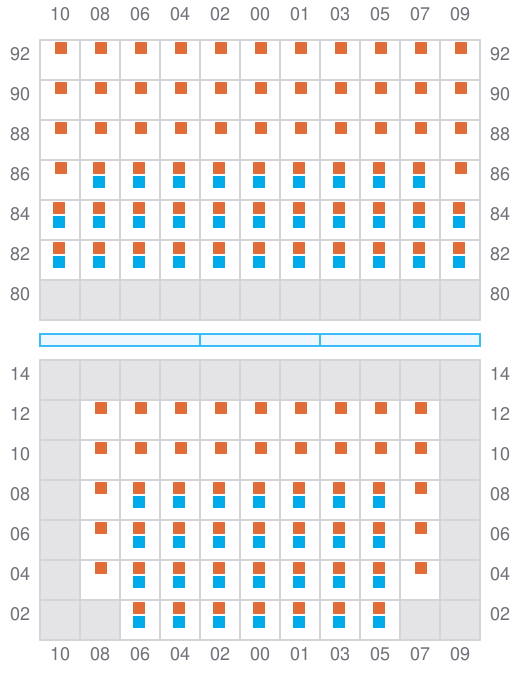

029
- ←

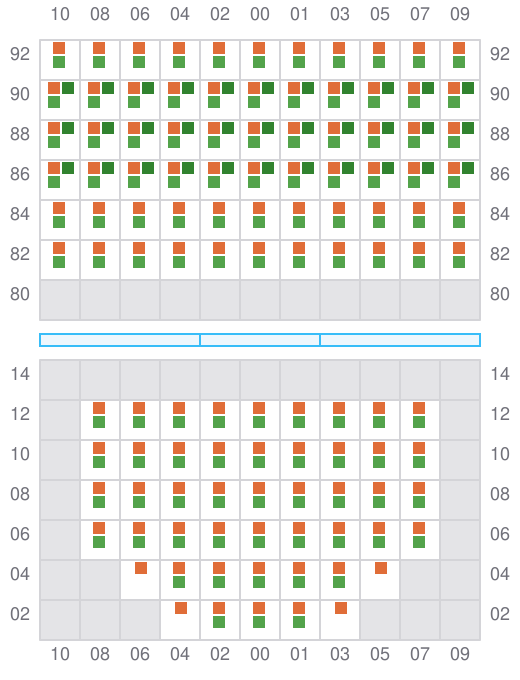

031 (032)
- →
033
- ←
035 (036)
- → / ?

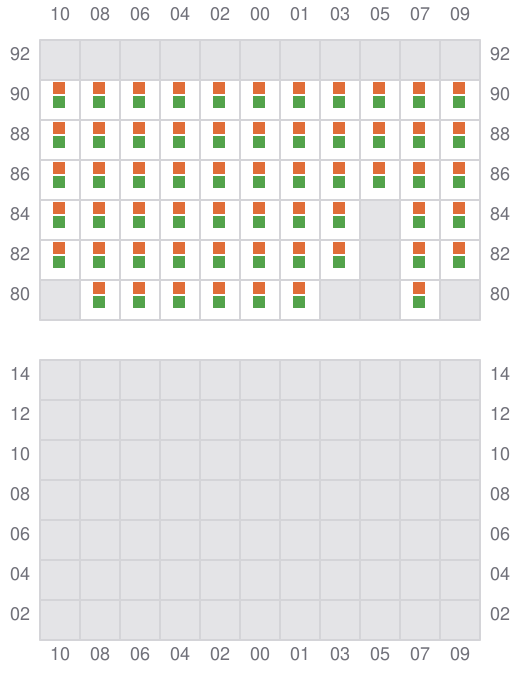

037
- ← / ?
