SEABREEZE
9472579 | 5LCI2 | 9472579 by ********* Last update: Tue May 21 2024

General Info

Ship Name:SEABREEZE

IMO Code:9472579

Call Sign:5LCI2

Line Operator:9472579

Class Name for Sister Ships:MOL SEABREEZE

Year Built:2010

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):188.00

LOA (Length Overall):199.93

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:045

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:2,553

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

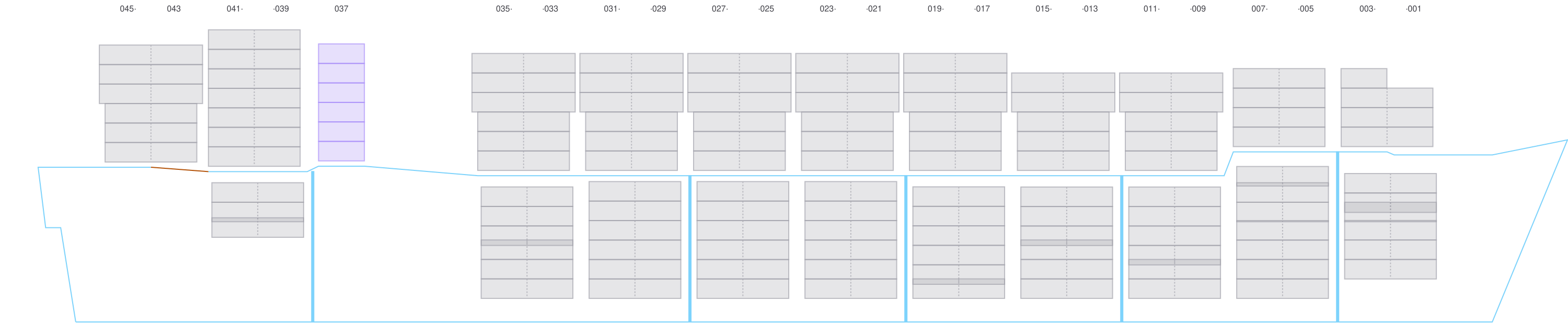

Side View

Side view of SEABREEZE

Hatch-Covers View

Deck view of SEABREEZE

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→
→

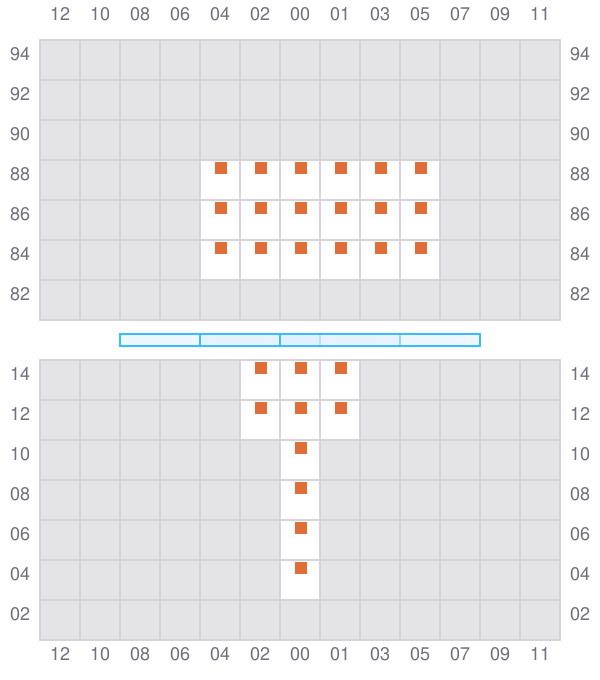

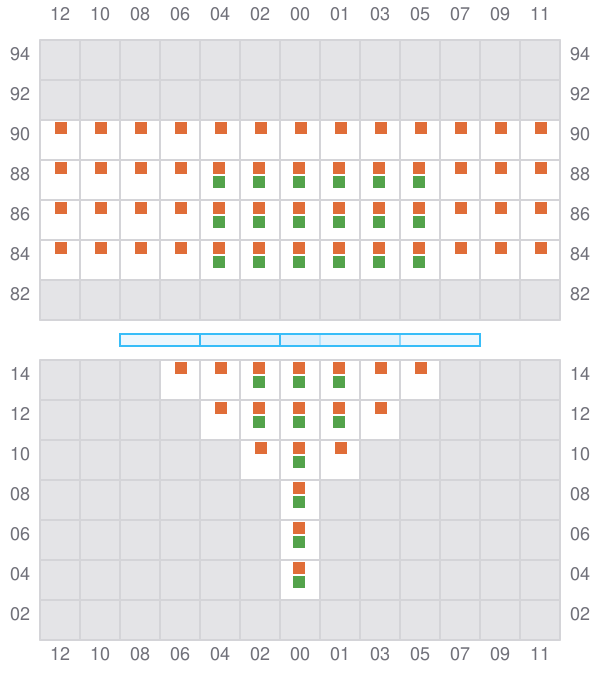

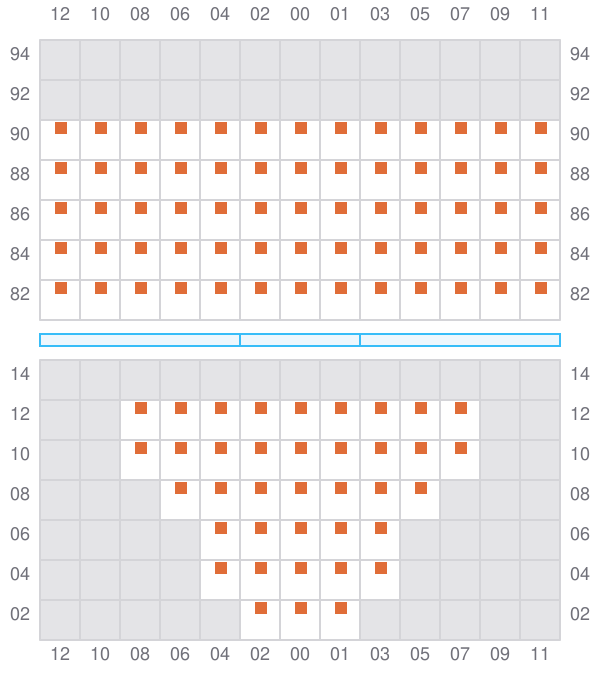

Bay 001 view and slots of SEABREEZE

003 (002)

←
→

Bay 003 view and slots of SEABREEZE

005

→
→

Bay 005 view and slots of SEABREEZE

007 (006)

←
^→ / _?
→

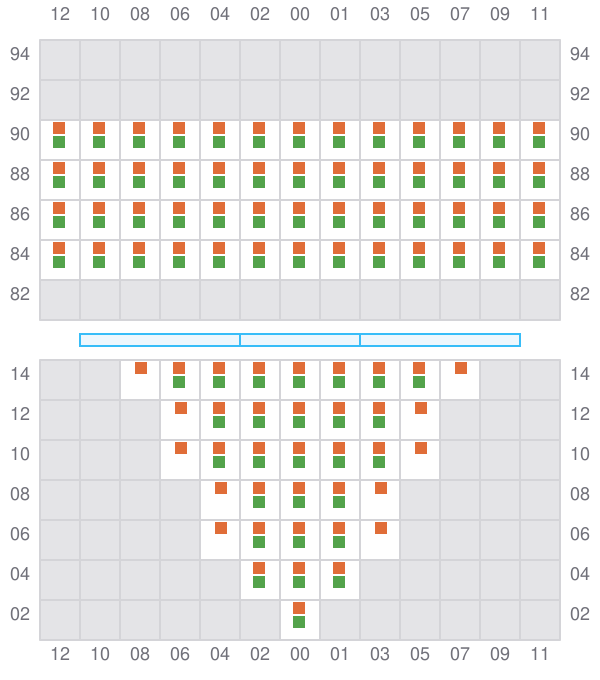

Bay 007 view and slots of SEABREEZE

009

→
→

Bay 009 view and slots of SEABREEZE

011 (010)

←
^→ / _?
→

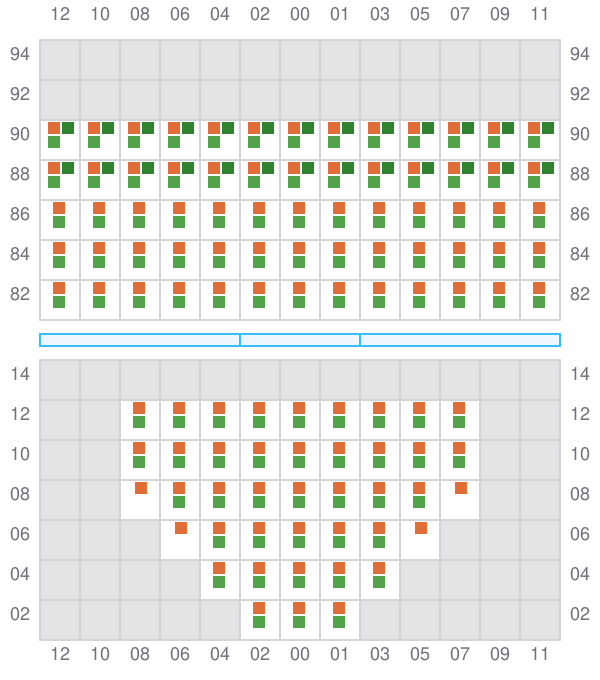

Bay 011 view and slots of SEABREEZE

013

→
→

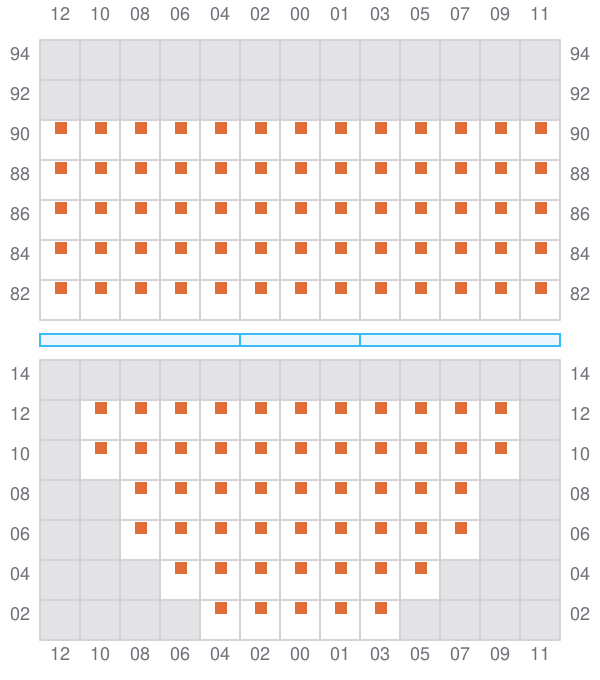

Bay 013 view and slots of SEABREEZE

015 (014)

←
→
→

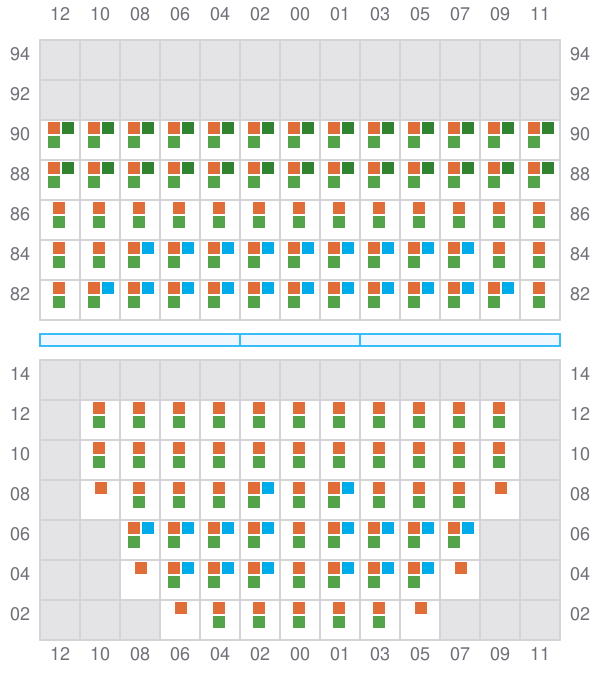

Bay 015 view and slots of SEABREEZE

017

→
→

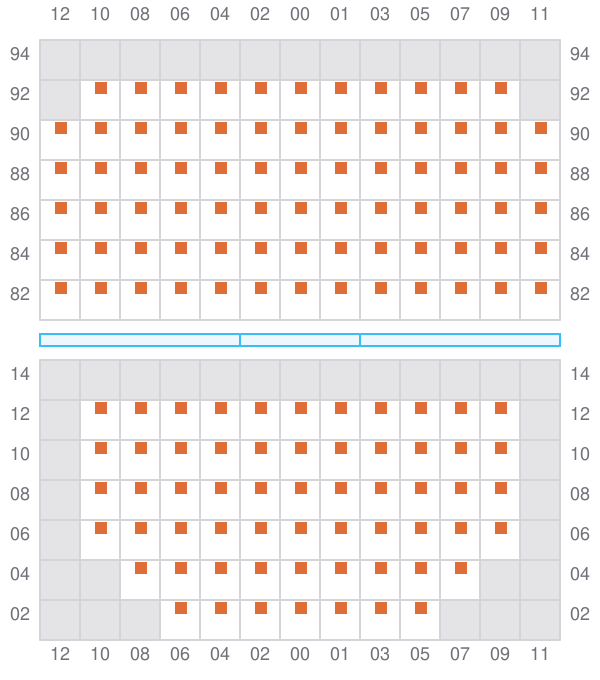

Bay 017 view and slots of SEABREEZE

019 (018)

←
→
→

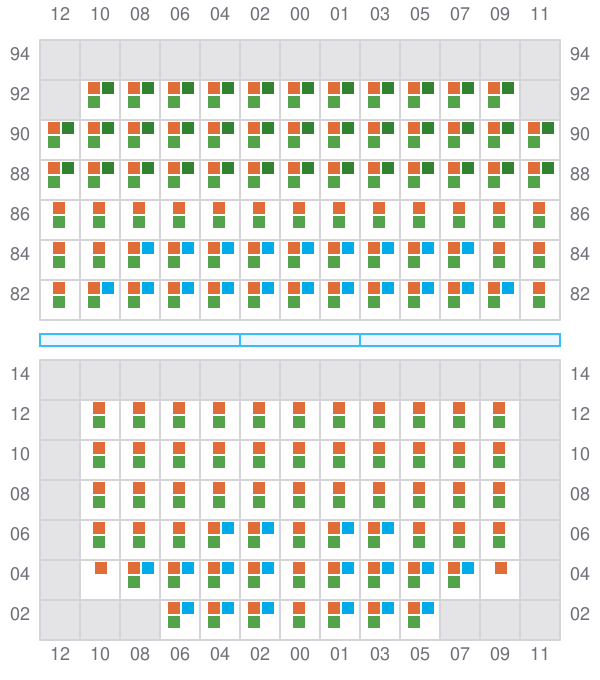

Bay 019 view and slots of SEABREEZE

021

→
→

Bay 021 view and slots of SEABREEZE

023 (022)

←
→
→

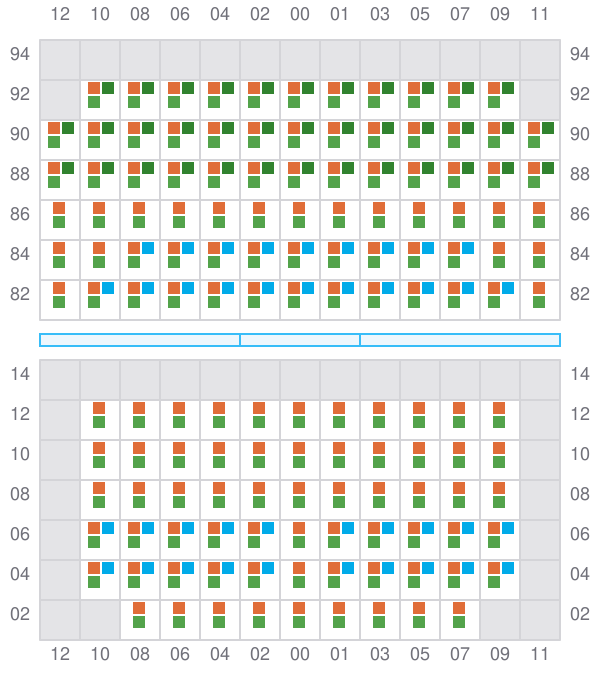

Bay 023 view and slots of SEABREEZE

025

→
→

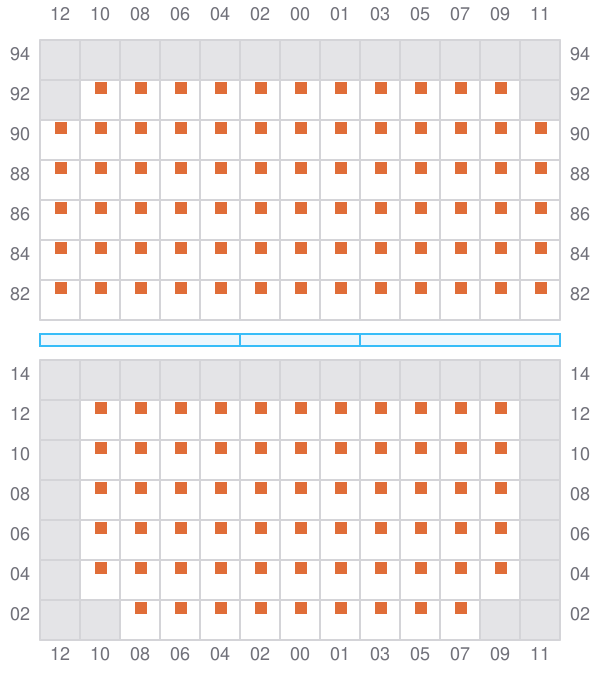

Bay 025 view and slots of SEABREEZE

027 (026)

←
→
→

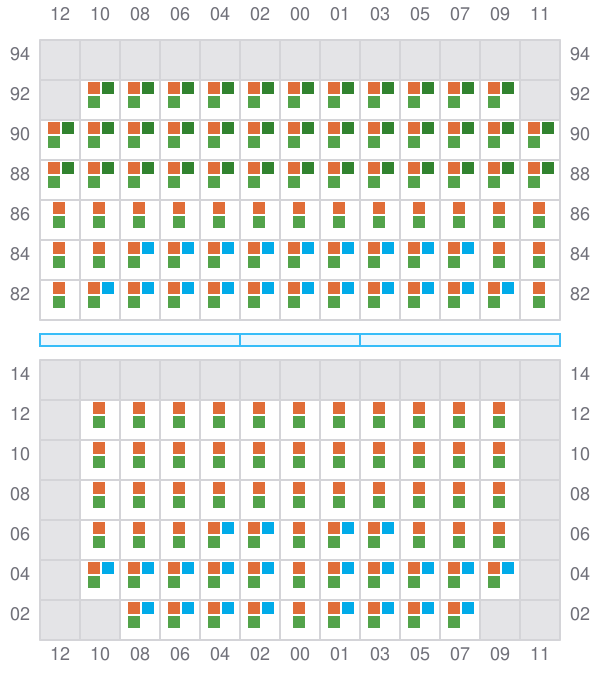

Bay 027 view and slots of SEABREEZE

029

→
→

Bay 029 view and slots of SEABREEZE

031 (030)

←
→
→

Bay 031 view and slots of SEABREEZE

033

→
→

Bay 033 view and slots of SEABREEZE

035 (034)

←
→
→

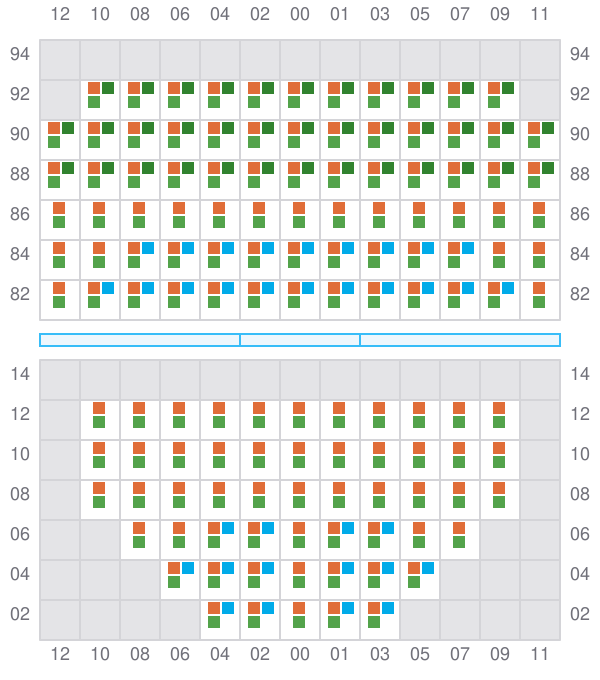

Bay 035 view and slots of SEABREEZE

037

^→ / _?

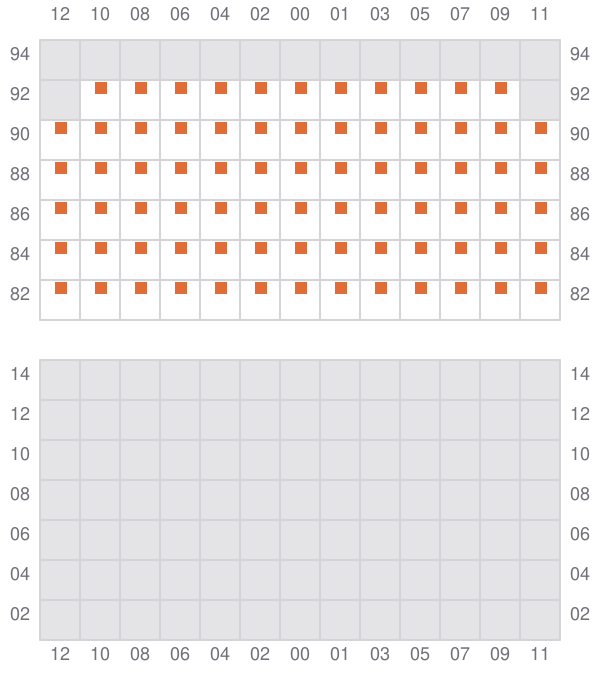

Bay 037 view and slots of SEABREEZE

039

→
→

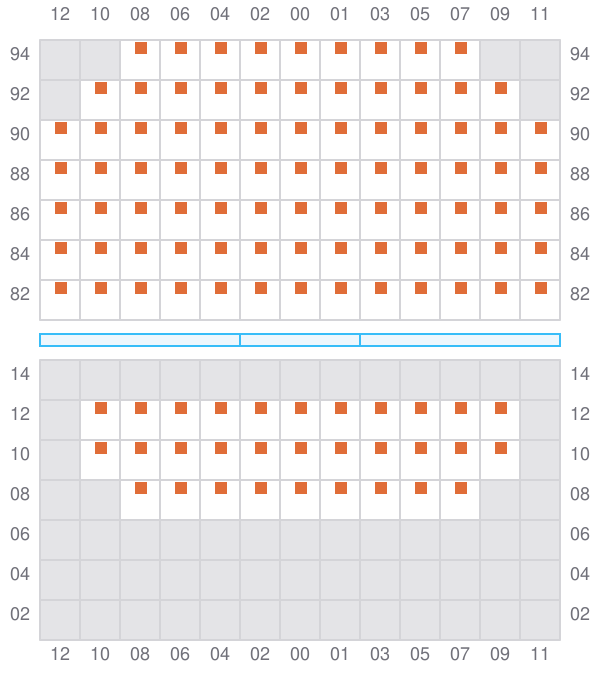

Bay 039 view and slots of SEABREEZE

041 (040)

←
^→ / _?
→

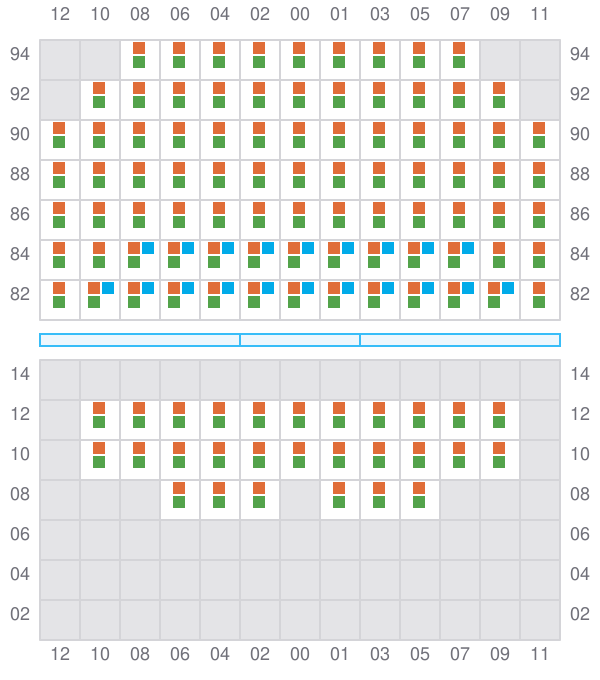

Bay 041 view and slots of SEABREEZE

043

→

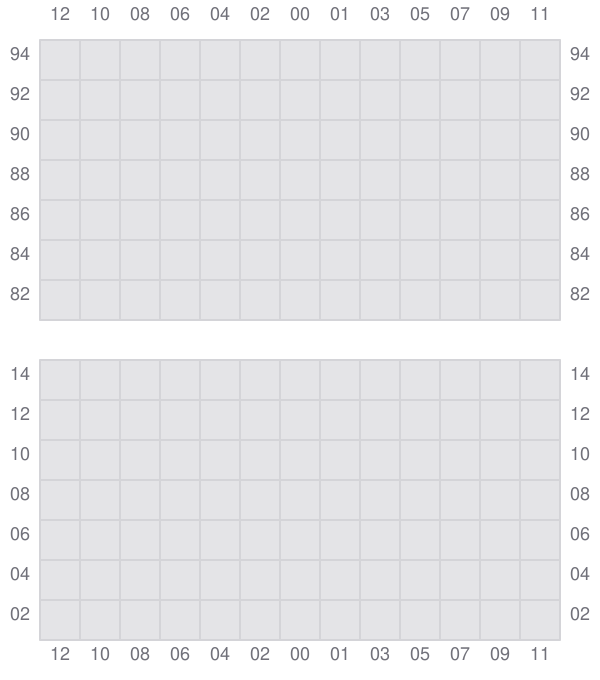

Bay 043 view and slots of SEABREEZE

045 (044)

←
^→ / _?

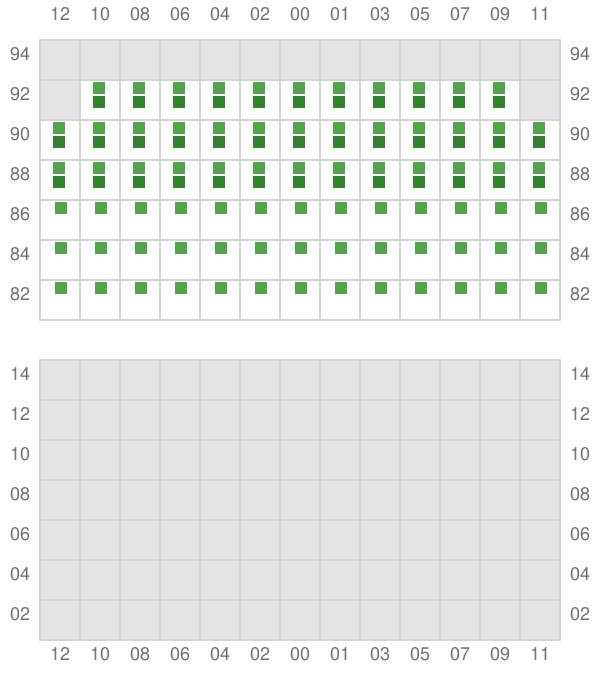

Bay 045 view and slots of SEABREEZE
