SEADREAM
9632832 | 9HA3399 | 9632832 by ********* Last update: Wed Jul 31 2024

General Info

Ship Name:SEADREAM
IMO Code:9632832
Call Sign:9HA3399
Line Operator:9632832
Class Name for Sister Ships:MAE
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):242.00
LOA (Length Overall):255.40
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,071

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

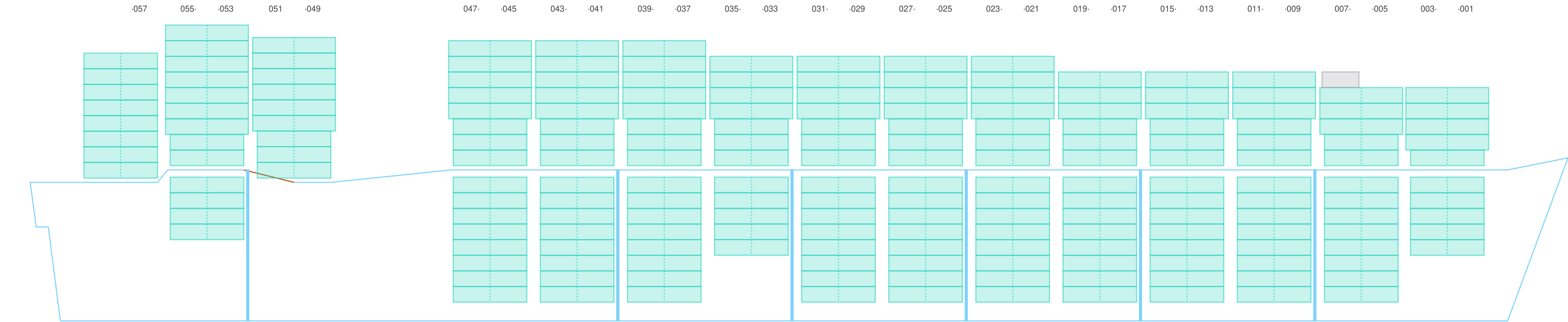

Side view of SEADREAM

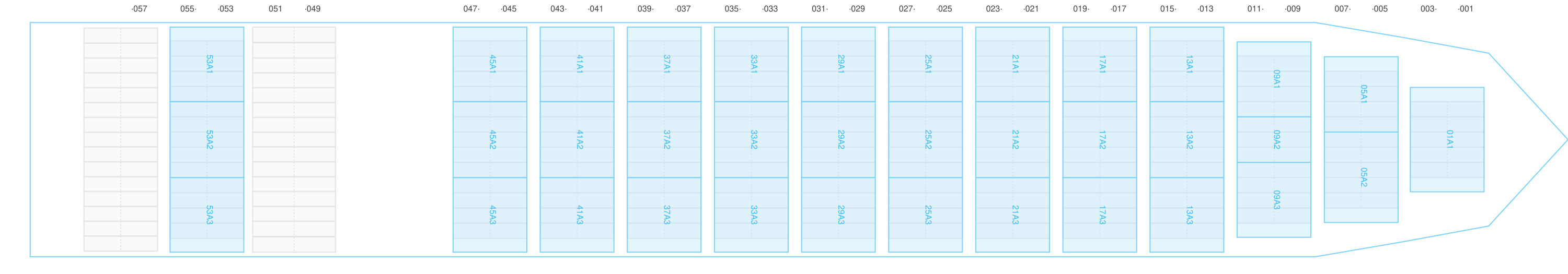

Hatch-Covers View

Deck view of SEADREAM

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of SEADREAM

003

  • ←
  • → / ?
Bay 003 view and slots of SEADREAM

005 (006)

  • →

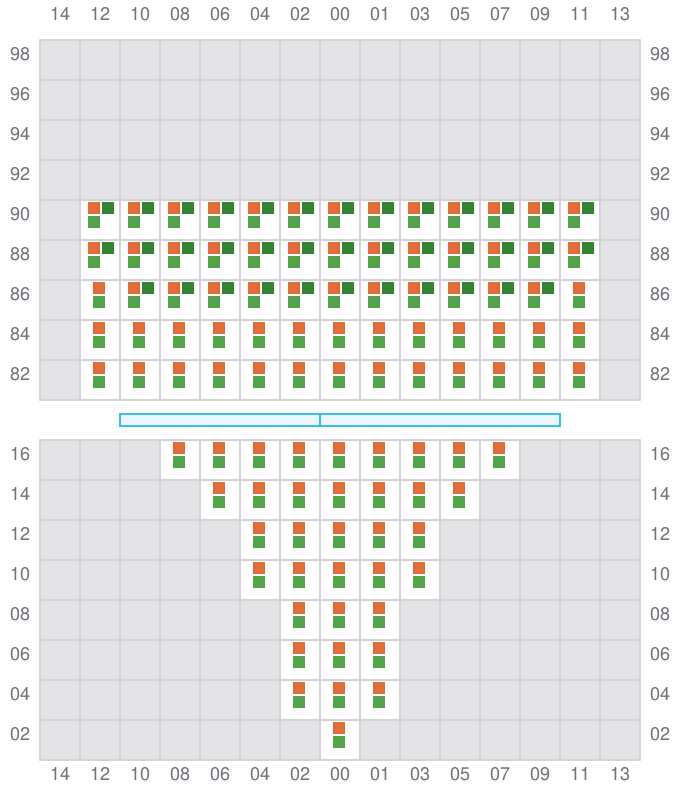

Bay 005 view and slots of SEADREAM

007

  • ←
  • → / ?

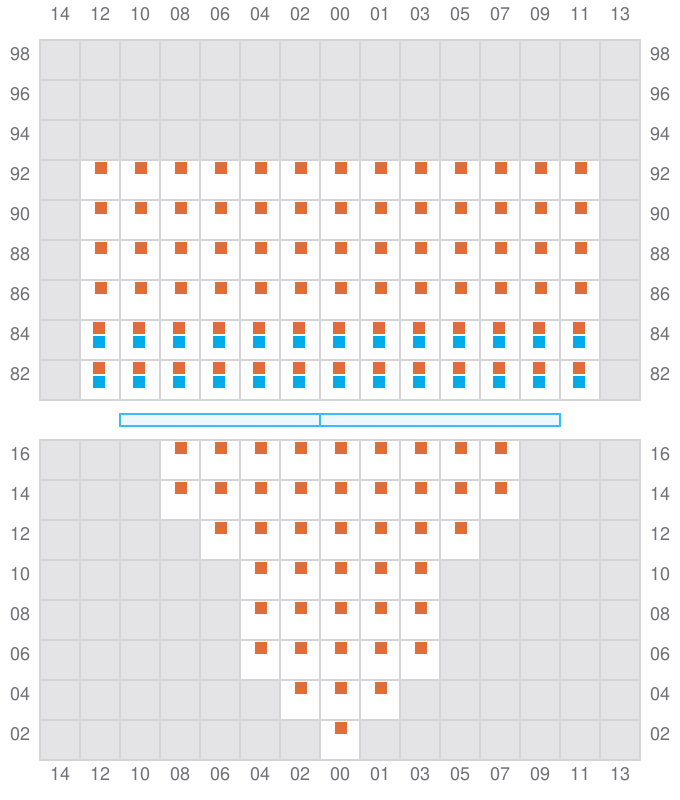

Bay 007 view and slots of SEADREAM

009 (010)

  • →

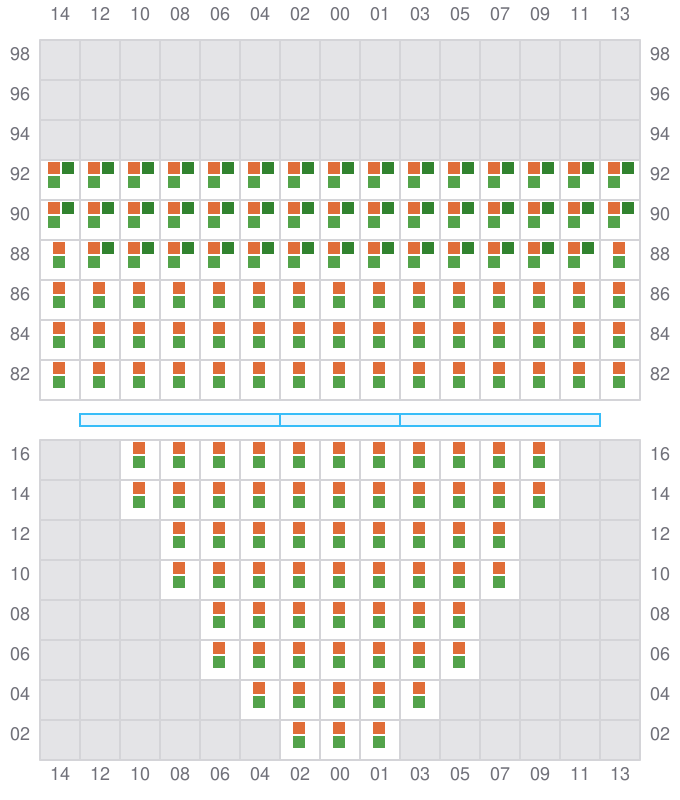

Bay 009 view and slots of SEADREAM

011

  • ←
  • →
Bay 011 view and slots of SEADREAM

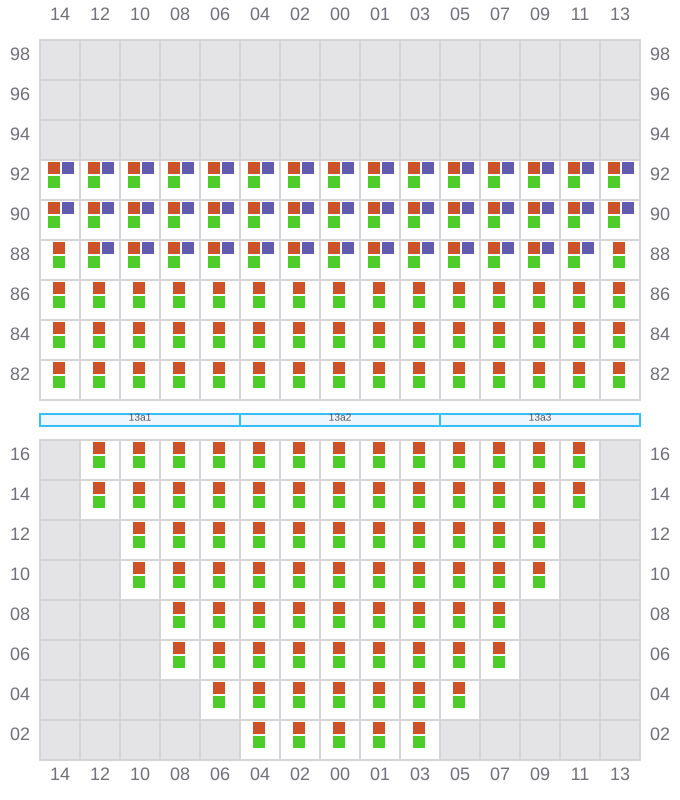

013 (014)

  • →
Bay 013 view and slots of SEADREAM

015

  • ←
  • →

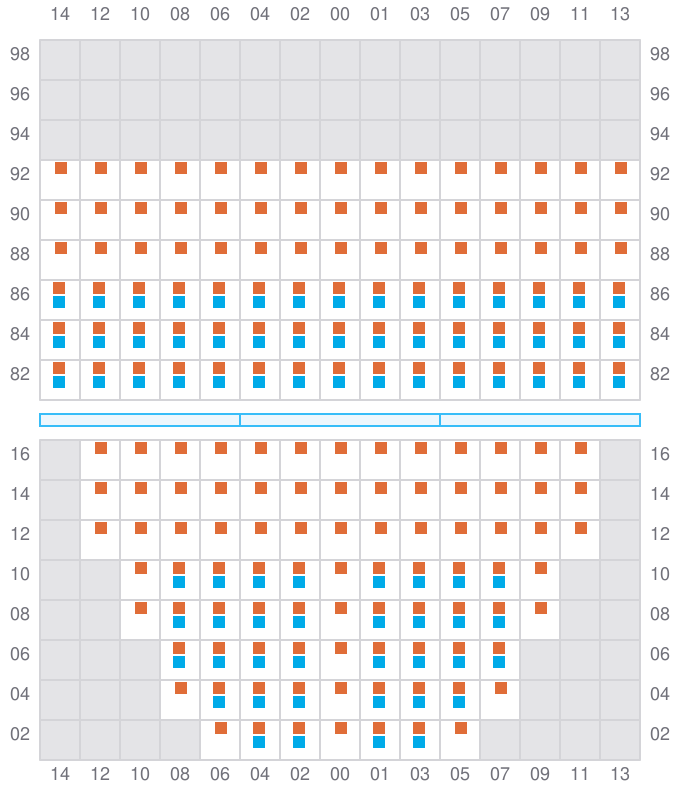

Bay 015 view and slots of SEADREAM

017 (018)

  • →
Bay 017 view and slots of SEADREAM

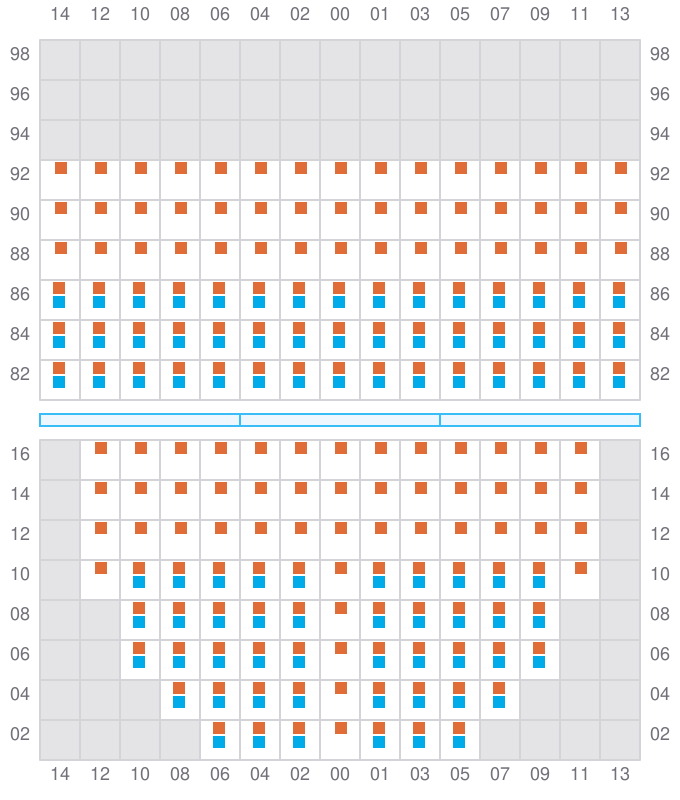

019

  • ←
  • →
Bay 019 view and slots of SEADREAM

021 (022)

  • →
Bay 021 view and slots of SEADREAM

023

  • ←
  • → / ?
Bay 023 view and slots of SEADREAM

025 (026)

  • →
Bay 025 view and slots of SEADREAM

027

  • ←
  • →

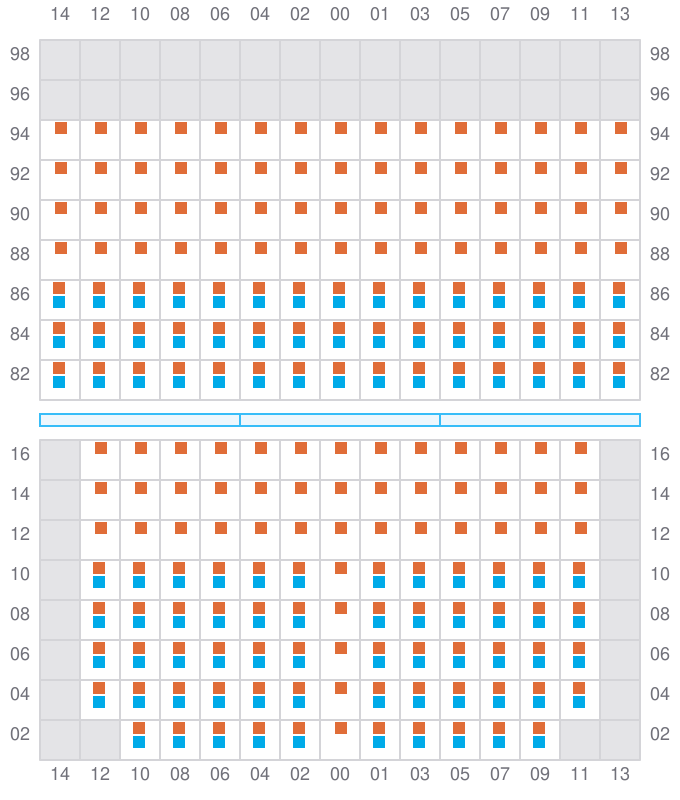

Bay 027 view and slots of SEADREAM

029 (030)

  • →
Bay 029 view and slots of SEADREAM

031

  • ←
  • → / ?
Bay 031 view and slots of SEADREAM

033 (034)

  • →

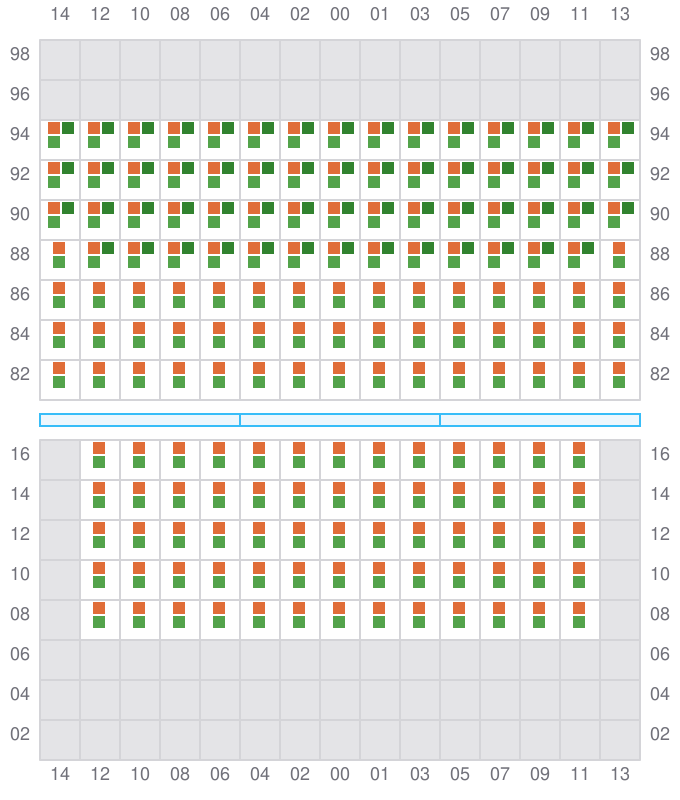

Bay 033 view and slots of SEADREAM

035

  • ←
  • → / ?

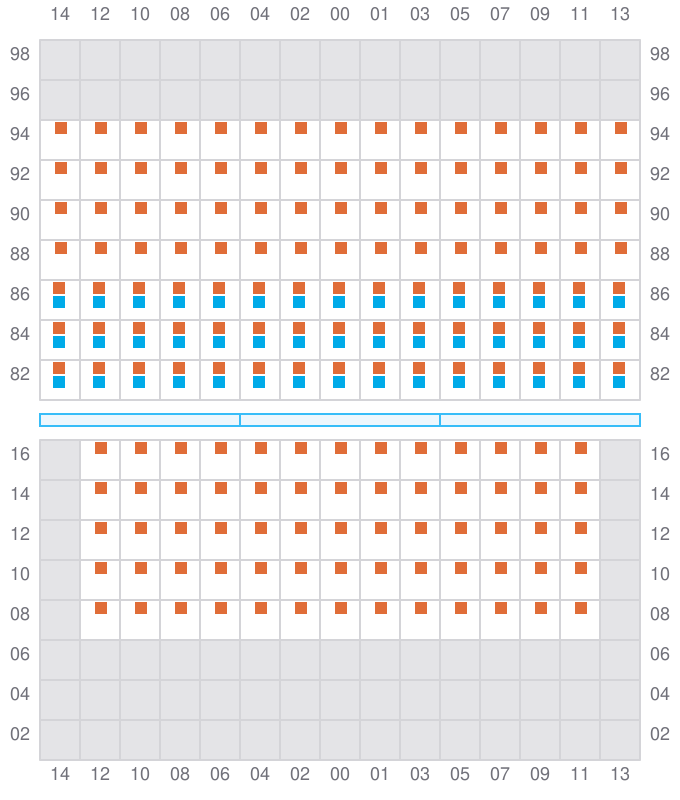

Bay 035 view and slots of SEADREAM

037 (038)

  • →

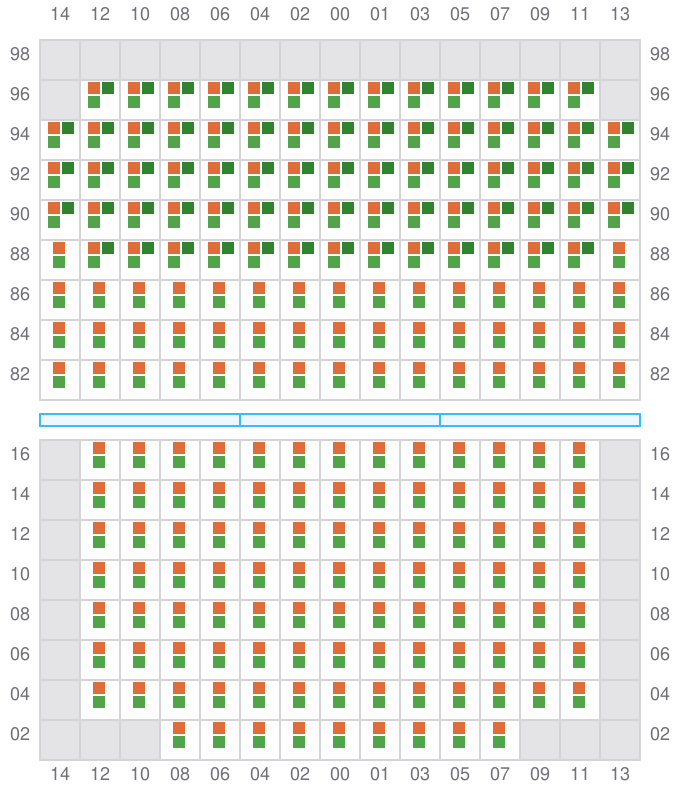

Bay 037 view and slots of SEADREAM

039

  • ←
  • → / ?

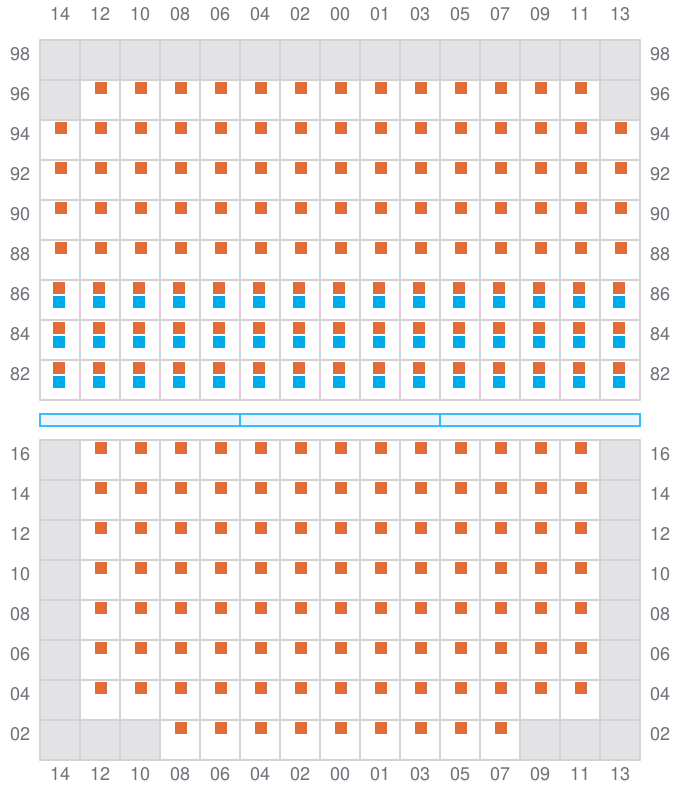

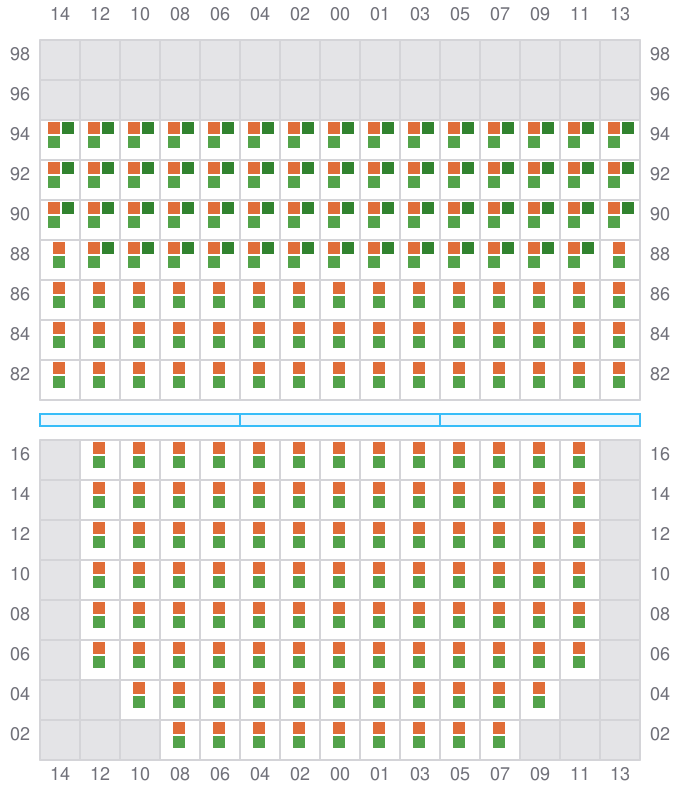

Bay 039 view and slots of SEADREAM

041 (042)

  • →
Bay 041 view and slots of SEADREAM

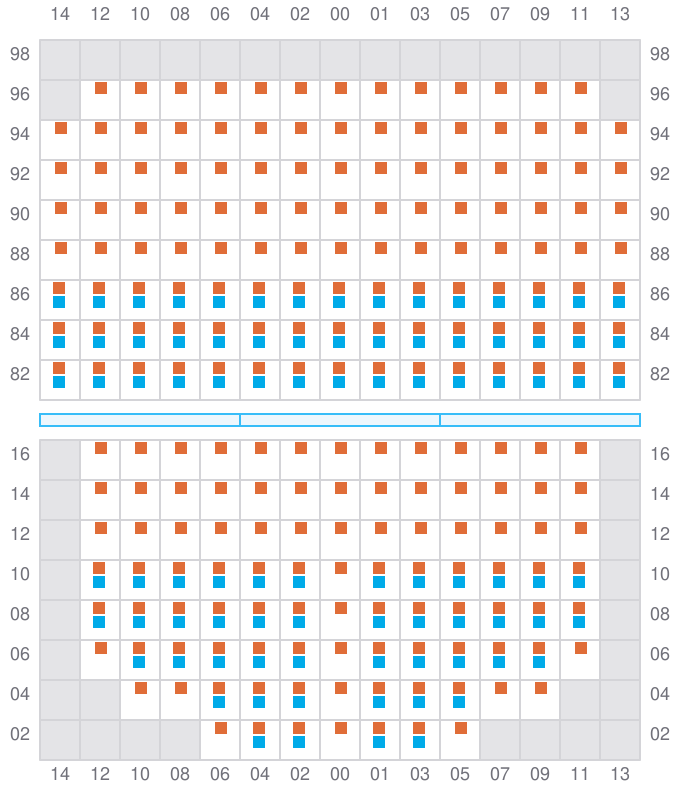

043

  • ←
  • →
Bay 043 view and slots of SEADREAM

045 (046)

  • →

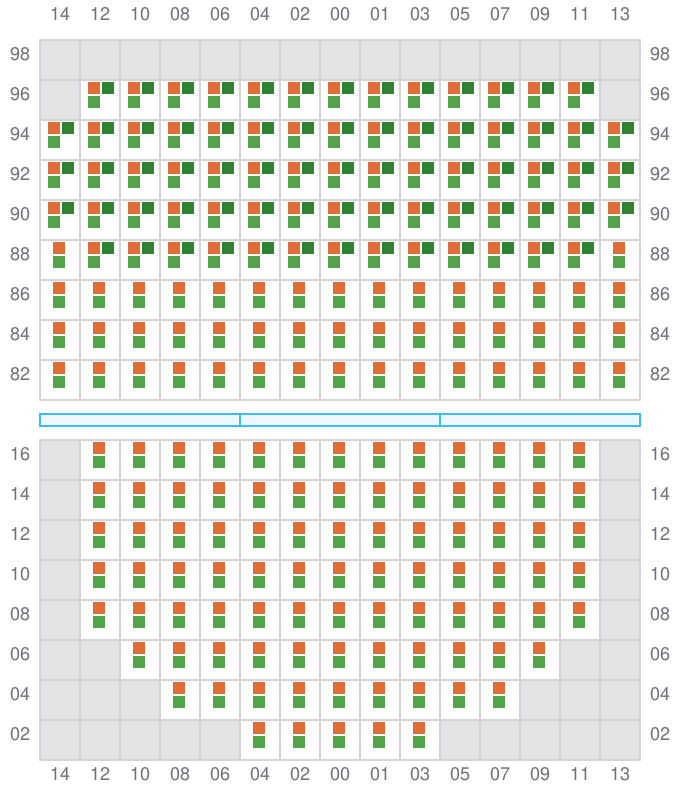

Bay 045 view and slots of SEADREAM

047

  • ←
  • → / ?
Bay 047 view and slots of SEADREAM

049 (050)

  • → / ?
  • ← / ?

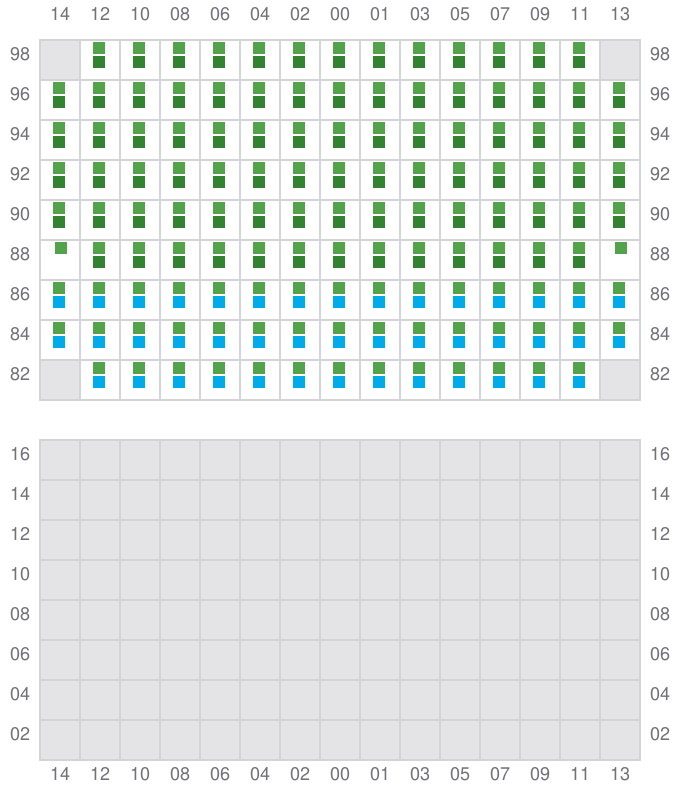

Bay 049 view and slots of SEADREAM

051

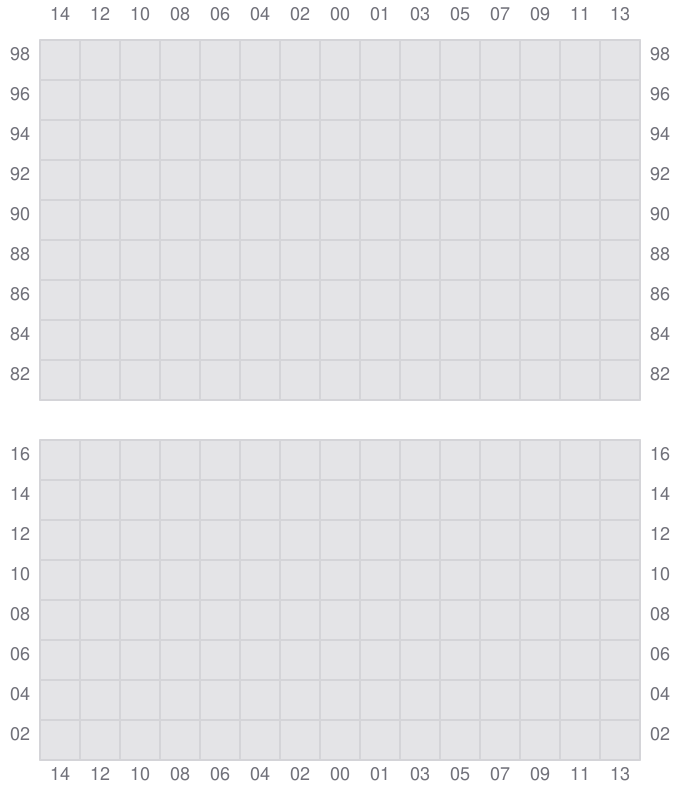

Bay 051 view and slots of SEADREAM

053 (054)

  • →

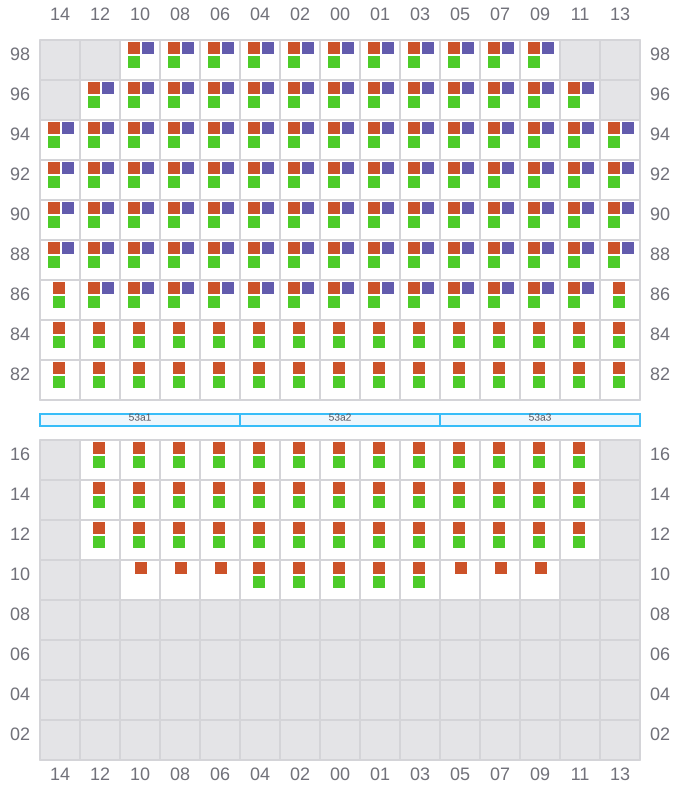

Bay 053 view and slots of SEADREAM

055

  • ←
  • → / ?
Bay 055 view and slots of SEADREAM

057 (058)

  • → / ?
  • ← / ?

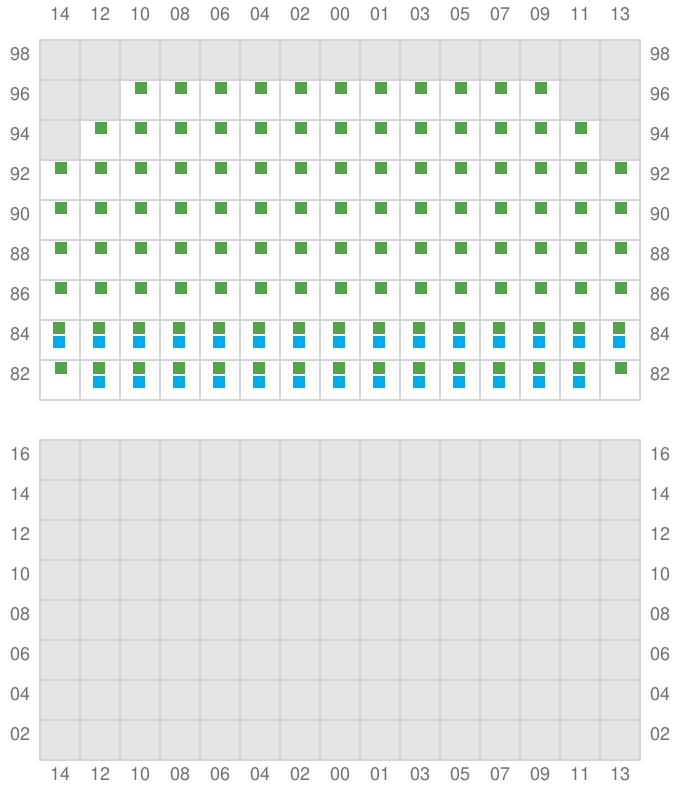

Bay 057 view and slots of SEADREAM
