SEALAND BALBOA
9376012 | CQCA | 9376012 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:SEALAND BALBOA
IMO Code:9376012
Call Sign:CQCA
Line Operator:9376012
Class Name for Sister Ships:JIANGSU 2500
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):196.90
LOA (Length Overall):208.93
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,546

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SEALAND BALBOA

Hatch-Covers View

Deck view of SEALAND BALBOA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • ← / ?
Bay 001 view and slots of SEALAND BALBOA

003

  • ←
  • → / ?
Bay 003 view and slots of SEALAND BALBOA

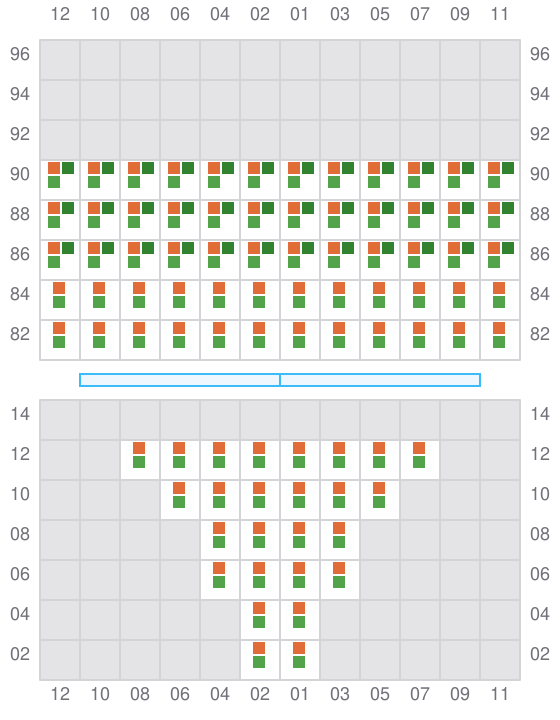

005 (006)

  • →
Bay 005 view and slots of SEALAND BALBOA

007

  • ←
  • → / ?

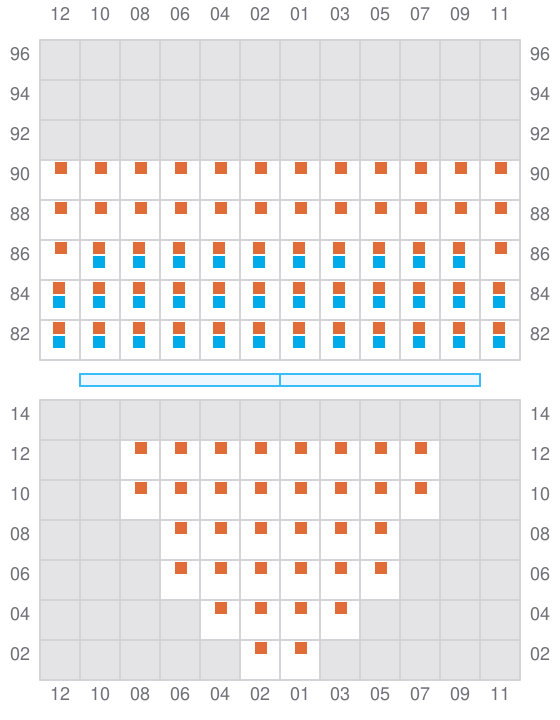

Bay 007 view and slots of SEALAND BALBOA

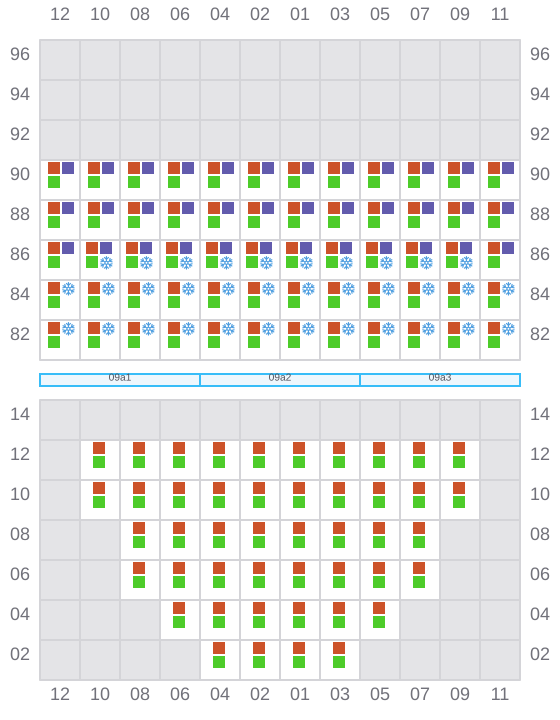

009 (010)

  • →
  • ← / ?
Bay 009 view and slots of SEALAND BALBOA

011

  • ←
  • → / ?
Bay 011 view and slots of SEALAND BALBOA

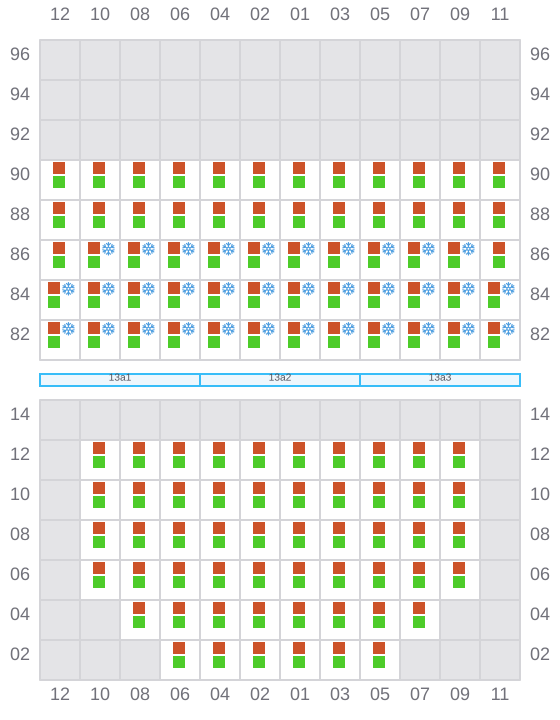

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of SEALAND BALBOA

015

  • ←
  • → / ?

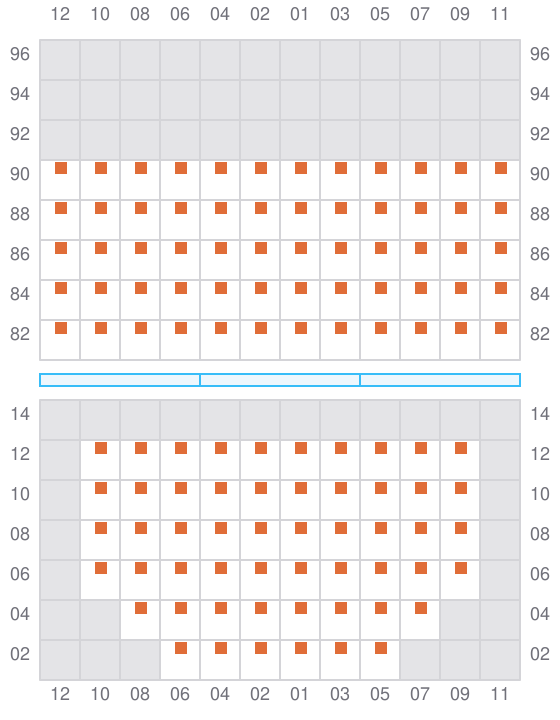

Bay 015 view and slots of SEALAND BALBOA

017 (018)

  • →
Bay 017 view and slots of SEALAND BALBOA

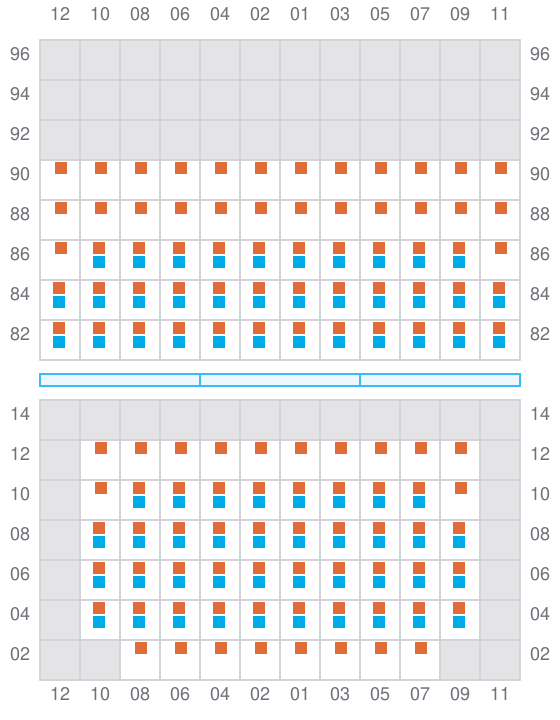

019

  • ←
  • →
Bay 019 view and slots of SEALAND BALBOA

021 (022)

  • →
  • ? / ←

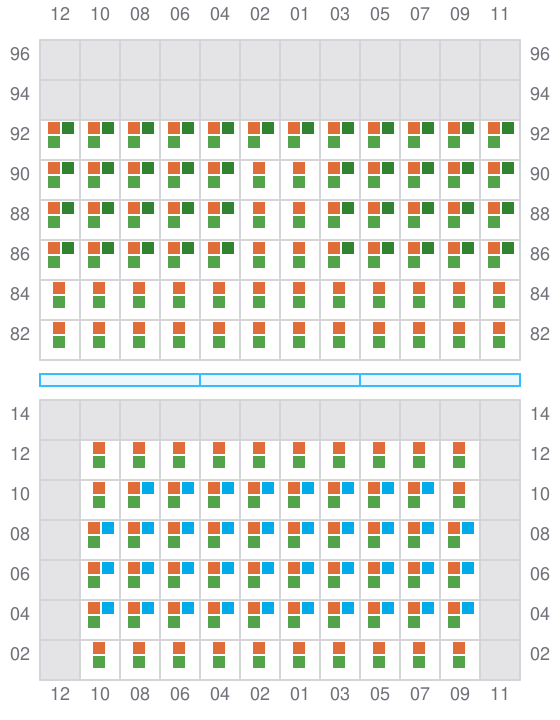

Bay 021 view and slots of SEALAND BALBOA

023

  • ←
  • → / ?
Bay 023 view and slots of SEALAND BALBOA

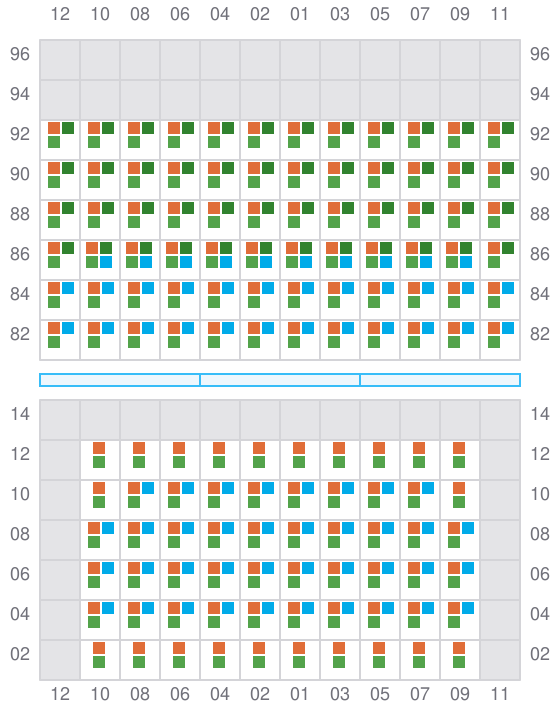

025 (026)

  • →
  • ←
Bay 025 view and slots of SEALAND BALBOA

027

  • ←
  • → / ?
Bay 027 view and slots of SEALAND BALBOA

029 (030)

  • →
  • ←
Bay 029 view and slots of SEALAND BALBOA

031

  • ←
  • → / ?
Bay 031 view and slots of SEALAND BALBOA

033 (034)

  • →

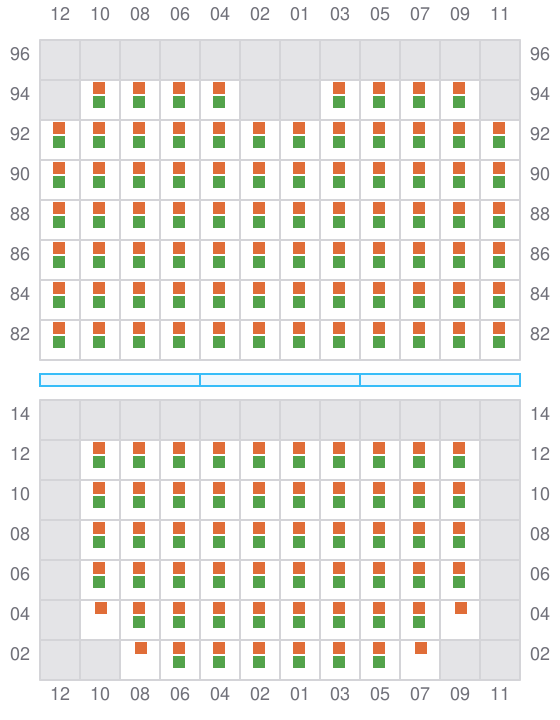

Bay 033 view and slots of SEALAND BALBOA

035

  • ←
  • →

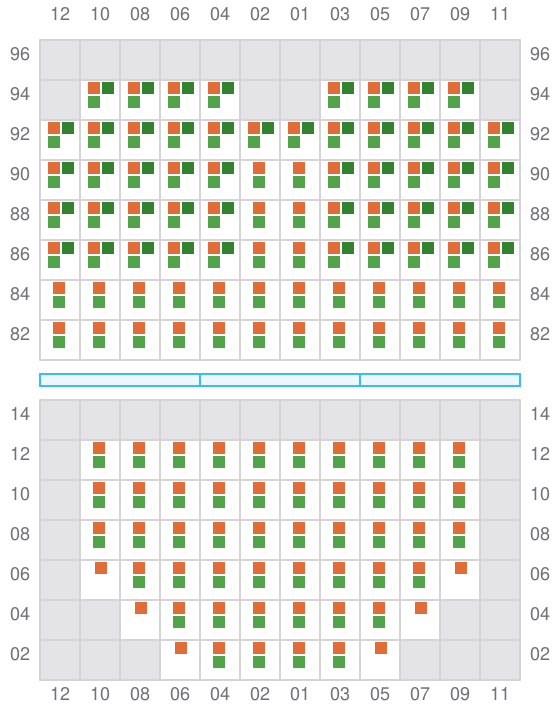

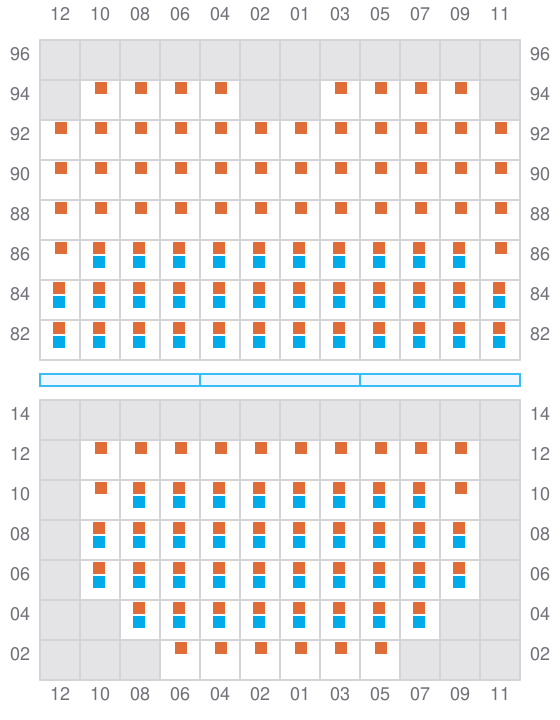

Bay 035 view and slots of SEALAND BALBOA

037 (038)

  • →

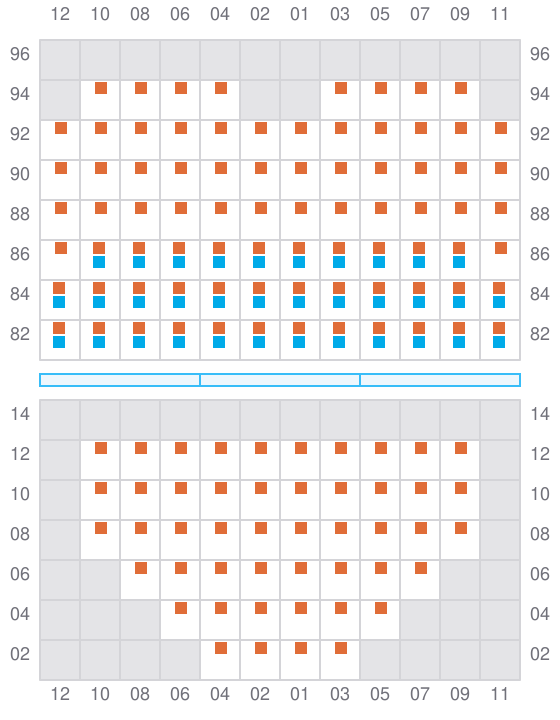

Bay 037 view and slots of SEALAND BALBOA

039

  • ←
  • → / ?
Bay 039 view and slots of SEALAND BALBOA

041

Bay 041 view and slots of SEALAND BALBOA

043 (044)

  • → / ?

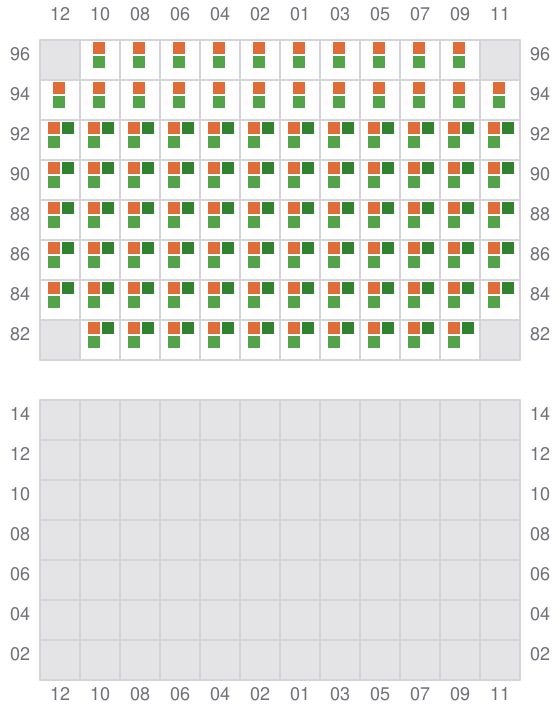

Bay 043 view and slots of SEALAND BALBOA

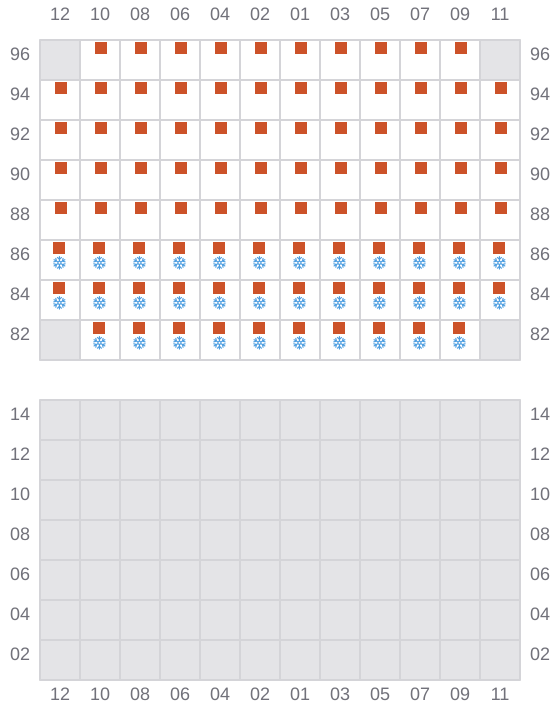

045

  • ← / ?
  • → / ?
Bay 045 view and slots of SEALAND BALBOA
