SEAMAX STRATFORD
9305491 | V7EP2 | CMA by ********* Last update: Thu May 16 2024

General Info

Ship Name:SEAMAX STRATFORD
IMO Code:9305491
Call Sign:V7EP2
Line Operator:CMA
Class Name for Sister Ships:CMACGMDONCARLOS
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,533

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

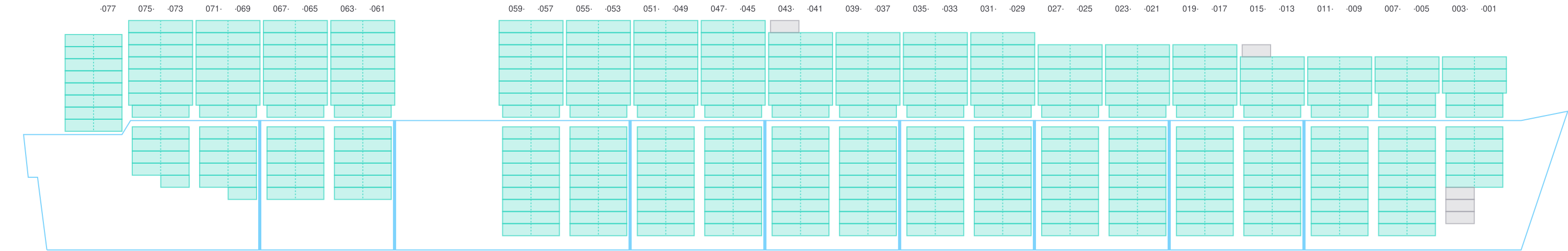

Side View

Side view of SEAMAX STRATFORD

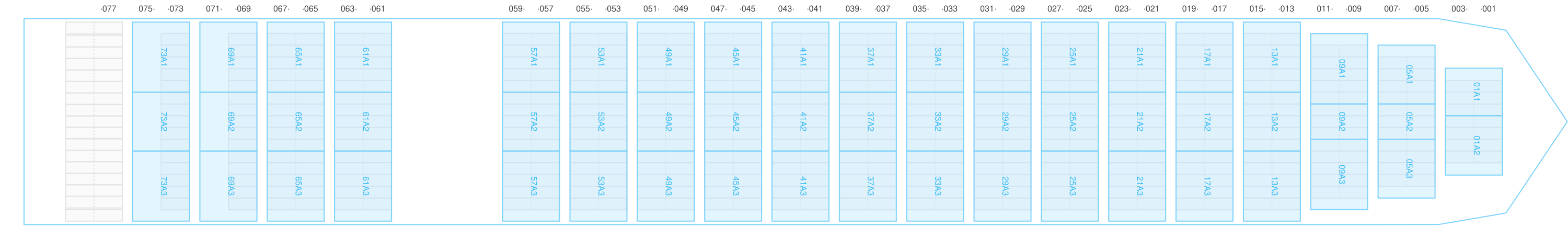

Hatch-Covers View

Deck view of SEAMAX STRATFORD

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

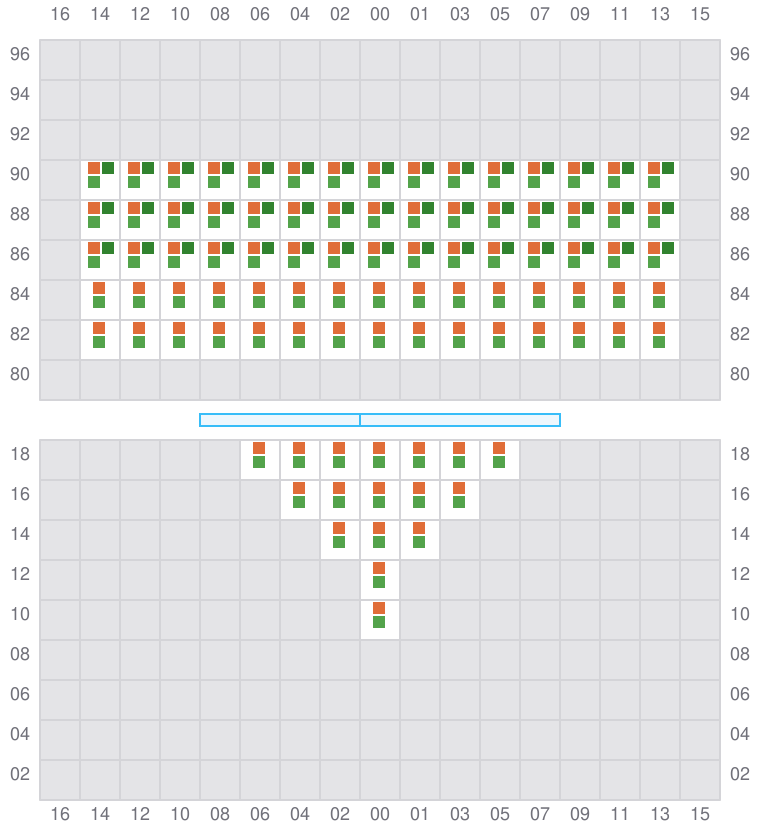

001 (002)

  • →
Bay 001 view and slots of SEAMAX STRATFORD

003

  • ←
  • → / ?

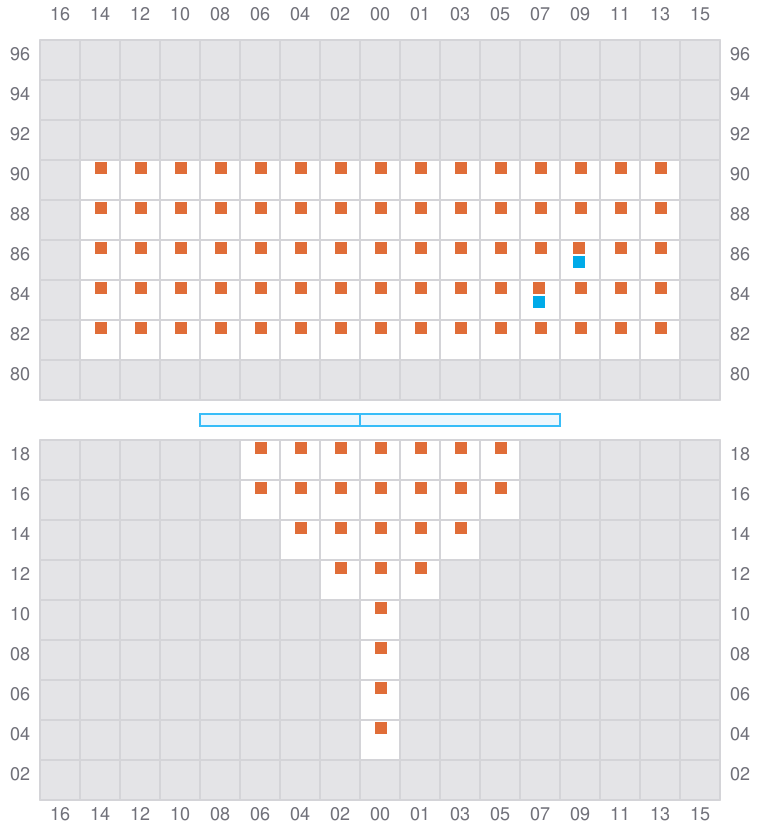

Bay 003 view and slots of SEAMAX STRATFORD

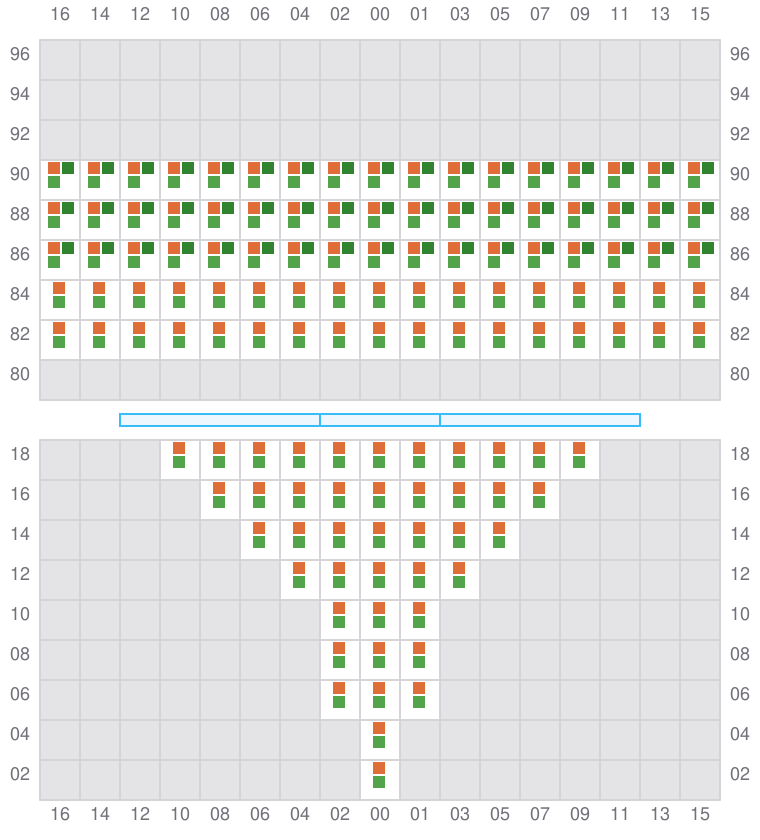

005 (006)

  • →
Bay 005 view and slots of SEAMAX STRATFORD

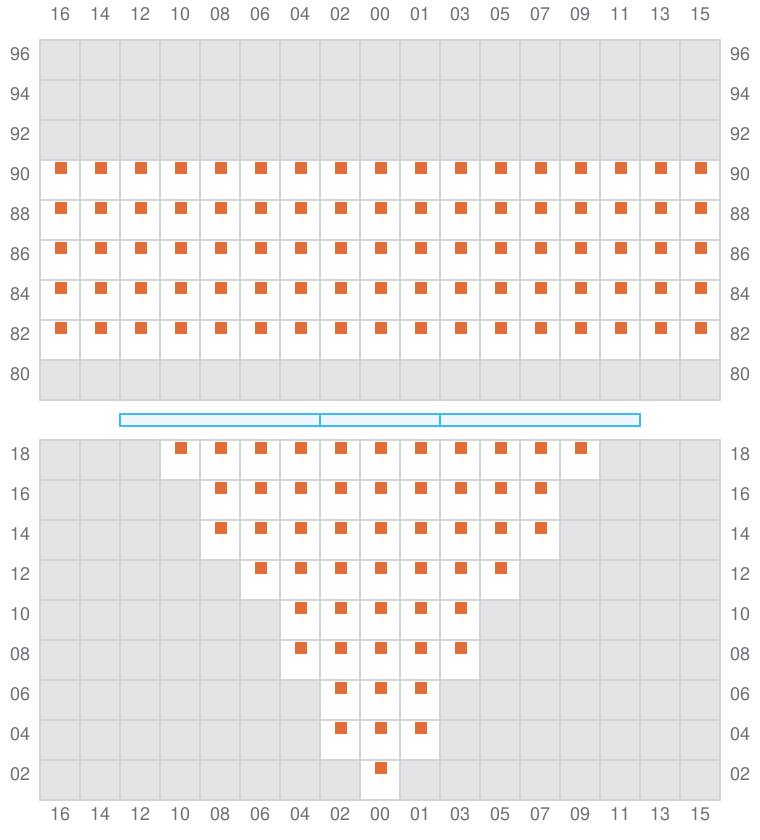

007

  • ←
Bay 007 view and slots of SEAMAX STRATFORD

009 (010)

  • →

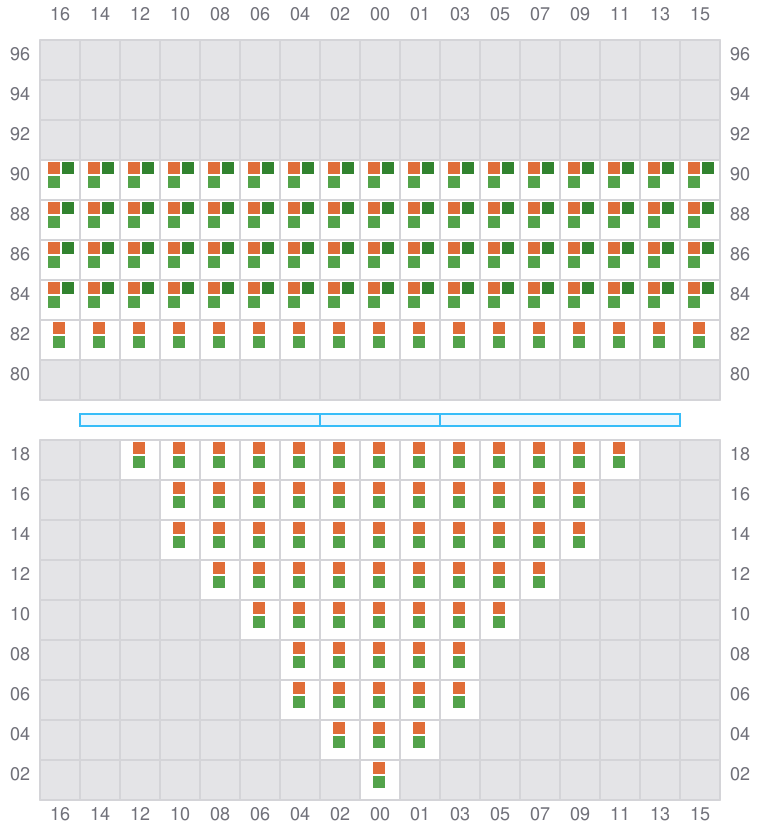

Bay 009 view and slots of SEAMAX STRATFORD

011

  • ←
  • → / ?

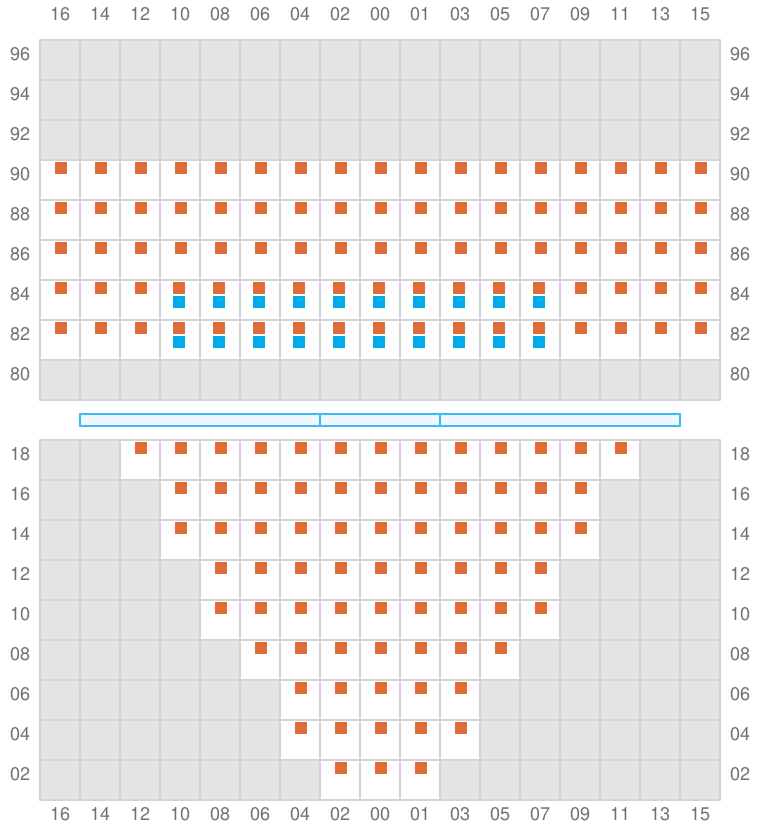

Bay 011 view and slots of SEAMAX STRATFORD

013 (014)

  • →

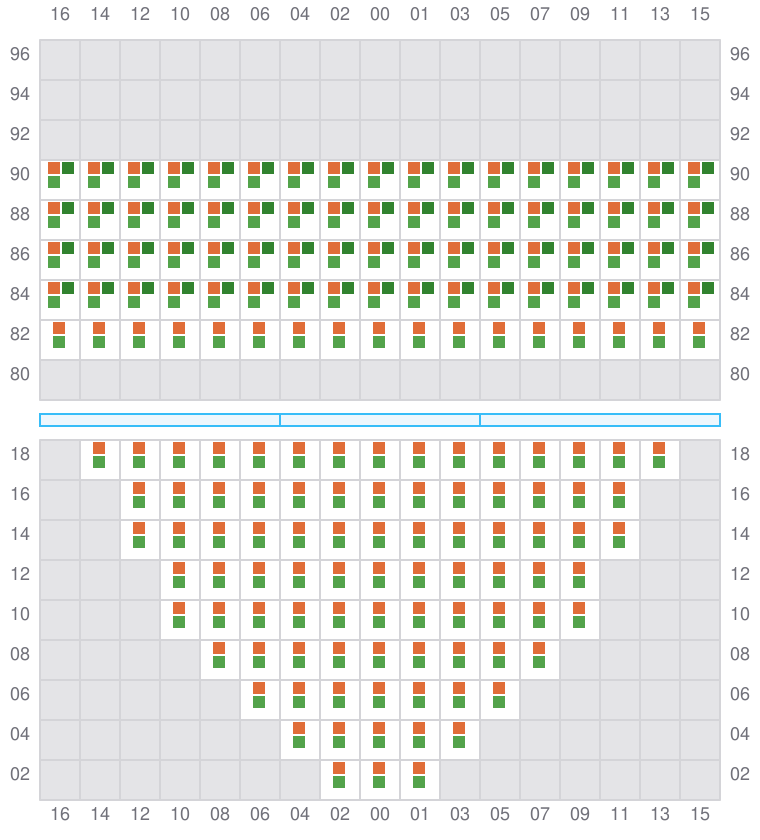

Bay 013 view and slots of SEAMAX STRATFORD

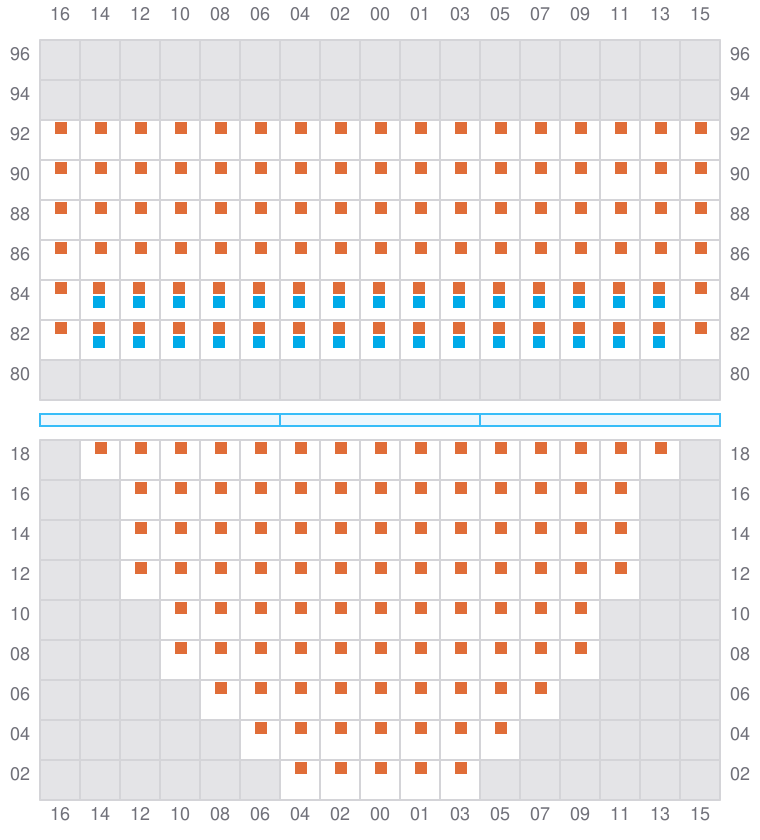

015

  • ←
  • → / ?
Bay 015 view and slots of SEAMAX STRATFORD

017 (018)

  • →

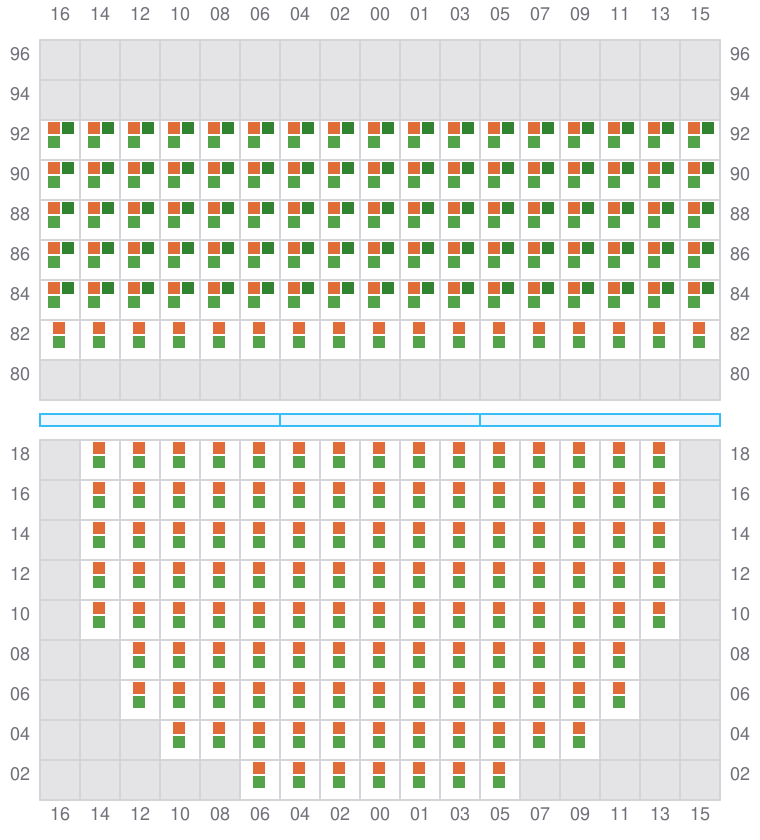

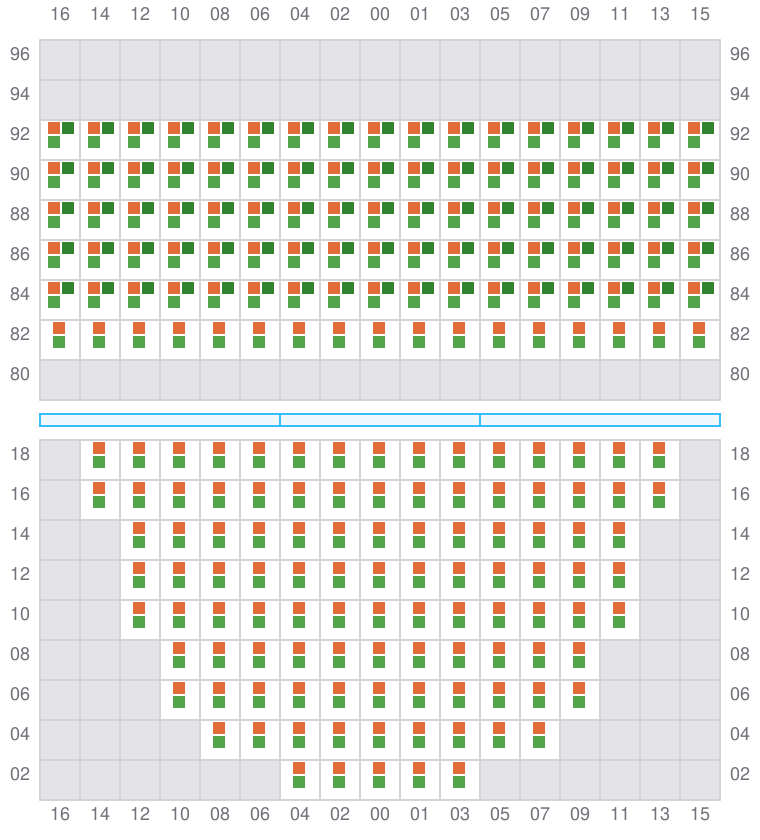

Bay 017 view and slots of SEAMAX STRATFORD

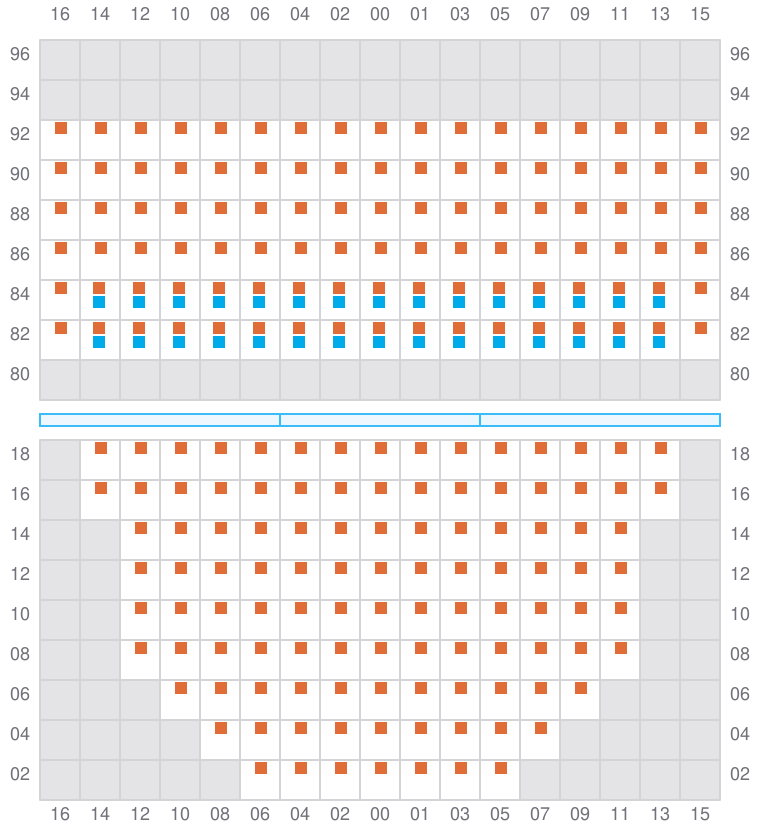

019

  • ←
  • → / ?
Bay 019 view and slots of SEAMAX STRATFORD

021 (022)

  • →
Bay 021 view and slots of SEAMAX STRATFORD

023

  • ←
  • → / ?

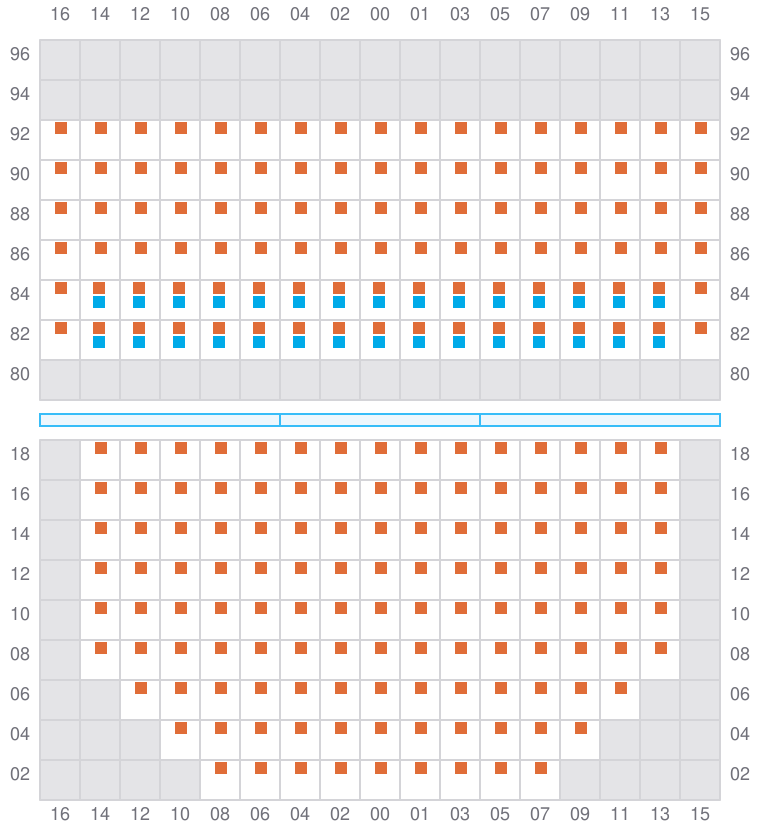

Bay 023 view and slots of SEAMAX STRATFORD

025 (026)

  • →

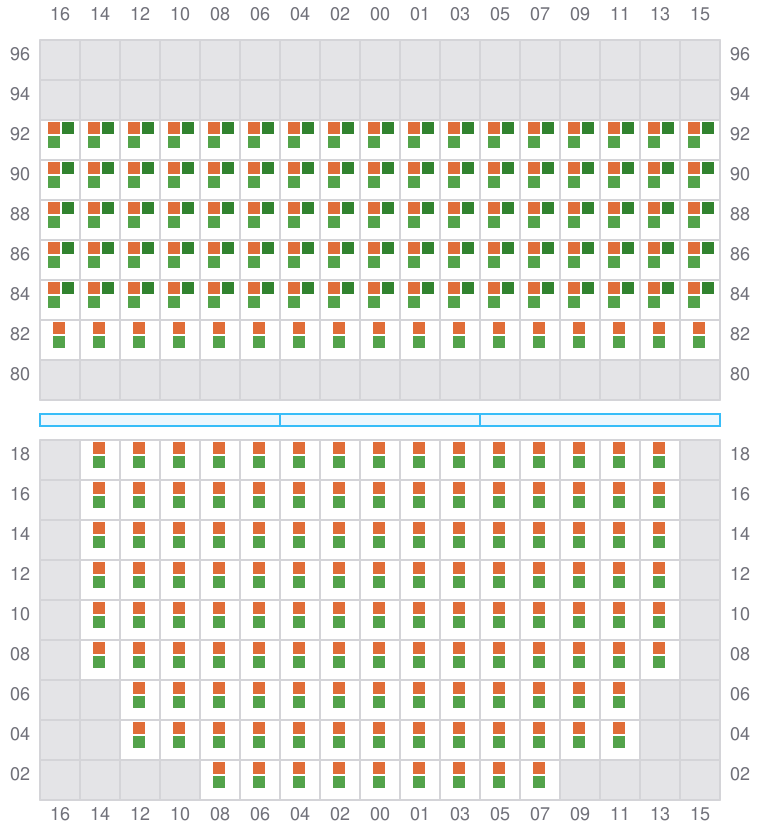

Bay 025 view and slots of SEAMAX STRATFORD

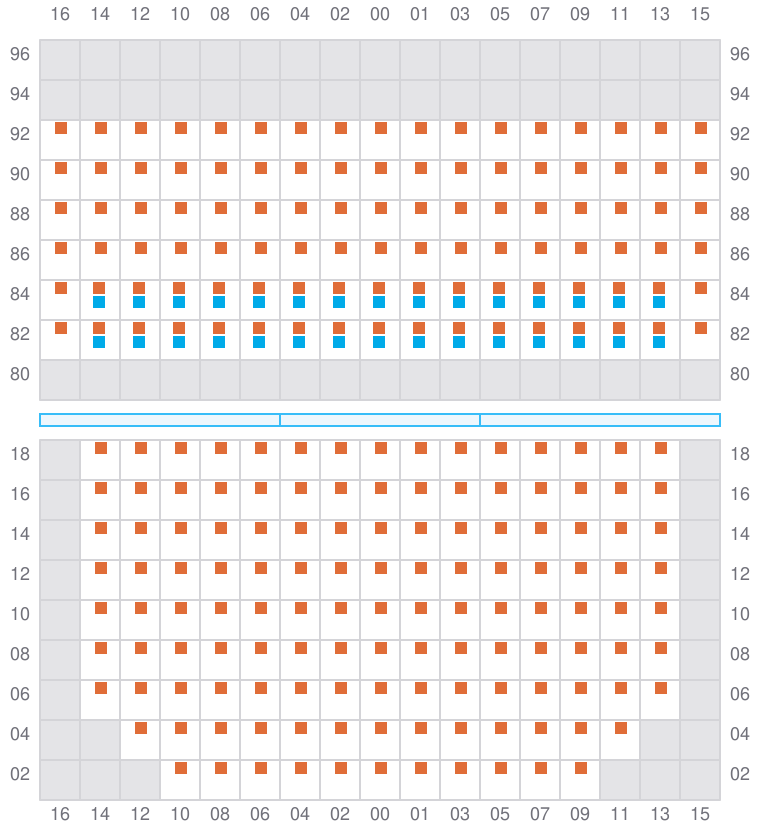

027

  • ←
  • → / ?
Bay 027 view and slots of SEAMAX STRATFORD

029 (030)

  • →
Bay 029 view and slots of SEAMAX STRATFORD

031

  • ←
  • → / ?

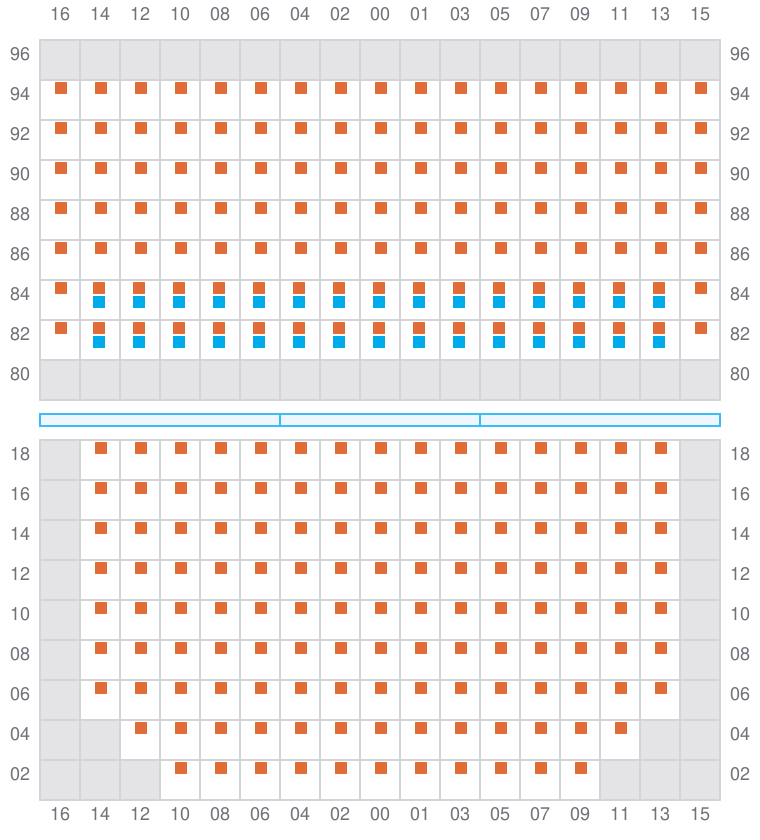

Bay 031 view and slots of SEAMAX STRATFORD

033 (034)

  • →
Bay 033 view and slots of SEAMAX STRATFORD

035

  • ←
  • → / ?

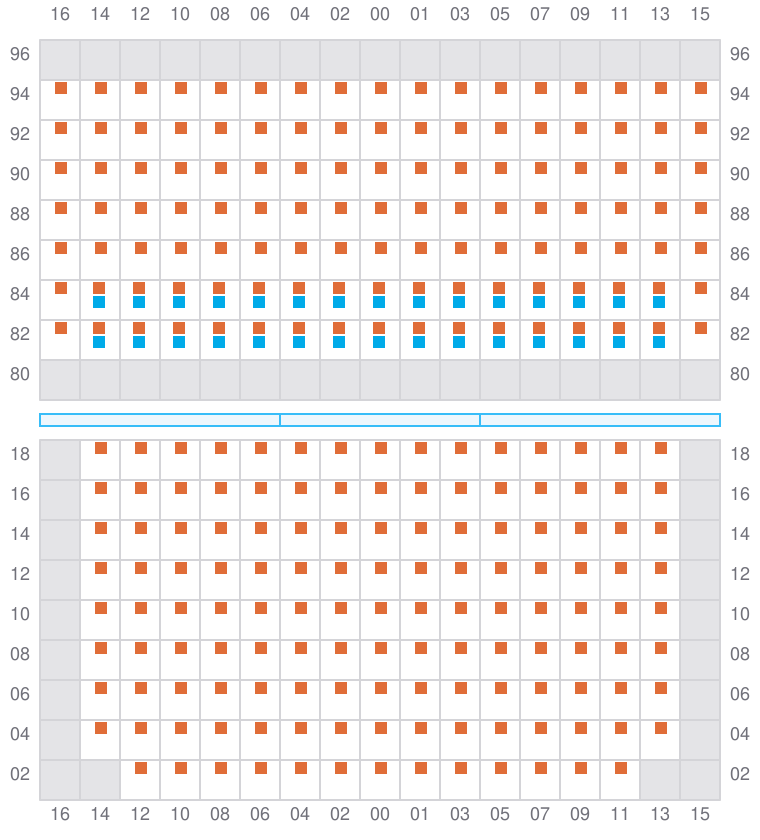

Bay 035 view and slots of SEAMAX STRATFORD

037 (038)

  • →
Bay 037 view and slots of SEAMAX STRATFORD

039

  • ←
  • →

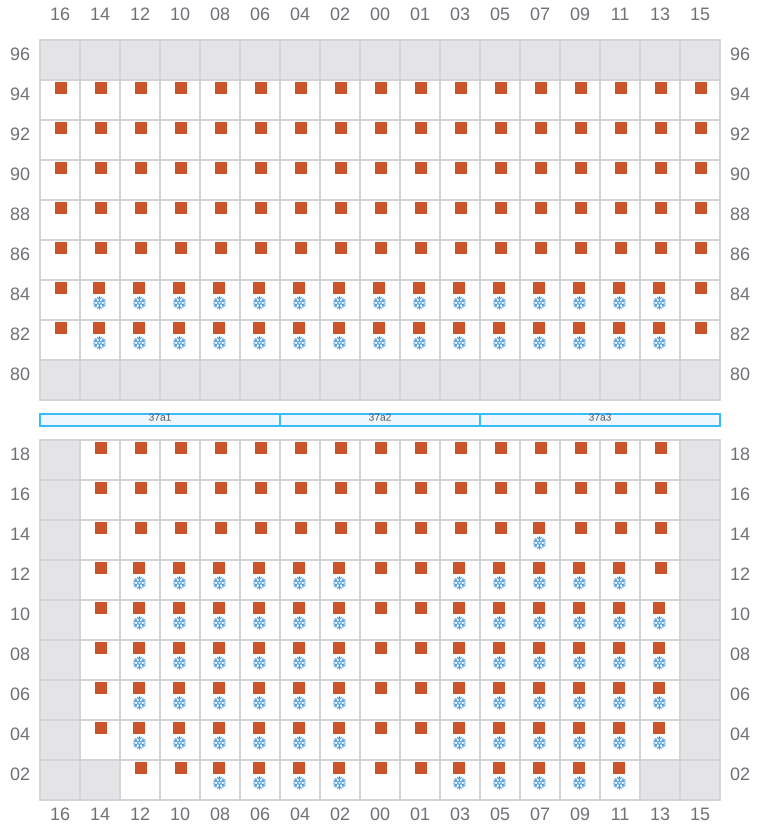

Bay 039 view and slots of SEAMAX STRATFORD

041 (042)

  • →

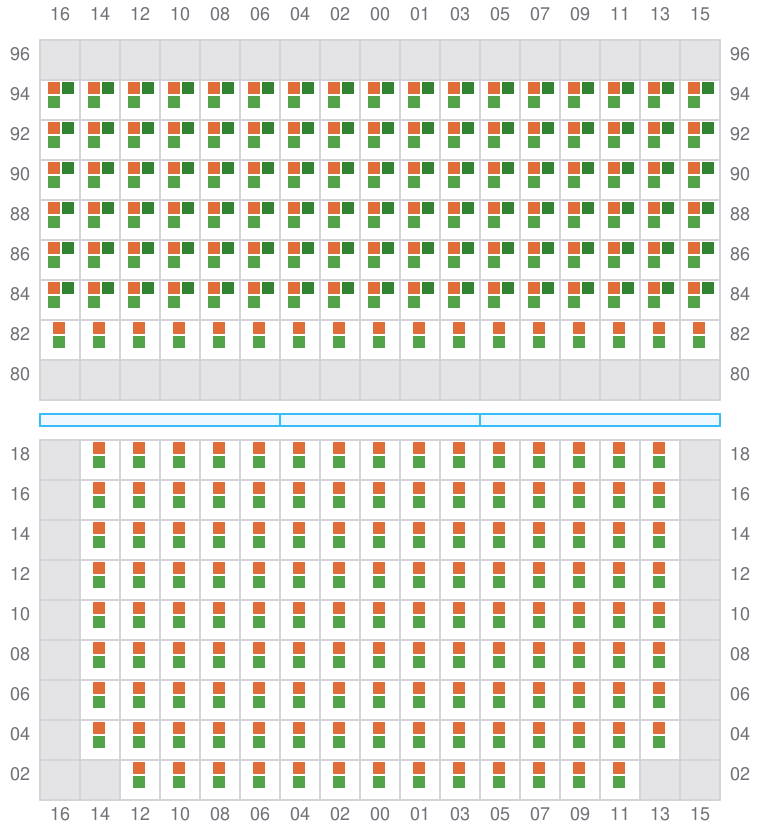

Bay 041 view and slots of SEAMAX STRATFORD

043

  • ←
  • → / ?
Bay 043 view and slots of SEAMAX STRATFORD

045 (046)

  • →
Bay 045 view and slots of SEAMAX STRATFORD

047

  • ←
  • →

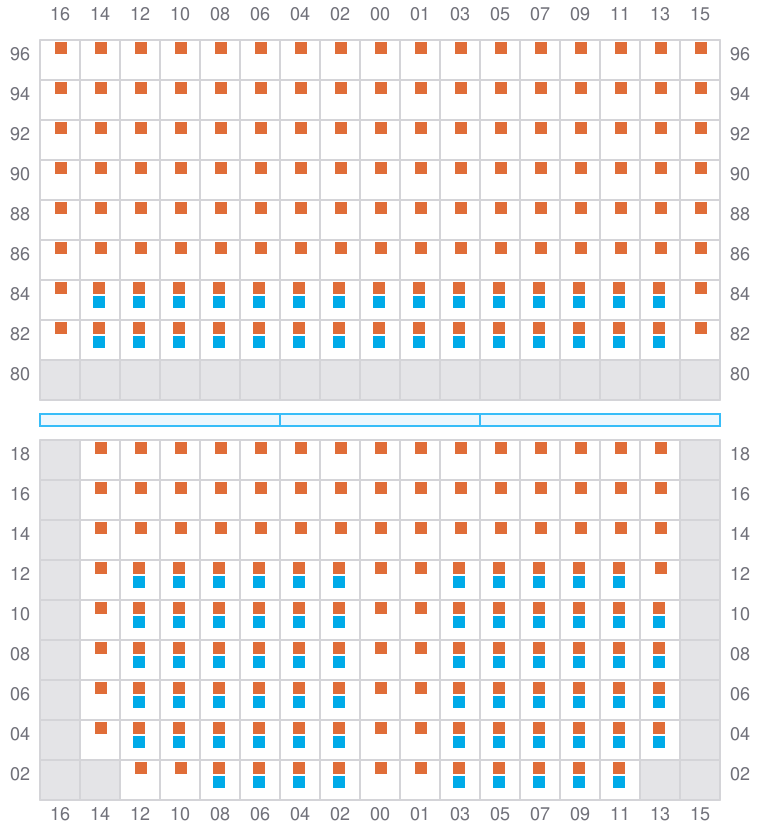

Bay 047 view and slots of SEAMAX STRATFORD

049 (050)

  • →

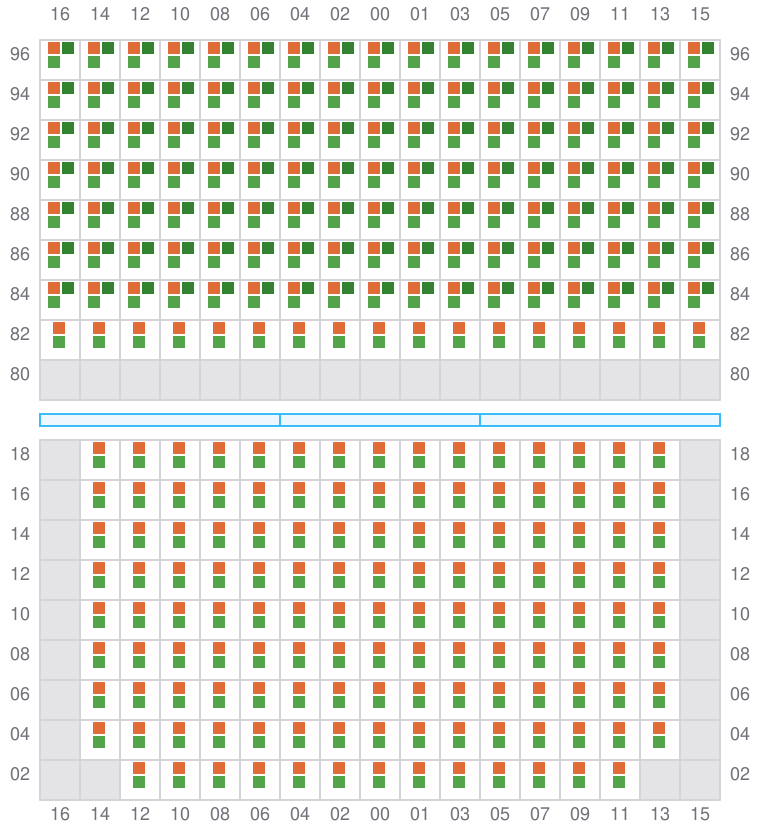

Bay 049 view and slots of SEAMAX STRATFORD

051

  • ←
  • → / ?

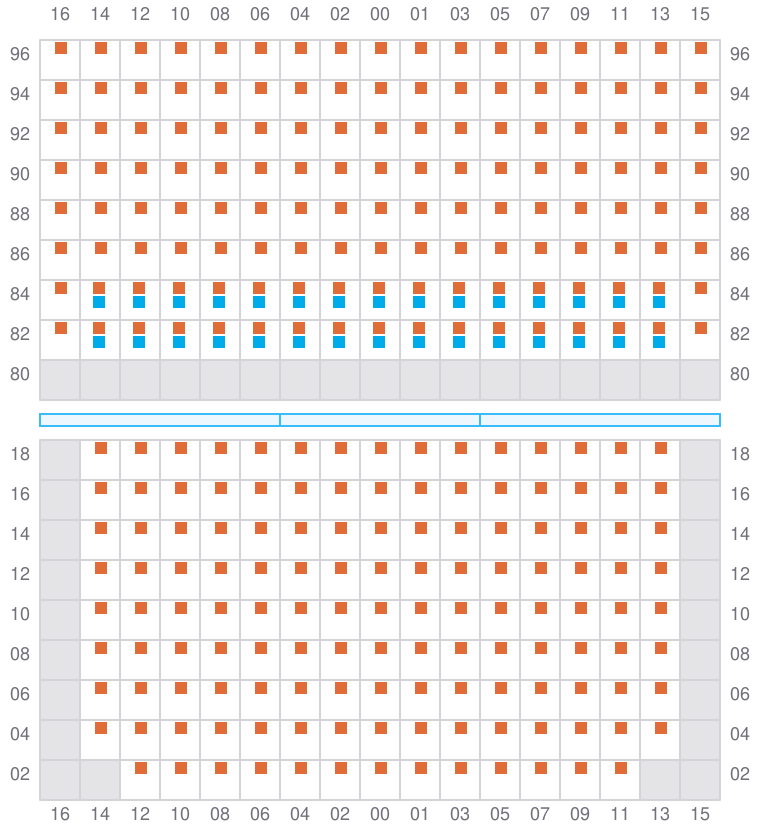

Bay 051 view and slots of SEAMAX STRATFORD

053 (054)

  • →

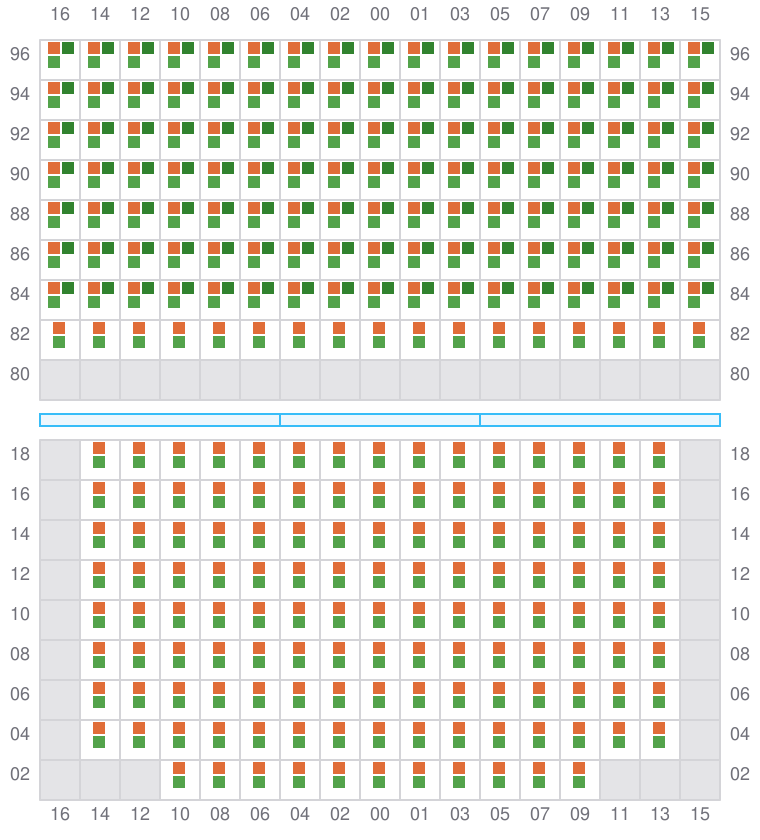

Bay 053 view and slots of SEAMAX STRATFORD

055

  • ←
  • →

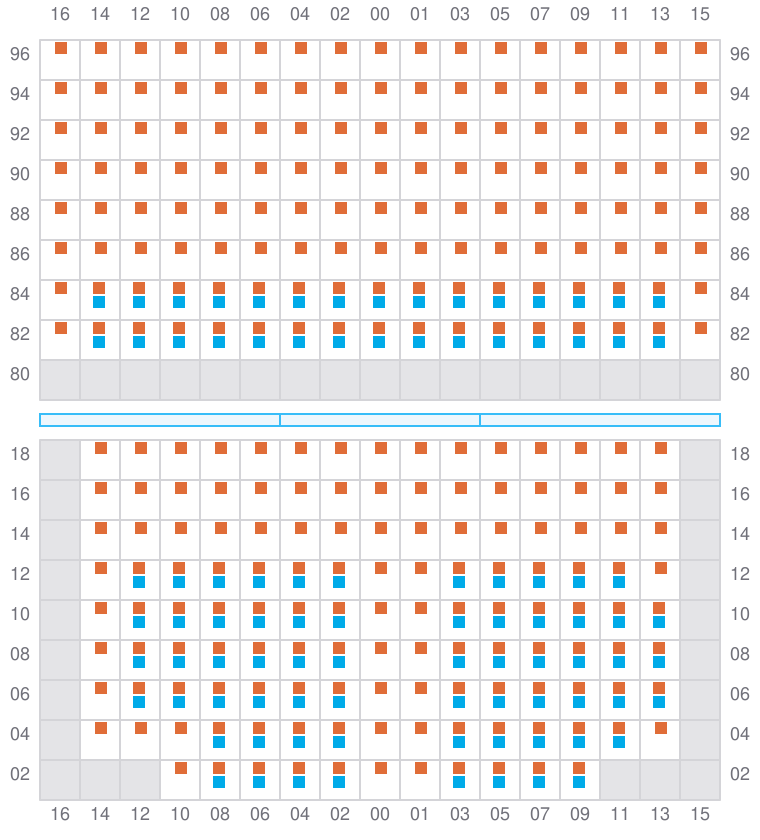

Bay 055 view and slots of SEAMAX STRATFORD

057 (058)

  • →

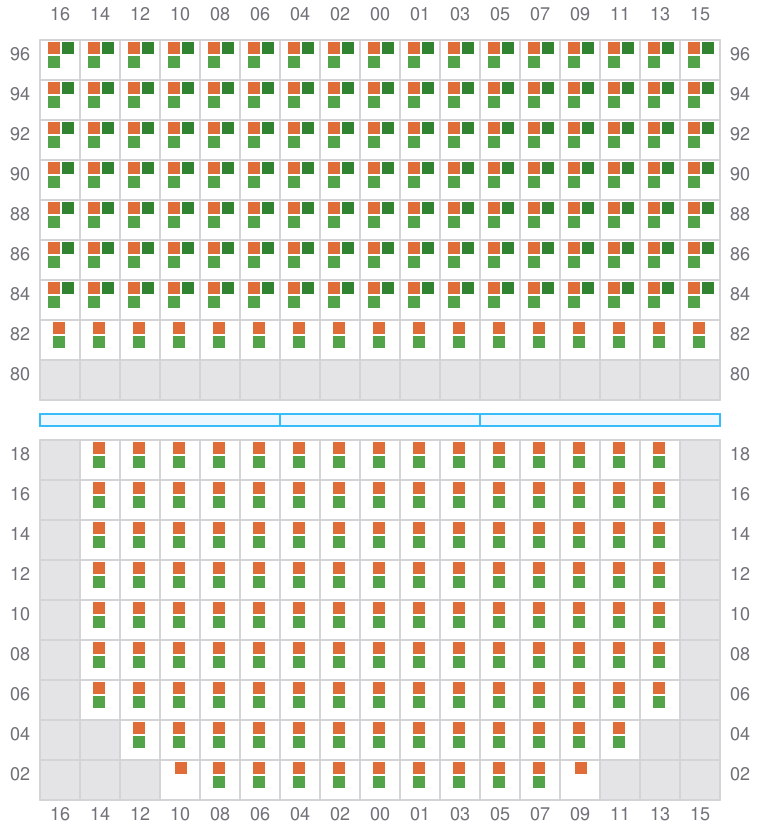

Bay 057 view and slots of SEAMAX STRATFORD

059

  • ←
  • → / ?

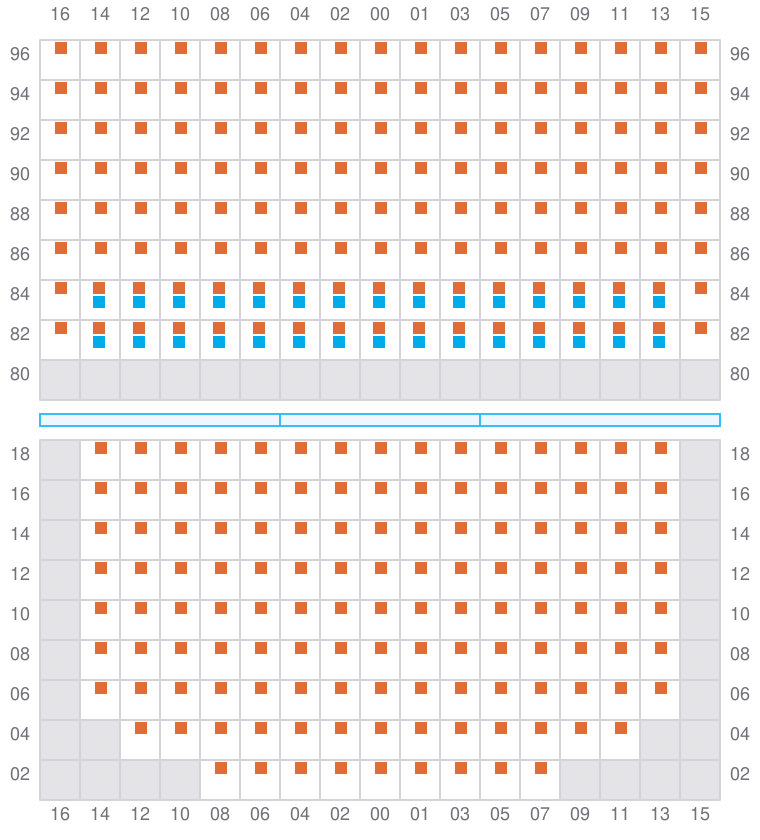

Bay 059 view and slots of SEAMAX STRATFORD

061 (062)

  • →

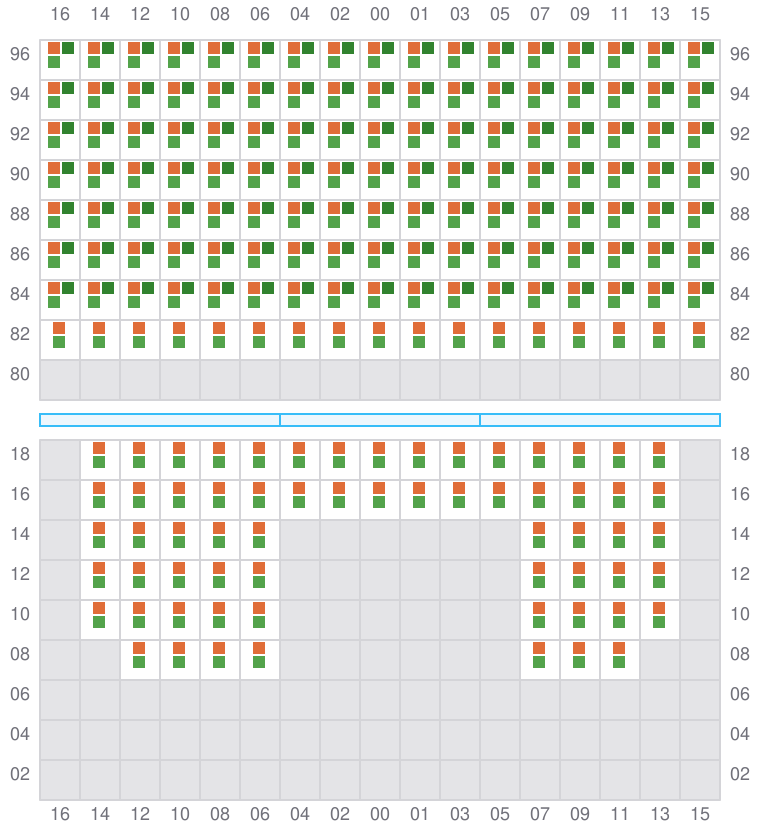

Bay 061 view and slots of SEAMAX STRATFORD

063

  • ←
  • → / ?
Bay 063 view and slots of SEAMAX STRATFORD

065 (066)

  • →

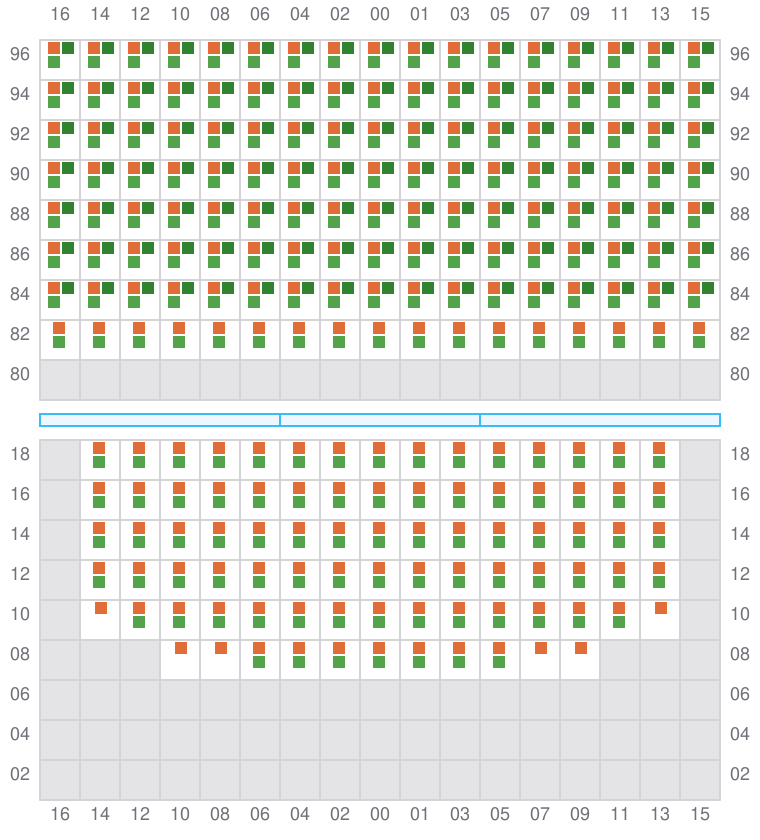

Bay 065 view and slots of SEAMAX STRATFORD

067

  • ←
  • → / ?

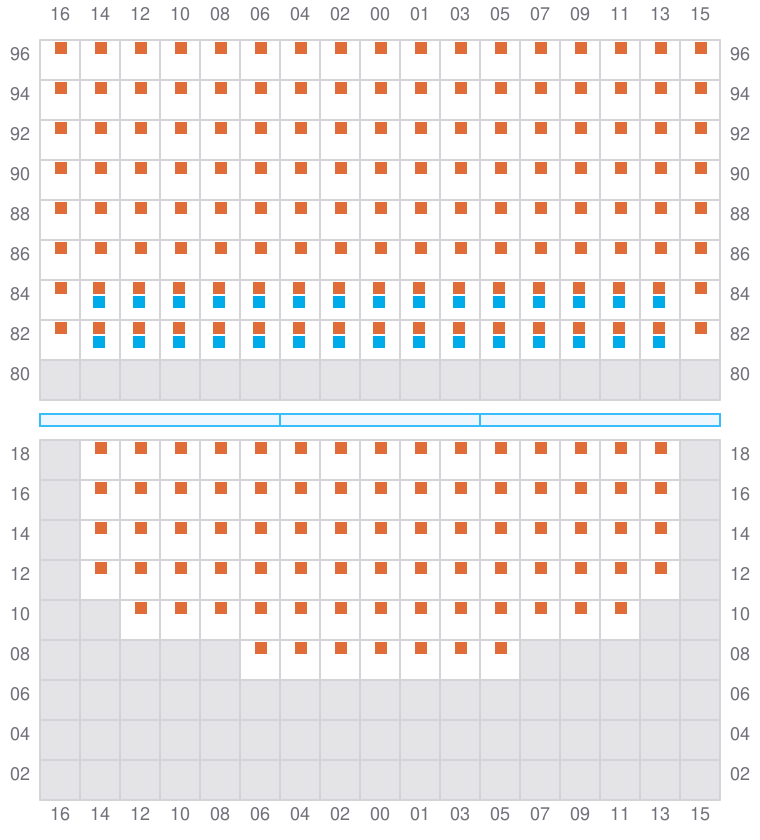

Bay 067 view and slots of SEAMAX STRATFORD

069 (070)

  • →

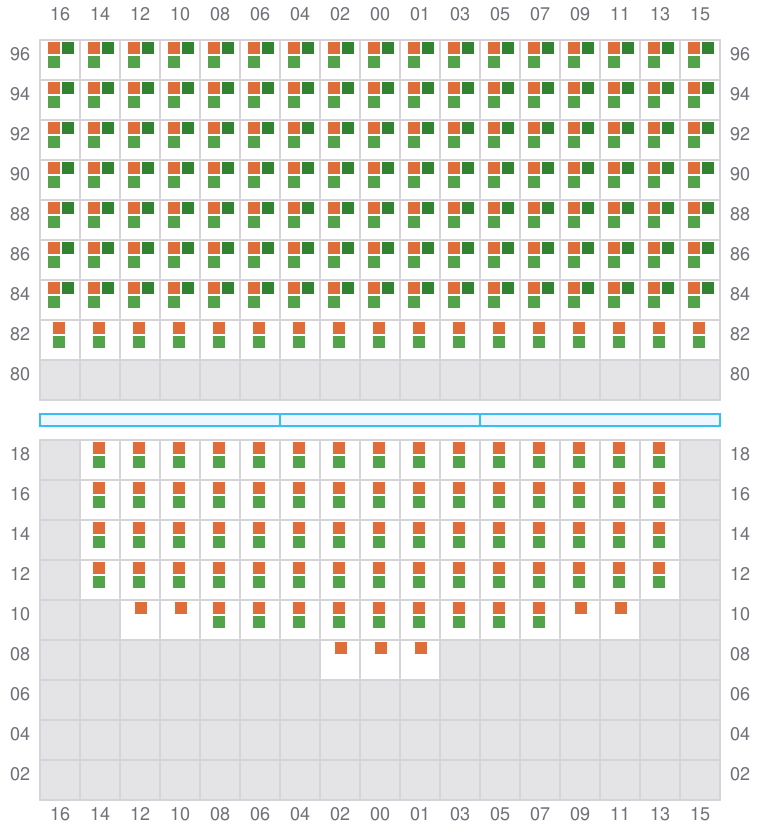

Bay 069 view and slots of SEAMAX STRATFORD

071

  • ←
  • → / ?

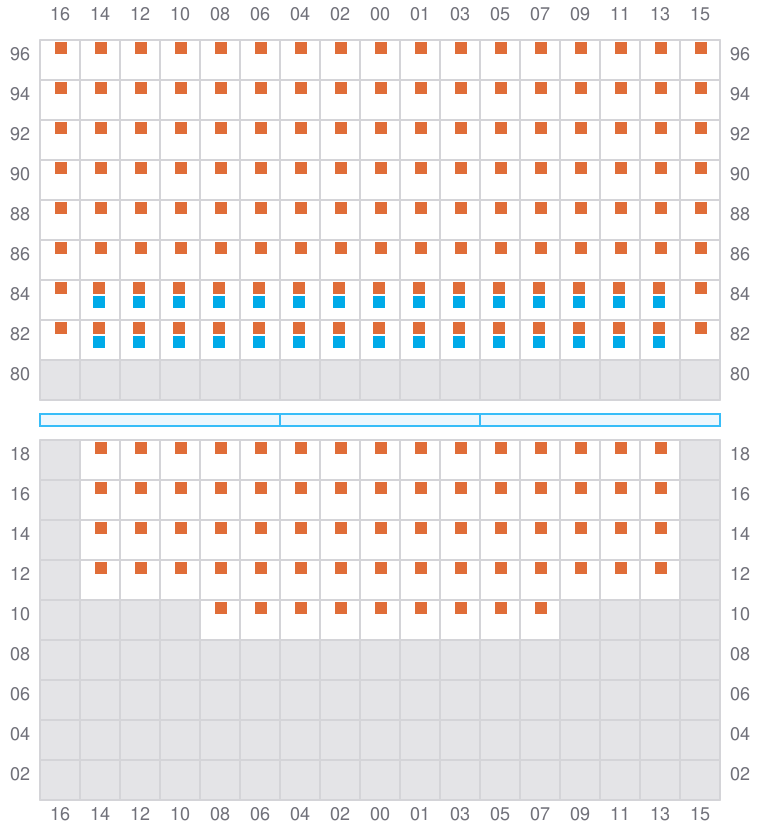

Bay 071 view and slots of SEAMAX STRATFORD

073 (074)

  • →

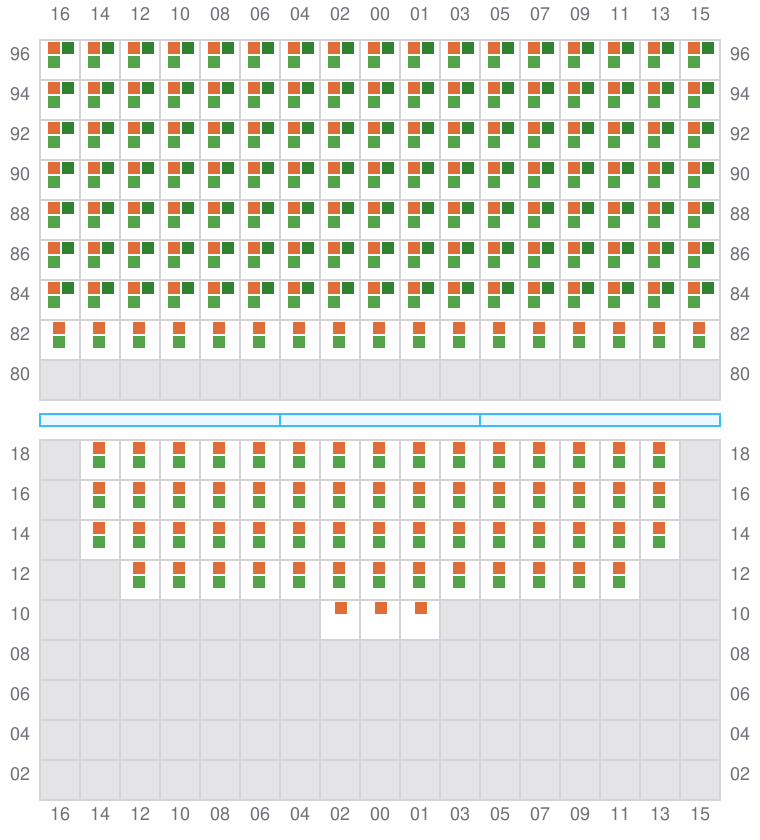

Bay 073 view and slots of SEAMAX STRATFORD

075

  • ←
  • → / ?

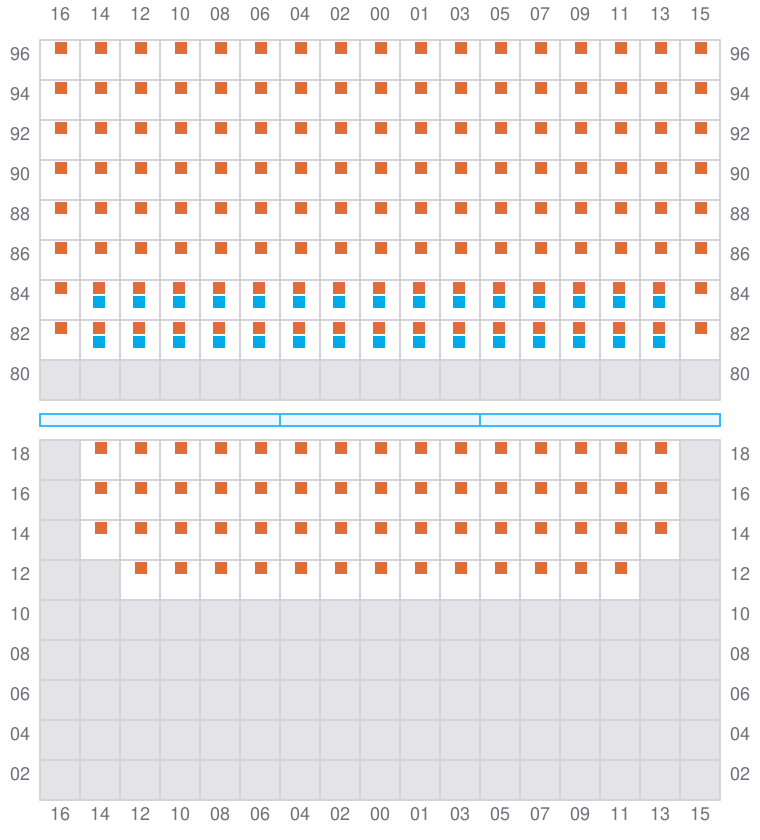

Bay 075 view and slots of SEAMAX STRATFORD

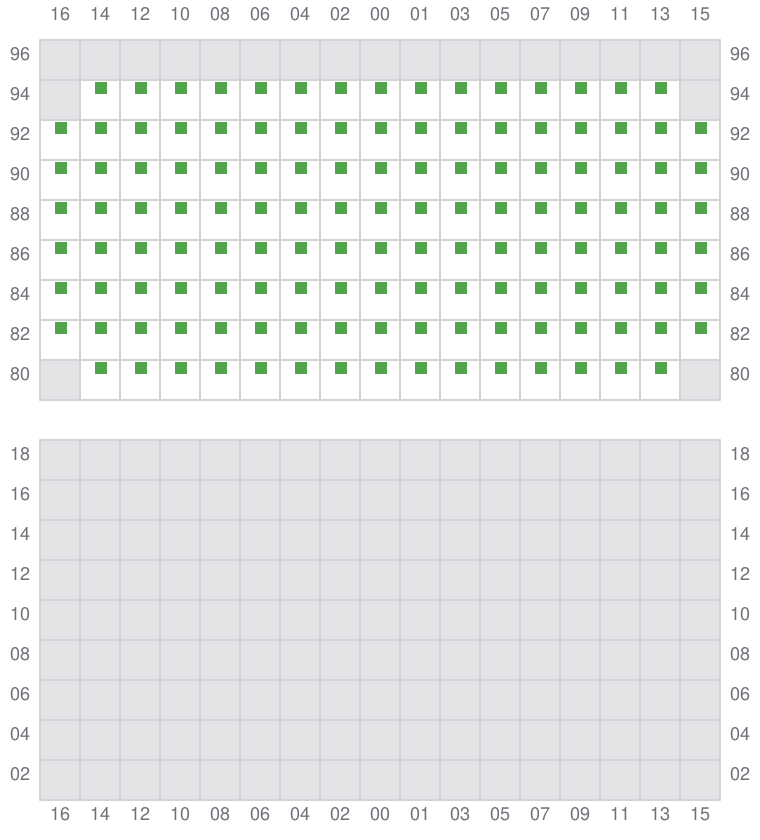

077 (078)

  • → / ?
Bay 077 view and slots of SEAMAX STRATFORD
