SEASPAN BELIEF
9713351 | VROD3 | 9713351 by ********* Last update: Tue May 07 2024

General Info

Ship Name:SEASPAN BELIEF
IMO Code:9713351
Call Sign:VROD3
Line Operator:9713351
Class Name for Sister Ships:MOL_BELIEF
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,100

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SEASPAN BELIEF

Hatch-Covers View

Deck view of SEASPAN BELIEF

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

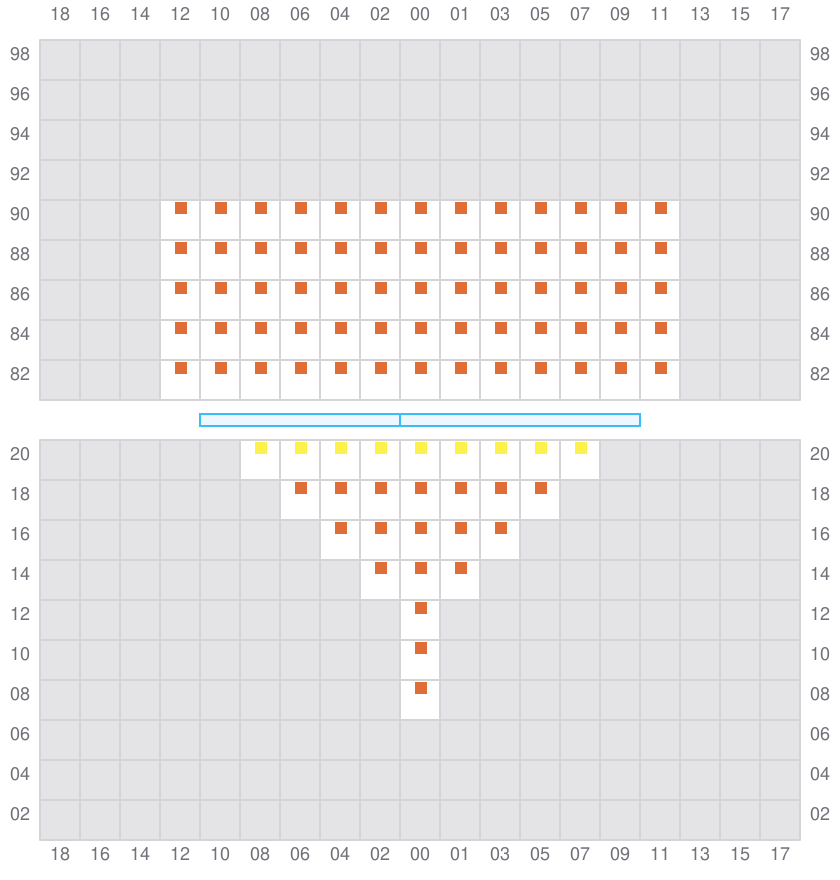

Bay 001 view and slots of SEASPAN BELIEF

003 (002)

  • ←
  • → / ?
  • →

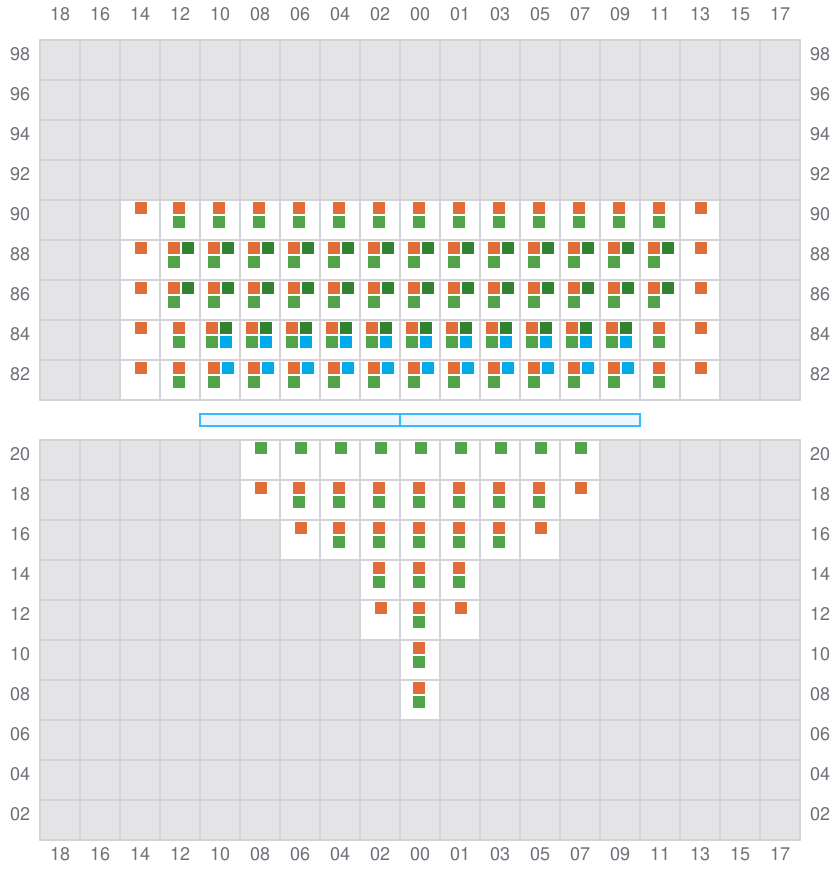

Bay 003 view and slots of SEASPAN BELIEF

005

  • →
  • →

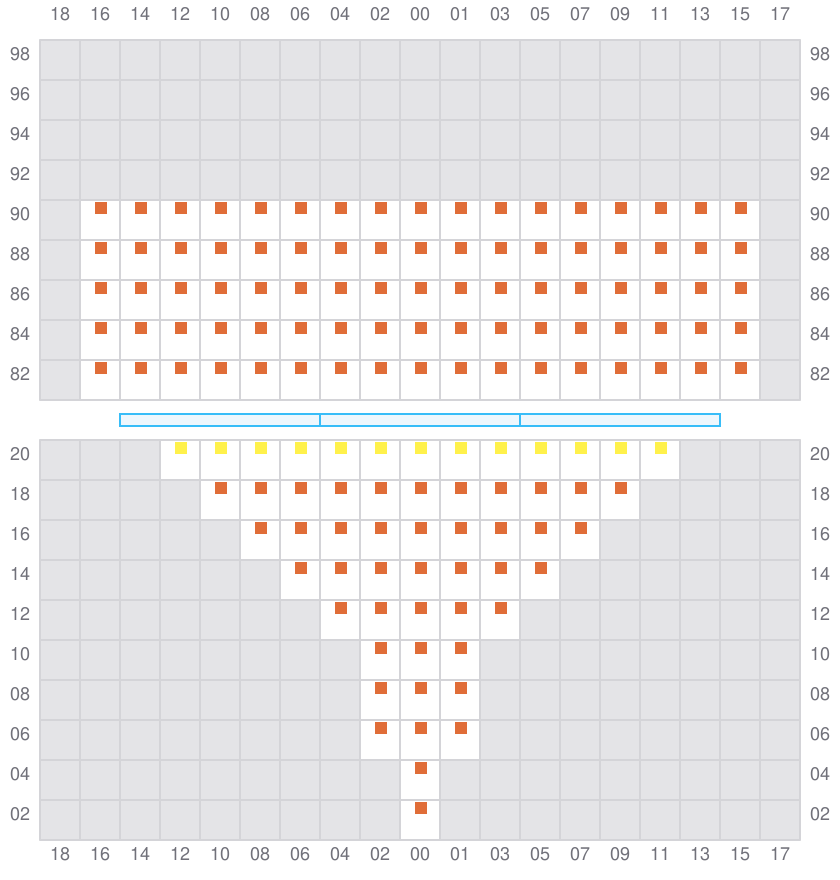

Bay 005 view and slots of SEASPAN BELIEF

007 (006)

  • ←
  • → / ?
  • →

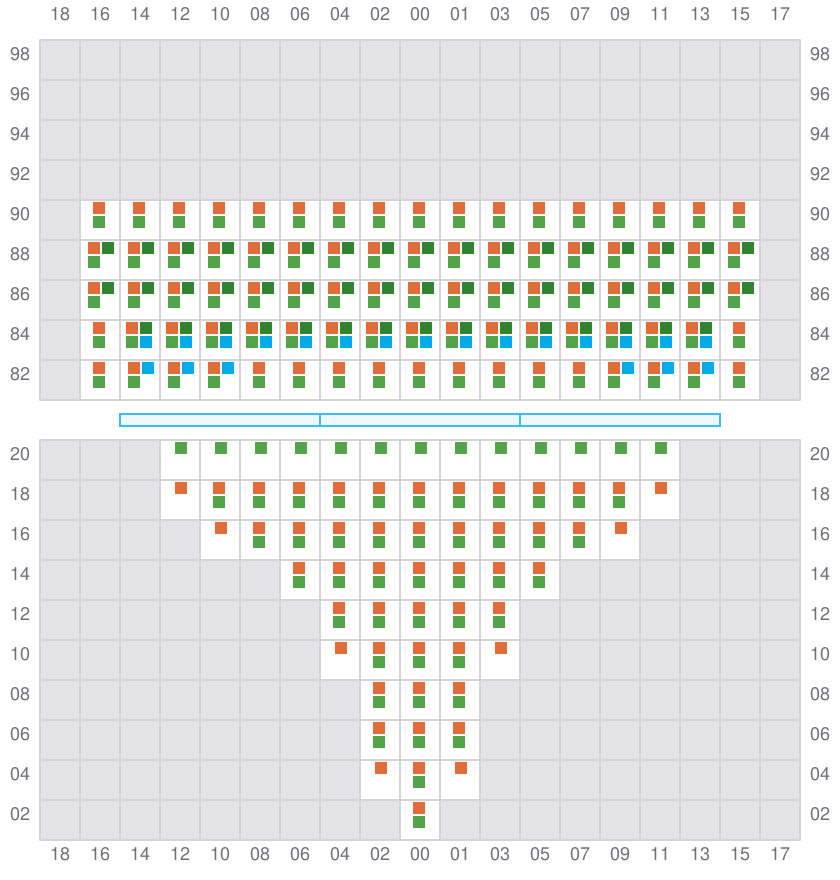

Bay 007 view and slots of SEASPAN BELIEF

009

  • →
  • →

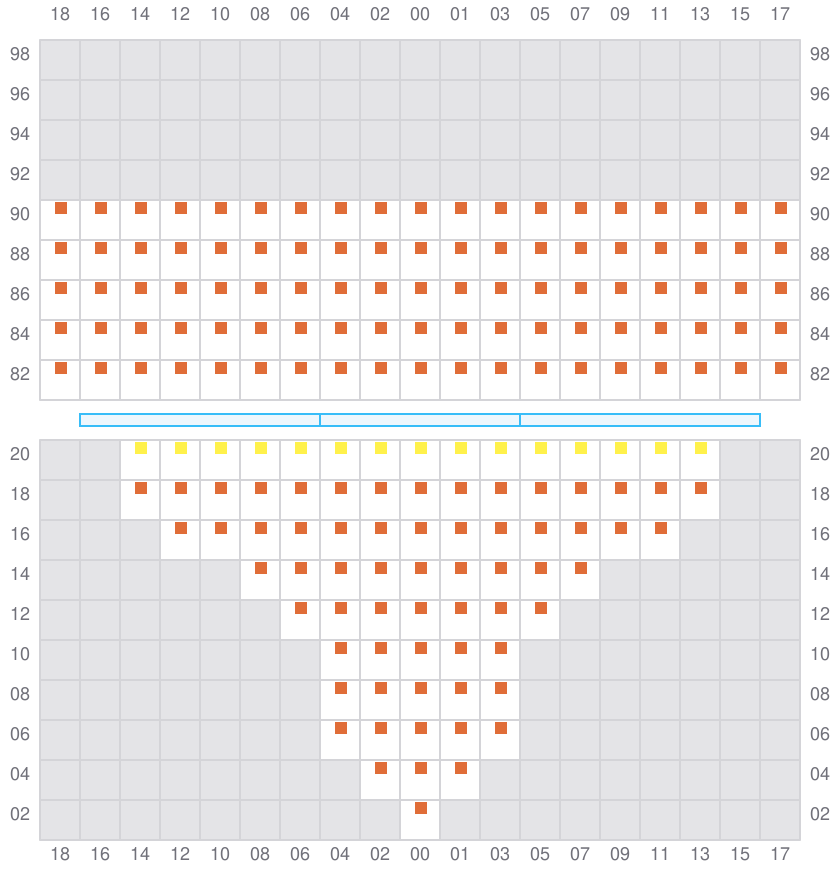

Bay 009 view and slots of SEASPAN BELIEF

011 (010)

  • ←
  • → / ?
  • →

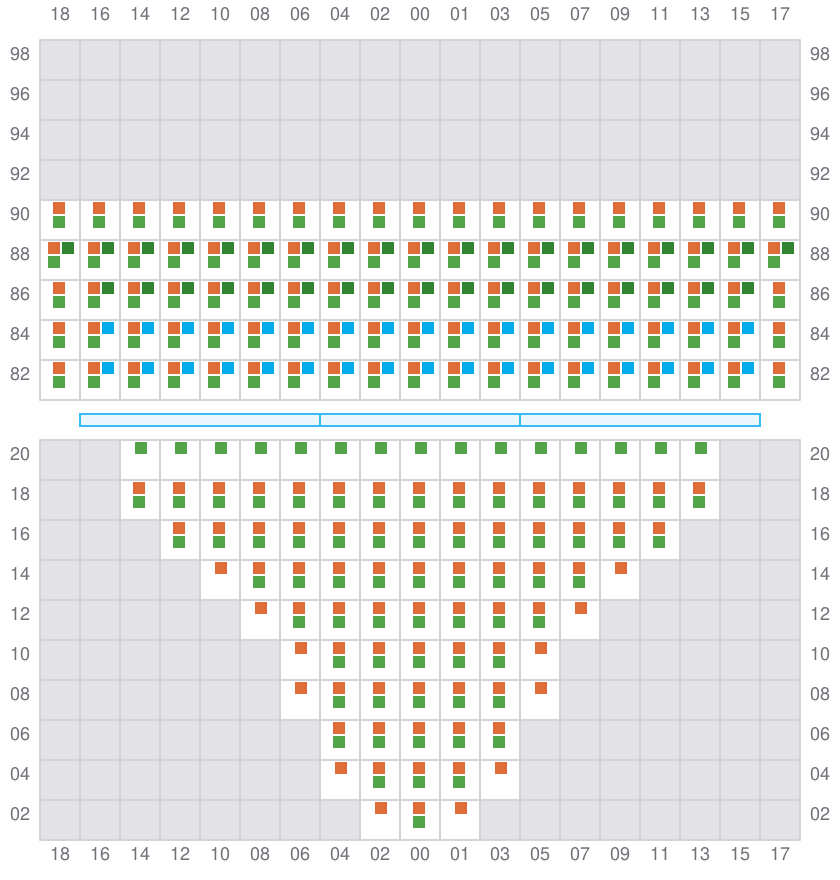

Bay 011 view and slots of SEASPAN BELIEF

013

  • →
  • →

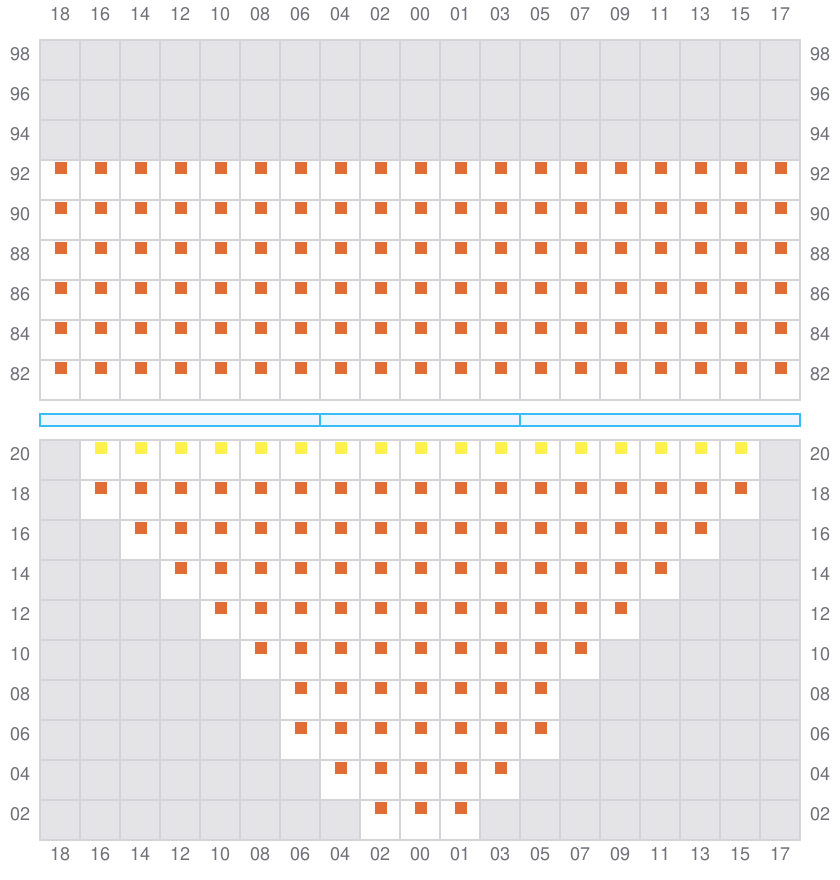

Bay 013 view and slots of SEASPAN BELIEF

015 (014)

  • ←
  • → / ?
  • →

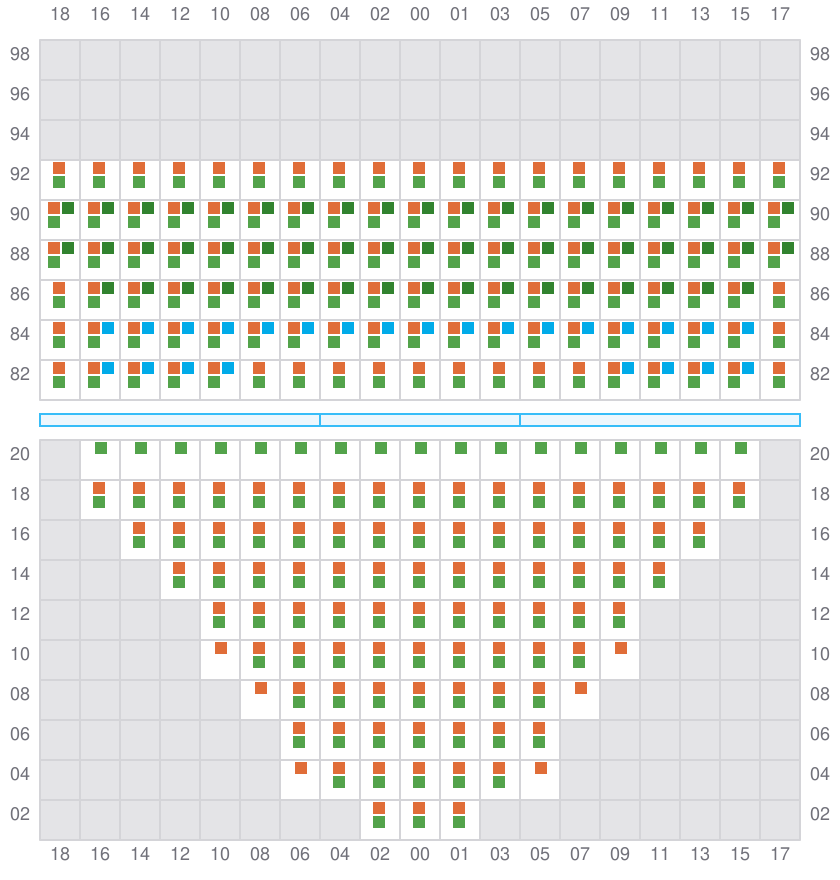

Bay 015 view and slots of SEASPAN BELIEF

017

  • →
  • →

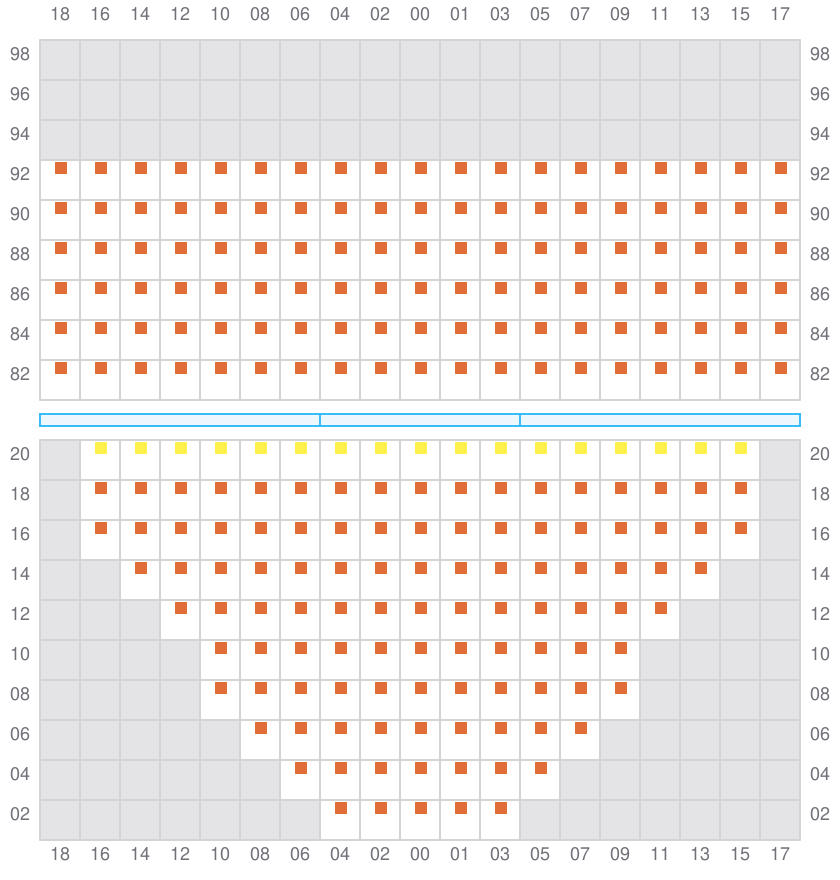

Bay 017 view and slots of SEASPAN BELIEF

019 (018)

  • ←
  • → / ?
  • →

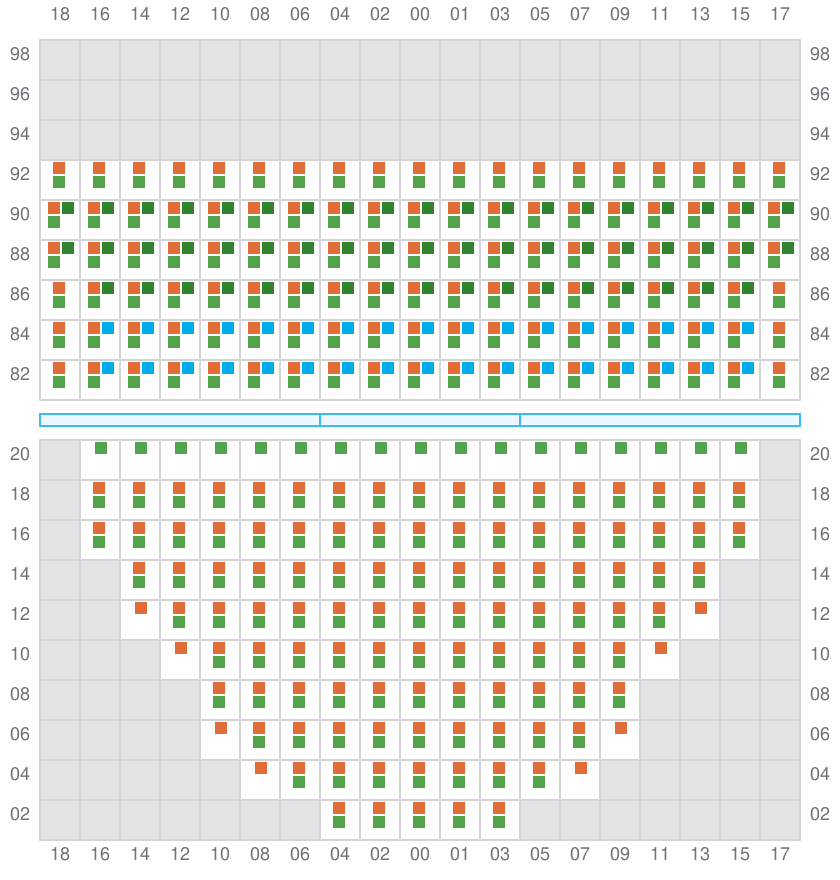

Bay 019 view and slots of SEASPAN BELIEF

021

  • →
  • →

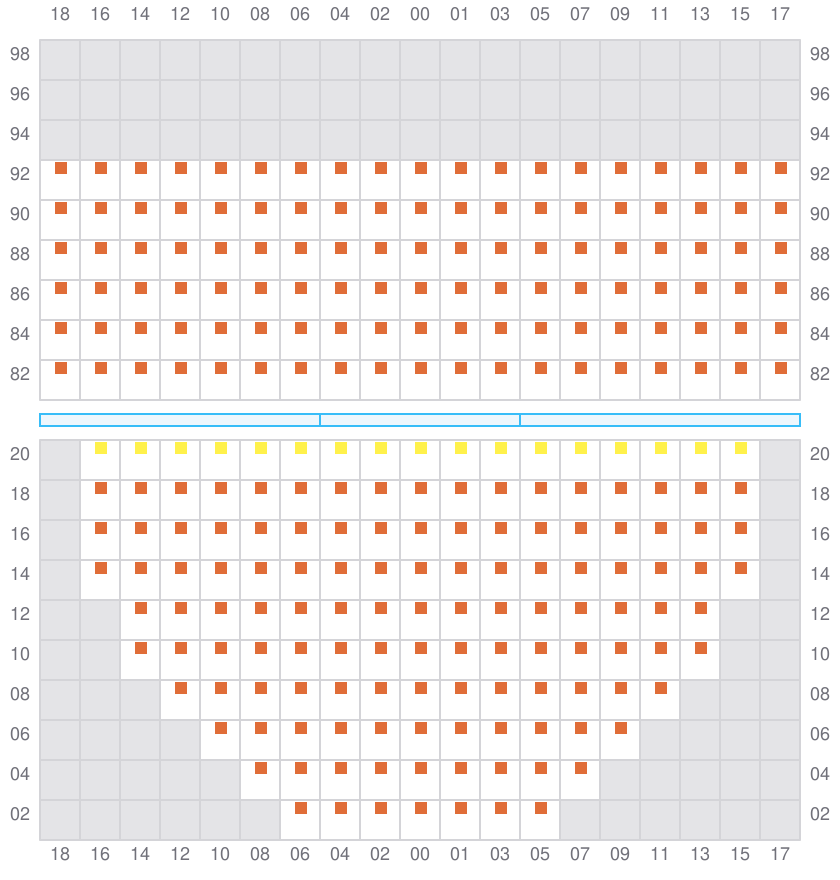

Bay 021 view and slots of SEASPAN BELIEF

023 (022)

  • ←
  • → / ?
  • →

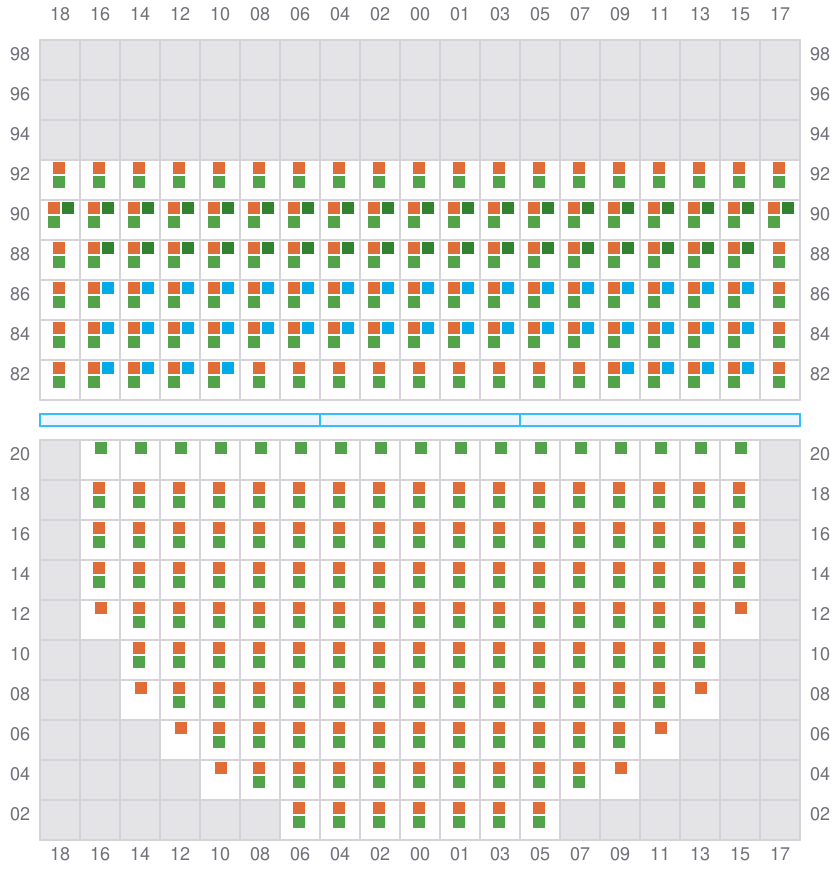

Bay 023 view and slots of SEASPAN BELIEF

025

  • →
  • →

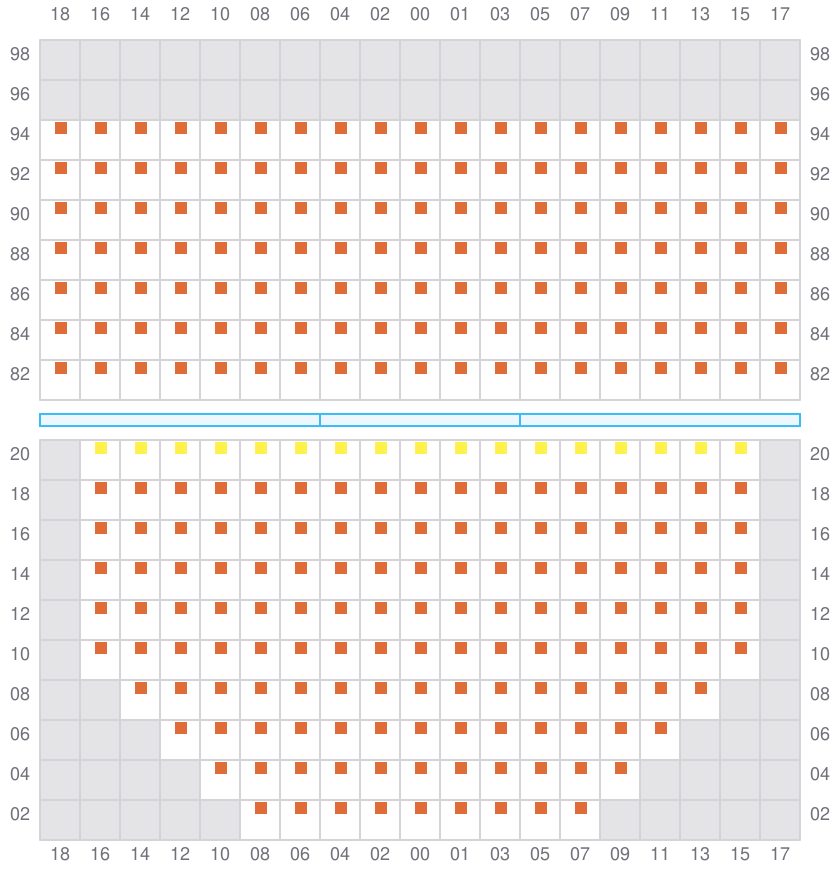

Bay 025 view and slots of SEASPAN BELIEF

027 (026)

  • ←
  • → / ?
  • →

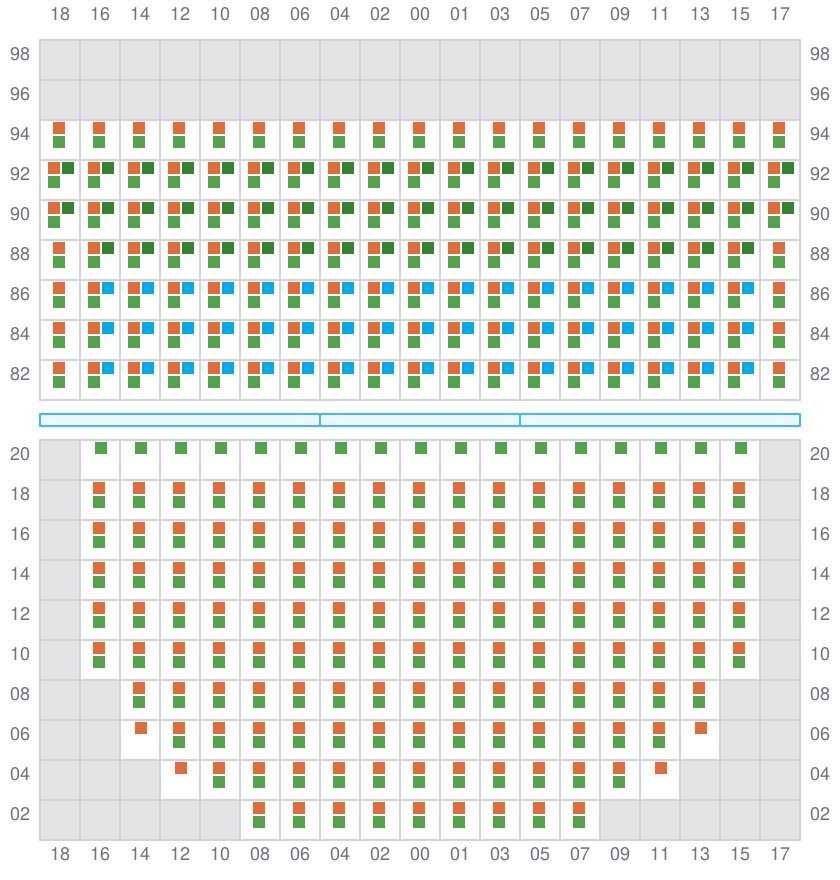

Bay 027 view and slots of SEASPAN BELIEF

029

  • →
  • →

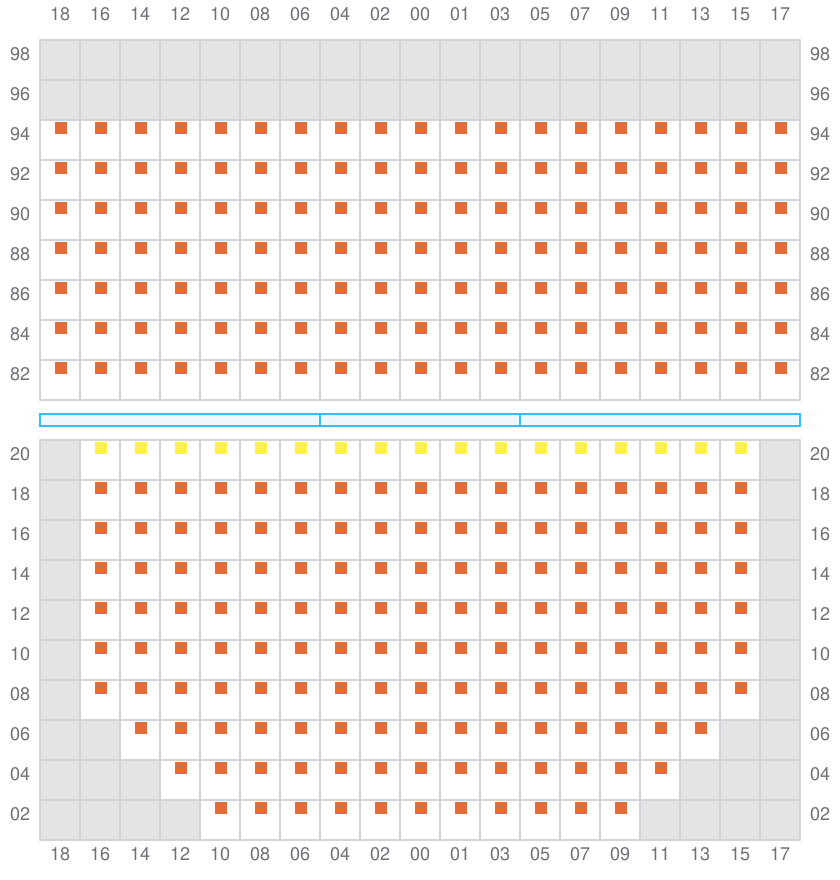

Bay 029 view and slots of SEASPAN BELIEF

031 (030)

  • ←
  • → / ?
  • →

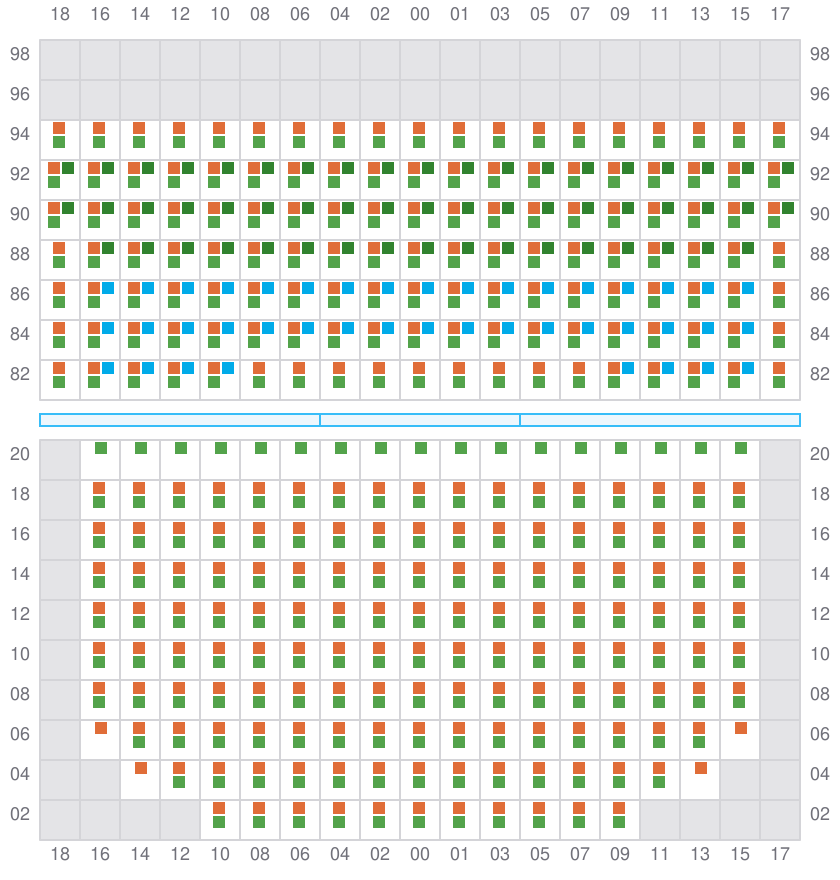

Bay 031 view and slots of SEASPAN BELIEF

033

  • →
  • →

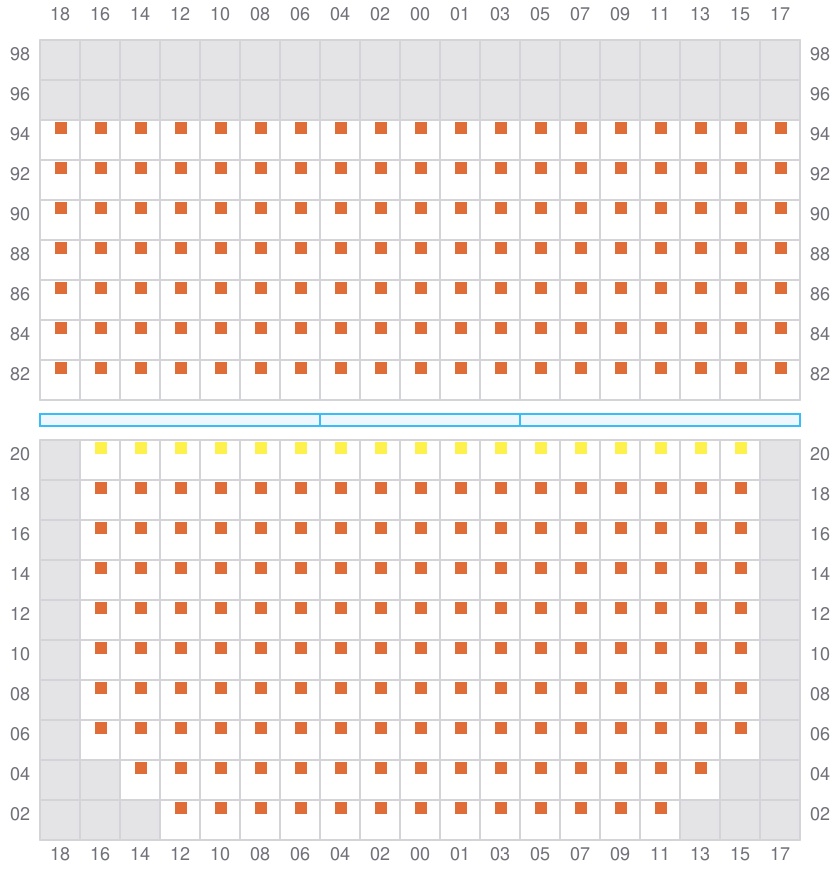

Bay 033 view and slots of SEASPAN BELIEF

035 (034)

  • ←
  • → / ?
  • →

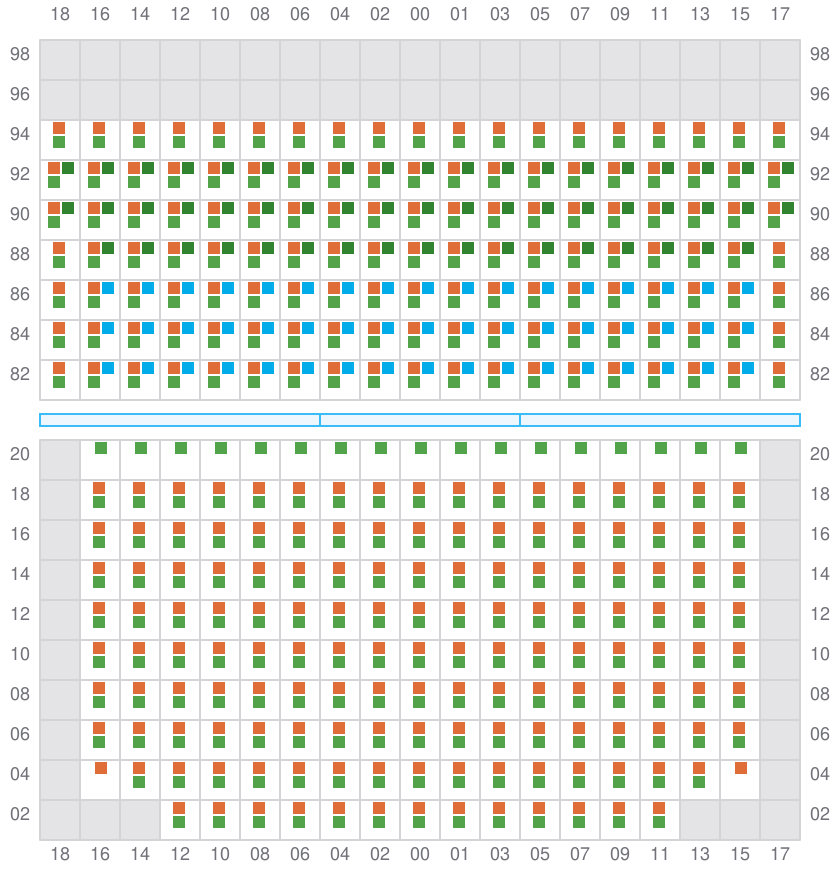

Bay 035 view and slots of SEASPAN BELIEF

037

  • →
  • →

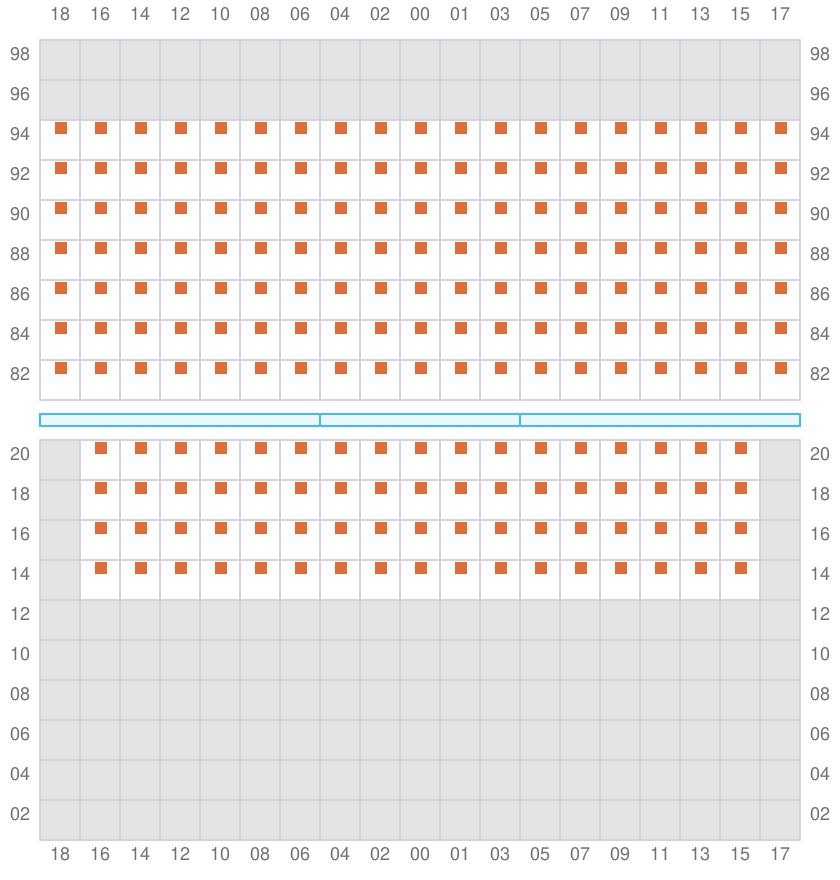

Bay 037 view and slots of SEASPAN BELIEF

039 (038)

  • ←
  • → / ?
  • →

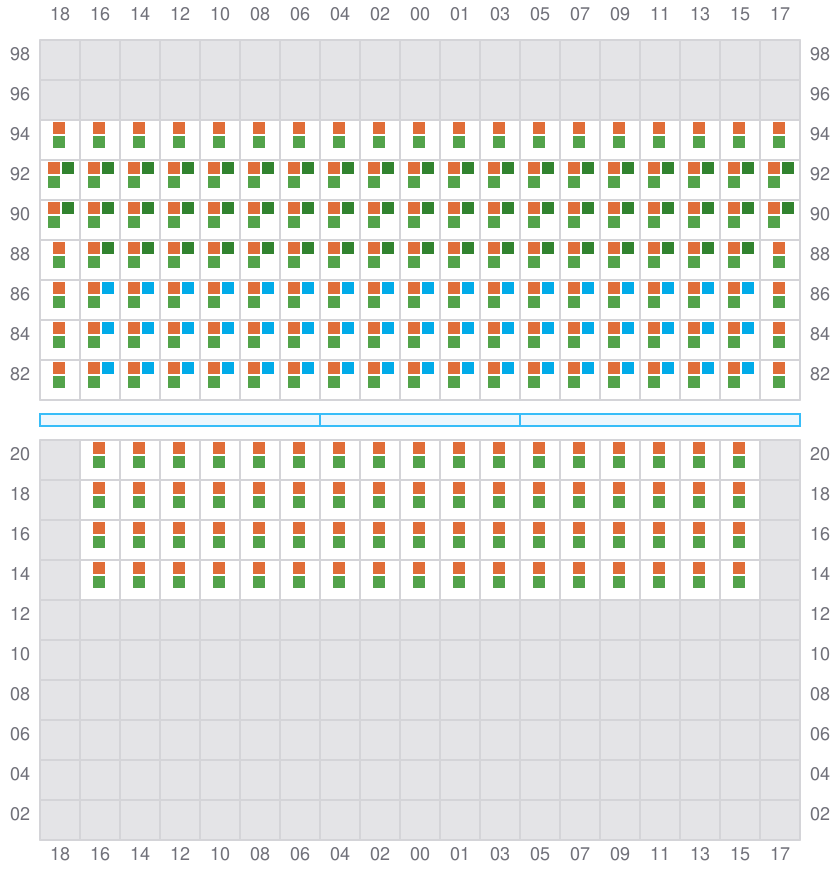

Bay 039 view and slots of SEASPAN BELIEF

041

  • →
  • →
Bay 041 view and slots of SEASPAN BELIEF

043 (042)

  • ←
  • → / ?
  • →

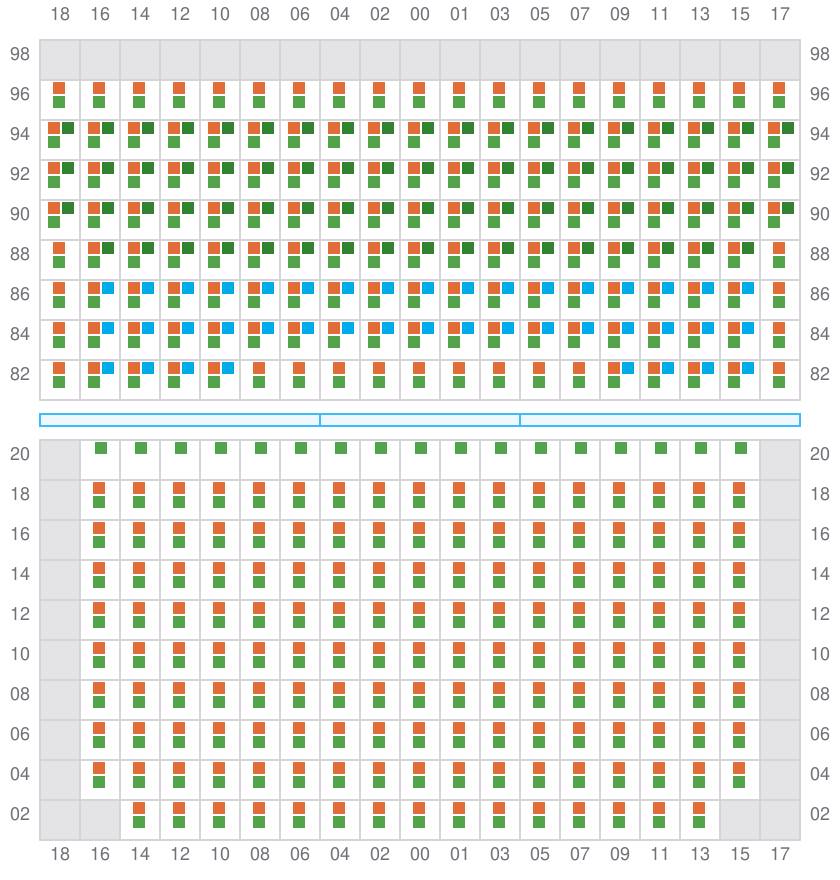

Bay 043 view and slots of SEASPAN BELIEF

045

  • →
  • →

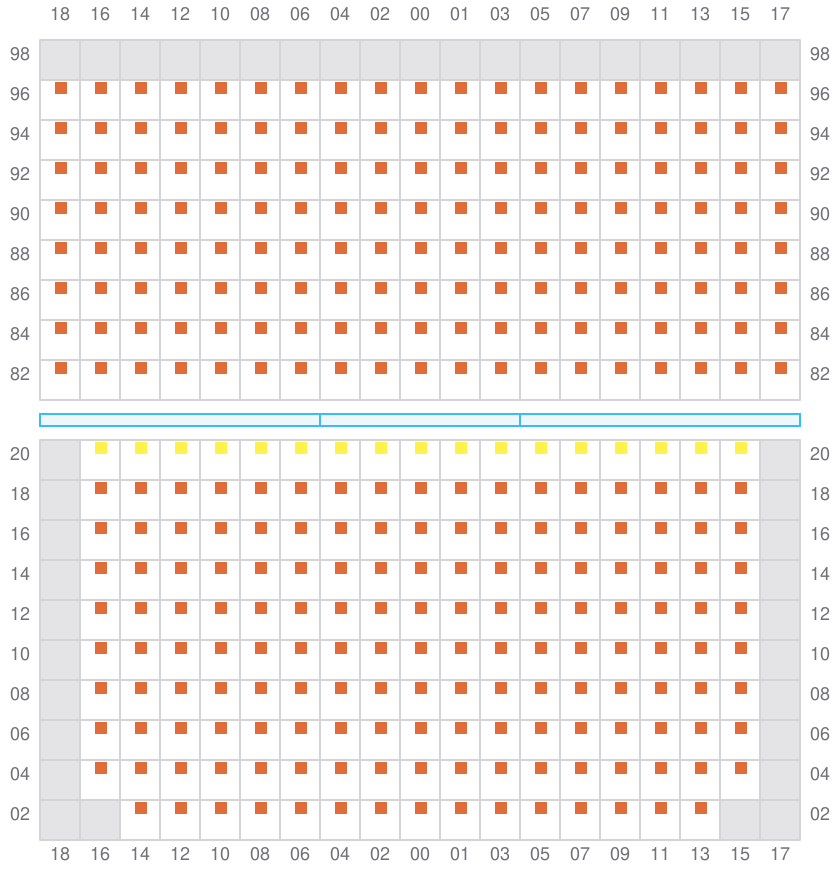

Bay 045 view and slots of SEASPAN BELIEF

047 (046)

  • ←
  • →
  • →

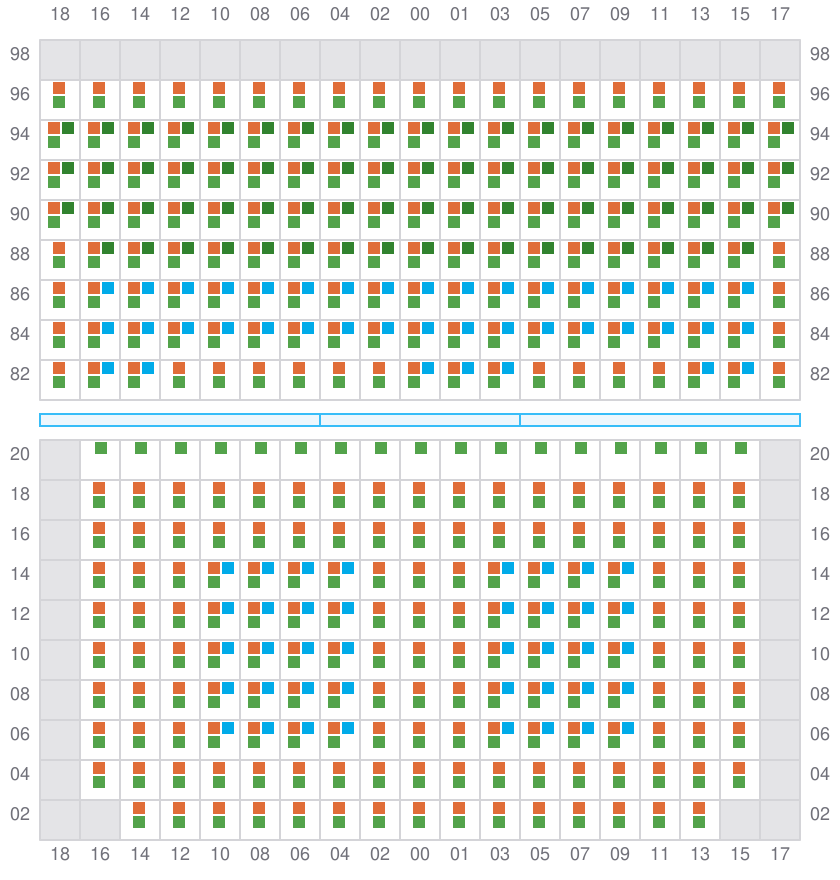

Bay 047 view and slots of SEASPAN BELIEF

049

  • →
  • →
Bay 049 view and slots of SEASPAN BELIEF

051 (050)

  • ←
  • →
  • →
Bay 051 view and slots of SEASPAN BELIEF

053

  • →
  • →

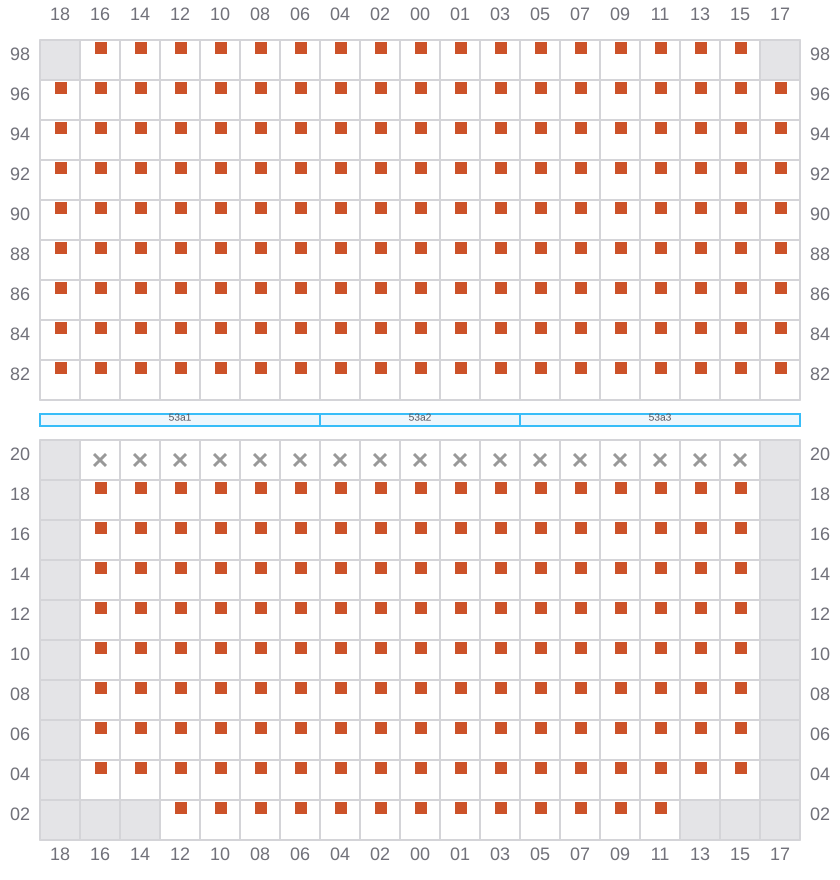

Bay 053 view and slots of SEASPAN BELIEF

055 (054)

  • ←
  • →
  • →
Bay 055 view and slots of SEASPAN BELIEF

057

  • →
  • →

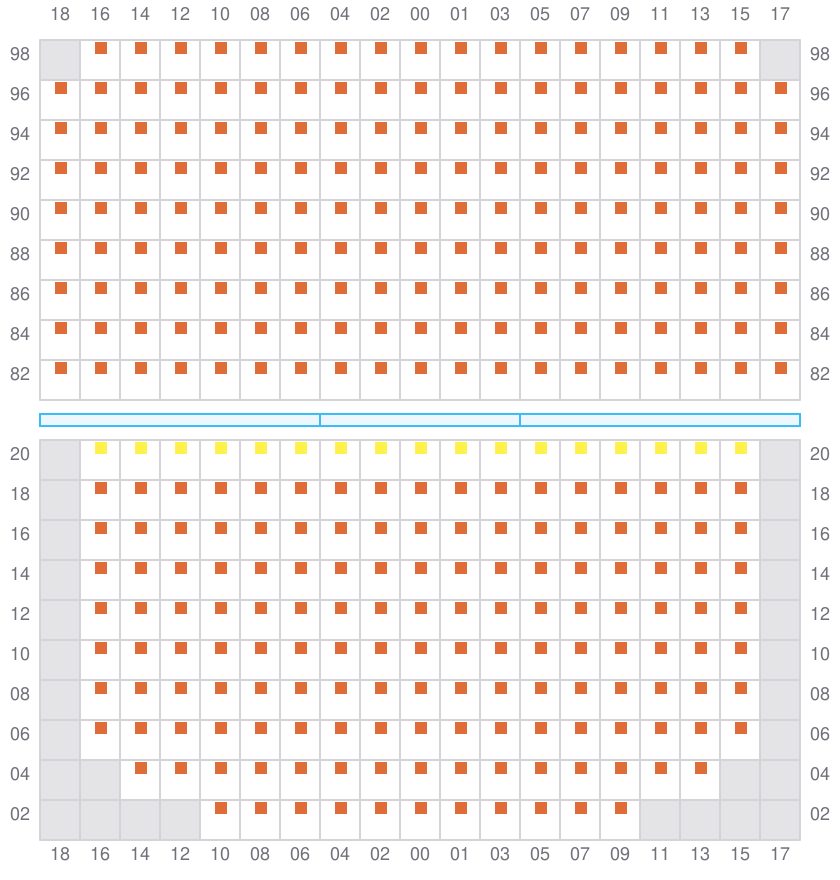

Bay 057 view and slots of SEASPAN BELIEF

059 (058)

  • ←
  • →
  • →

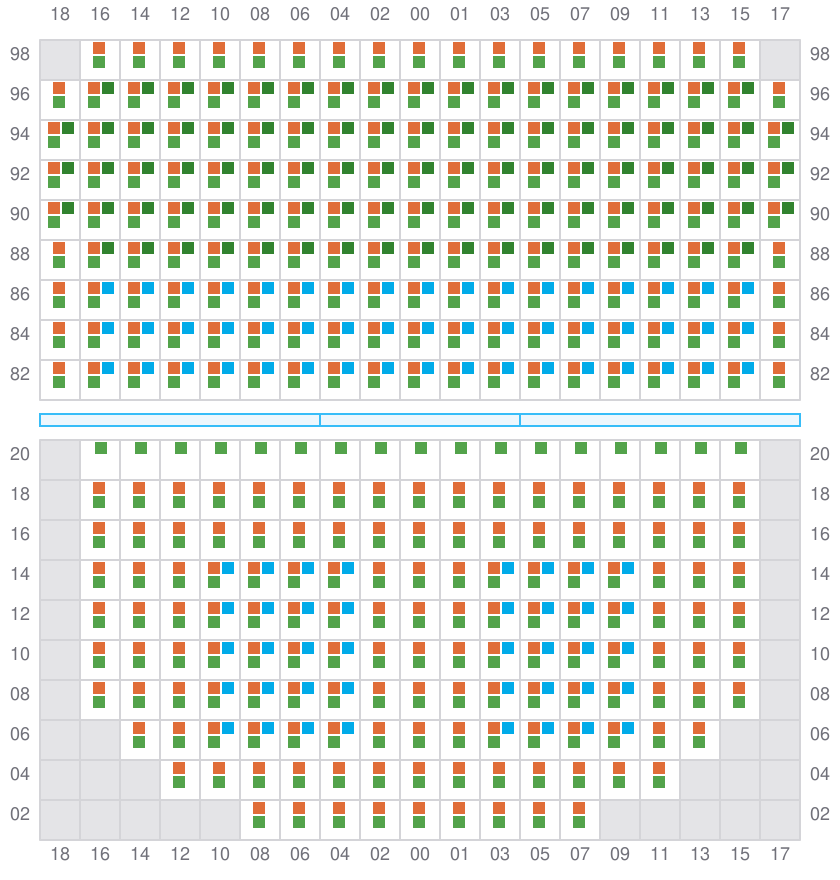

Bay 059 view and slots of SEASPAN BELIEF

061

  • →
  • →

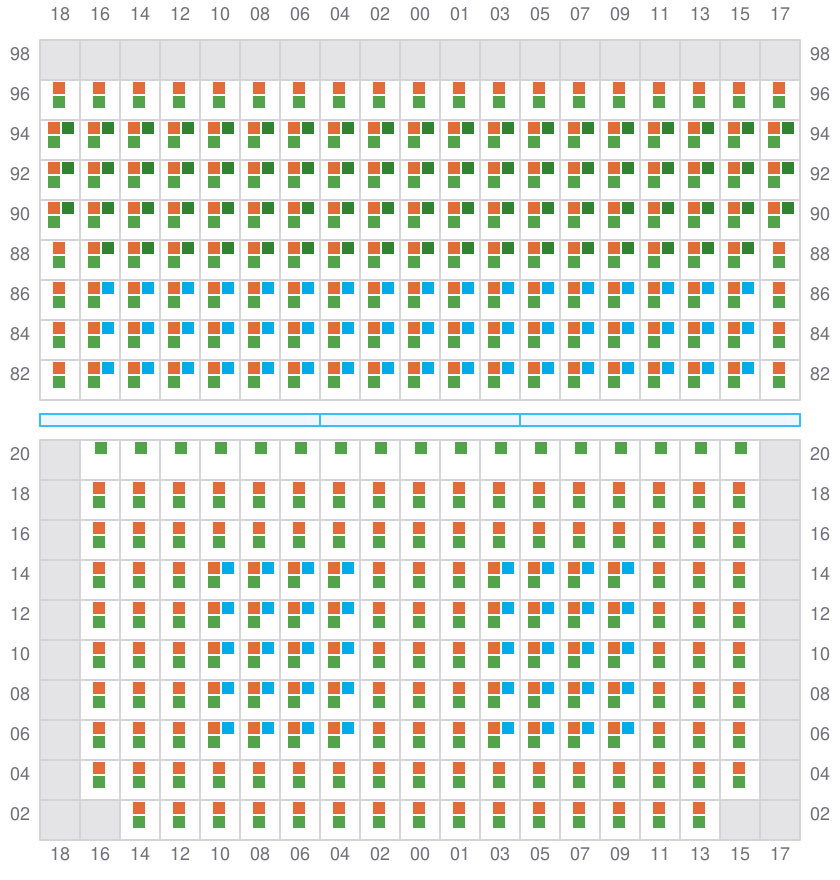

Bay 061 view and slots of SEASPAN BELIEF

063 (062)

  • ←
  • → / ?
  • →
Bay 063 view and slots of SEASPAN BELIEF

065

  • →
  • →

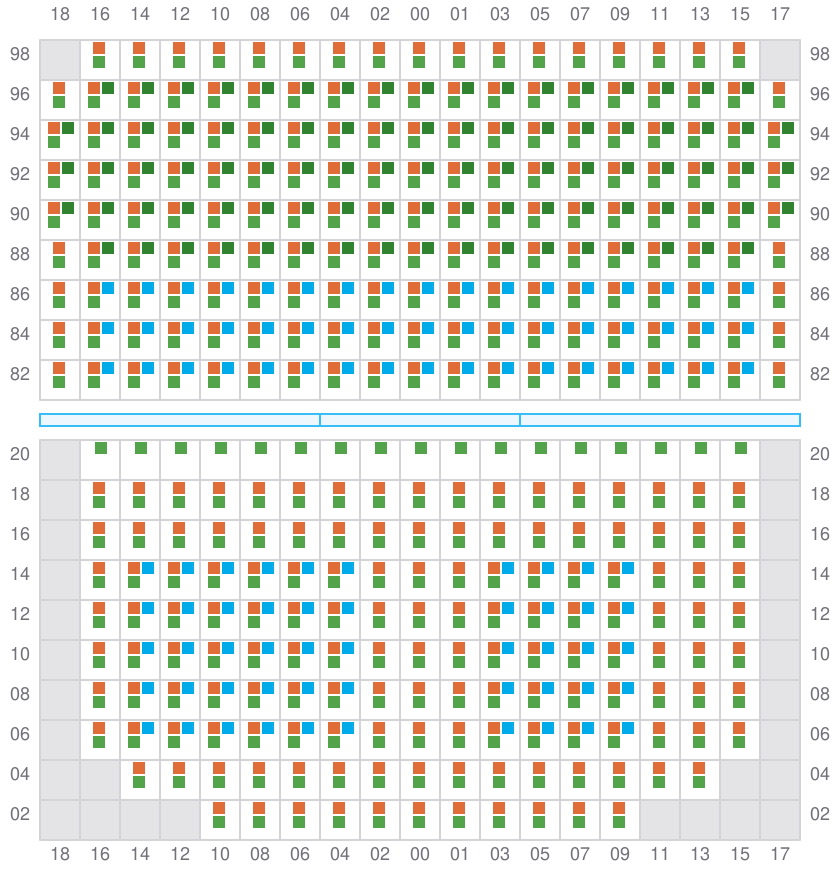

Bay 065 view and slots of SEASPAN BELIEF

067 (066)

  • ←
  • → / ?
  • →

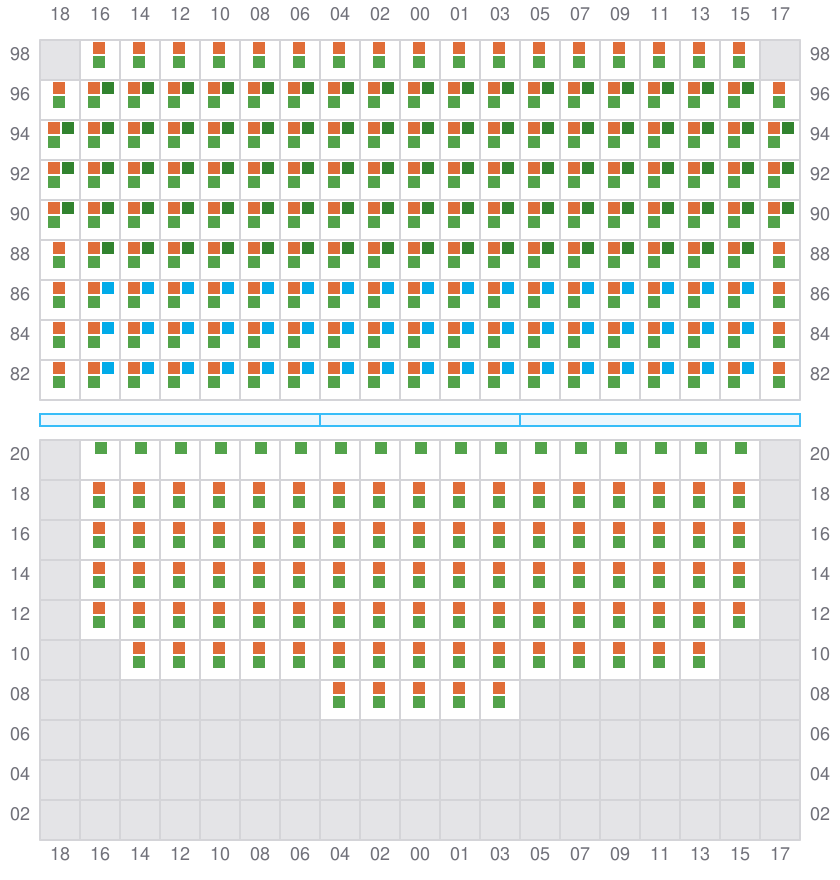

Bay 067 view and slots of SEASPAN BELIEF

069

  • →
  • →

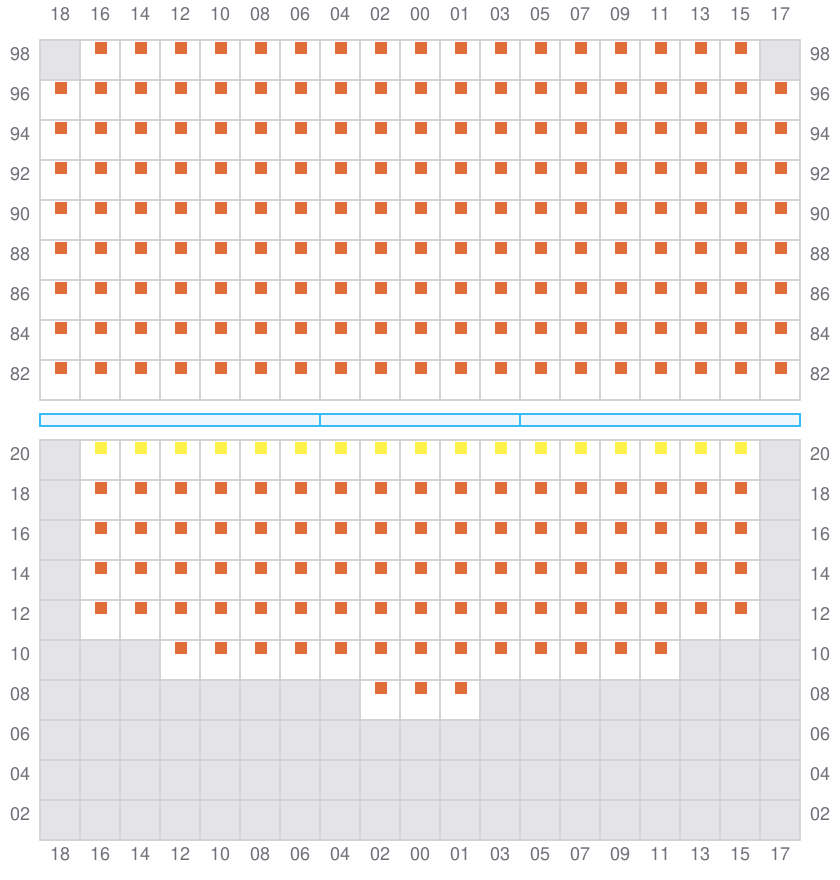

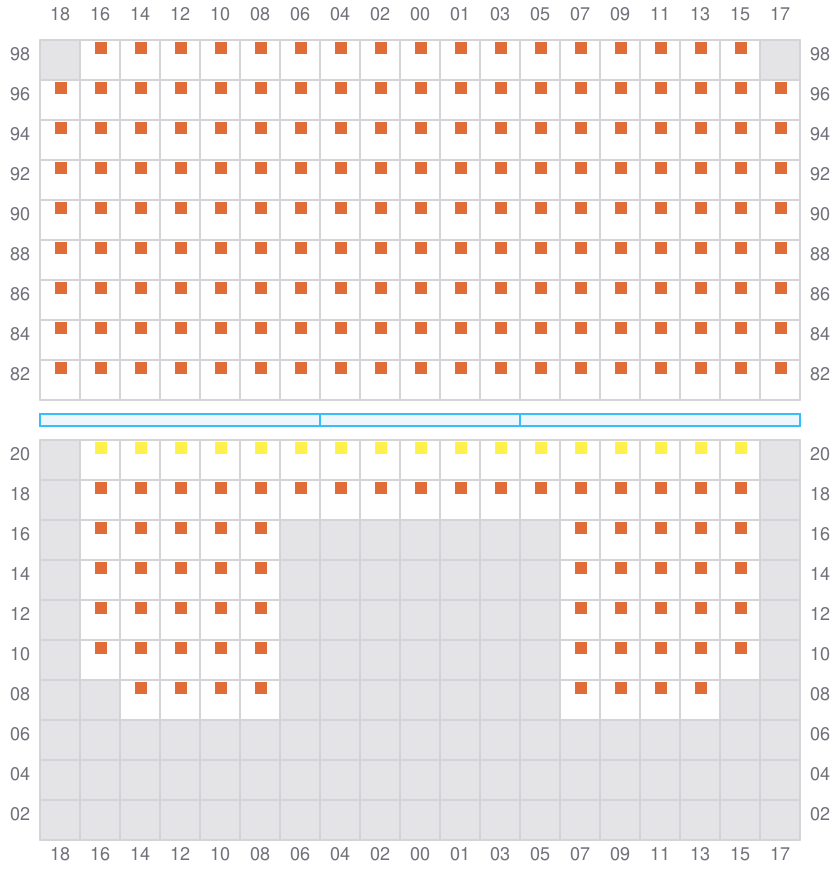

Bay 069 view and slots of SEASPAN BELIEF

071 (070)

  • ←
  • → / ?
  • →

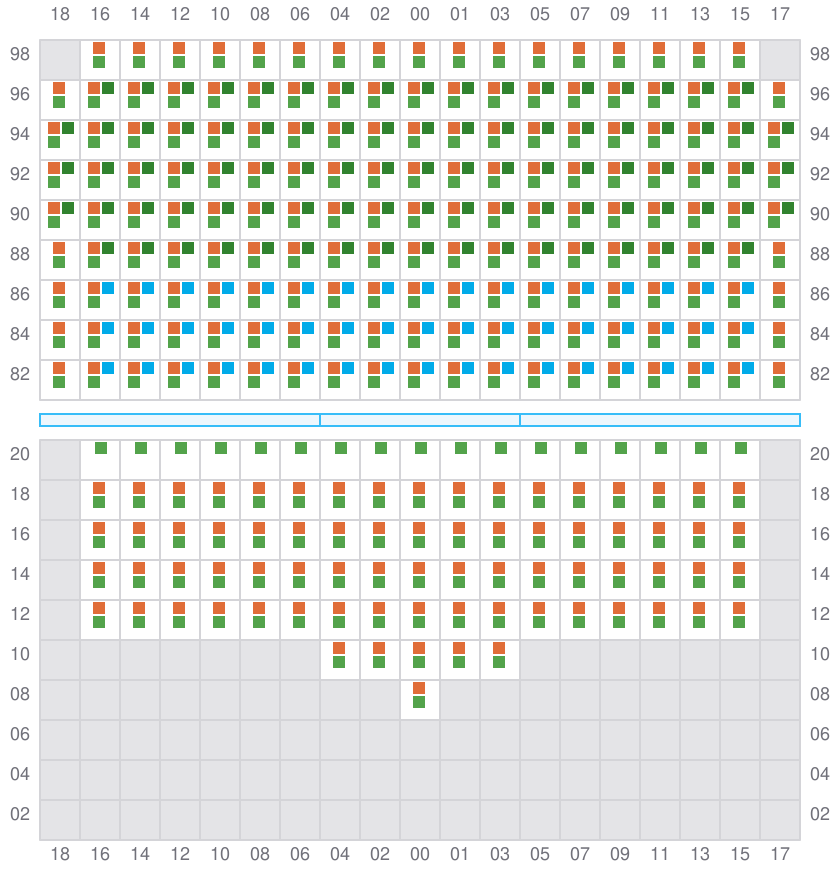

Bay 071 view and slots of SEASPAN BELIEF

073

  • →
  • →

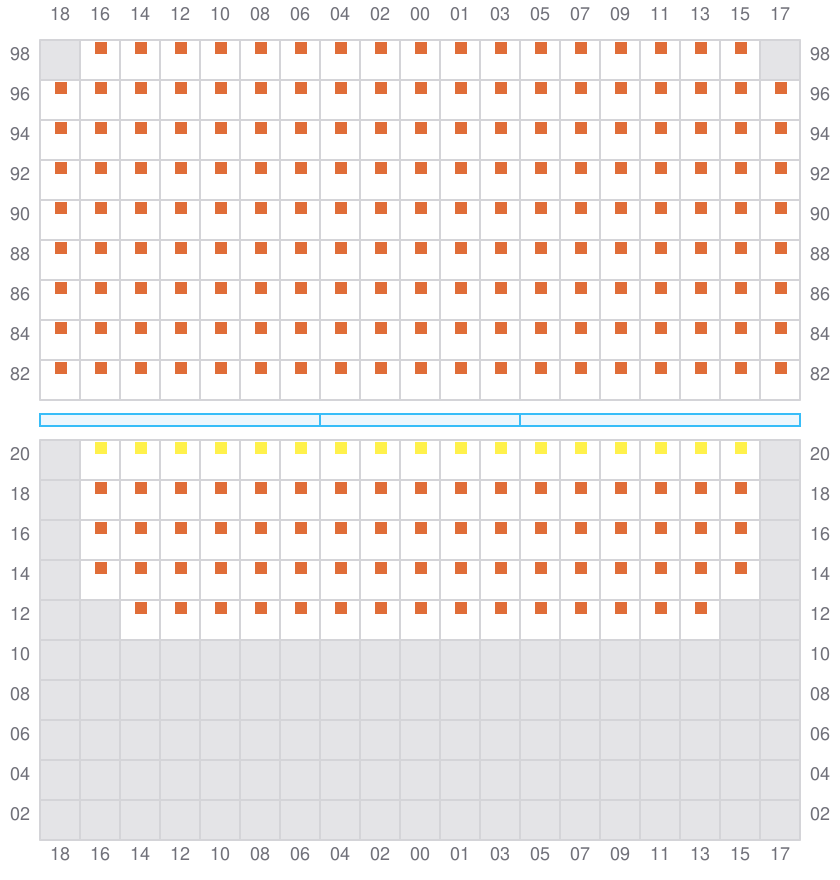

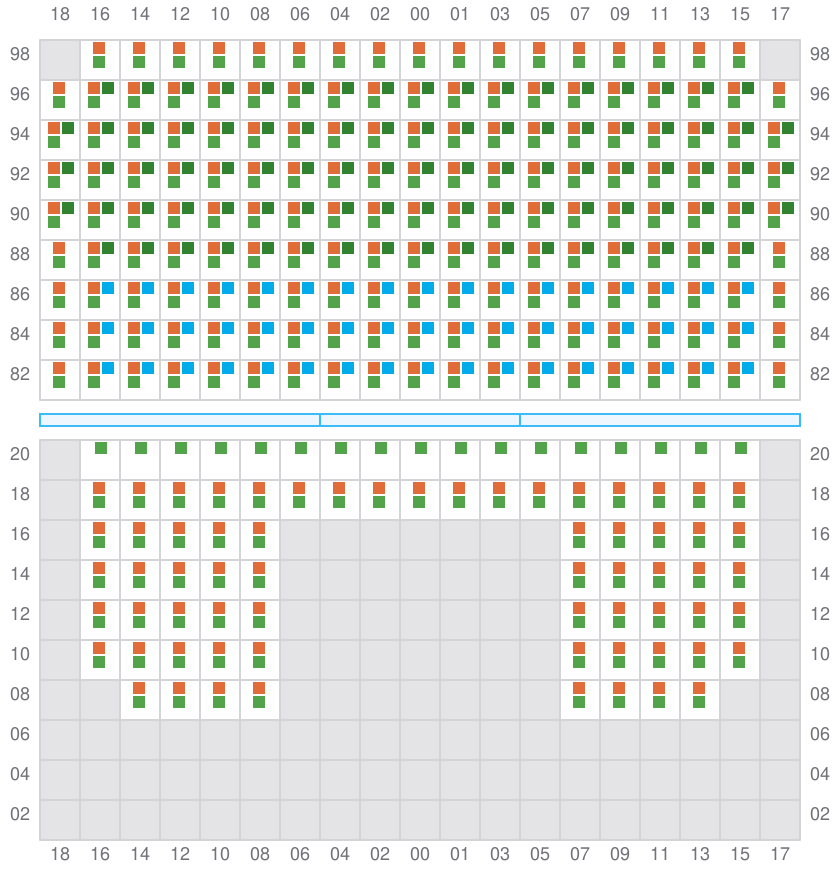

Bay 073 view and slots of SEASPAN BELIEF

075 (074)

  • ←
  • → / ?
  • →

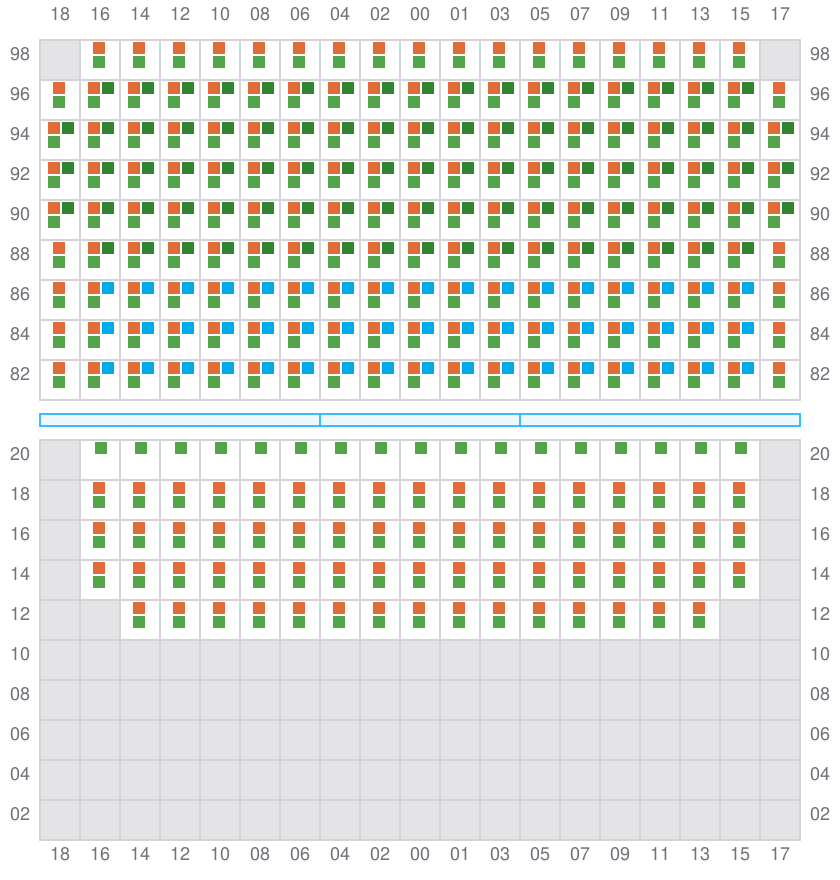

Bay 075 view and slots of SEASPAN BELIEF

077

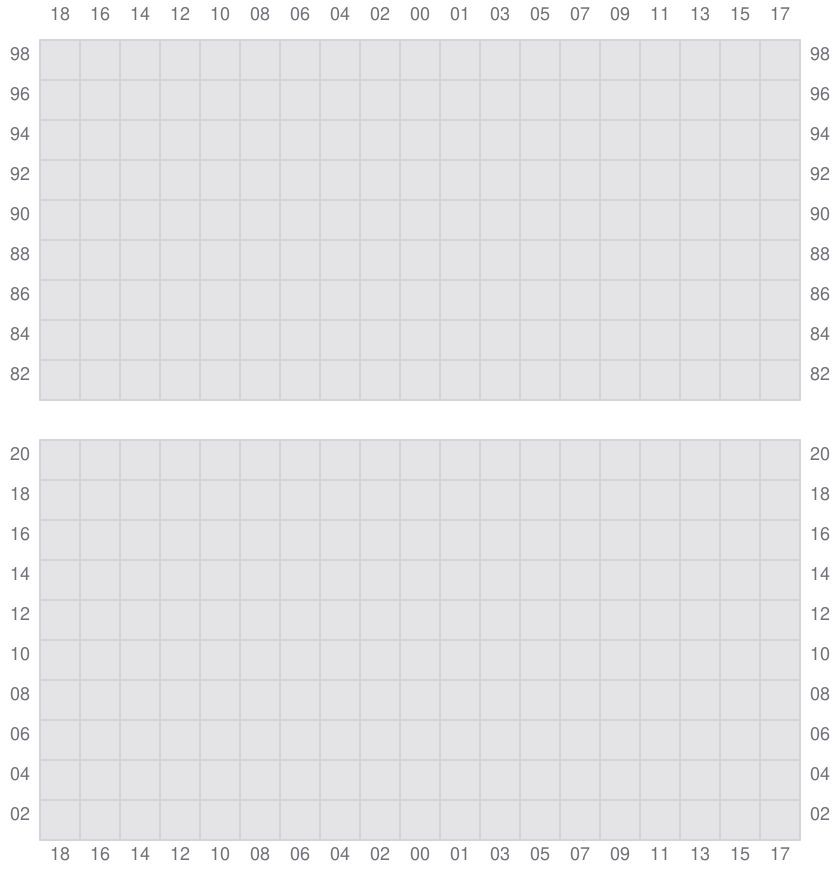

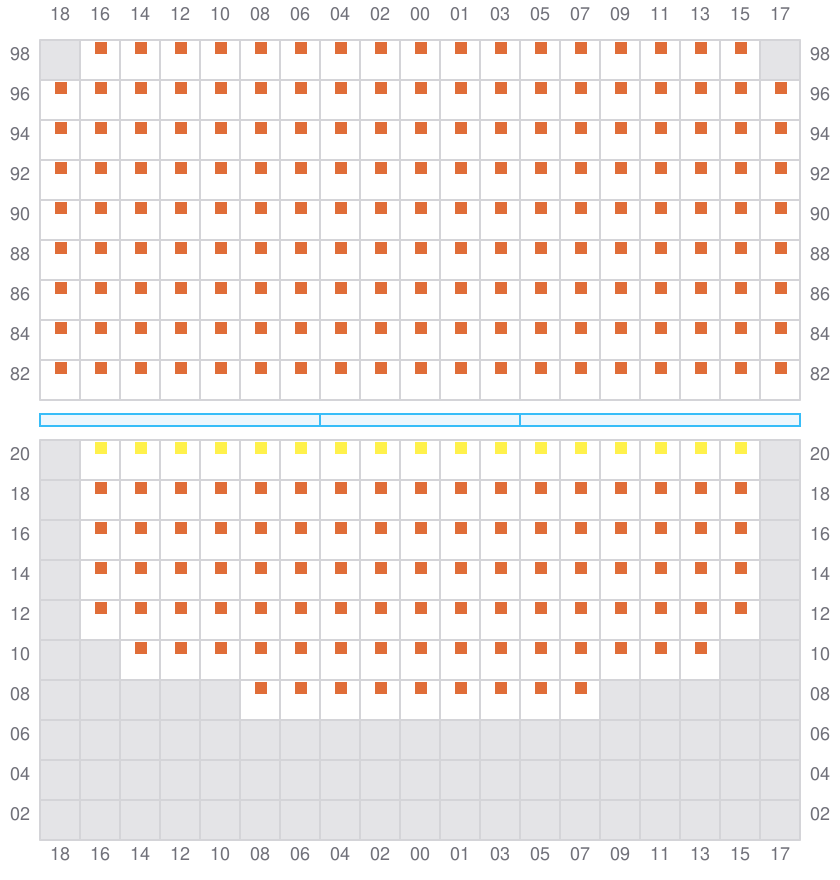

Bay 077 view and slots of SEASPAN BELIEF

079 (078)

  • ← / ?
  • → / ?
  • → / ?

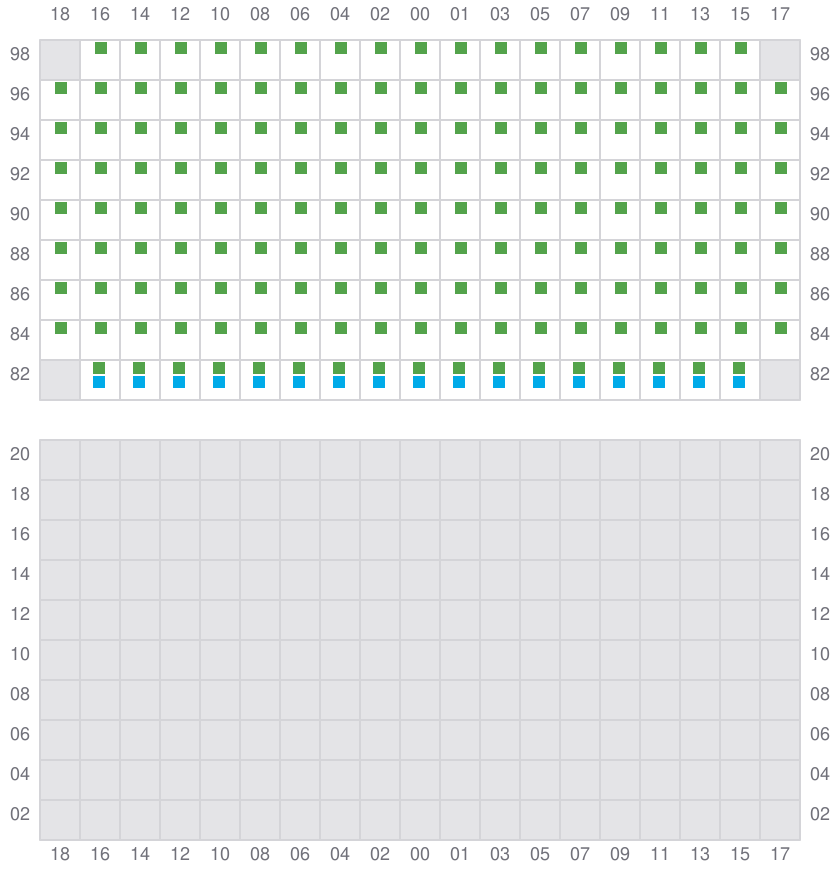

Bay 079 view and slots of SEASPAN BELIEF
