SEASPAN BENEFACTOR
9739666 | VRPJ6 | 9739666 by ********* Last update: Tue May 07 2024

General Info

Ship Name:SEASPAN BENEFACTOR
IMO Code:9739666
Call Sign:VRPJ6
Line Operator:9739666
Class Name for Sister Ships:MOL_BENEFACTOR
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,100

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SEASPAN BENEFACTOR

Hatch-Covers View

Deck view of SEASPAN BENEFACTOR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →

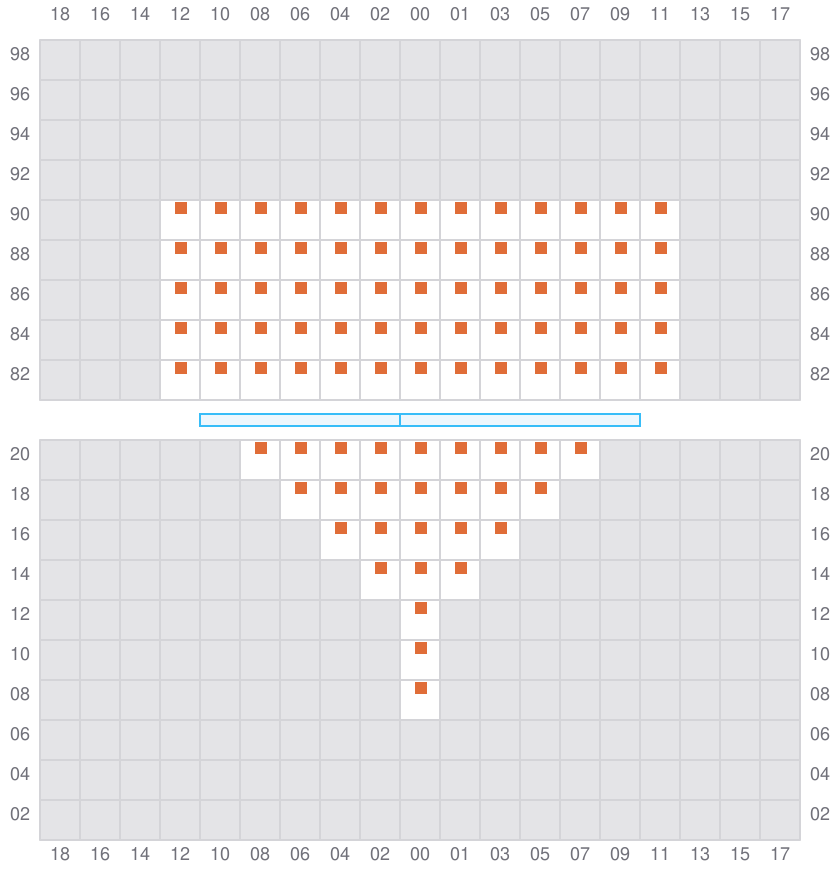

Bay 001 view and slots of SEASPAN BENEFACTOR

003 (002)

  • ←
  • → / ?
  • →

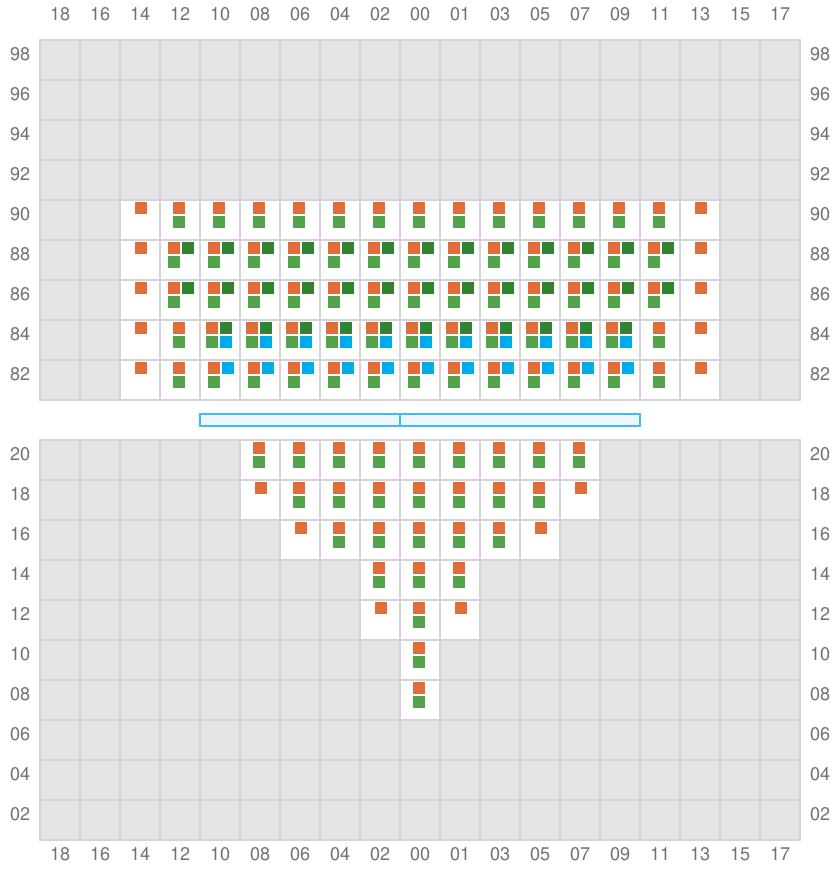

Bay 003 view and slots of SEASPAN BENEFACTOR

005

  • →
  • →

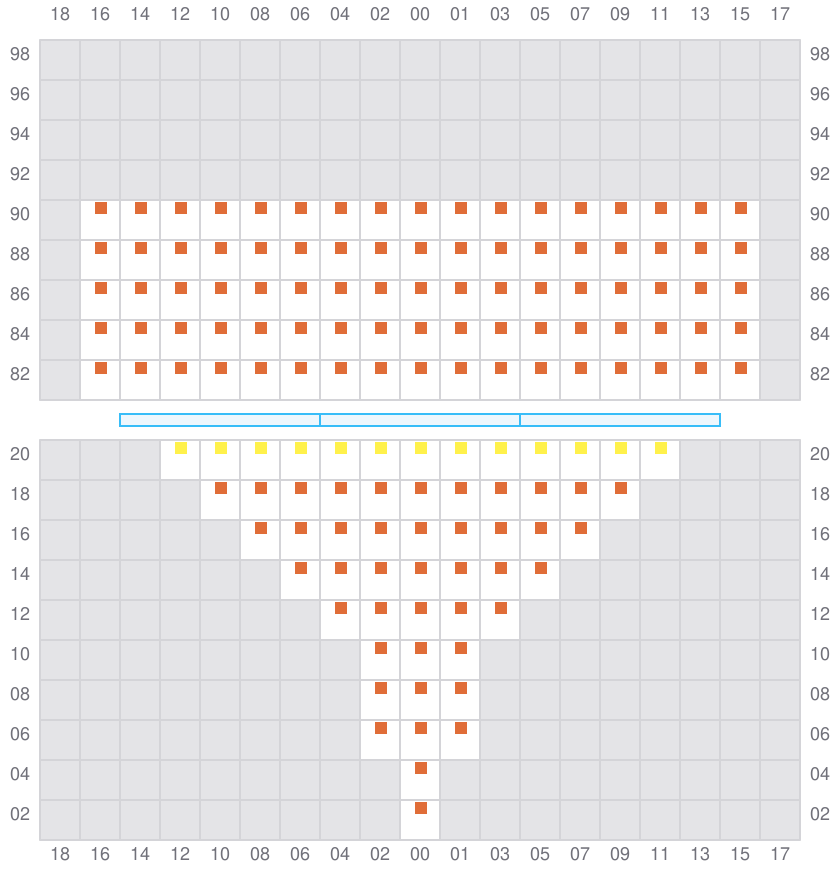

Bay 005 view and slots of SEASPAN BENEFACTOR

007 (006)

  • ←
  • → / ?
  • →

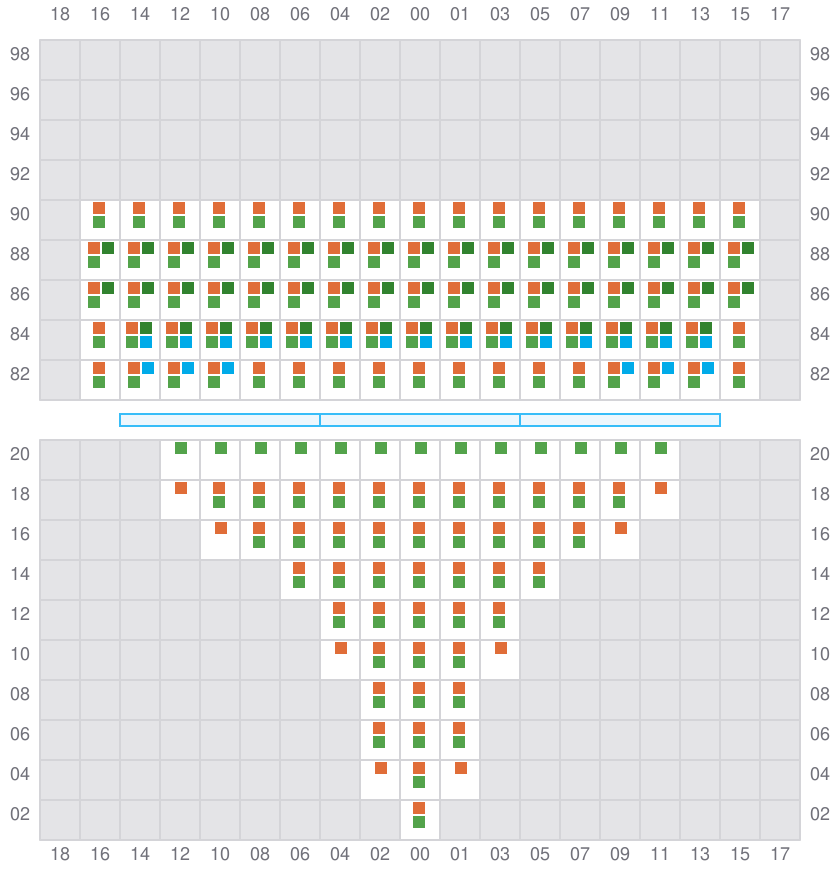

Bay 007 view and slots of SEASPAN BENEFACTOR

009

  • →
  • →

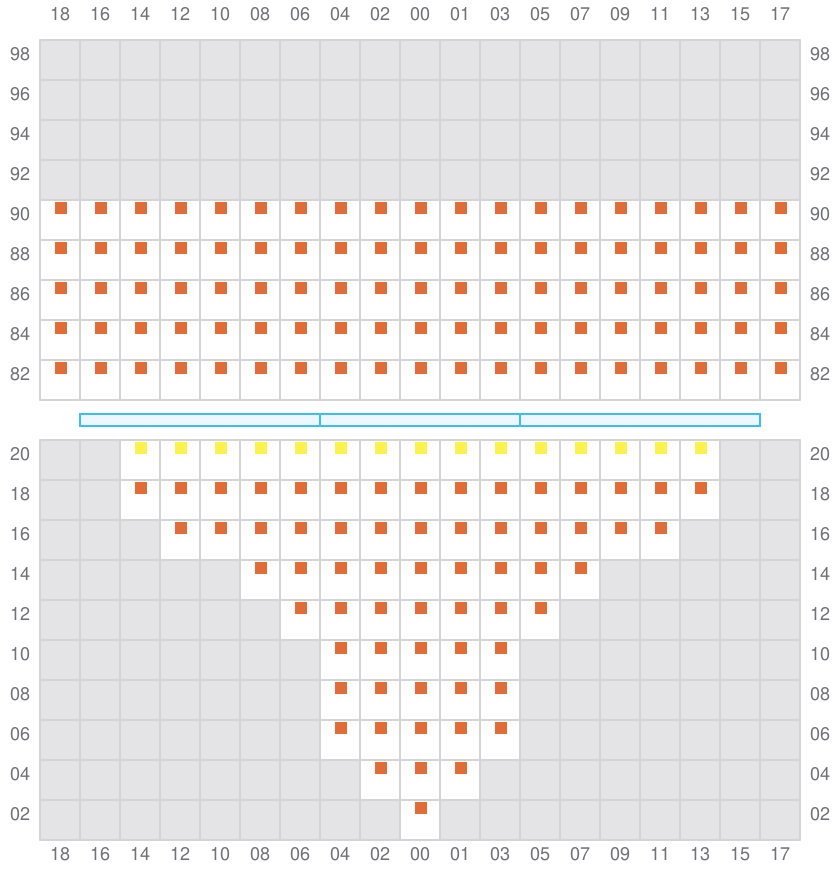

Bay 009 view and slots of SEASPAN BENEFACTOR

011 (010)

  • ←
  • → / ?
  • →
Bay 011 view and slots of SEASPAN BENEFACTOR

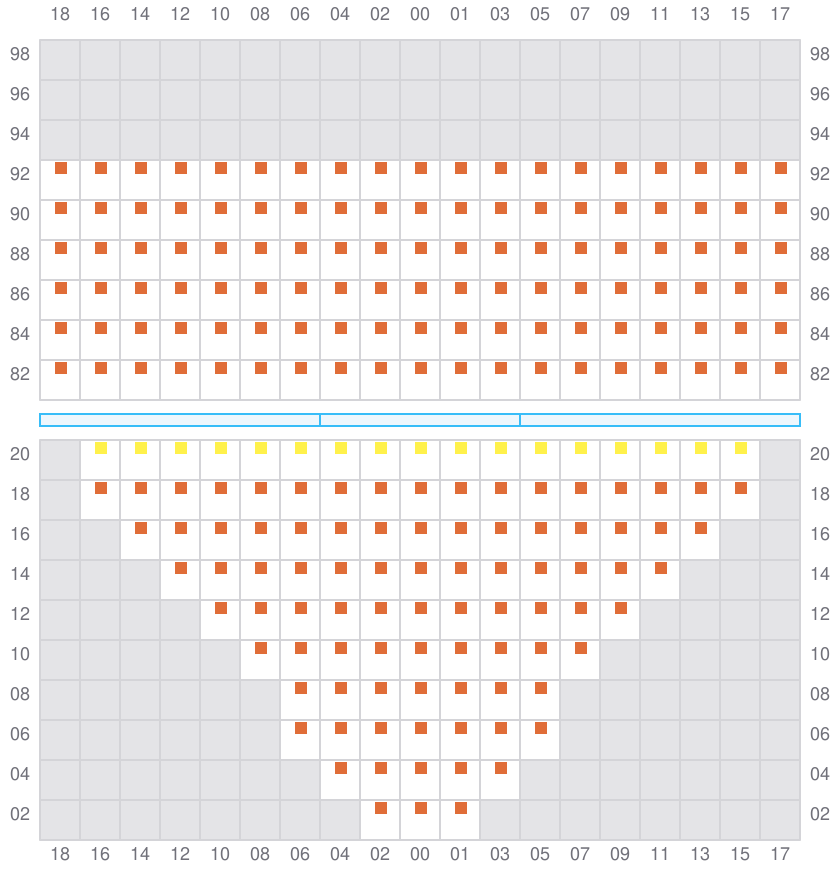

013

  • →
  • →
Bay 013 view and slots of SEASPAN BENEFACTOR

015 (014)

  • ←
  • → / ?
  • →

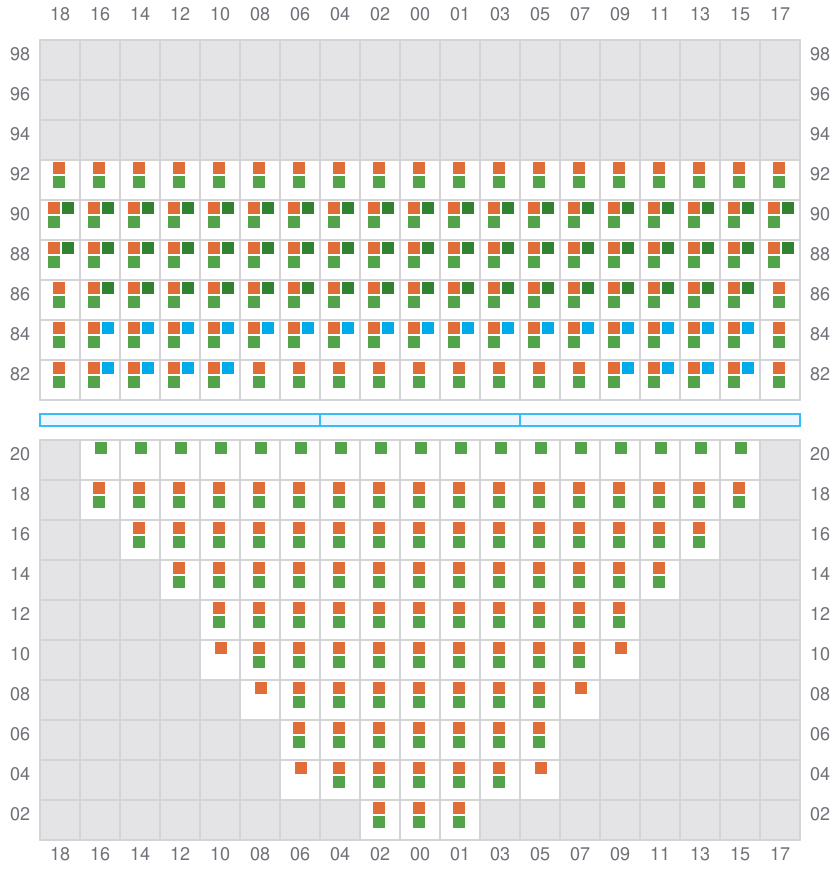

Bay 015 view and slots of SEASPAN BENEFACTOR

017

  • →
  • →
Bay 017 view and slots of SEASPAN BENEFACTOR

019 (018)

  • ←
  • → / ?
  • →
Bay 019 view and slots of SEASPAN BENEFACTOR

021

  • →
  • →

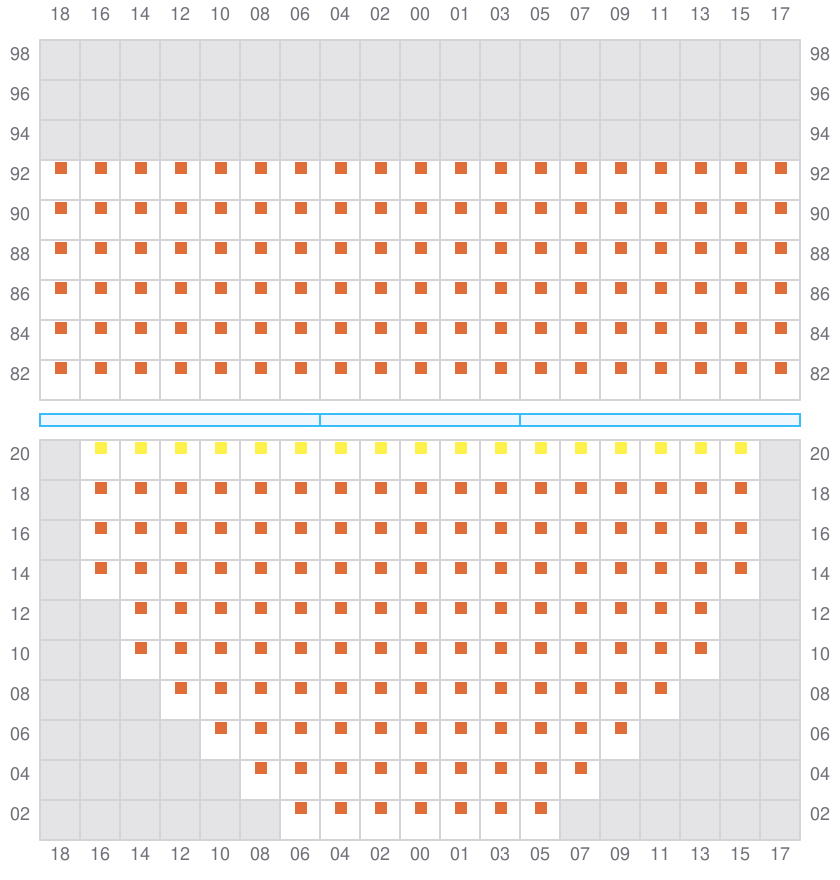

Bay 021 view and slots of SEASPAN BENEFACTOR

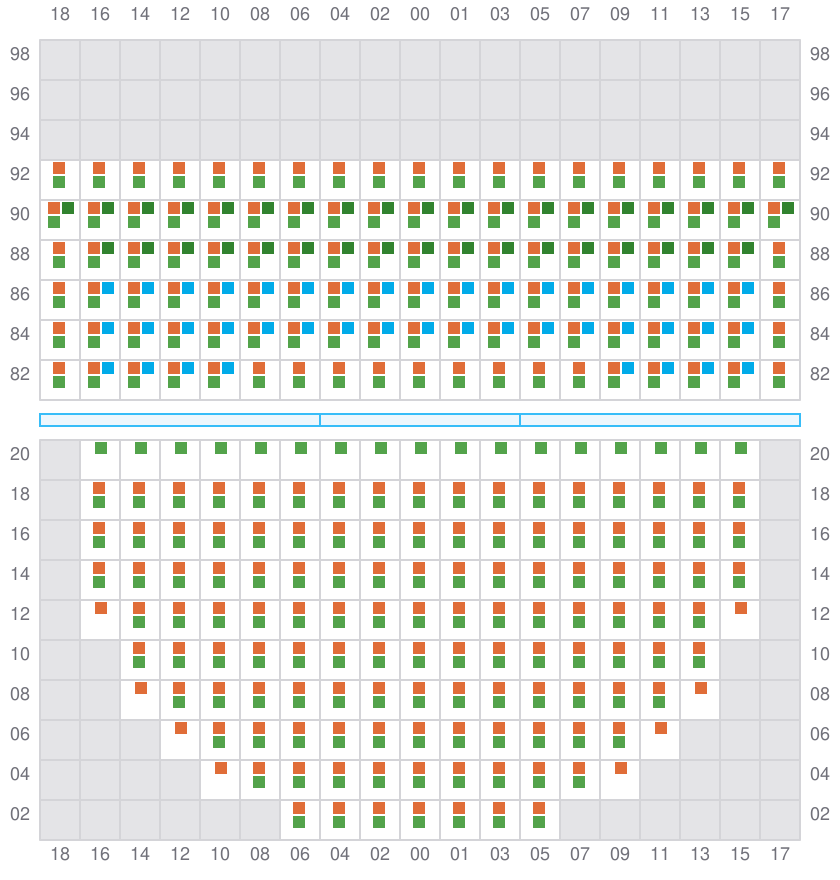

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of SEASPAN BENEFACTOR

025

  • →
  • →
Bay 025 view and slots of SEASPAN BENEFACTOR

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of SEASPAN BENEFACTOR

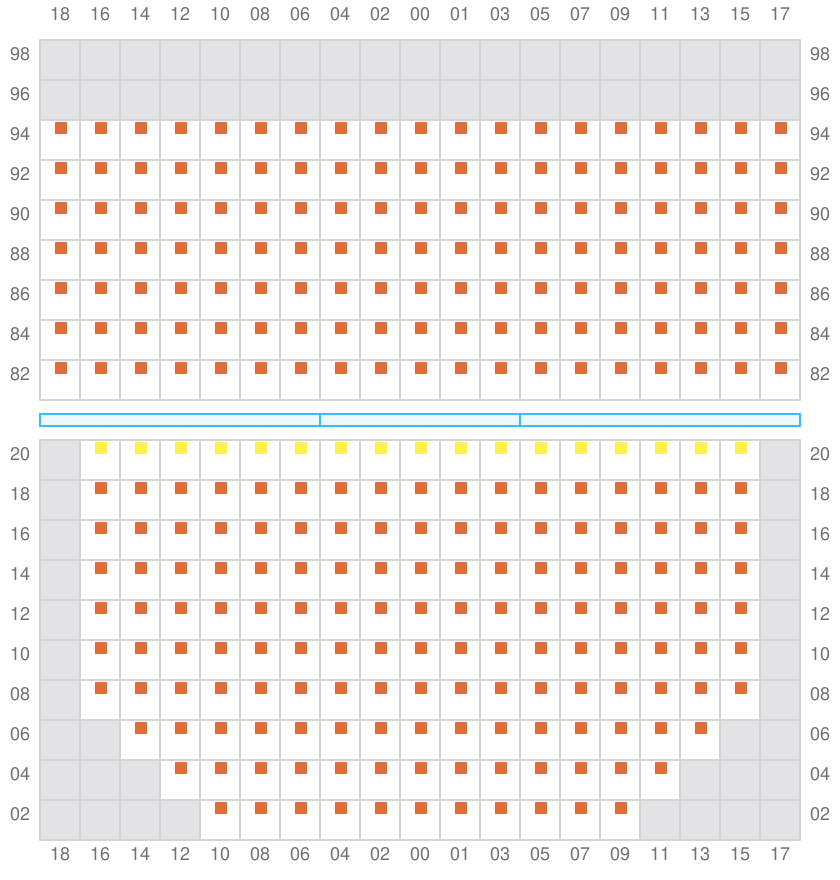

029

  • →
  • →
Bay 029 view and slots of SEASPAN BENEFACTOR

031 (030)

  • ←
  • → / ?
  • →

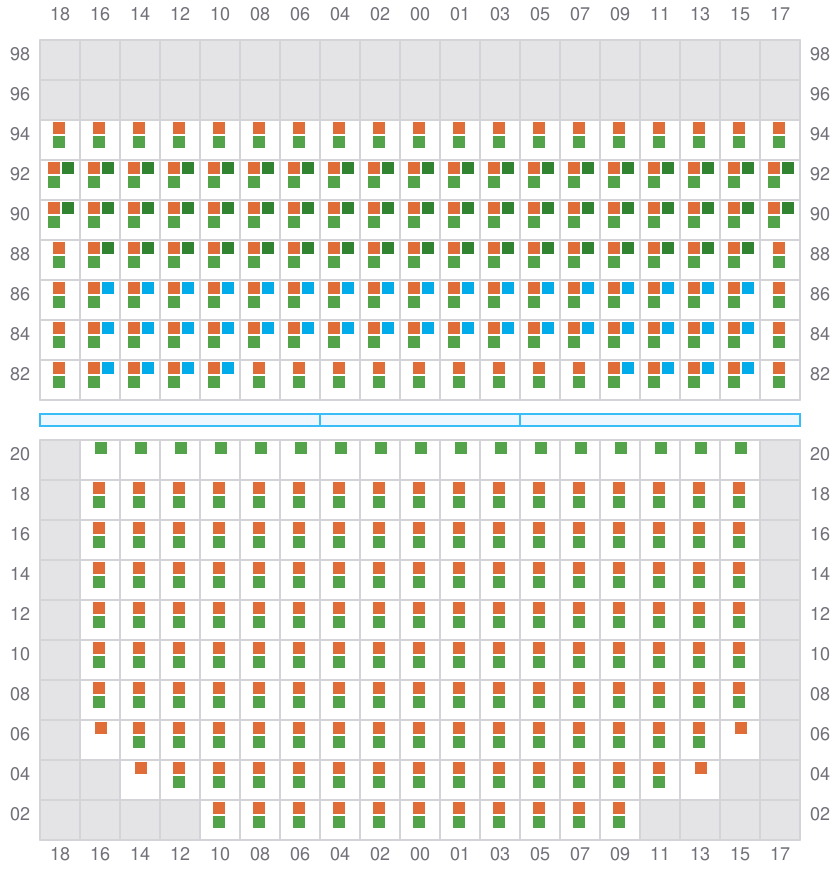

Bay 031 view and slots of SEASPAN BENEFACTOR

033

  • →
  • →
Bay 033 view and slots of SEASPAN BENEFACTOR

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of SEASPAN BENEFACTOR

037

  • →
  • →

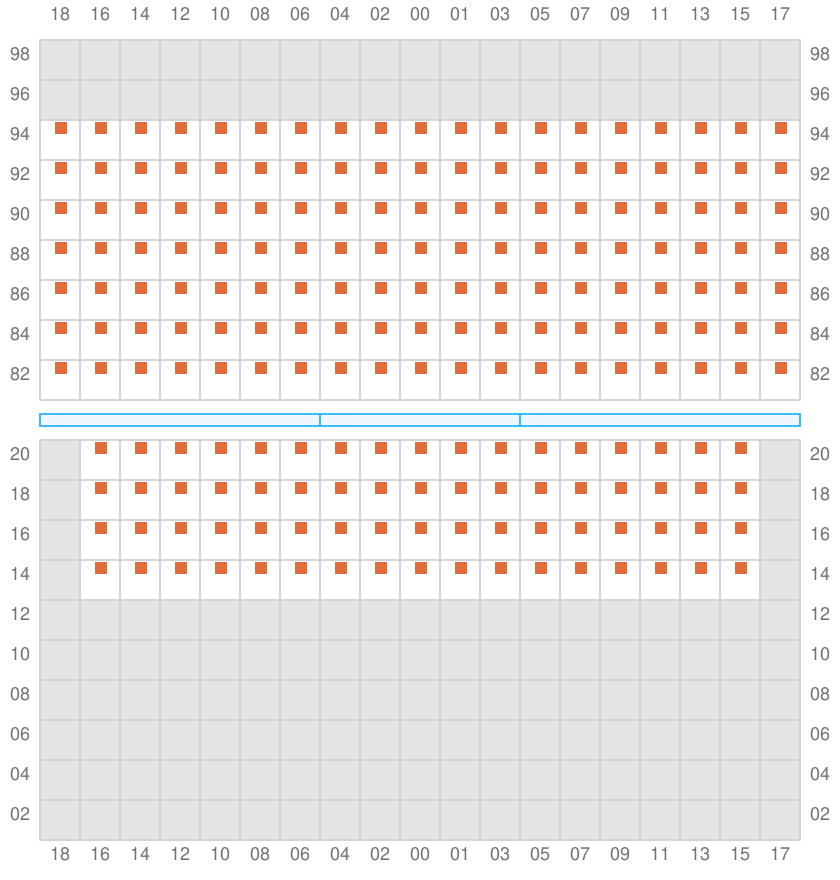

Bay 037 view and slots of SEASPAN BENEFACTOR

039 (038)

  • ←
  • → / ?
  • →

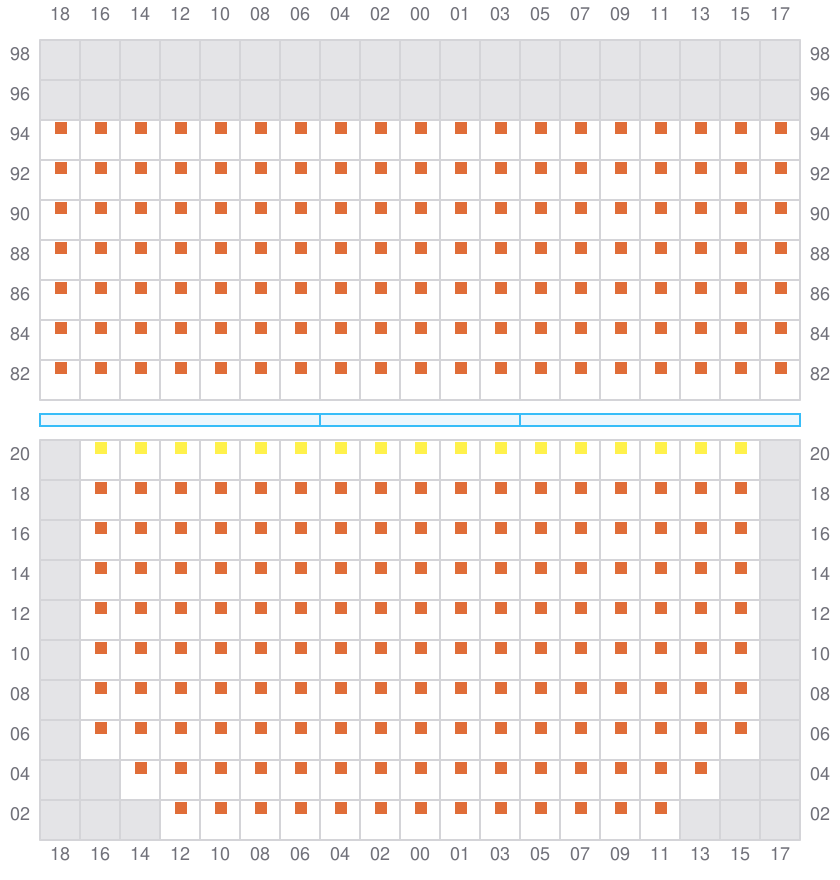

Bay 039 view and slots of SEASPAN BENEFACTOR

041

  • →
  • →
Bay 041 view and slots of SEASPAN BENEFACTOR

043 (042)

  • ←
  • → / ?
  • →

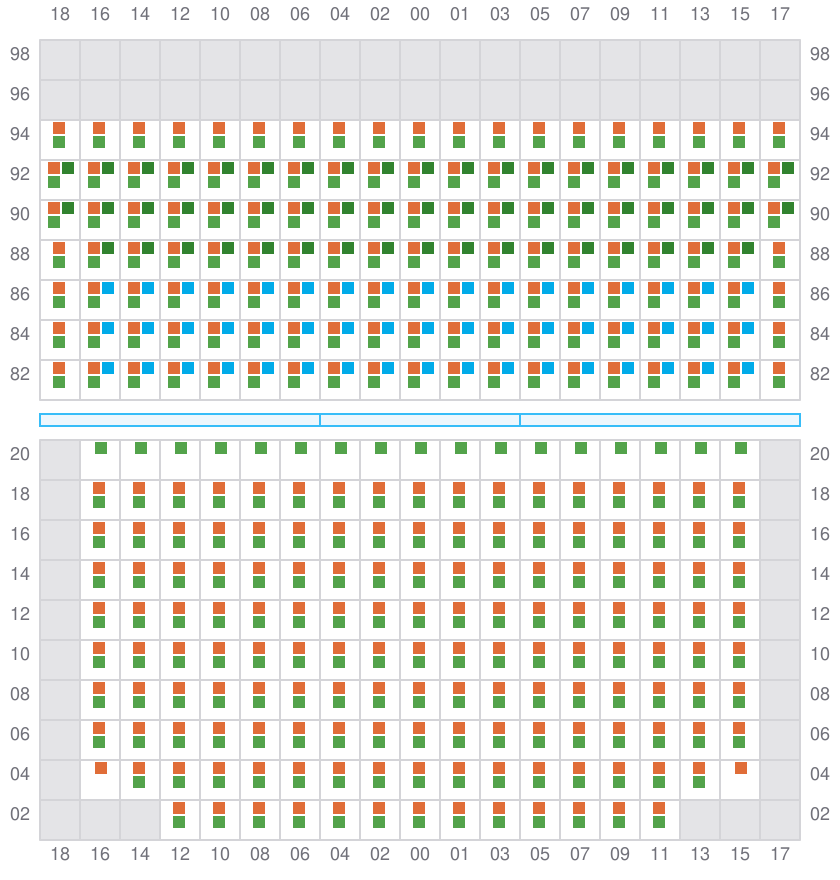

Bay 043 view and slots of SEASPAN BENEFACTOR

045

  • →
  • →

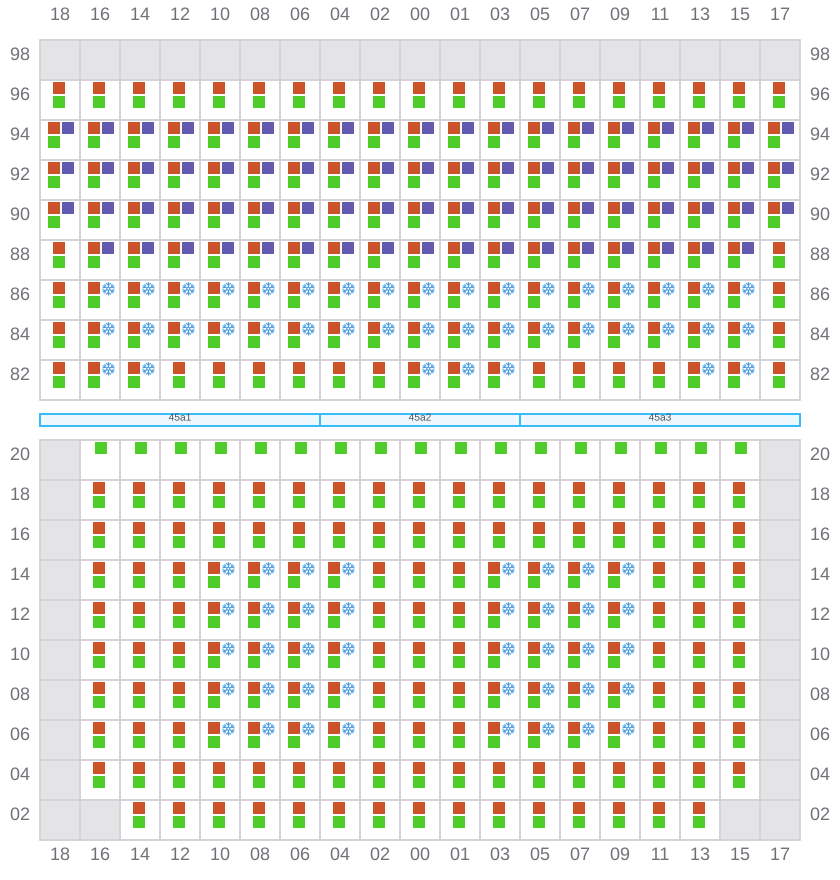

Bay 045 view and slots of SEASPAN BENEFACTOR

047 (046)

  • ←
  • →
  • →
Bay 047 view and slots of SEASPAN BENEFACTOR

049

  • →
  • →

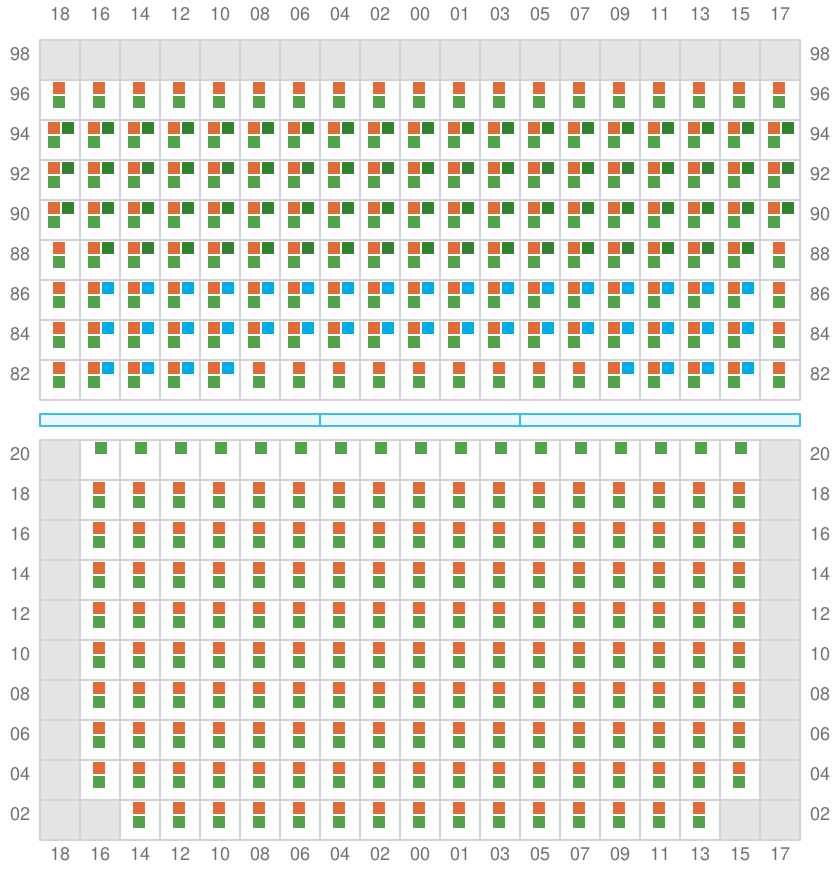

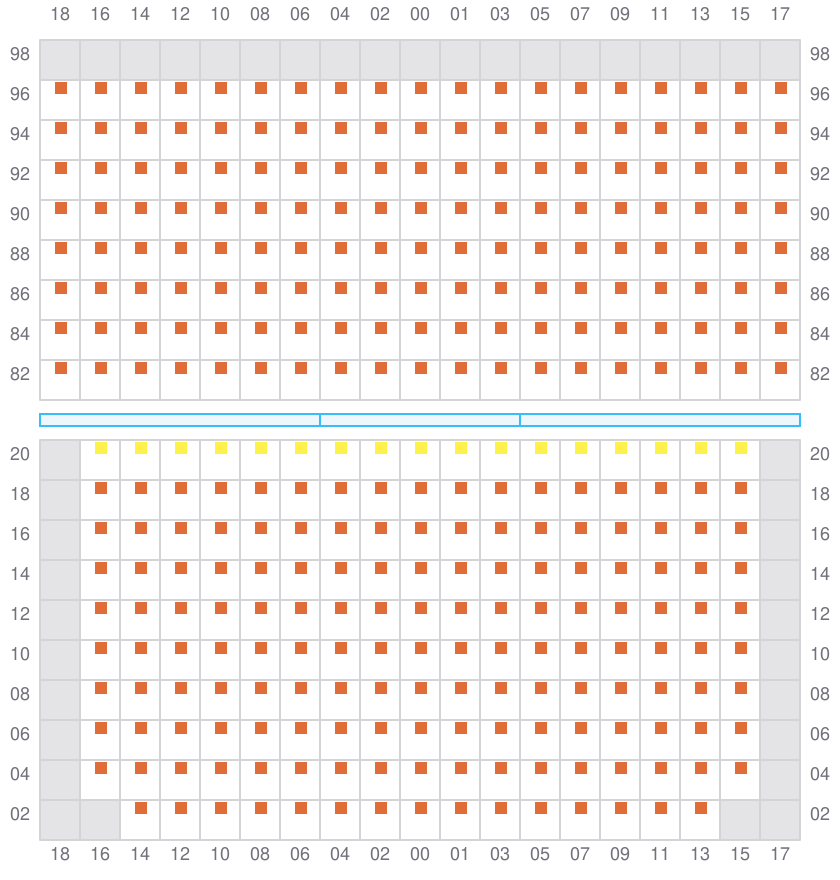

Bay 049 view and slots of SEASPAN BENEFACTOR

051 (050)

  • ←
  • →
  • →

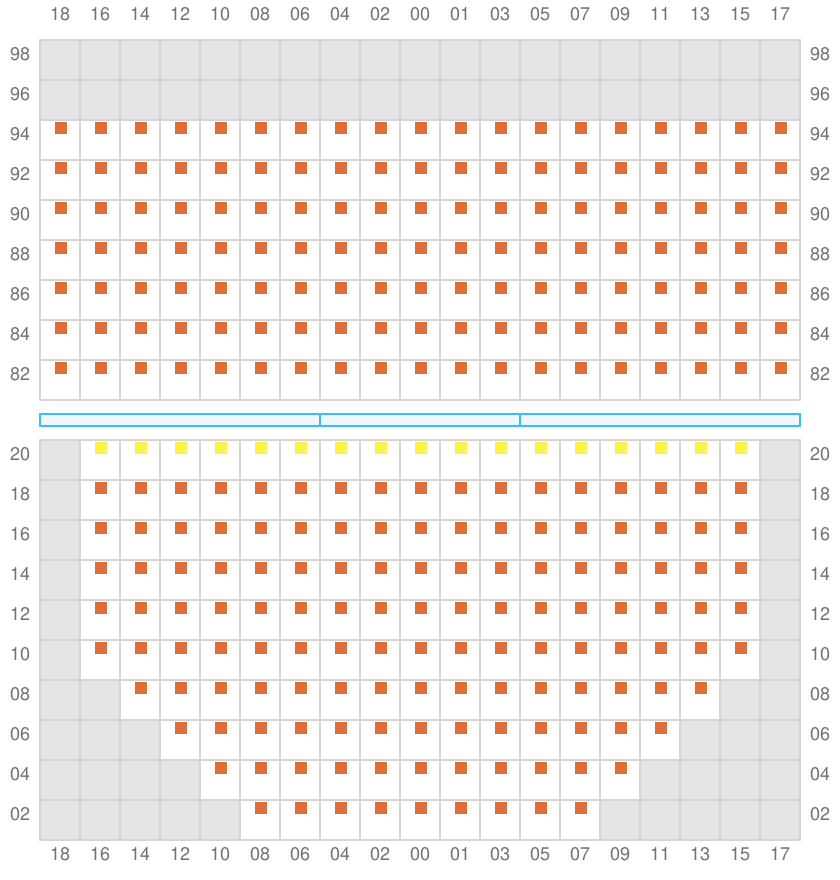

Bay 051 view and slots of SEASPAN BENEFACTOR

053

  • →
  • →
Bay 053 view and slots of SEASPAN BENEFACTOR

055 (054)

  • ←
  • →
  • →

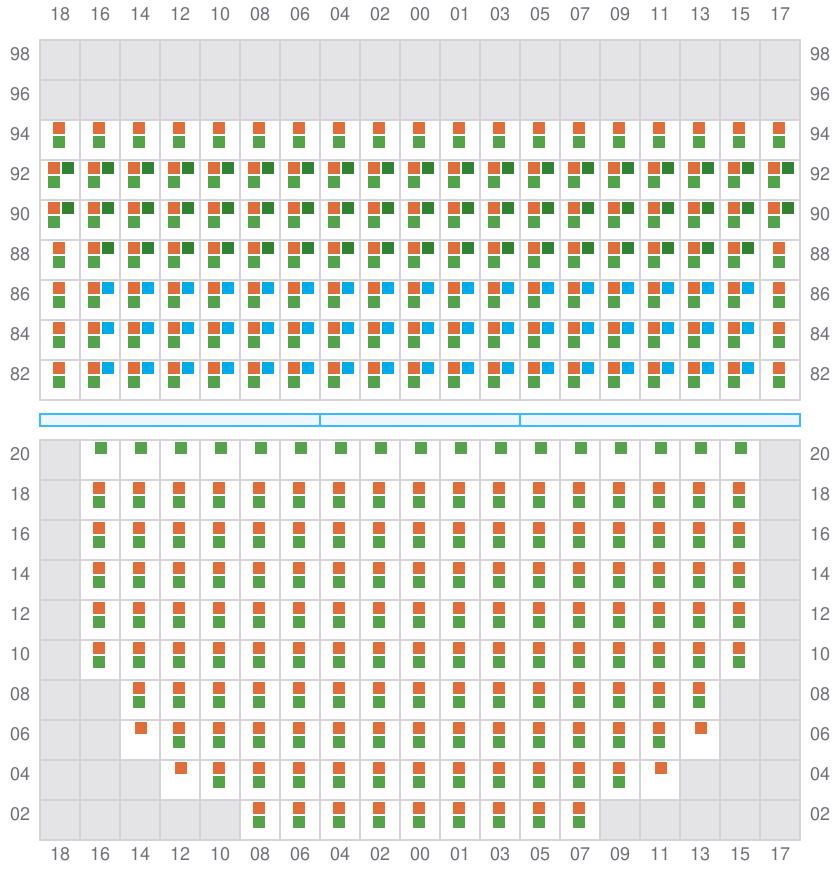

Bay 055 view and slots of SEASPAN BENEFACTOR

057

  • →
  • →

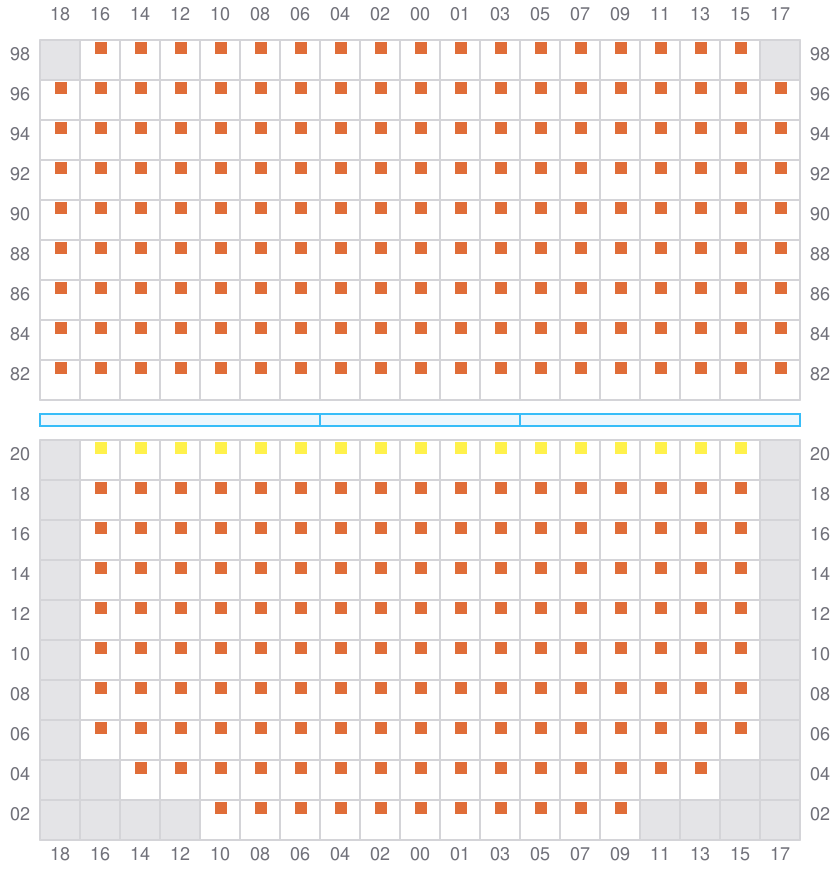

Bay 057 view and slots of SEASPAN BENEFACTOR

059 (058)

  • ←
  • →
  • →
Bay 059 view and slots of SEASPAN BENEFACTOR

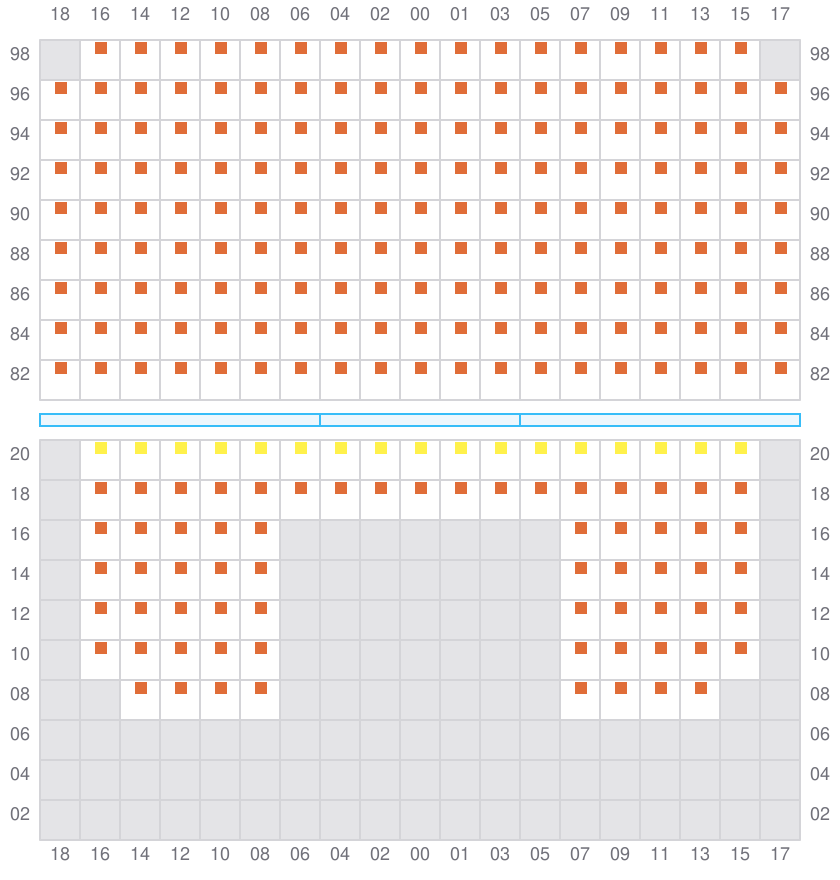

061

  • →
  • →
Bay 061 view and slots of SEASPAN BENEFACTOR

063 (062)

  • ←
  • → / ?
  • →
Bay 063 view and slots of SEASPAN BENEFACTOR

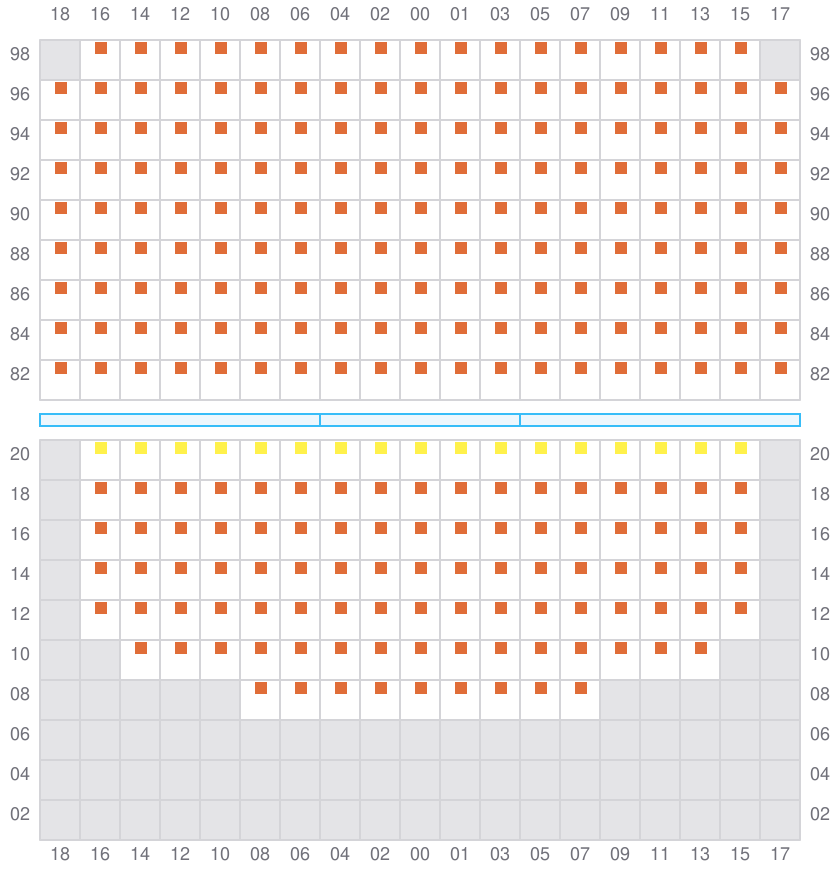

065

  • →
  • →

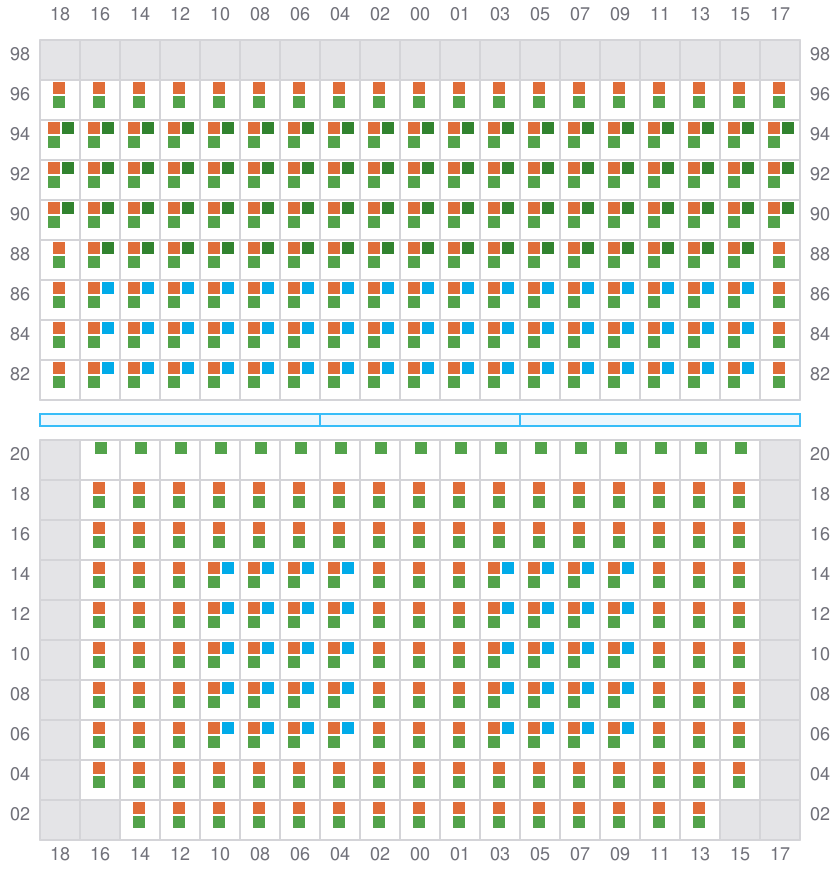

Bay 065 view and slots of SEASPAN BENEFACTOR

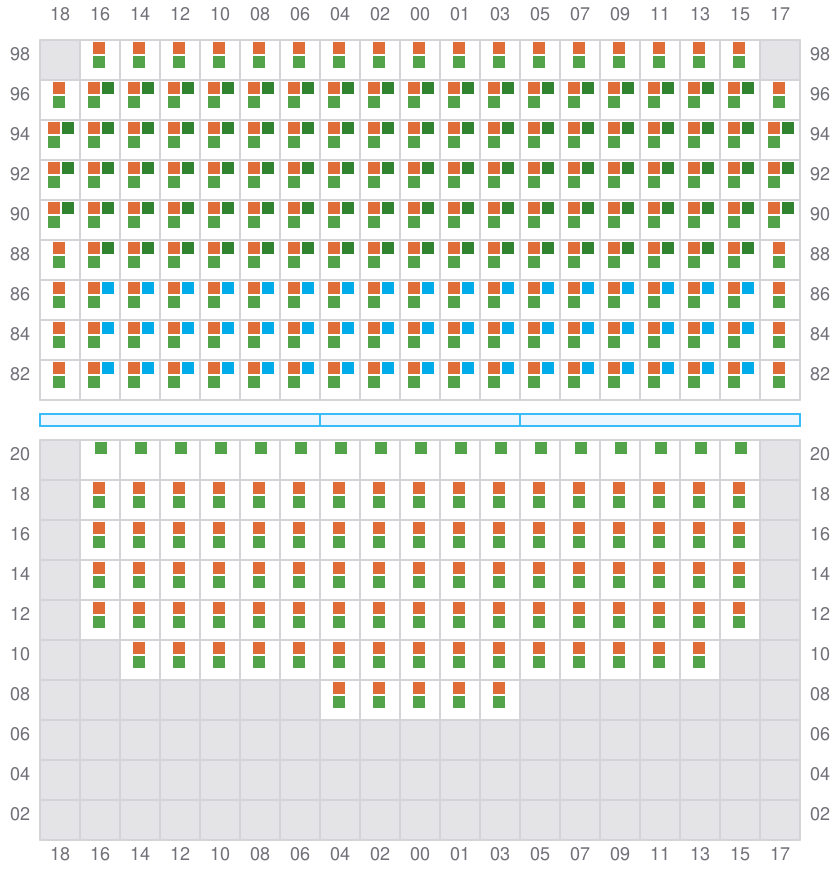

067 (066)

  • ←
  • → / ?
  • →
Bay 067 view and slots of SEASPAN BENEFACTOR

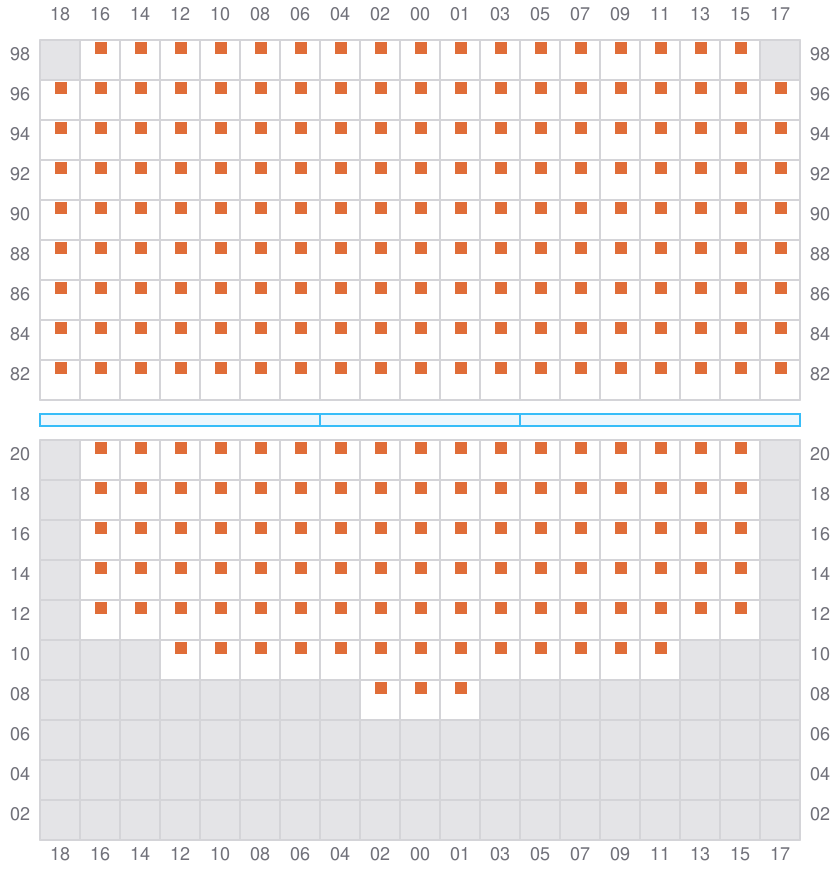

069

  • →
  • →

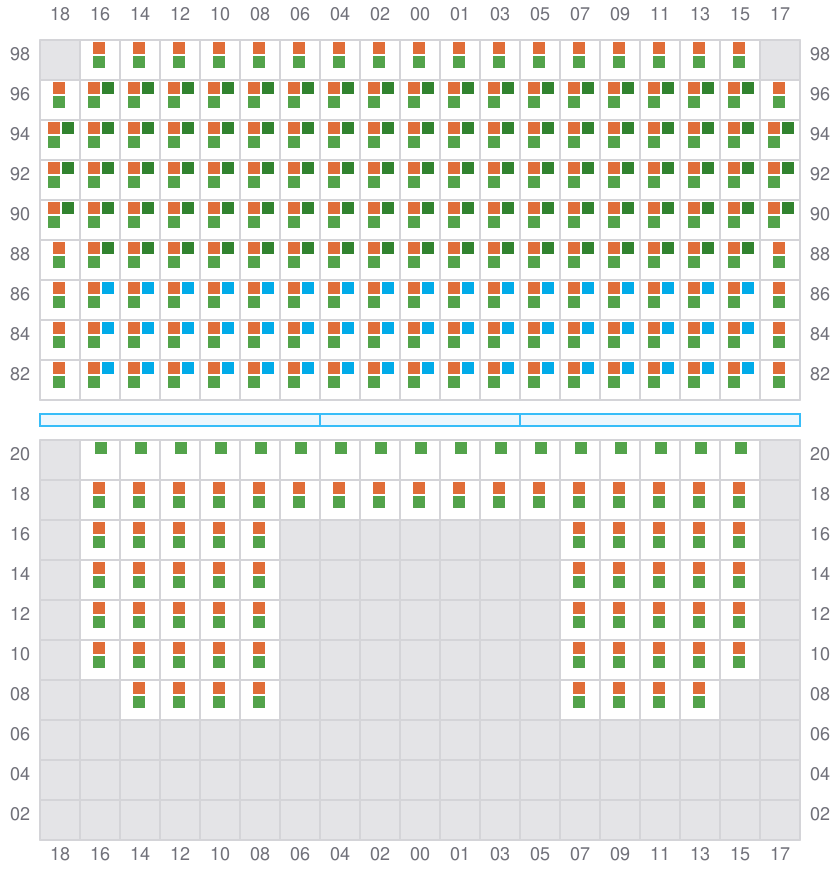

Bay 069 view and slots of SEASPAN BENEFACTOR

071 (070)

  • ←
  • → / ?
  • →
Bay 071 view and slots of SEASPAN BENEFACTOR

073

  • →
  • →

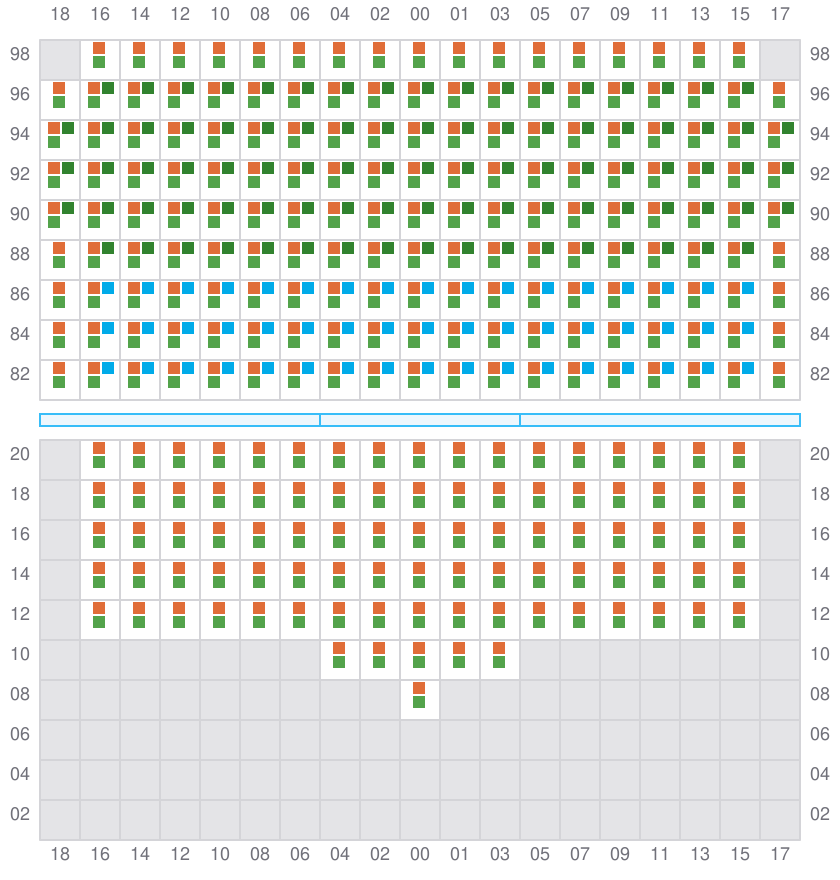

Bay 073 view and slots of SEASPAN BENEFACTOR

075 (074)

  • ←
  • → / ?
  • →

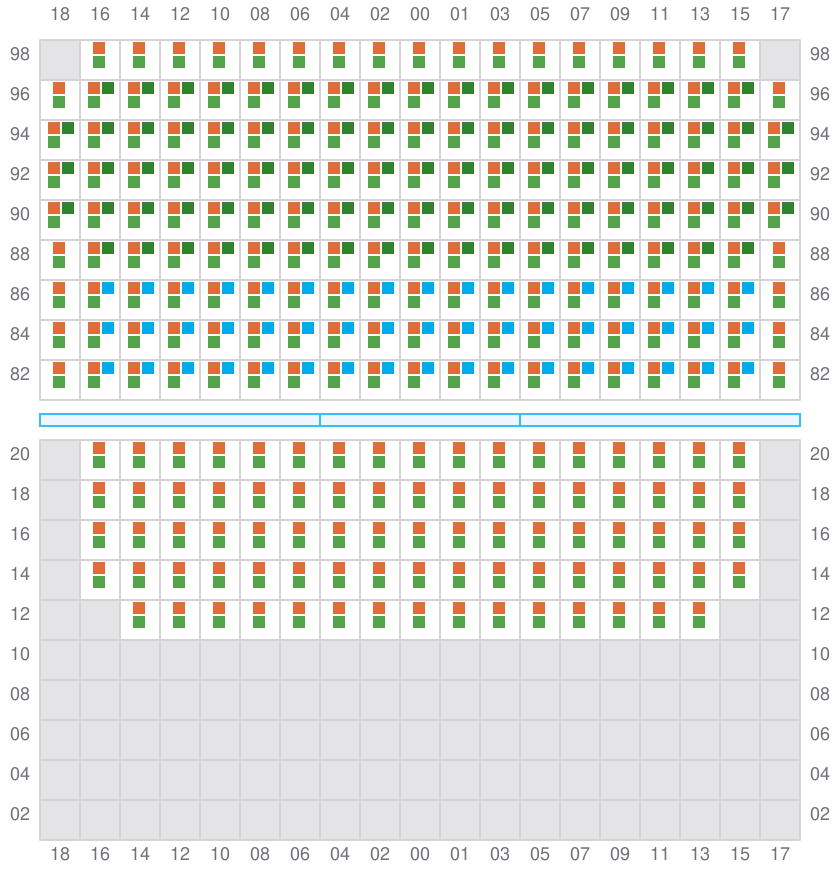

Bay 075 view and slots of SEASPAN BENEFACTOR

077

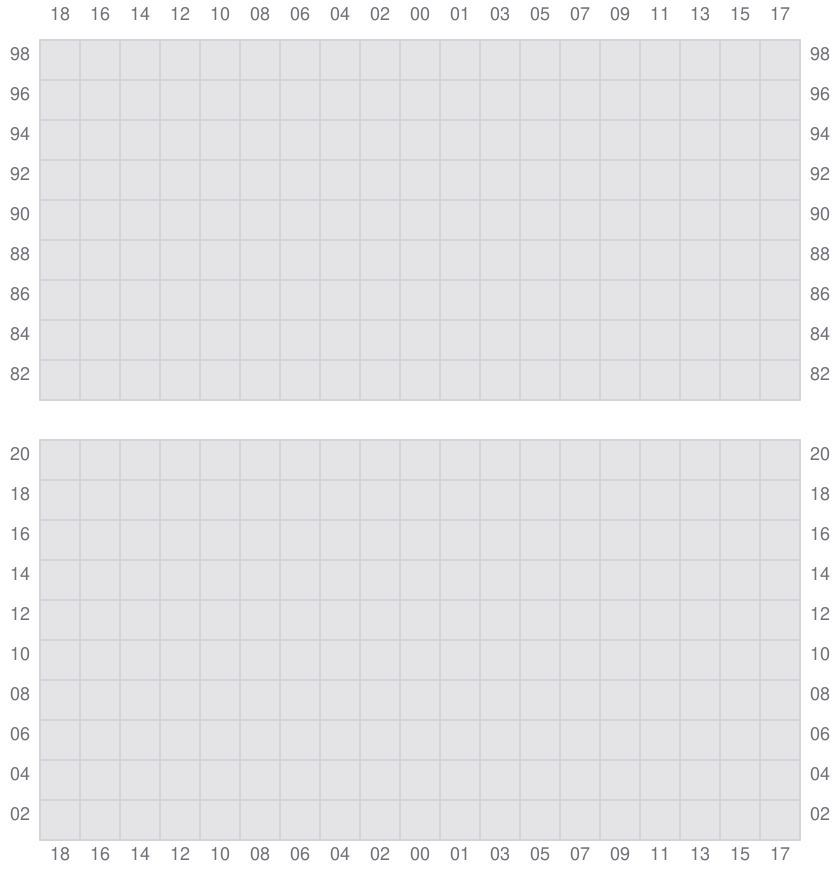

Bay 077 view and slots of SEASPAN BENEFACTOR

079 (078)

  • ← / ?
  • → / ?
  • → / ?

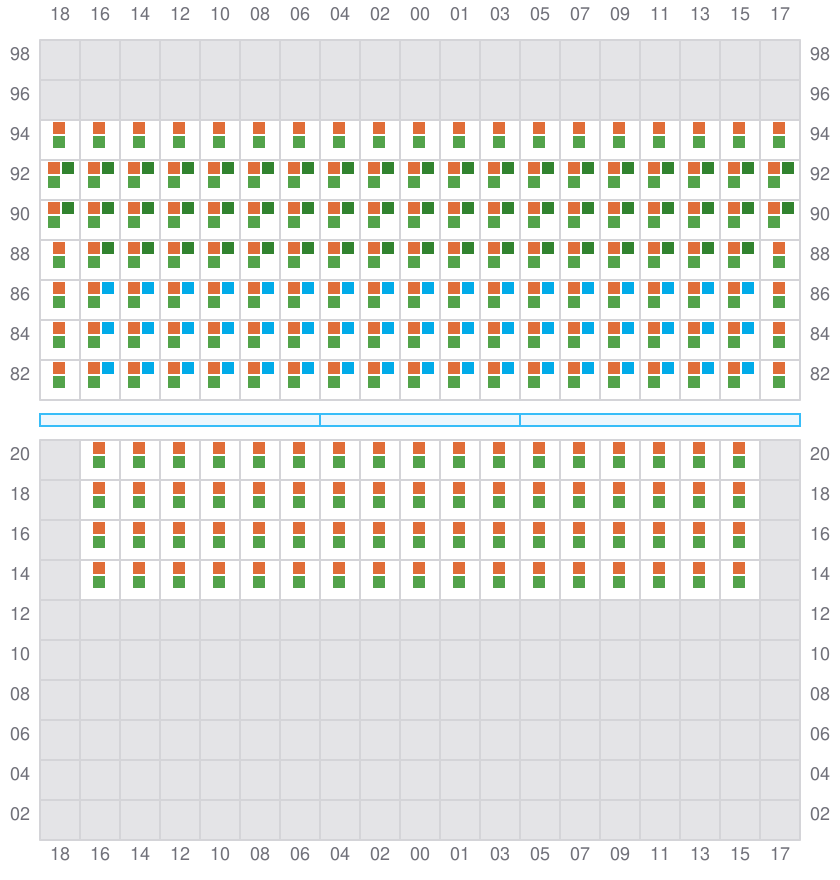

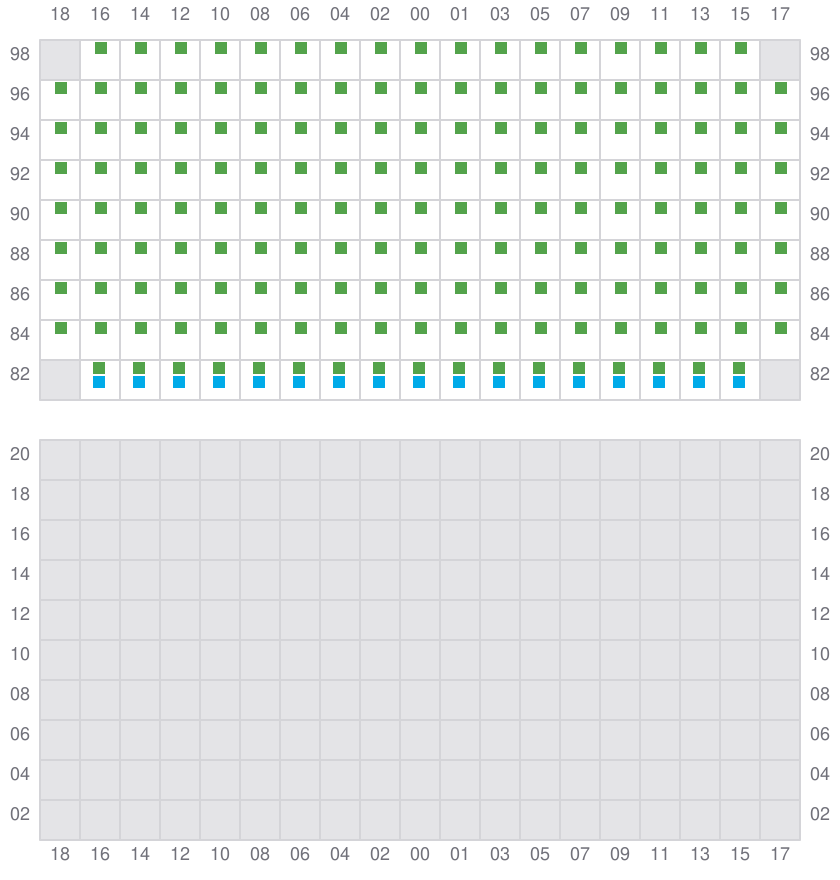

Bay 079 view and slots of SEASPAN BENEFACTOR
