SEASPAN BEYOND
9739678 | VRPN8 | 9739678 by ********* Last update: Tue May 07 2024

General Info

Ship Name:SEASPAN BEYOND
IMO Code:9739678
Call Sign:VRPN8
Line Operator:9739678
Class Name for Sister Ships:MOL_BEYOND
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,100

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SEASPAN BEYOND

Hatch-Covers View

Deck view of SEASPAN BEYOND

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →

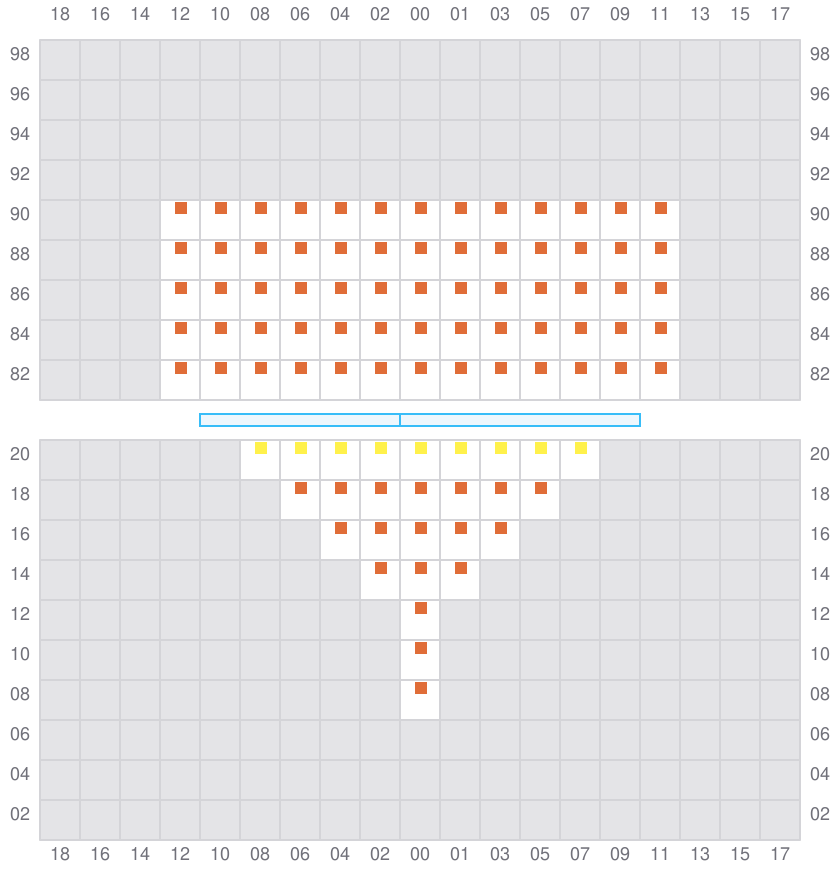

Bay 001 view and slots of SEASPAN BEYOND

003 (002)

  • ←
  • → / ?
  • →

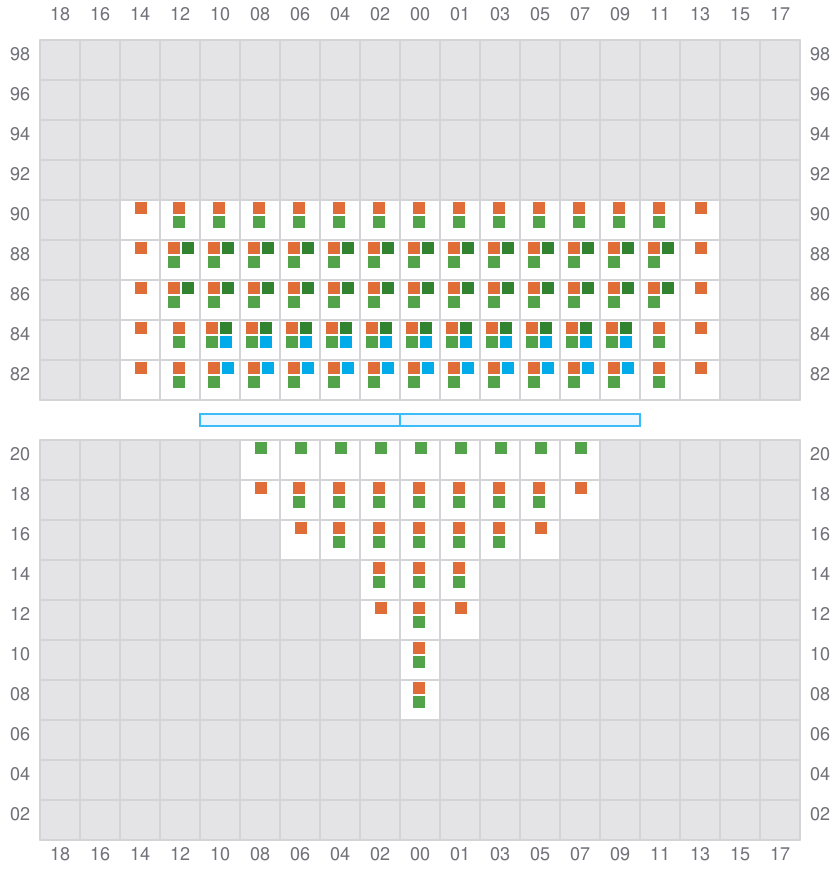

Bay 003 view and slots of SEASPAN BEYOND

005

  • →
  • →
Bay 005 view and slots of SEASPAN BEYOND

007 (006)

  • ←
  • → / ?
  • →
Bay 007 view and slots of SEASPAN BEYOND

009

  • →
  • →
Bay 009 view and slots of SEASPAN BEYOND

011 (010)

  • ←
  • → / ?
  • →

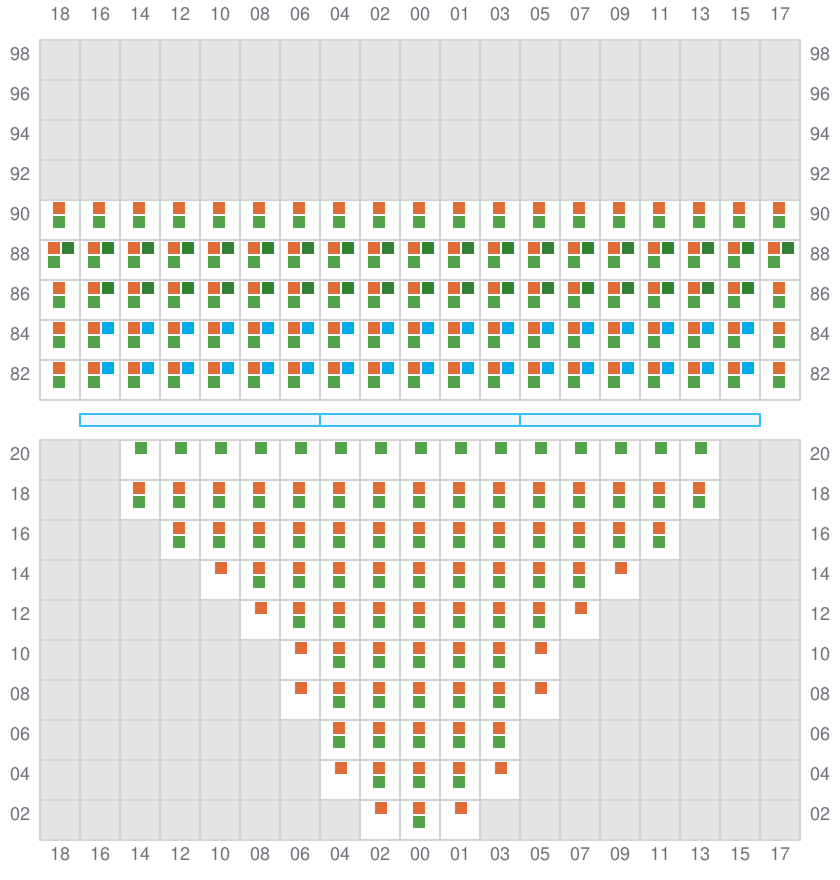

Bay 011 view and slots of SEASPAN BEYOND

013

  • →
  • →
Bay 013 view and slots of SEASPAN BEYOND

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of SEASPAN BEYOND

017

  • →
  • →

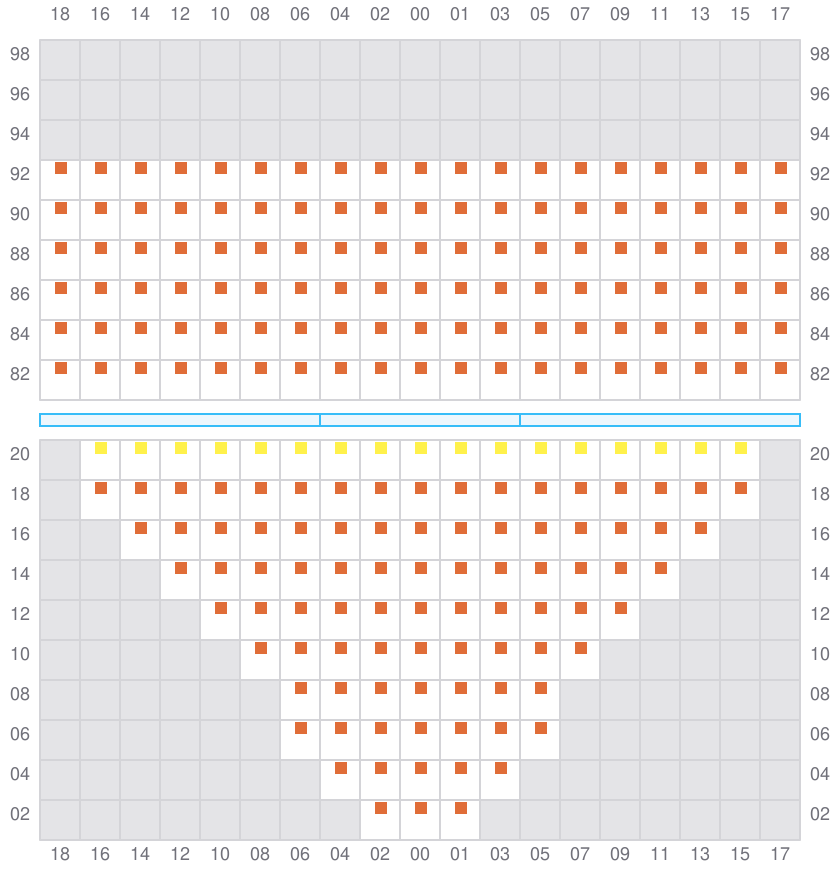

Bay 017 view and slots of SEASPAN BEYOND

019 (018)

  • ←
  • → / ?
  • →

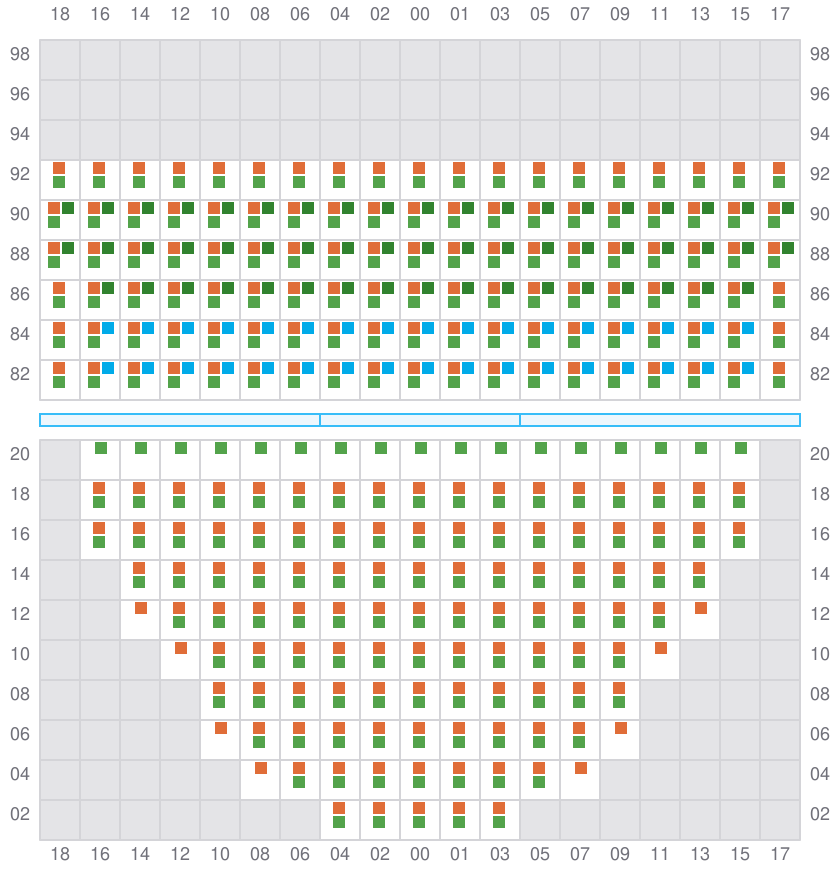

Bay 019 view and slots of SEASPAN BEYOND

021

  • →
  • →

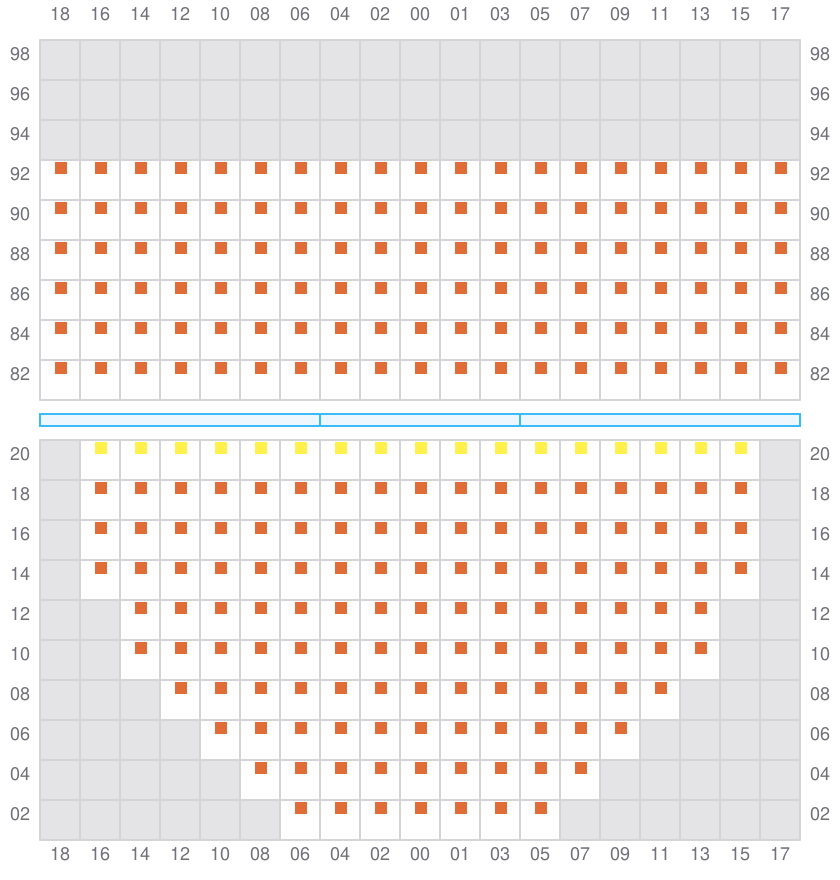

Bay 021 view and slots of SEASPAN BEYOND

023 (022)

  • ←
  • → / ?
  • →

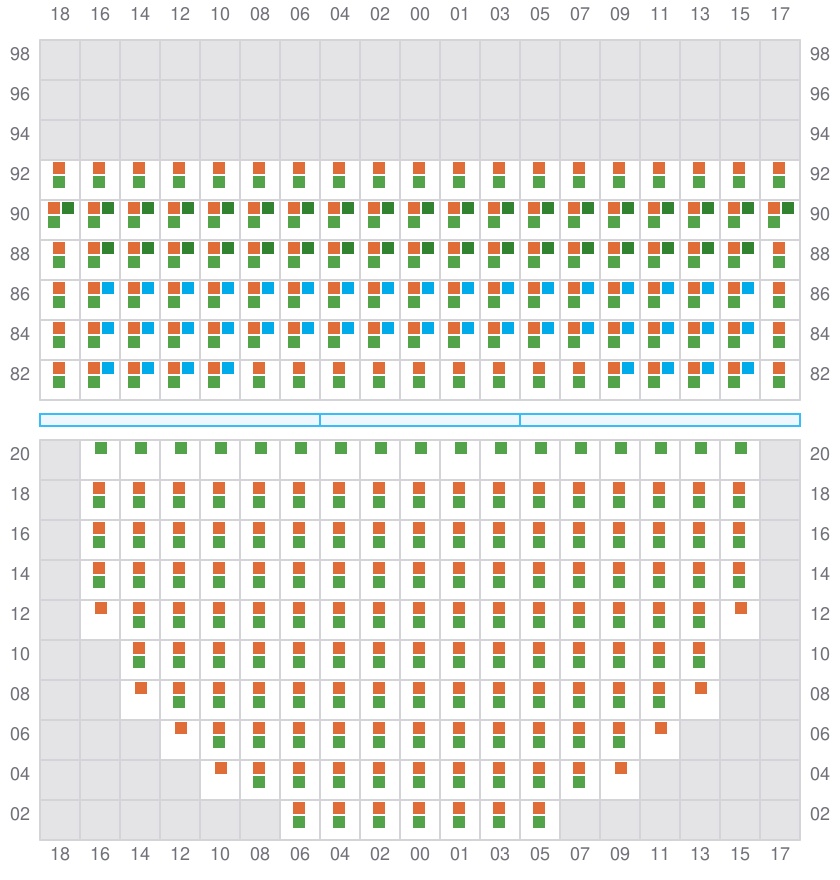

Bay 023 view and slots of SEASPAN BEYOND

025

  • →
  • →

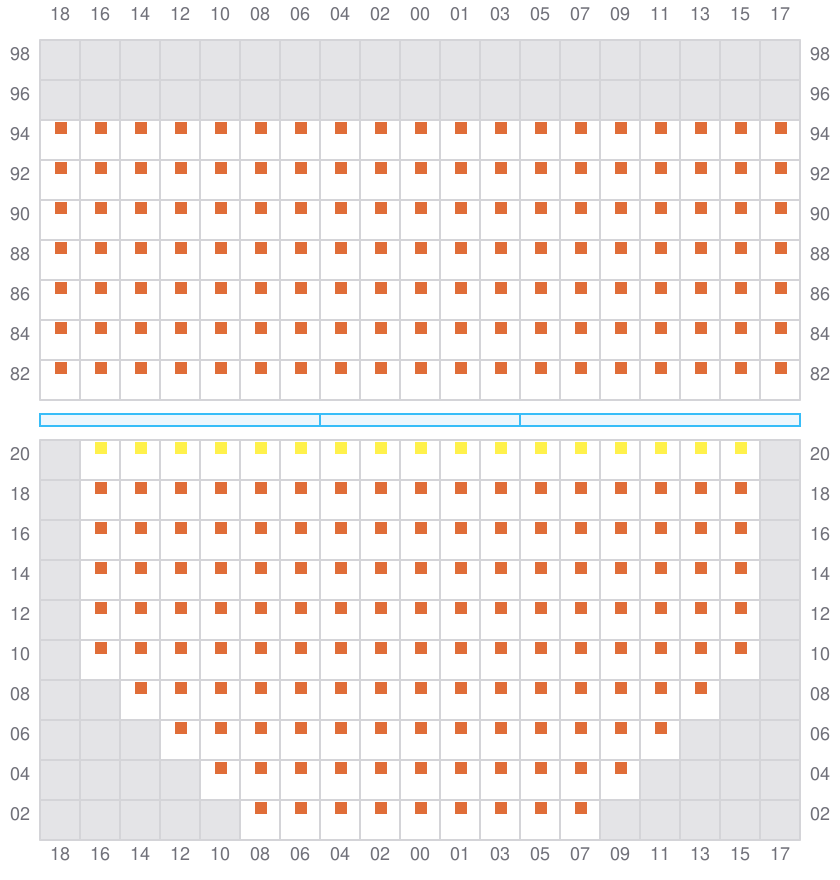

Bay 025 view and slots of SEASPAN BEYOND

027 (026)

  • ←
  • → / ?
  • →

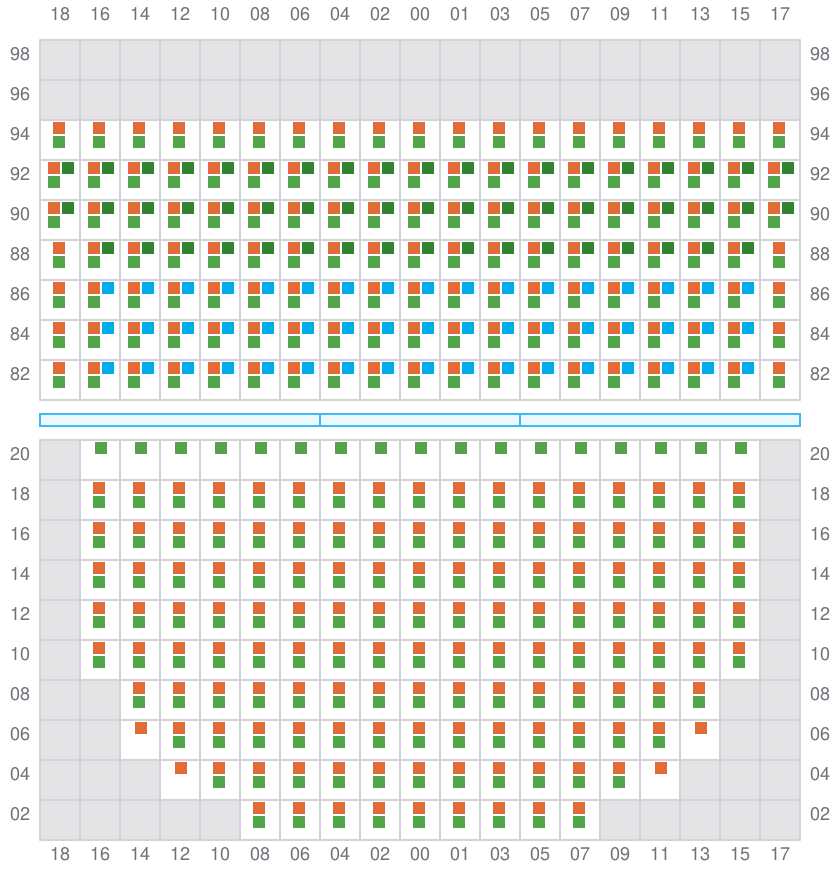

Bay 027 view and slots of SEASPAN BEYOND

029

  • →
  • →
Bay 029 view and slots of SEASPAN BEYOND

031 (030)

  • ←
  • → / ?
  • →

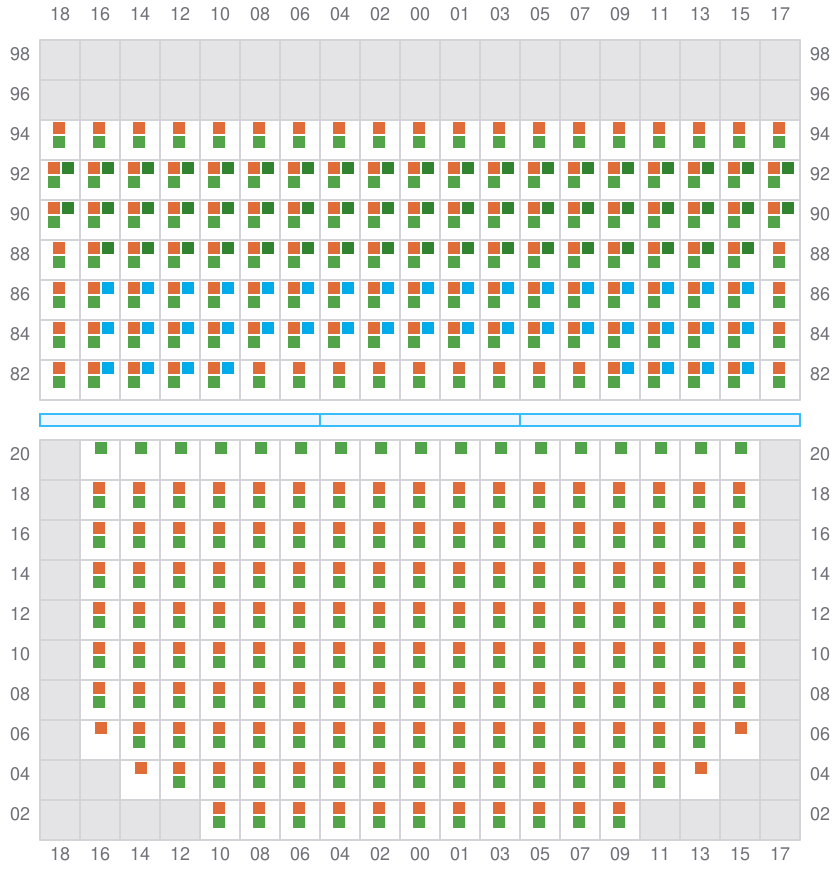

Bay 031 view and slots of SEASPAN BEYOND

033

  • →
  • →
Bay 033 view and slots of SEASPAN BEYOND

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of SEASPAN BEYOND

037

  • →
  • →
Bay 037 view and slots of SEASPAN BEYOND

039 (038)

  • ←
  • → / ?
  • →

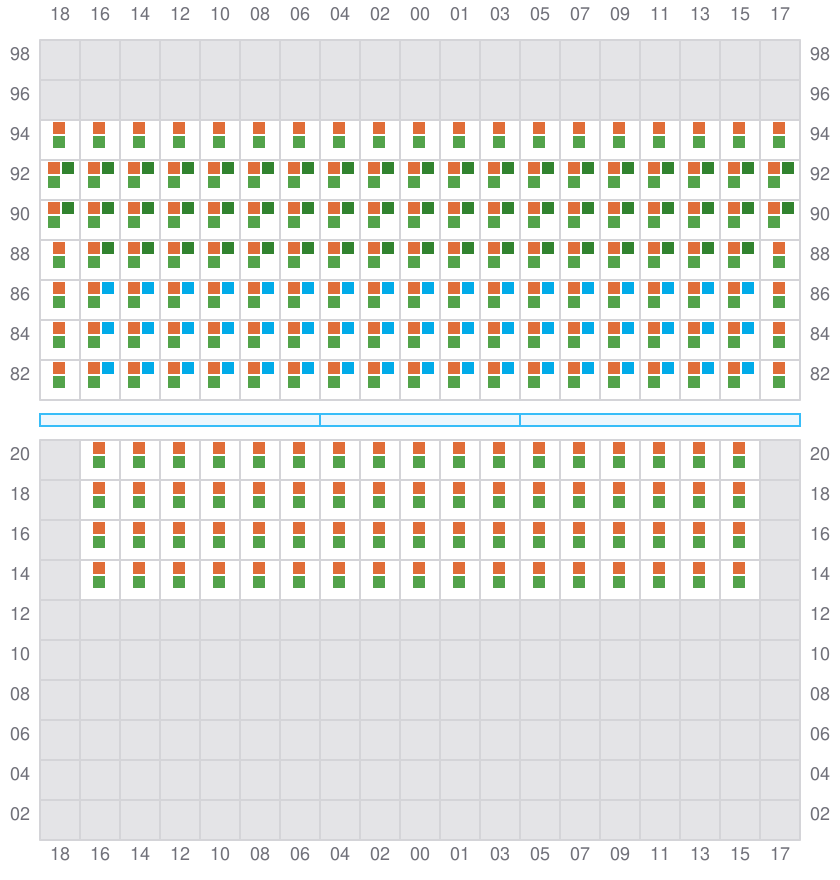

Bay 039 view and slots of SEASPAN BEYOND

041

  • →
  • →
Bay 041 view and slots of SEASPAN BEYOND

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of SEASPAN BEYOND

045

  • →
  • →
Bay 045 view and slots of SEASPAN BEYOND

047 (046)

  • ←
  • →
  • →

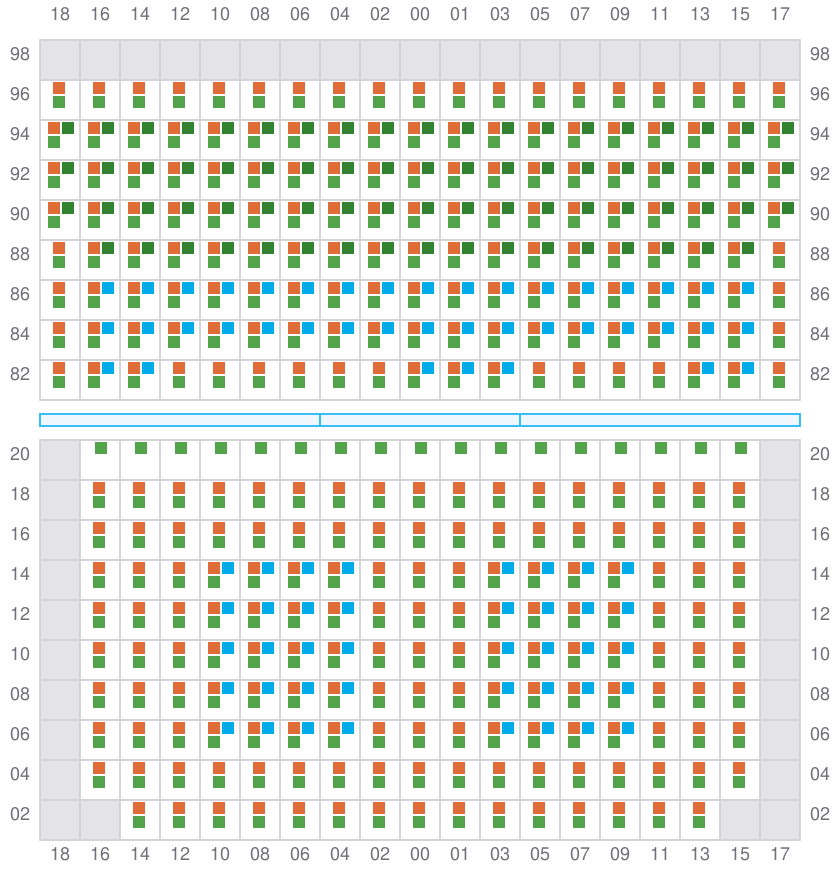

Bay 047 view and slots of SEASPAN BEYOND

049

  • →
  • →

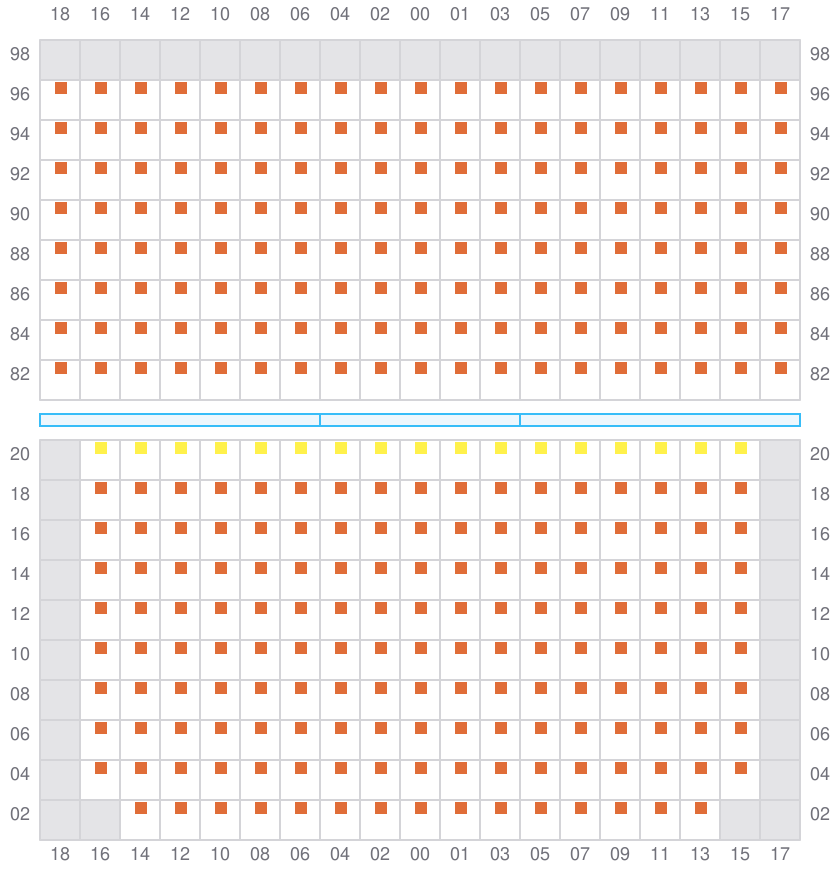

Bay 049 view and slots of SEASPAN BEYOND

051 (050)

  • ←
  • →
  • →
Bay 051 view and slots of SEASPAN BEYOND

053

  • →
  • →
Bay 053 view and slots of SEASPAN BEYOND

055 (054)

  • ←
  • →
  • →
Bay 055 view and slots of SEASPAN BEYOND

057

  • →
  • →

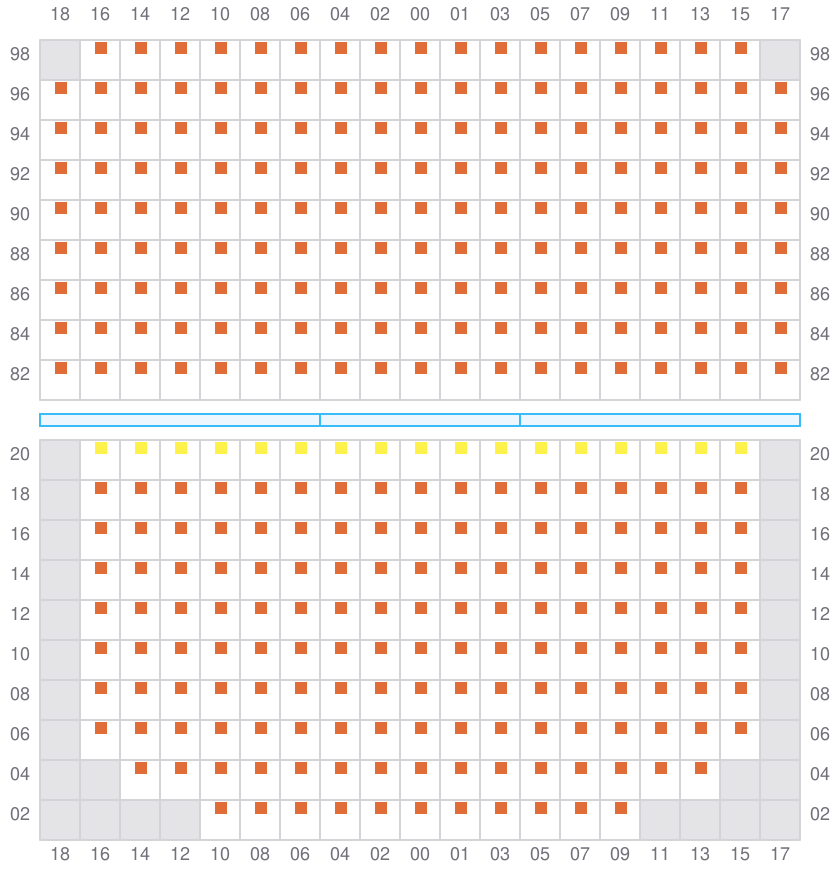

Bay 057 view and slots of SEASPAN BEYOND

059 (058)

  • ←
  • →
  • →
Bay 059 view and slots of SEASPAN BEYOND

061

  • →
  • →
Bay 061 view and slots of SEASPAN BEYOND

063 (062)

  • ←
  • → / ?
  • →

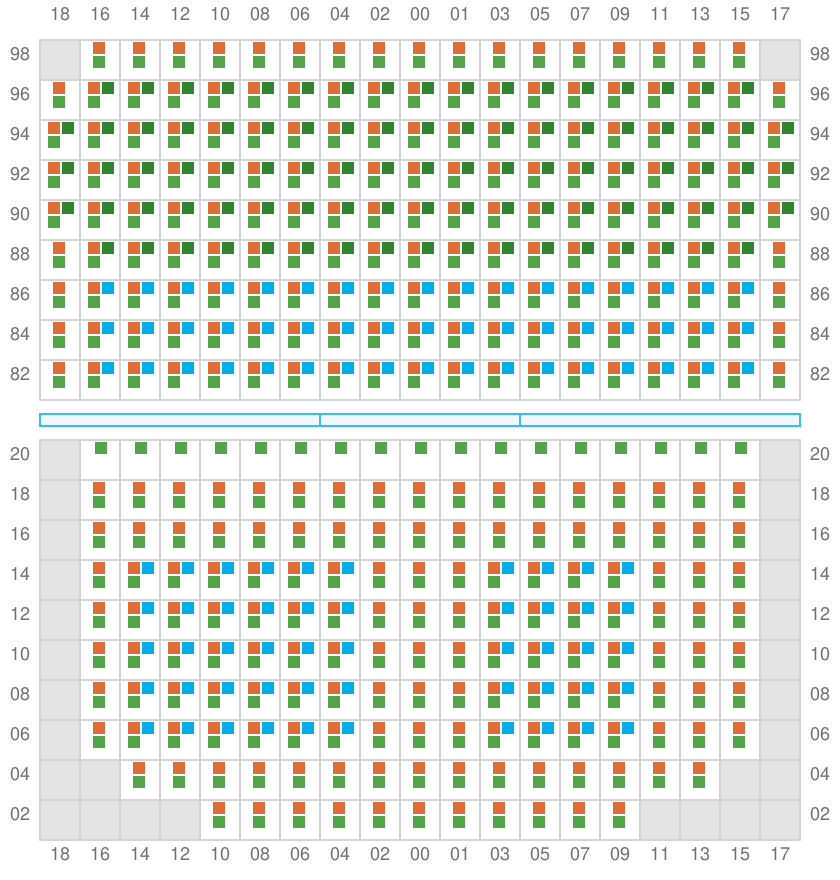

Bay 063 view and slots of SEASPAN BEYOND

065

  • →
  • →
Bay 065 view and slots of SEASPAN BEYOND

067 (066)

  • ←
  • → / ?
  • →

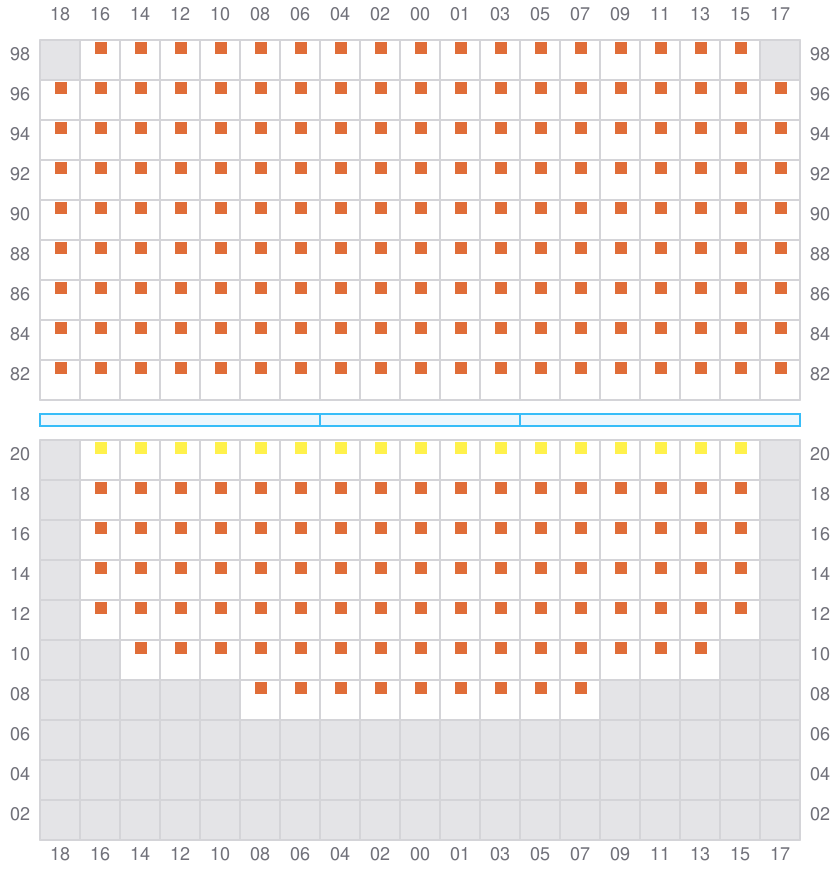

Bay 067 view and slots of SEASPAN BEYOND

069

  • →
  • →
Bay 069 view and slots of SEASPAN BEYOND

071 (070)

  • ←
  • → / ?
  • →
Bay 071 view and slots of SEASPAN BEYOND

073

  • →
  • →
Bay 073 view and slots of SEASPAN BEYOND

075 (074)

  • ←
  • → / ?
  • →

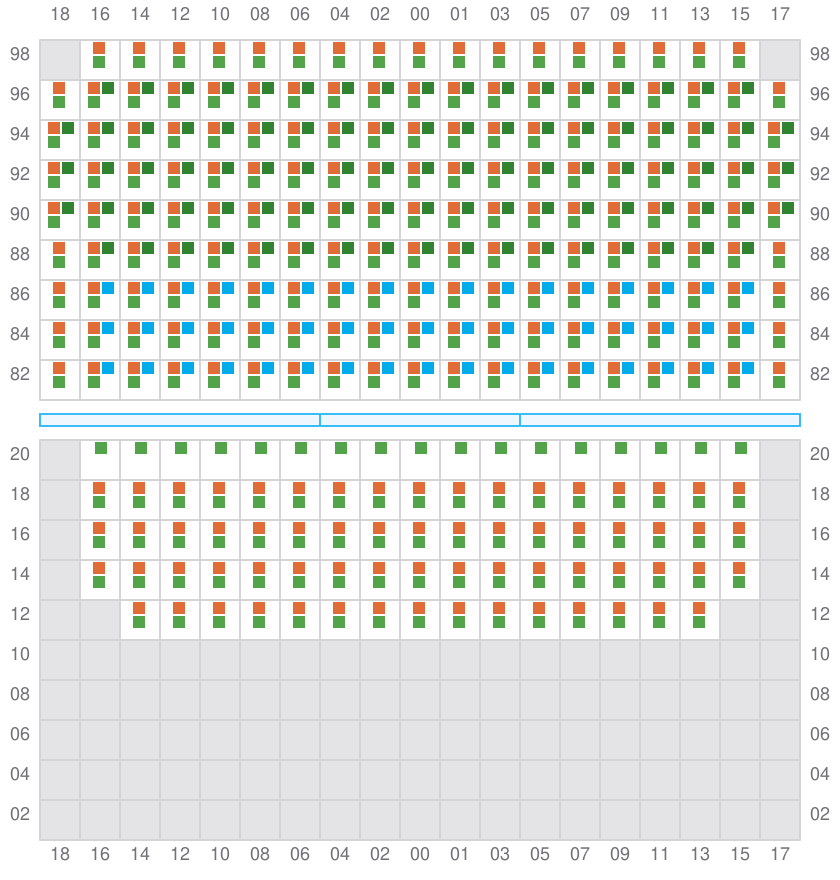

Bay 075 view and slots of SEASPAN BEYOND

077

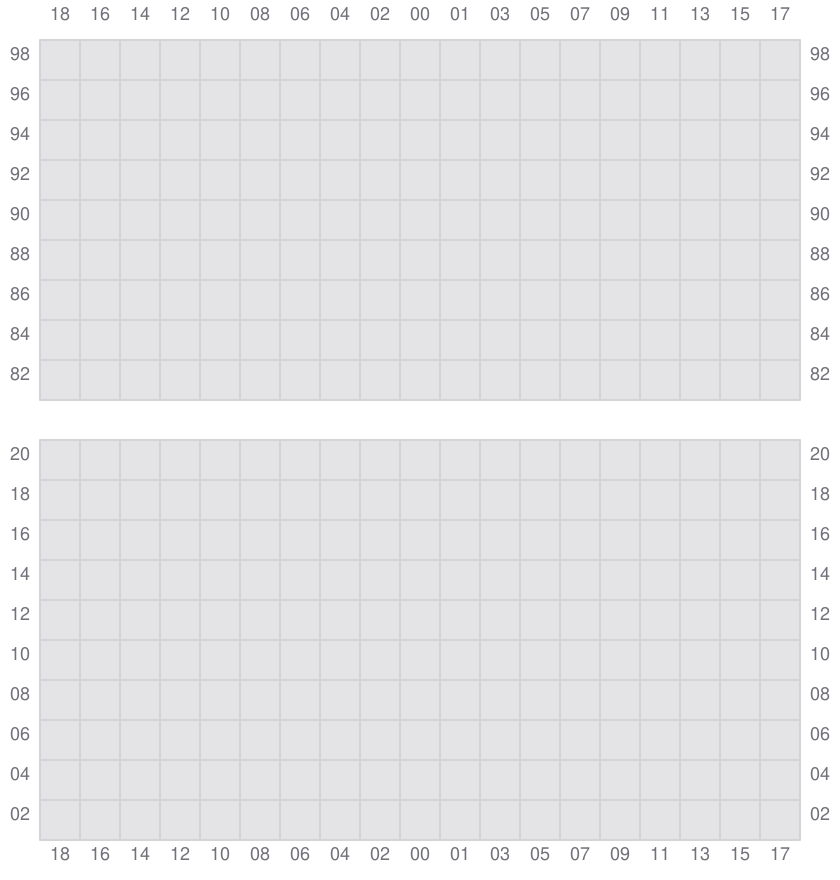

Bay 077 view and slots of SEASPAN BEYOND

079 (078)

  • ← / ?
  • → / ?
  • → / ?
Bay 079 view and slots of SEASPAN BEYOND
