SEASPAN CALICANTO
9435038 | VRGT3 | 9435038 by ********* Last update: Wed Jun 05 2024

General Info

Ship Name:SEASPAN CALICANTO
IMO Code:9435038
Call Sign:VRGT3
Line Operator:9435038
Class Name for Sister Ships:CALICANTO BRIDGE
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,644

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

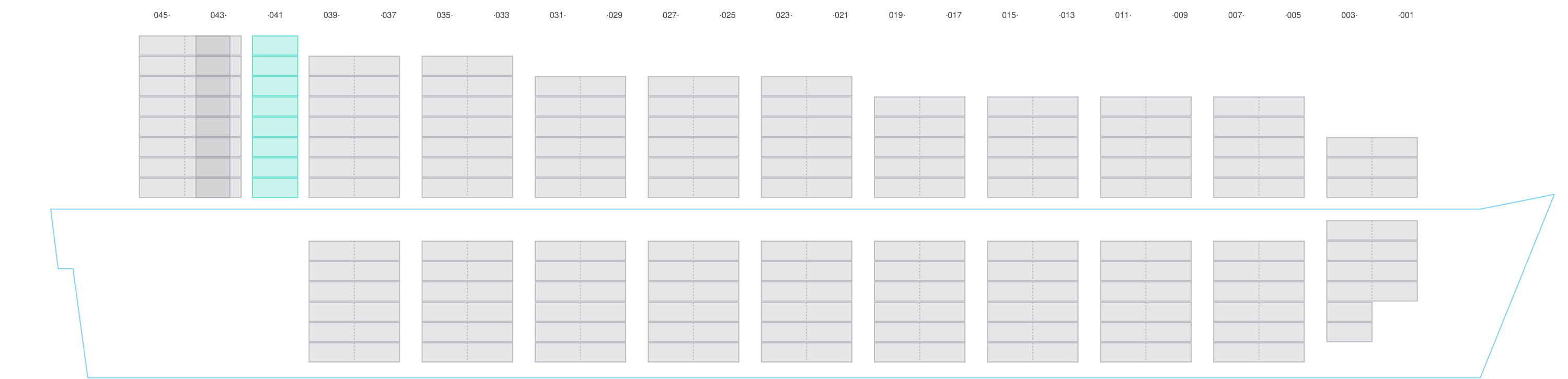

Side view of SEASPAN CALICANTO

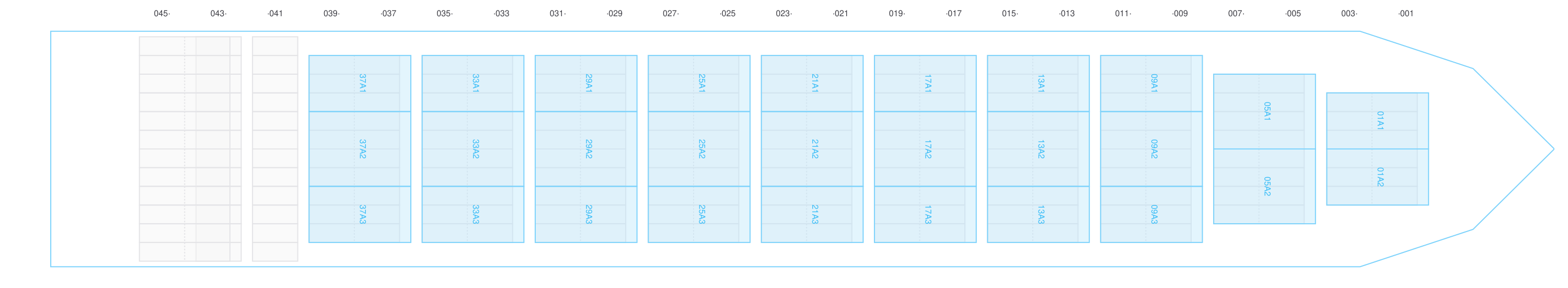

Hatch-Covers View

Deck view of SEASPAN CALICANTO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

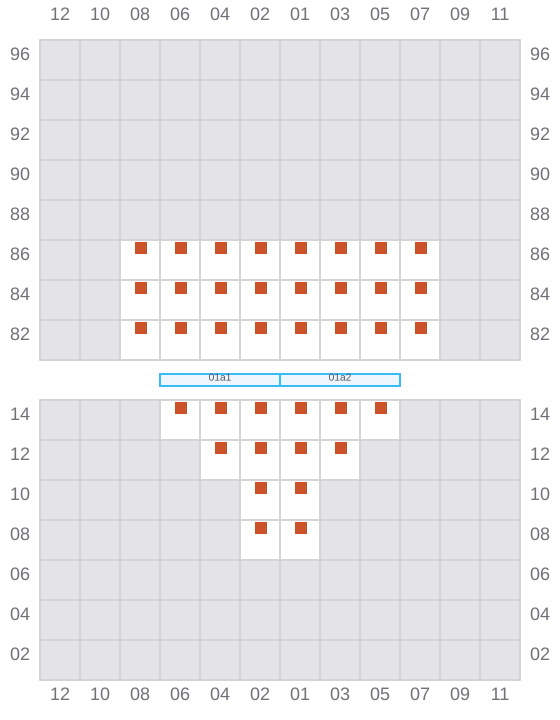

Bay 001 view and slots of SEASPAN CALICANTO

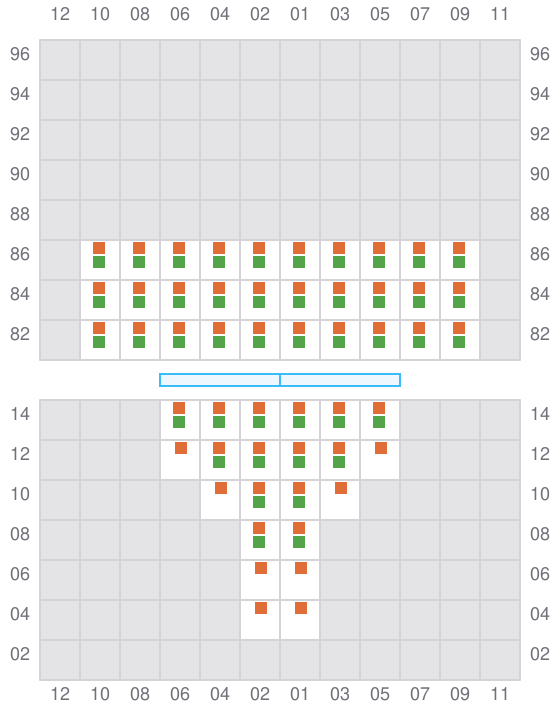

003 (002)

  • ←
Bay 003 view and slots of SEASPAN CALICANTO

005

  • →

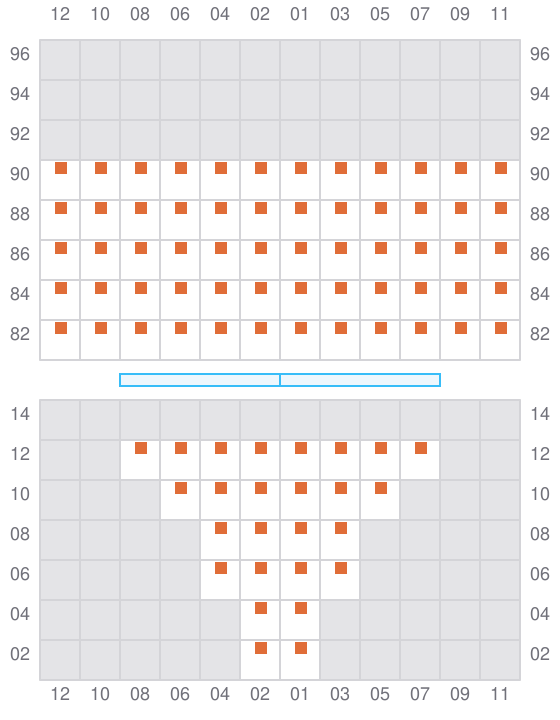

Bay 005 view and slots of SEASPAN CALICANTO

007 (006)

  • ←

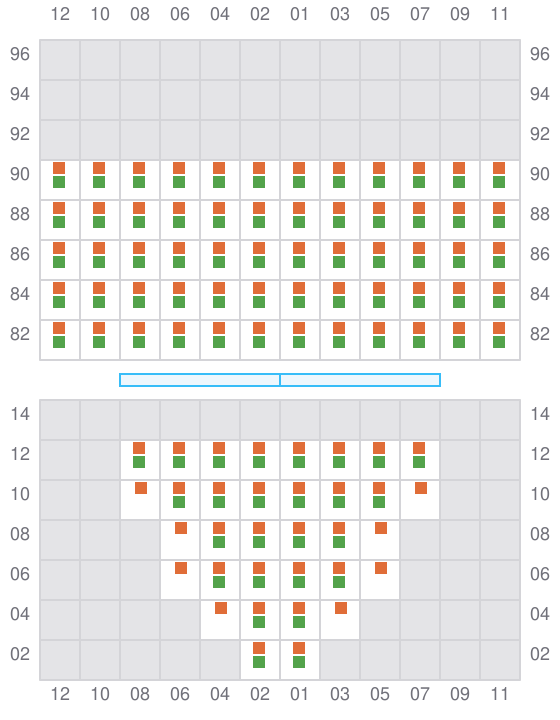

Bay 007 view and slots of SEASPAN CALICANTO

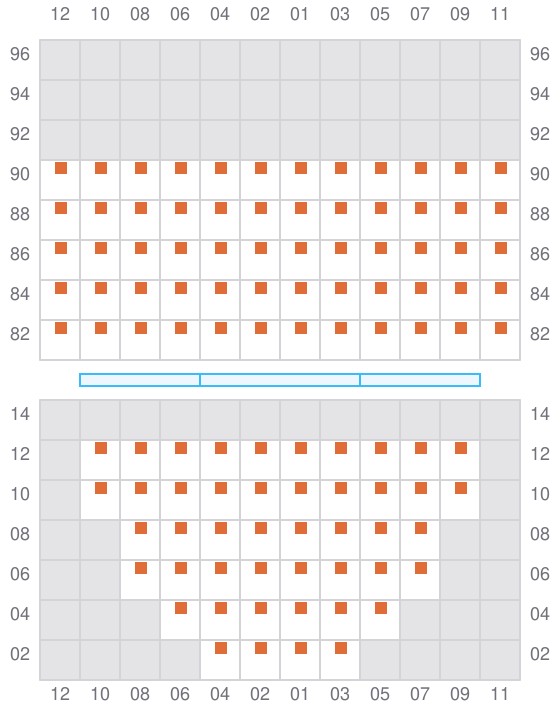

009

  • →
Bay 009 view and slots of SEASPAN CALICANTO

011 (010)

  • ←

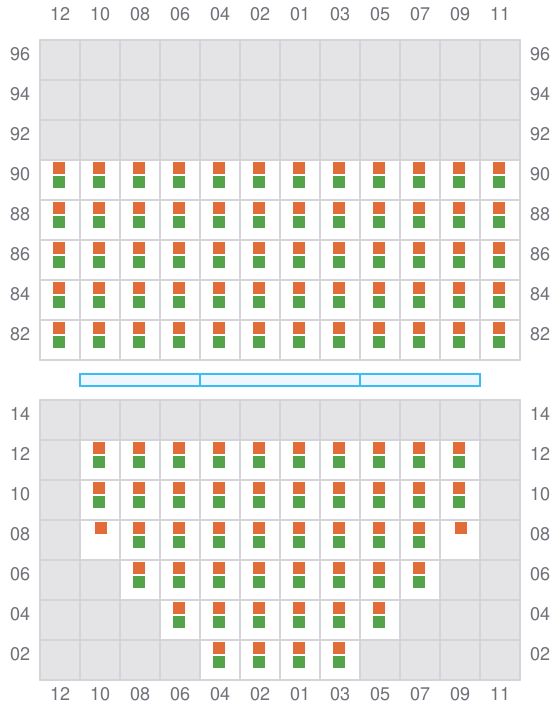

Bay 011 view and slots of SEASPAN CALICANTO

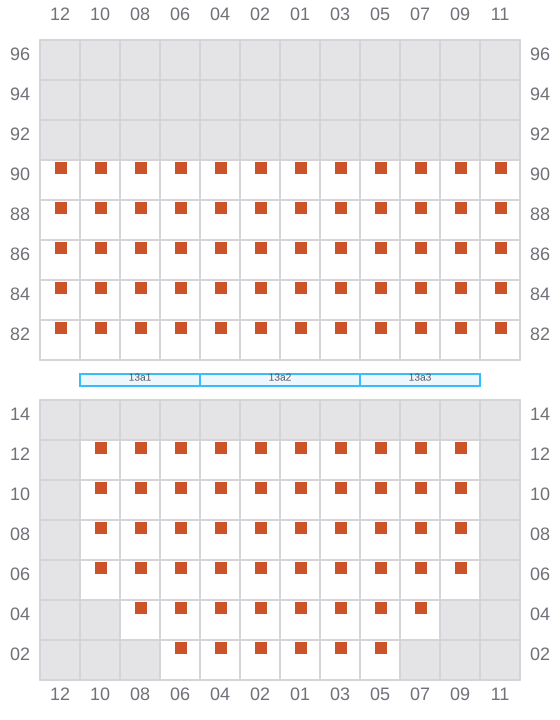

013

  • →
Bay 013 view and slots of SEASPAN CALICANTO

015 (014)

  • ←

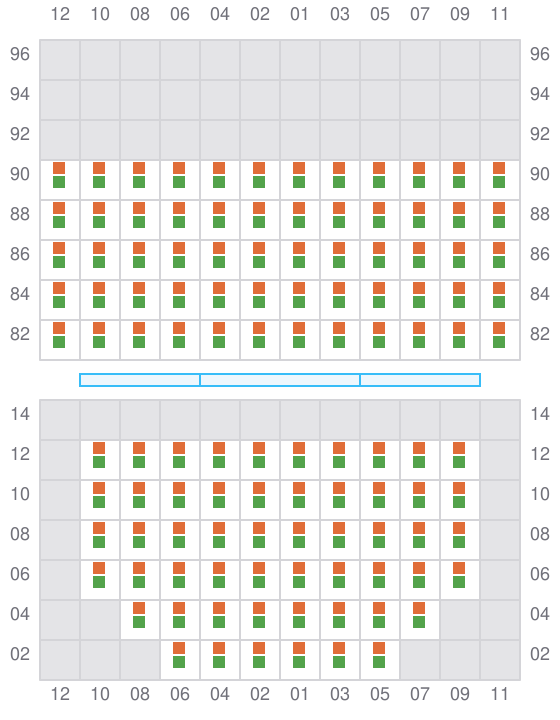

Bay 015 view and slots of SEASPAN CALICANTO

017

  • →

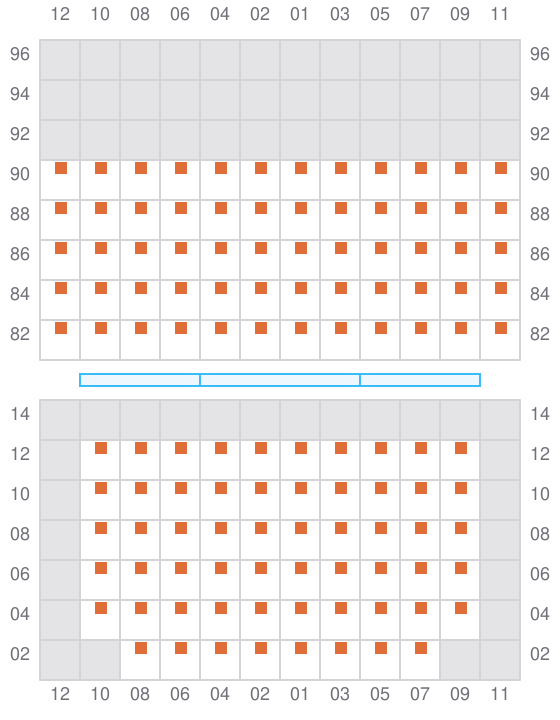

Bay 017 view and slots of SEASPAN CALICANTO

019 (018)

  • ←

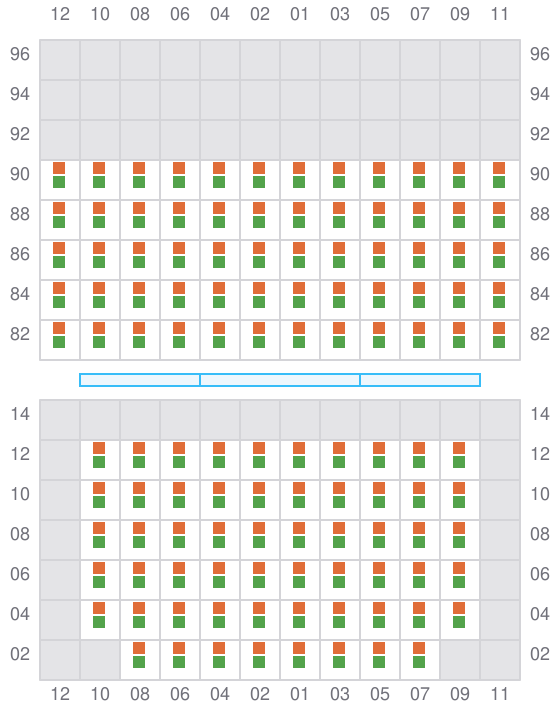

Bay 019 view and slots of SEASPAN CALICANTO

021

  • →

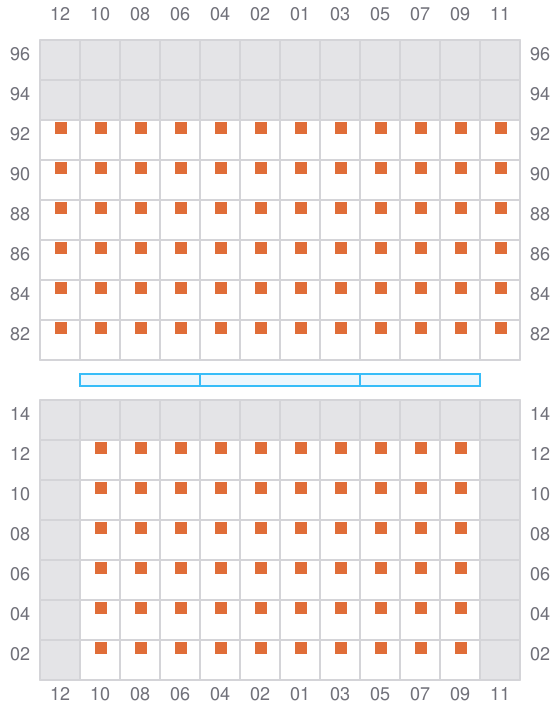

Bay 021 view and slots of SEASPAN CALICANTO

023 (022)

  • ←

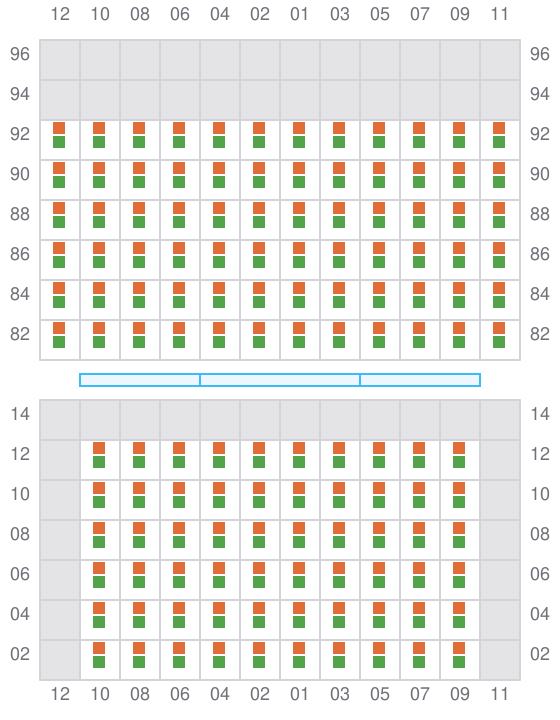

Bay 023 view and slots of SEASPAN CALICANTO

025

  • →
Bay 025 view and slots of SEASPAN CALICANTO

027 (026)

  • ←
Bay 027 view and slots of SEASPAN CALICANTO

029

  • →

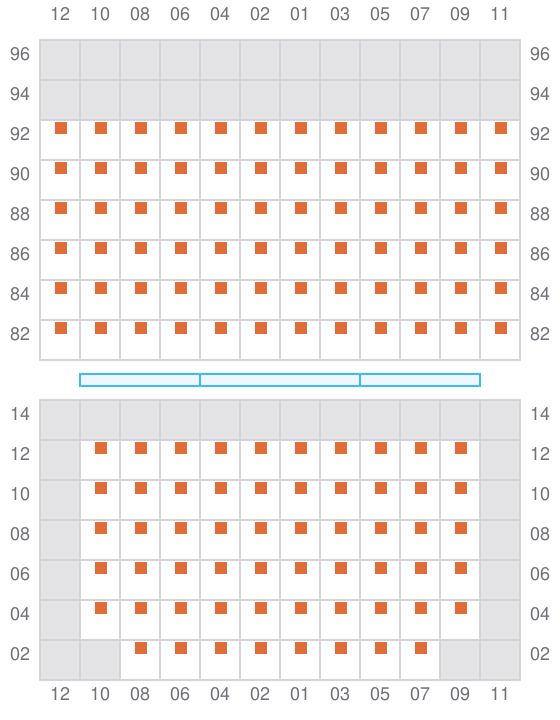

Bay 029 view and slots of SEASPAN CALICANTO

031 (030)

  • ←
Bay 031 view and slots of SEASPAN CALICANTO

033

  • →

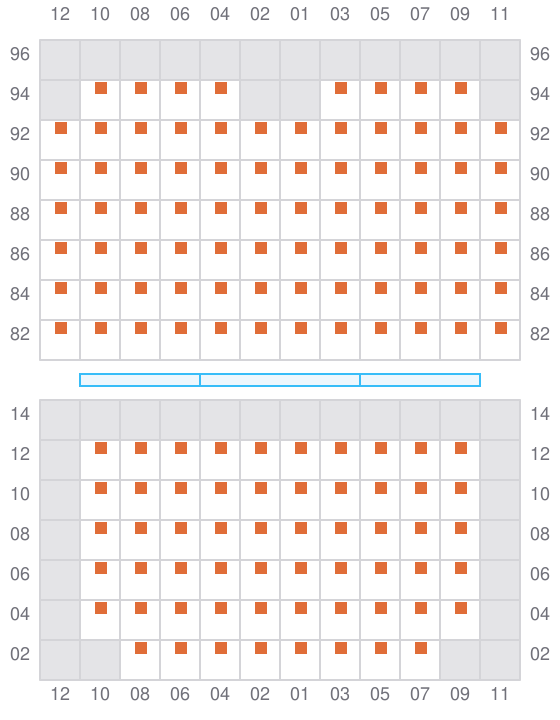

Bay 033 view and slots of SEASPAN CALICANTO

035 (034)

  • ←

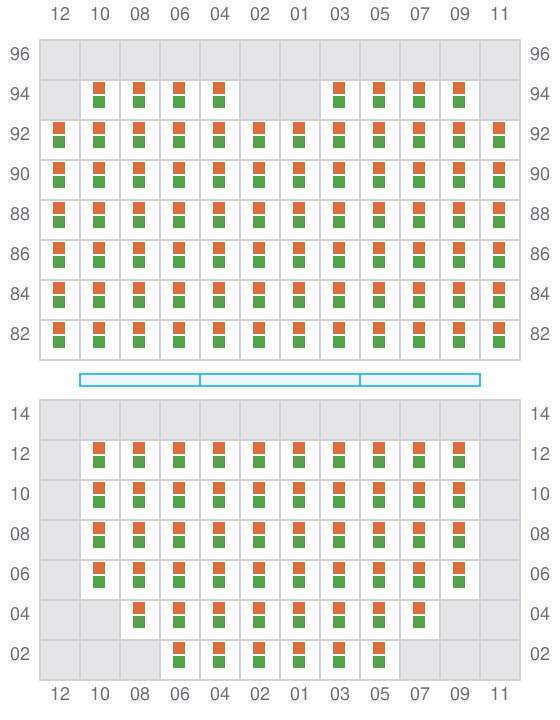

Bay 035 view and slots of SEASPAN CALICANTO

037

  • →

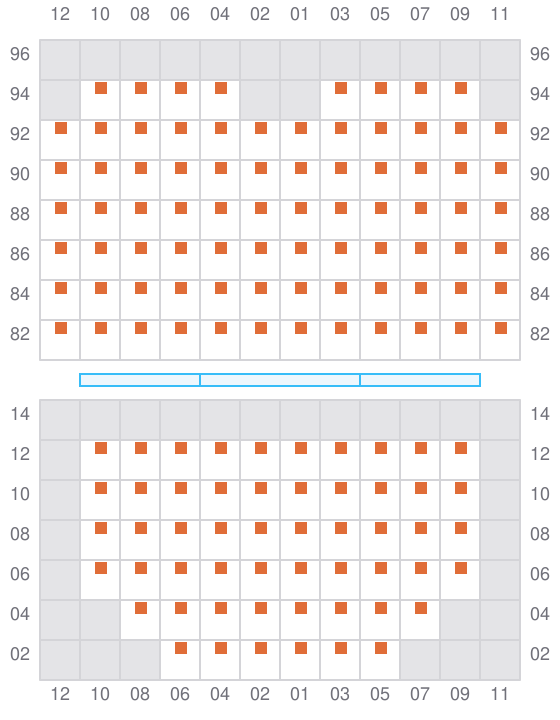

Bay 037 view and slots of SEASPAN CALICANTO

039 (038)

  • ←
Bay 039 view and slots of SEASPAN CALICANTO

041

  • → / ?

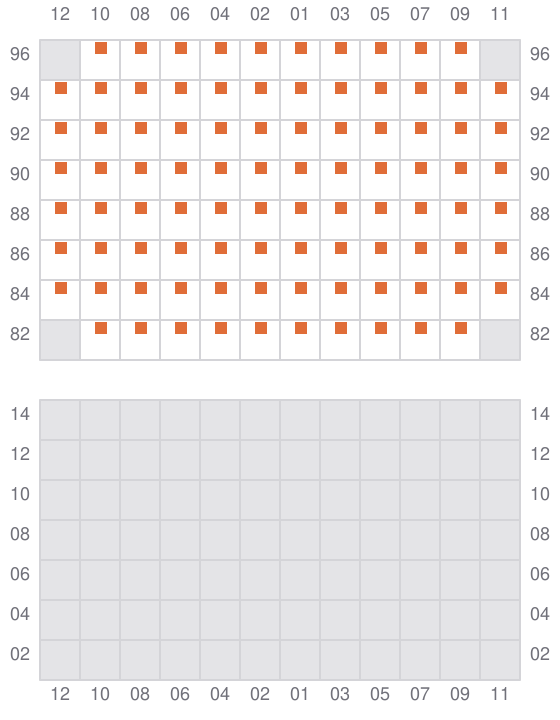

Bay 041 view and slots of SEASPAN CALICANTO

043

  • ← / ?
Bay 043 view and slots of SEASPAN CALICANTO

045 (044)

  • ← / ?

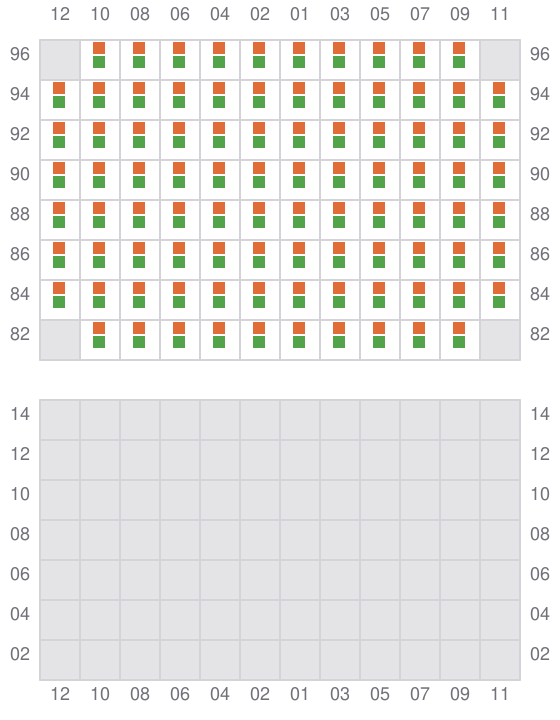

Bay 045 view and slots of SEASPAN CALICANTO
