SEASPAN CHIBA
9492713 | VRIM5 | ZCL by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:SEASPAN CHIBA
IMO Code:9492713
Call Sign:VRIM5
Line Operator:ZCL
Class Name for Sister Ships:CHB
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,400
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

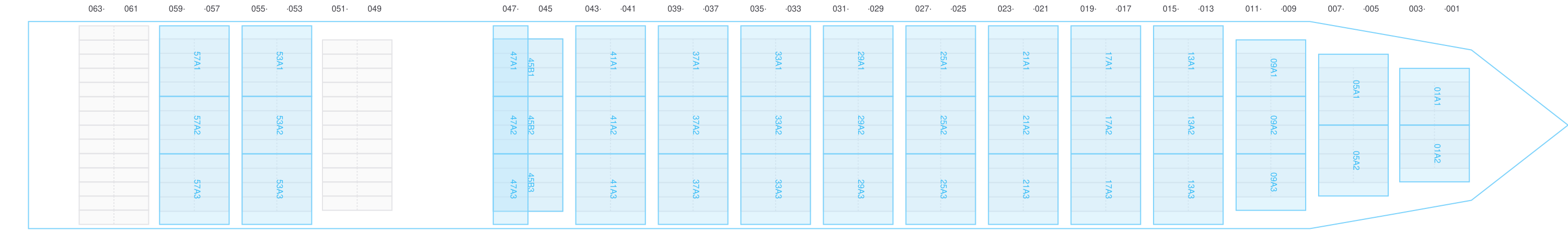

Hatch-Covers View

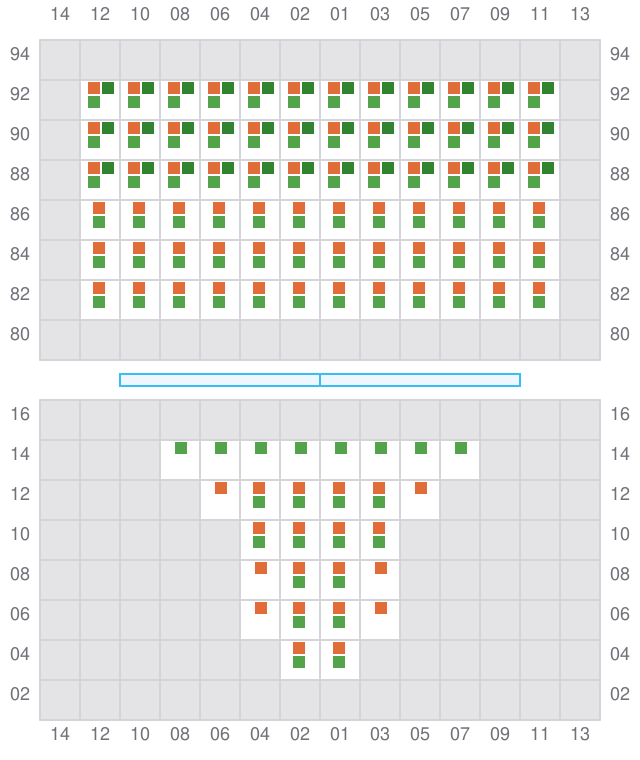

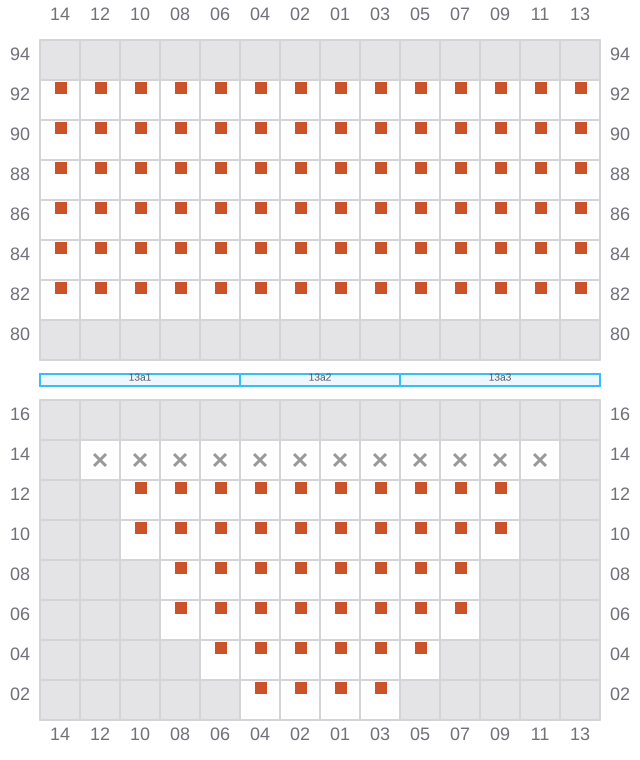

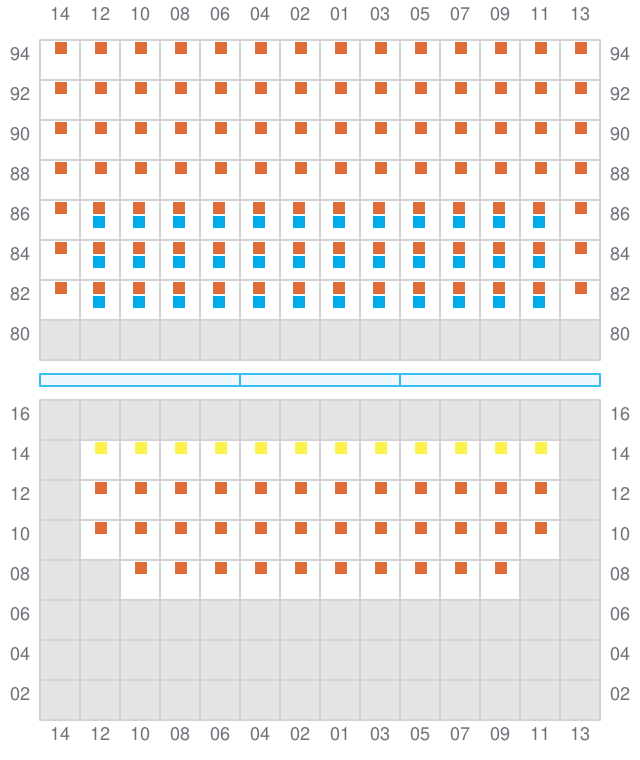

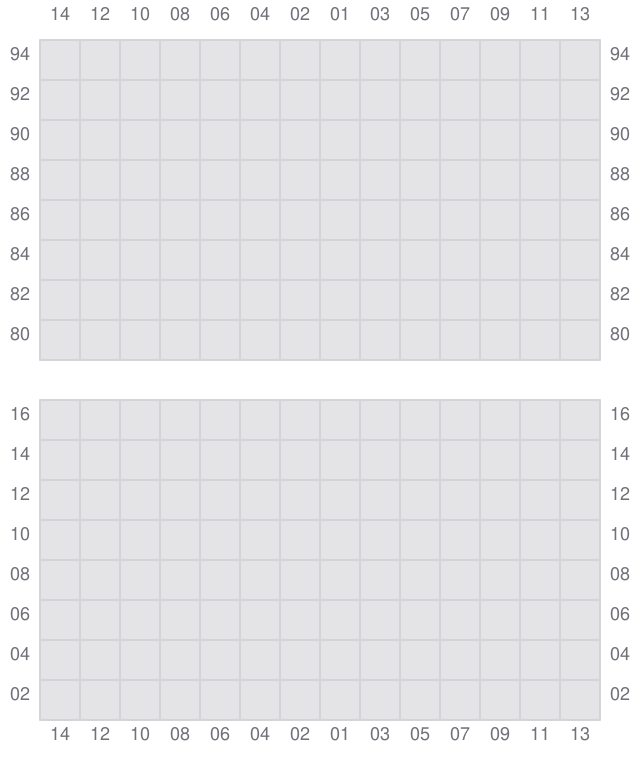

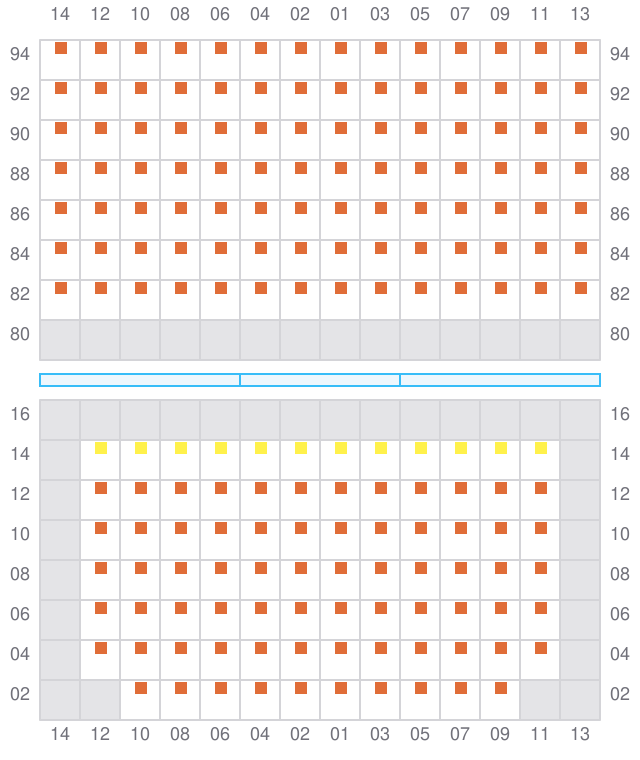

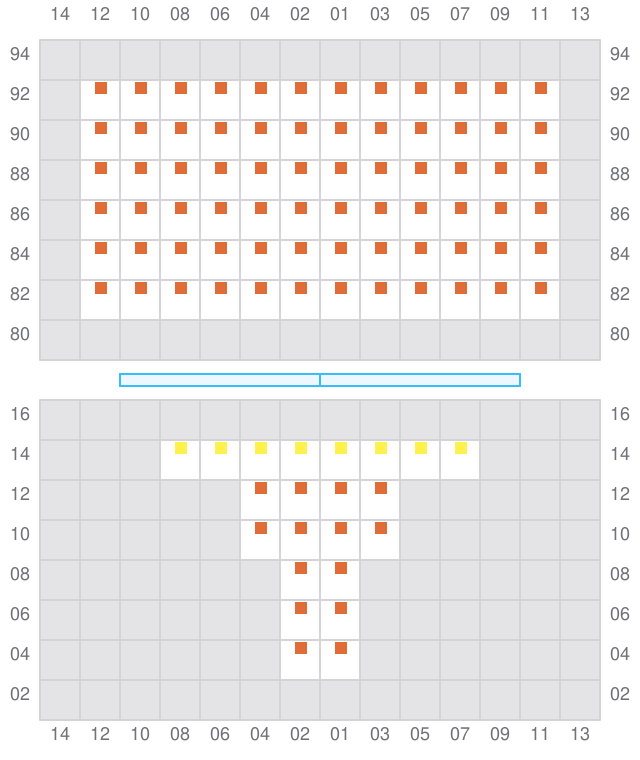

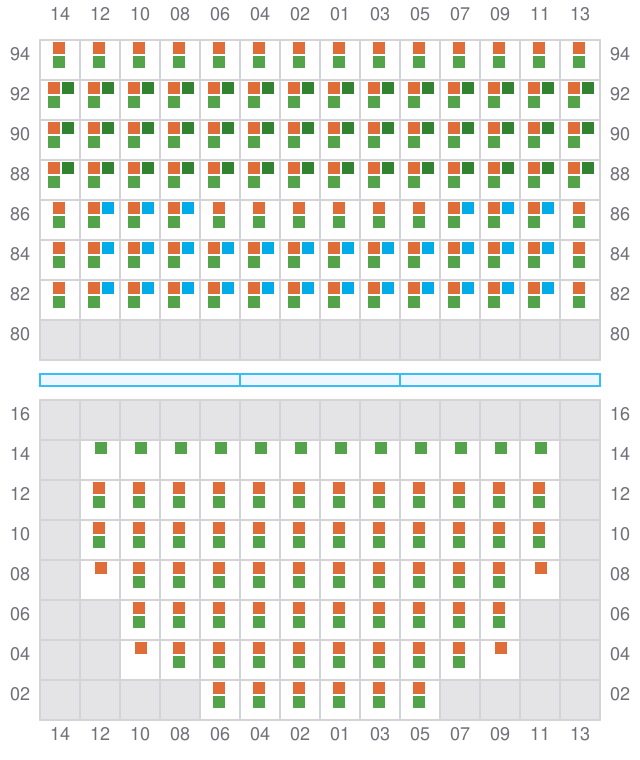

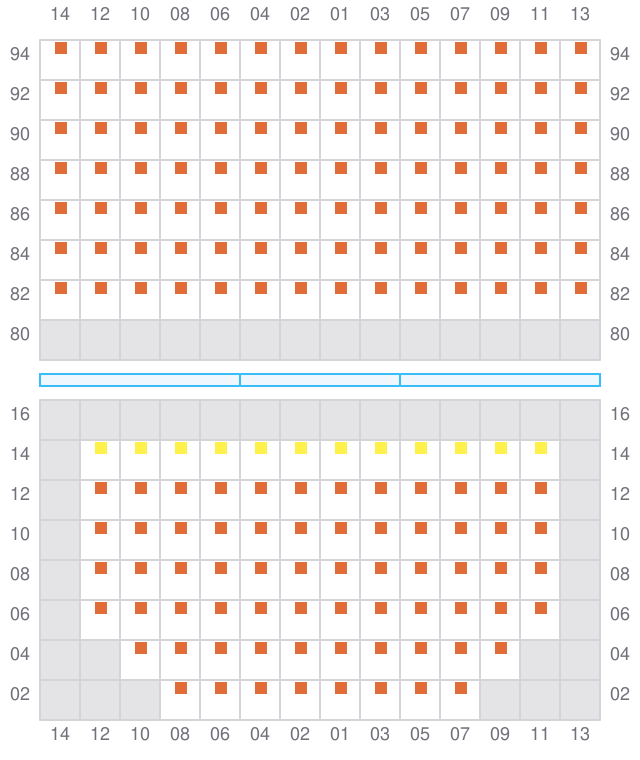

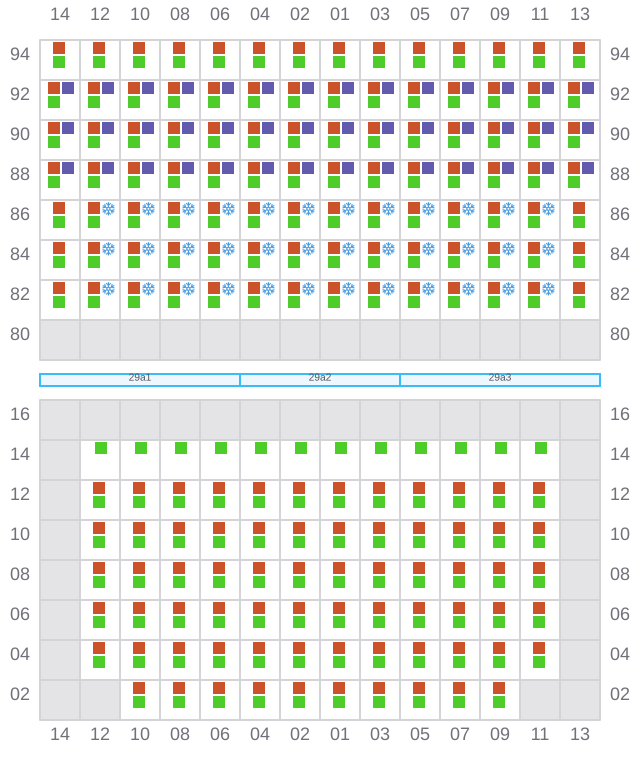

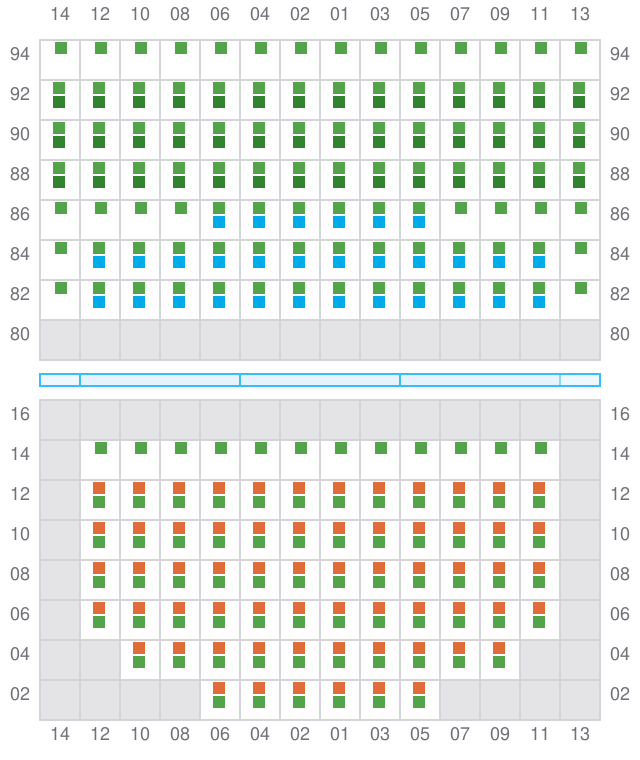

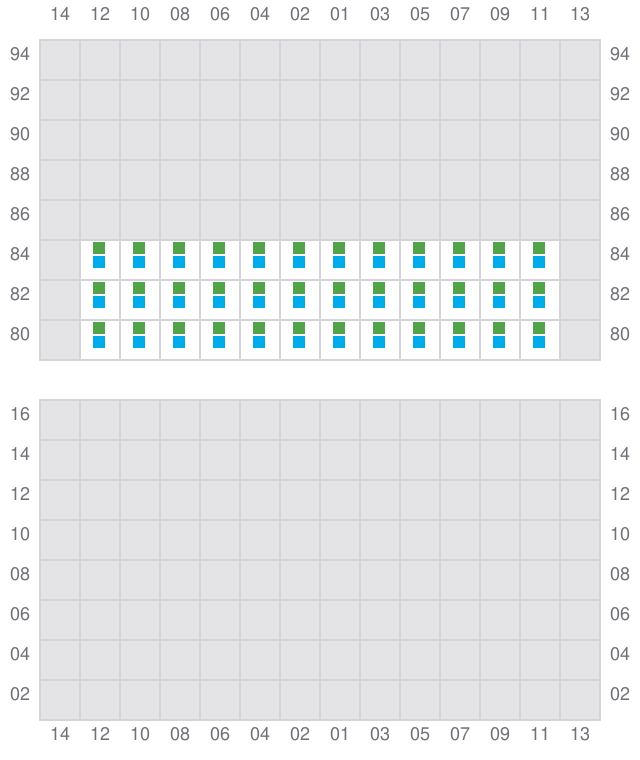

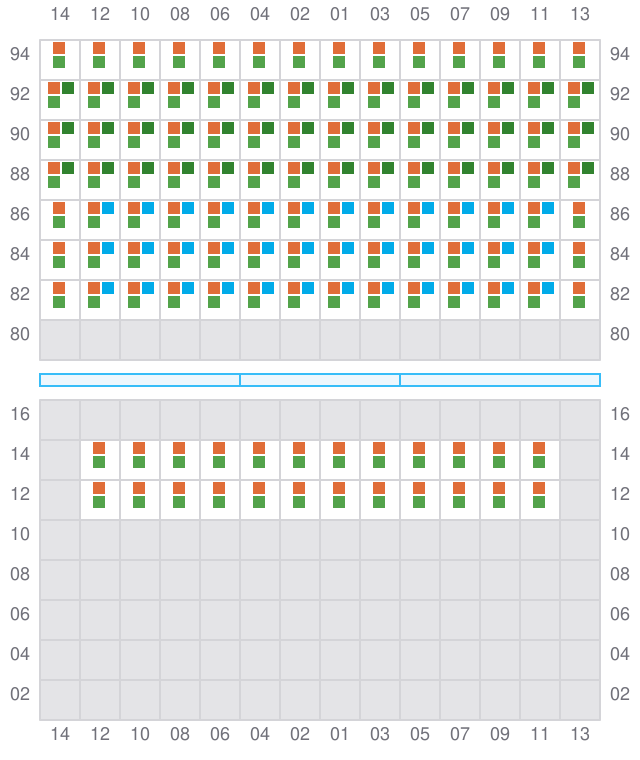

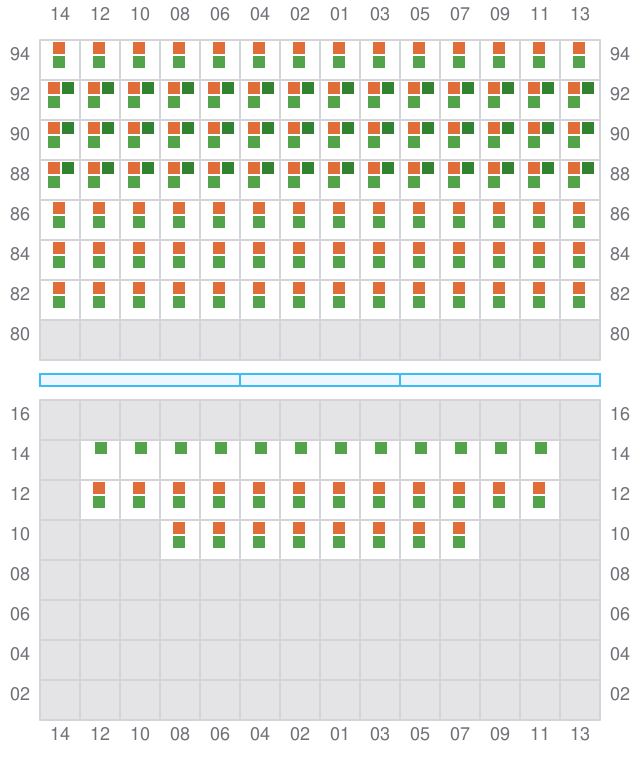

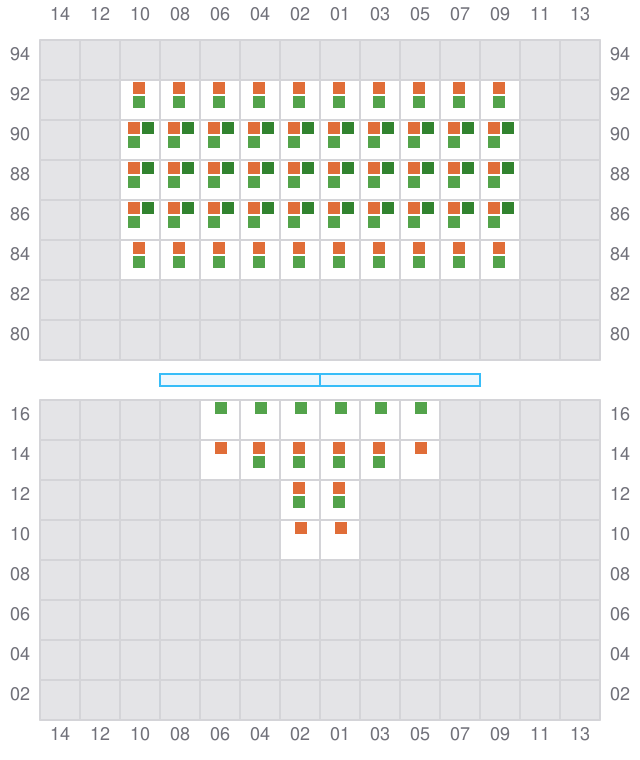

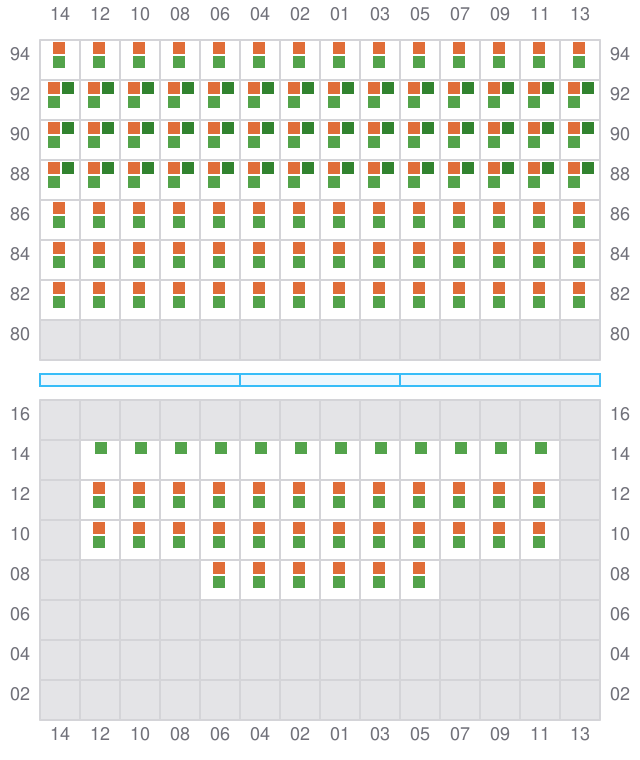

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

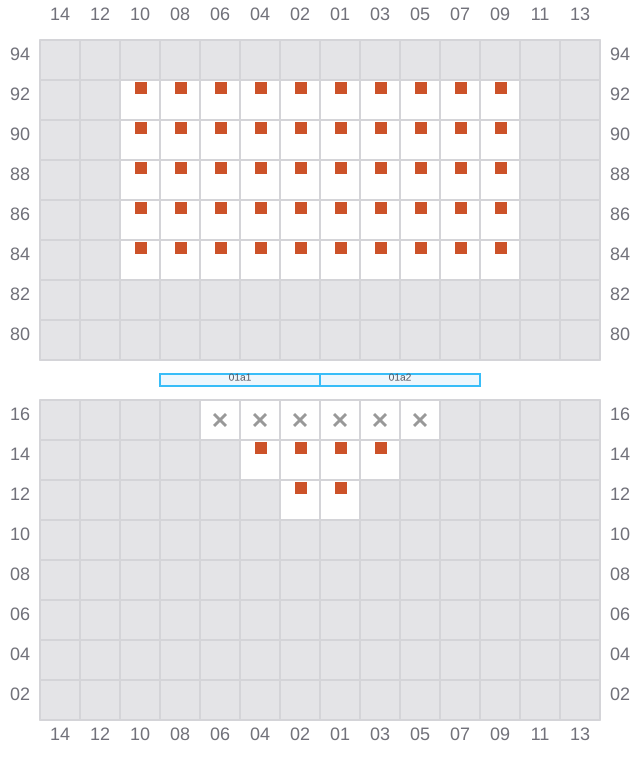

001
- →
- →
003 (002)
- ←
- → / ?
- →
005
- →
- →
007 (006)
- ←
- → / ?
- →

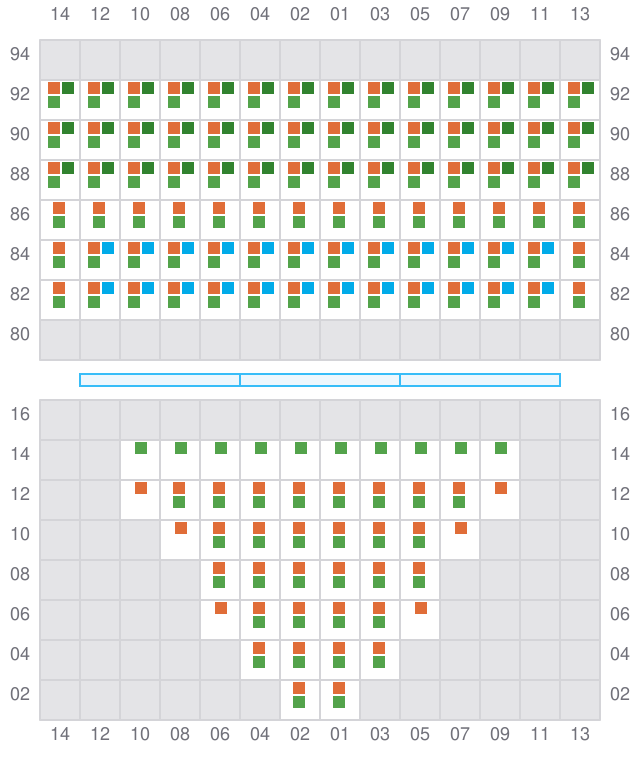

009
- →
- →
011 (010)
- ←
- → / ?
- →

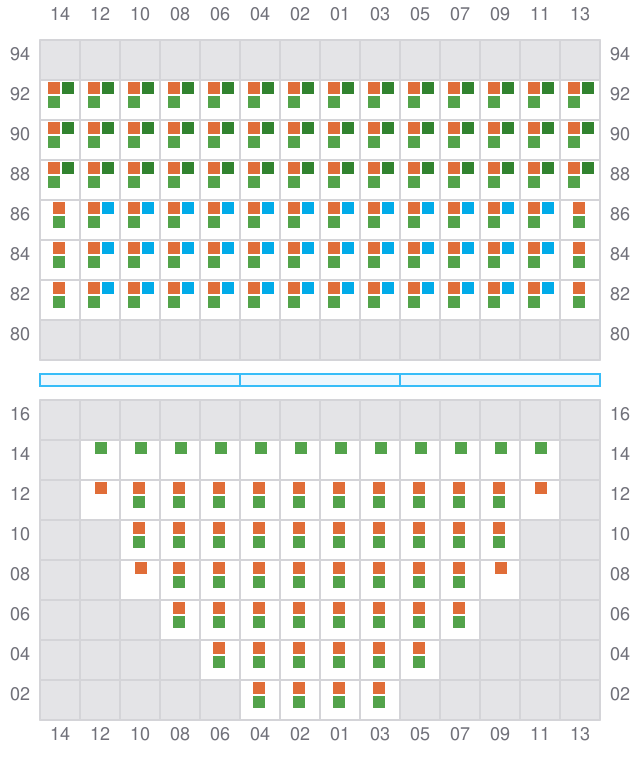

013
- →
- →
015 (014)
- ←
- → / ?
- →

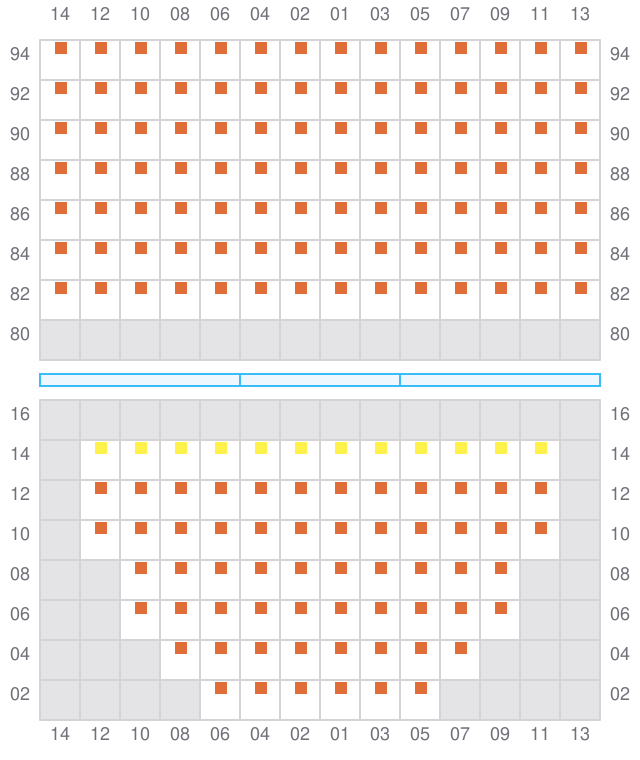

017
- →
- →
019 (018)
- ←
- → / ?
- →
021
- →
- →
023 (022)
- ←
- → / ?
- →
025
- →
- →
027 (026)
- ←
- → / ?
- →
029
- →
- →
031 (030)
- ←
- → / ?
- →
033
- →
- →
035 (034)
- ←
- → / ?
- →
037
- →
- →

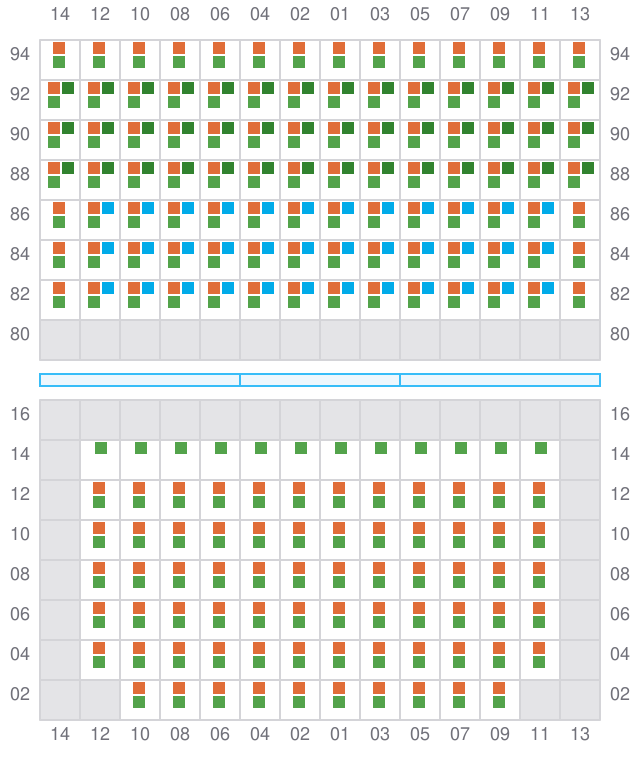

039 (038)
- ←
- → / ?
- →
041
- →
- →
043 (042)
- ←
- → / ?
- →

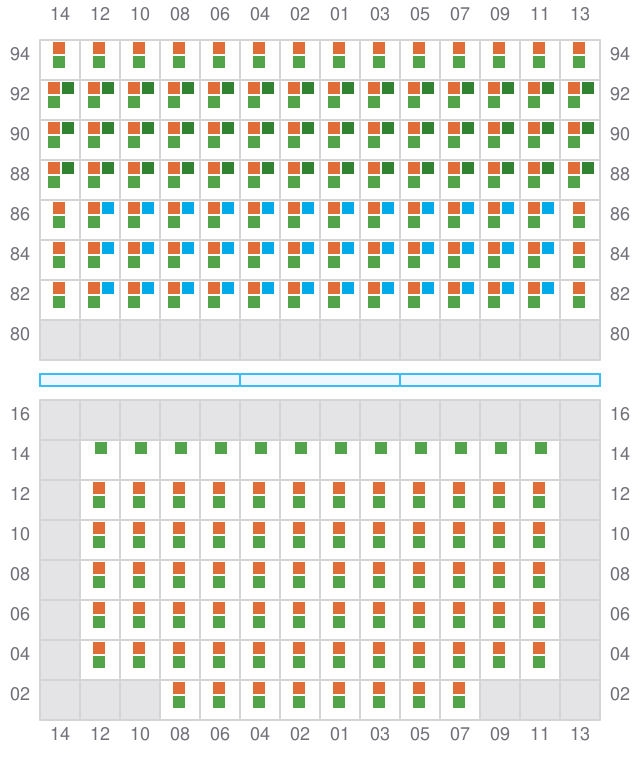

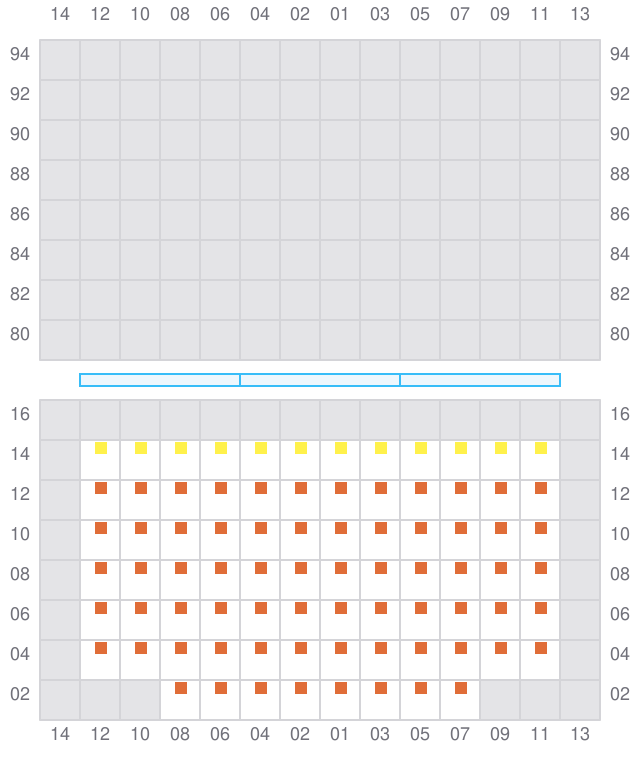

045
- ? / →
- ? / →
047 (046)
- ←
- → / ?
- →
049
051 (050)
- ← / ?
- ← / ?
- → / ?
053
- →
- →
055 (054)
- ←
- ← / ?
- →

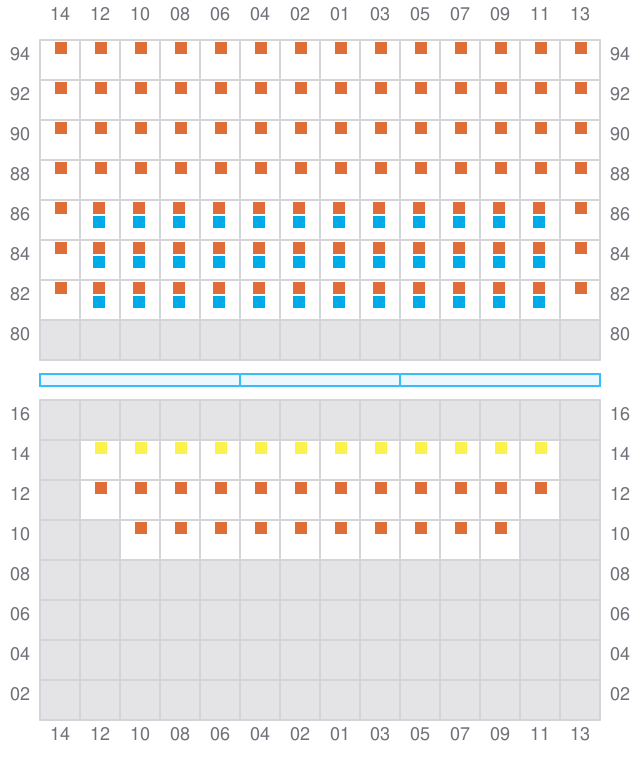

057
- →
- →
059 (058)
- ←
- ← / ?
- →
061

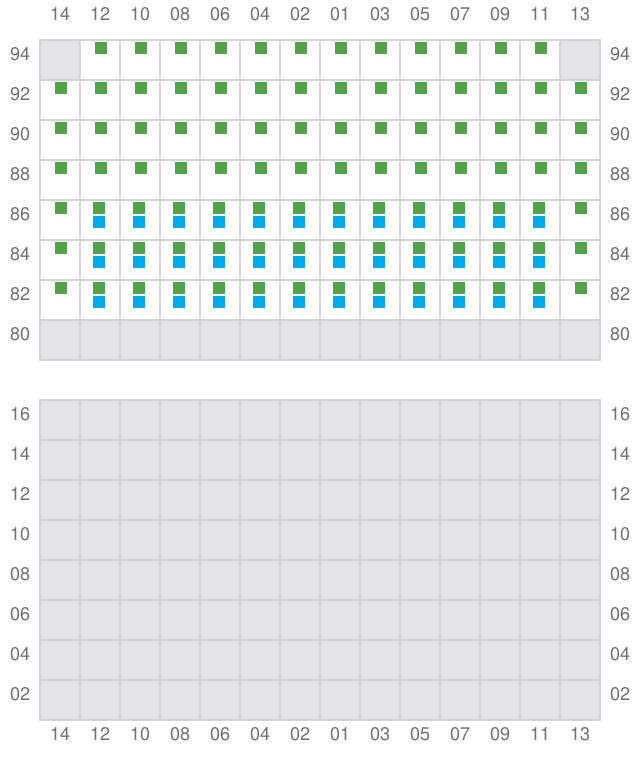

063 (062)
- ← / ?
- ← / ?
- → / ?
