SEASPAN EMERALD
9407134 | VRFB8 | ZCL by ************************** Last update: Fri Jun 30 2023
General Info
Ship Name:SEASPAN EMERALD
IMO Code:9407134
Call Sign:VRFB8
Line Operator:ZCL
Class Name for Sister Ships:SMD
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.13
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,087
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

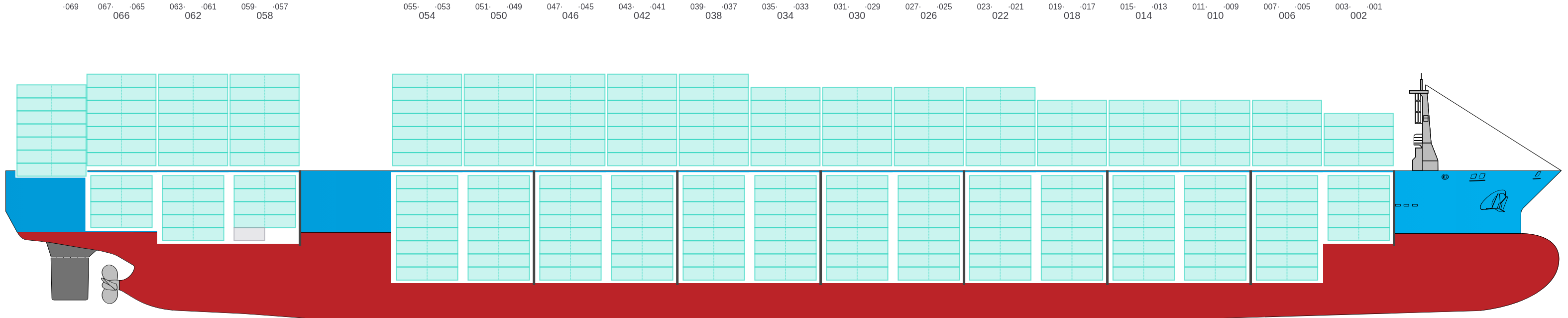

Side View

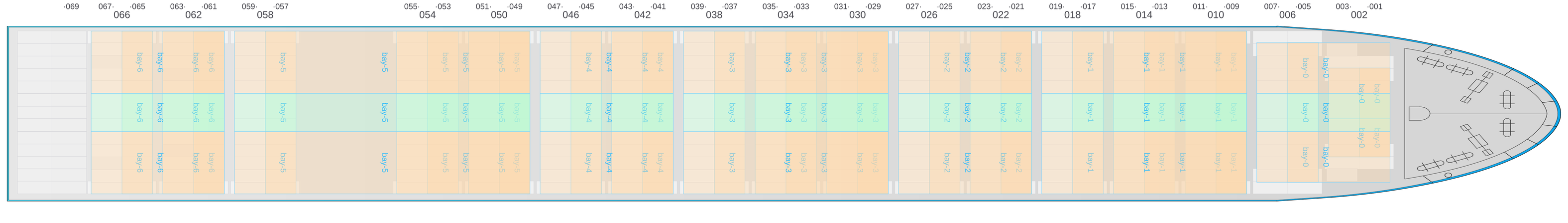

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

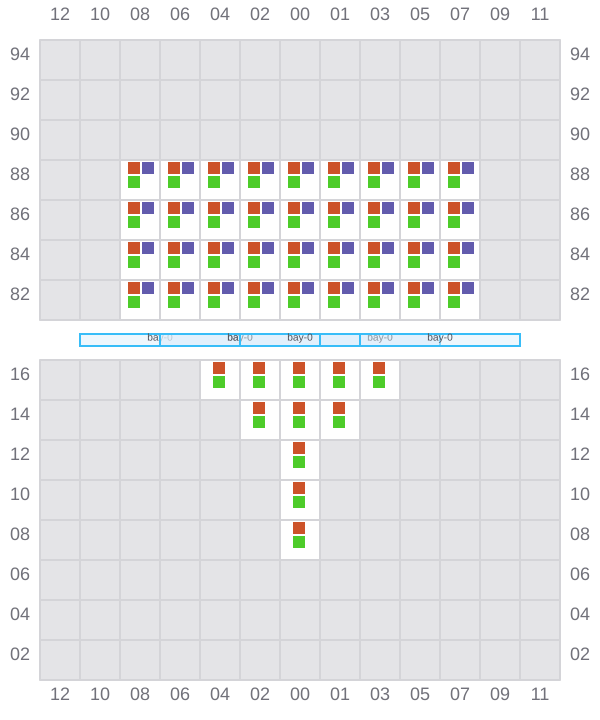

001 (002)
- →

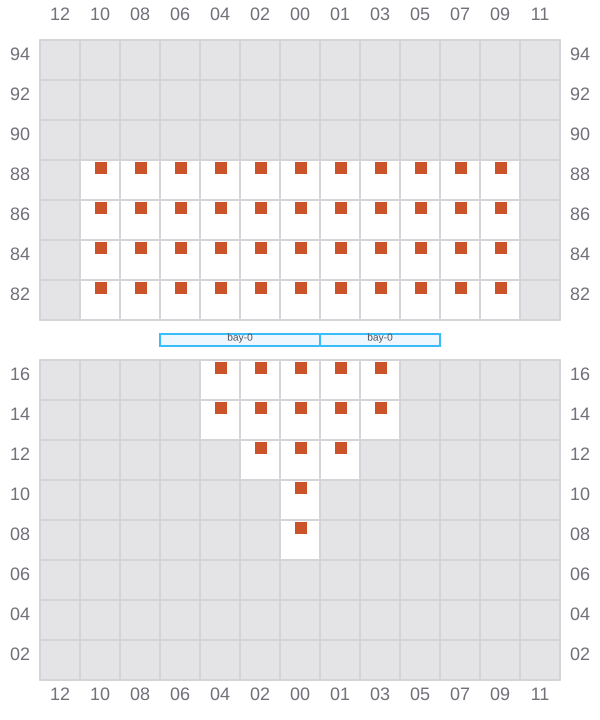

003
- ←

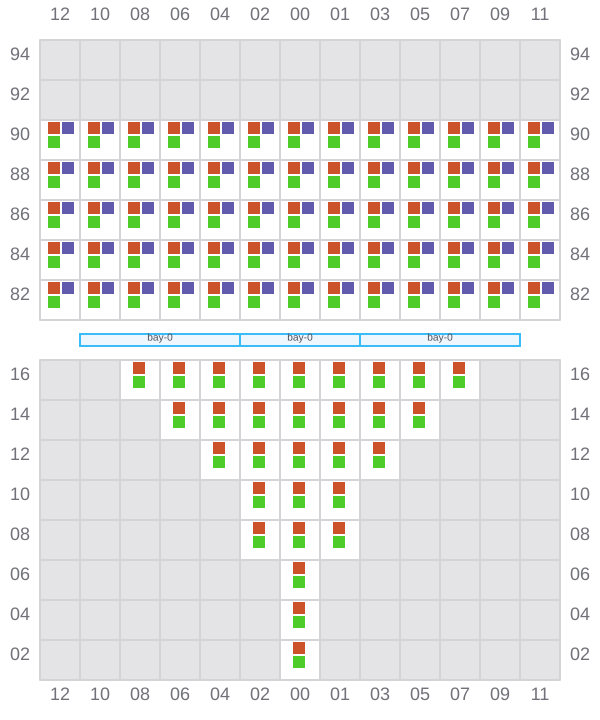

005 (006)
- →

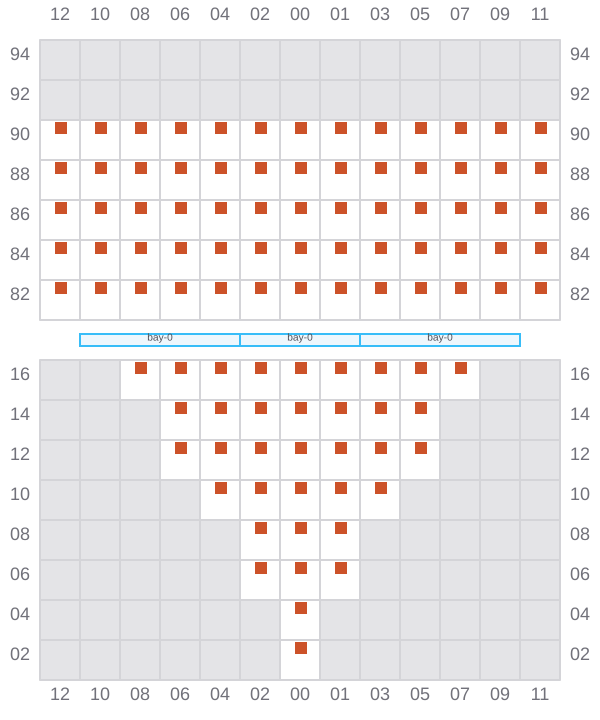

007
- ←
009 (010)
- →

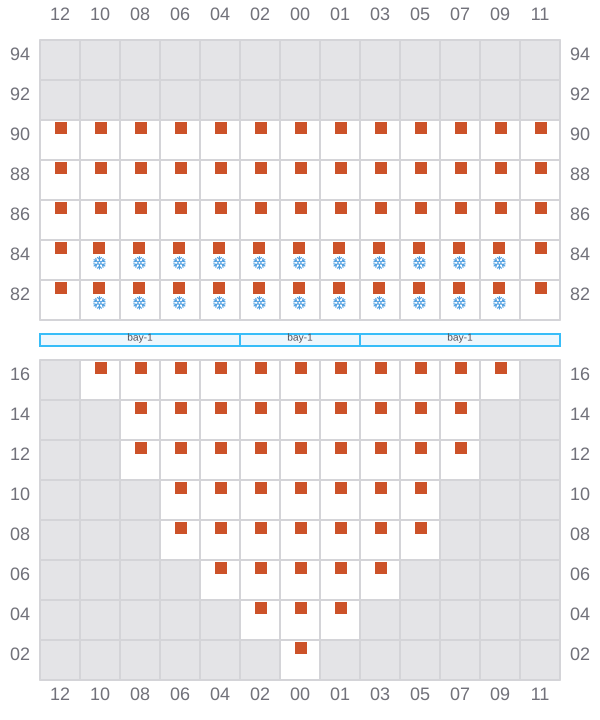

011
- ←

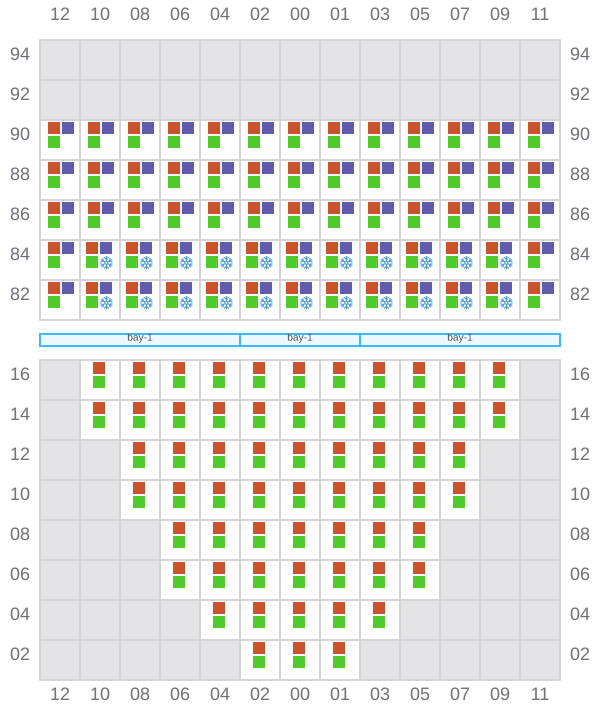

013 (014)
- →
015
- ←

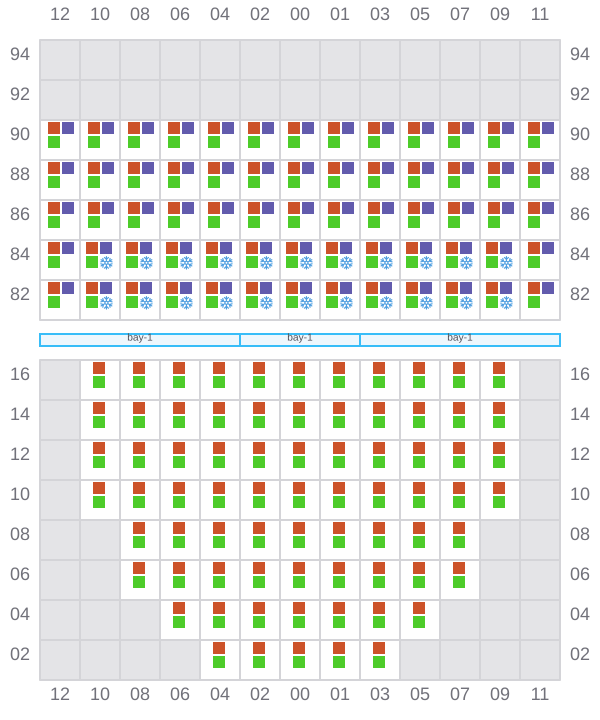

017 (018)
- →

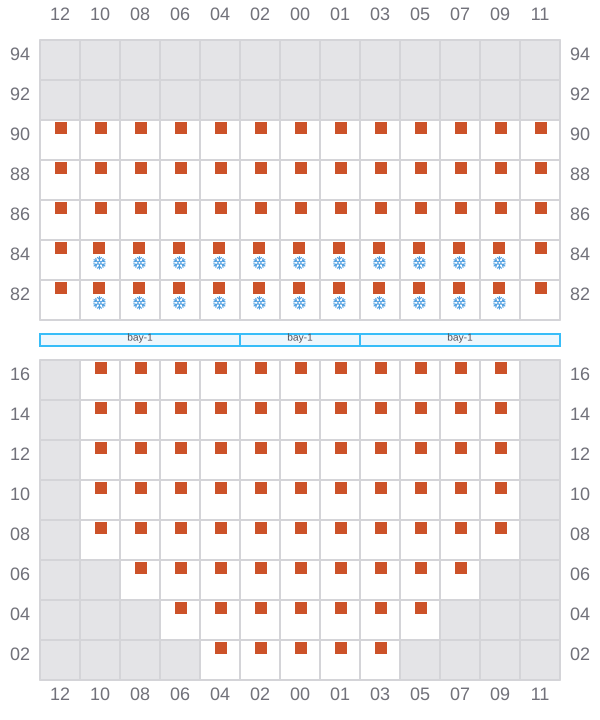

019
- ←

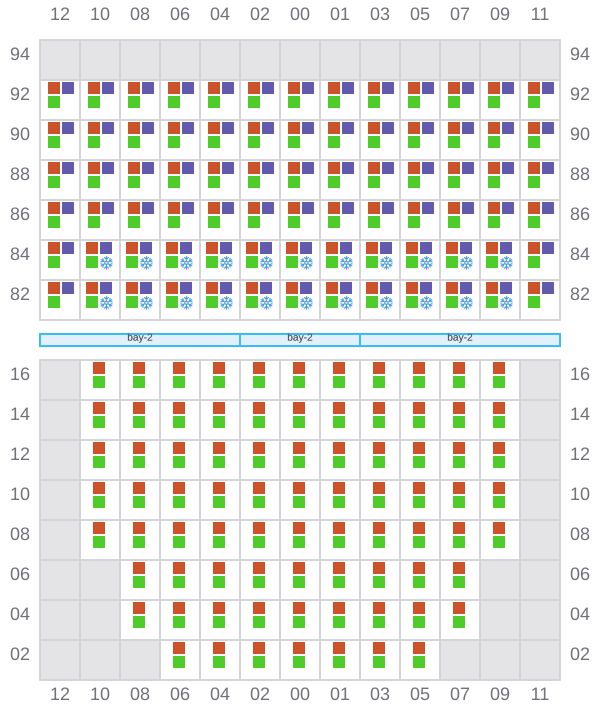

021 (022)
- →
023
- ←
025 (026)
- →

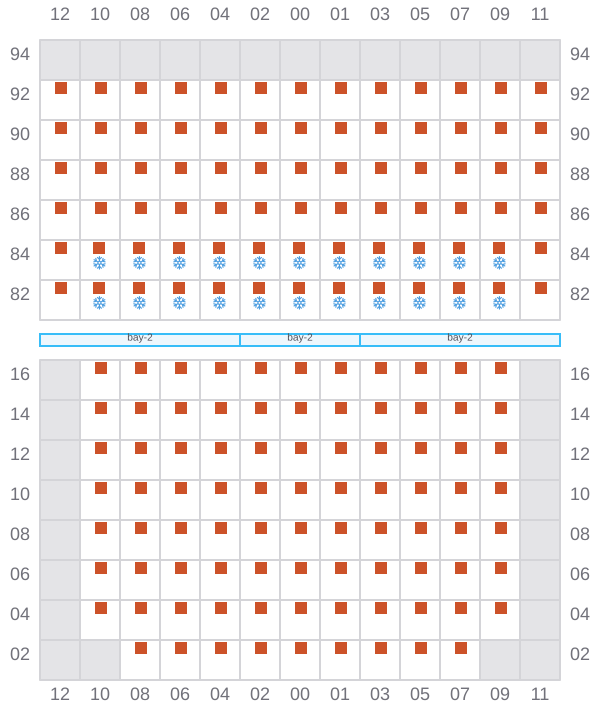

027
- ←
029 (030)
- →
031
- ←

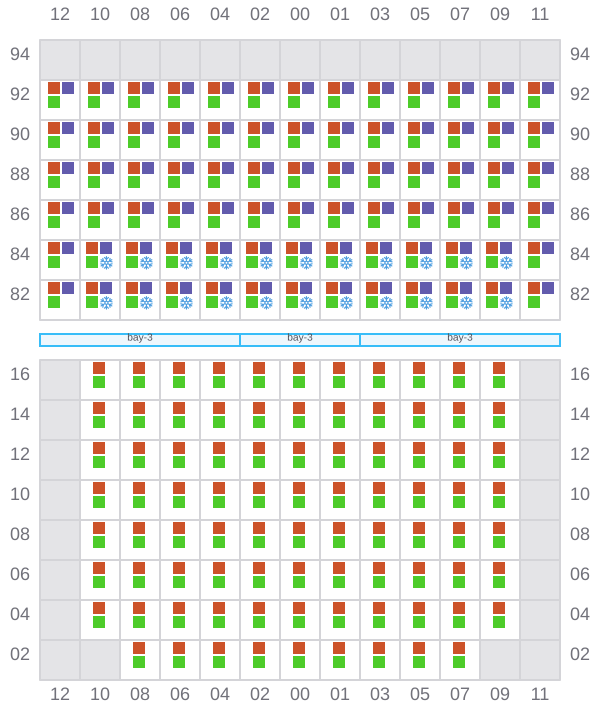

033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →

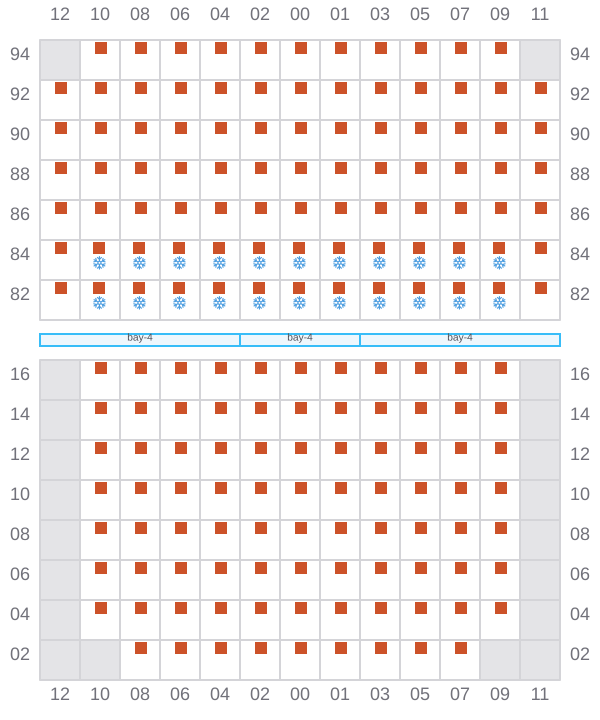

043
- ←

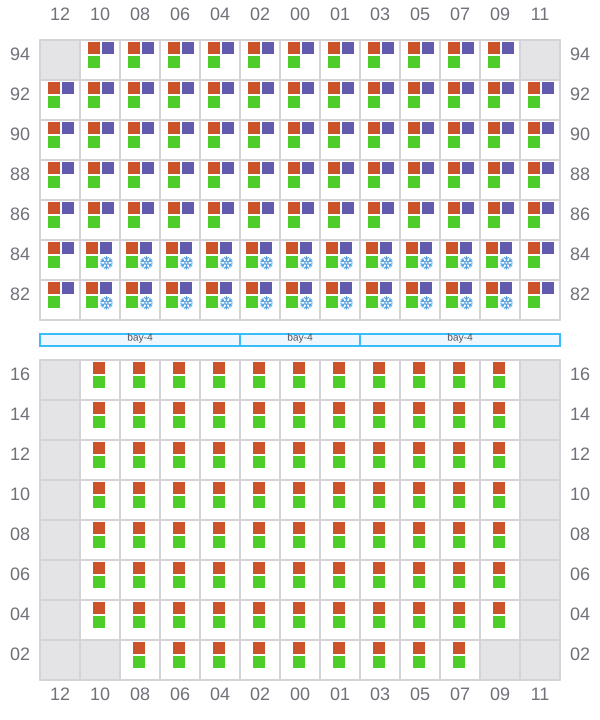

045 (046)
- →
047
- ←

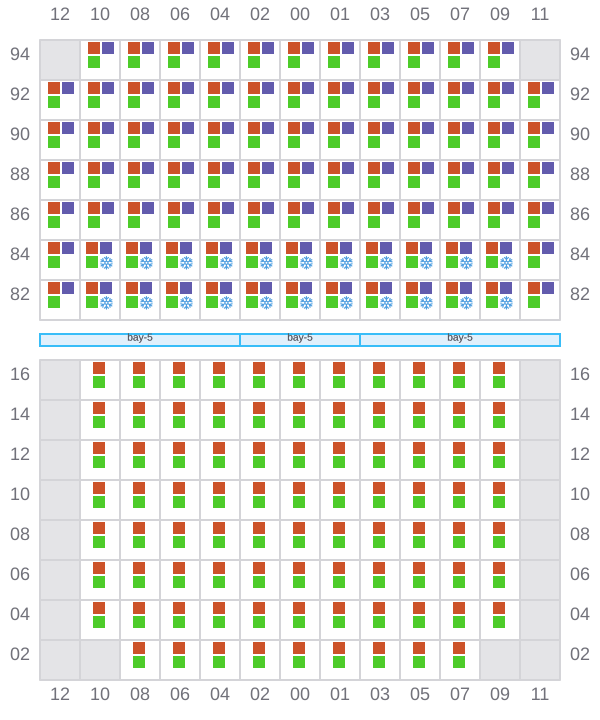

049 (050)
- →
051
- ←

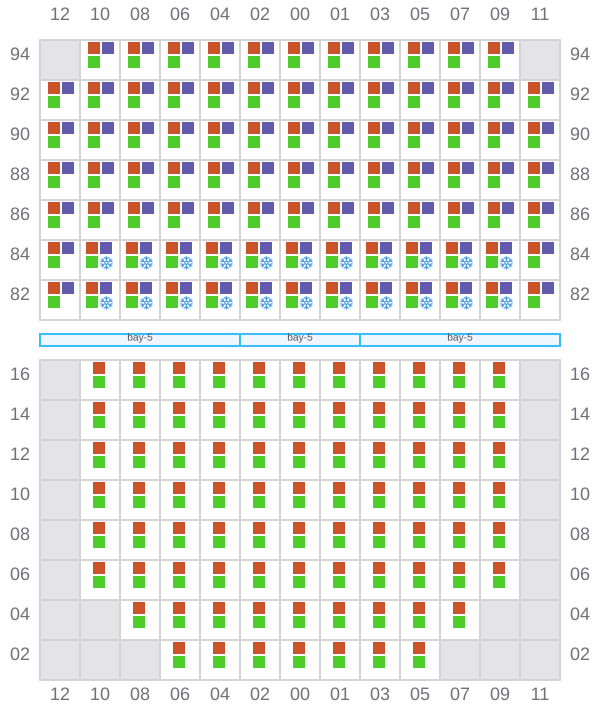

053 (054)
- →

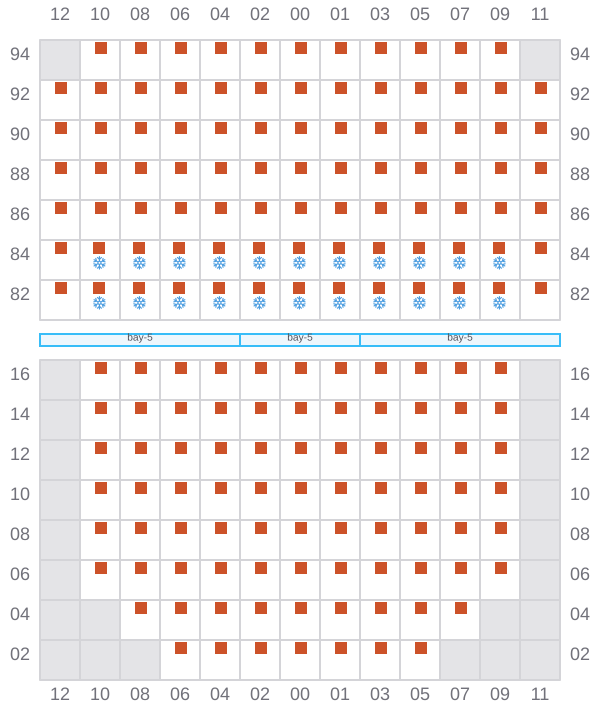

055
- ←

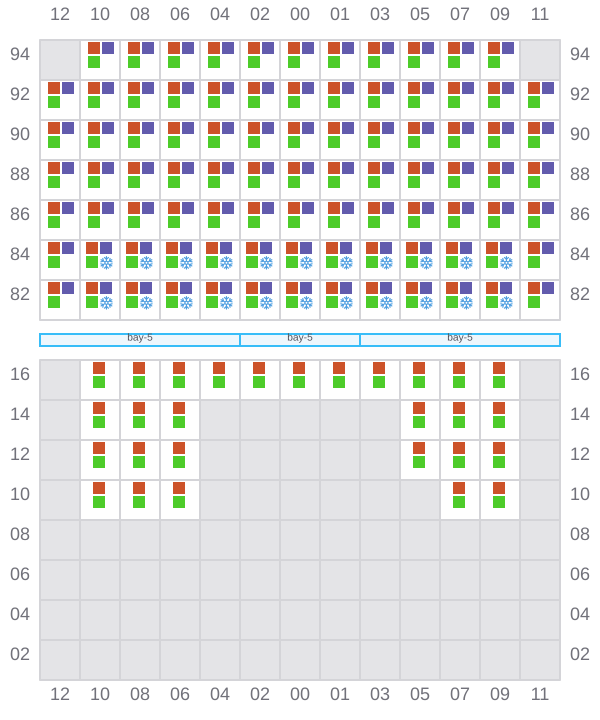

057 (058)
- →

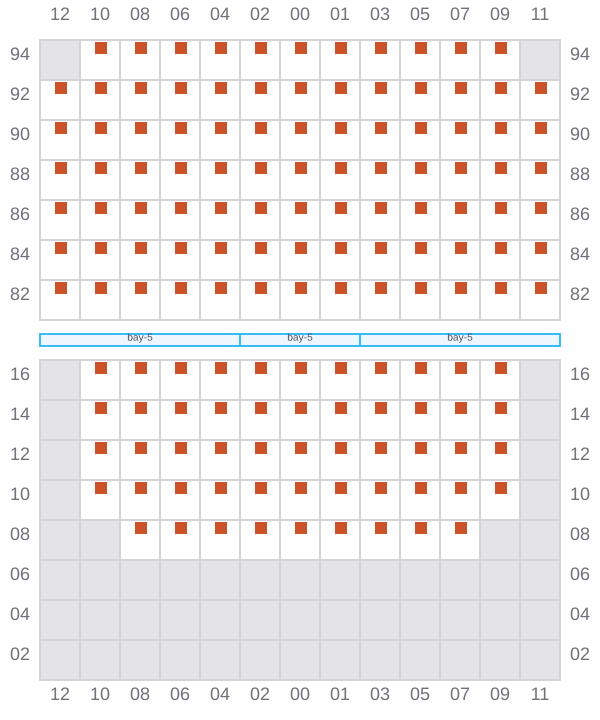

059
- ←

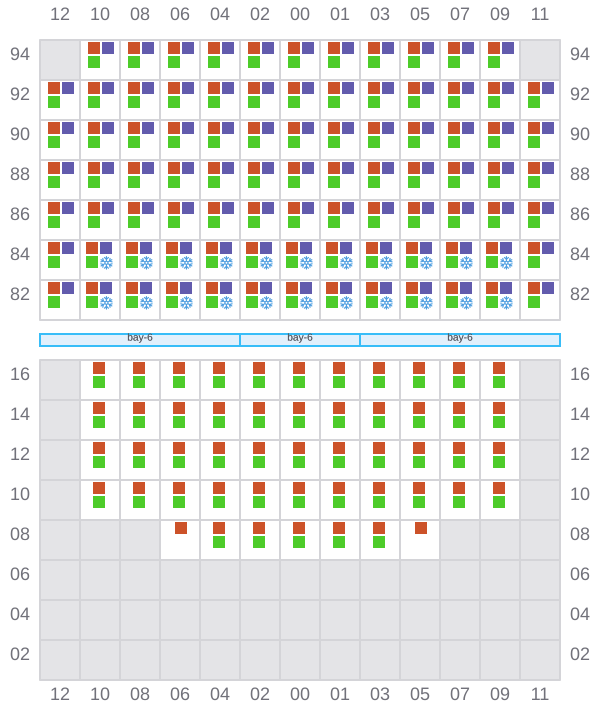

061 (062)
- →

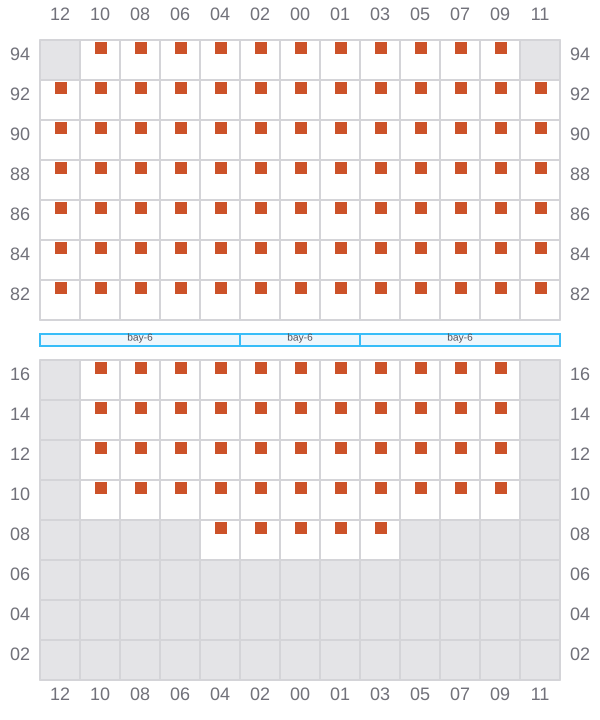

063
- ←

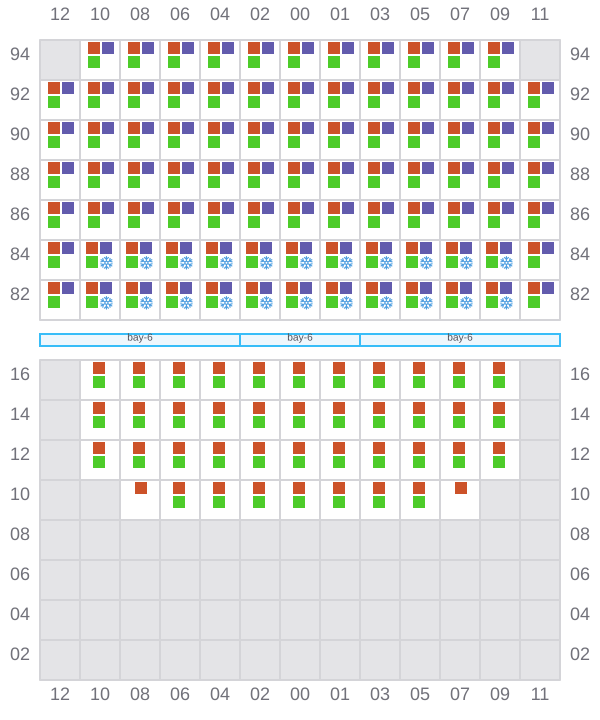

065 (066)
- →
067
- ←

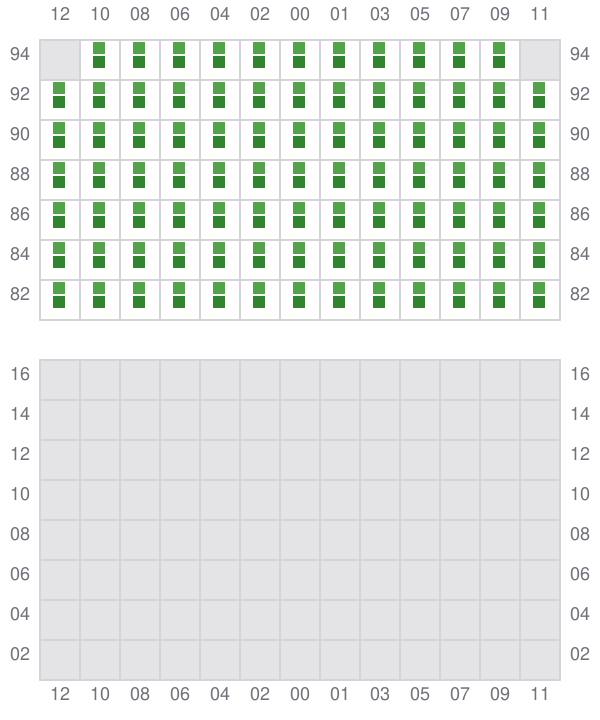

069 (070)
- → / ?
