SEASPAN EMISSARY
9407158 | VRFX6 | ONE by *********************** Last update: Tue Jan 28 2025

General Info

Ship Name:SEASPAN EMISSARY
IMO Code:9407158
Call Sign:VRFX6
Line Operator:ONE
Class Name for Sister Ships:MEMM
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.13
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,087

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of SEASPAN EMISSARY

Hatch-Covers View

Deck view of SEASPAN EMISSARY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →
Bay 001 view and slots of SEASPAN EMISSARY

003 (002)

  • ←
  • →
Bay 003 view and slots of SEASPAN EMISSARY

005

  • →
  • →
Bay 005 view and slots of SEASPAN EMISSARY

007 (006)

  • ←
  • →
Bay 007 view and slots of SEASPAN EMISSARY

009

  • →
  • →
Bay 009 view and slots of SEASPAN EMISSARY

011 (010)

  • ←
  • → / ?
  • →
Bay 011 view and slots of SEASPAN EMISSARY

013

  • →
  • →
Bay 013 view and slots of SEASPAN EMISSARY

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of SEASPAN EMISSARY

017

  • →
  • →
Bay 017 view and slots of SEASPAN EMISSARY

019 (018)

  • ←
  • → / ?
  • →
Bay 019 view and slots of SEASPAN EMISSARY

021

  • →
  • →
Bay 021 view and slots of SEASPAN EMISSARY

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of SEASPAN EMISSARY

025

  • →
  • →
Bay 025 view and slots of SEASPAN EMISSARY

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of SEASPAN EMISSARY

029

  • →
  • →
Bay 029 view and slots of SEASPAN EMISSARY

031 (030)

  • ←
  • → / ?
  • →

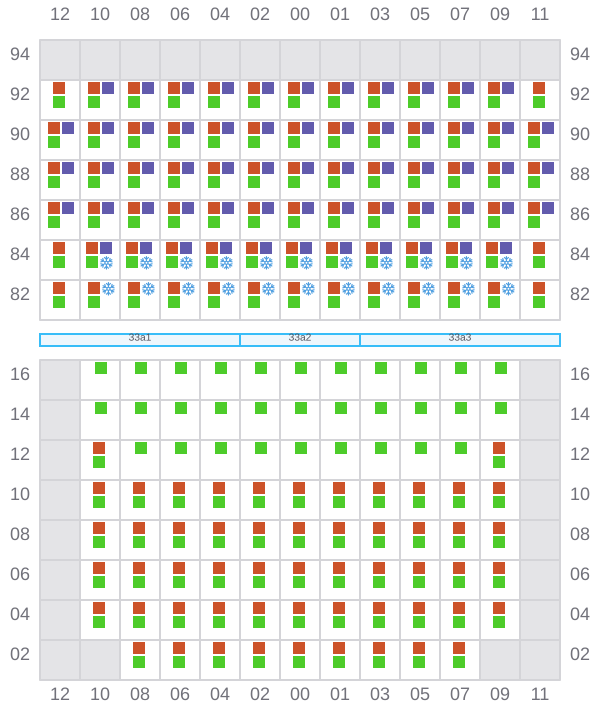

Bay 031 view and slots of SEASPAN EMISSARY

033

  • →
  • →

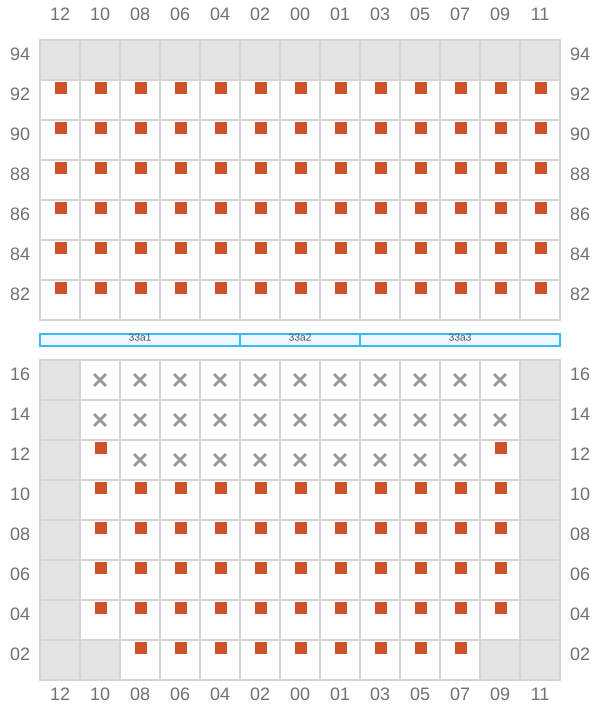

Bay 033 view and slots of SEASPAN EMISSARY

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of SEASPAN EMISSARY

037

  • →
  • →

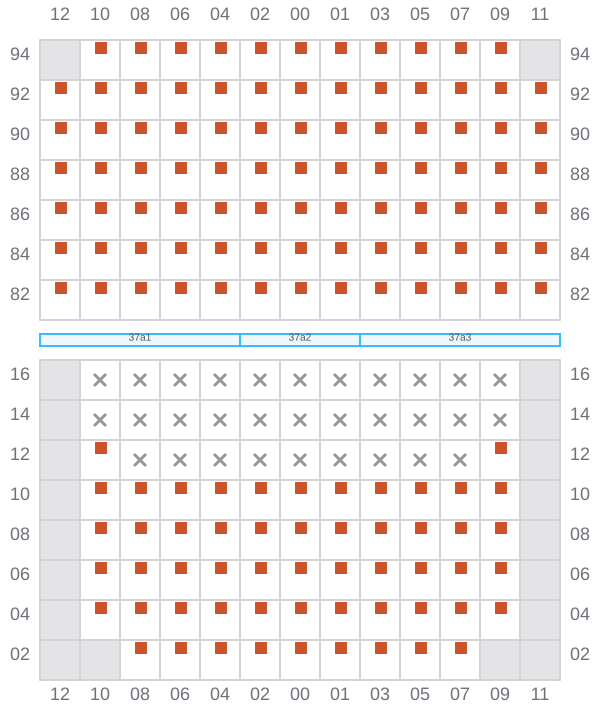

Bay 037 view and slots of SEASPAN EMISSARY

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of SEASPAN EMISSARY

041

  • →
  • →
Bay 041 view and slots of SEASPAN EMISSARY

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of SEASPAN EMISSARY

045

  • →
  • →

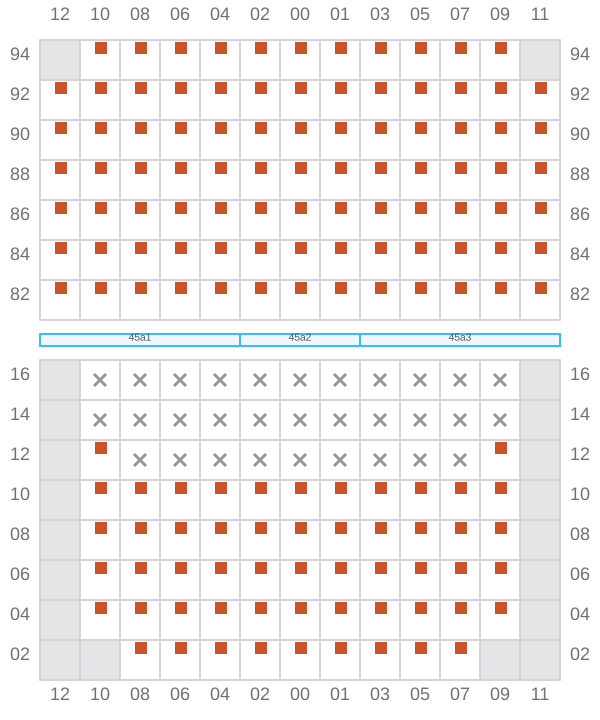

Bay 045 view and slots of SEASPAN EMISSARY

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of SEASPAN EMISSARY

049

  • →
  • →
Bay 049 view and slots of SEASPAN EMISSARY

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of SEASPAN EMISSARY

053

  • →
  • →

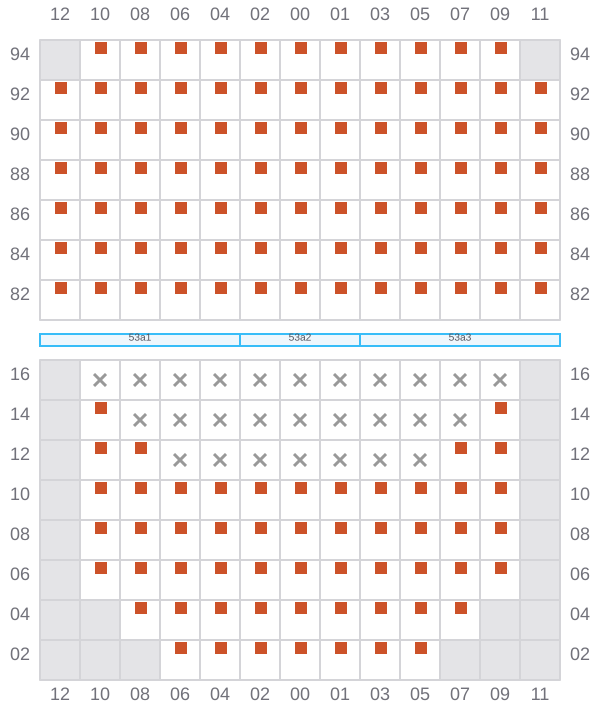

Bay 053 view and slots of SEASPAN EMISSARY

055 (054)

  • ←
  • → / ?
  • →

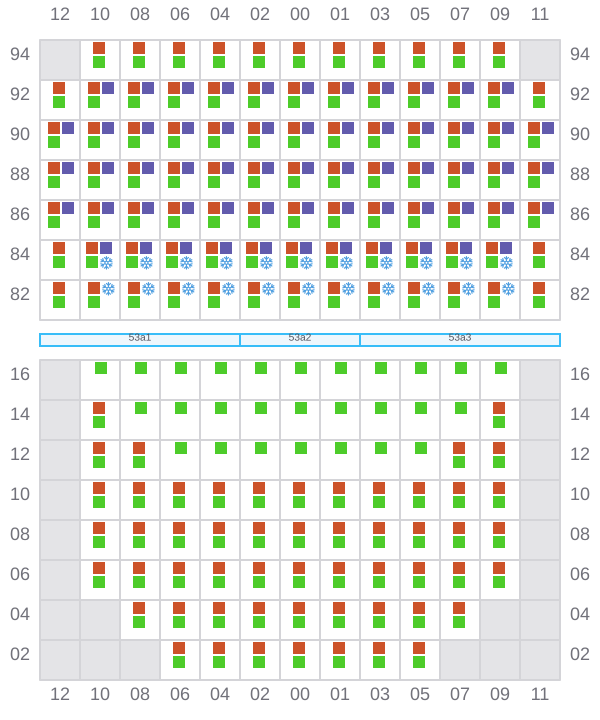

Bay 055 view and slots of SEASPAN EMISSARY

057

  • →
  • ← / ?
  • →
Bay 057 view and slots of SEASPAN EMISSARY

059 (058)

  • ←
  • →
Bay 059 view and slots of SEASPAN EMISSARY

061

  • →
  • ← / ?
  • →
Bay 061 view and slots of SEASPAN EMISSARY

063 (062)

  • ←
  • →
Bay 063 view and slots of SEASPAN EMISSARY

065

  • →
  • ← / ?
  • →
Bay 065 view and slots of SEASPAN EMISSARY

067 (066)

  • ←
  • →

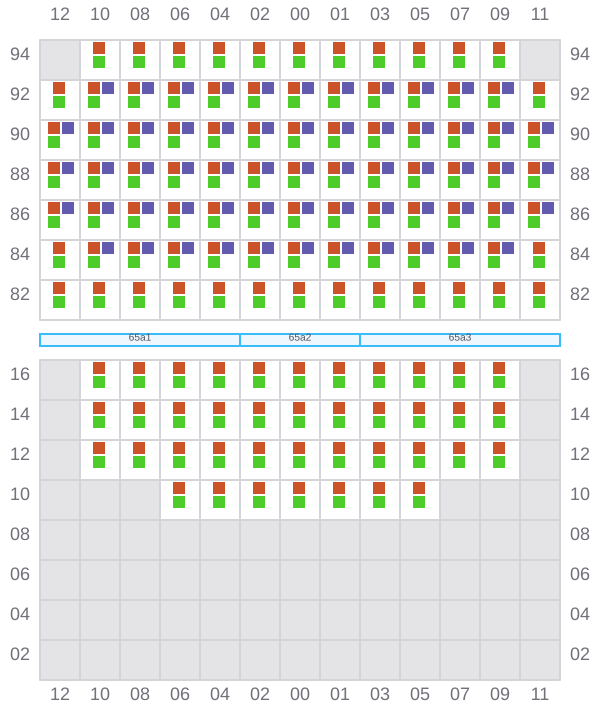

Bay 067 view and slots of SEASPAN EMISSARY

069 (070)

  • → / ?
  • → / ?
Bay 069 view and slots of SEASPAN EMISSARY
