SEASPAN EMPIRE
9407160 | VRGE7 | 9407160 by ************************** Last update: Tue Sep 10 2024

General Info

Ship Name:SEASPAN EMPIRE
IMO Code:9407160
Call Sign:VRGE7
Line Operator:9407160
Class Name for Sister Ships:MOL EMPIRE
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.13
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,087

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SEASPAN EMPIRE

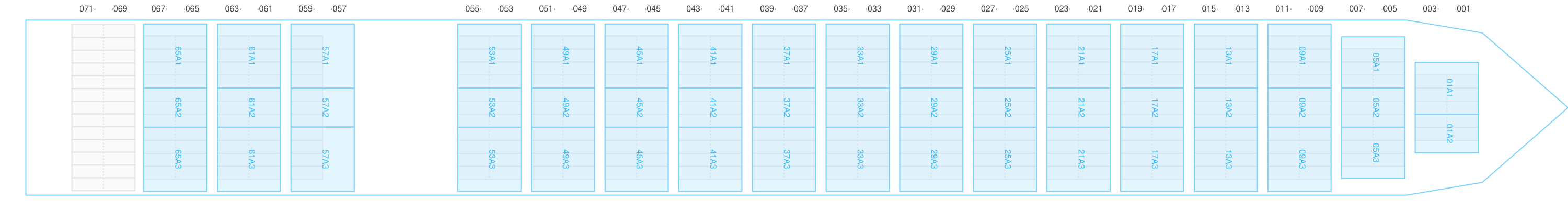

Hatch-Covers View

Deck view of SEASPAN EMPIRE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

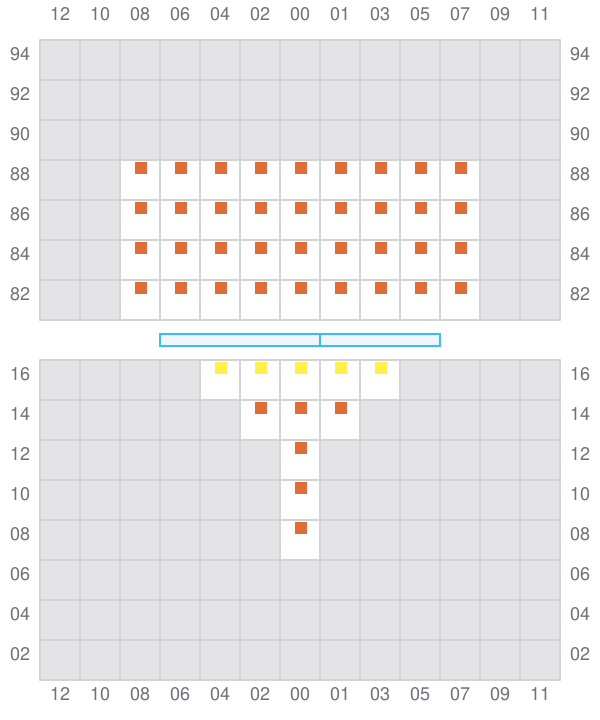

001

  • →
  • →
Bay 001 view and slots of SEASPAN EMPIRE

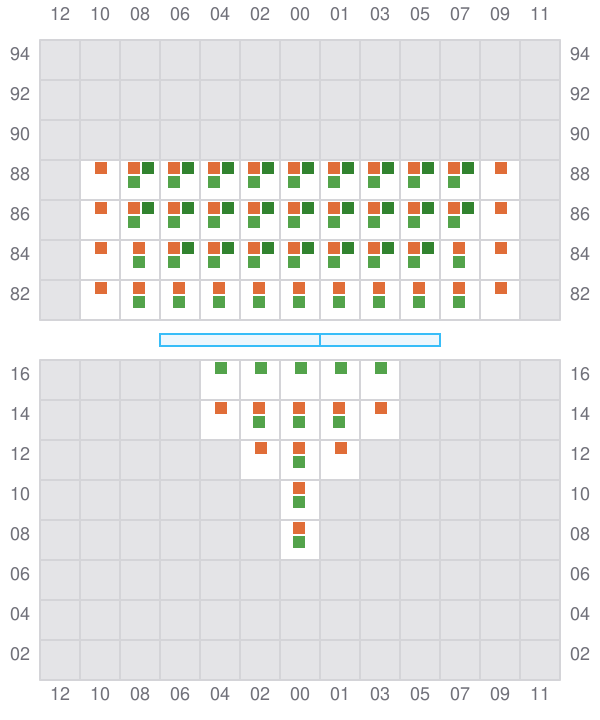

003 (002)

  • ←
  • →
Bay 003 view and slots of SEASPAN EMPIRE

005

  • →
  • →
Bay 005 view and slots of SEASPAN EMPIRE

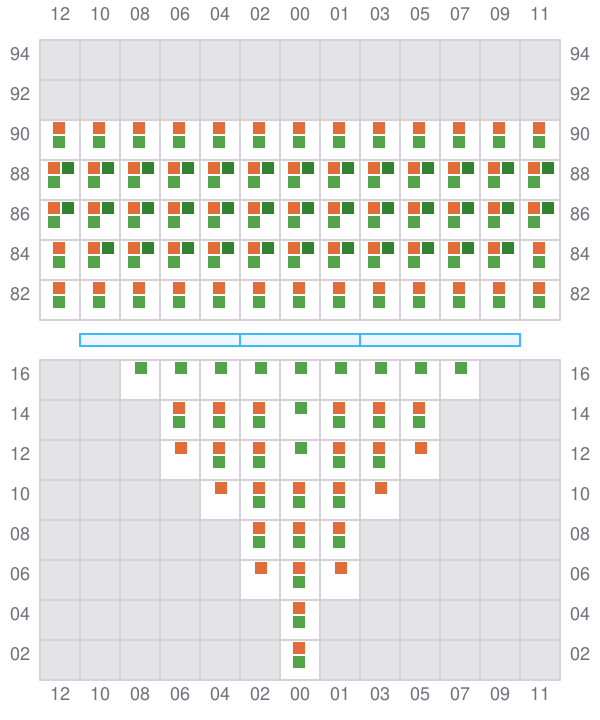

007 (006)

  • ←
  • →
Bay 007 view and slots of SEASPAN EMPIRE

009

  • →
  • →
Bay 009 view and slots of SEASPAN EMPIRE

011 (010)

  • ←
  • → / ?
  • →
Bay 011 view and slots of SEASPAN EMPIRE

013

  • →
  • →
Bay 013 view and slots of SEASPAN EMPIRE

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of SEASPAN EMPIRE

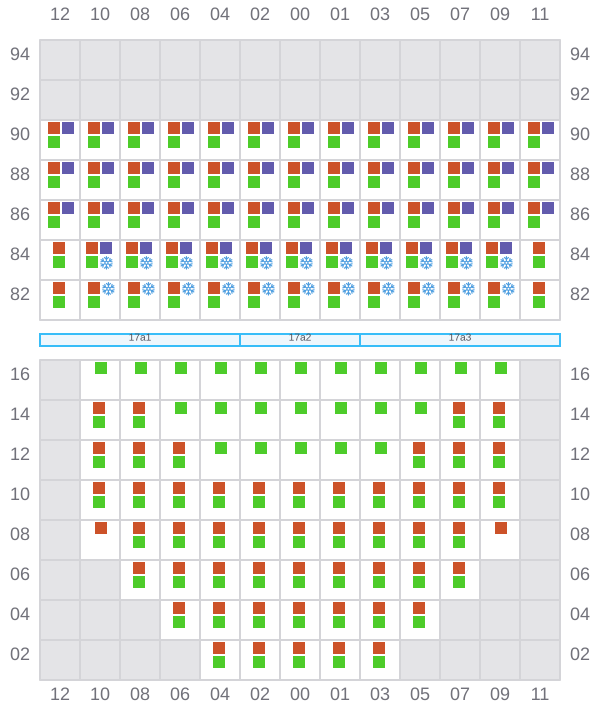

017

  • →
  • →
Bay 017 view and slots of SEASPAN EMPIRE

019 (018)

  • ←
  • → / ?
  • →
Bay 019 view and slots of SEASPAN EMPIRE

021

  • →
  • →
Bay 021 view and slots of SEASPAN EMPIRE

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of SEASPAN EMPIRE

025

  • →
  • →
Bay 025 view and slots of SEASPAN EMPIRE

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of SEASPAN EMPIRE

029

  • →
  • →
Bay 029 view and slots of SEASPAN EMPIRE

031 (030)

  • ←
  • → / ?
  • →
Bay 031 view and slots of SEASPAN EMPIRE

033

  • →
  • →
Bay 033 view and slots of SEASPAN EMPIRE

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of SEASPAN EMPIRE

037

  • →
  • →
Bay 037 view and slots of SEASPAN EMPIRE

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of SEASPAN EMPIRE

041

  • →
  • →
Bay 041 view and slots of SEASPAN EMPIRE

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of SEASPAN EMPIRE

045

  • →
  • →
Bay 045 view and slots of SEASPAN EMPIRE

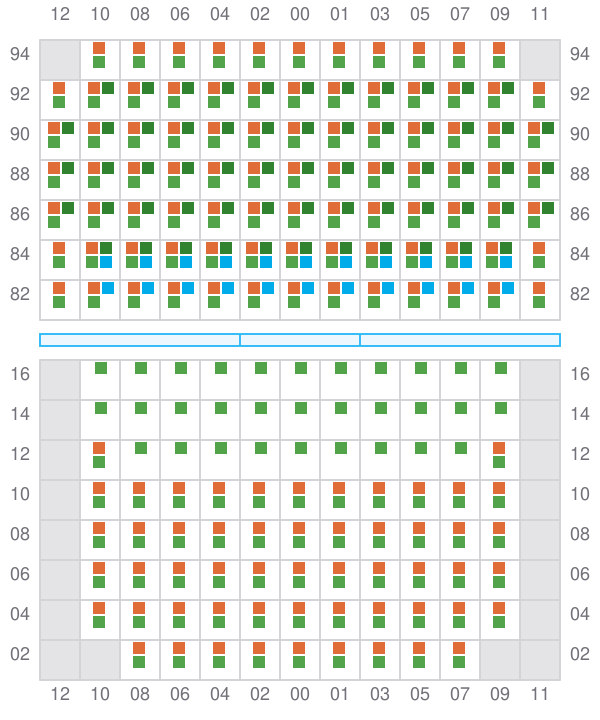

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of SEASPAN EMPIRE

049

  • →
  • →
Bay 049 view and slots of SEASPAN EMPIRE

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of SEASPAN EMPIRE

053

  • →
  • →
Bay 053 view and slots of SEASPAN EMPIRE

055 (054)

  • ←
  • → / ?
  • →
Bay 055 view and slots of SEASPAN EMPIRE

057

  • →
  • ← / ?
  • →
Bay 057 view and slots of SEASPAN EMPIRE

059 (058)

  • ←
  • →
Bay 059 view and slots of SEASPAN EMPIRE

061

  • →
  • ← / ?
  • →
Bay 061 view and slots of SEASPAN EMPIRE

063 (062)

  • ←
  • →
Bay 063 view and slots of SEASPAN EMPIRE

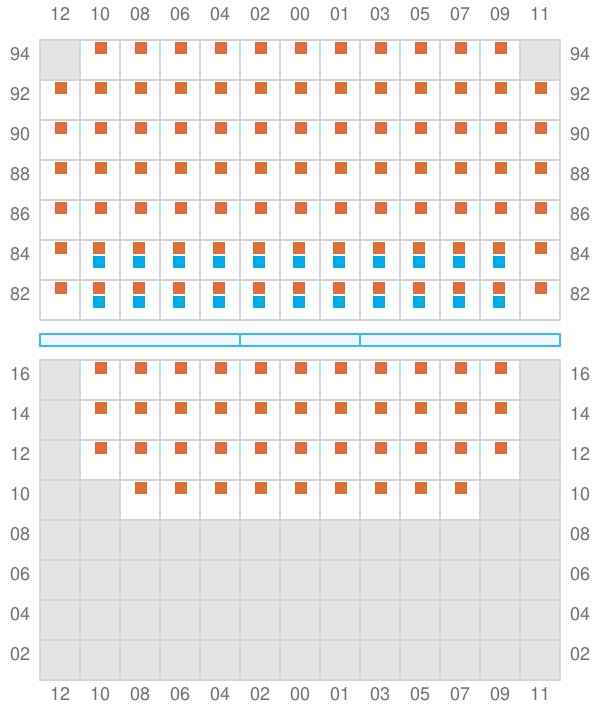

065

  • →
  • ← / ?
  • →
Bay 065 view and slots of SEASPAN EMPIRE

067 (066)

  • ←
  • →
Bay 067 view and slots of SEASPAN EMPIRE

069

  • → / ?
Bay 069 view and slots of SEASPAN EMPIRE

071 (070)

  • ← / ?
  • ← / ?
  • → / ?
Bay 071 view and slots of SEASPAN EMPIRE
