SEASPAN GUAYAQUIL
9402641 | VRGI8 | 940264 by ********* Last update: Mon Jul 01 2024

General Info

Ship Name:SEASPAN GUAYAQUIL
IMO Code:9402641
Call Sign:VRGI8
Line Operator:940264
Class Name for Sister Ships:MCC
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,560

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SEASPAN GUAYAQUIL

Hatch-Covers View

Deck view of SEASPAN GUAYAQUIL

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • ← / ?
Bay 001 view and slots of SEASPAN GUAYAQUIL

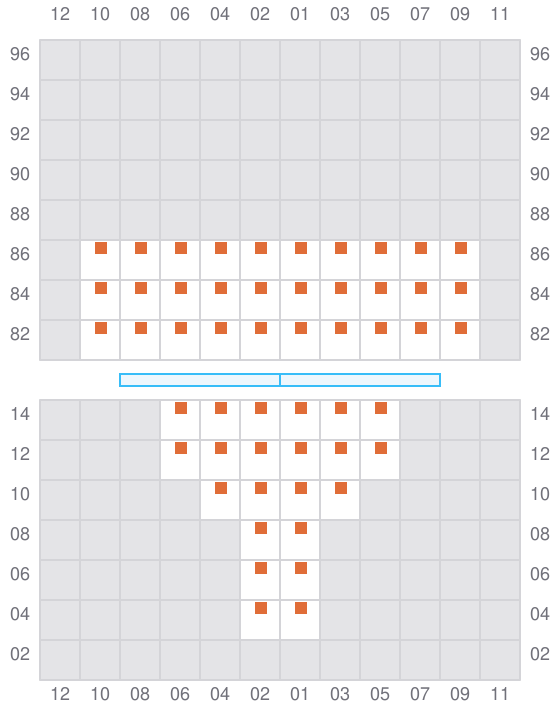

003

  • ←
  • → / ?
Bay 003 view and slots of SEASPAN GUAYAQUIL

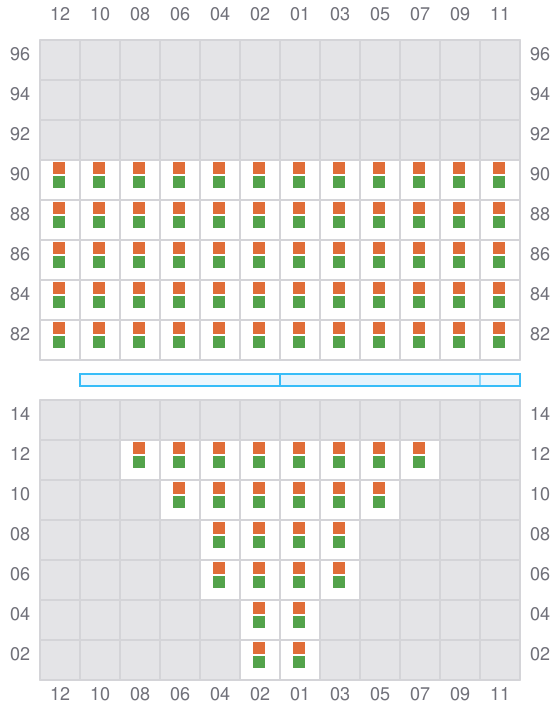

005 (006)

  • →
Bay 005 view and slots of SEASPAN GUAYAQUIL

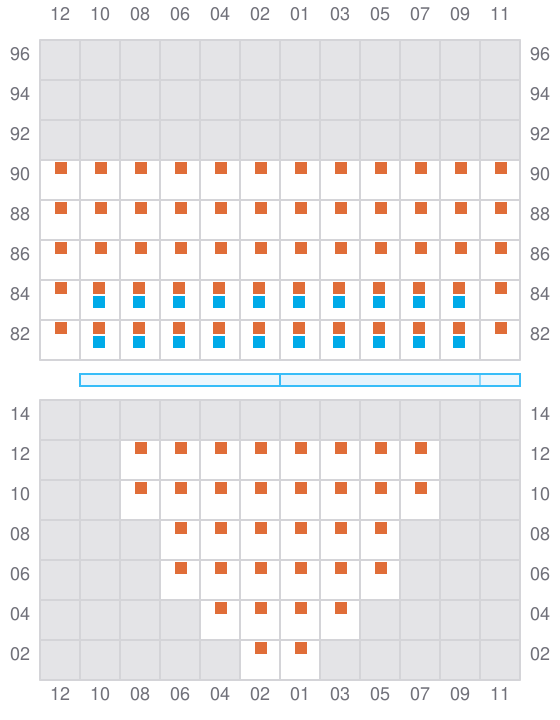

007

  • ←
  • → / ?
Bay 007 view and slots of SEASPAN GUAYAQUIL

009 (010)

  • →
  • ← / ?

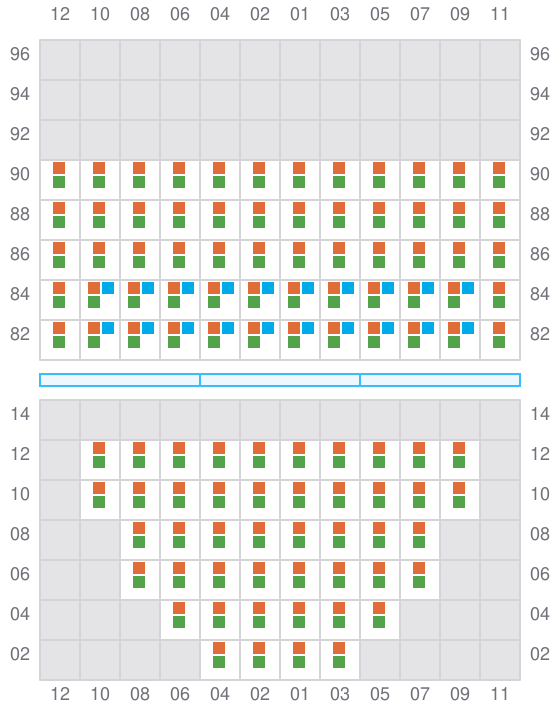

Bay 009 view and slots of SEASPAN GUAYAQUIL

011

  • ←

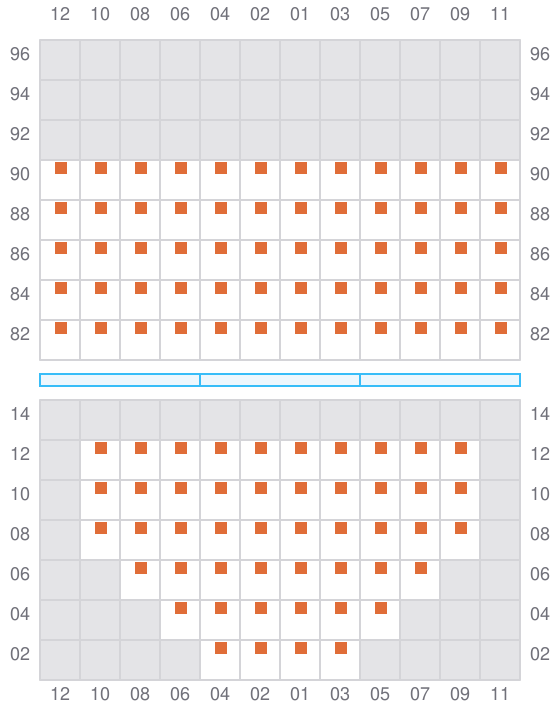

Bay 011 view and slots of SEASPAN GUAYAQUIL

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of SEASPAN GUAYAQUIL

015

  • ←

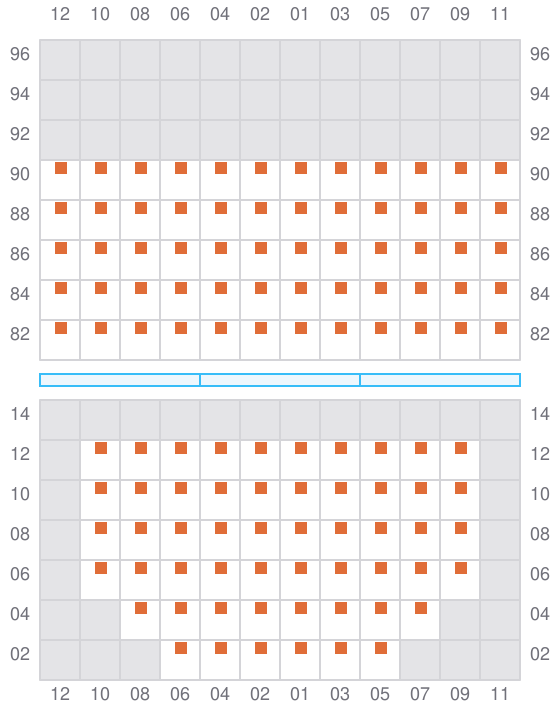

Bay 015 view and slots of SEASPAN GUAYAQUIL

017 (018)

  • →

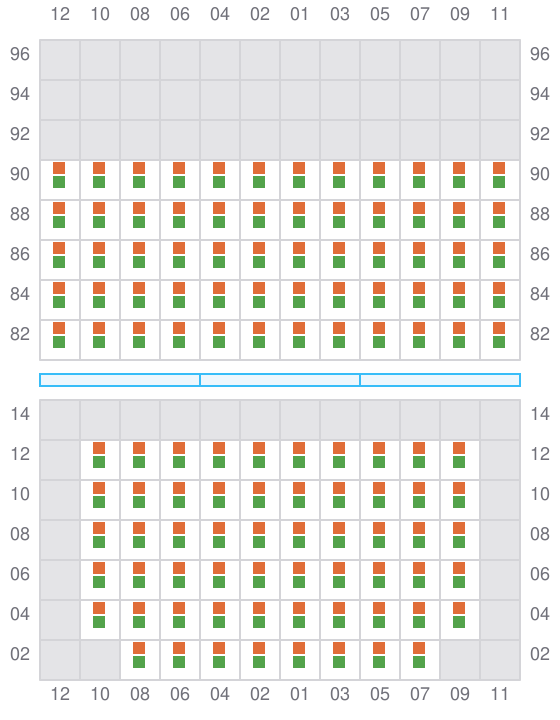

Bay 017 view and slots of SEASPAN GUAYAQUIL

019

  • ←
  • →

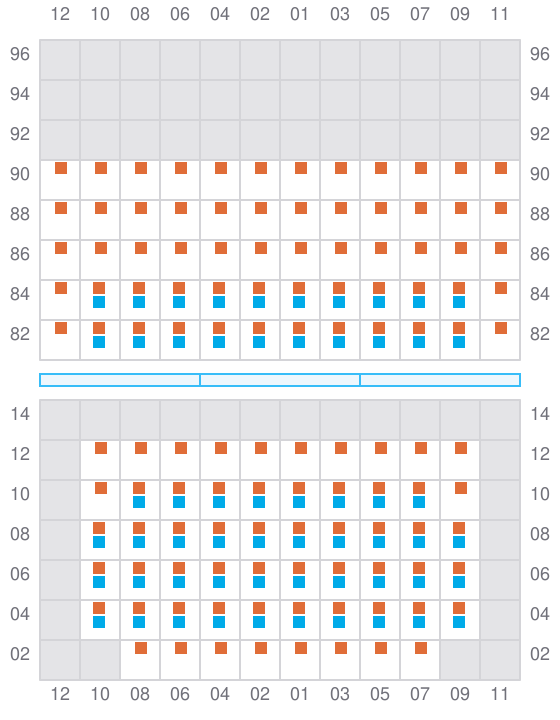

Bay 019 view and slots of SEASPAN GUAYAQUIL

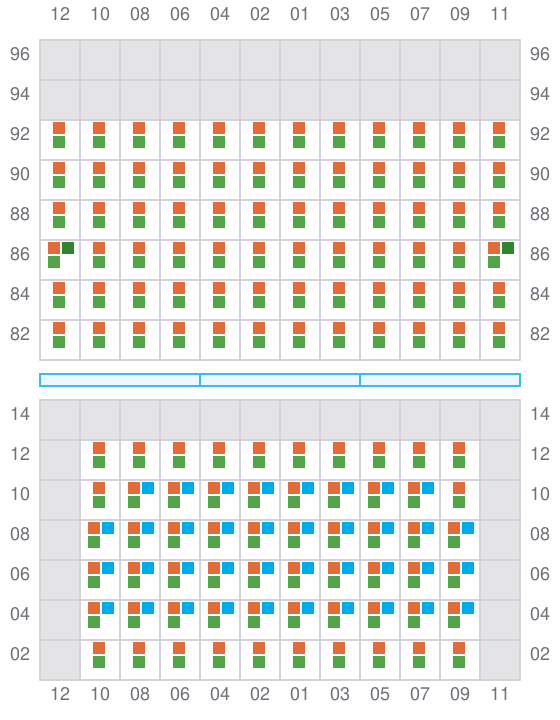

021 (022)

  • →
  • ? / ←
Bay 021 view and slots of SEASPAN GUAYAQUIL

023

  • ←
  • → / ?
Bay 023 view and slots of SEASPAN GUAYAQUIL

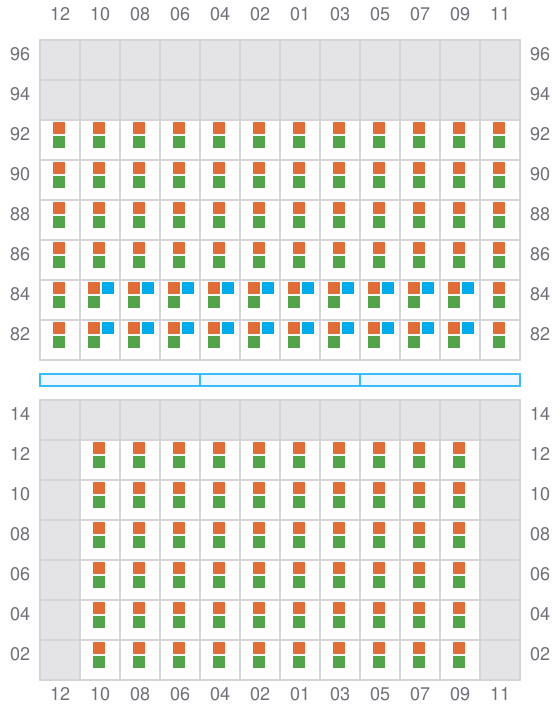

025 (026)

  • →
  • ←

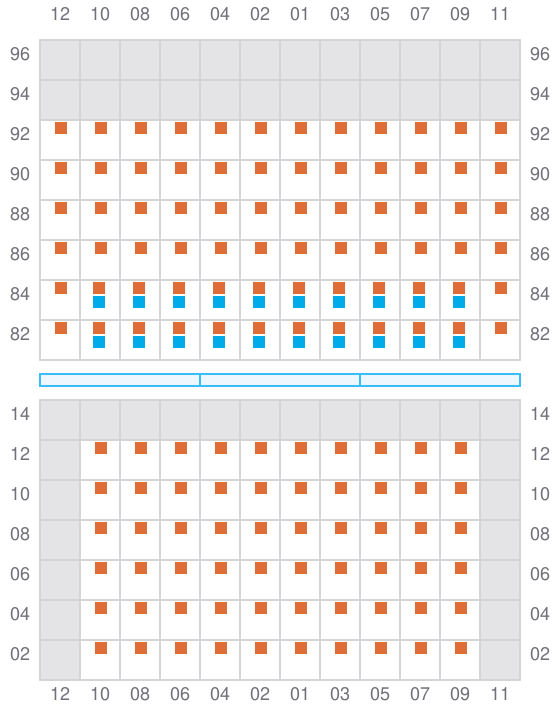

Bay 025 view and slots of SEASPAN GUAYAQUIL

027

  • ←
Bay 027 view and slots of SEASPAN GUAYAQUIL

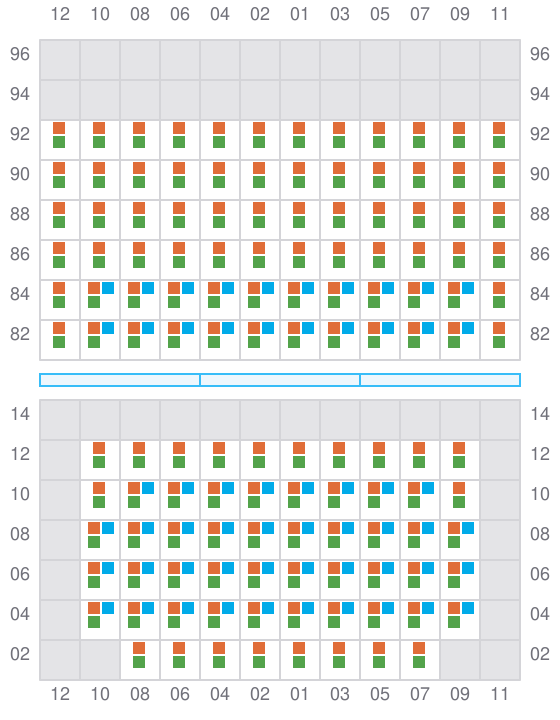

029 (030)

  • →
  • ←
Bay 029 view and slots of SEASPAN GUAYAQUIL

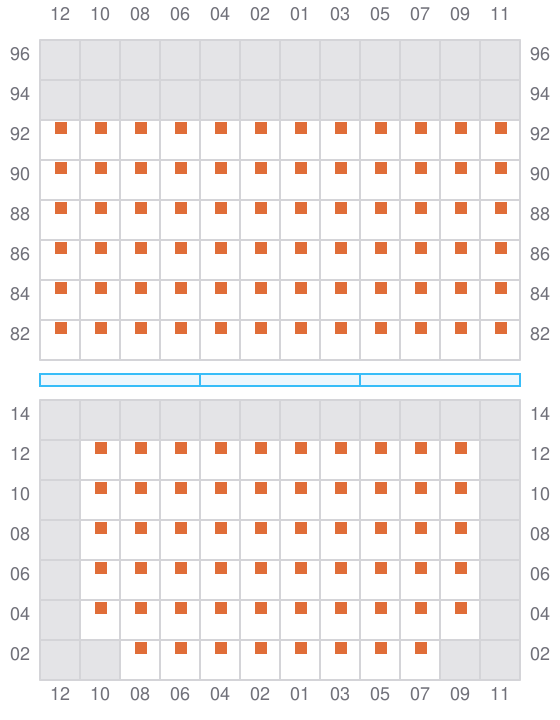

031

  • ←

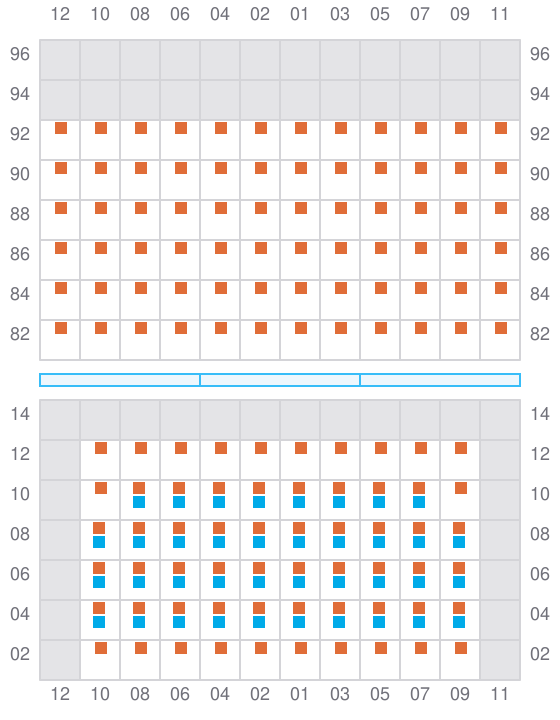

Bay 031 view and slots of SEASPAN GUAYAQUIL

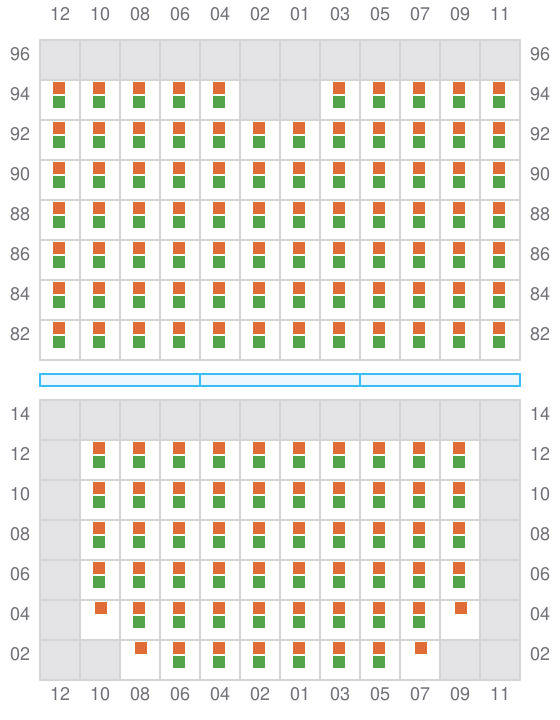

033 (034)

  • →
Bay 033 view and slots of SEASPAN GUAYAQUIL

035

  • ←
  • →
Bay 035 view and slots of SEASPAN GUAYAQUIL

037 (038)

  • →

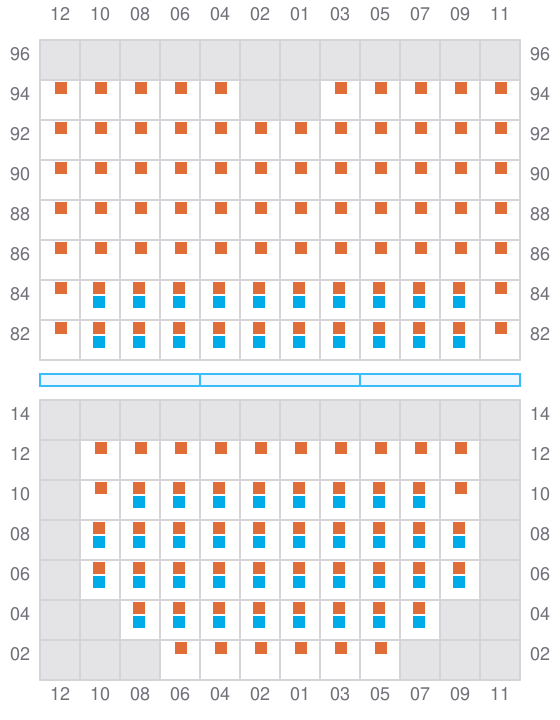

Bay 037 view and slots of SEASPAN GUAYAQUIL

039

  • ←
  • → / ?
Bay 039 view and slots of SEASPAN GUAYAQUIL

041

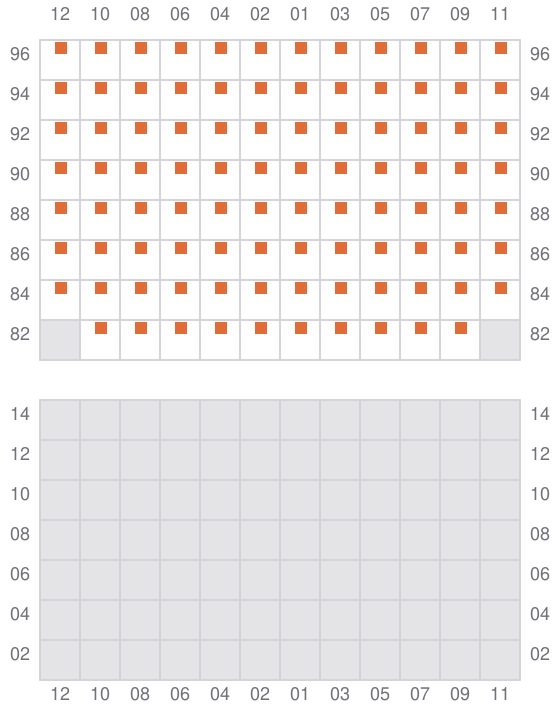

Bay 041 view and slots of SEASPAN GUAYAQUIL

043 (044)

  • → / ?
Bay 043 view and slots of SEASPAN GUAYAQUIL

045

  • ← / ?
  • → / ?

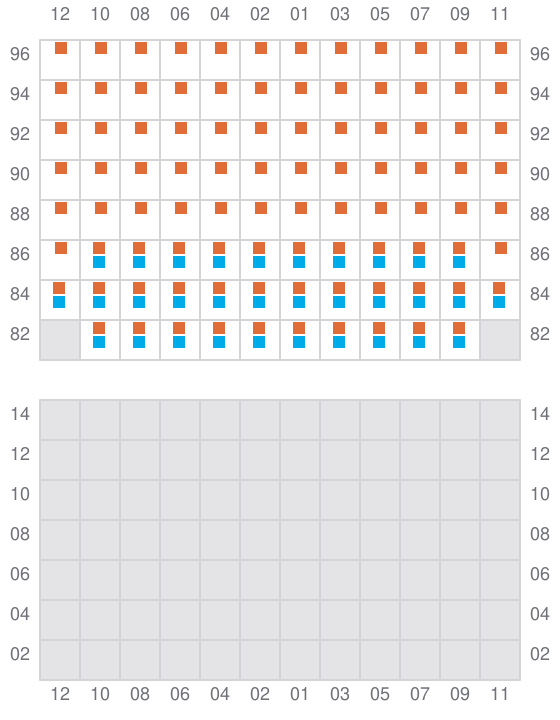

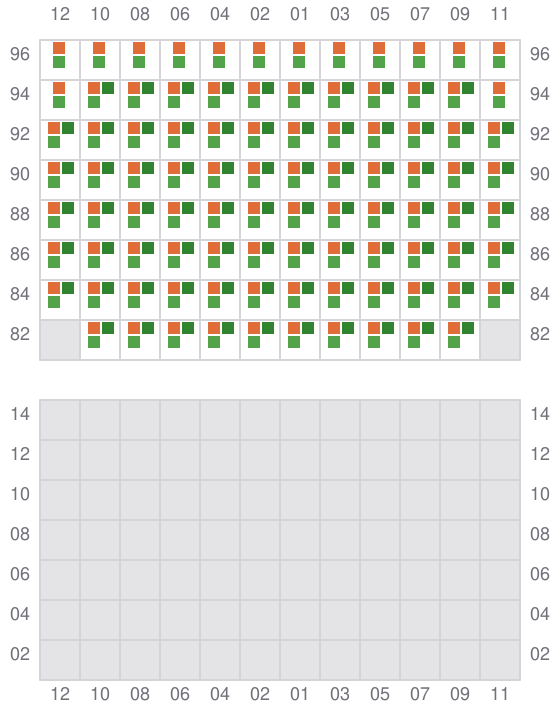

Bay 045 view and slots of SEASPAN GUAYAQUIL
