SEASPAN HAMBURG
9224300 | VRBH6 | 9224300 by ********* Last update: Fri May 10 2024

General Info

Ship Name:SEASPAN HAMBURG

IMO Code:9224300

Call Sign:VRBH6

Line Operator:9224300

Class Name for Sister Ships:CSCL HAMBURGE

Year Built:2001

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:063

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:92

Min Above ISO Tier:80

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,051

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of SEASPAN HAMBURG

Hatch-Covers View

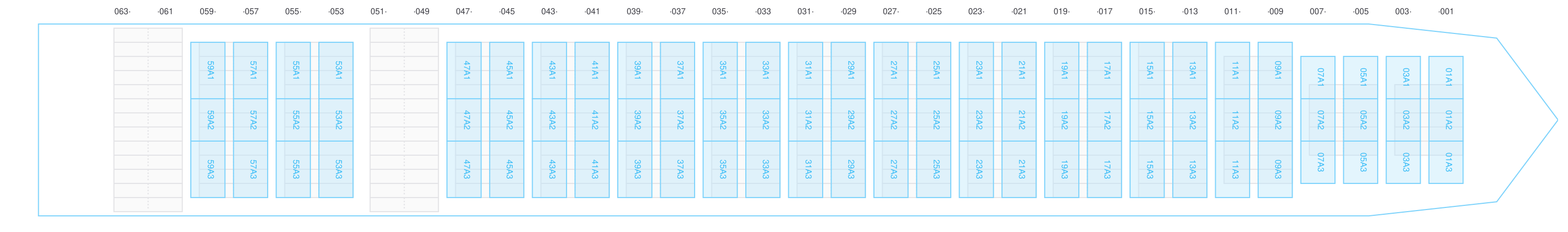

Deck view of SEASPAN HAMBURG

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

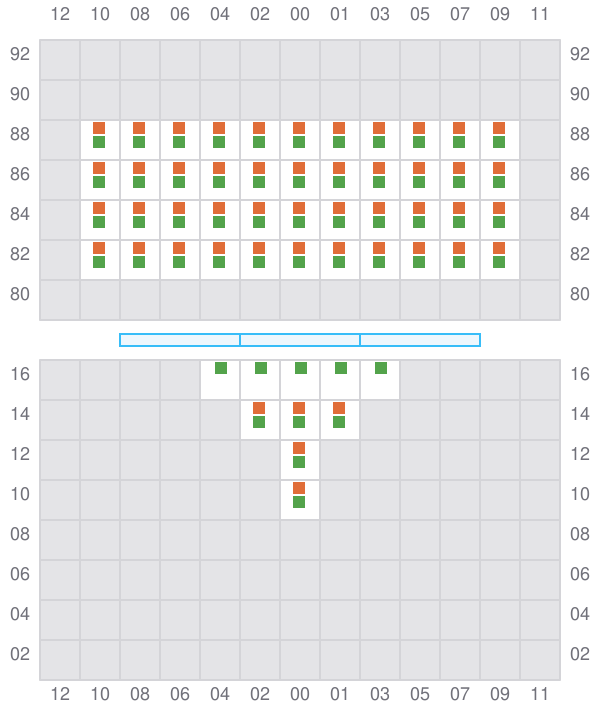

Bay 001 view and slots of SEASPAN HAMBURG

003

←

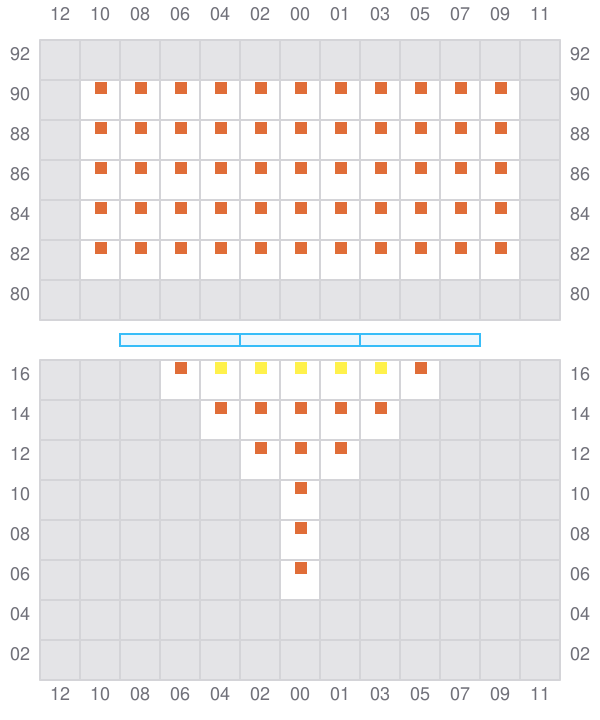

Bay 003 view and slots of SEASPAN HAMBURG

005 (006)

→
^→ / _?

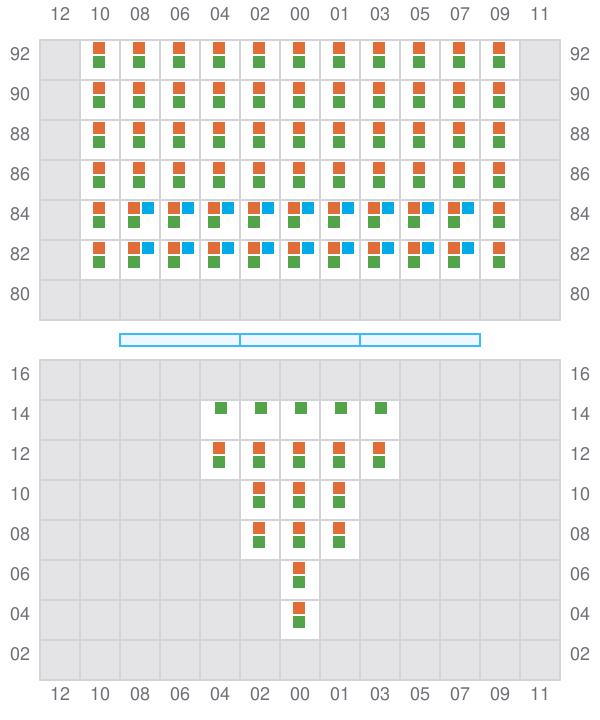

Bay 005 view and slots of SEASPAN HAMBURG

007

←

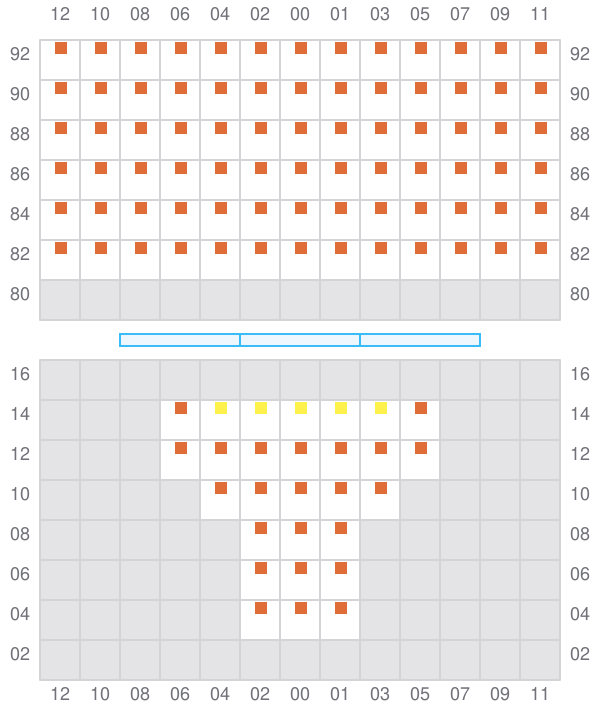

Bay 007 view and slots of SEASPAN HAMBURG

009 (010)

→
^→ / _?

Bay 009 view and slots of SEASPAN HAMBURG

011

←

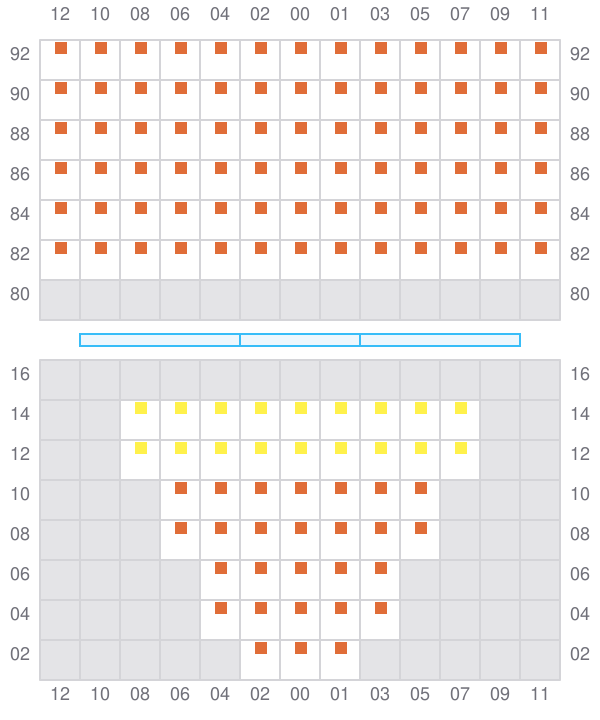

Bay 011 view and slots of SEASPAN HAMBURG

013 (014)

→
^→ / _?

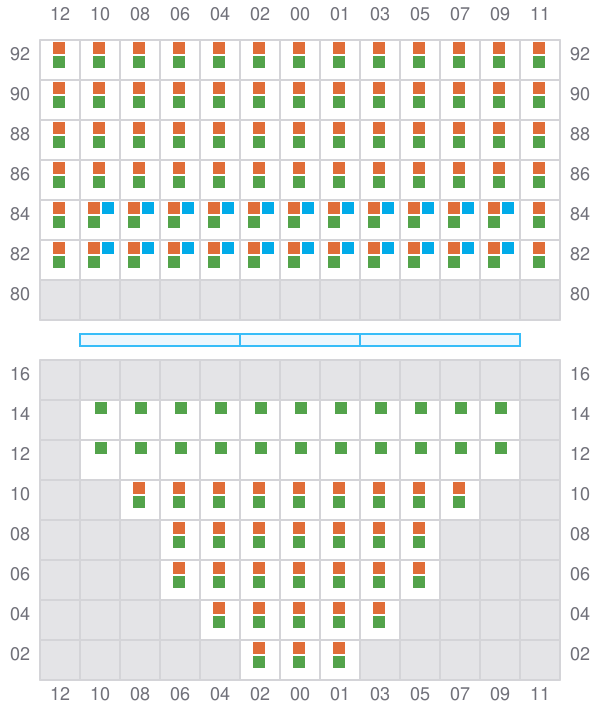

Bay 013 view and slots of SEASPAN HAMBURG

015

←

Bay 015 view and slots of SEASPAN HAMBURG

017 (018)

→
^→ / _?

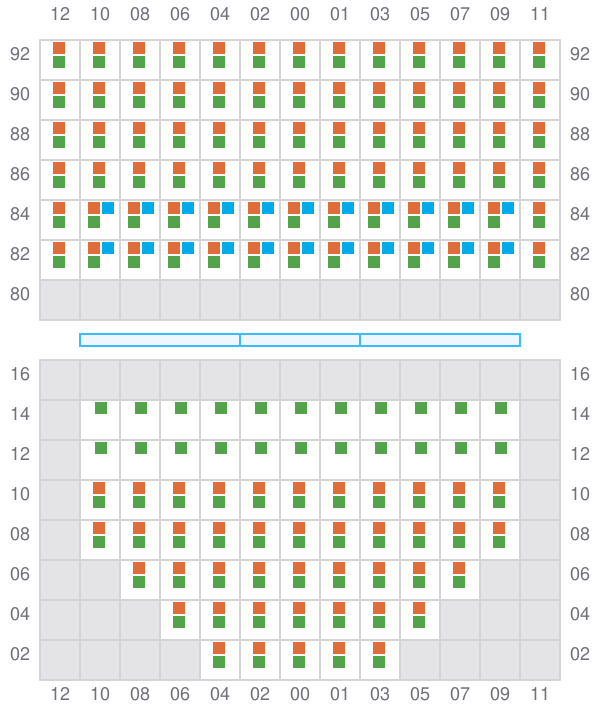

Bay 017 view and slots of SEASPAN HAMBURG

019

←

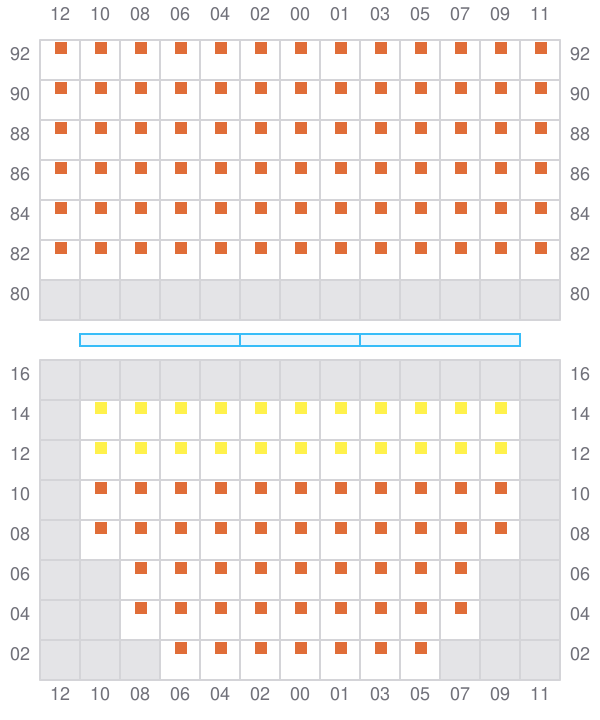

Bay 019 view and slots of SEASPAN HAMBURG

021 (022)

→
^→ / _?

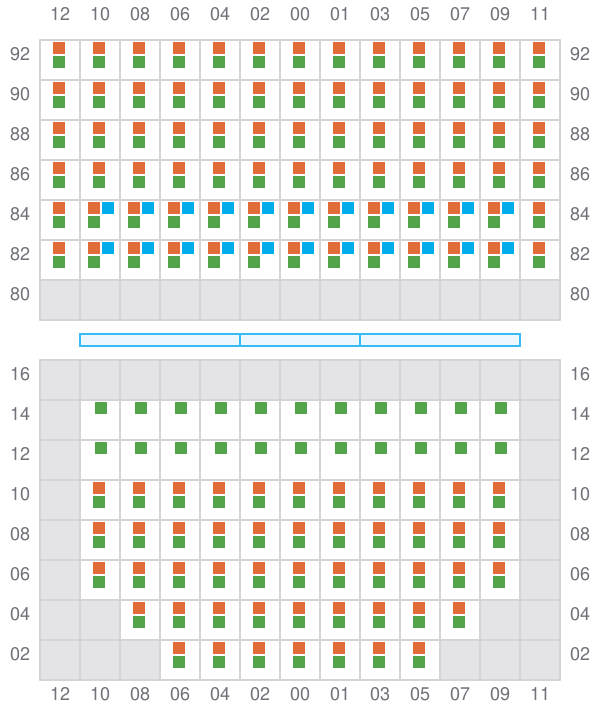

Bay 021 view and slots of SEASPAN HAMBURG

023

←

Bay 023 view and slots of SEASPAN HAMBURG

025 (026)

→
^→ / _?

Bay 025 view and slots of SEASPAN HAMBURG

027

←

Bay 027 view and slots of SEASPAN HAMBURG

029 (030)

→
^→ / _?

Bay 029 view and slots of SEASPAN HAMBURG

031

←

Bay 031 view and slots of SEASPAN HAMBURG

033 (034)

→
→

Bay 033 view and slots of SEASPAN HAMBURG

035

←

Bay 035 view and slots of SEASPAN HAMBURG

037 (038)

→
→

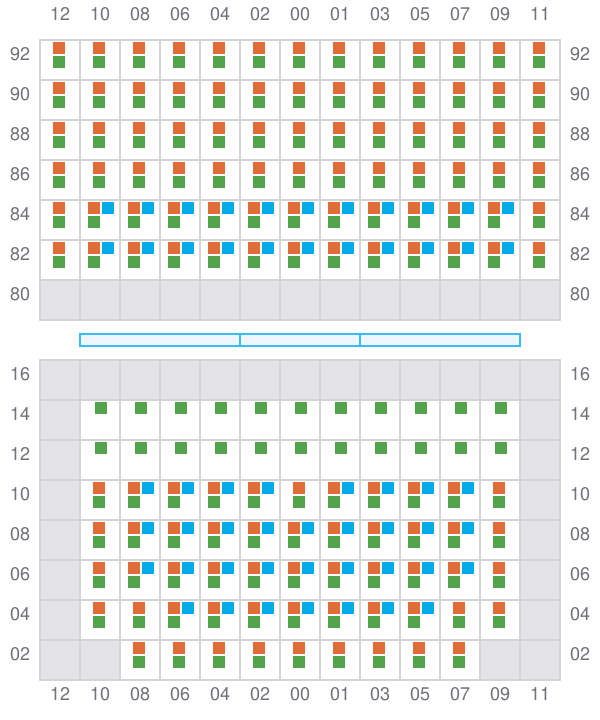

Bay 037 view and slots of SEASPAN HAMBURG

039

←

Bay 039 view and slots of SEASPAN HAMBURG

041 (042)

→
^→ / _?

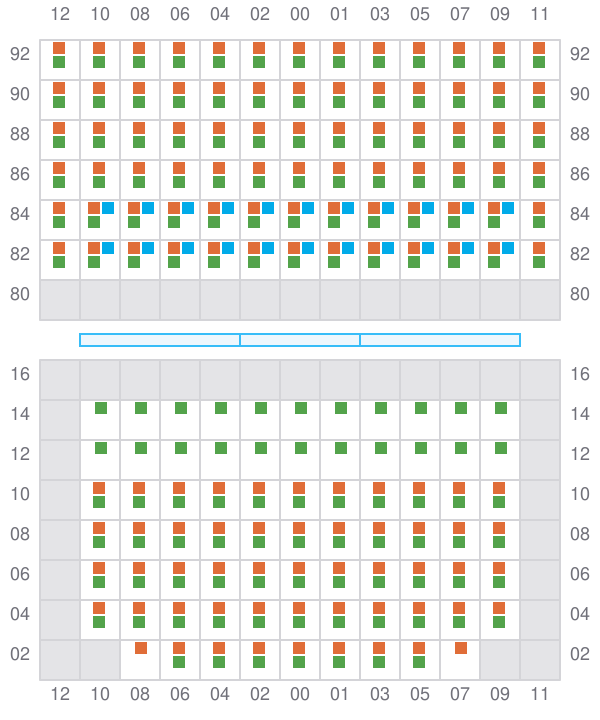

Bay 041 view and slots of SEASPAN HAMBURG

043

←

Bay 043 view and slots of SEASPAN HAMBURG

045 (046)

→
^→ / _?

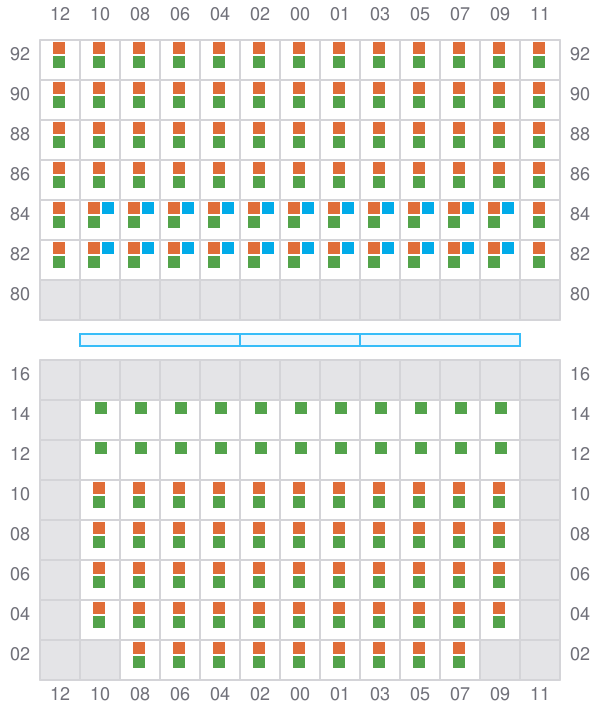

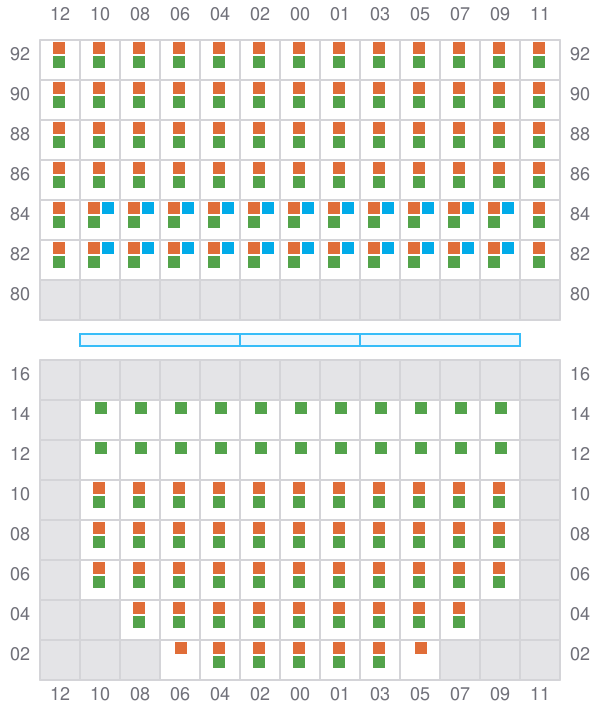

Bay 045 view and slots of SEASPAN HAMBURG

047

←

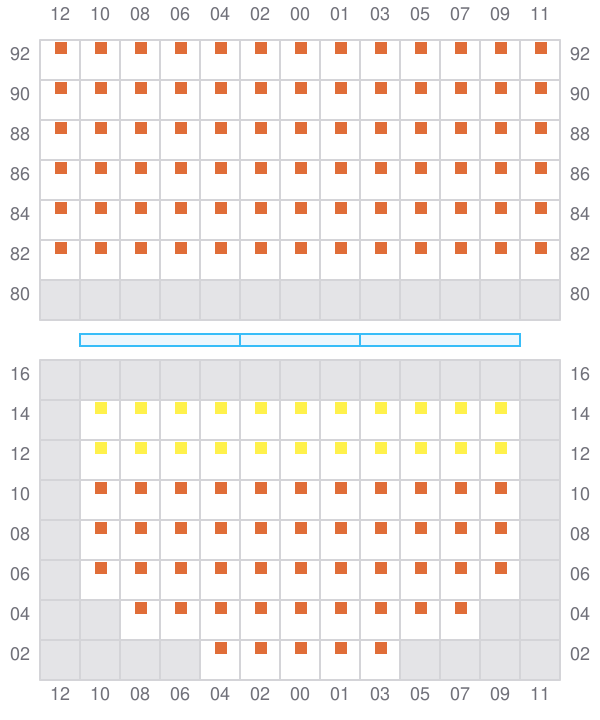

Bay 047 view and slots of SEASPAN HAMBURG

049 (050)

^→ / _?
^→ / _?

Bay 049 view and slots of SEASPAN HAMBURG

051

^← / _?

Bay 051 view and slots of SEASPAN HAMBURG

053 (054)

→
^→ / _?

Bay 053 view and slots of SEASPAN HAMBURG

055

←

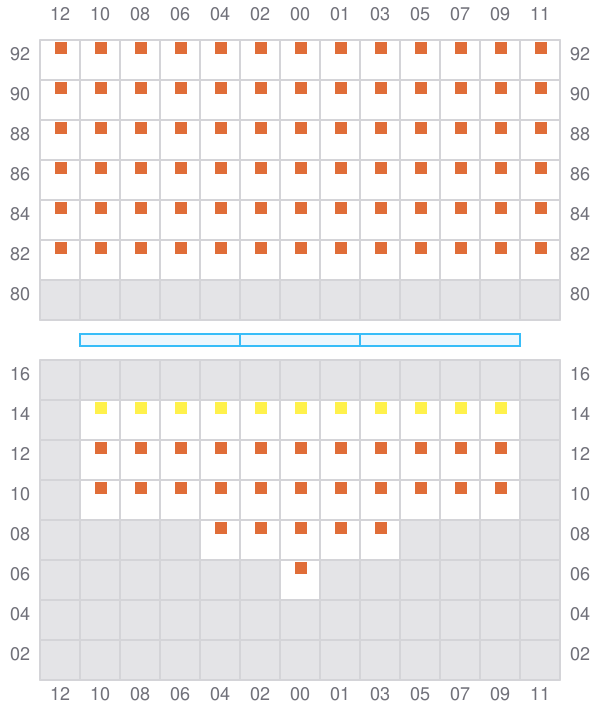

Bay 055 view and slots of SEASPAN HAMBURG

057 (058)

→
^→ / _?

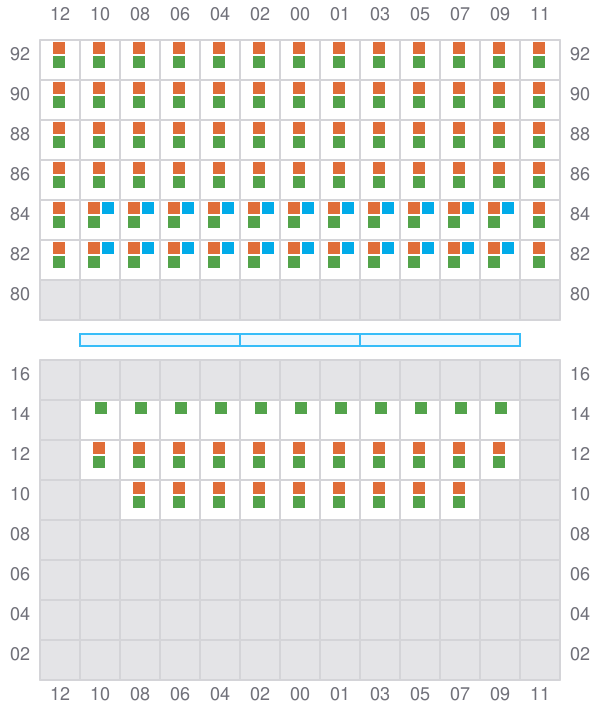

Bay 057 view and slots of SEASPAN HAMBURG

059

←

Bay 059 view and slots of SEASPAN HAMBURG

061 (062)

^→ / _?
^→ / _?

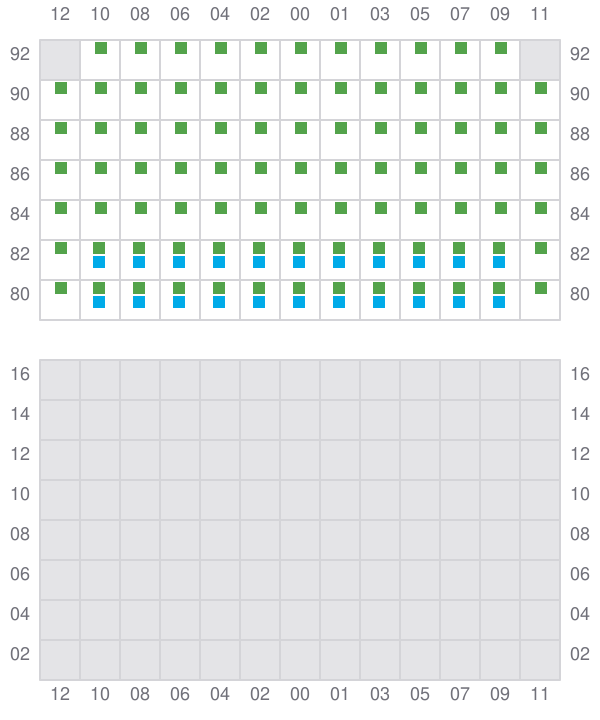

Bay 061 view and slots of SEASPAN HAMBURG

063

^← / _?

Bay 063 view and slots of SEASPAN HAMBURG
