SEASPAN HANNOVER
9320013 | VRSM5 | 9320013 by ********* Last update: Wed May 08 2024

General Info

Ship Name:SEASPAN HANNOVER
IMO Code:9320013
Call Sign:VRSM5
Line Operator:9320013
Class Name for Sister Ships:FRISIAHANNOVER
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,484

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SEASPAN HANNOVER

Hatch-Covers View

Deck view of SEASPAN HANNOVER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

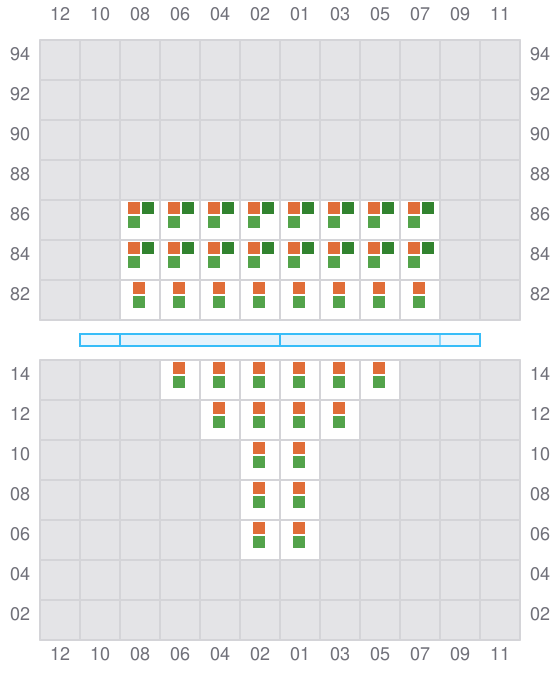

Bay 001 view and slots of SEASPAN HANNOVER

003

  • ←

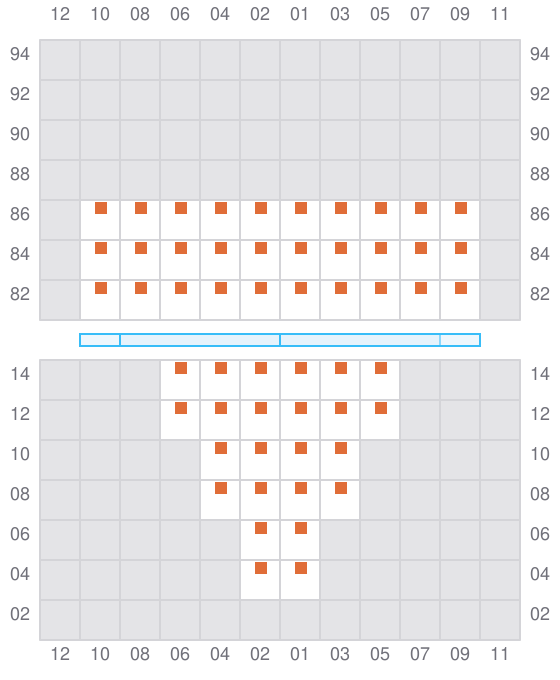

Bay 003 view and slots of SEASPAN HANNOVER

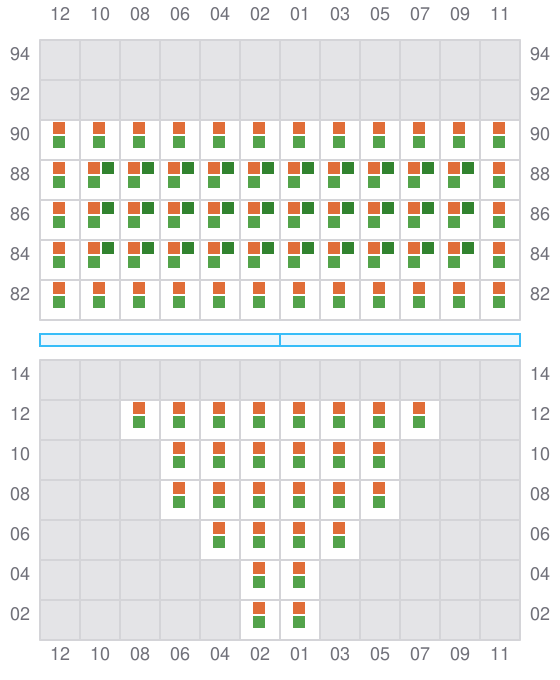

005 (006)

  • →
Bay 005 view and slots of SEASPAN HANNOVER

007

  • ←
  • → / ?

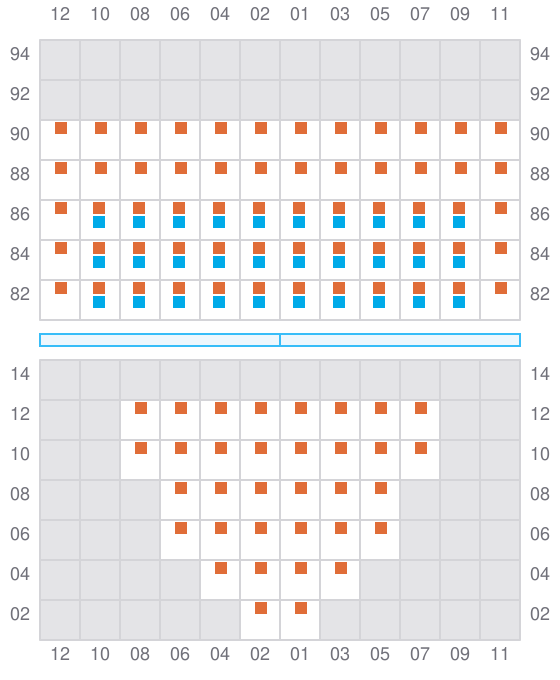

Bay 007 view and slots of SEASPAN HANNOVER

009 (010)

  • →

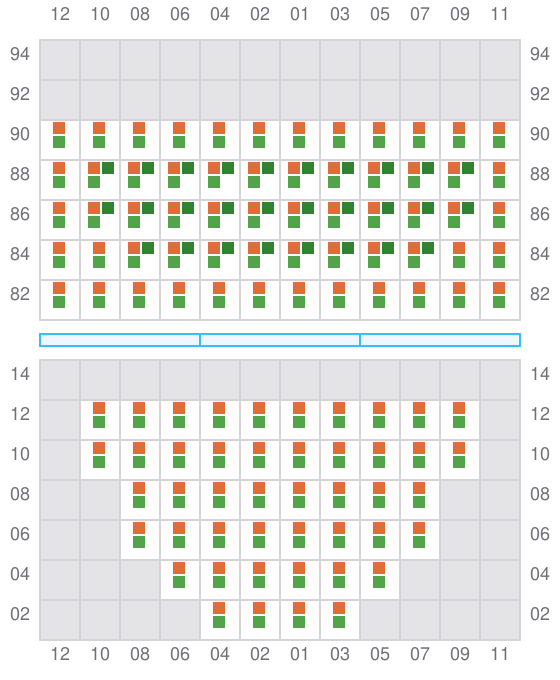

Bay 009 view and slots of SEASPAN HANNOVER

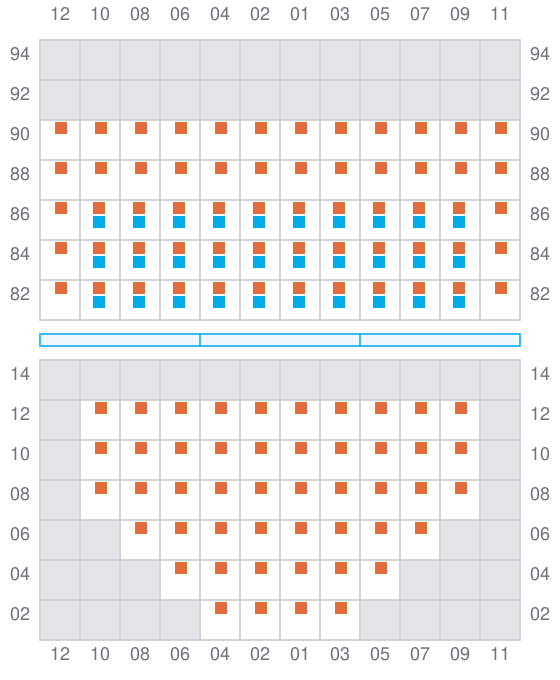

011

  • ←
  • → / ?
Bay 011 view and slots of SEASPAN HANNOVER

013 (014)

  • →

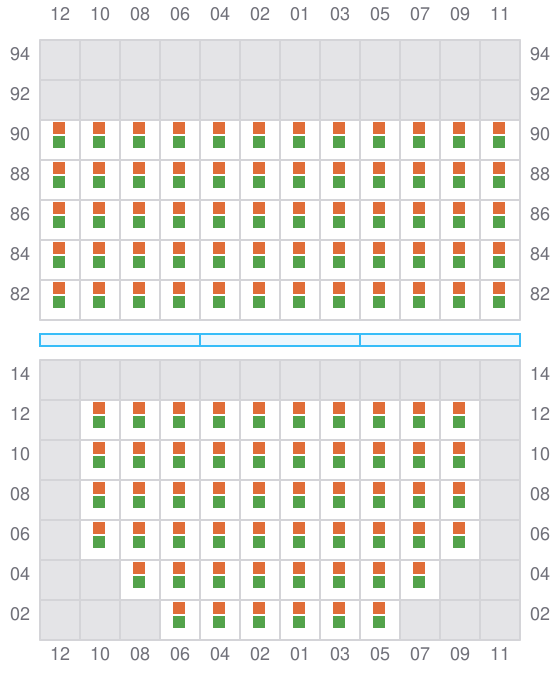

Bay 013 view and slots of SEASPAN HANNOVER

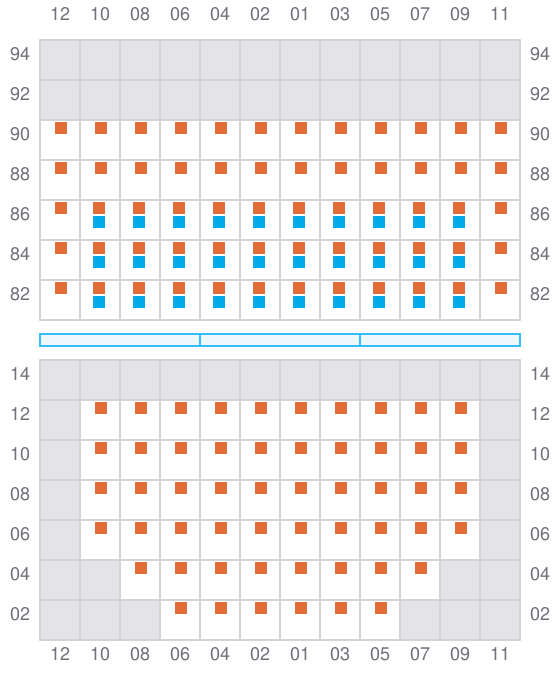

015

  • ←
  • → / ?
Bay 015 view and slots of SEASPAN HANNOVER

017 (018)

  • →
  • ← / ?

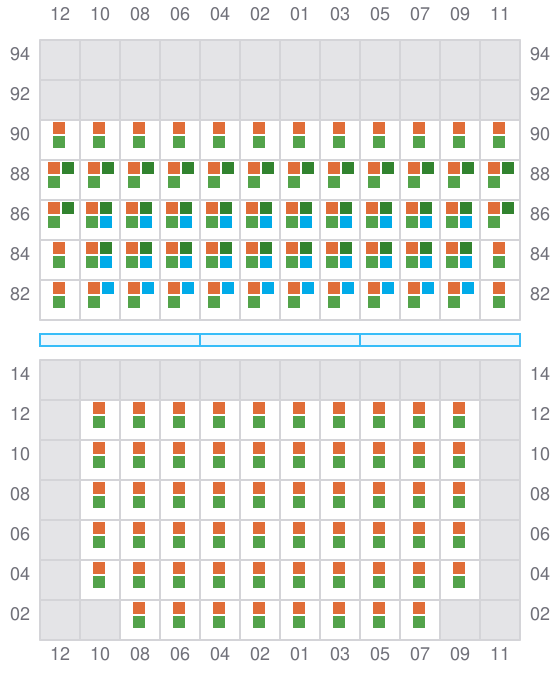

Bay 017 view and slots of SEASPAN HANNOVER

019

  • ←
  • ? / →

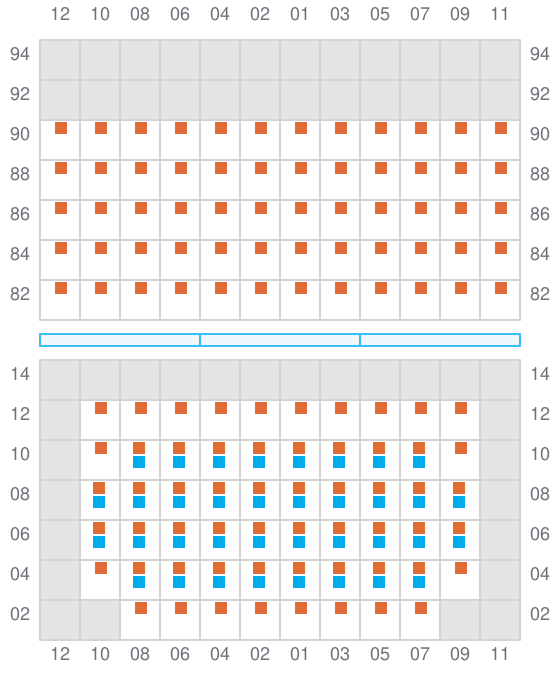

Bay 019 view and slots of SEASPAN HANNOVER

021 (022)

  • →

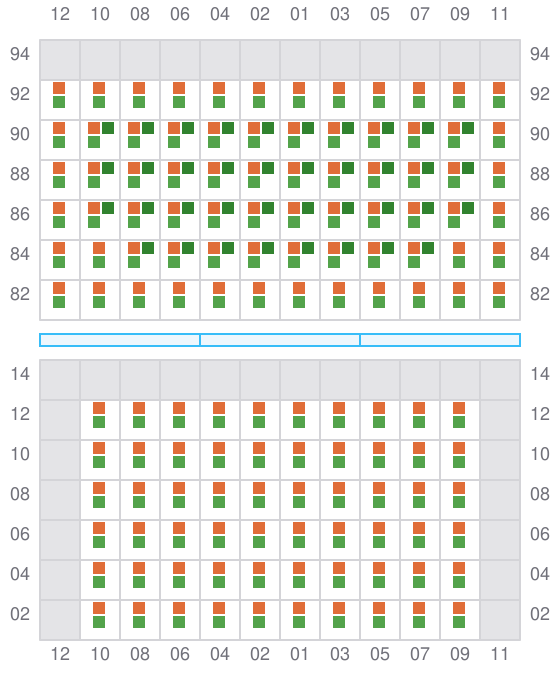

Bay 021 view and slots of SEASPAN HANNOVER

023

  • ←
  • → / ?

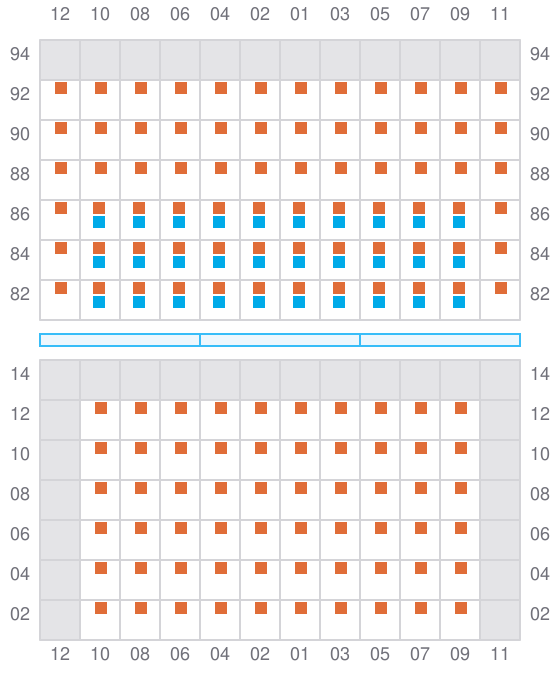

Bay 023 view and slots of SEASPAN HANNOVER

025 (026)

  • →
  • ← / ?

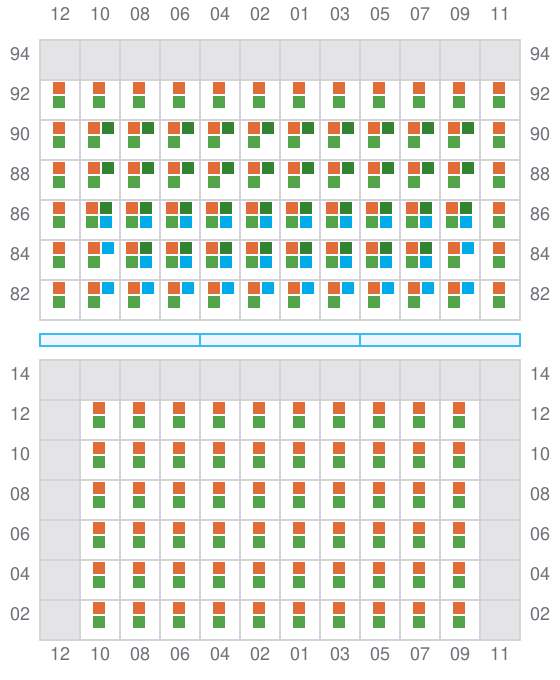

Bay 025 view and slots of SEASPAN HANNOVER

027

  • ←
  • ? / →

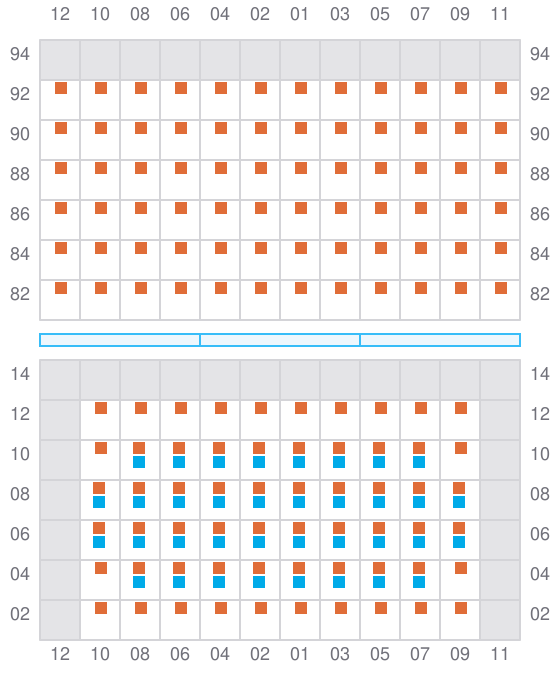

Bay 027 view and slots of SEASPAN HANNOVER

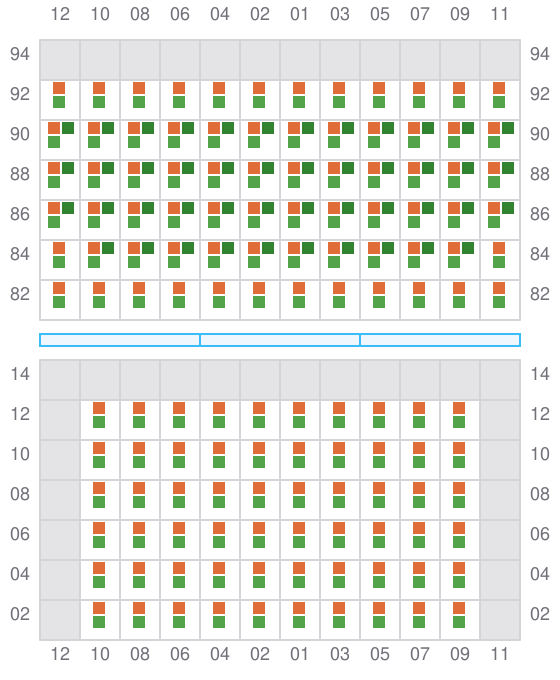

029 (030)

  • →
Bay 029 view and slots of SEASPAN HANNOVER

031

  • ←
  • → / ?

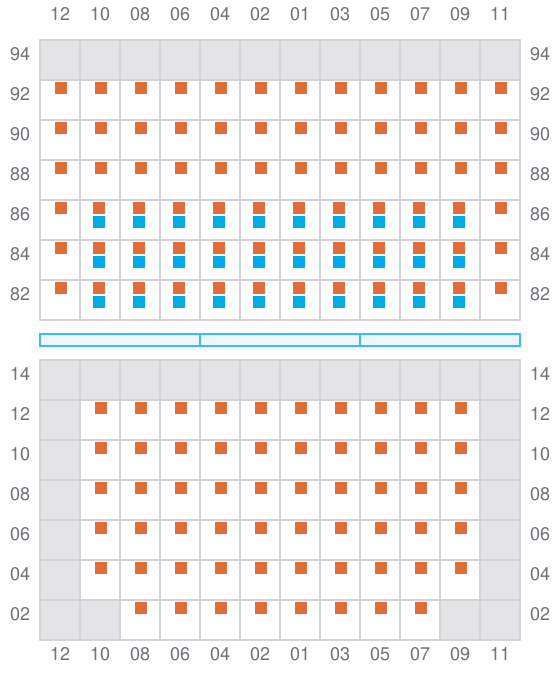

Bay 031 view and slots of SEASPAN HANNOVER

033 (034)

  • →
  • ← / ?

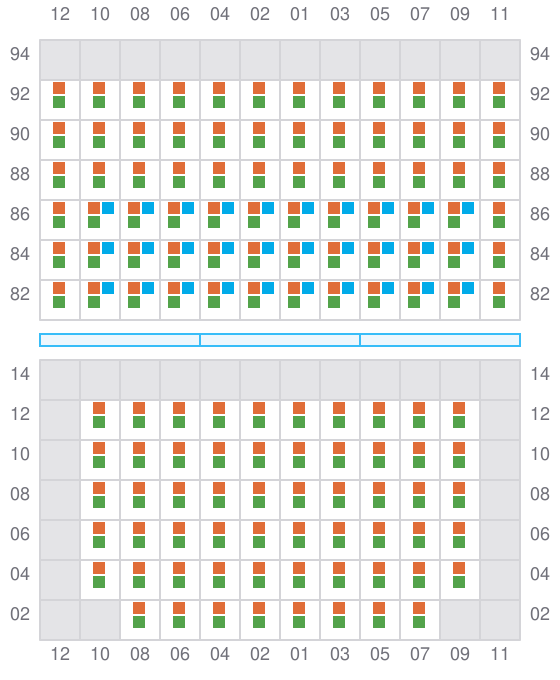

Bay 033 view and slots of SEASPAN HANNOVER

035

  • ←
  • ? / →

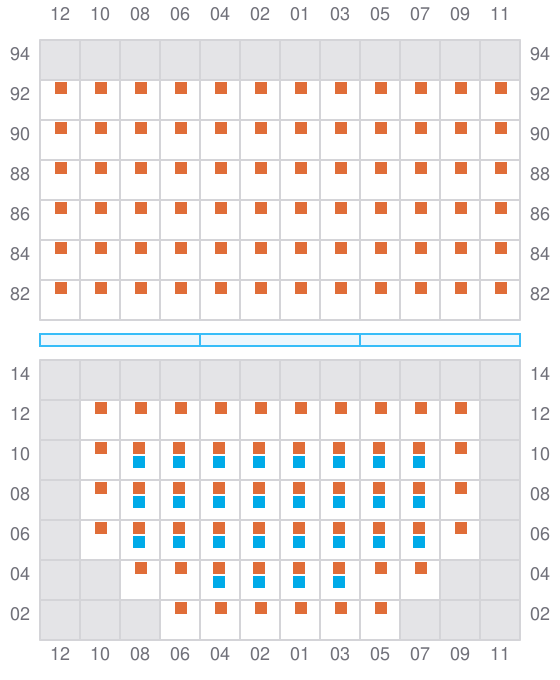

Bay 035 view and slots of SEASPAN HANNOVER

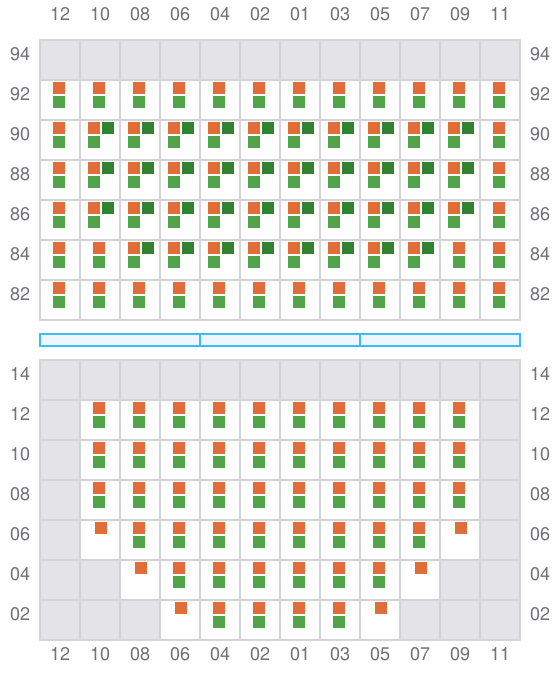

037 (038)

  • →
Bay 037 view and slots of SEASPAN HANNOVER

039

  • ←
  • → / ?

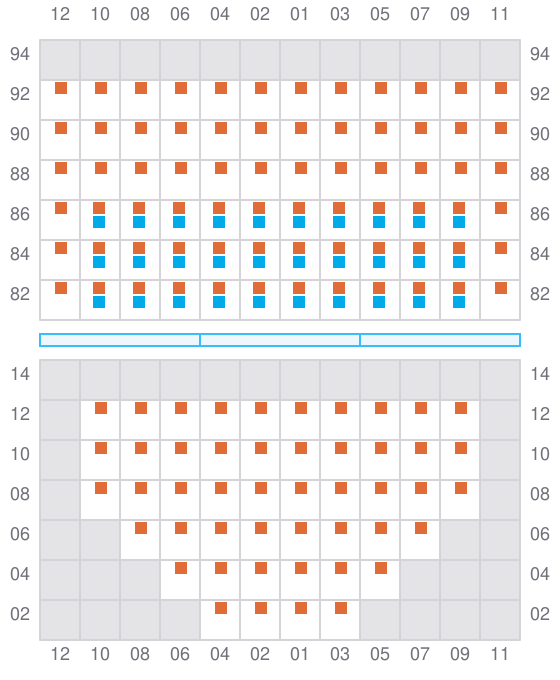

Bay 039 view and slots of SEASPAN HANNOVER

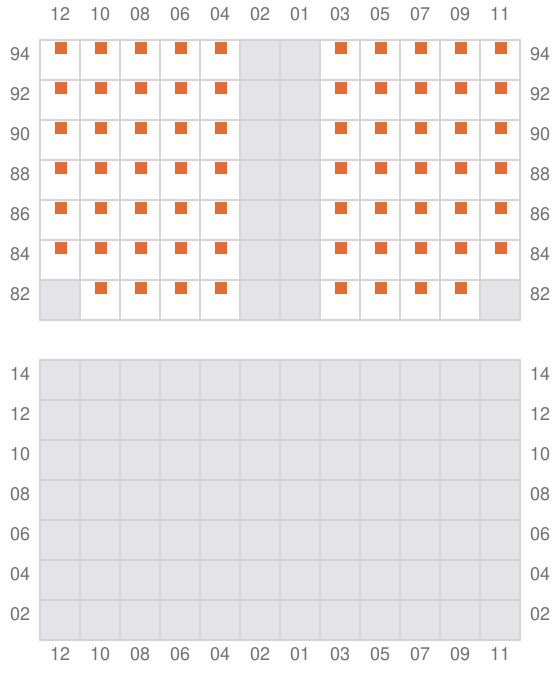

041

Bay 041 view and slots of SEASPAN HANNOVER

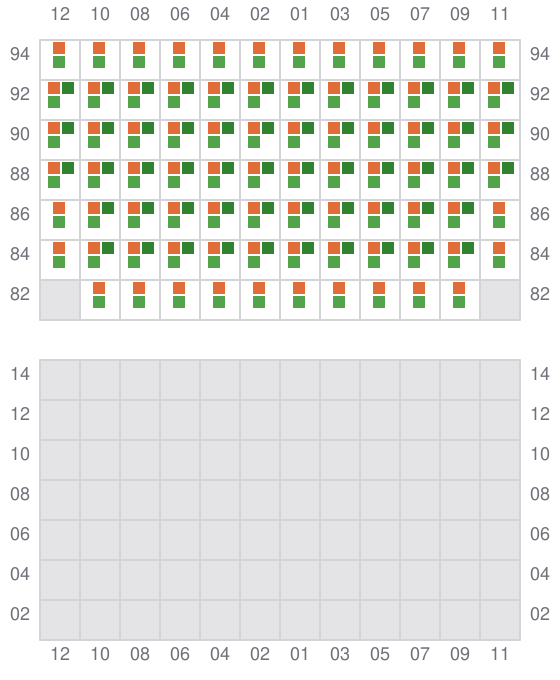

043 (044)

  • → / ?
Bay 043 view and slots of SEASPAN HANNOVER

045

  • ← / ?
  • → / ?

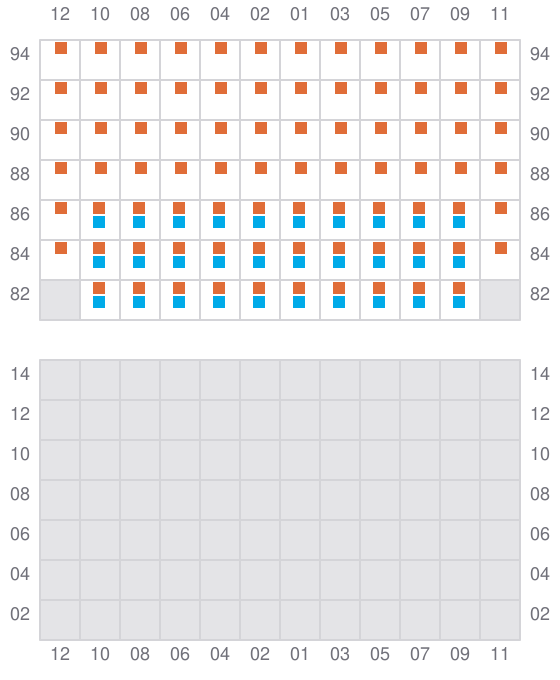

Bay 045 view and slots of SEASPAN HANNOVER
