SEASPAN KOBE
9492701 | VRHY6 | 9492701 by ********* Last update: Tue May 21 2024
General Info
Ship Name:SEASPAN KOBE
IMO Code:9492701
Call Sign:VRHY6
Line Operator:9492701
Class Name for Sister Ships:BILBAO BRIDGE
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):254.30
LOA (Length Overall):269.80
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,520
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

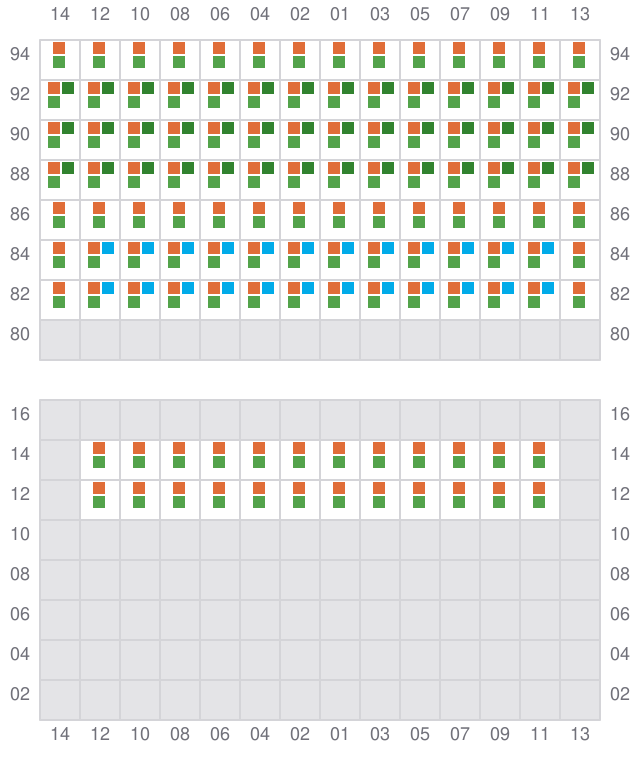

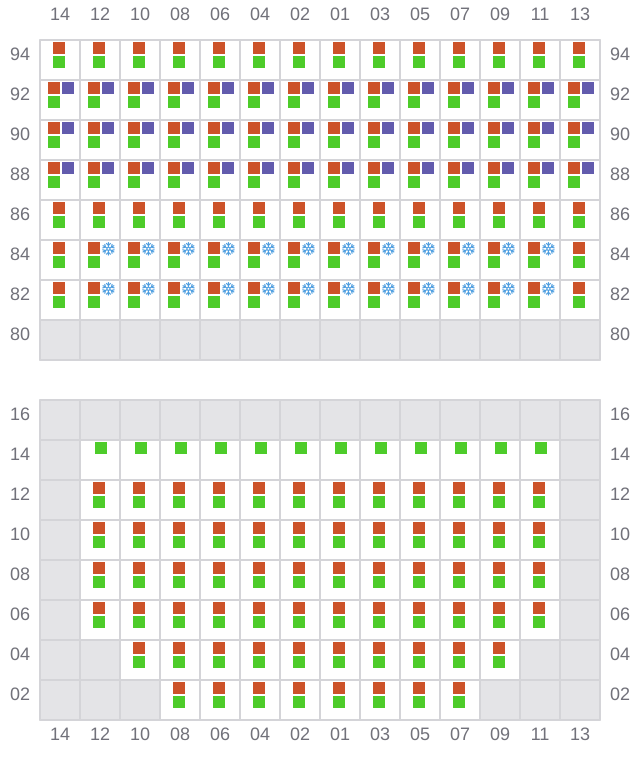

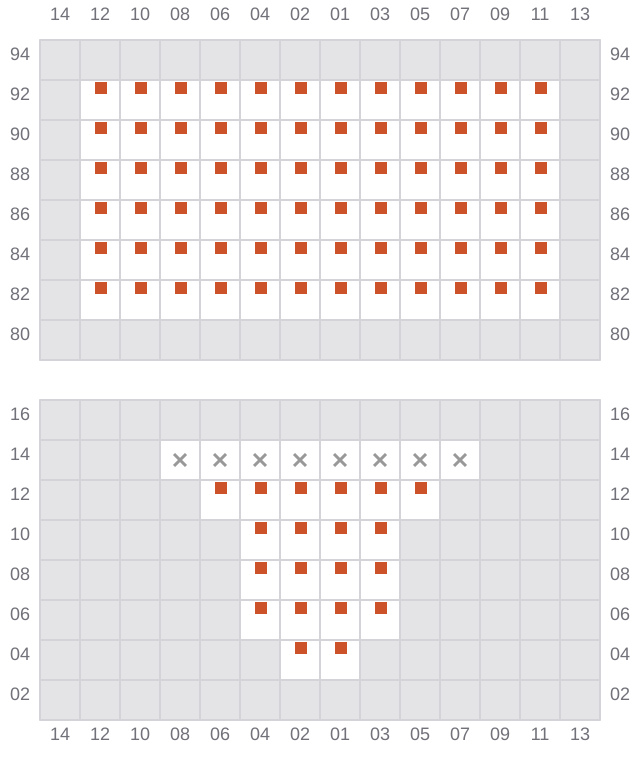

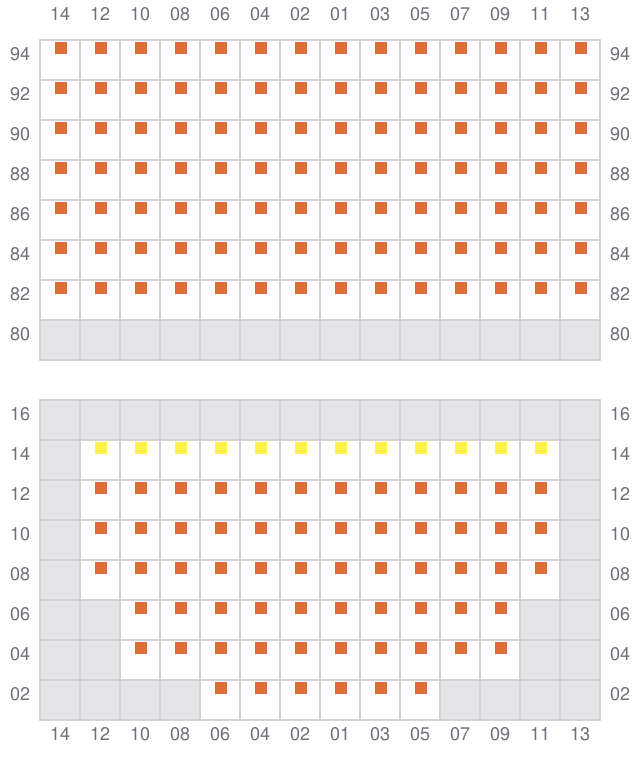

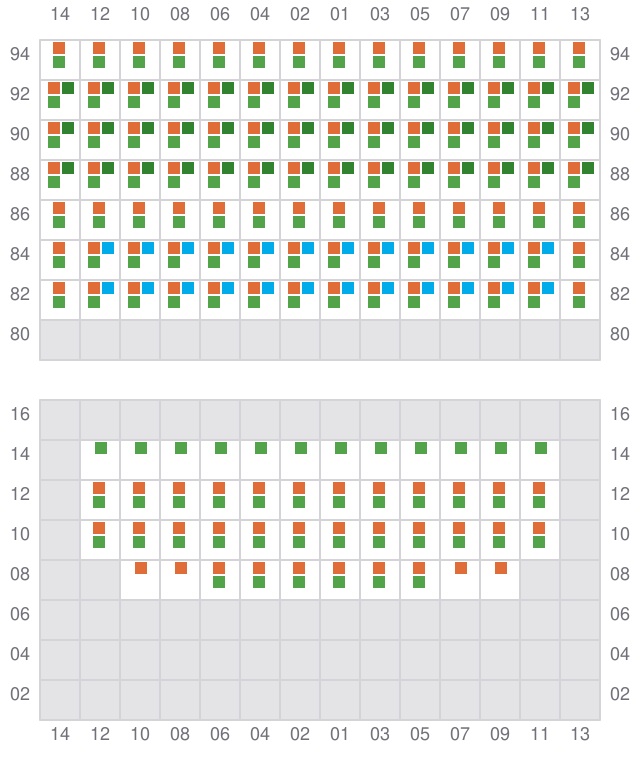

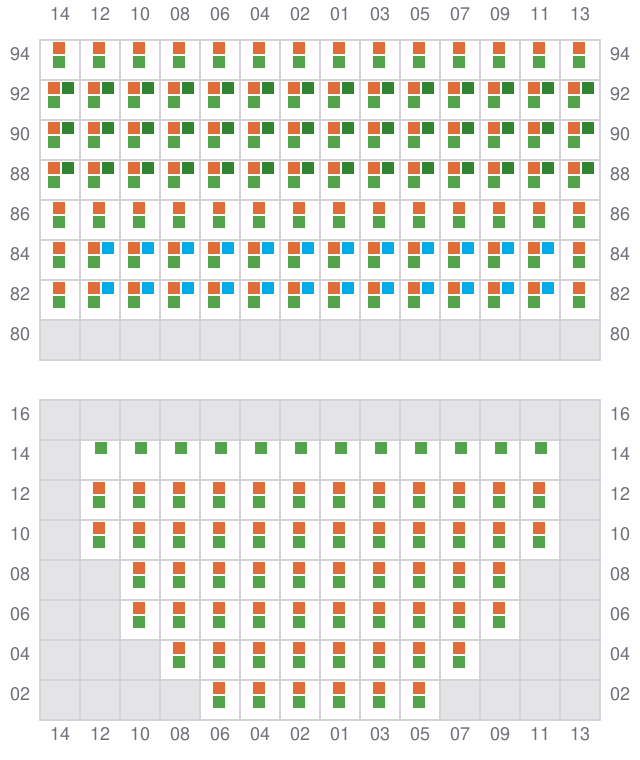

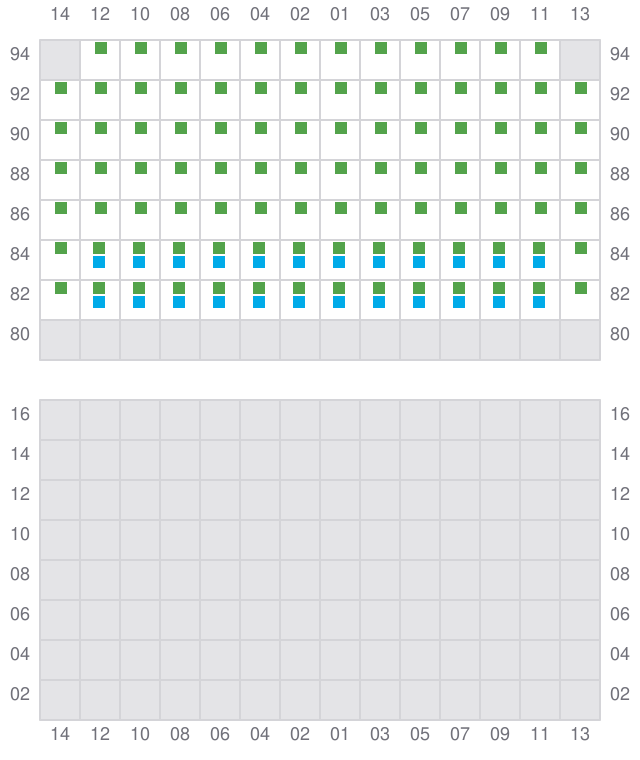

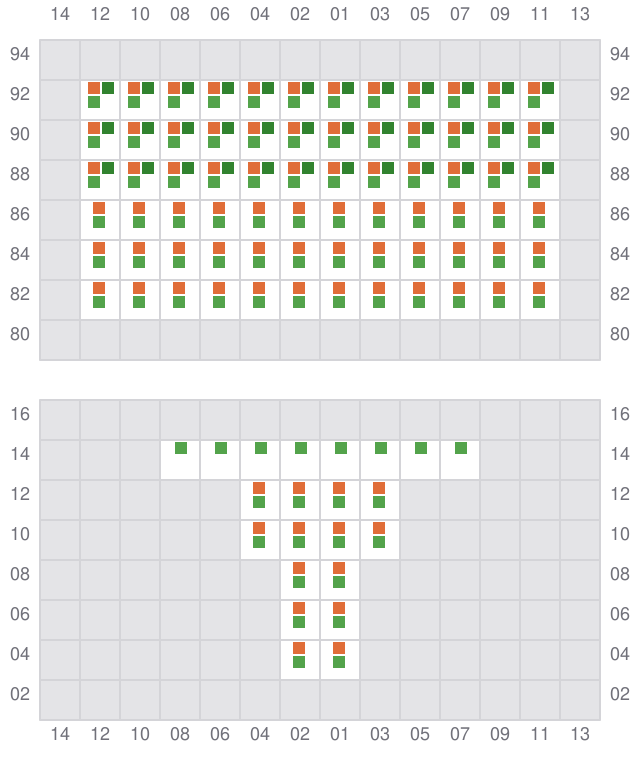

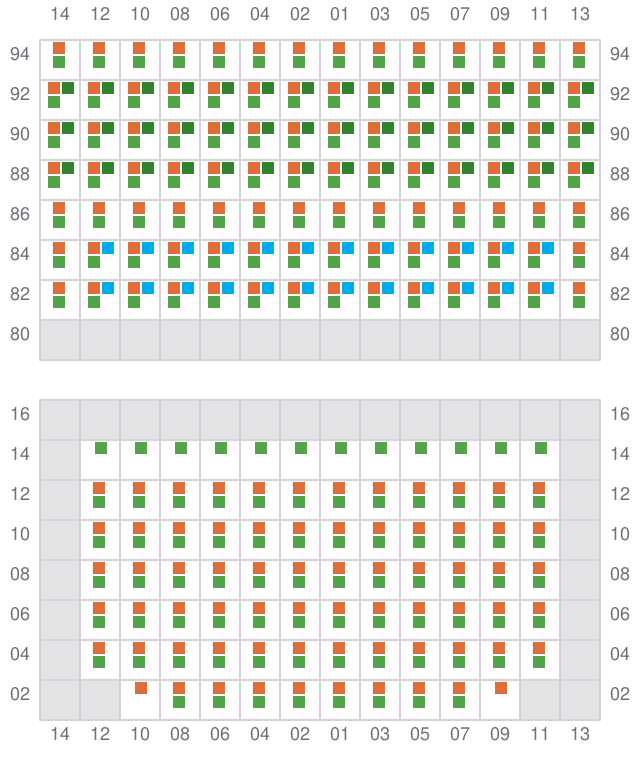

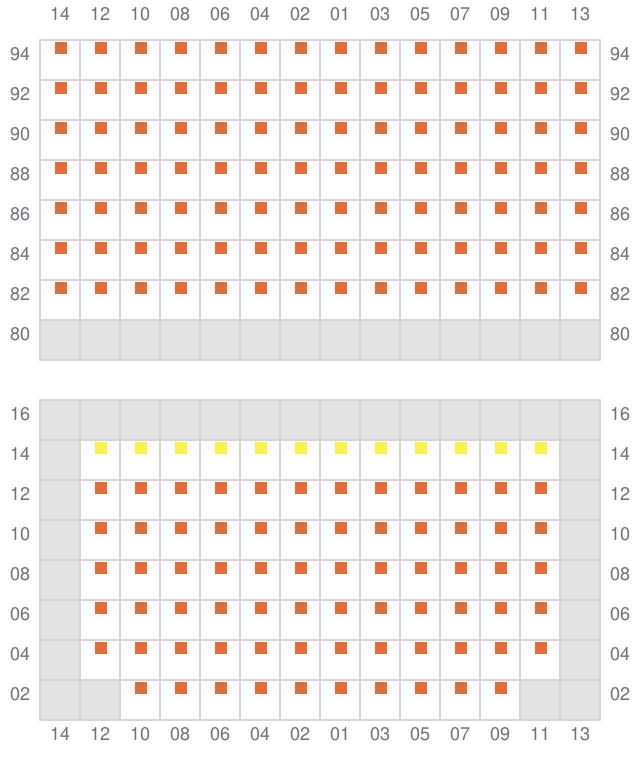

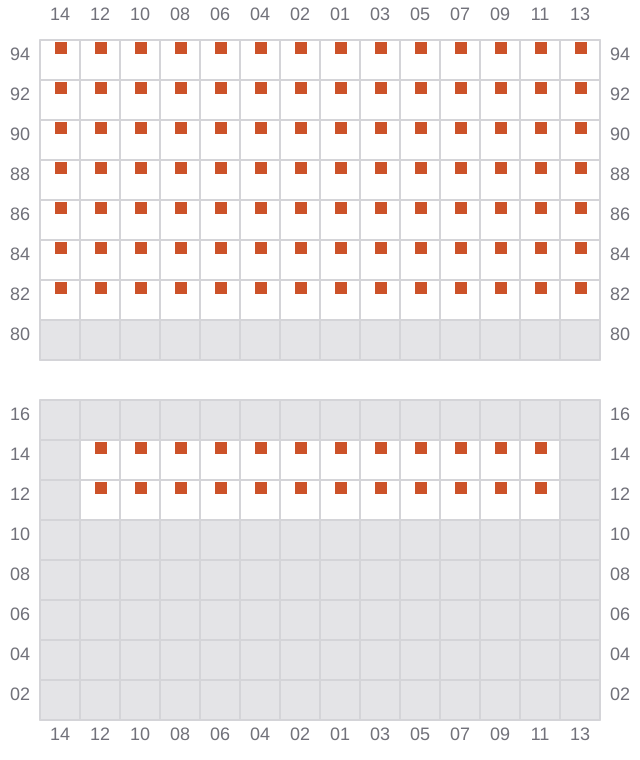

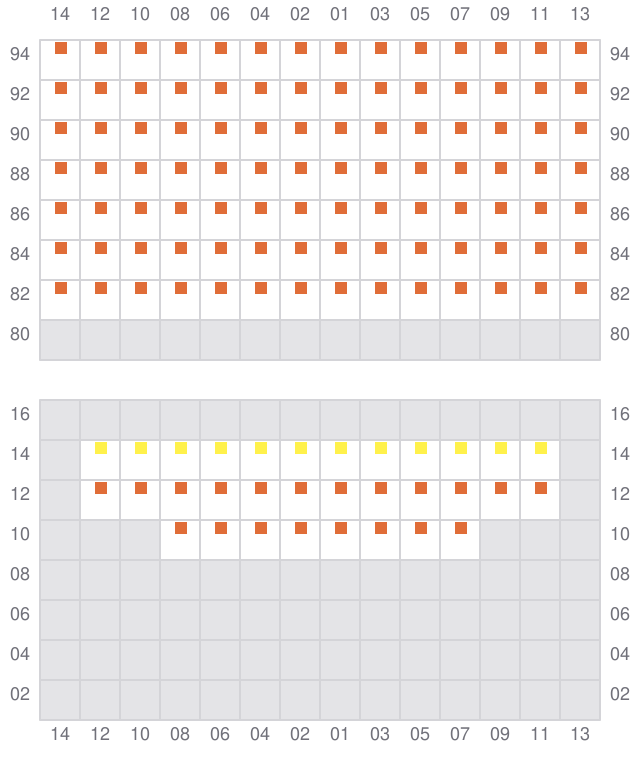

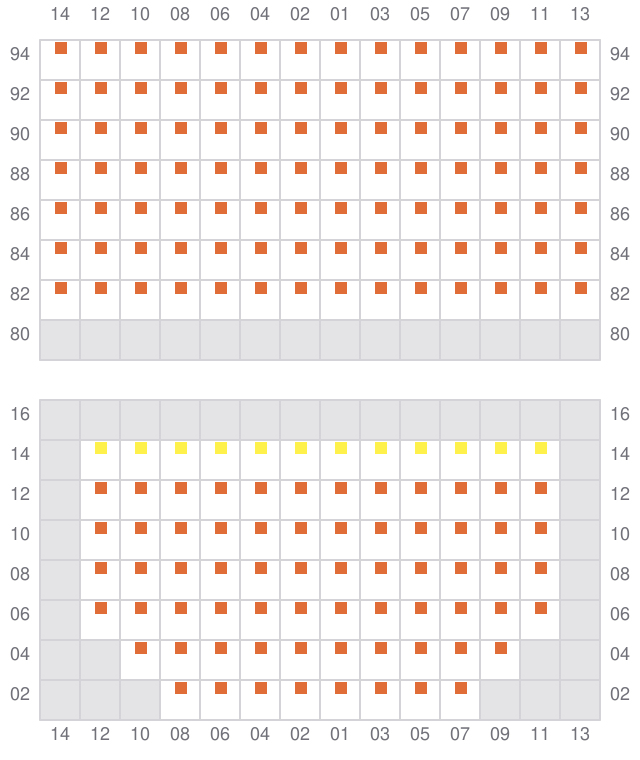

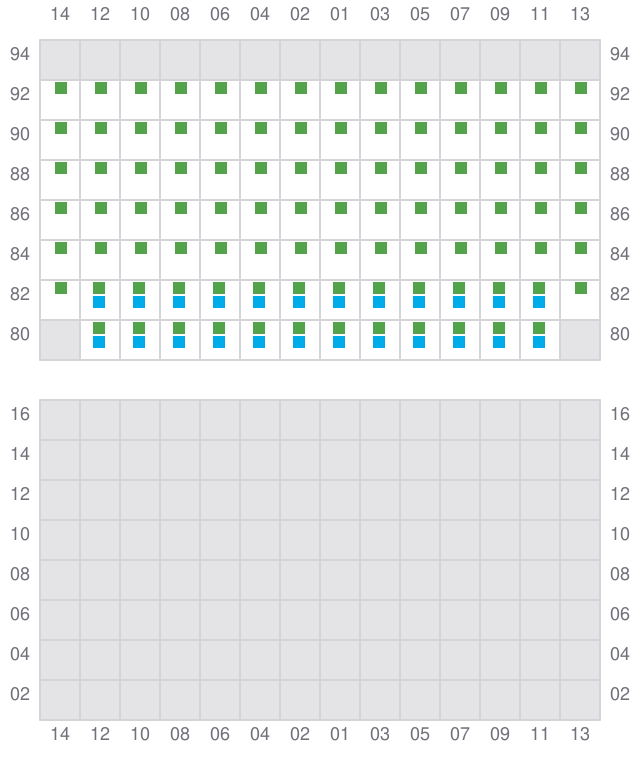

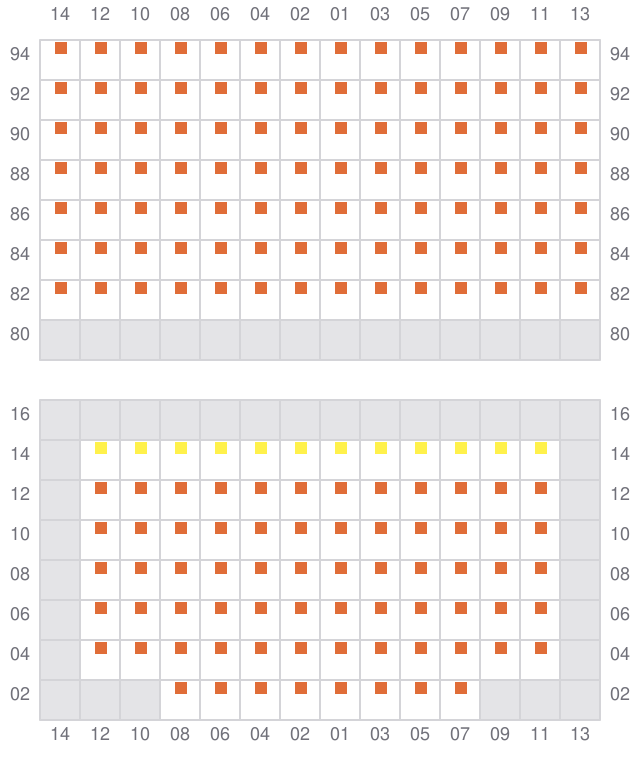

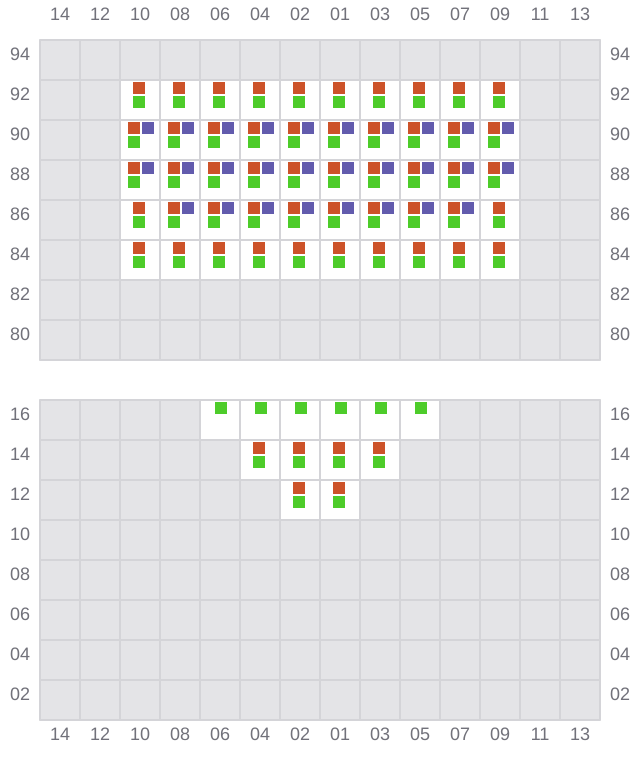

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →

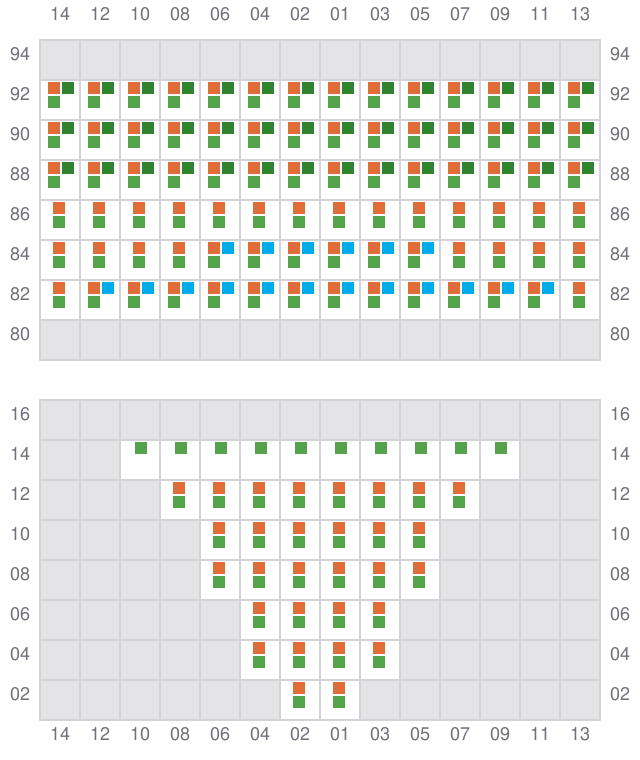

007
- ←
009 (010)
- →

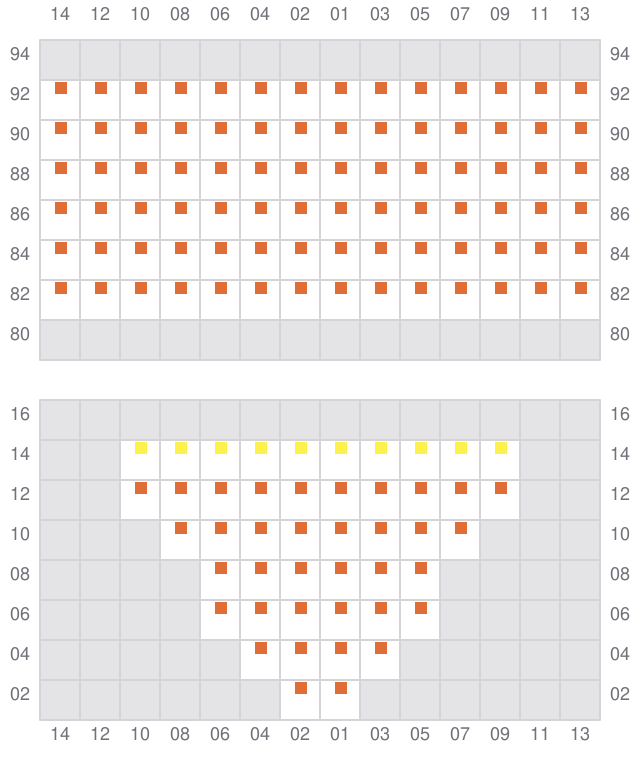

011
- ←
013 (014)
- →

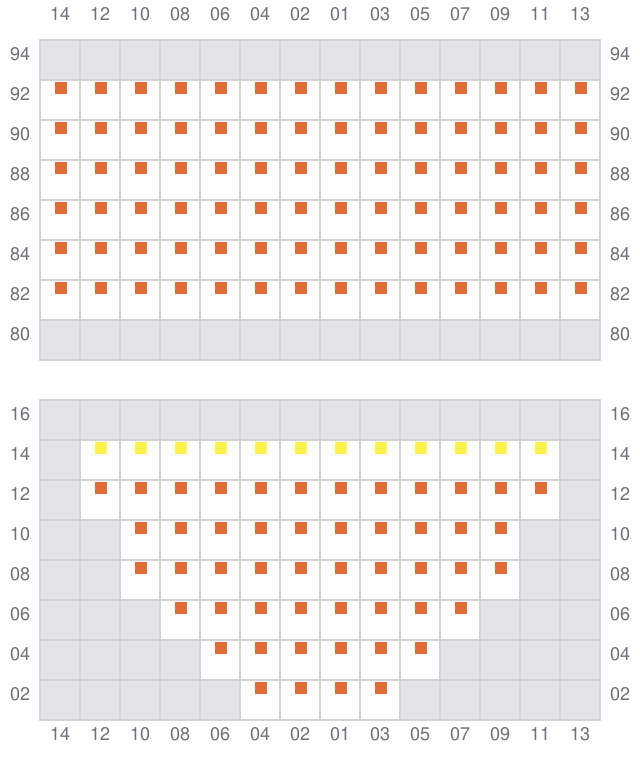

015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←

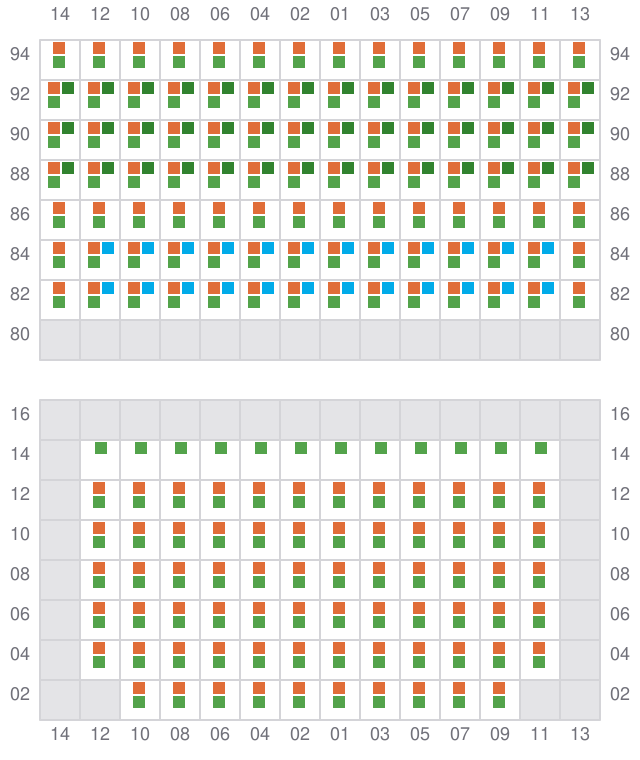

037 (038)
- →
039
- ←
041 (042)
- →
043
- ←

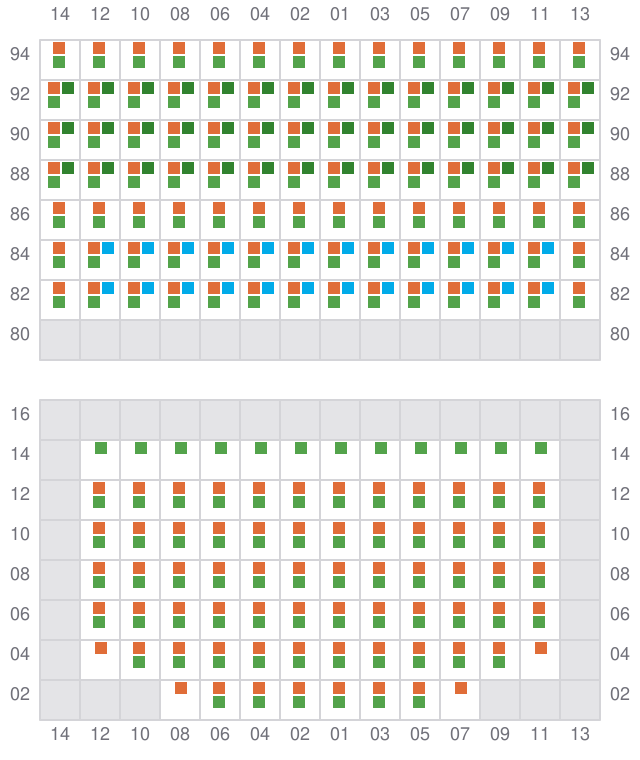

045 (046)
- →

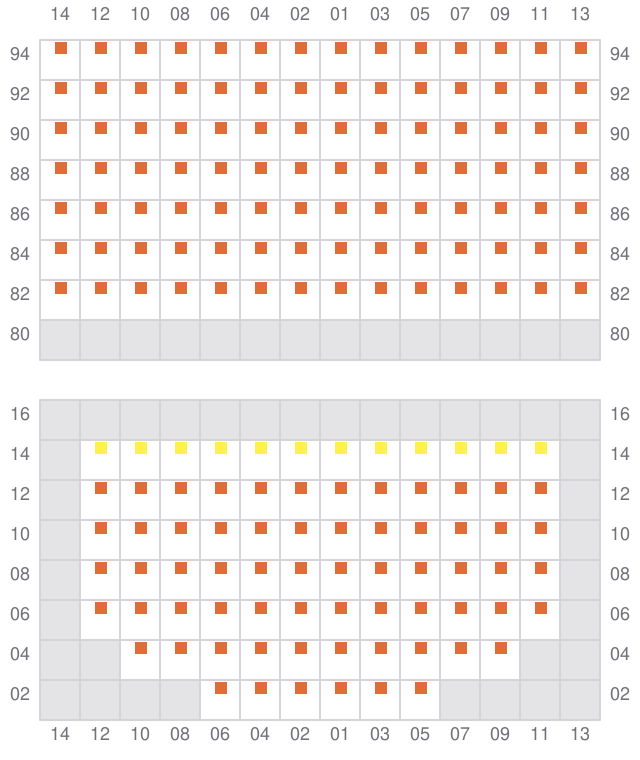

047
- ←
049 (050)
- → / ?
051
053 (054)
- →
055
- ←
057 (058)
- →

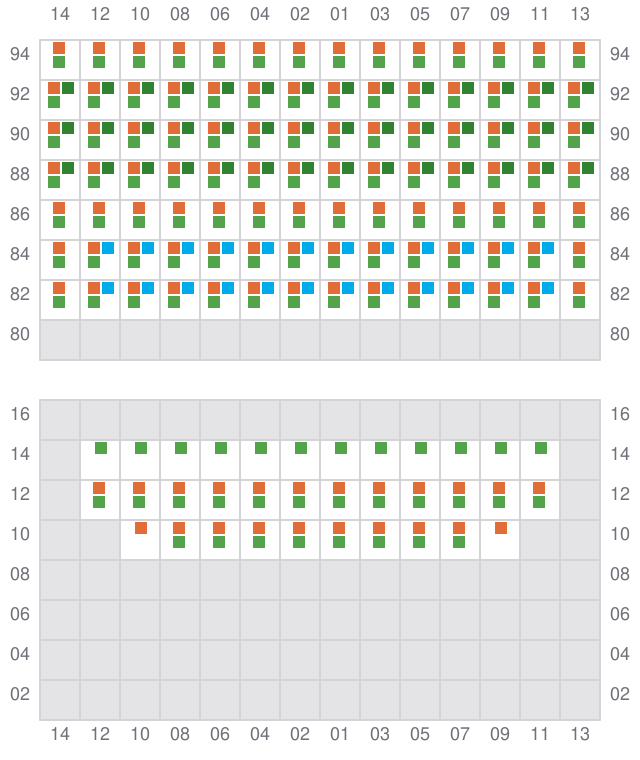

059
- ←
061 (062)
- → / ?
