SEASPAN LOGA
9320001 | VRSM4 | 9320001 by ********* Last update: Tue Jun 18 2024
General Info
Ship Name:SEASPAN LOGA
IMO Code:9320001
Call Sign:VRSM4
Line Operator:9320001
Class Name for Sister Ships:MSL
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,484
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

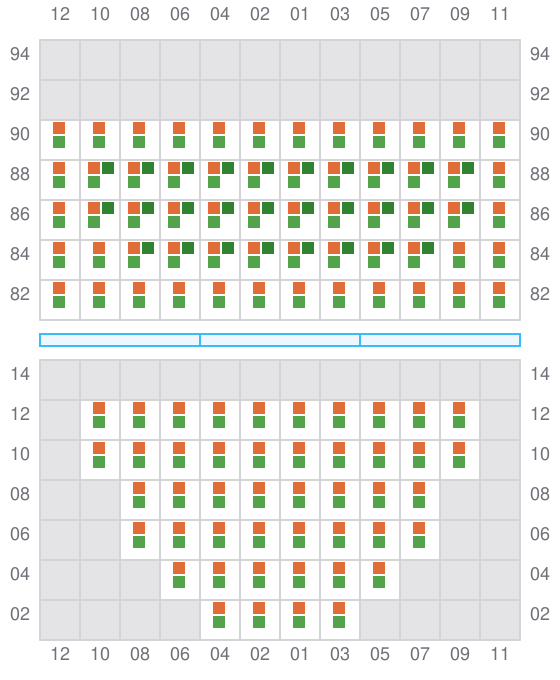

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →

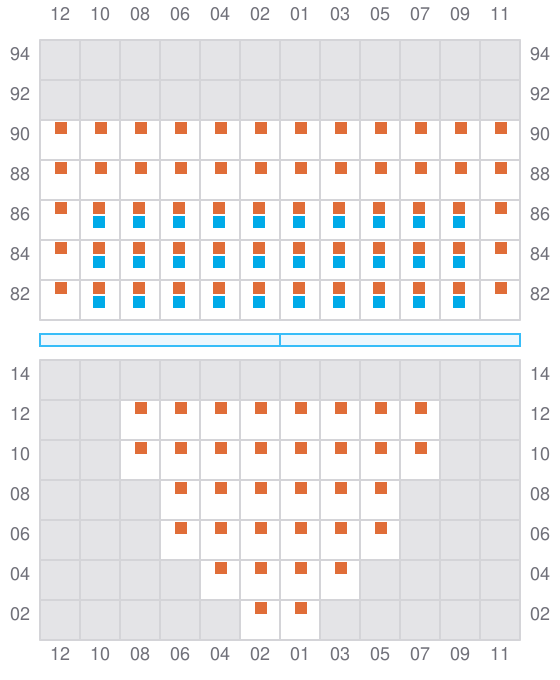

007
- ←
- → / ?
009 (010)
- →
011
- ←
- → / ?

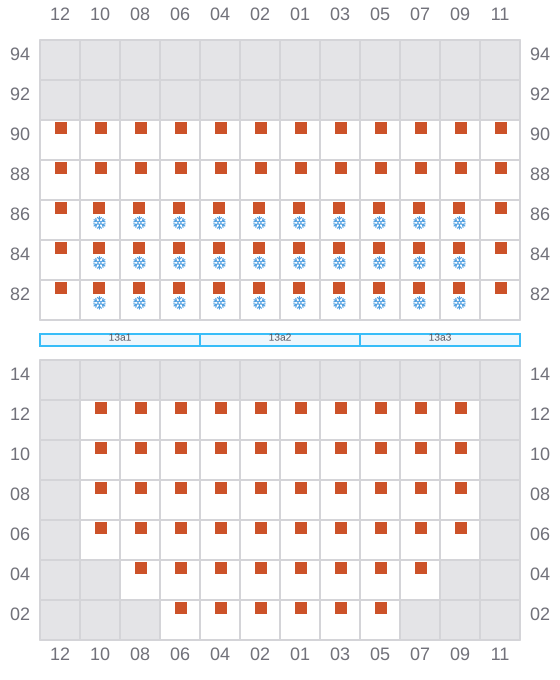

013 (014)
- →
015
- ←
- → / ?

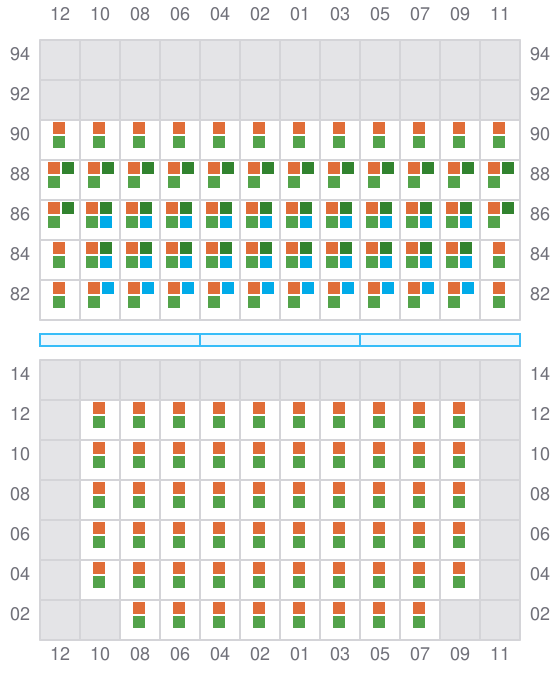

017 (018)
- →
- ← / ?
019
- ←
- ? / →
021 (022)
- →
023
- ←
- → / ?

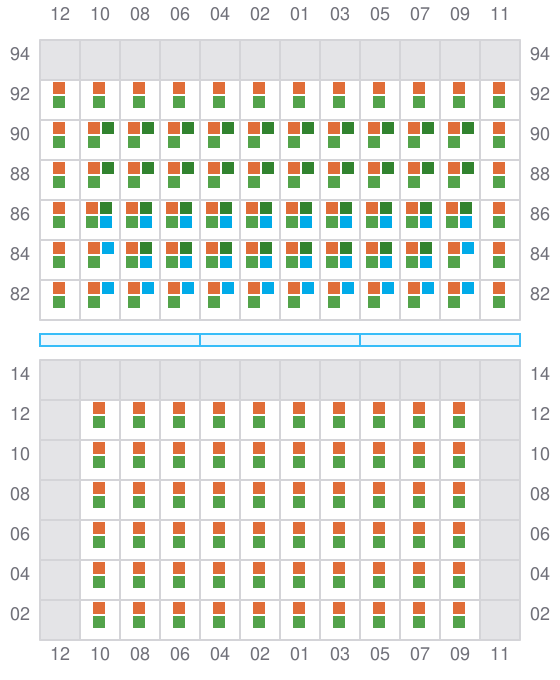

025 (026)
- →
- ← / ?
027
- ←
- ? / →
029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
- ← / ?
035
- ←
- ? / →

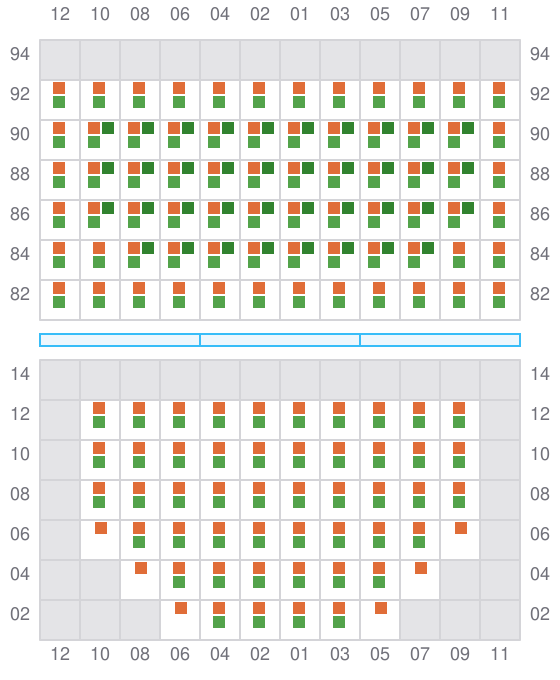

037 (038)
- →

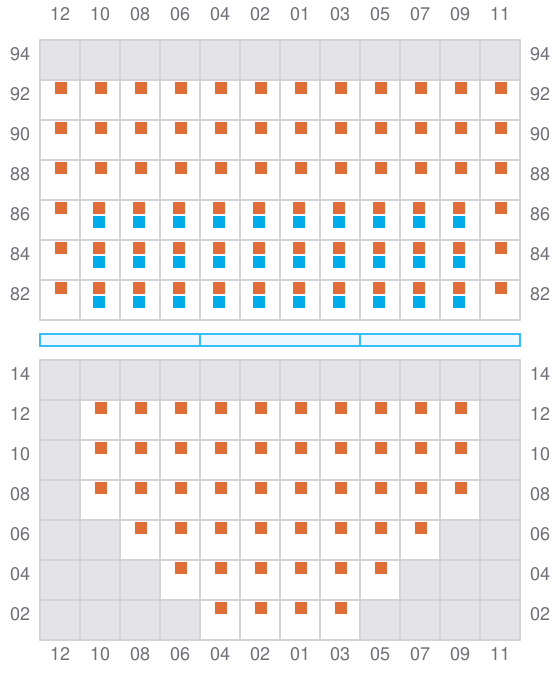

039
- ←
- → / ?

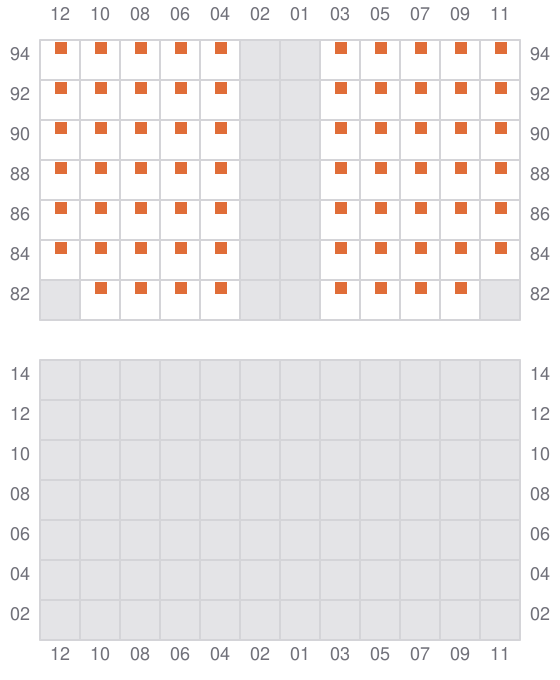

041
043 (044)
- → / ?

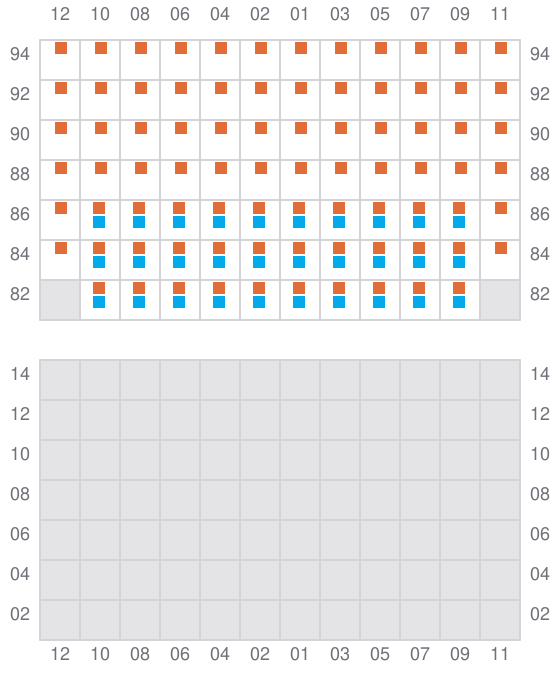

045
- ← / ?
- → / ?
