SEASPAN LONCOMILLA
9437385 | VRFB3 | CHI by ************************** Last update: Fri Jun 30 2023

General Info

Ship Name:SEASPAN LONCOMILLA
IMO Code:9437385
Call Sign:VRFB3
Line Operator:CHI
Class Name for Sister Ships:LML
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.63
LOA (Length Overall):261.09
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,256

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

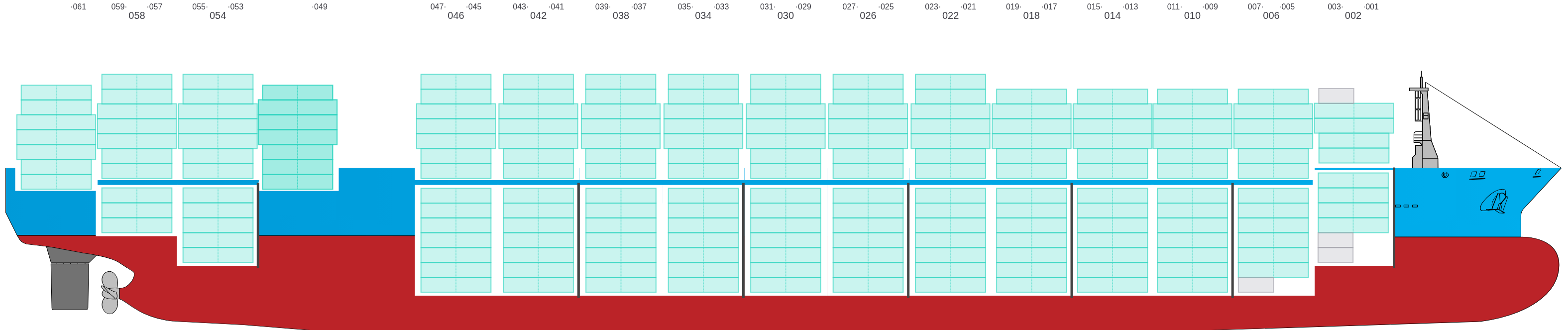

Side View

Side view of SEASPAN LONCOMILLA

Hatch-Covers View

Deck view of SEASPAN LONCOMILLA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

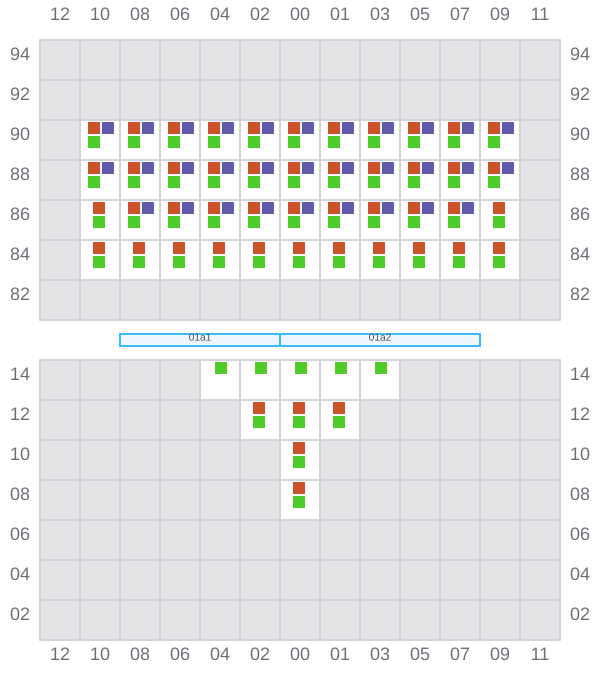

001 (002)

  • →
Bay 001 view and slots of SEASPAN LONCOMILLA

003

  • ←

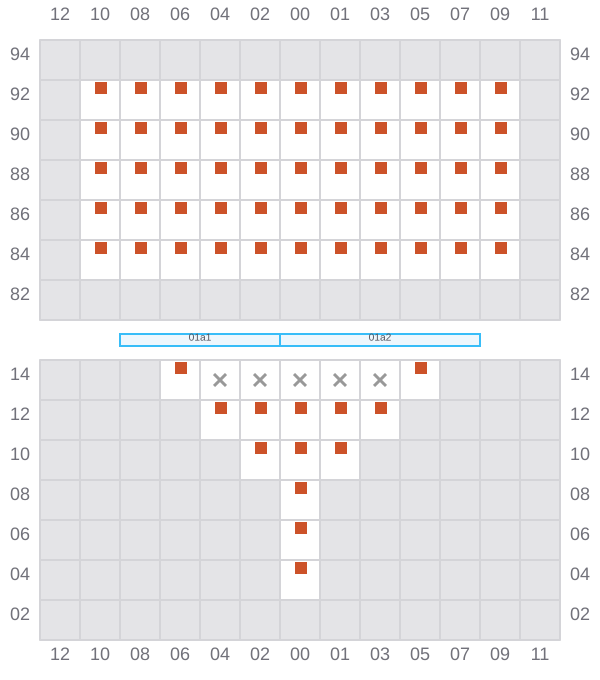

Bay 003 view and slots of SEASPAN LONCOMILLA

005 (006)

  • →

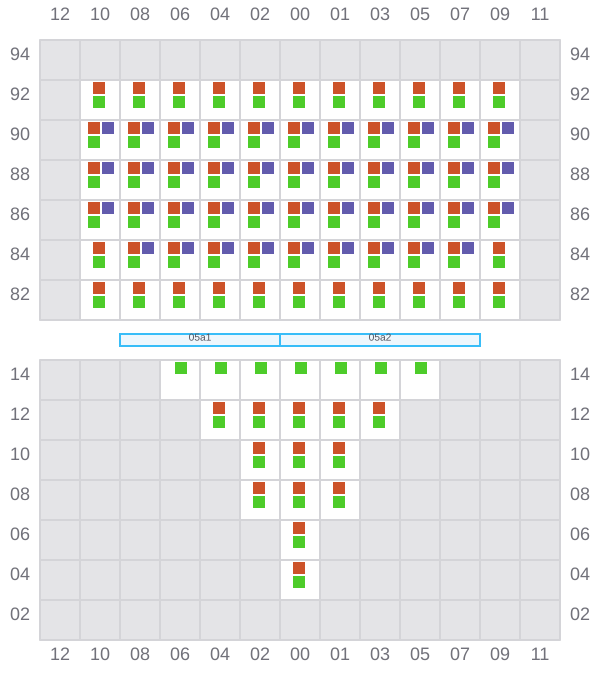

Bay 005 view and slots of SEASPAN LONCOMILLA

007

  • ←
  • → / ?

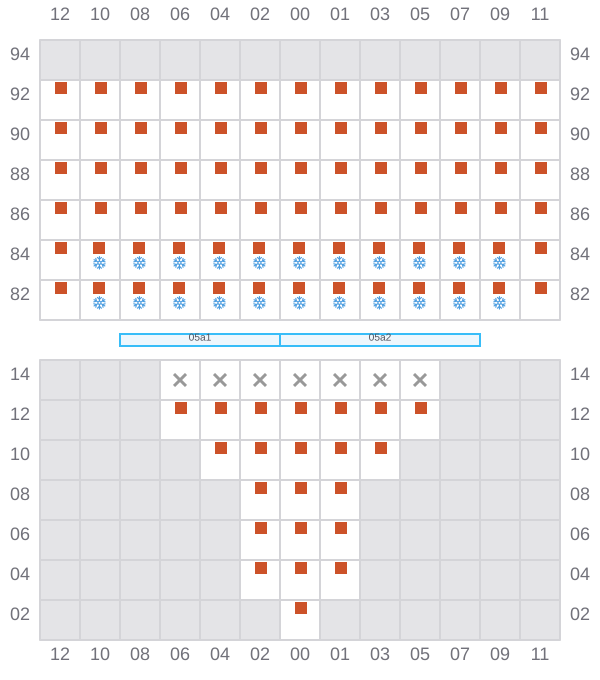

Bay 007 view and slots of SEASPAN LONCOMILLA

009 (010)

  • →

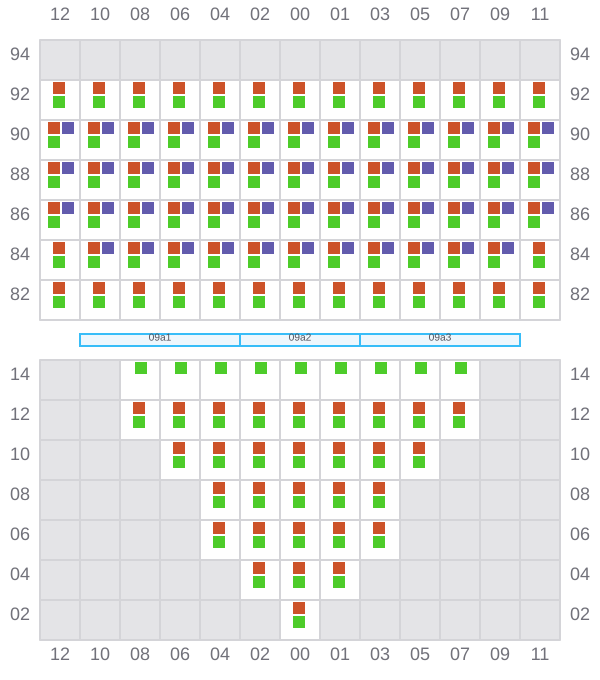

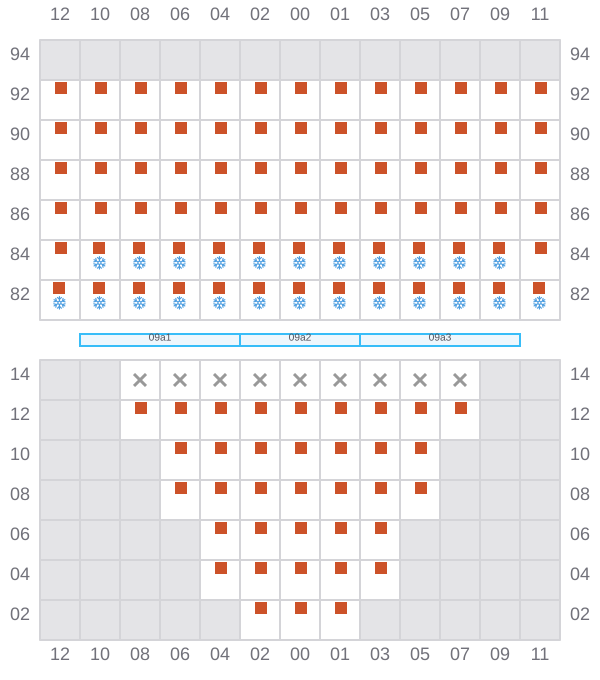

Bay 009 view and slots of SEASPAN LONCOMILLA

011

  • ←
  • → / ?
Bay 011 view and slots of SEASPAN LONCOMILLA

013 (014)

  • →

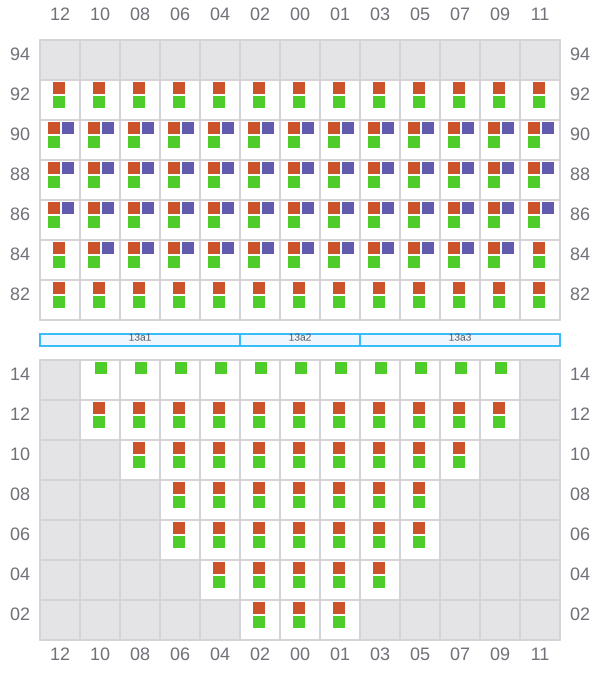

Bay 013 view and slots of SEASPAN LONCOMILLA

015

  • ←
  • → / ?

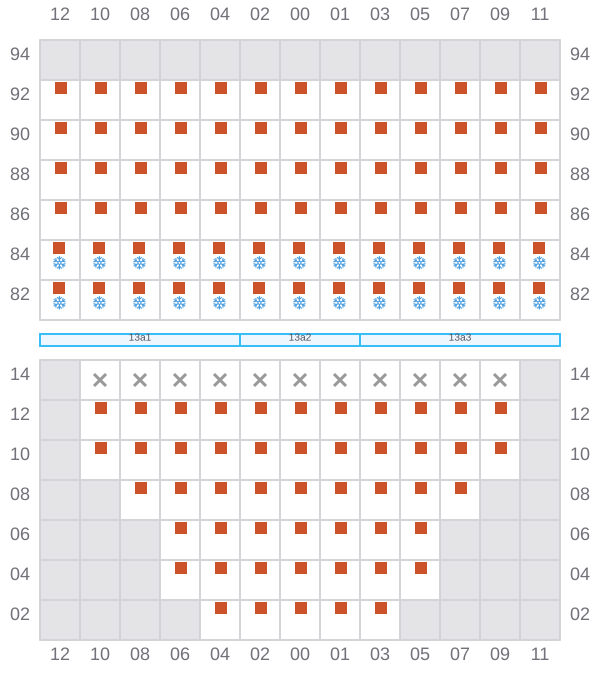

Bay 015 view and slots of SEASPAN LONCOMILLA

017 (018)

  • →

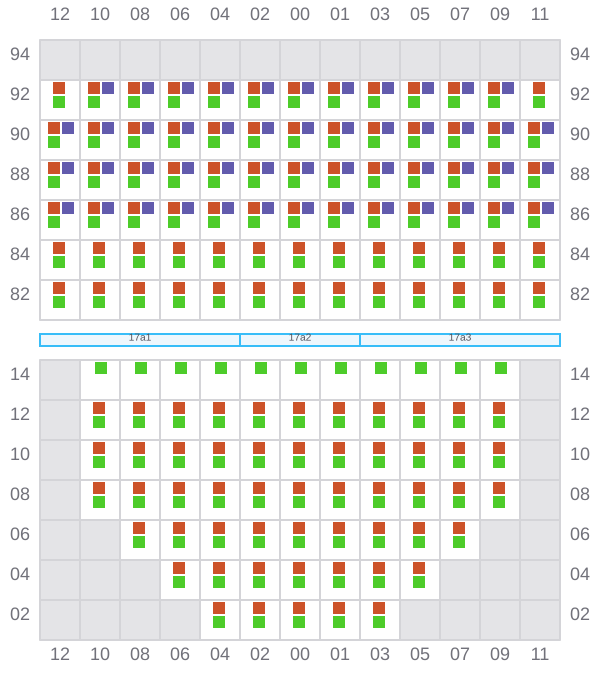

Bay 017 view and slots of SEASPAN LONCOMILLA

019

  • ←
  • → / ?

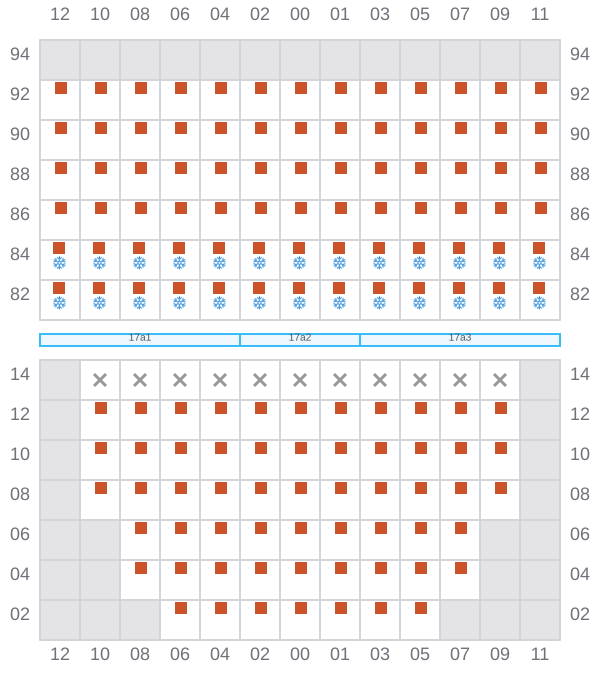

Bay 019 view and slots of SEASPAN LONCOMILLA

021 (022)

  • →

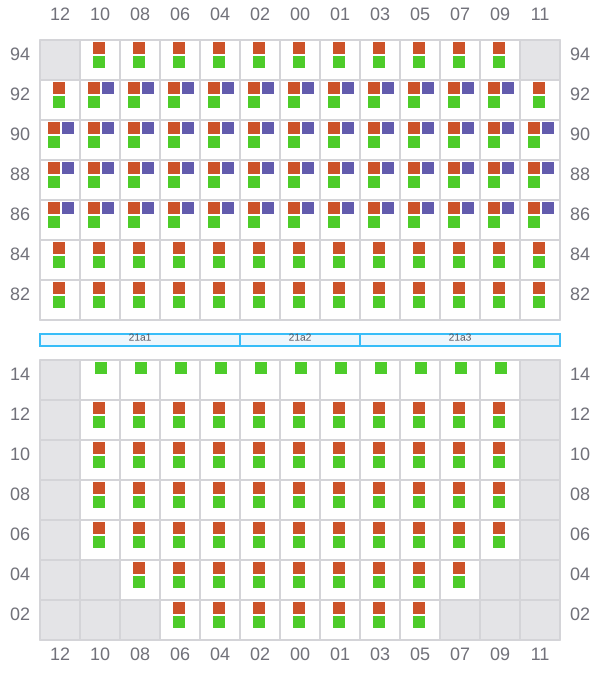

Bay 021 view and slots of SEASPAN LONCOMILLA

023

  • ←
  • → / ?

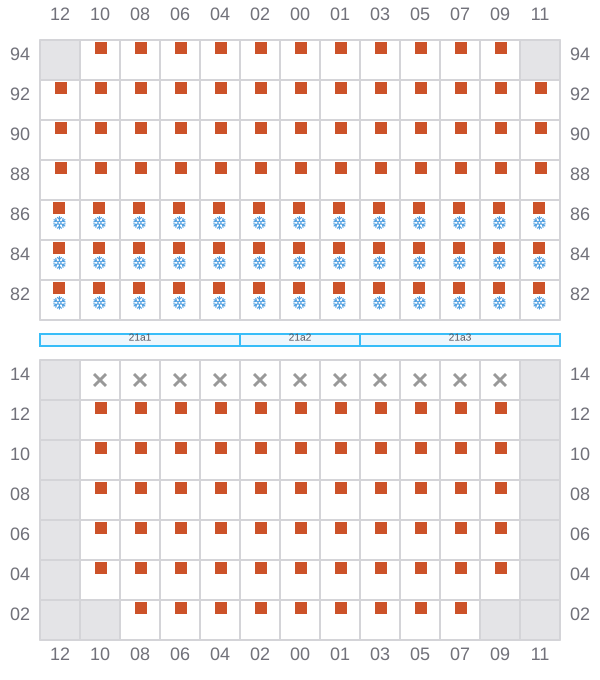

Bay 023 view and slots of SEASPAN LONCOMILLA

025 (026)

  • →

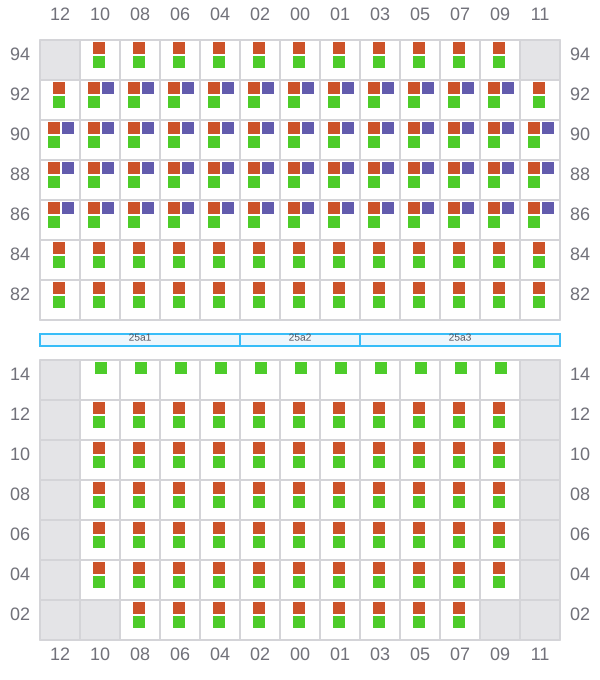

Bay 025 view and slots of SEASPAN LONCOMILLA

027

  • ←
  • ? / →

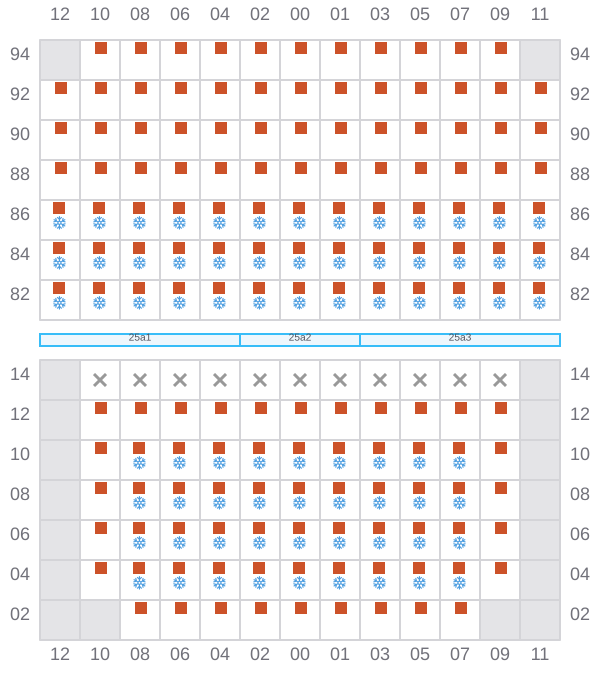

Bay 027 view and slots of SEASPAN LONCOMILLA

029 (030)

  • →

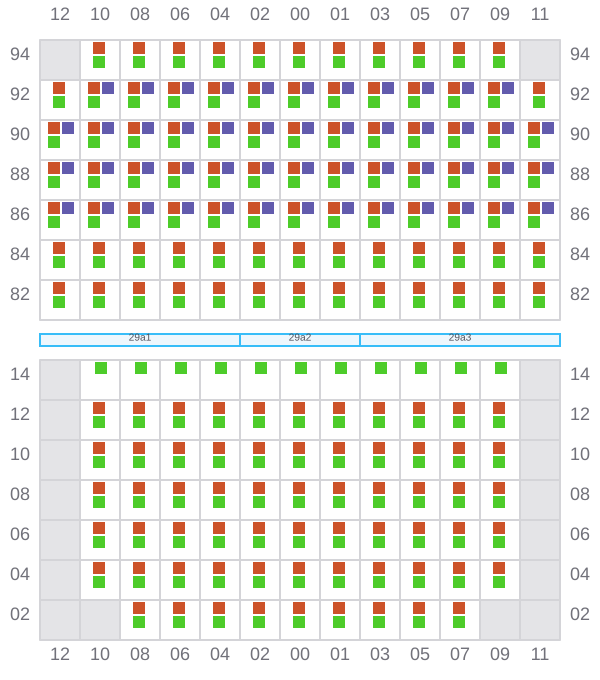

Bay 029 view and slots of SEASPAN LONCOMILLA

031

  • ←
  • →
Bay 031 view and slots of SEASPAN LONCOMILLA

033 (034)

  • →
Bay 033 view and slots of SEASPAN LONCOMILLA

035

  • ←
  • →
Bay 035 view and slots of SEASPAN LONCOMILLA

037 (038)

  • →
Bay 037 view and slots of SEASPAN LONCOMILLA

039

  • ←
  • →
Bay 039 view and slots of SEASPAN LONCOMILLA

041 (042)

  • →

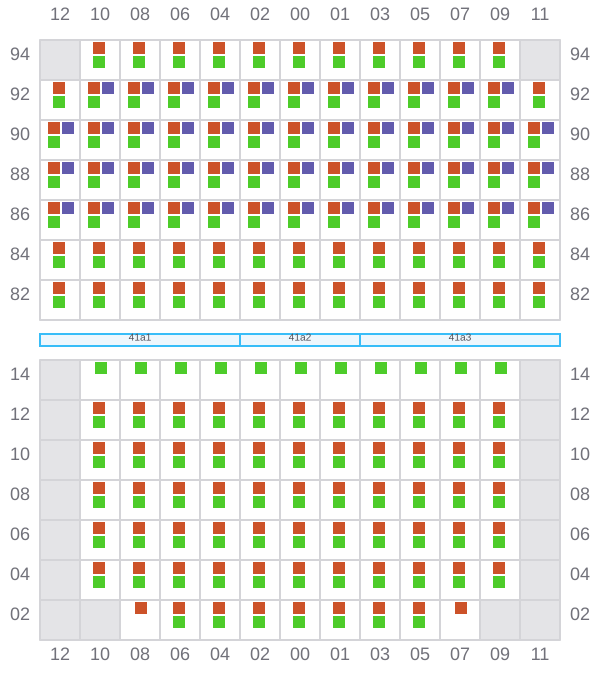

Bay 041 view and slots of SEASPAN LONCOMILLA

043

  • ←
  • →

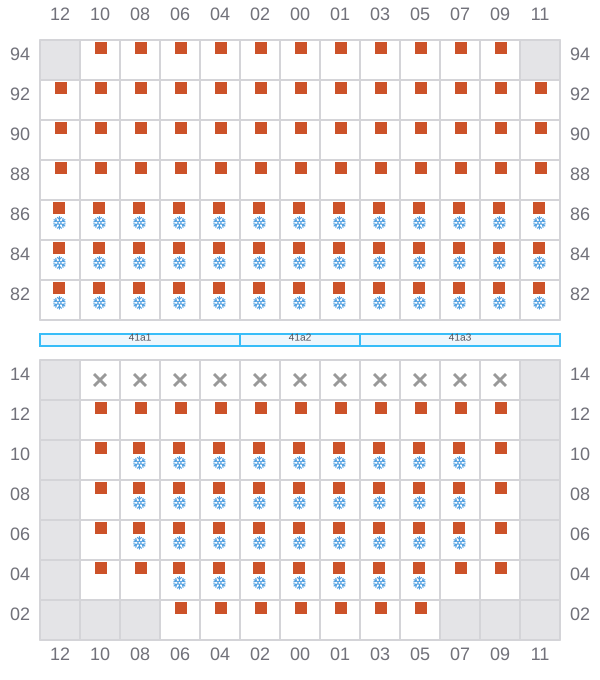

Bay 043 view and slots of SEASPAN LONCOMILLA

045 (046)

  • →

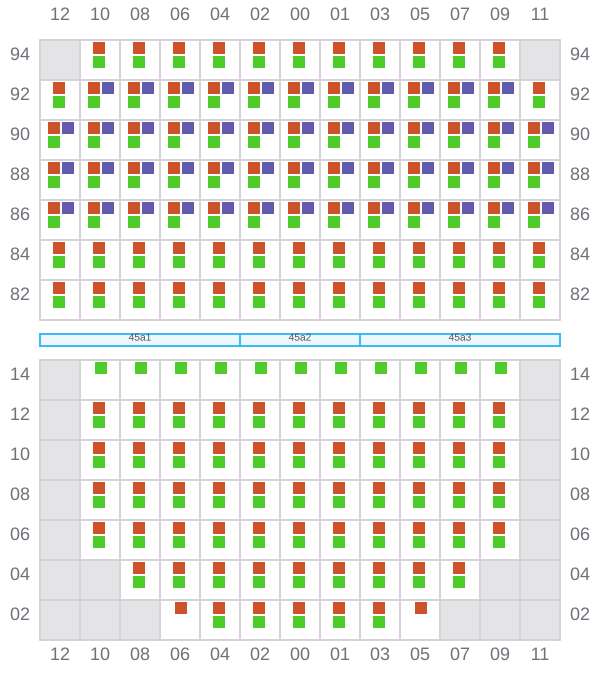

Bay 045 view and slots of SEASPAN LONCOMILLA

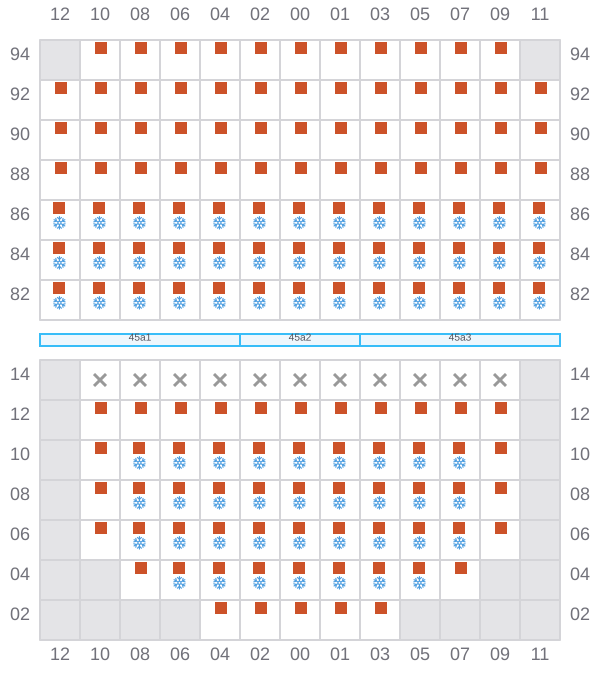

047

  • ←
  • →
Bay 047 view and slots of SEASPAN LONCOMILLA

049 (050)

  • → / ?
  • → / ?

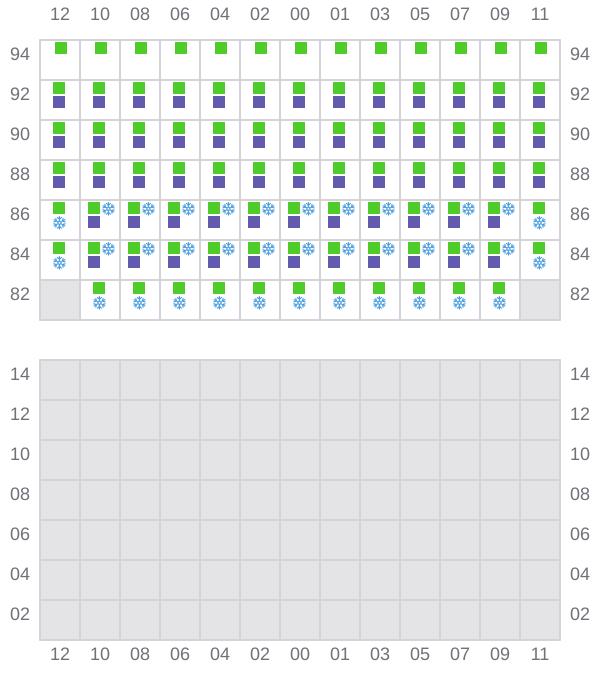

Bay 049 view and slots of SEASPAN LONCOMILLA

051

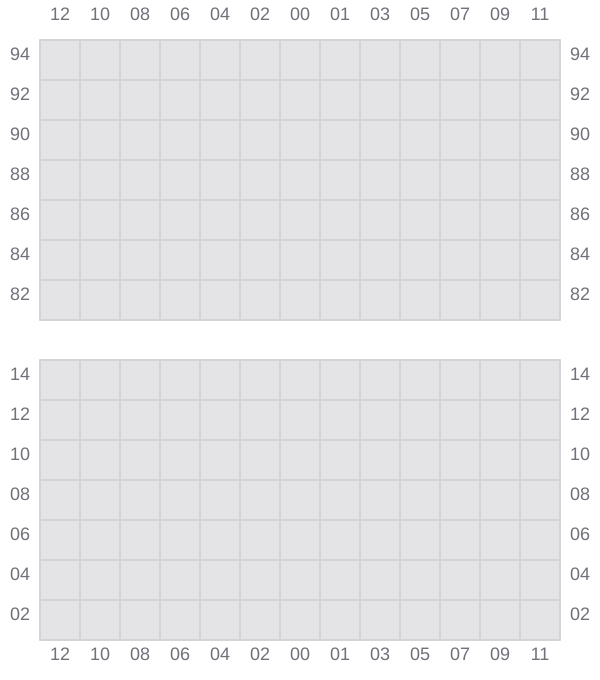

Bay 051 view and slots of SEASPAN LONCOMILLA

053 (054)

  • →

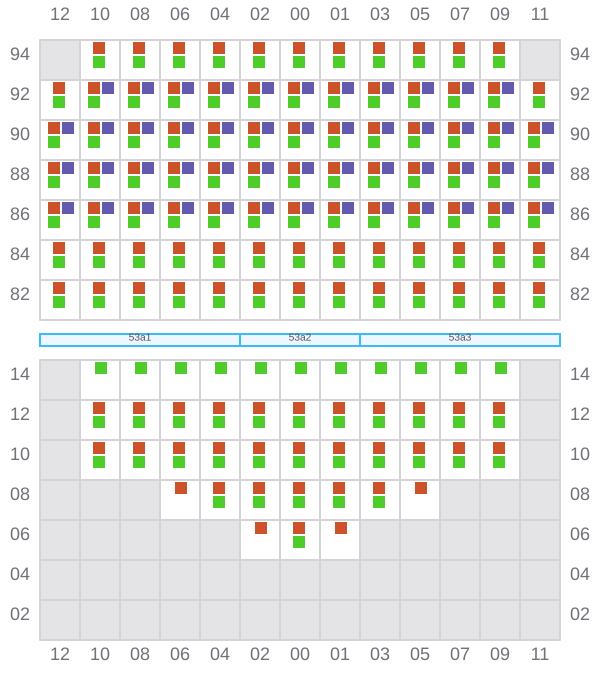

Bay 053 view and slots of SEASPAN LONCOMILLA

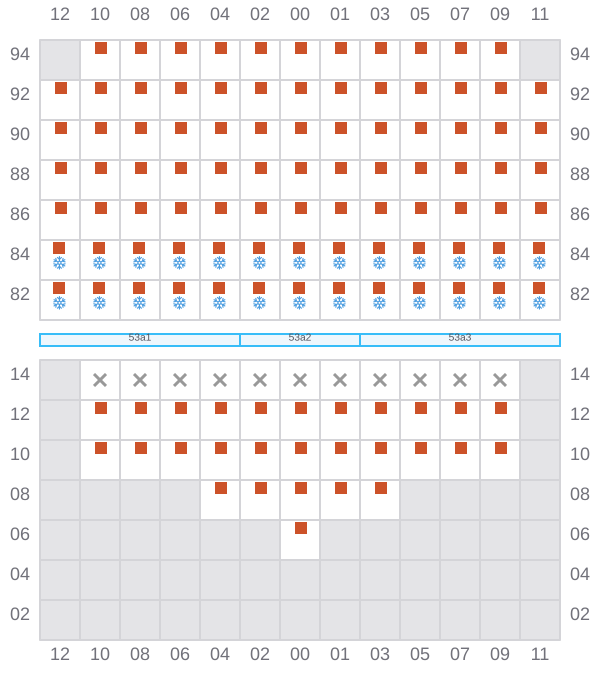

055

  • ←
  • → / ?
Bay 055 view and slots of SEASPAN LONCOMILLA

057 (058)

  • →

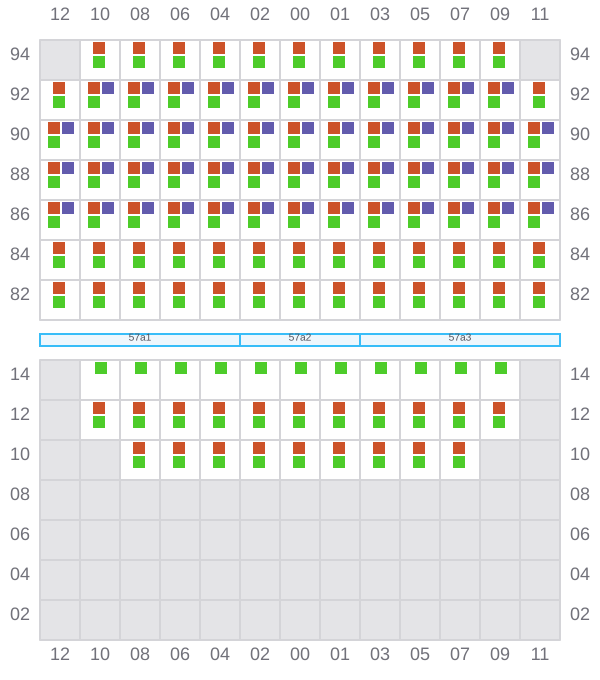

Bay 057 view and slots of SEASPAN LONCOMILLA

059

  • ←
  • → / ?

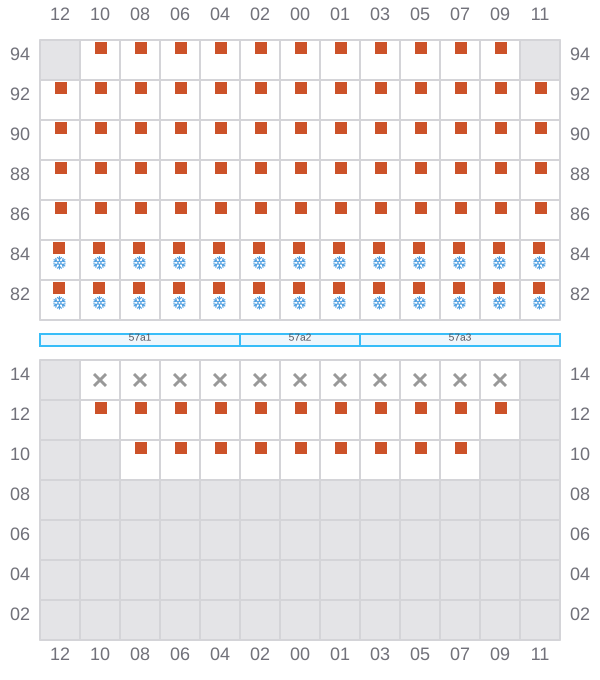

Bay 059 view and slots of SEASPAN LONCOMILLA

061 (062)

  • → / ?
  • → / ?

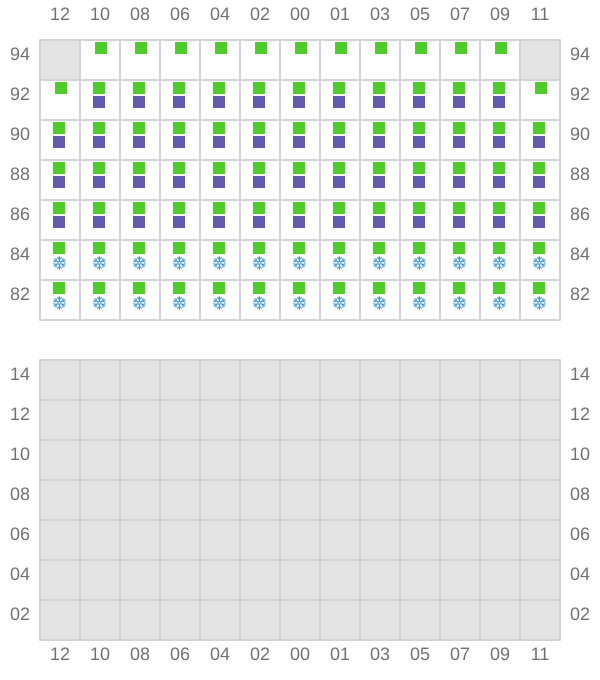

Bay 061 view and slots of SEASPAN LONCOMILLA
