SEASPAN LUMACO
9443487 | VRFB5 | CHI by ************* Last update: Tue Jun 27 2023

General Info

Ship Name:SEASPAN LUMACO
IMO Code:9443487
Call Sign:VRFB5
Line Operator:CHI
Class Name for Sister Ships:LUM
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.63
LOA (Length Overall):261.10
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

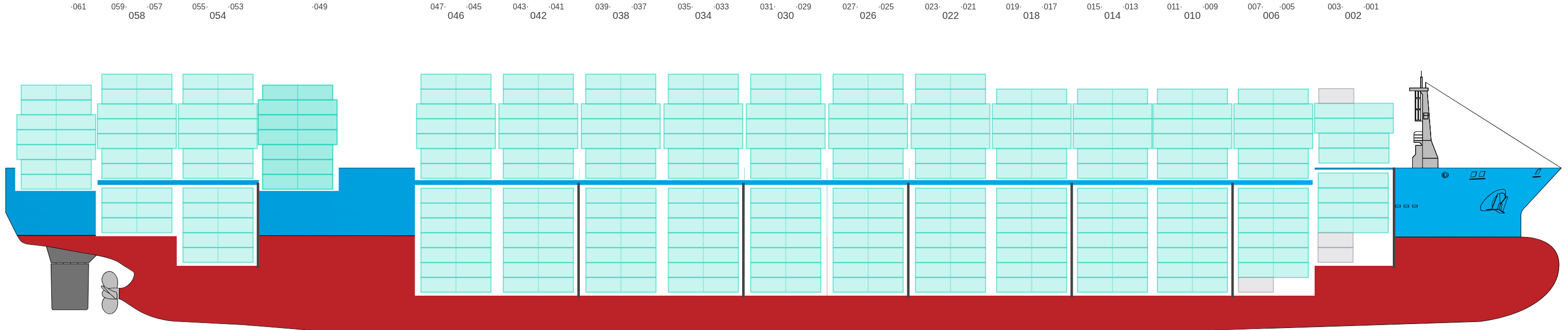

Side View

SEASPAN LUMACO

Hatch-Covers View

SEASPAN LUMACO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

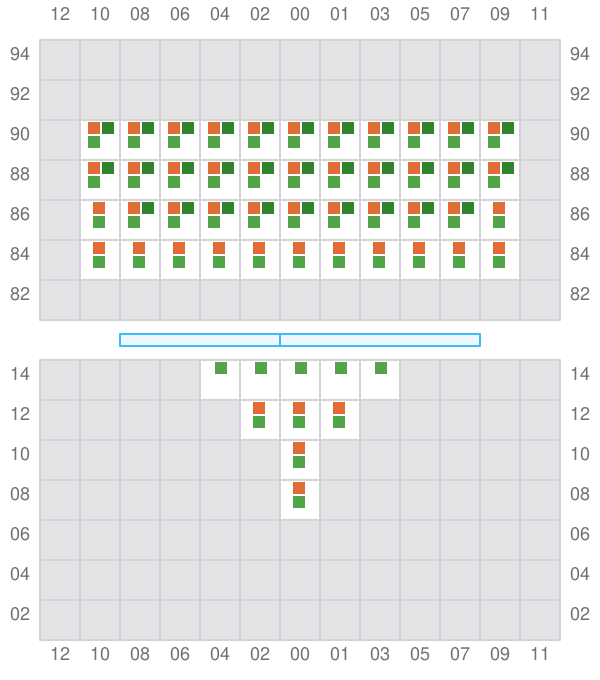

001 (002)

  • →
SEASPAN LUMACO

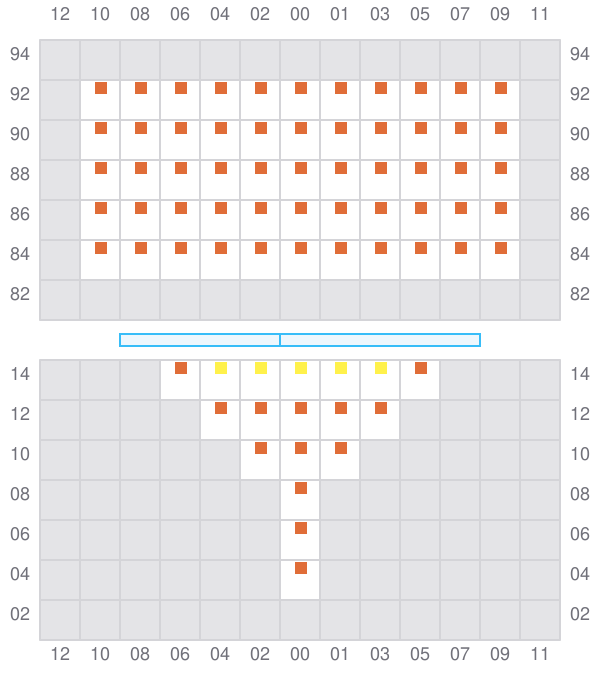

003

  • ←
SEASPAN LUMACO

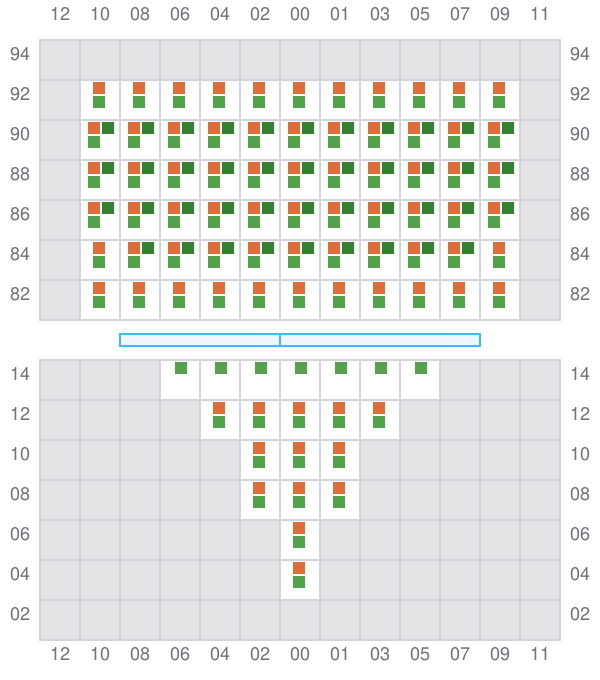

005 (006)

  • →
SEASPAN LUMACO

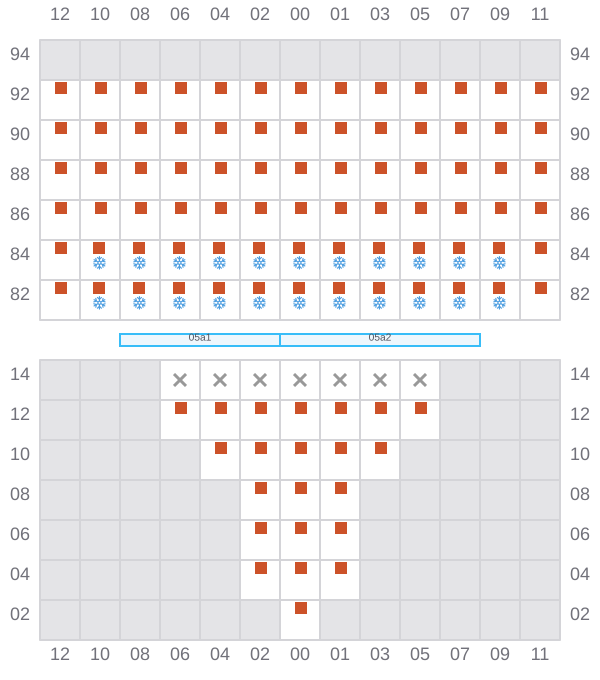

007

  • ←
  • → / ?
SEASPAN LUMACO

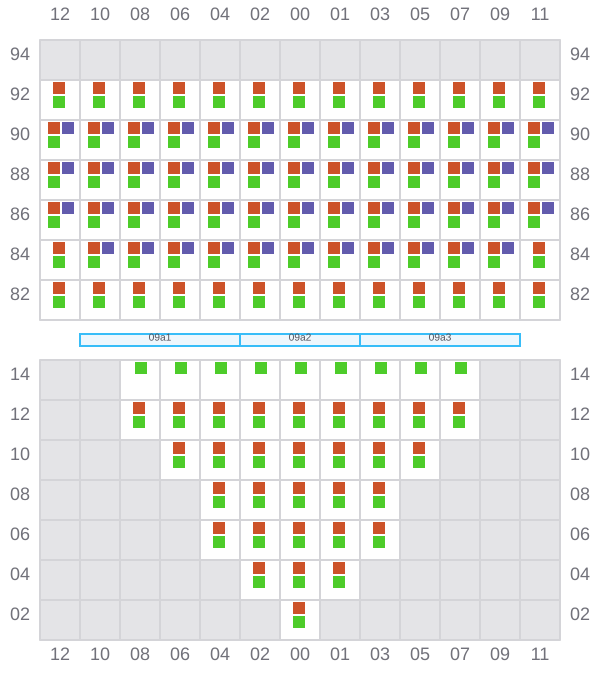

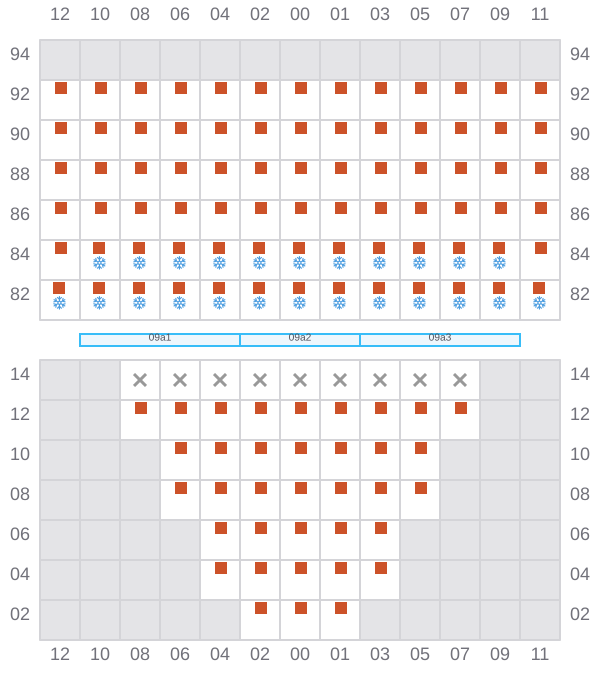

009 (010)

  • →
SEASPAN LUMACO

011

  • ←
  • → / ?
SEASPAN LUMACO

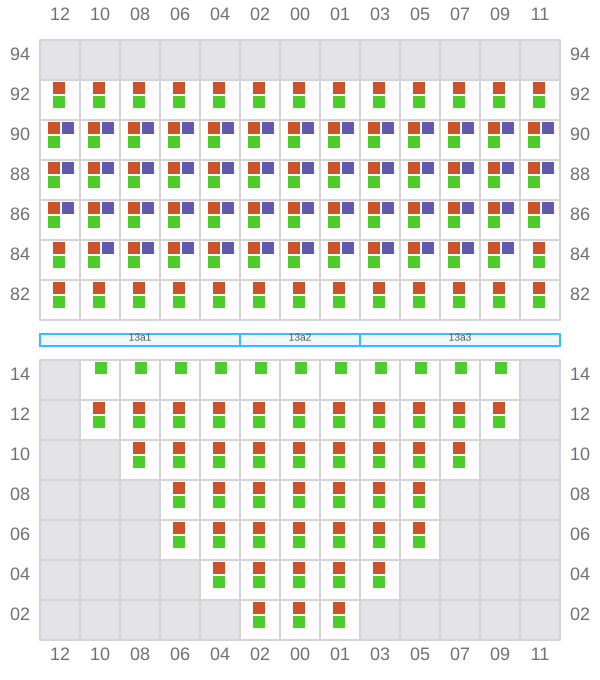

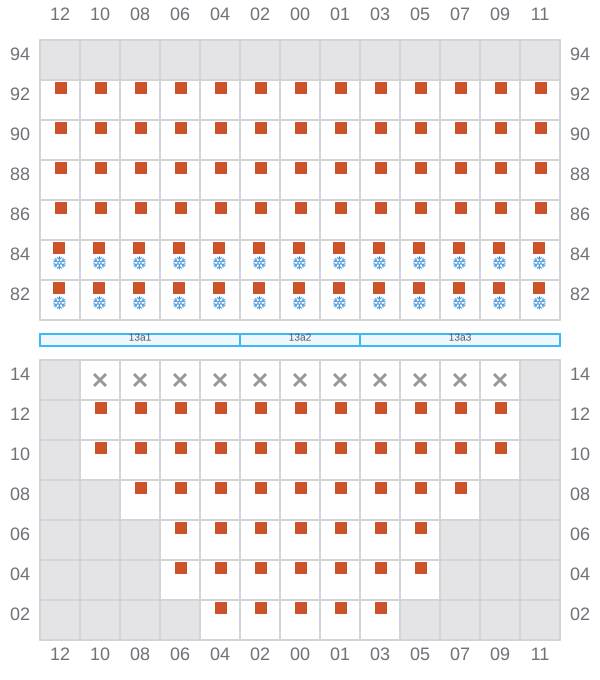

013 (014)

  • →
SEASPAN LUMACO

015

  • ←
  • → / ?
SEASPAN LUMACO

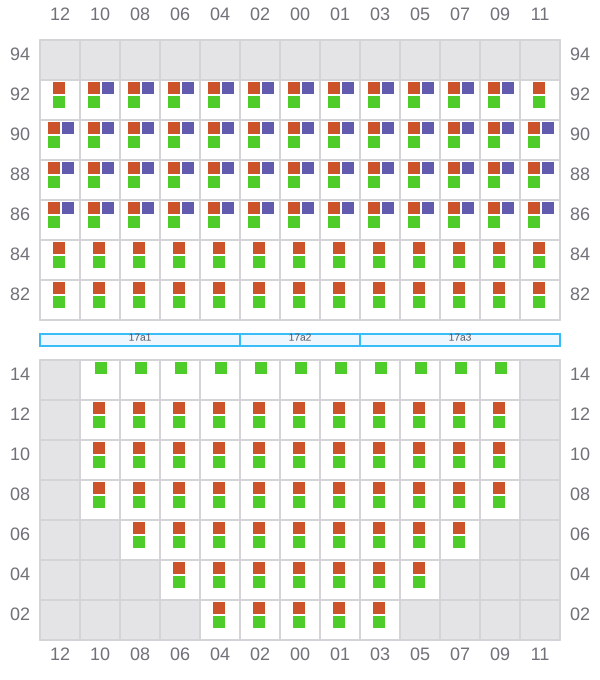

017 (018)

  • →
SEASPAN LUMACO

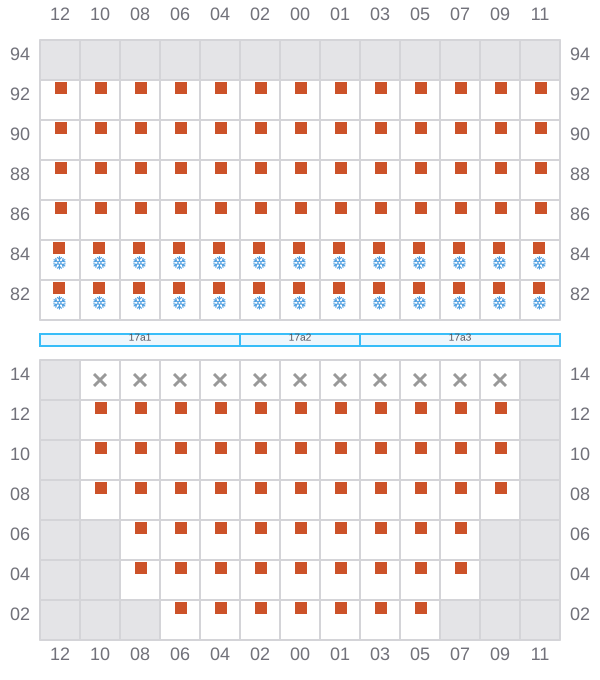

019

  • ←
  • → / ?
SEASPAN LUMACO

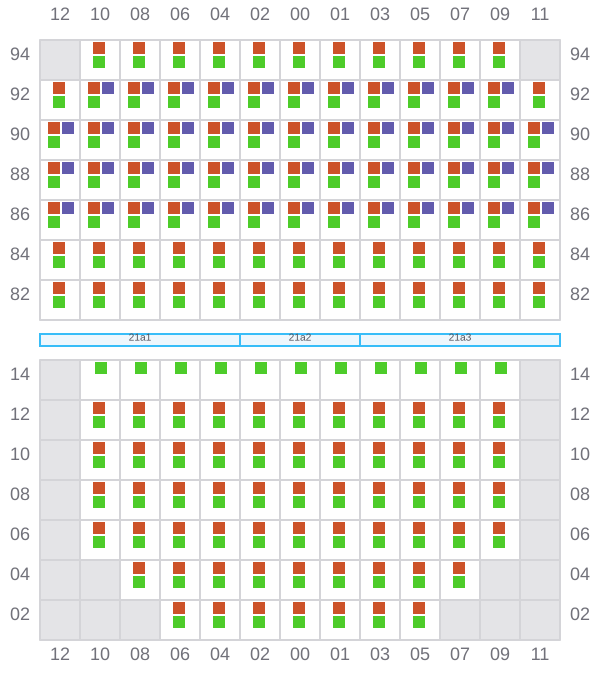

021 (022)

  • →
SEASPAN LUMACO

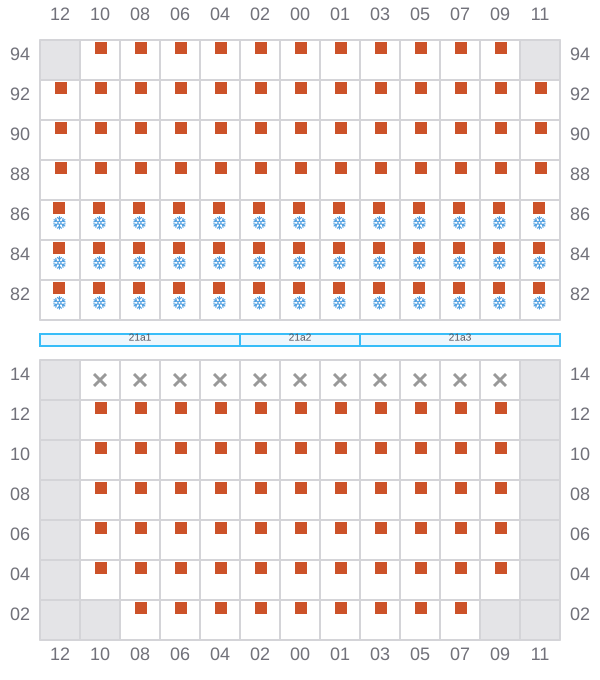

023

  • ←
  • → / ?
SEASPAN LUMACO

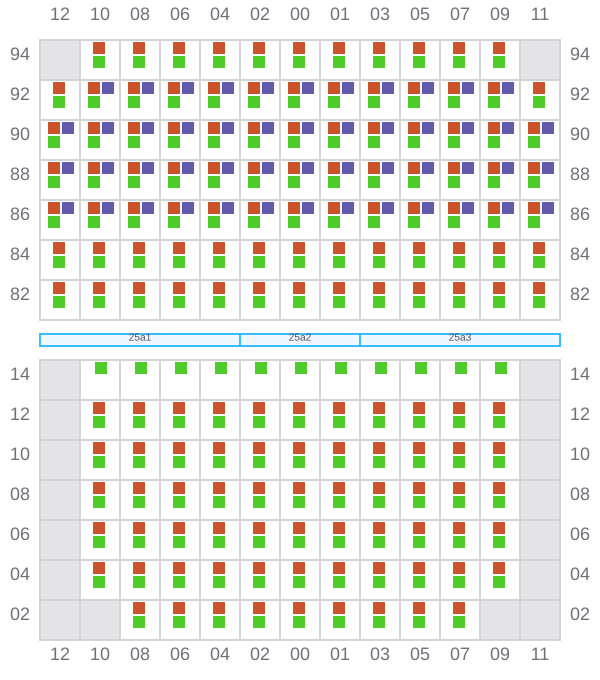

025 (026)

  • →
SEASPAN LUMACO

027

  • ←
  • ? / →
SEASPAN LUMACO

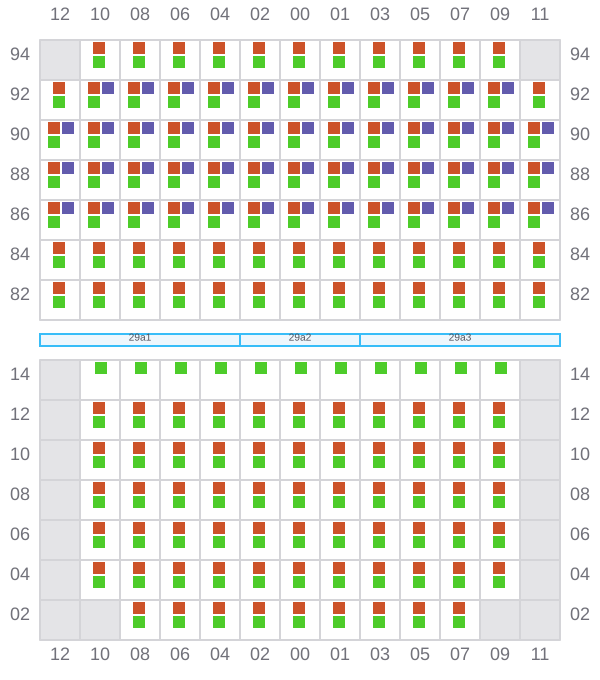

029 (030)

  • →
SEASPAN LUMACO

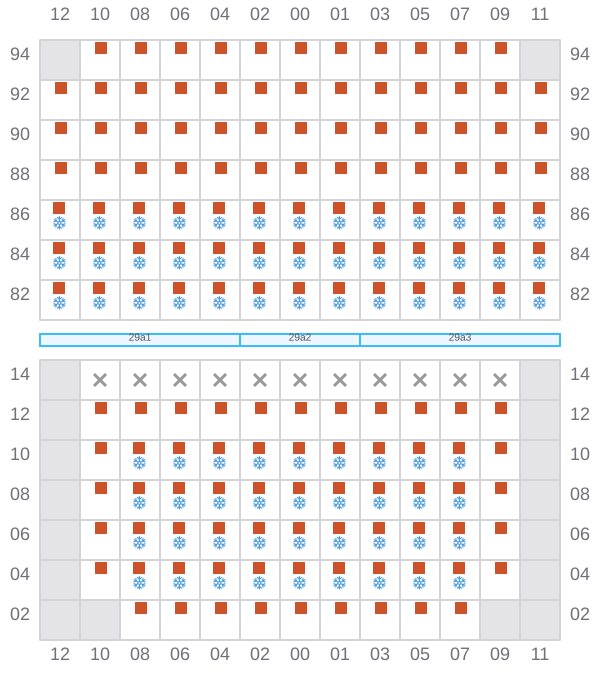

031

  • ←
  • →
SEASPAN LUMACO

033 (034)

  • →
SEASPAN LUMACO

035

  • ←
  • →
SEASPAN LUMACO

037 (038)

  • →
SEASPAN LUMACO

039

  • ←
  • →
SEASPAN LUMACO

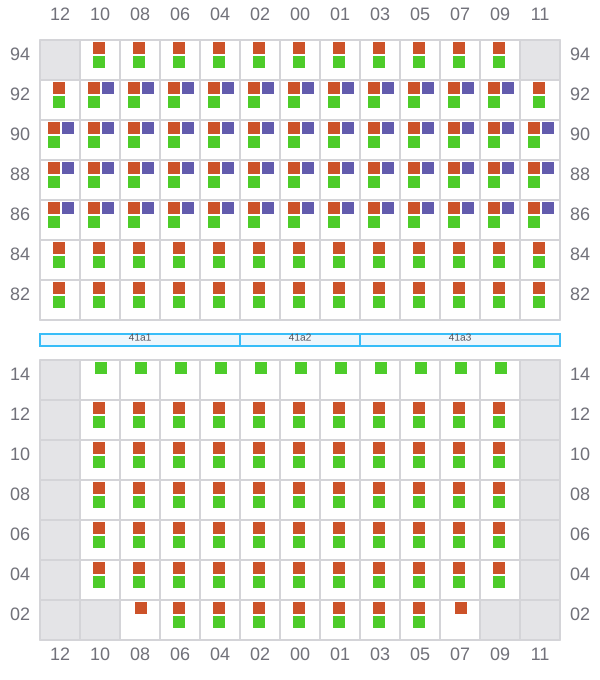

041 (042)

  • →
SEASPAN LUMACO

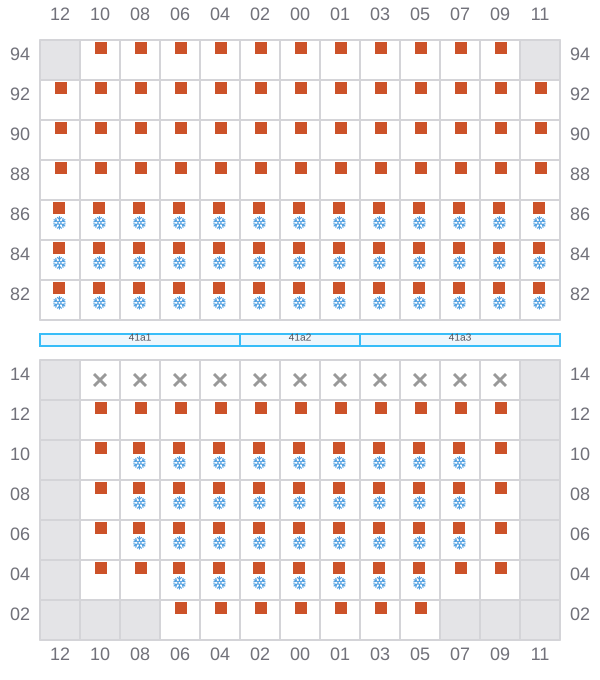

043

  • ←
  • →
SEASPAN LUMACO

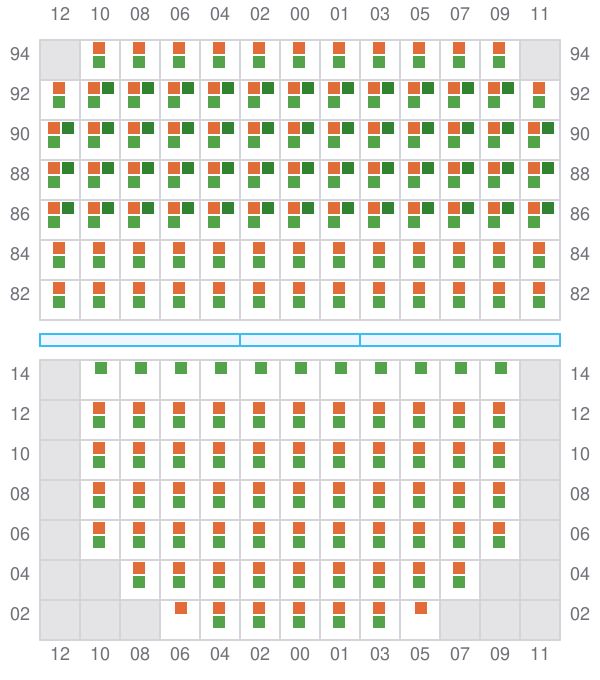

045 (046)

  • →
SEASPAN LUMACO

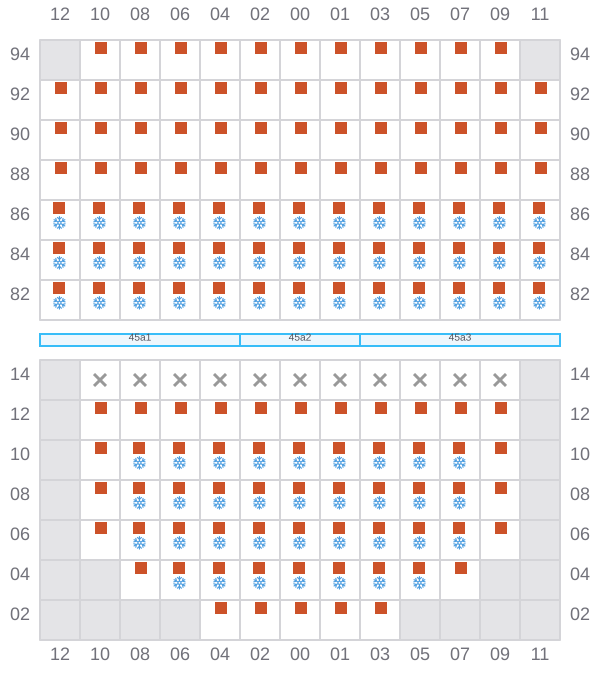

047

  • ←
  • →
SEASPAN LUMACO

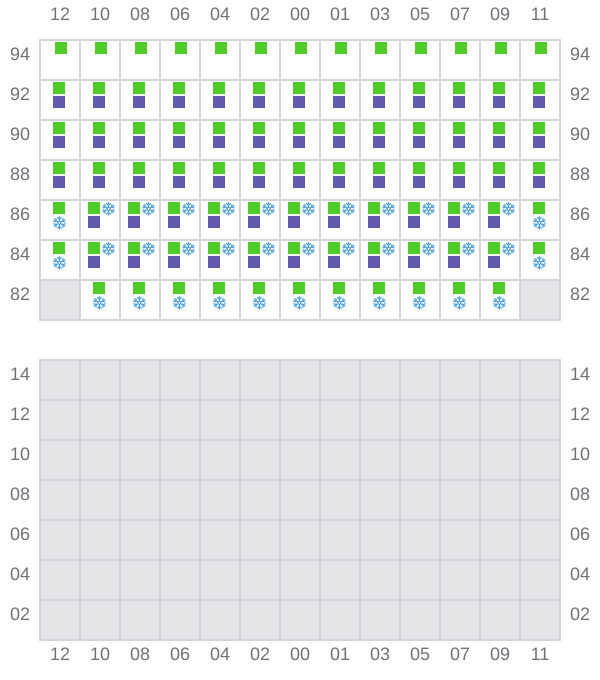

049 (050)

  • → / ?
  • → / ?
SEASPAN LUMACO

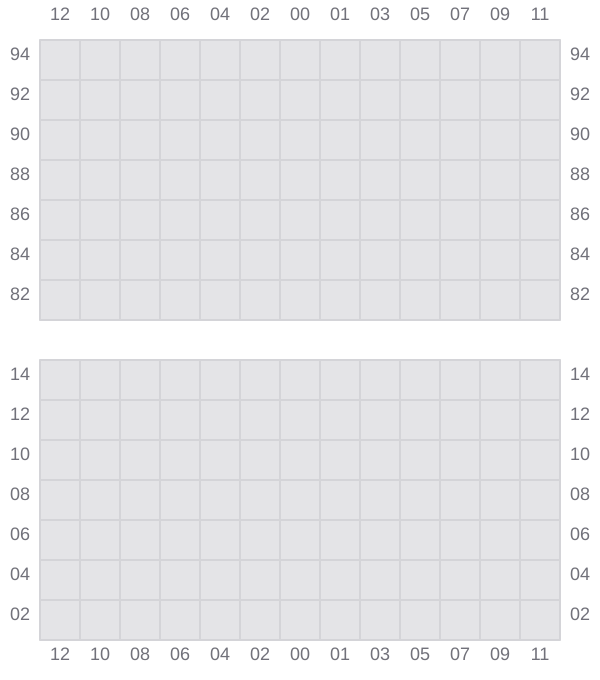

051

SEASPAN LUMACO

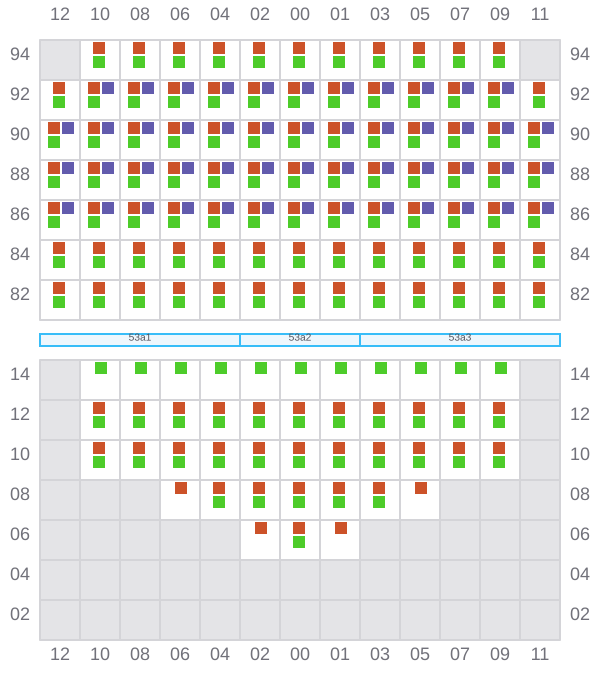

053 (054)

  • →
SEASPAN LUMACO

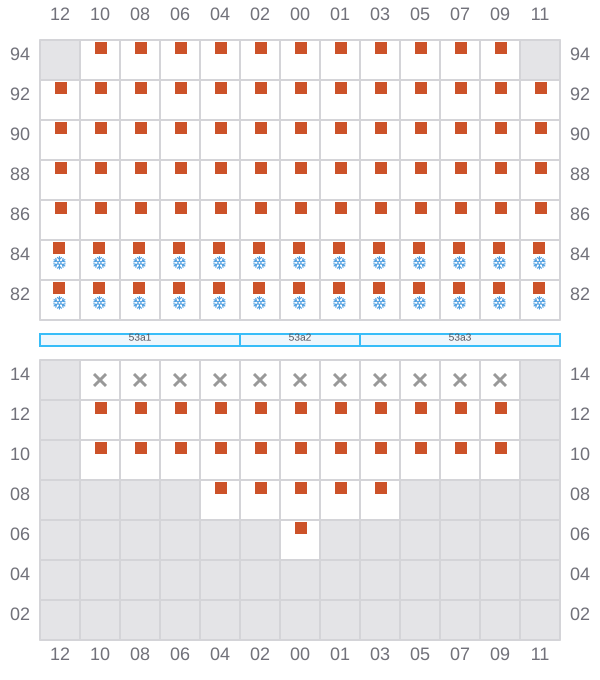

055

  • ←
  • → / ?
SEASPAN LUMACO

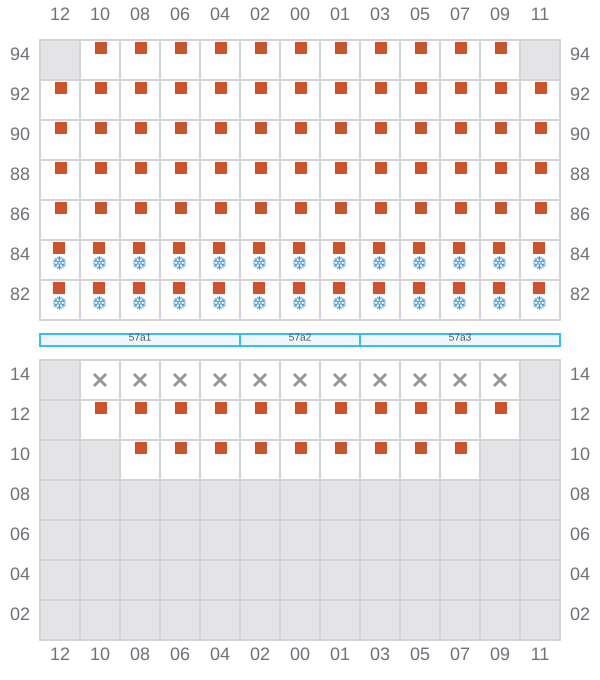

057 (058)

  • →
SEASPAN LUMACO

059

  • ←
  • → / ?
SEASPAN LUMACO

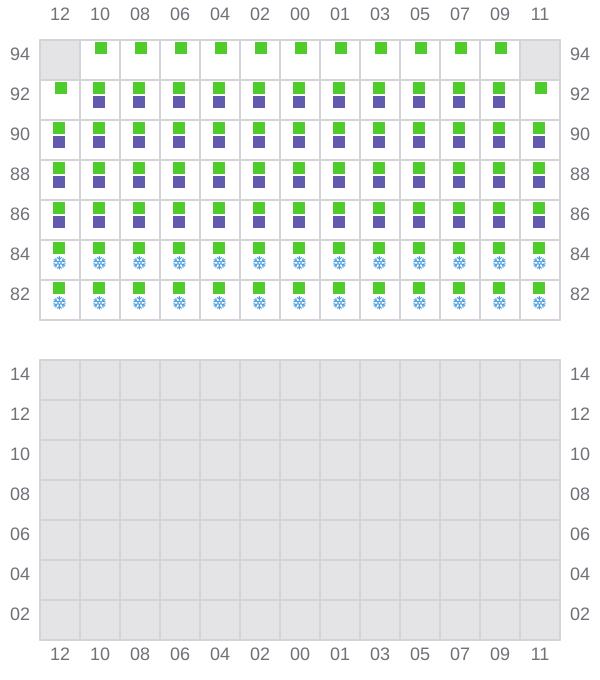

061 (062)

  • → / ?
  • → / ?
SEASPAN LUMACO
